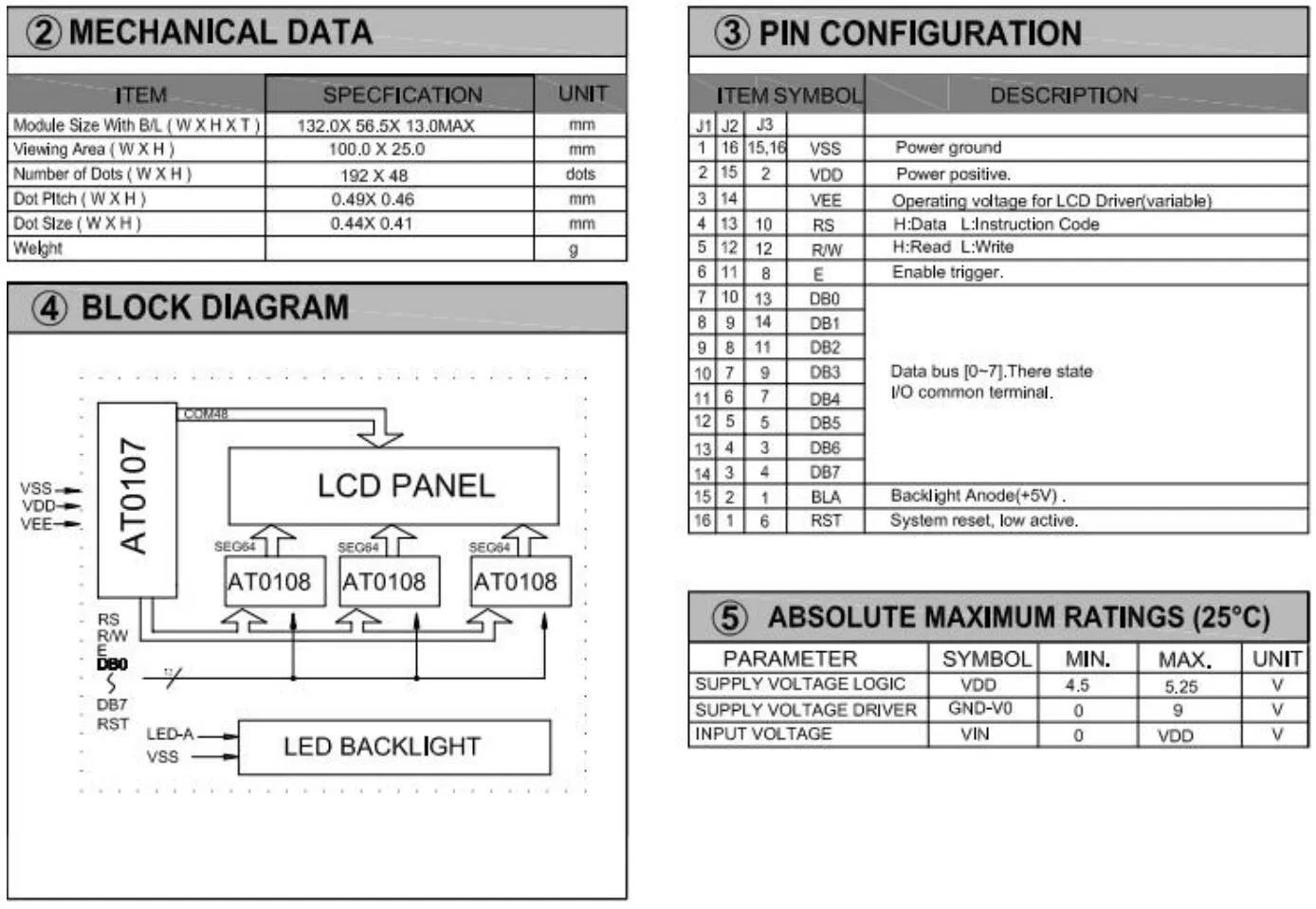

Basic Specifications
| Model NO. | RYG19248A |
| Resolution | 192*48 Dots |
| Type | Graphic LCD Module |
| Display Technology | FSTN/CSTN |
| Touch Function | No Touch |
| Response Time | 150ms |
| Viewing Angle | 6h / 12h Optional |

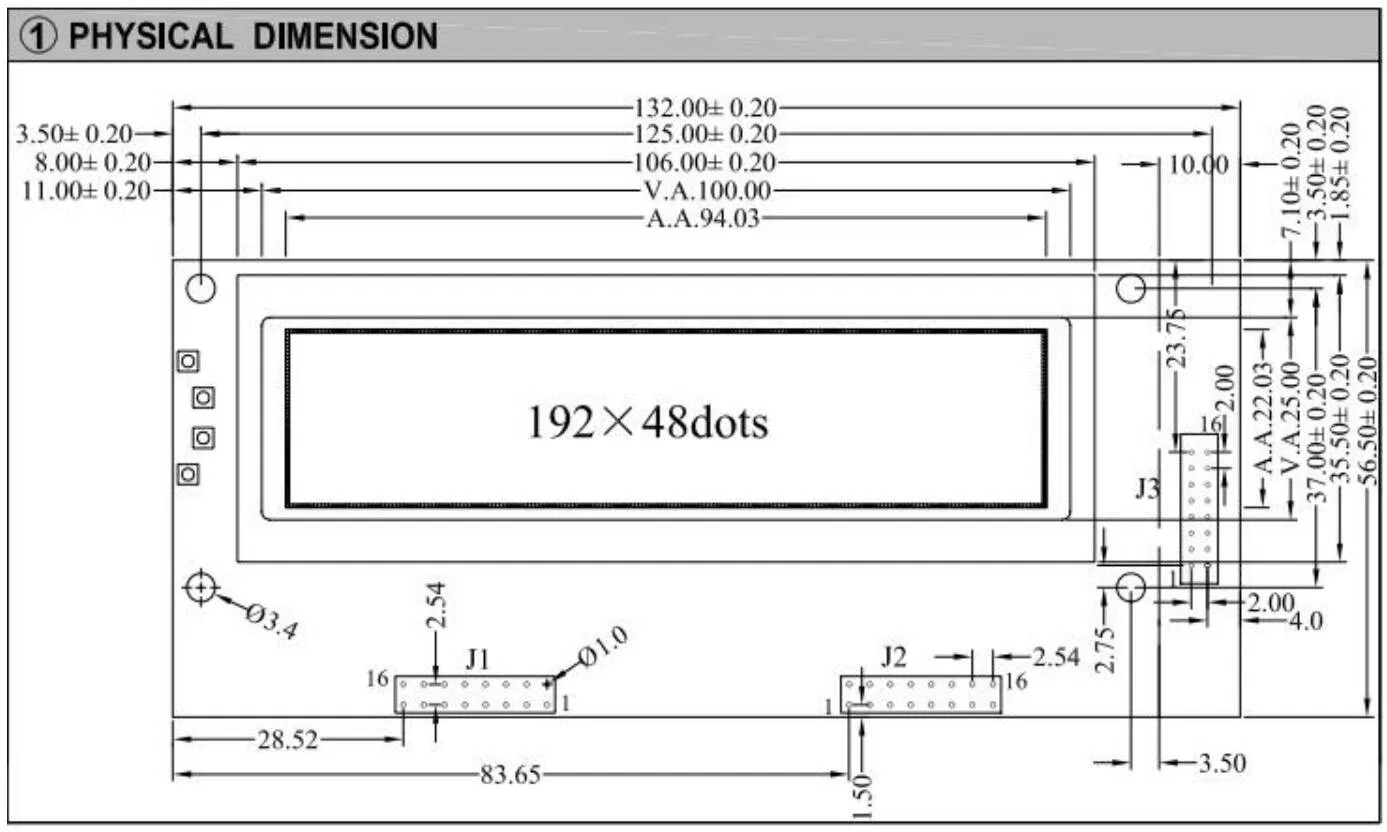

| Module Size | 132.0*56.5*13.0 mm |
| View Area | 100.0*25.0 mm |
| Control IC | At0107 / At0108 |
| Supply Voltage | 4.5 to 5.25V |
| Operating Temp | -20°C to +70°C |
Product Description

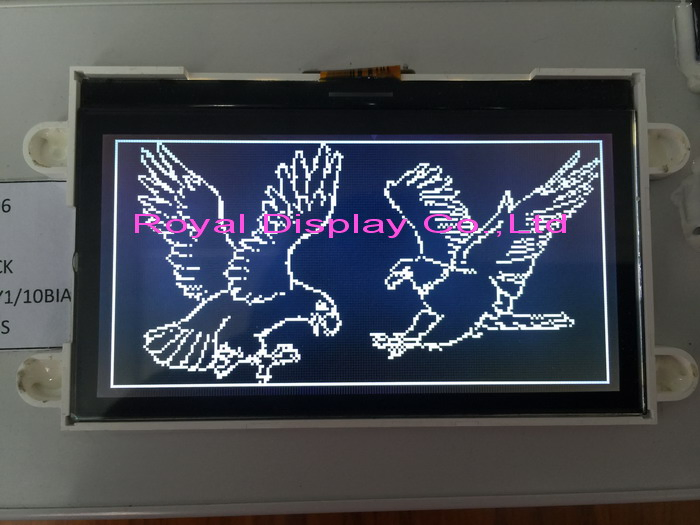

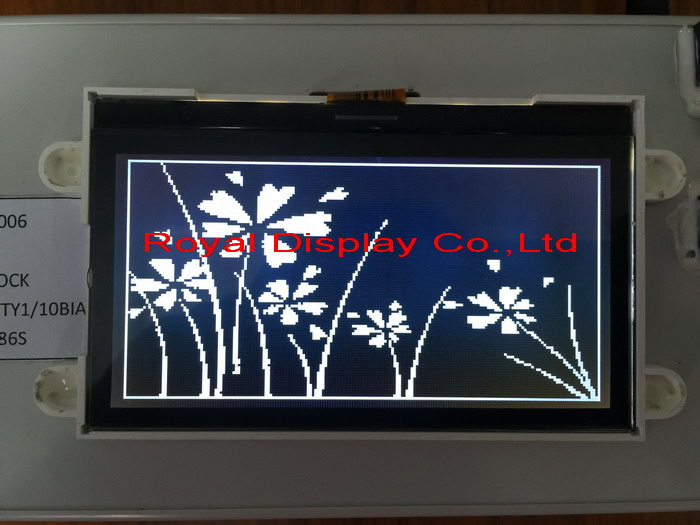

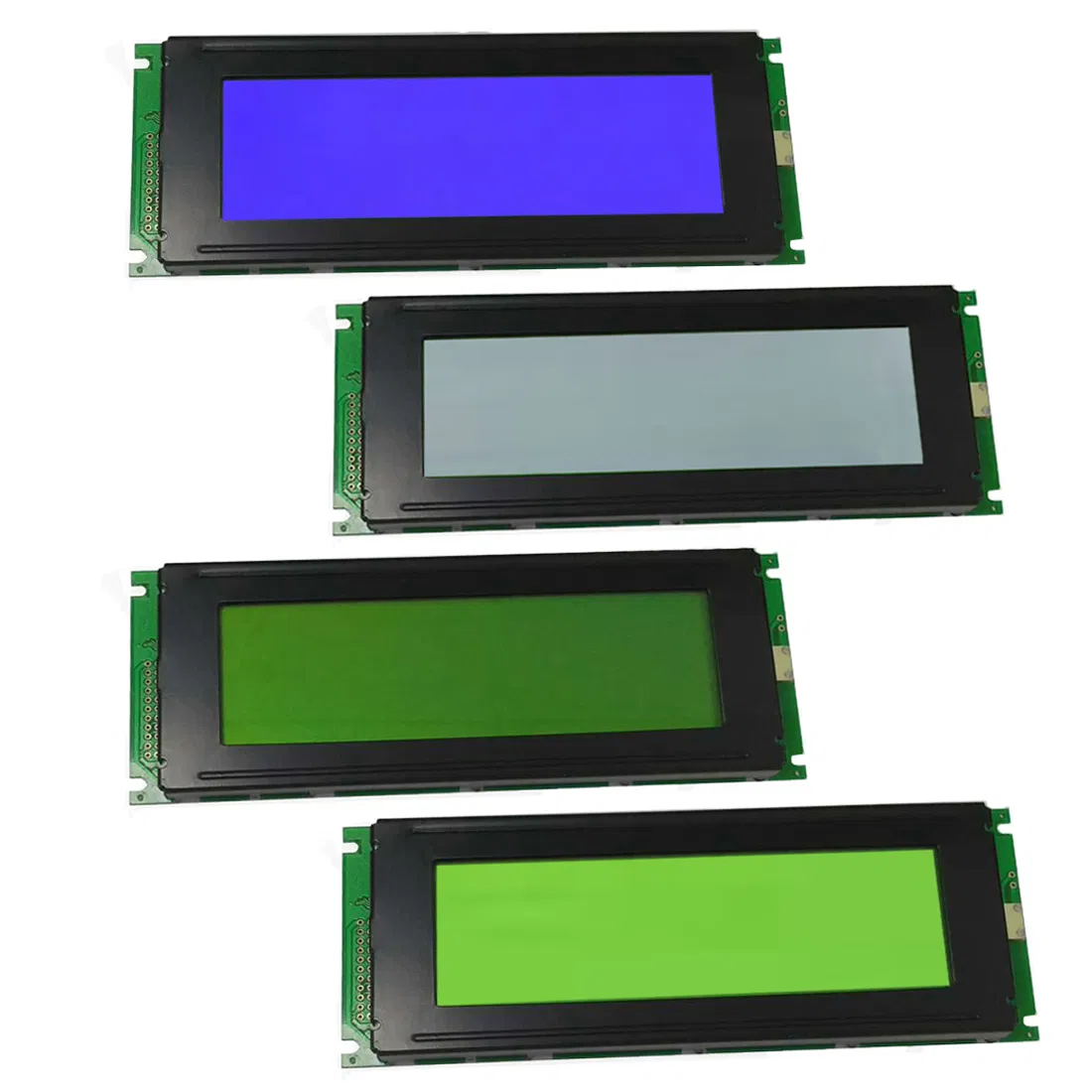

A graphic LCD (Liquid Crystal Display) is designed to display complex graphical content and custom patterns. Unlike standard character LCDs, this 192*48 graphic LCD module allows for individual pixel control, enabling the creation of intricate shapes, icons, and high-quality graphical user interfaces. It is an ideal solution for industrial displays requiring clarity and wide temperature resilience.
Core Advantages
💎
High Resolution & Clarity
Provides high pixel density for detailed graphics and sharp text, enhancing visual clarity for technical data.
🛠️
Full Customization
Supports individual pixel mapping for custom icons, unique fonts, and interactive UI elements like sliders and menus.
🔋
Low Power Consumption
Highly efficient power usage compared to TFT-LCD technologies, making it perfect for portable or battery-operated devices.
📏
Compact & Cost-Effective
Slim form factor suitable for space-constrained applications, offering a professional display solution at a competitive price.
Key Applications
The 192*48 graphic FSTN super wide temperature LCD is engineered for reliability across various demanding sectors:
- Industrial Equipment: Control panels and process monitoring systems in harsh environments.
- Automotive Displays: Dashboards, infotainment, and diagnostics withstanding temperature fluctuations.
- Outdoor Systems: Kiosks, signage, and information panels requiring visibility in extreme heat or cold.
- Medical Devices: Patient monitoring and diagnostic imaging in hospital environments.
- Energy & Utilities: Monitoring stations for power plants and renewable energy systems.
Professional Service
✅

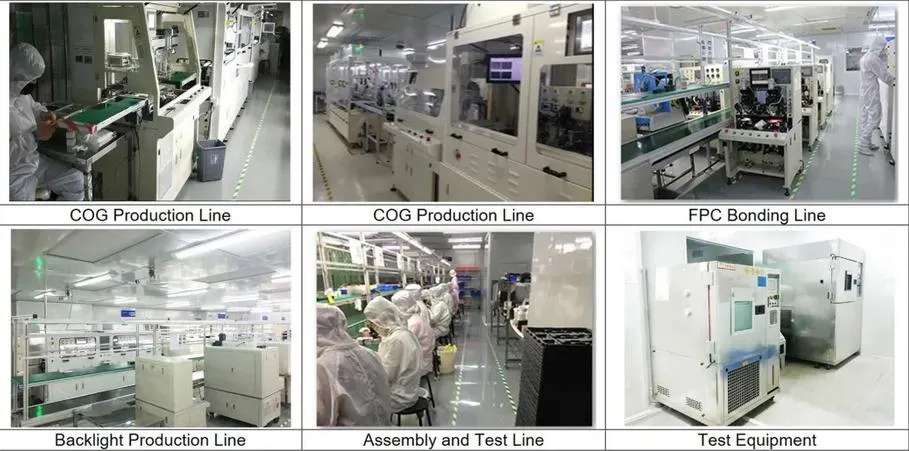

Quality Control: Every unit is tested with specialized instruments prior to delivery.
📦
Secure Packaging: Anti-static bags and foam boxes ensure safe international transportation.
✈️
Fast Shipping: Reliable delivery via DHL, UPS, TNT, or Air freight.
🎨
OEM/ODM Support: Professional engineering team for custom display requirements.
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a specialized manufacturer. Our production facility is equipped to handle both standard and custom LCD module requirements.
How can I obtain product samples?
The process involves: Inquiry submission → Quotation → Tooling charge payment → Drawing confirmation → Sample production → Delivery via air or sea.
Can you provide custom LCD designs based on our needs?
Yes, our professional engineering team can design LCD modules specifically tailored to your technical requirements and environment.
What information is needed to place an order?
Please provide the product part number, required quantity, delivery timeline, and destination shipping details for a formal proforma invoice.
What is the typical lead time for mass production?
Mass production generally takes 25-30 business days, depending on the specific model complexity and total order volume.
What is the warranty period for your display modules?
We provide a comprehensive one-year warranty on all our standard LCD modules to ensure long-term reliability.
