| Model NO. | RYG19264A |
| Type | Graphic LCD |
| Display Technology | STN |
| Response Time | 150ms |
| Viewing Angle | Wide View |

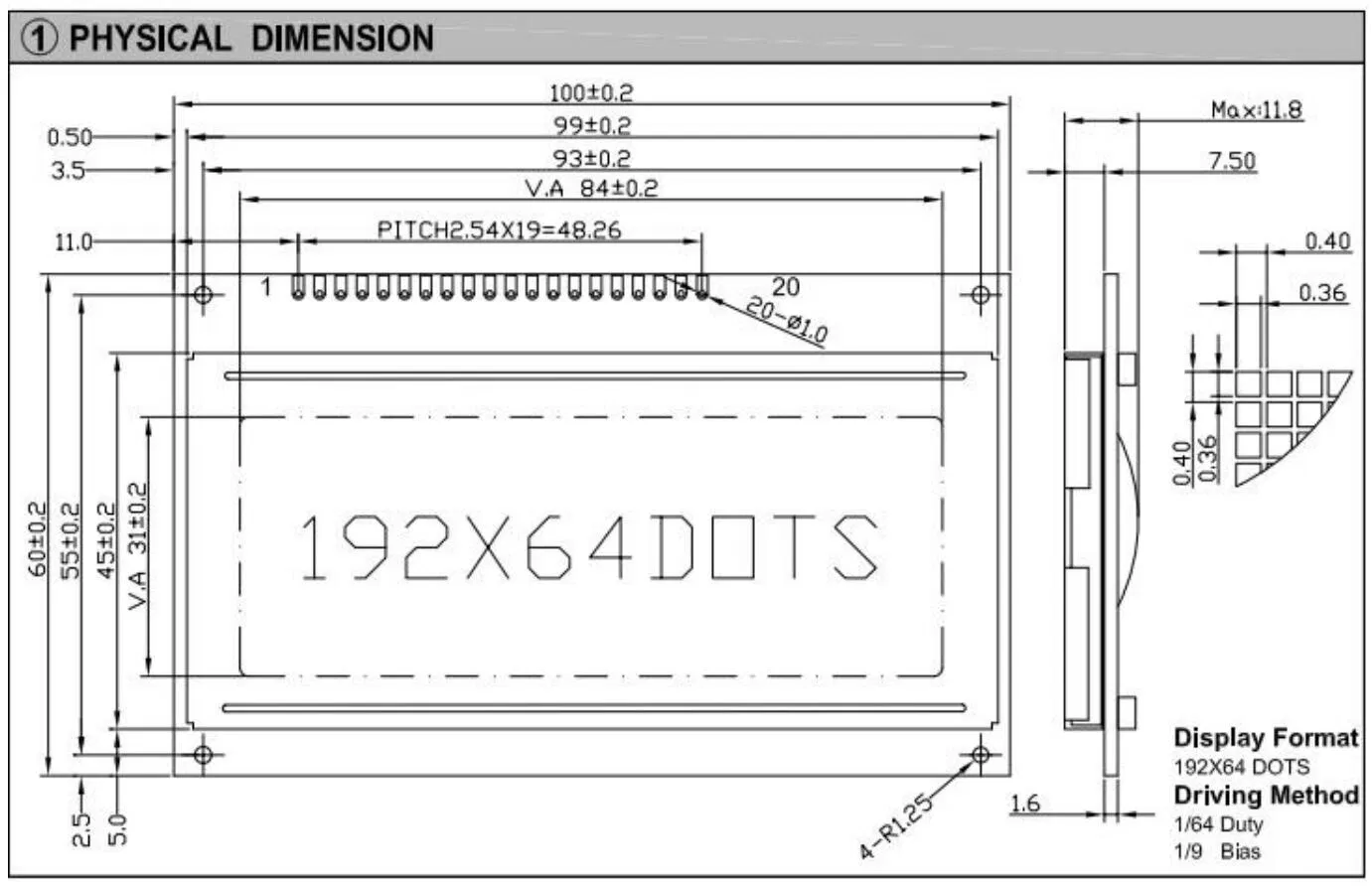

| Module Dimension | 100.0*60.0*11.8 mm |
| View Area | 84.0*31.0 mm |
| DOT Pitch | 0.40*0.40 mm |
| Supply Voltage | 5.25 V |
| Origin | China |

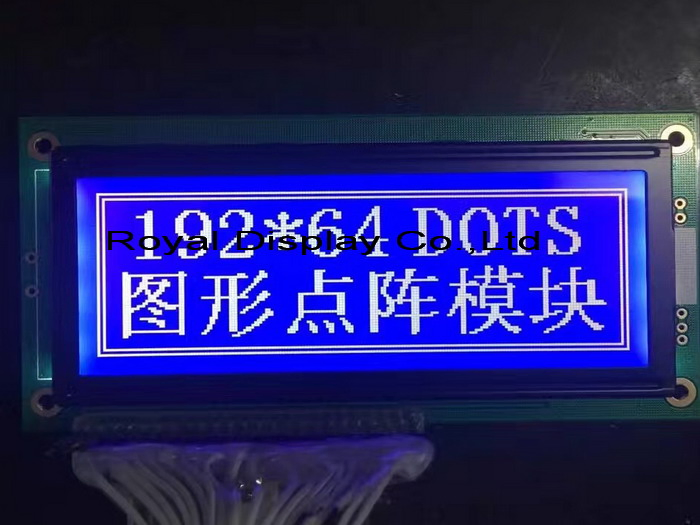

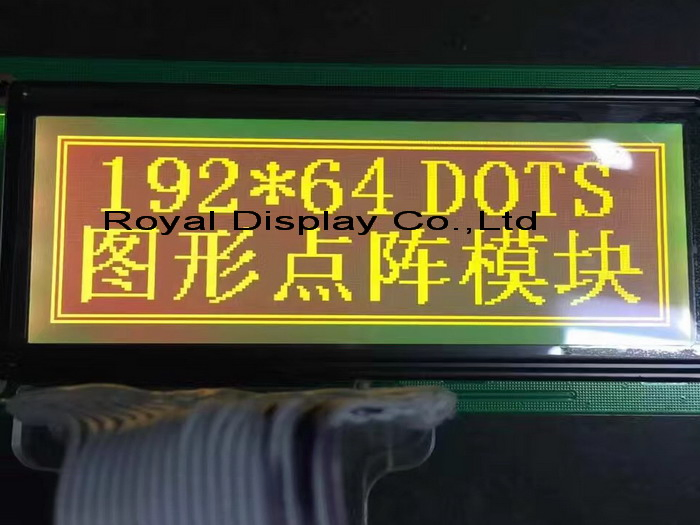

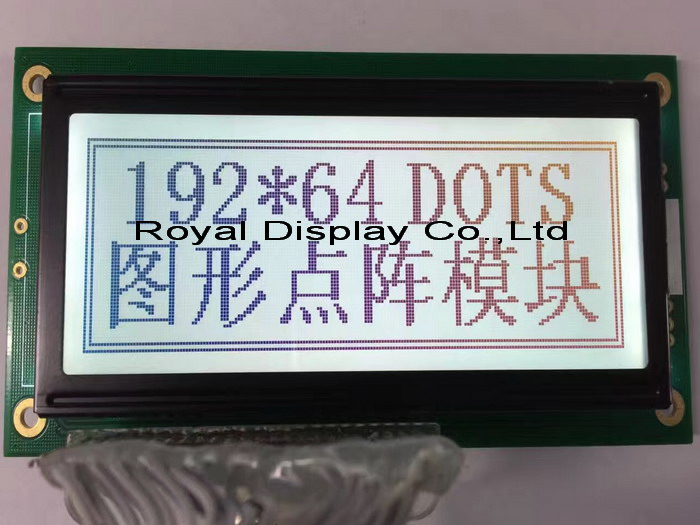

192*64 graphic LCD Module STN wide view AT0107 with backlight industrial play
A graphic LCD (Liquid Crystal Display) is a type of display that can display graphical content and custom patterns. Unlike character-based LCDs that are limited to displaying predefined characters, a graphic LCD allows you to control individual pixels, enabling you to create custom shapes, images, and graphical user interfaces. A 192*64 graphic LCD module refers to a display panel with a resolution of 192 pixels in width and 64 pixels in height. It is commonly used for displaying graphical content, icons, and text in various electronic devices.
| Item | Specification |
| Dot Format | 192*64 |
| LCD Mode | STN |
| View Angle | 6H or 12H optional |
| Backlight | White |

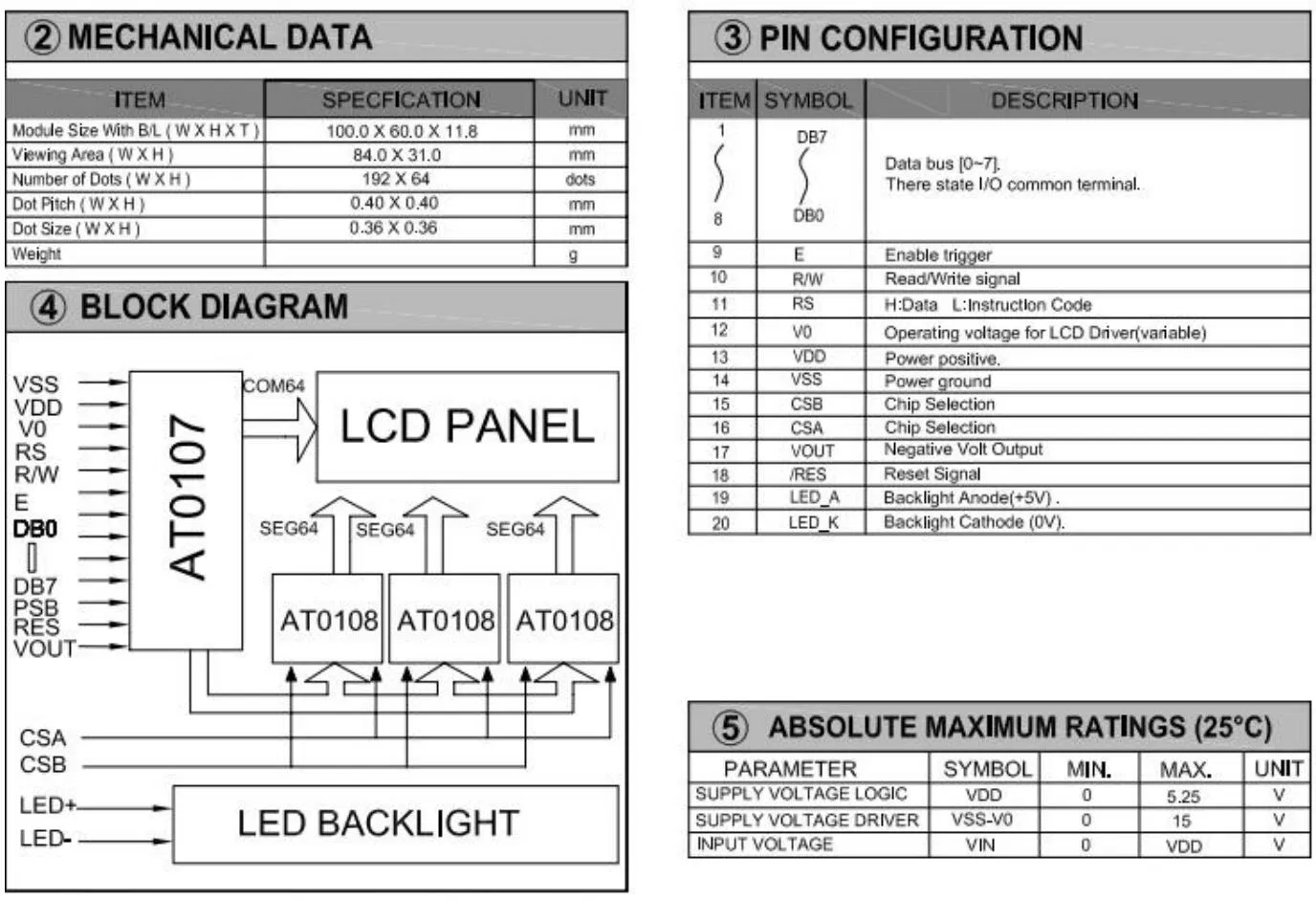

| Drive IC | AT0107 AT0108 |
| Operating Temp | -20ºC ~ +70ºC |
192*64 graphic FSTN super wide temperature LCDs find applications in various industries:
