Overview & Basic Info
Model NO.
RYG24080BGFTSAMN
Touch Screen Type
No Touch Function
Display Technology
FSTN/CSTN
LCD Drive Mode
Multiplex Drive

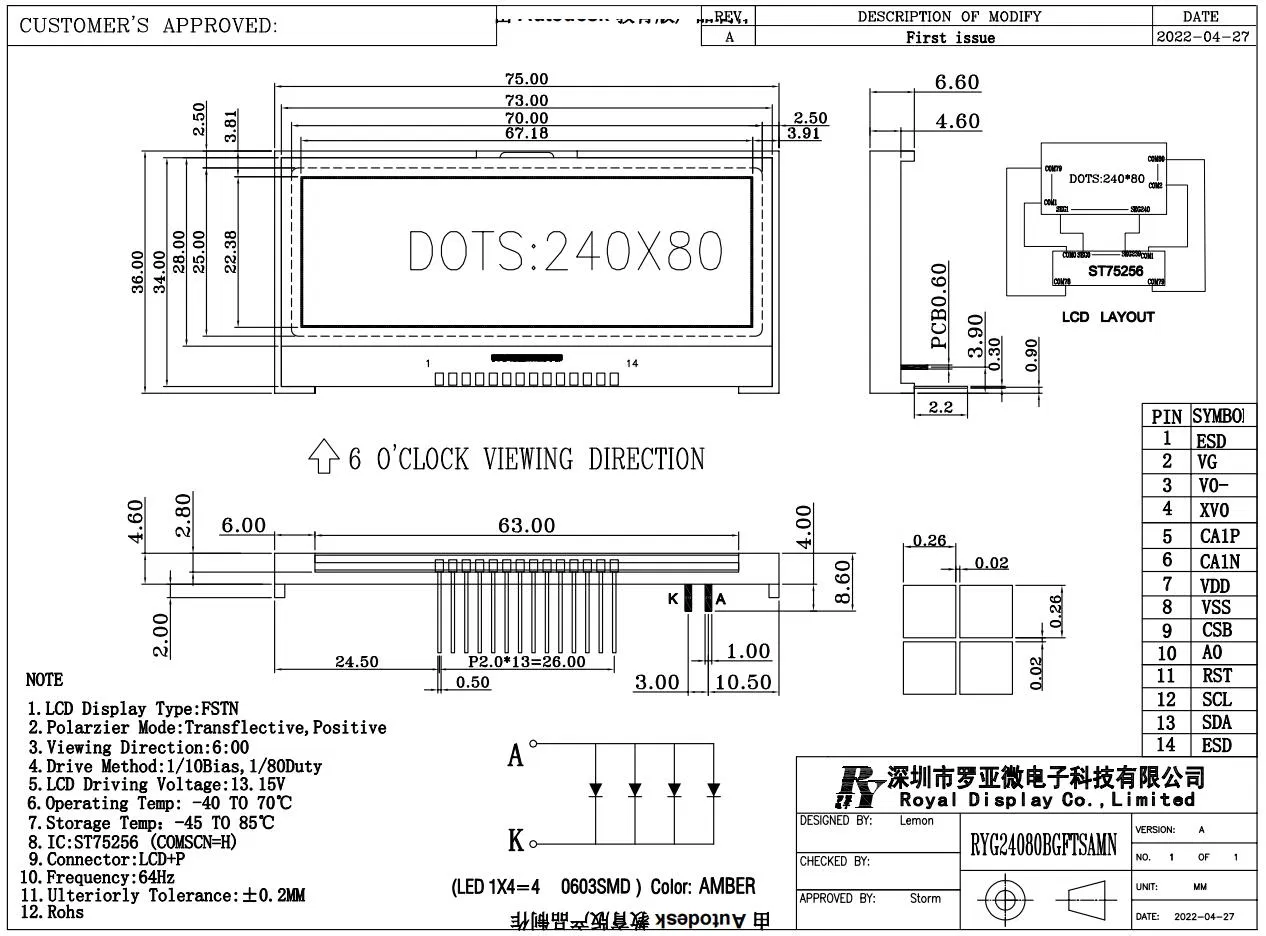

Module Dimension
75.00*36.00*6.60 mm
Operating Temp
-40 to +70 Celsius Degree
Polarizer Mode
Transflective, Positive
Product Description

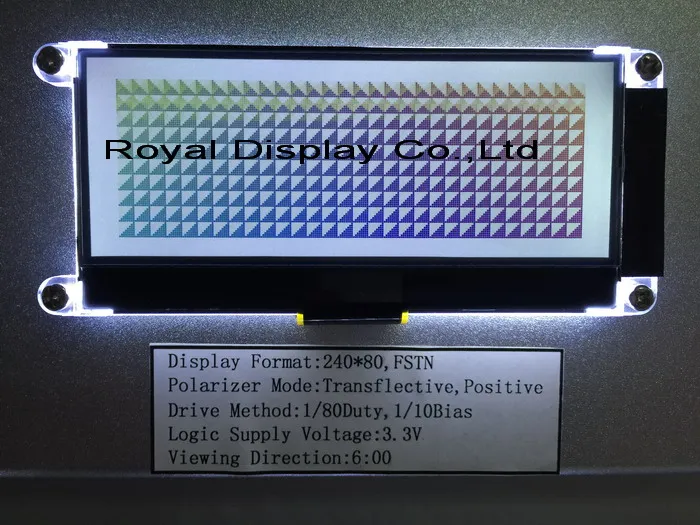

240*80 Graphic LCD Module FSTN 6H Super Wide Temperature Industrial Display
A graphic LCD (Liquid Crystal Display) allows you to control individual pixels, enabling custom shapes, images, and graphical user interfaces. This 240*80 module provides a reliable solution for displaying icons and text in diverse electronic devices.
| Item |
Specification |
| Product Name | 240*80 dots Graphic LCD Module |
| Model No. | RYG24080BGFTSAMN |
| Dot Format | 240*80 |
| LCD Display Mode | FSTN |
| View Angel | 6H |
| Backlight | White |
| Drive IC | ST75256 |
| Connector | PIN |
| LCM technological conditions | RoHS |
| Operating Temp | -40ºC ~ +70ºC (Customizable) |
| Storage Temp | -45ºC ~ +85ºC (Customizable) |
Product Features
High ResolutionProvides high pixel density for detailed graphics and clear images.
CustomizationIndividual pixel control for custom icons and interface elements.
Low Power ConsumptionConsumes less power compared to standard TFT-LCD technologies.
Extreme DurabilitySuper wide temperature range suitable for harsh environments.
Compact DesignAvailable in form factors suitable for space-constrained applications.
Cost-EffectiveOffers a balance between performance and manufacturing cost.
Product Applications
Industrial EquipmentControl panels, machinery displays, and monitoring systems.
Automotive DisplaysDashboards, infotainment, and vehicle diagnostics.
Outdoor DisplaysKiosks, signage, and panels facing extreme weather.
Medical DevicesPatient monitors and diagnostic instruments.
Aerospace & DefenseAvionics and cockpit instruments.
Energy & UtilitiesPower plant monitoring and renewable energy systems.
Our Service

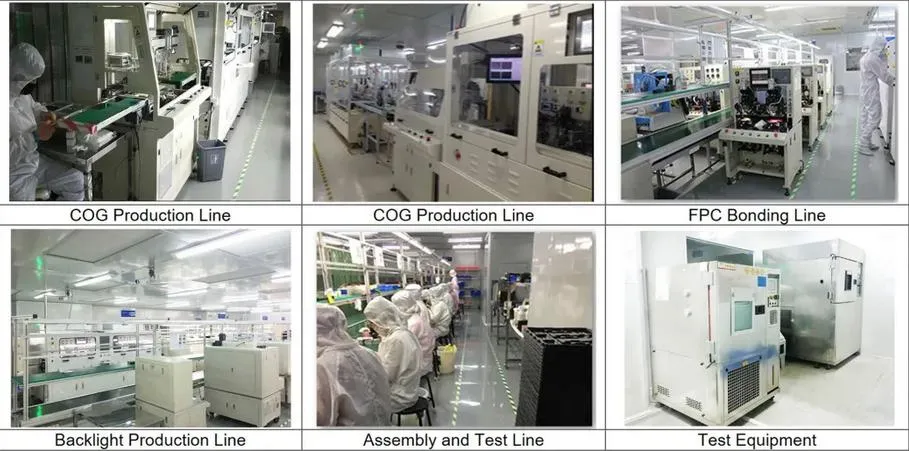

1. Quality ControlEvery LCD is tested with special instruments before delivery.
2. Secure PackagingAnti-static bags with foam boxes for safe transportation.
3. Custom SolutionsProfessional team providing OEM & ODM services.
4. Reliable ShippingFast delivery via UPS, EMS, DHL, TNT, or Air.
5. Factory PricingDirect factory pricing to ensure competitiveness.
6. WarrantyLong-term one year warranty for all modules.
Frequently Asked Questions
Are you a manufactory or trade company?
We are a professional manufactory based in China, specializing in high-quality LCD modules.
How can I obtain samples?
Please send an inquiry to confirm specifications. Once the drawing and tooling charges are confirmed, we will proceed with sample production and delivery.
Can you design the LCD in accordance with our specific demands?
Sure. We have a professional technical team to meet all your customization and design requirements.
What information is required to place an order?
We need the product quantity, part number, required delivery time, and shipping details (destination port and contact information).
How long does mass production typically take?
Mass production generally takes 25-30 business days, depending on the order quantity and specific part numbers.
What is the warranty period for your products?
We provide a reliable one-year warranty for our LCD modules to ensure long-term performance and customer satisfaction.
