240*48 Graphic Stn LCD Module with PCB Standoffs Backlight Ts107/Ts108 Industrial Display
240*48 Graphic Stn LCD Module with PCB Standoffs Backlight Ts107/Ts108 Industrial Display
240*48 Graphic Stn LCD Module with PCB Standoffs Backlight Ts107/Ts108 Industrial Display
240*48 Graphic Stn LCD Module with PCB Standoffs Backlight Ts107/Ts108 Industrial Display
240*48 Graphic Stn LCD Module with PCB Standoffs Backlight Ts107/Ts108 Industrial Display
1 / 5
240*48 Graphic Stn LCD Module with PCB Standoffs Backlight Ts107/Ts108 Industrial Display
240*48 Graphic Stn LCD Module with PCB Standoffs Backlight Ts107/Ts108 Industrial Display
240*48 Graphic Stn LCD Module with PCB Standoffs Backlight Ts107/Ts108 Industrial Display
240*48 Graphic Stn LCD Module with PCB Standoffs Backlight Ts107/Ts108 Industrial Display
240*48 Graphic Stn LCD Module with PCB Standoffs Backlight Ts107/Ts108 Industrial Display

240*48 Graphic Stn LCD Module with PCB Standoffs Backlight Ts107/Ts108 Industrial Display

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

1

Basic Specifications

Model NO.
24048A
Touch Screen
No Touch Function
Display Type
Graphic
Response Time
150ms
Viewing Angle
6h / 12h Optional
Display Tech
STN

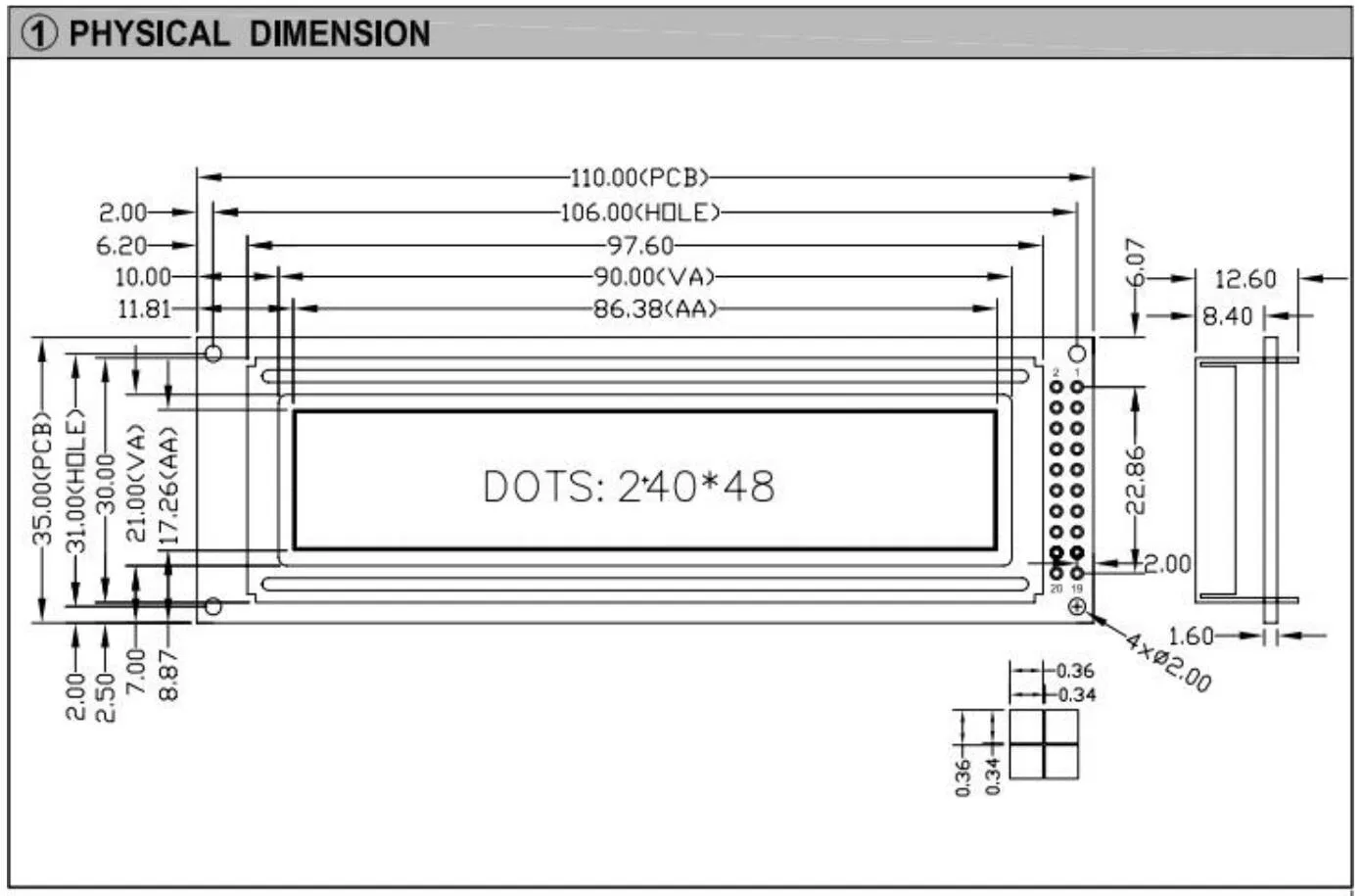

Module Size
110*35*12.6 mm
View Area
90*21 mm
Dots Number
240*48
Driver IC
Ts107 / Ts108
Production Capacity
50K Pieces/Year
HS Code
9013809090
2

Product Description

A graphic LCD (Liquid Crystal Display) is a high-performance type of display designed to showcase graphical content and custom patterns. Unlike standard character LCDs, this module allows individual pixel control, enabling the creation of intricate shapes, images, and user-friendly graphical interfaces. The 240*48 graphic LCD module is ideal for industrial display needs.

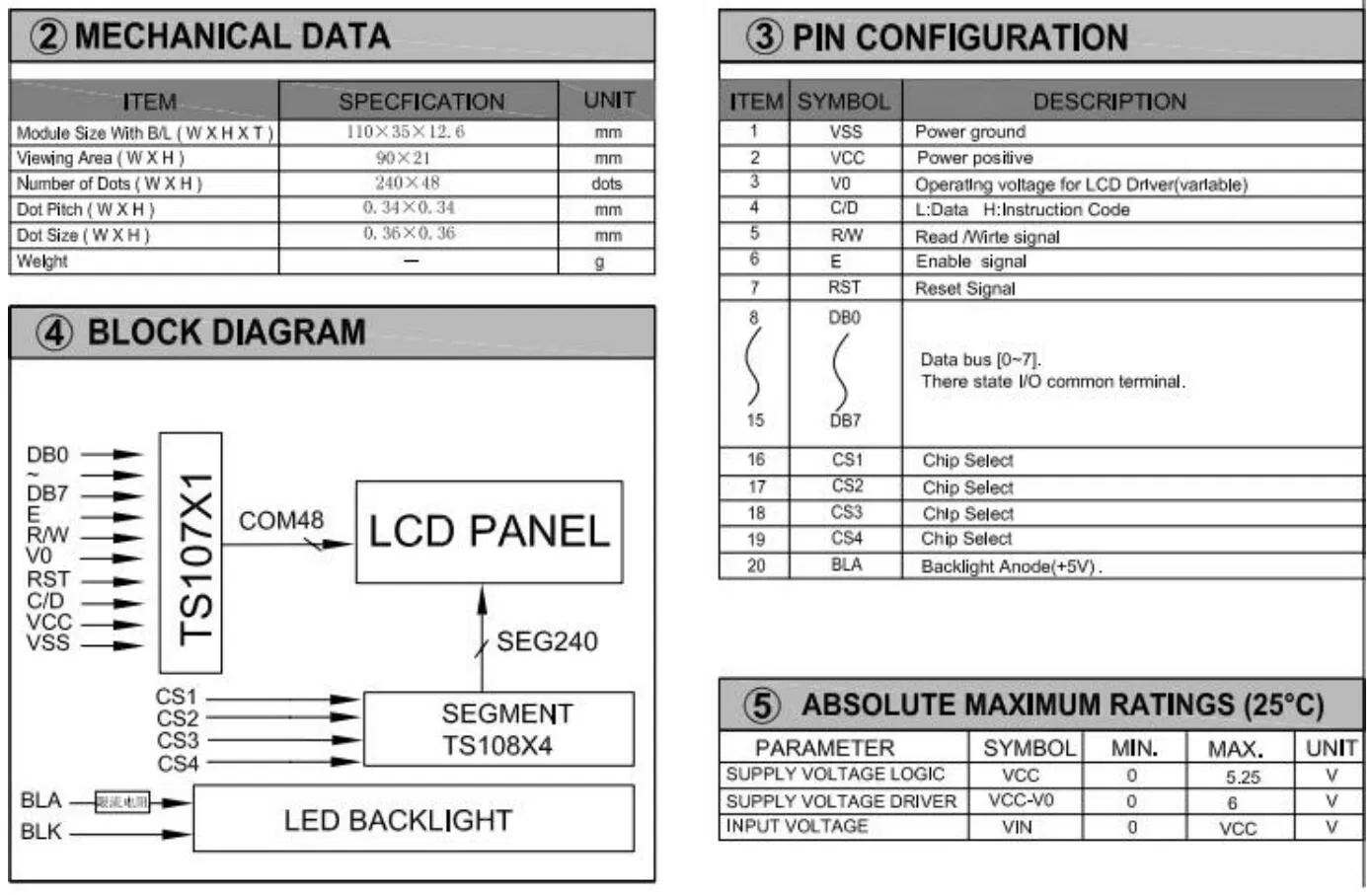

Item Specification
Product Name240*48 dots Graphic LCD Module
Model No.24048A
Dot Format240*48
LCD ModeSTN
BacklightWhite LED
Drive ICTS107 / TS108
ConditionsRoHS Compliant
Operating Temp-20°C to +70°C
Storage Temp-30°C to +85°C
Graphic STN LCD Module
3

Key Features

LCD Features
High ResolutionDelivers high pixel density for clear, detailed graphics and sharp text.
Full CustomizationIndividual pixel control allows for bespoke icons and unique user interfaces.
Low Power ConsumptionSignificantly more energy-efficient than traditional TFT-LCD technologies.
Compact DesignSlim form factor ideal for handheld devices and space-constrained panels.
Cost-EffectiveOffers a budget-friendly solution for high-quality graphic representation.
User InteractionSupports intuitive menus, buttons, and interactive graphical elements.
4

Product Applications

◈Industrial Equipment: Control panels, machinery displays, and monitoring systems.
◈Automotive Displays: Dashboard indicators, vehicle diagnostics, and infotainment.
◈Outdoor Kiosks: Signage and information panels requiring wide temperature stability.
◈Medical Devices: Patient monitoring, diagnostic tools, and imaging displays.
◈Aerospace & Defense: Avionics, navigation systems, and cockpit instruments.
LCD Applications
5

Our Services

Strict Quality ControlAll units undergo rigorous testing before dispatch.
Secure PackagingAnti-static bags and foam box protection for transport.
Flexible PaymentsSupporting T/T, Western Union, L/C, and PayPal.
Professional SupportExpert team providing OEM and ODM customization.

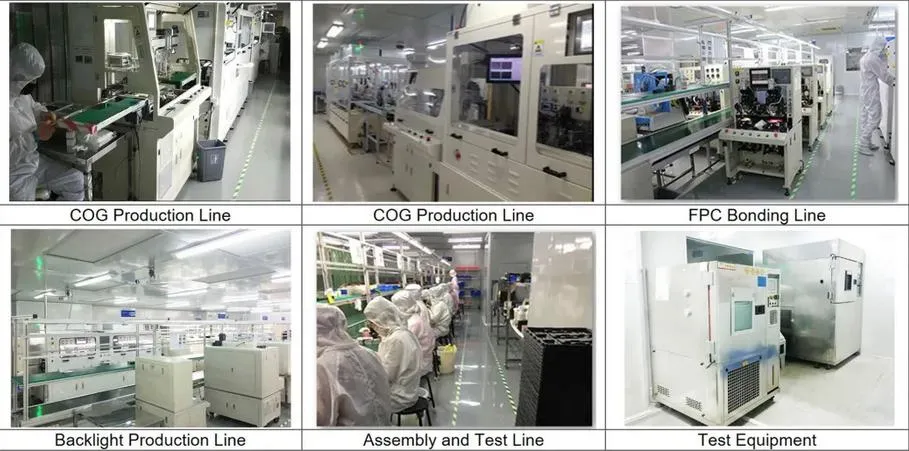

Service and Support
Manufacturing
?

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a specialized manufacturer based in China, focused on high-quality LCD modules for industrial applications.
How can I obtain samples?
Please send an inquiry with your specifications. Once the quotation and technical drawings are confirmed, we will proceed with sample production.
Can you design an LCD based on our specific requirements?
Yes, we have a professional engineering team that provides full OEM and ODM services to meet your exact demand.
What is the typical lead time for mass production?
Mass production typically takes 25-30 business days, depending on the order quantity and specific part numbers.
What are your shipping methods?
We offer reliable shipping via UPS, EMS, DHL, TNT, or air freight to ensure prompt and safe delivery.
Do you provide a warranty for your products?
Yes, we provide a long-term one-year warranty on our LCD modules to ensure customer satisfaction and product reliability.
