| Parameter | Details |
|---|---|
| Model NO. | 24064C |
| Display Type | Graphic LCD Module |
| Resolution | 240*64 Dots |
| Technology | STN |
| Response Time | 150ms |
| Viewing Angle | 6h / 12h Optional |

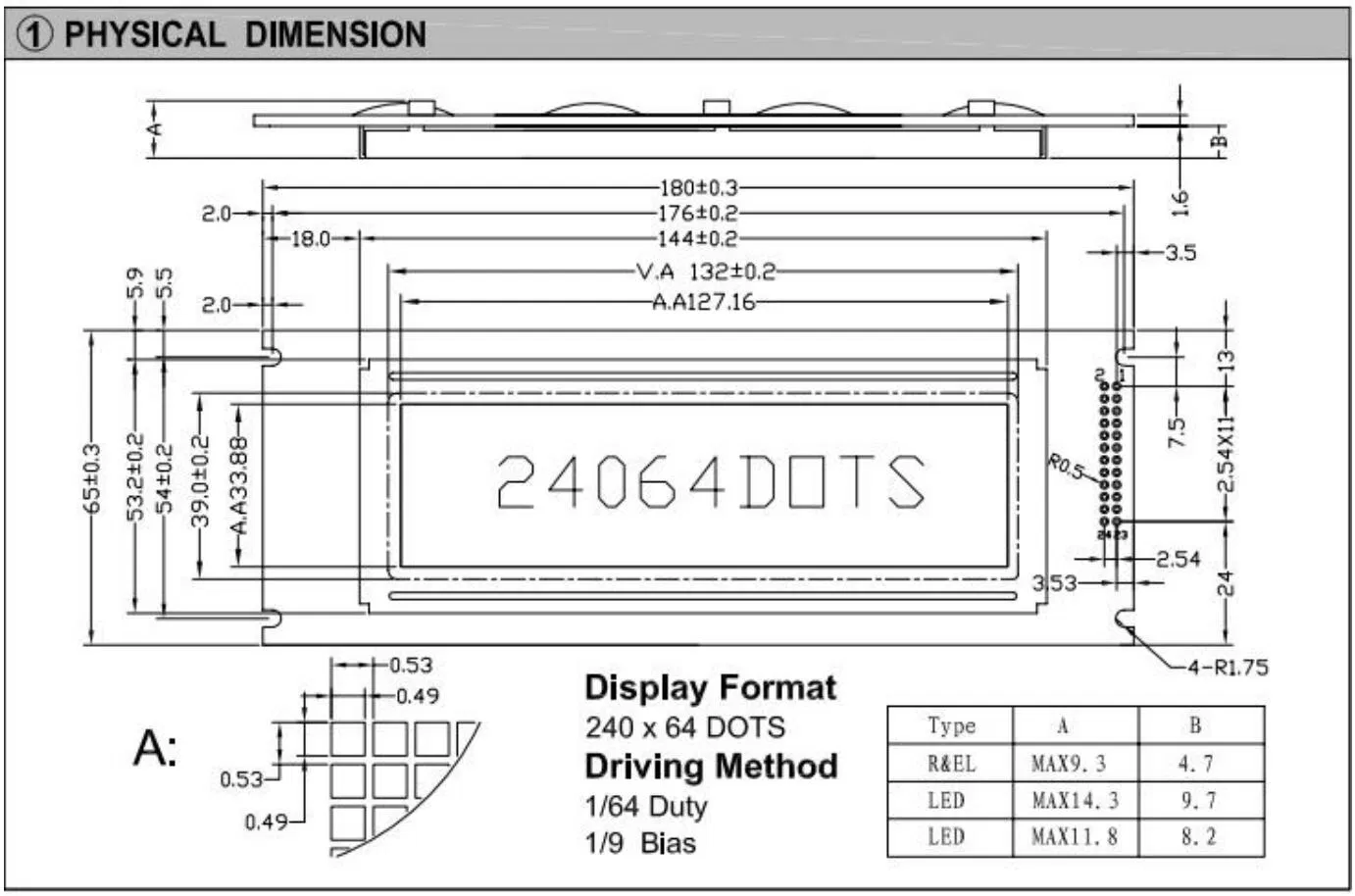

| Module Size | 180*65*14.3/11.8/9.3 mm |
| View Area | 132*39.0 mm |
| DOT Pitch | 0.53*0.53 mm |
| Operating Temp | -30 to +70 Celsius Degree |
| HS Code | 9013809090 |

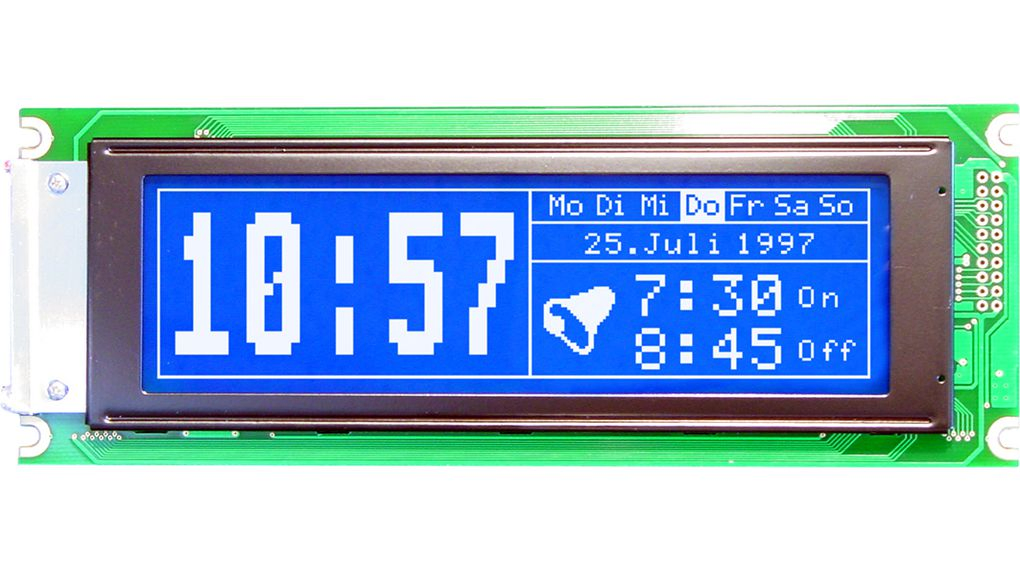

A graphic LCD (Liquid Crystal Display) is designed to present complex graphical content and custom patterns. Unlike standard character LCDs, this 240*64 dots module allows for individual pixel control, enabling the creation of intricate shapes, icons, and advanced graphical user interfaces for industrial and commercial applications.
Provides dense pixel distribution for clear, detailed graphics and sharp text visibility.
Individual pixel control allows for unique UI designs, custom icons, and branded elements.
Engineered to operate in extreme temperatures ranging from -30°C to +70°C.
Optimized for low power consumption, making it ideal for portable or energy-sensitive devices.
