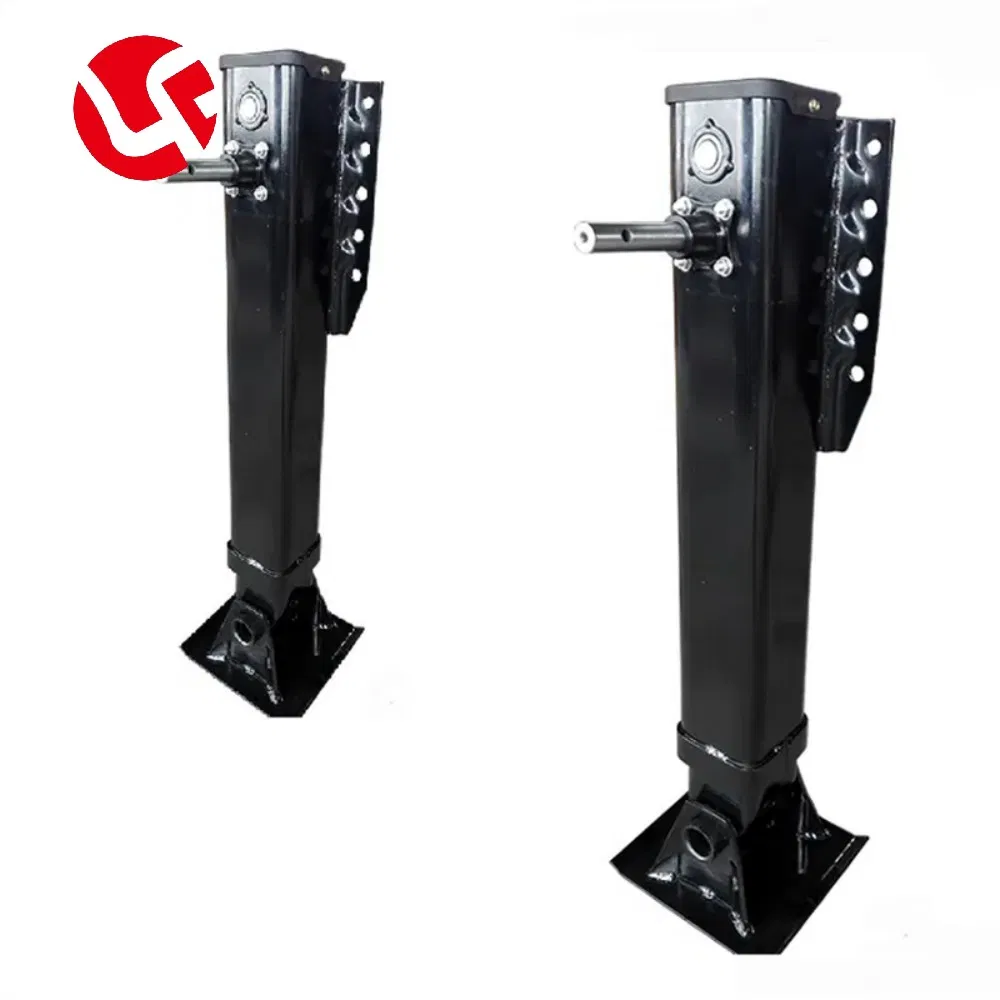

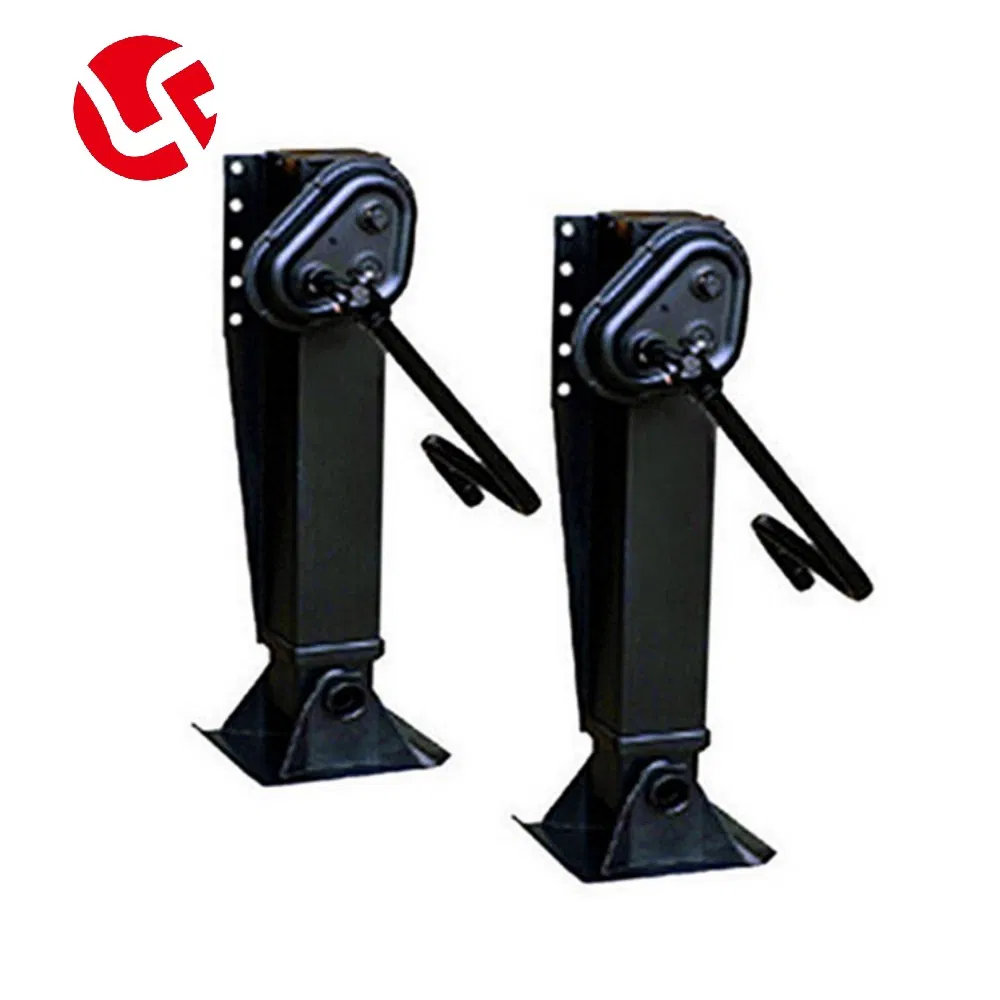

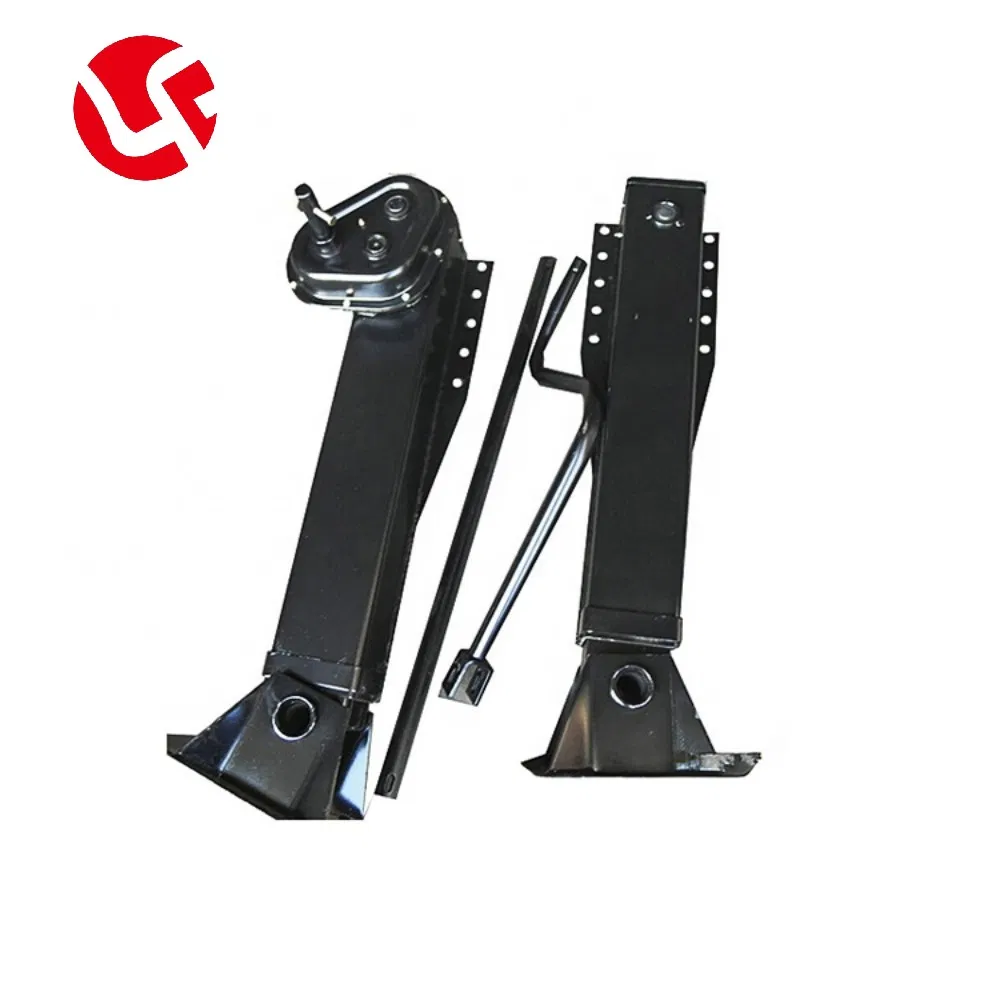

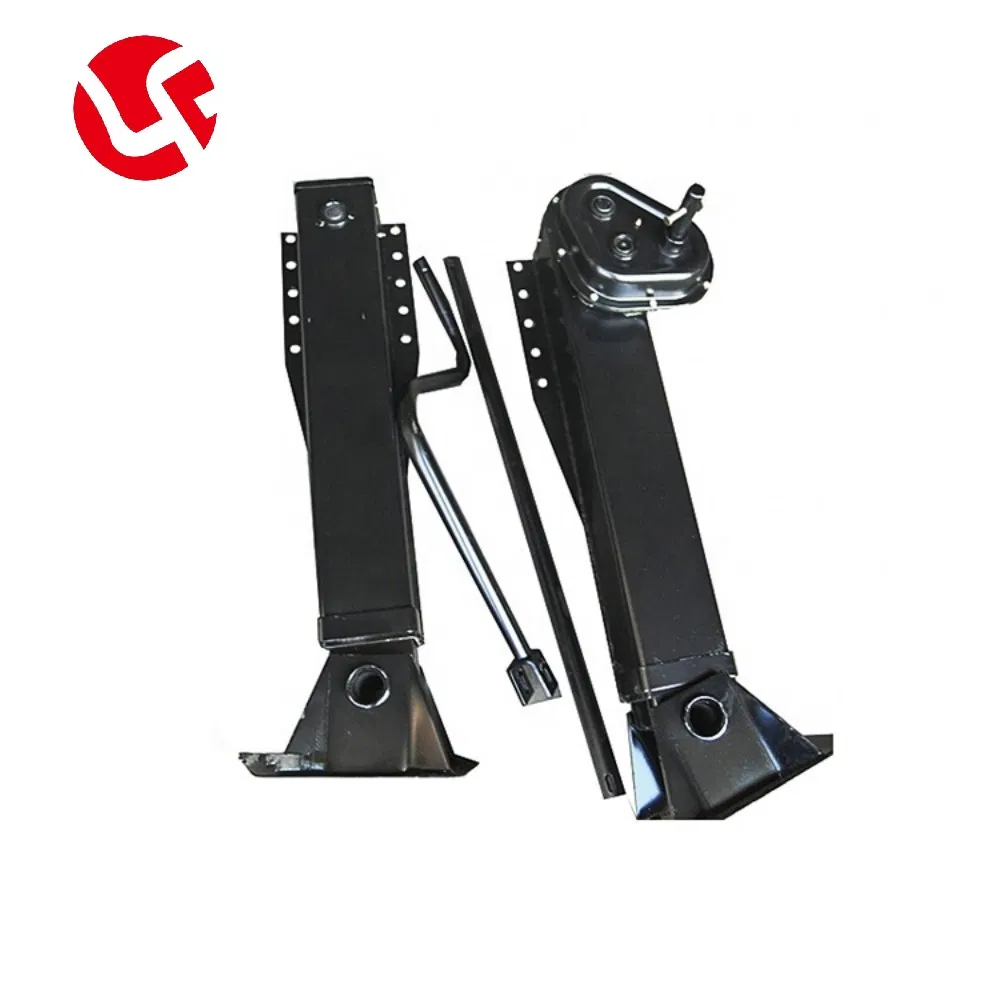

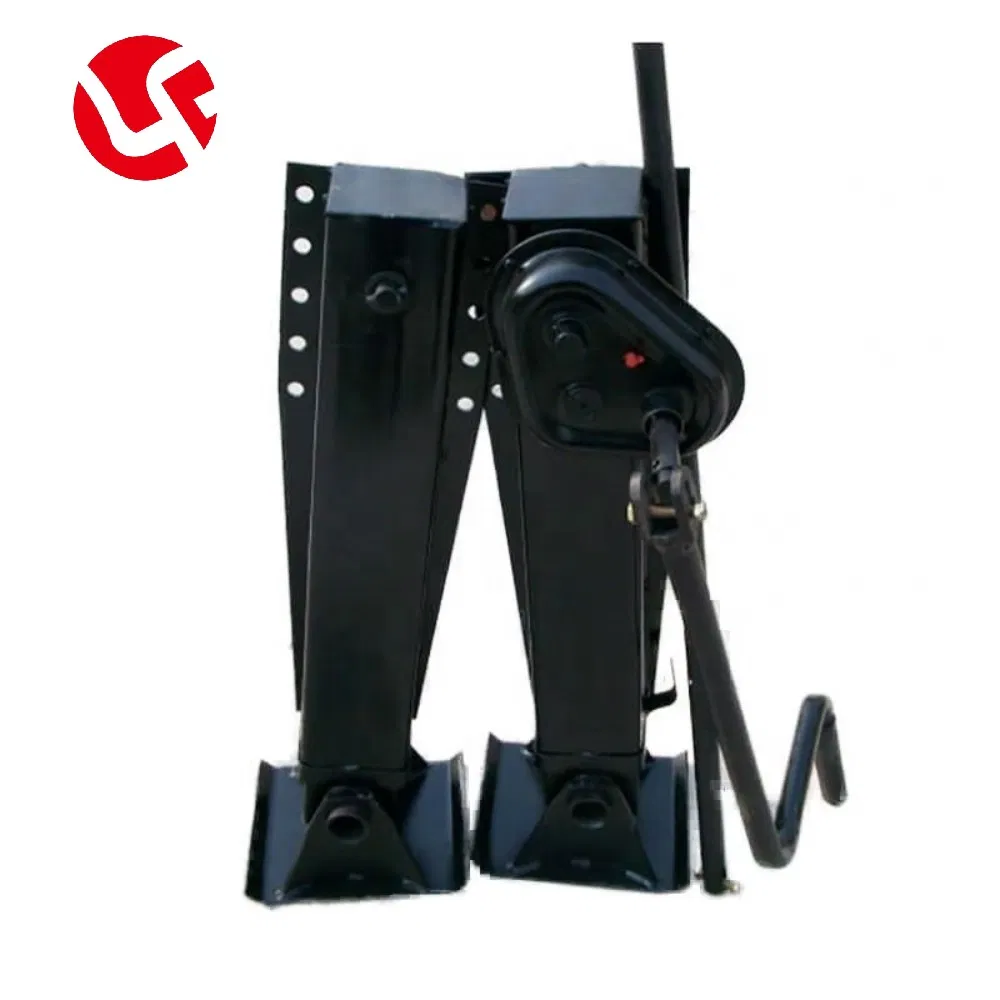

28 Ton Semi Trailer Parts Landing Gear Support Legs

Customization: Available
Colour: Black
Loading Weight: 28t

Product Description

i

Overview & Basic Information

Model NO.
Landing Gear
Material
Iron
Size
430 mm
Rated Lifting Load
25t/ 28t
Max Route
14" 17" 19"
Certification
CCC, CE, ISO, ISO/Ts16949, DOT
Static Load Capacity
80t
Production Capacity
100,000

Product Description

Trailer Landing Gear Parts
Trailer landing gear are generally equipped with outboard separate operation legs, linkage legs, inboard legs, and lightweight aluminum alloy legs. These are essential components for trailers and semi-trailers, used for supporting and lifting when separated from the tractor.
⚙️
High Durability: 4.5mm shell thickness and 7mm wallboard. Reinforced forging gears are fire-treated for maximum longevity and resistance to breakage.
🛡️
Superior Rust Prevention: Multi-step process including Parkerizing for rust removal, antirust oil coating, and professional powder spraying techniques used since 1997.
💪
Heavy Duty Material: Constructed using high-grade Q235 steel. Lead screws are rolled forming for extra-duty performance.

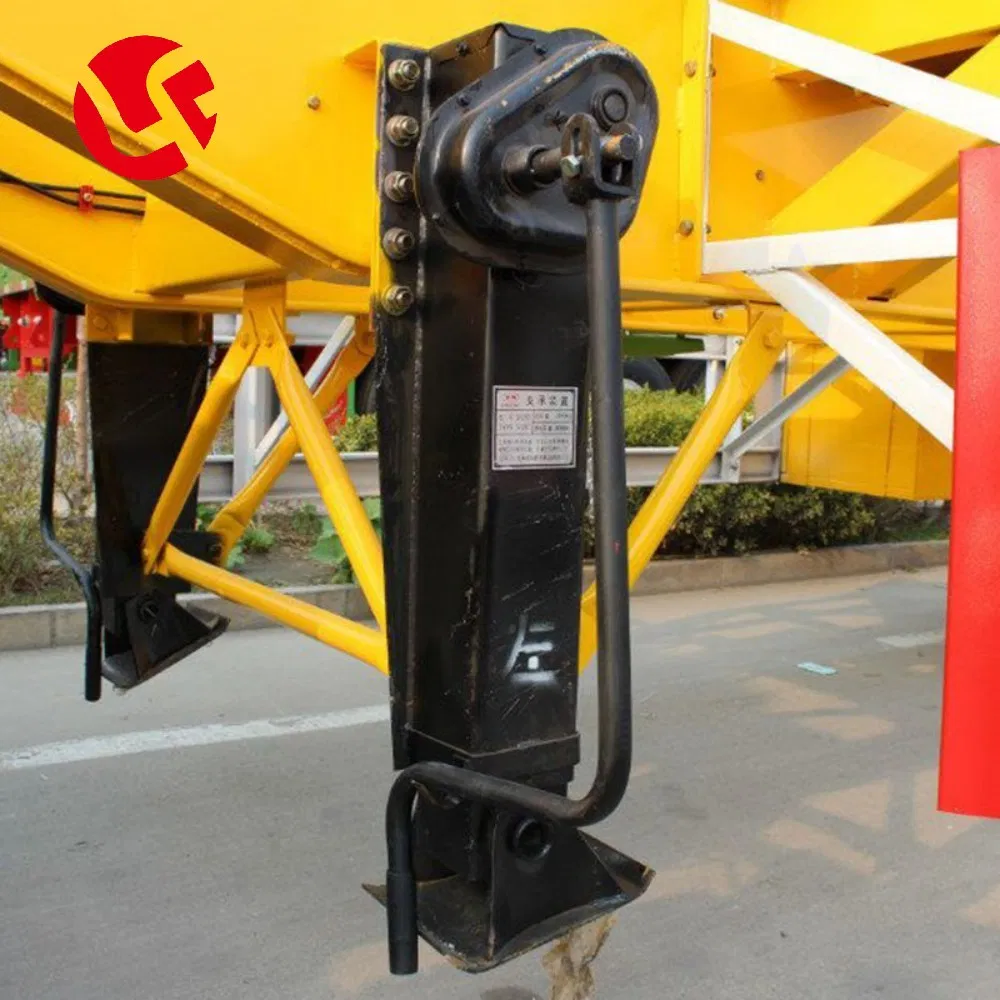

Product View 1
Product View 2

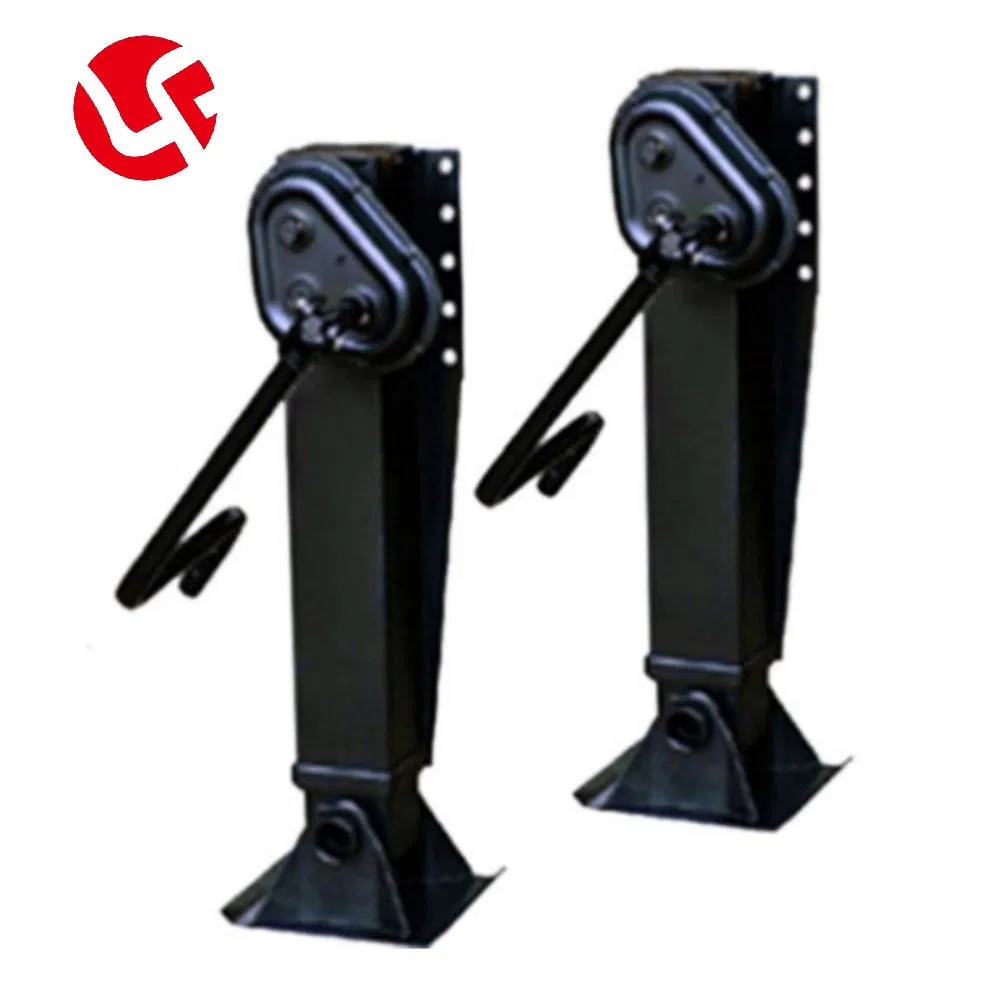

Product View 3
📋

Technical Specifications

Model Support Base Lifting Stroke (D) Installation Height (A) Bearing Load Static Load
LF-ZT43792T43079228t70t
LF-ZT48842T48084228t70t
LF-ZT43790T43079028t70t
LF-ZT48840T48084028t70t
LF-ZT32660T32066016t32t
LF-ZT43790S43079028t70t
LF-ZT4884SS48084028t70t
LF-ZT47802T47080216t32t
🔗

Recommended Products

Recommended Items
🏢

Professional Manufacturing

Manufacturing Process
📦

Packaging & Shipping

Packaging Details
?

Frequently Asked Questions

Q1. What are your standard packing terms?
A: Generally, we package our products using fumigation-free wooden holders in brown boxes. Customized branded packaging is available with proper authorization.
Q2. Which delivery terms do you support?
A: We support various delivery terms including FOB, CIF, DDU, EXW, DAP to meet different customer requirements.
Q3. What is the typical delivery lead time?
A: Usually, it takes 5 to 10 days after receiving advance payment. The specific time depends on the specific items and the total quantity of the order.
Q4. Can products be manufactured based on samples?
A: Yes, we can produce based on your provided samples or technical drawings. We have the capability to build necessary molds and fixtures.
Q5. What is the warranty and material quality?
A: Our products come with a one-year warranty against quality problems. We use high-quality Q235 material with reinforced forging gears for maximum strength.
Q6. How do you ensure long-term business relationships?
A: We maintain consistent quality and competitive pricing to ensure customer benefits. We treat every customer with respect as a friend, regardless of their origin.
