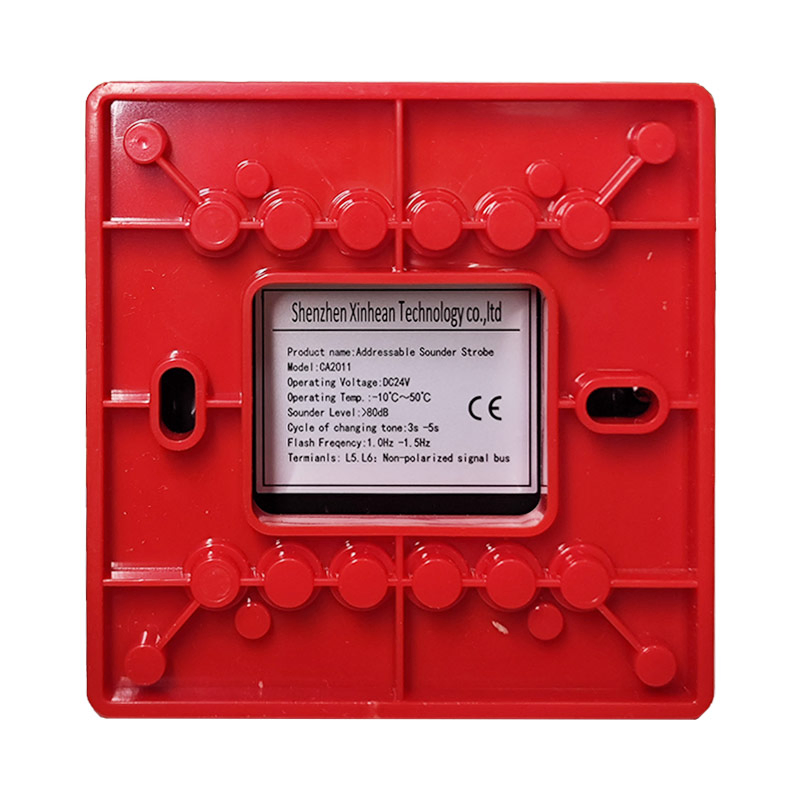

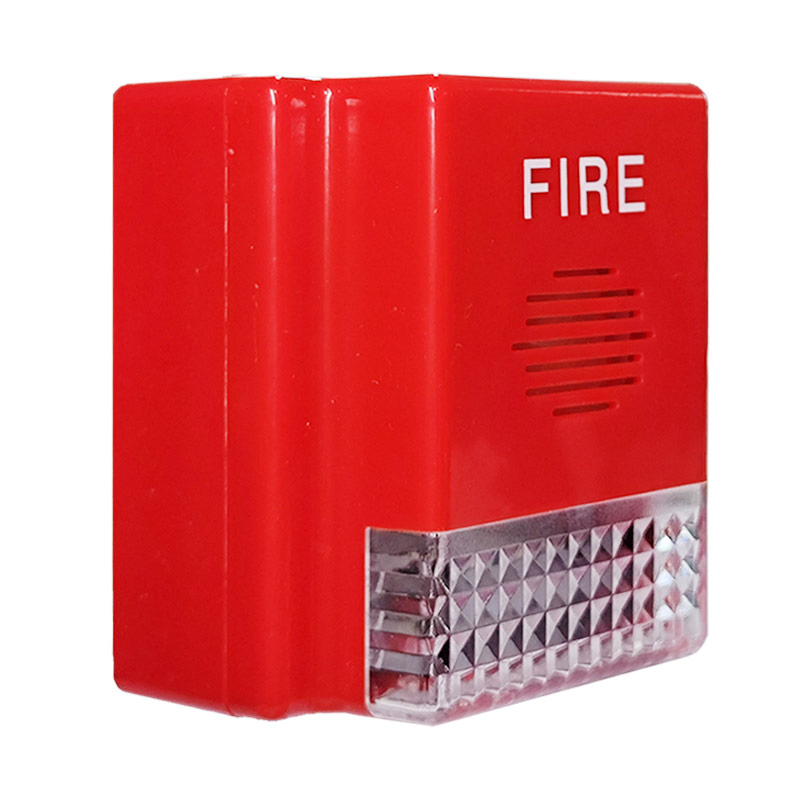

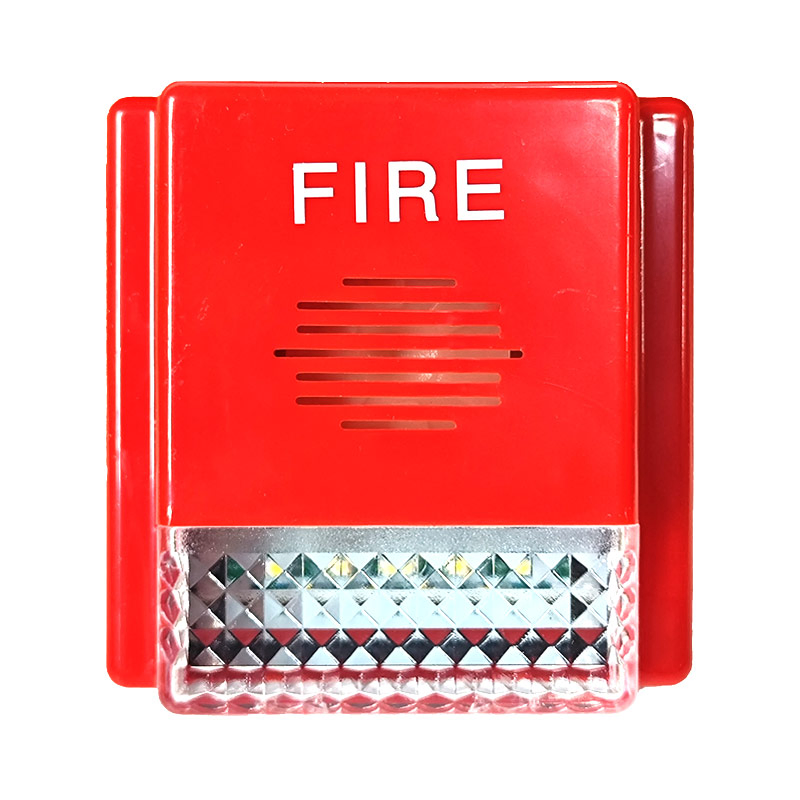

DC17V-DC33V Addressable Sounder Strobe Wall Mounted Customized

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
CA2011
Alarm Volume
≥80dB (within 1m)
Weight
102g (with Base)
Installation
Wall Mounted
Alarm Output
Relay Output
Detector Type
Addressable Sounder Light
HS Code
8531100000
Certification
CE
Product Description

Addressable Fire Alarm System Audible And Visual Signaling For Emergency Notification

Addressable Sounder Strobe
Introduction: A sounder strobe is a fire alarm notification appliance that combines audible and visual alarm signaling capabilities into a single, addressable device to provide effective emergency notification in buildings.
📢 Audible Alarm (Sounder)

Generates configurable audible signals (tones or voice) with adjustable volume and patterns for specific instructions.

🚨 Visual Alarm (Strobe)

Provides flashing light signals to alert occupants who are hard of hearing or in high-noise environments.

🛠️ Integrated Design

Combination unit simplifies installation and reduces the number of devices required in the system.

🆔 Addressability

Each device has a unique digital address for individual control and status monitoring by the control panel.

Technical Parameters
Product Name Sounder Strobe Type Addressable
Loop Bus Wired 2-wire Non-polarized Monitor Current ≤300uA
Alarm Current ≤40mA Dimension Φ85*46 mm
Work Voltage DC17V ~ DC33V Environment -10°C~+50°C; Humidity ≤95%
Connection Diagrams

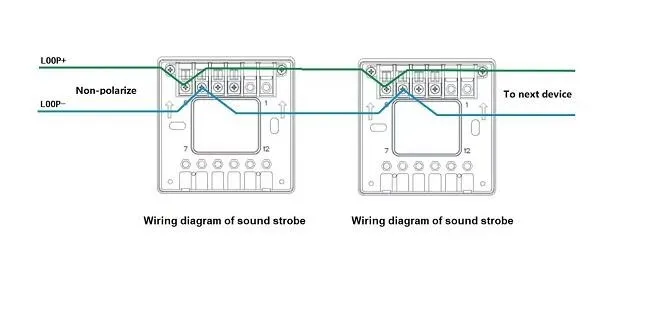

Connection between Sounder Strobe

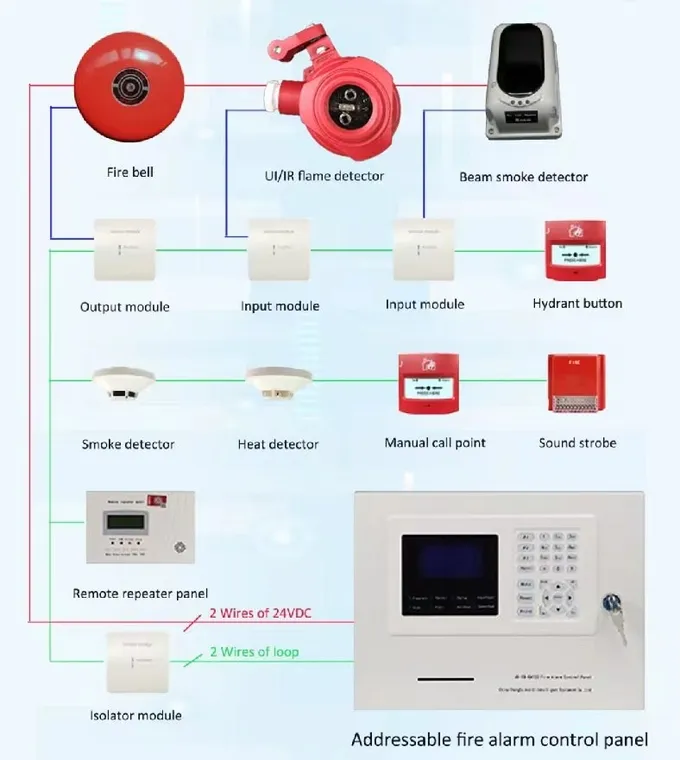

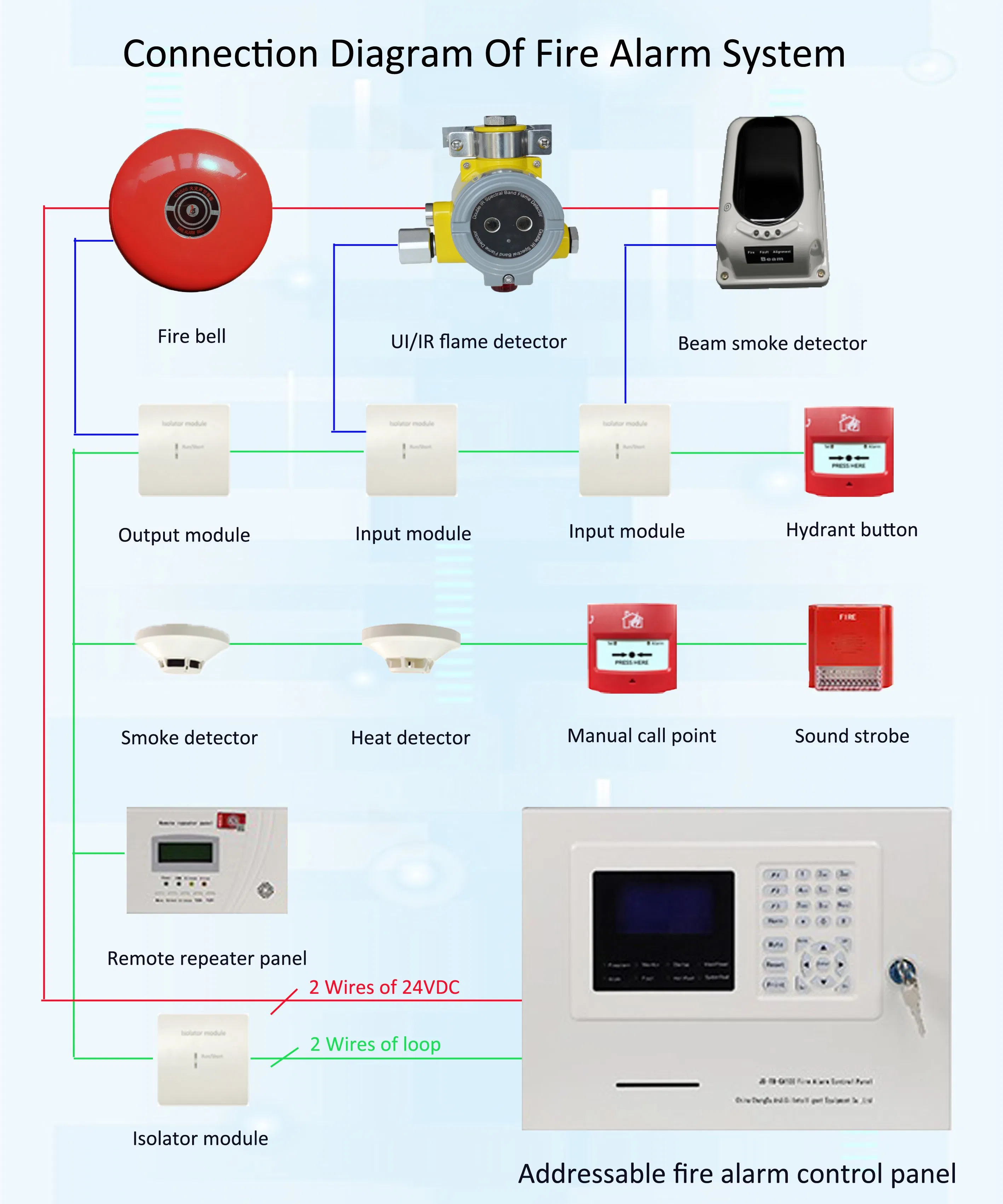

Connection Diagram of Fire Alarm System
Product Range & Services
📋 System Solutions
  • Conventional/Addressable Fire Alarm
  • Gas Extinguishing Control
  • Beam Detectors
  • Explosion-proof Flame Detectors
  • Standalone Smoke/Gas Detectors
🤝 Our Service
  • OEM & ODM Service
  • Full Technical Support
  • 1 Year Warranty
  • 15 Working Days Lead Time
  • Sample Orders Welcome
Manufacturing & Quality
Facility 1
Facility 2

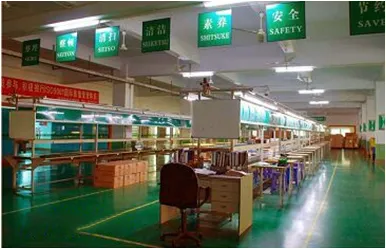

Assembly Line

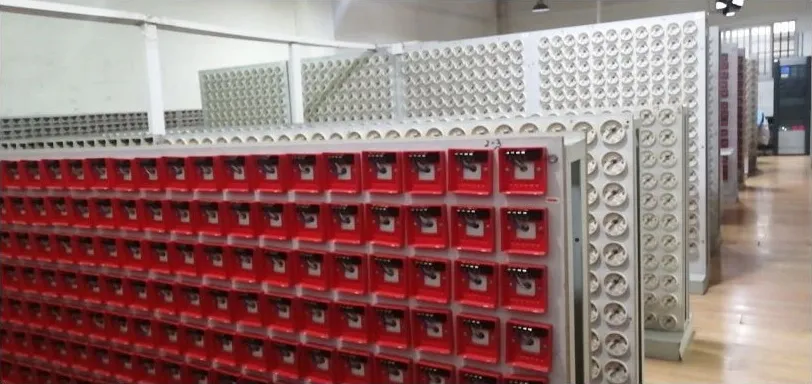

Burn-in Room
Quality System
Frequently Asked Questions
What is the main function of an addressable sounder strobe?
It provides both audible and visual alerts during fire emergencies. Being addressable, it can be individually identified and controlled by the fire alarm control panel.
Is the wiring polarized for this device?
No, it uses a 2-wire non-polarized loop bus, which simplifies the installation process and reduces wiring errors.
What is the operating voltage range?
The device operates reliably within a voltage range of DC17V to DC33V.
Can the audible and visual alarms be synchronized?
Yes, multiple sounder strobes can be synchronized to ensure all alarms activate simultaneously for a coordinated notification.
Does the system monitor the health of each sounder strobe?
Yes, the fire alarm control panel provides supervised monitoring, continuously checking for fault conditions like open or short circuits.
What are the environmental requirements for installation?
It is designed to work in temperatures ranging from -10°C to +50°C and relative humidity up to 95%.
