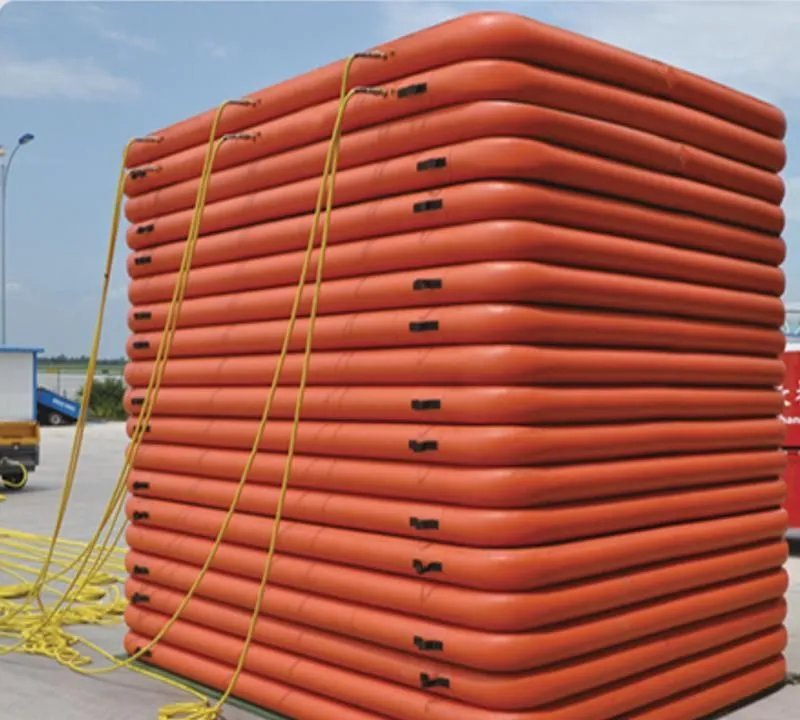

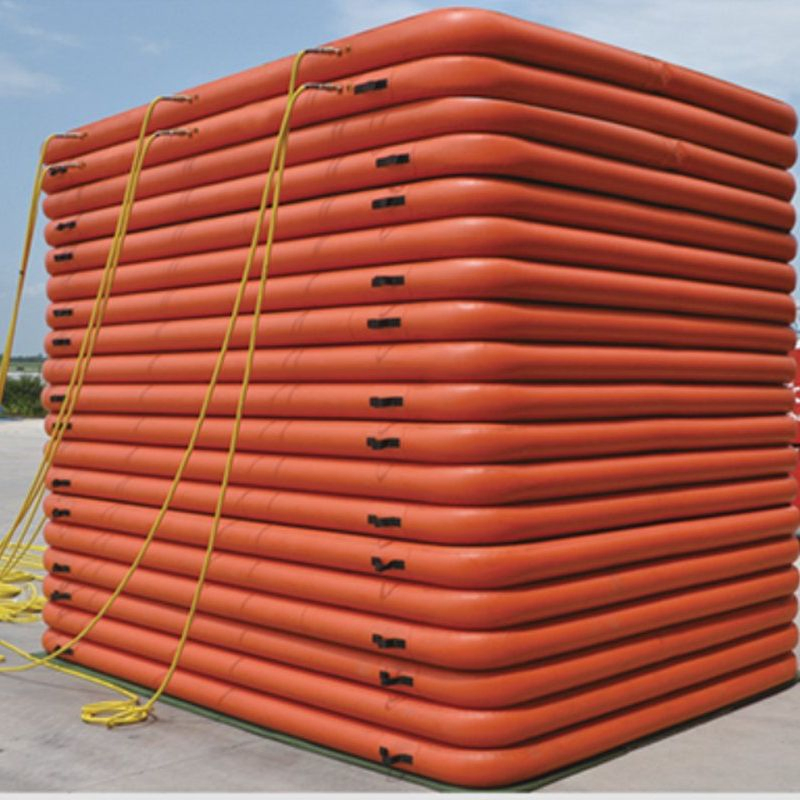

Aircraft Ground Handling Jack Plane Lifting Airbag

Customization:	Available
After-sales Service:	1year
Warranty:	1year

Send Inquiry

Product Description

Basic Information

Working Time	Regular	Category	Airport Ground Support Equipment
Scale of Airline	Large-scale	Type	Aircraft Maintenance Equipment
Condition	New	Guarantee	1 Year
Working Temperature	-40 to 60 Degree	Airbag Layers	15 Layers
Height per Layer	20cm	Working Pressure	0.05-7MPa/Psi
Production Capacity	10 PCS Per Month	Transport Package	Wooden Case

Technical Specifications

Product Name	Aircraft Lifting Airbag / Airport Lifting Jack Airbags
Standard Dimensions	40002000mm / 42002000mm
Overall Lifting Height	3000mm
Bearing Area	8 - 8.4 m²
Max Capacity	40,000 kgs
Capacity Range	6 ton - 80 ton
Tare Weight	525 kgs
Inflatable Interfaces	18 PCS
Total Weight (incl. case)	990 kgs

System Components: The jacking air bag system mainly consists of: protective mat, air bag, handle, safety valve, fast transfer car, distributor, roll pipe vessel, trachea, and air compressor.

Adaptive Design: The top airbag is engineered to adapt to various aircraft body shapes.
Safety First: Integrated safety valves improve operational reliability.
Efficiency: Equipped with a fast vent device to significantly save time during evacuation.
Mobility: Special fast transfer vehicles allow for rescue and evacuation without manual lifting.
Modular Setup: 320 cm units can be flexibly assembled to meet specific height and width requirements, capable of withstanding 3x high pressure.

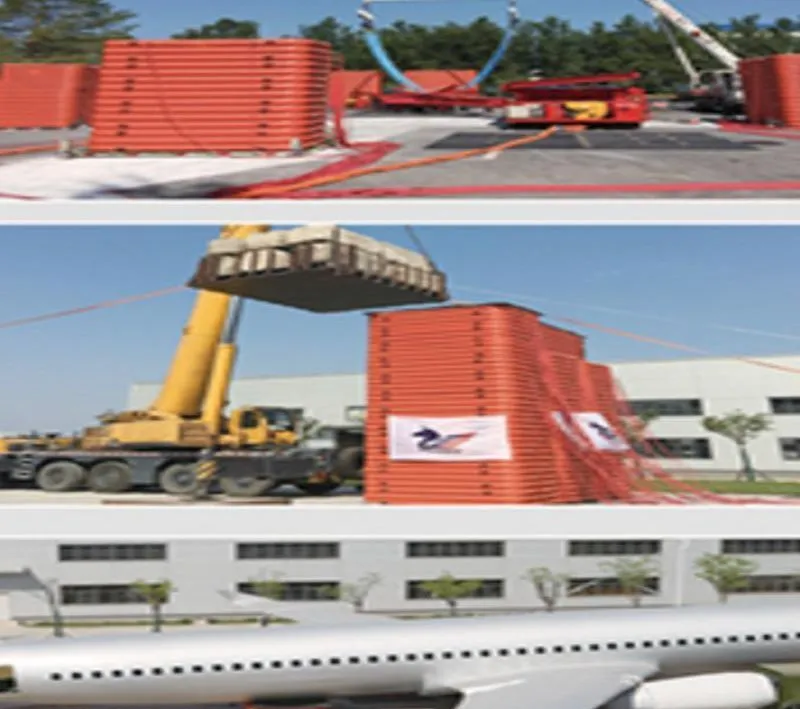

Detailed Product Gallery

Why Choose Our Equipment

Professional Engineer Team

Skilled & Skilled Workforce

Strict Quality Control System

ISO9001 Standards Compliance

High Pressure Resistance Modular Design

Comprehensive After-Sales Support

Manufacturing Capabilities

Our facility operates a professional manufacturing and exporting operation for a wide range of Ground Support Equipment (GSE). The factory covers an area of 20,000 square meters and is equipped with advanced machining workshops, surface treatment facilities, final assembly lines, hydraulic dust-free zones, and electronic laboratories. All production is carried out according to international standards to ensure the highest quality and safety for airport operations worldwide. We specialize in personalized customization to meet the specific technical requirements of our global clients.

Frequently Asked Questions

Q1. What is the experience level of your manufacturing team?

We have been professional manufacturers involving production for approximately 15 years, utilizing advanced machinery for welding, cutting, and assembly.

Q2. Can the airbags be customized via OEM or ODM?

Yes, we provide full support for OEM and ODM orders to meet specific client requirements and technical configurations.

Q3. What are the standard payment terms?

Our standard terms are T/T with a 30% deposit. The balance is settled before loading the container, following your final confirmation of the production quality.

Q4. What is the typical lead time for orders?

Sample and bulk production typically requires 20 to 45 days, depending on the specific product type and order volume.

Q5. How is safety ensured during the aircraft lifting process?

Each airbag is equipped with a safety valve to improve reliability, and the modular units are designed to withstand three times the standard working pressure.

Q6. What is the range of lifting capacity available?

Our lifting airbag systems can be configured to support a capacity range from 6 tons up to 80 tons, making them suitable for various aircraft models.
