Aircraft Maintenance Tools Professional Hydraulic Axle Jack Car Axle Stand Air Jack

i

Basic Information

Model NO.

ZTA50

Capacity (Load)

85t

Power Source

Hydraulic

Max Height

>400mm

Condition

New

Loading Capacity

50 T

Production Capacity

5000 PCS/Year

≡

Product Description

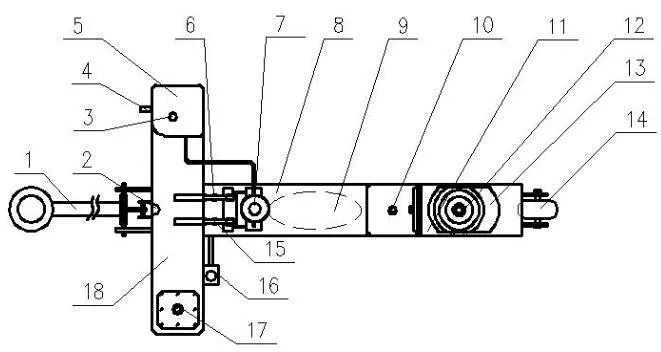

Aircraft axle Jack belongs to the hydraulic jack category. It consists of a base with a telescopic cylinder, a piston, and an adjustment screw head. The system includes an integrated oil tank, high-pressure oil pump, and low-pressure oil pump.

Designed as essential Ground Support Equipment (GSE), this lifting device features two vertical casings and a U-shaped handle fixed to the base. This design ensures convenient operation and flexible movement. It serves as a critical lifting point for the fuselage, wings, and landing gear, enabling safe aircraft maintenance, installation, and deck operations.

📷

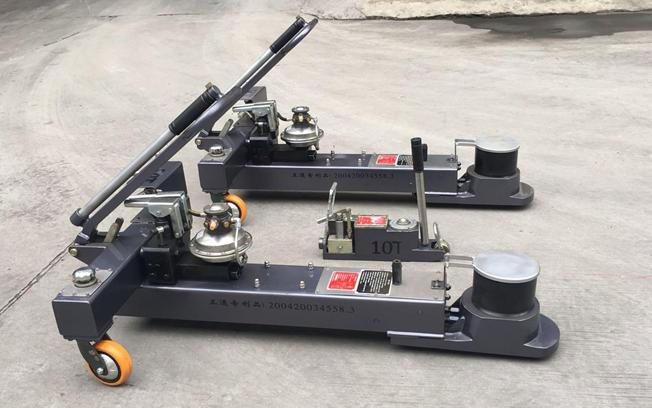

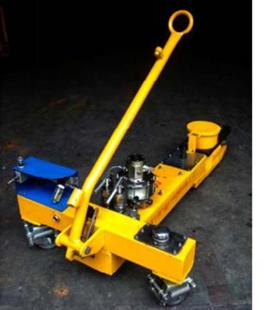

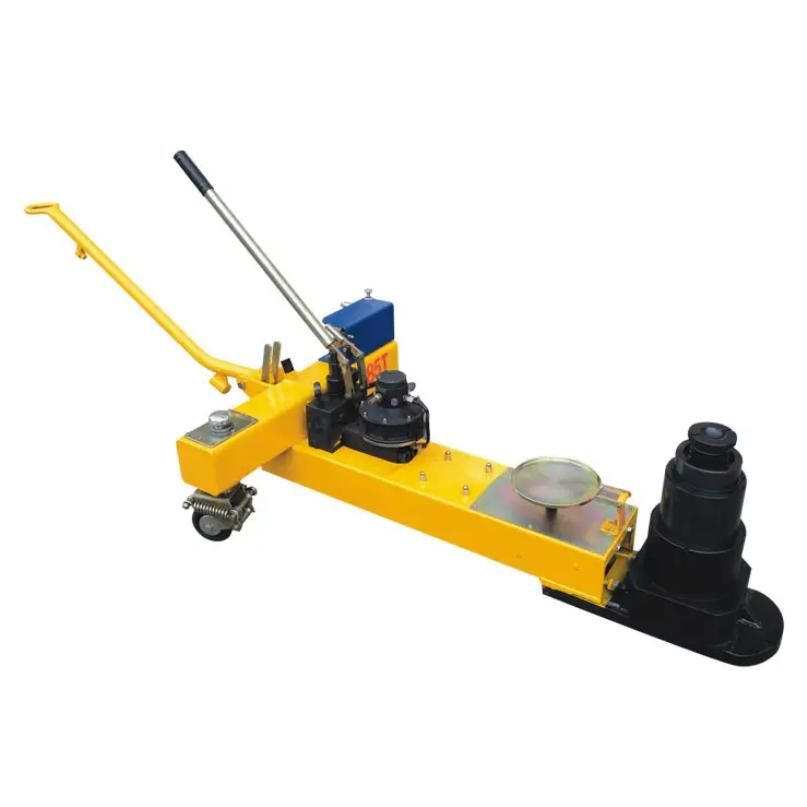

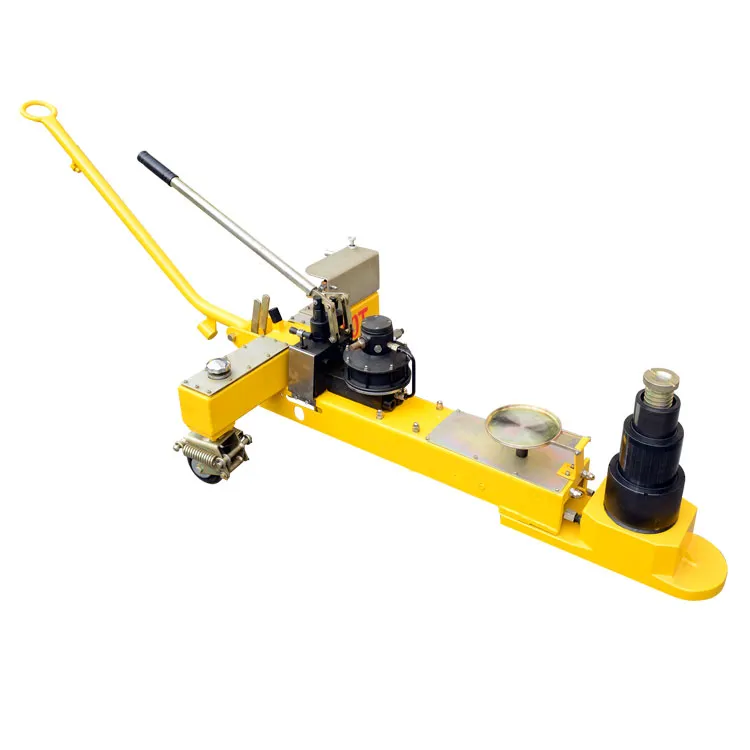

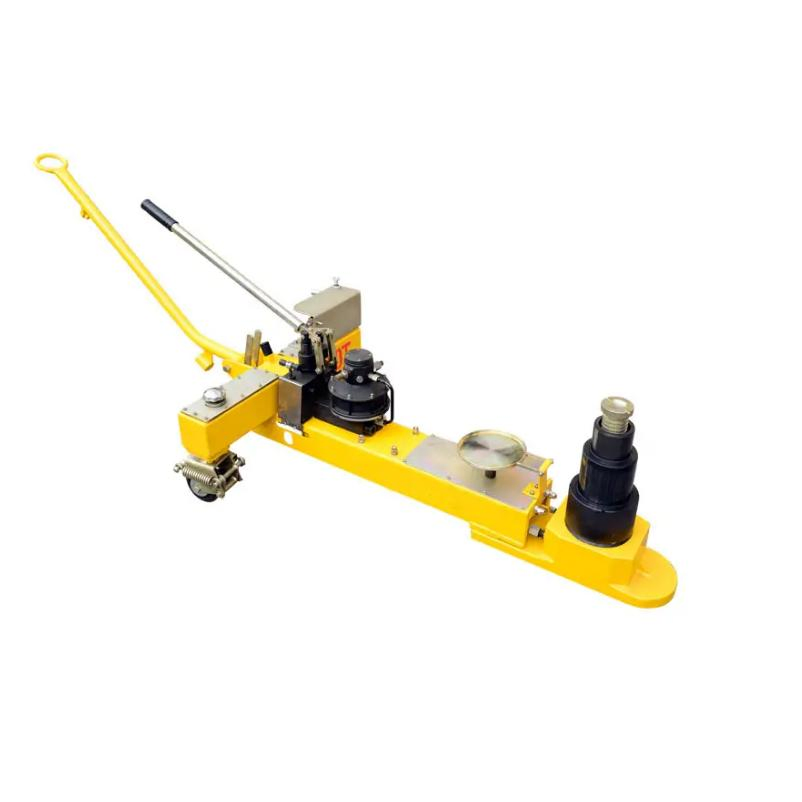

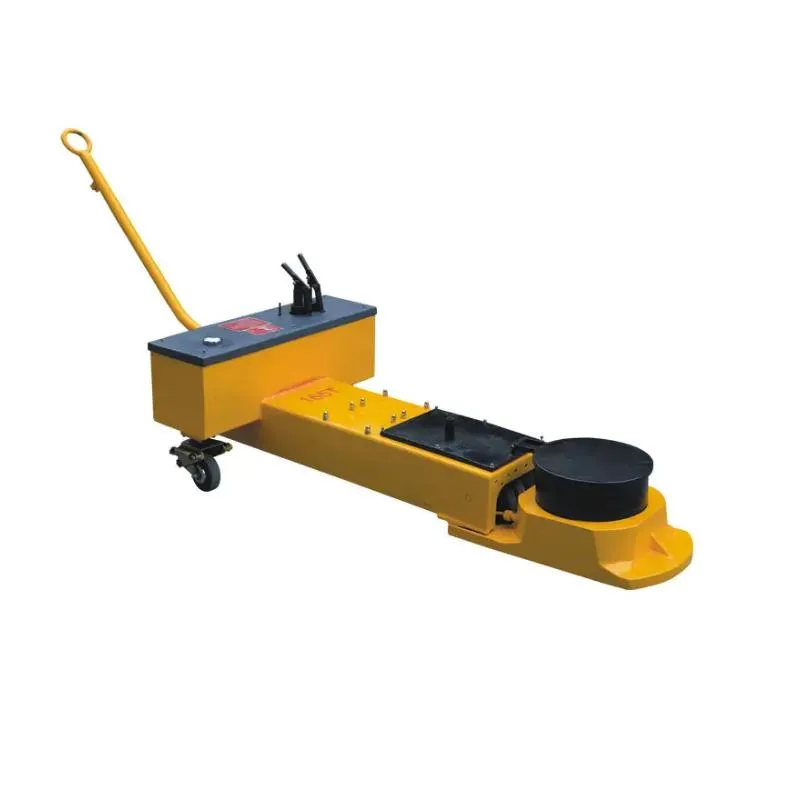

Detailed Images

⚙

Technical Parameters

Model	ZATJ50	ZATJ60	ZATJ90
Loading Capacity	50 Tons	60 Tons	90 Tons
Cylinder Outstretched Length	242mm	245mm	270mm
Screw Rod Outstretched Length	85mm	90mm	90mm
Basic Height	256mm	260mm	270mm
Maximum Height	583mm	595mm	630mm

✔

Core Advantages

◈ Professional manufacturing with high-quality standards.
◈ Advanced production machinery and strict quality control systems.
◈ Dedicated research and development team for continuous innovation.
◈ Comprehensive one-step solution services for aviation ground support.
◈ Extensive exporting experience providing global reliability.

?

Frequently Asked Questions

What are the primary applications of this axle jack?

It is primarily used in the aviation field as ground support equipment (GSE) for lifting aircraft components like the fuselage, wings, and landing gear during maintenance and installation.

How does the hydraulic system operate?

The jack utilizes both high-pressure and low-pressure oil pumps to drive a telescopic cylinder, providing smooth and controlled lifting power for heavy loads.

What safety features are integrated into the design?

The jack includes a stable base, high-precision adjustment screw heads, and a vertical casing structure to ensure the aircraft is lifted safely off the ground or deck.

Are different load capacities available for various aircraft?

Yes, we provide multiple models including 50T, 60T, and 90T capacities to accommodate a wide range of aircraft maintenance requirements.

Is the jack portable within a hangar environment?

Absolutely. The equipment is fitted with a U-shaped handle and a base designed for flexible movement, making it easy to position precisely under lifting points.

Can the lifting height be adjusted?

Yes, through a combination of the telescopic cylinder and the adjustable screw rod, the height can be fine-tuned to meet specific clearance needs.
