Product Description

Basic Specification

Model NO. ZTA85

Capacity (Load) 11-20T

Power Source Hydraulic

Max Height >400mm

Condition New

Package Standard Export Packing

Origin China

Capacity 5000 PCS/Year

Product Overview

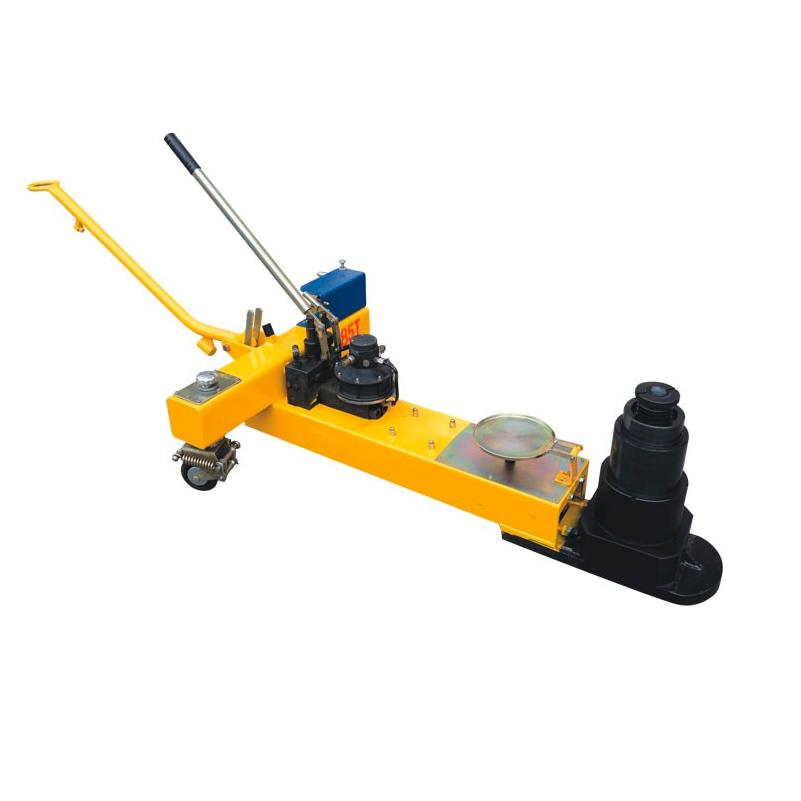

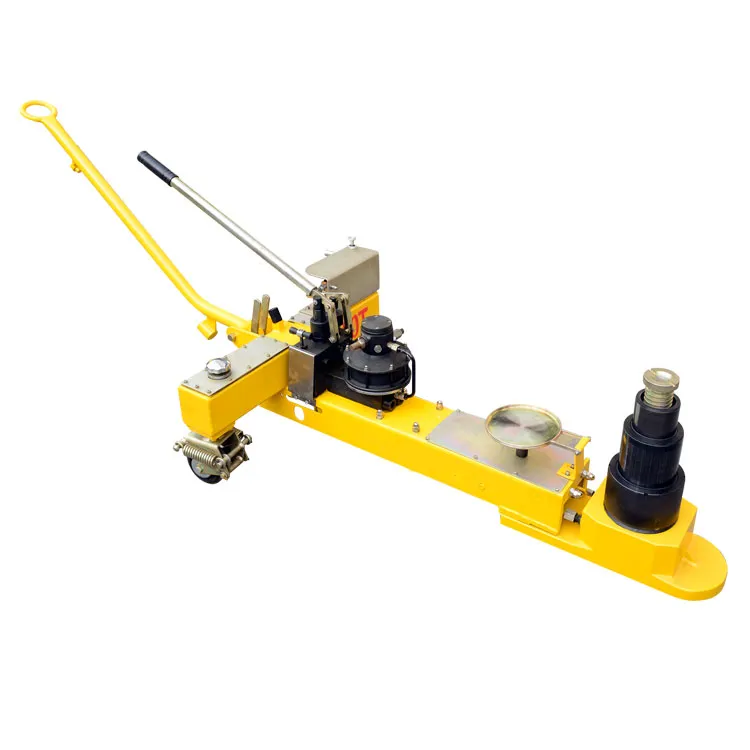

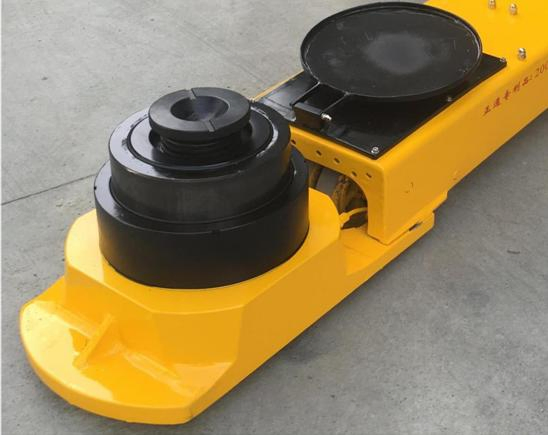

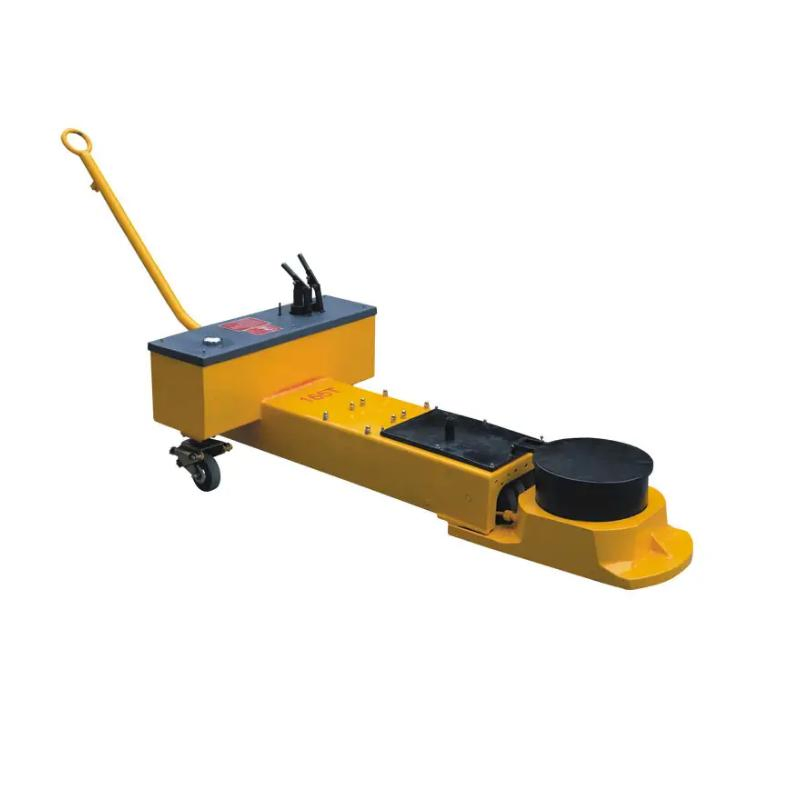

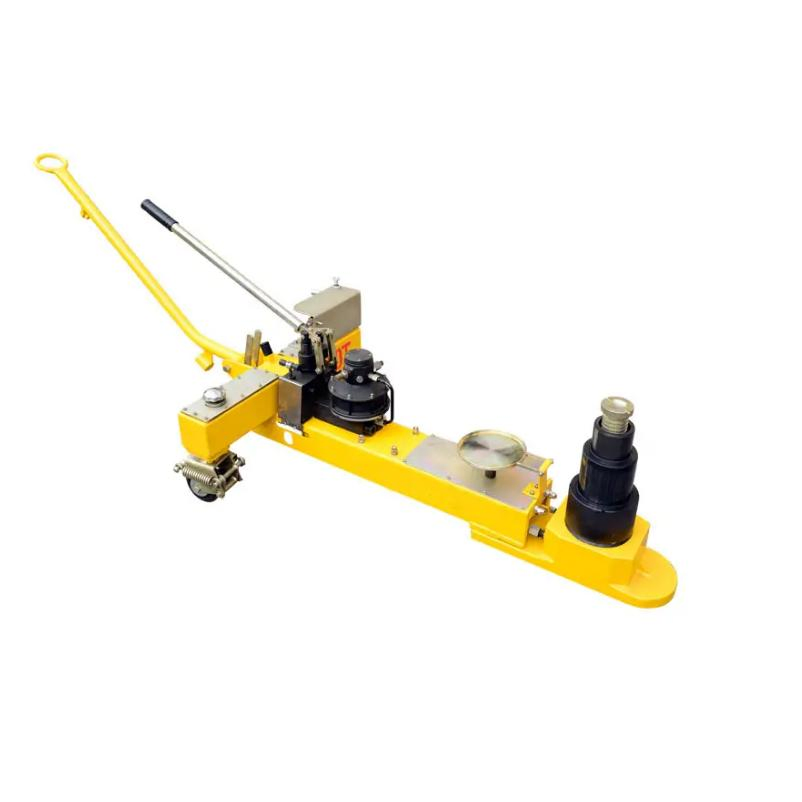

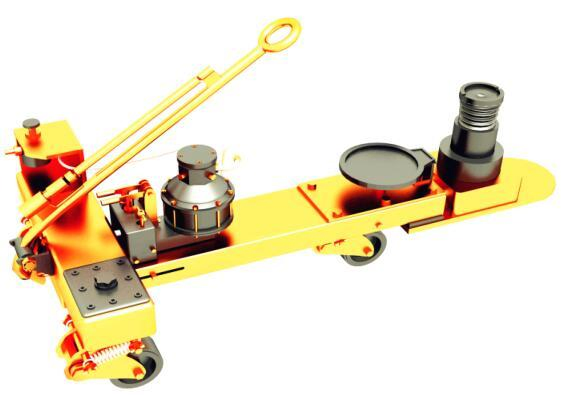

Aircraft axle Jack, belongs to the hydraulic jack, is the base, fixed in the front of the base of the cylinder, the oil cylinder in turn the telescopic cylinder and the piston and screw in the piston of the adjustment screw head, installed in the middle of the base tank, installed in the rear of the base of the high-pressure oil pump and low-pressure oil pump and the head.

A lifting device consisting of two vertical casing and U-shaped handle is fixed on the base between the cylinder and the oil tank, which makes the use of the jack more convenient and the movement more flexible. According to the working principle can be divided into hydraulic jacks, mechanical jacks and pneumatic Jack Tripod jack is a hydraulic jack, used in the aviation field as an aircraft ground support equipment (GSE), as the fuselage, wings and landing gear lifting point, safe lifting aircraft off the ground or deck, easy to repair and installation.

Technical Parameters

Model	ZATJ50	ZATJ60	ZATJ90
Loading Capacity	50 Tons	60 Tons	90 Tons
Cylinder Outstretched Length	242mm	245mm	270mm
Screw Rod Outstretched Length	85mm	90mm	90mm
Basic Height	256mm	260mm	270mm
Maximum Height	583mm	595mm	630mm

Why Choose Our Equipment

✓ High quality products with reasonable price

✓ Professional manufacturer expertise

✓ Advanced Production machinery

✓ Strict quality control system

✓ Dedicated research & develop team

✓ Professional sales and service team

✓ Global exporting experience

✓ One-step integrated solution service

Frequently Asked Questions

1. What is the primary function of an aircraft axle jack? It is used as ground support equipment (GSE) to safely lift an aircraft's fuselage, wings, or landing gear for maintenance and installation.

2. How does the hydraulic system in these jacks work? The jack uses high and low-pressure oil pumps to drive a telescopic cylinder and piston, allowing for smooth and controlled lifting.

3. What loading capacities are available for these axle jacks? We offer various models with capacities including 50 Tons, 60 Tons, and 90 Tons to suit different aircraft requirements.

4. Can the jack height be adjusted manually? Yes, these jacks feature an adjustment screw head on the piston to fine-tune the height during maintenance operations.

5. Is the equipment easy to move around the hangar? The design includes vertical casing and a U-shaped handle, making the jack more convenient to move and flexible to position.

6. What standard of packaging is used for international shipping? All products are packed using standard export packing to ensure safety during transit to global destinations.
