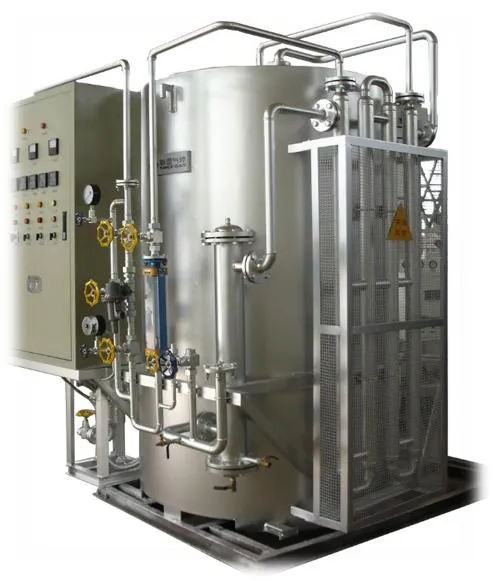

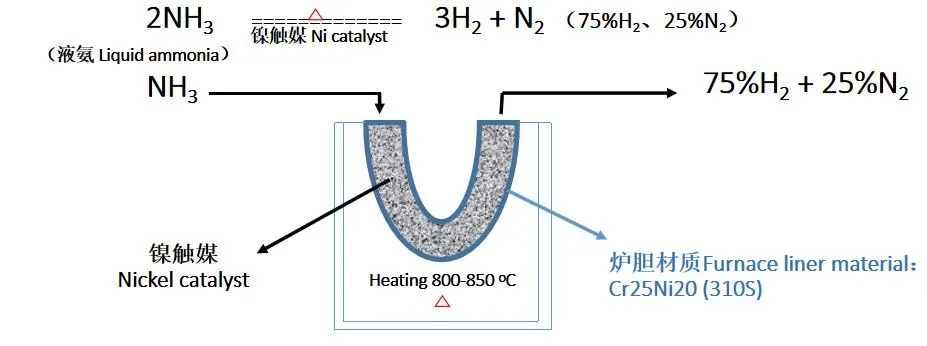

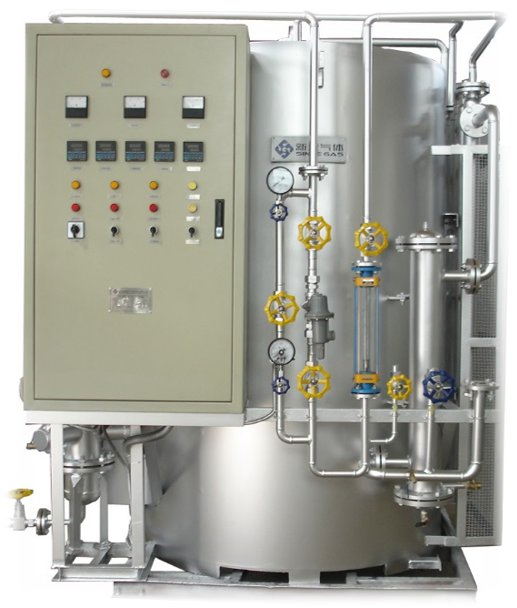

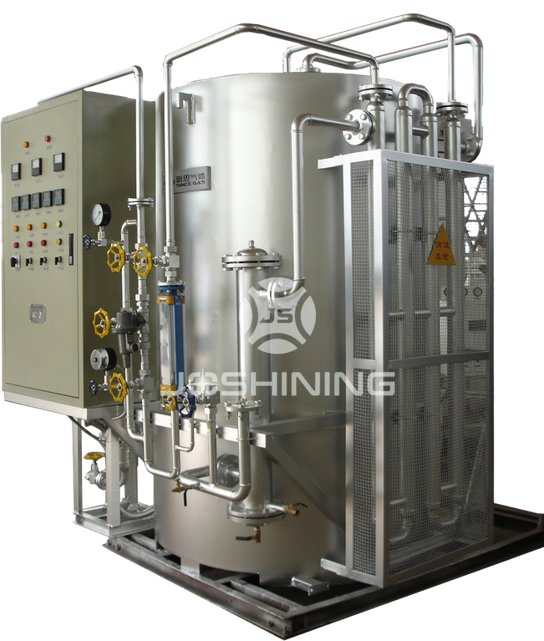

Ammonia cracker takes liquid ammonia as the raw material, and a certain flow of ammonia enters the decomposition furnace at a temperature of 800 ºC. Under the action of a catalyst, the reaction is carried out to decompose the ammonia into hydrogen and nitrogen.
This device has simple structure, convenient operation, low energy consumption, and is particularly suitable for small-scale hydrogen production. It can be used for bright annealing of metal materials, decarburization treatment, and sintering of various alloys.
✔
Easier to operate: Automatic recording of gas flow and monitoring; whole process does not need duty personnel.
✔
Higher reliability: Special valves with service life reaching millions of cycles.
✔
Flexible solutions: Manual ball valves installed in each membrane for flexible capacity adjustment.
Q1: What is the raw material used for hydrogen production in this machine?
The machine uses liquid ammonia as the raw material to produce a mixed gas of 75% hydrogen and 25% nitrogen.
Q2: What are the main industrial applications for the ANH series?
It is widely used in metal heat treatment, electronics industry, chemical processing, pharmaceutical industry, and food and beverage sectors.
Q3: How long is the service life of the crucial parts like the furnace stack?
With perfect design and high-quality materials, crucial parts like the furnace stack and heating wire can have a working life of up to three years.
Q4: Does the equipment require a full-time operator?
No, the system features automated operation and does not require constant duty personnel during the production process.
Q5: What is the typical gas pressure and dew point of the output?
The standard product decomposition gas has a pressure of 0.5 bar and a dew point of ≤ -10 degrees.
Q6: Is the equipment easy to install?
Yes, it features a skid-mounted design and is a turn-key solution, making it very easy to install and commission.
