| Model NO. | XCE22F12K1P40+XCE22T12Z1P40 |
| Gender | Male / Female Pair |
| Certification | ISO9001 |
| Application | UHF, FPC, Microwave, Automobile |
| Contact Material | Brass with Gold Plating |
| Housing | High-strength Aluminum Alloy |
| Operating Temp | -55 to 125 °C |
| Durability | ≥ 1000 Cycles |
| Vibration | 10 Hz~2000 Hz, Acceleration 196 M/S² |

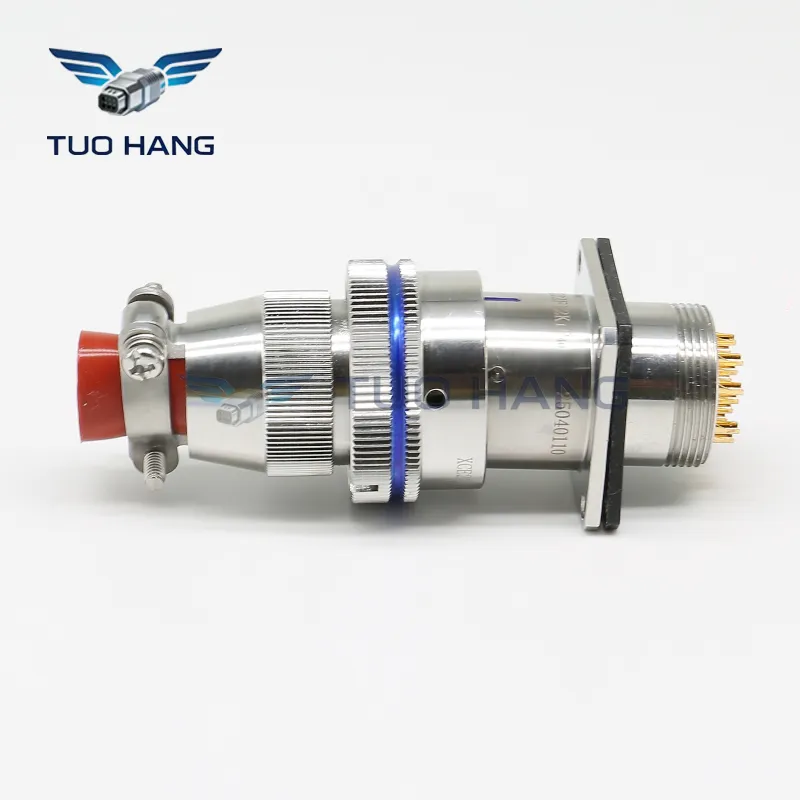

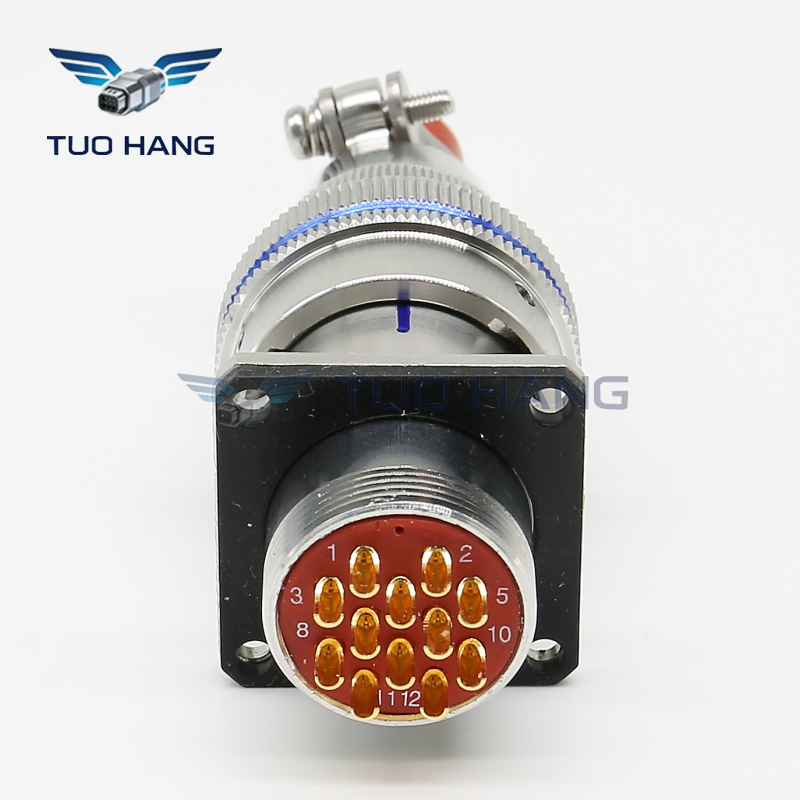

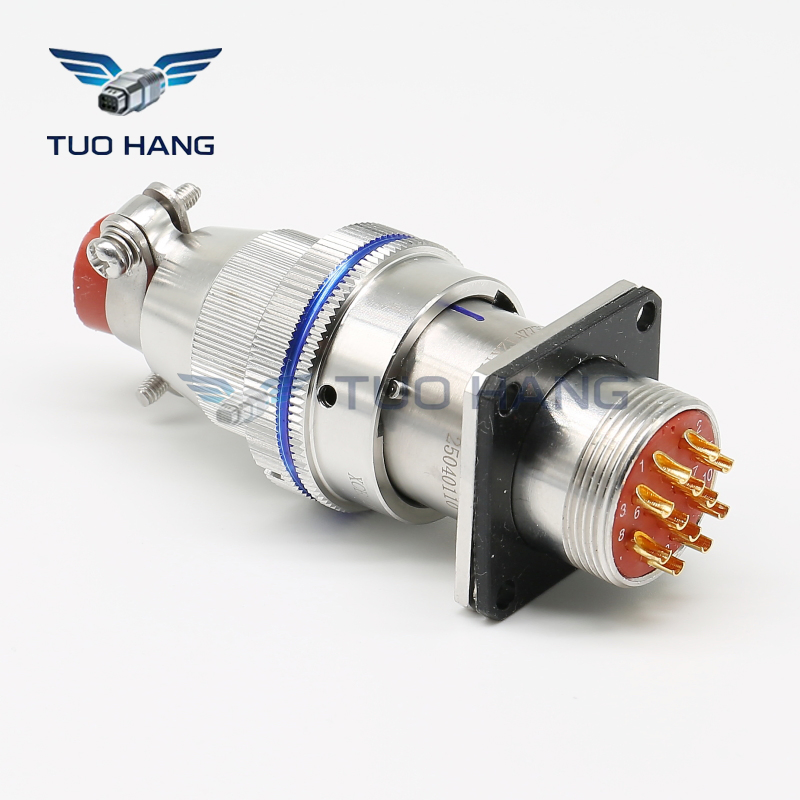

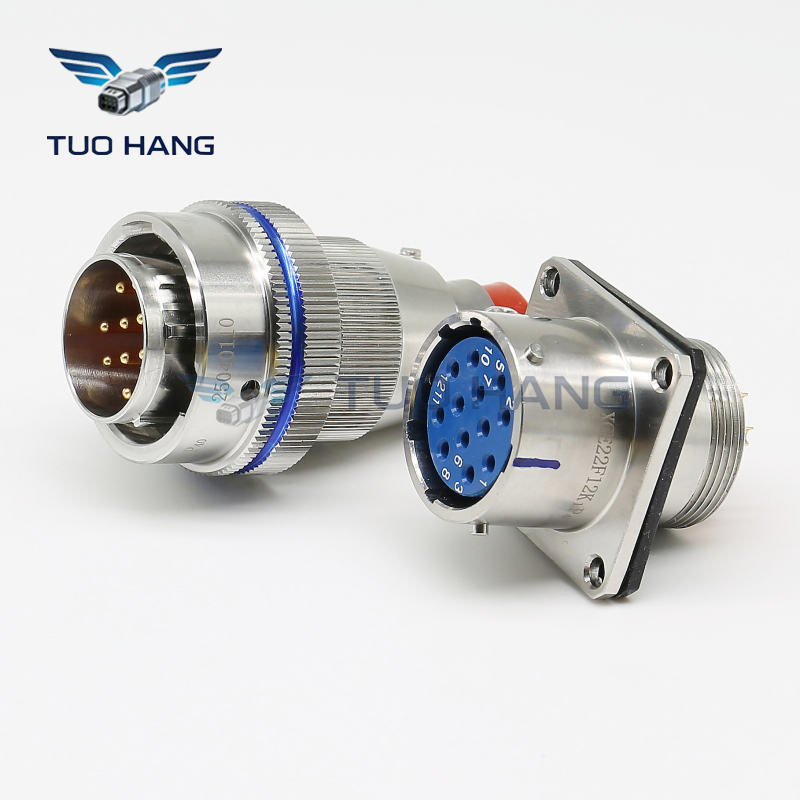

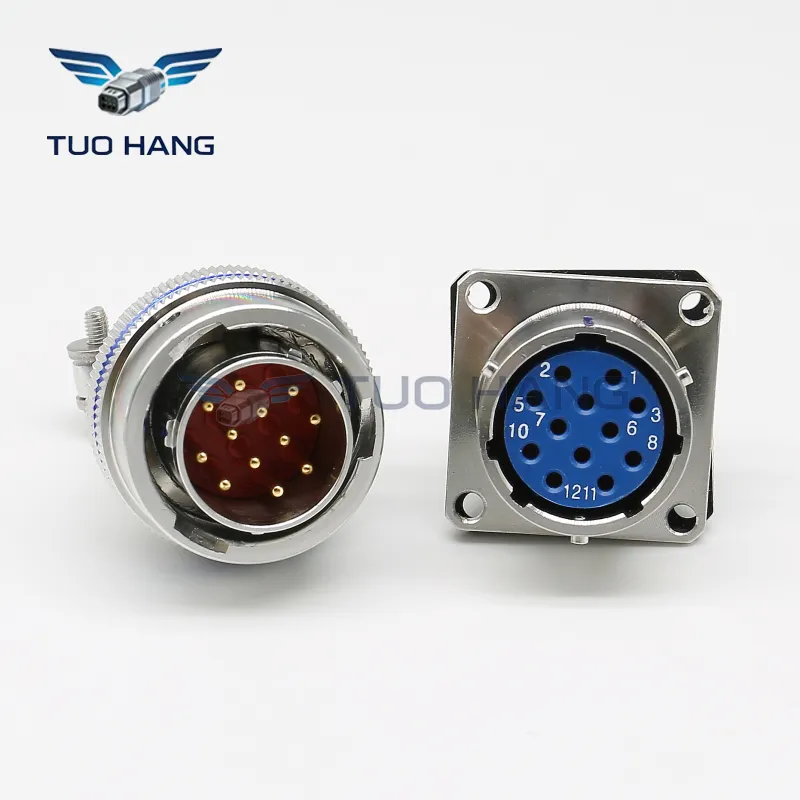

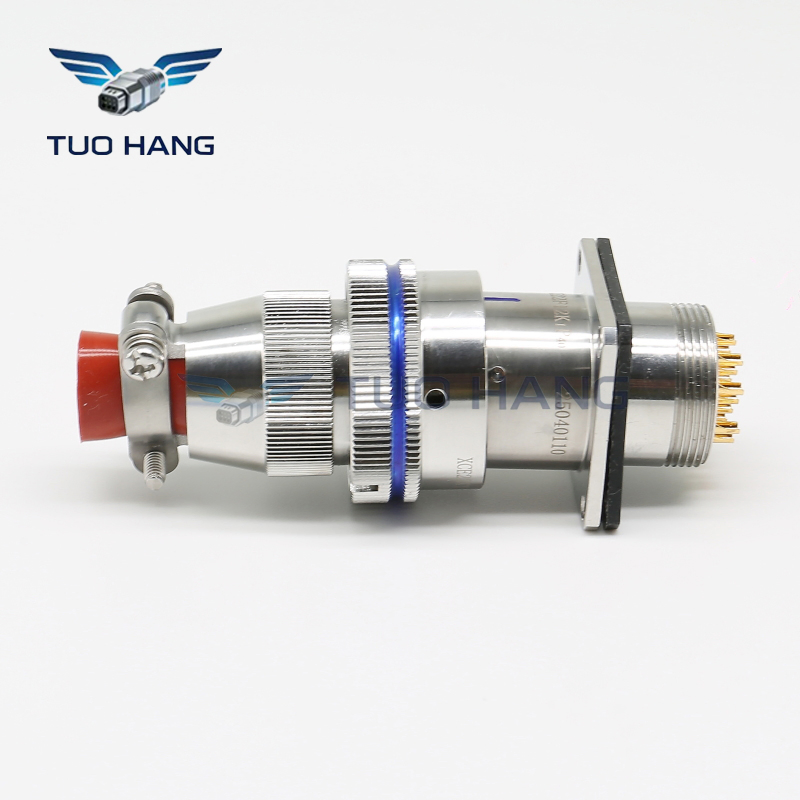

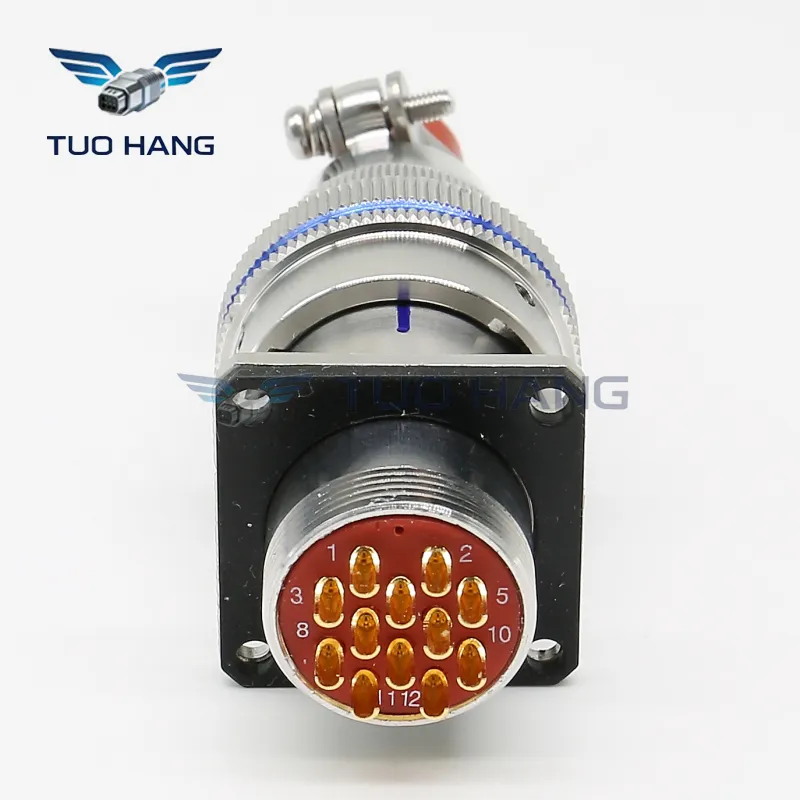

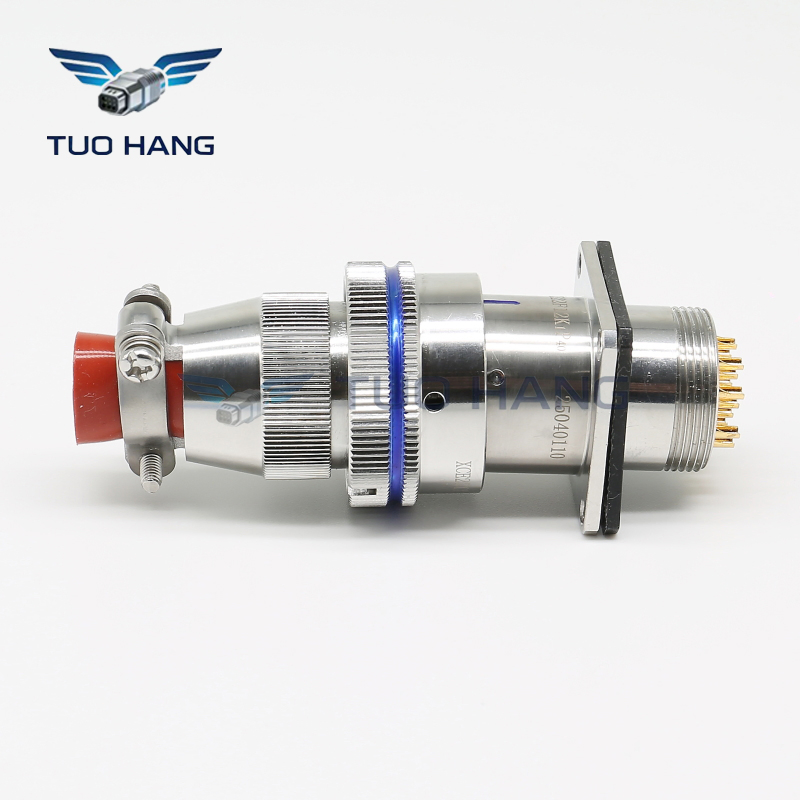

XCE22 Series 12-Pin Mating Pair
The XCE Series is a specialized line of miniature circular connectors developed for aerospace, defense, and high-end industrial sectors. Designed as an upgraded version of the standard XC series, it offers higher contact density and significant weight savings while maintaining compliance with GJB2889 standards.
| Code | Component | Description |
| XCE | Series | Miniature high-density circular connector |
| 22 | Shell Size | Size 22 housing diameter interface |
| F / T | Type | F: Square Flange Receptacle / T: Straight Plug |
| 12 | Contacts | 12-pin configuration |
| K / Z | Gender | K: Socket (Female) / Z: Pin (Male) |
Material Construction:
Typical Applications:

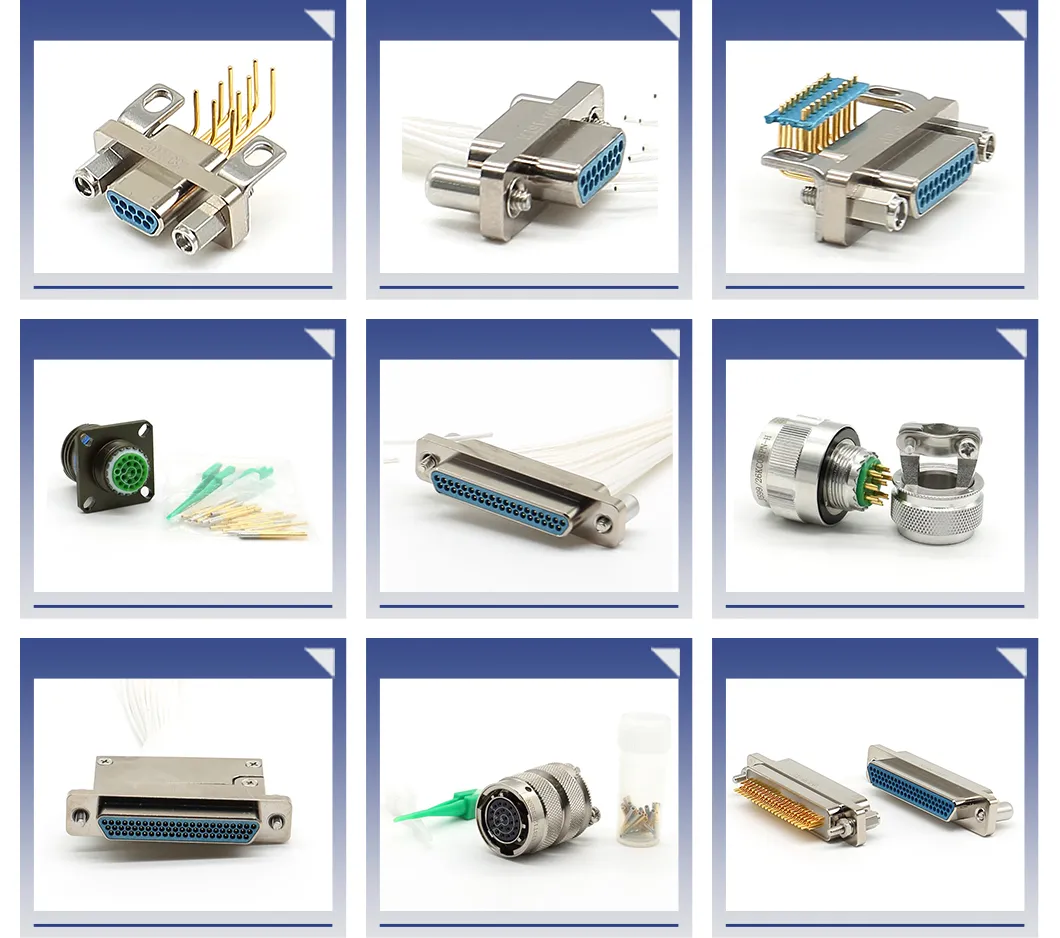

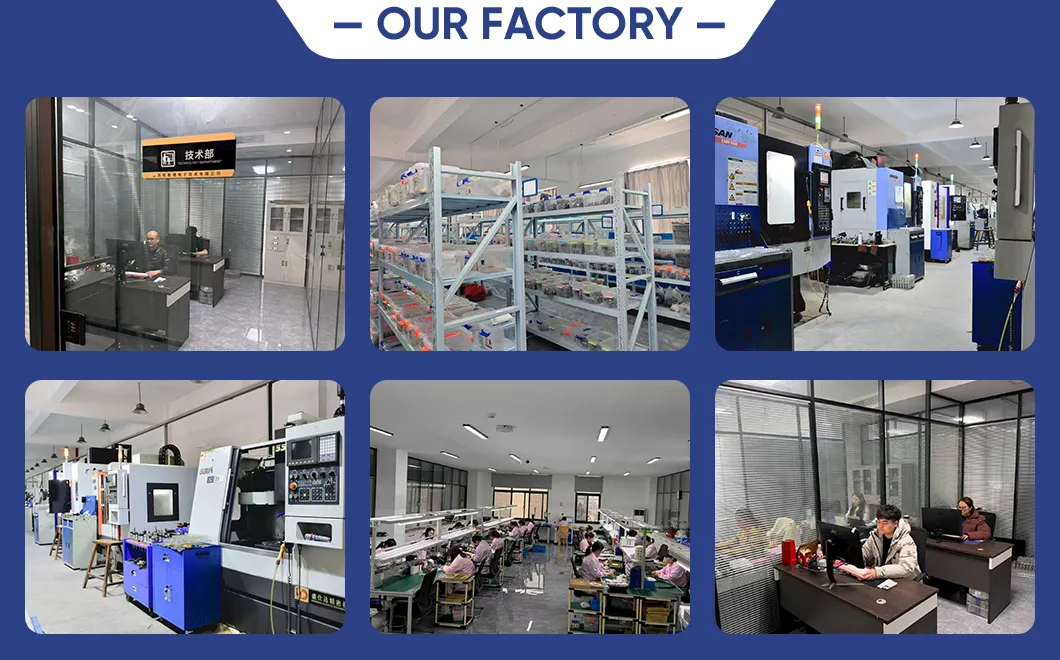

Our facility specializes in the research, development, and production of electrical connectors. Our main product series include y50ex, y3a, Y3, Yb, Y2, YP, Y4, Y11, y17, Y50, Y27, Xc, JY, YM, YGd, XS12, D38999 circular connectors and J14, J30, j63 rectangular connectors.
These products meet rigorous national military standards including GJB101, GJB598, GJB2889, and GJB2905, covering more than 1,000 specifications. Key features include high density, high reliability, and electromagnetic compatibility.
