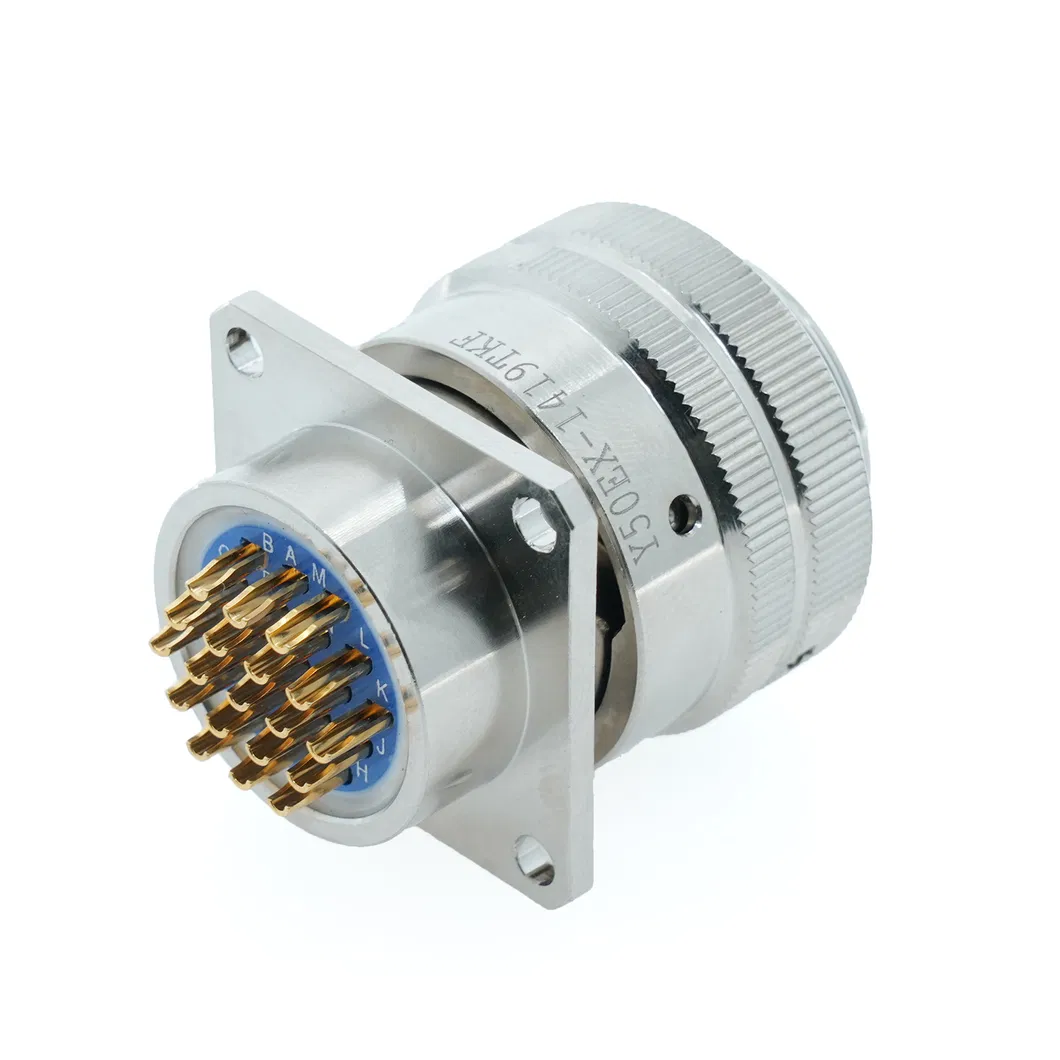

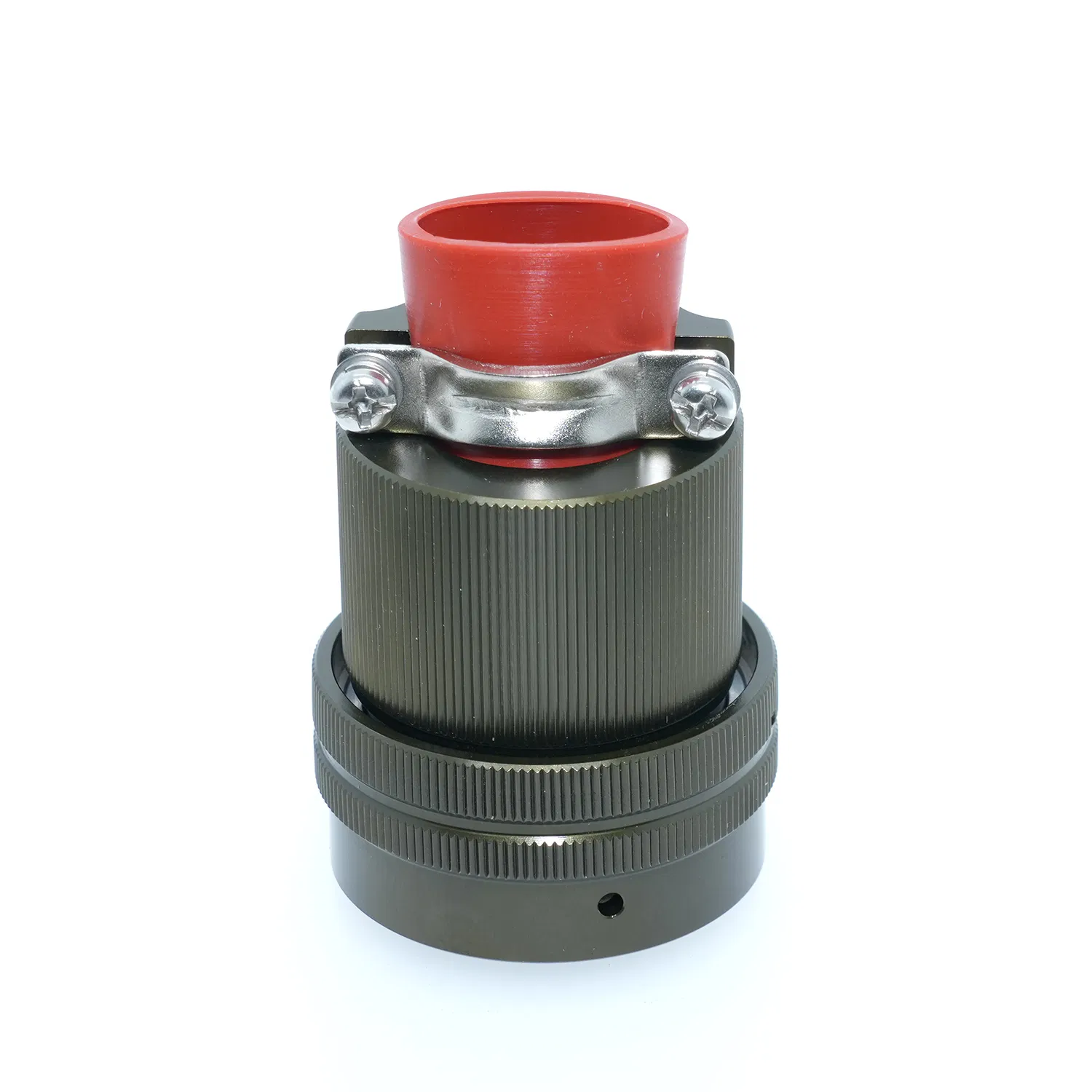

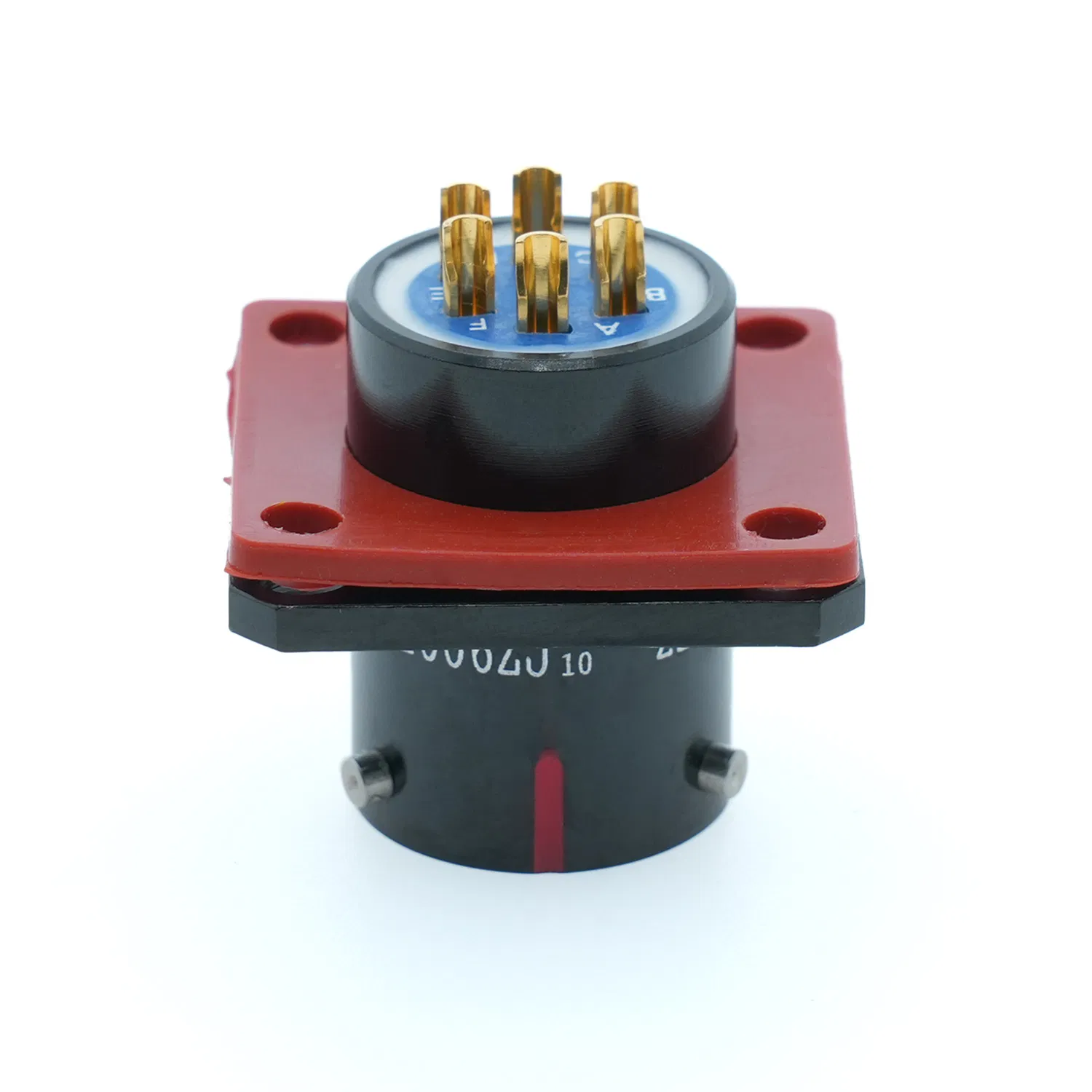

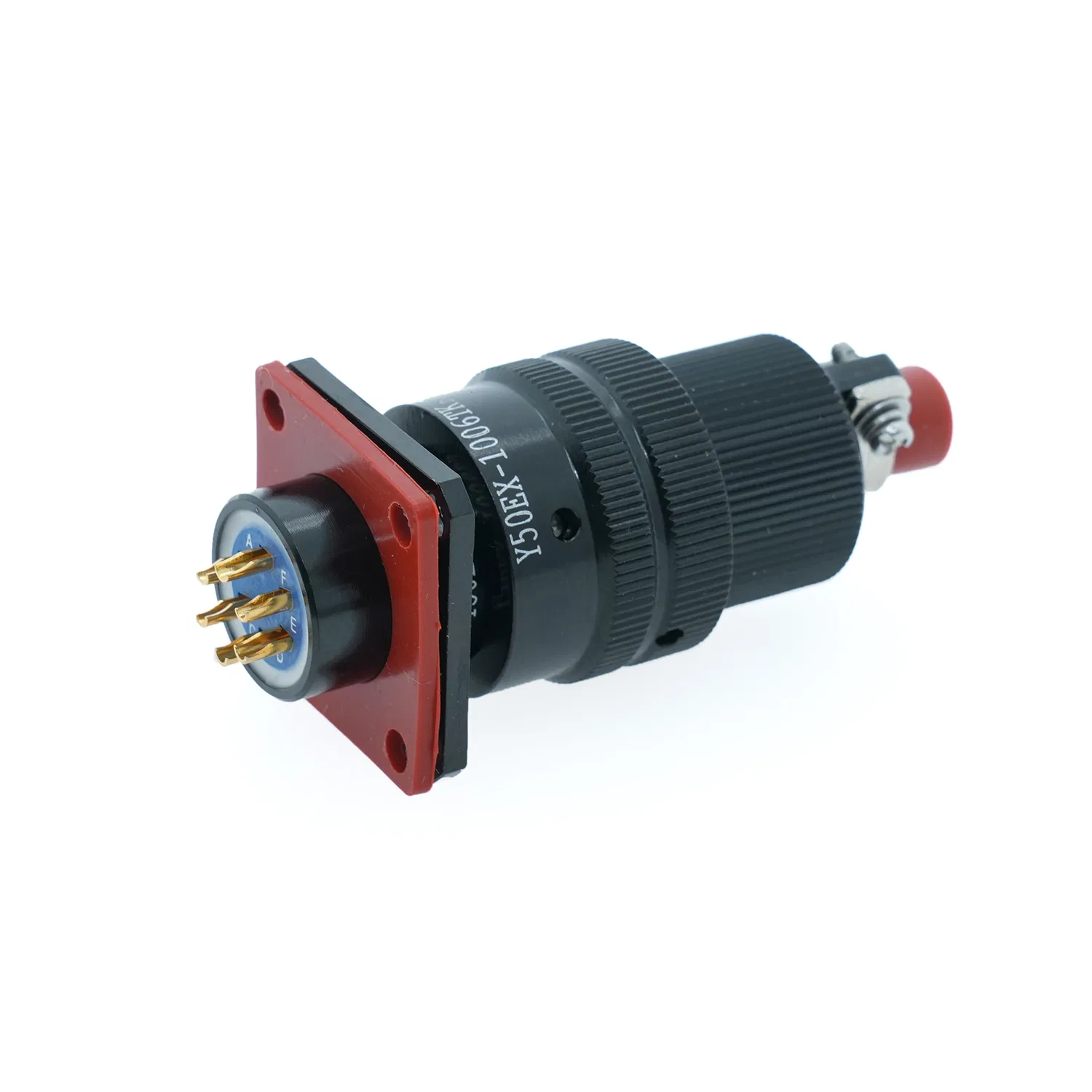

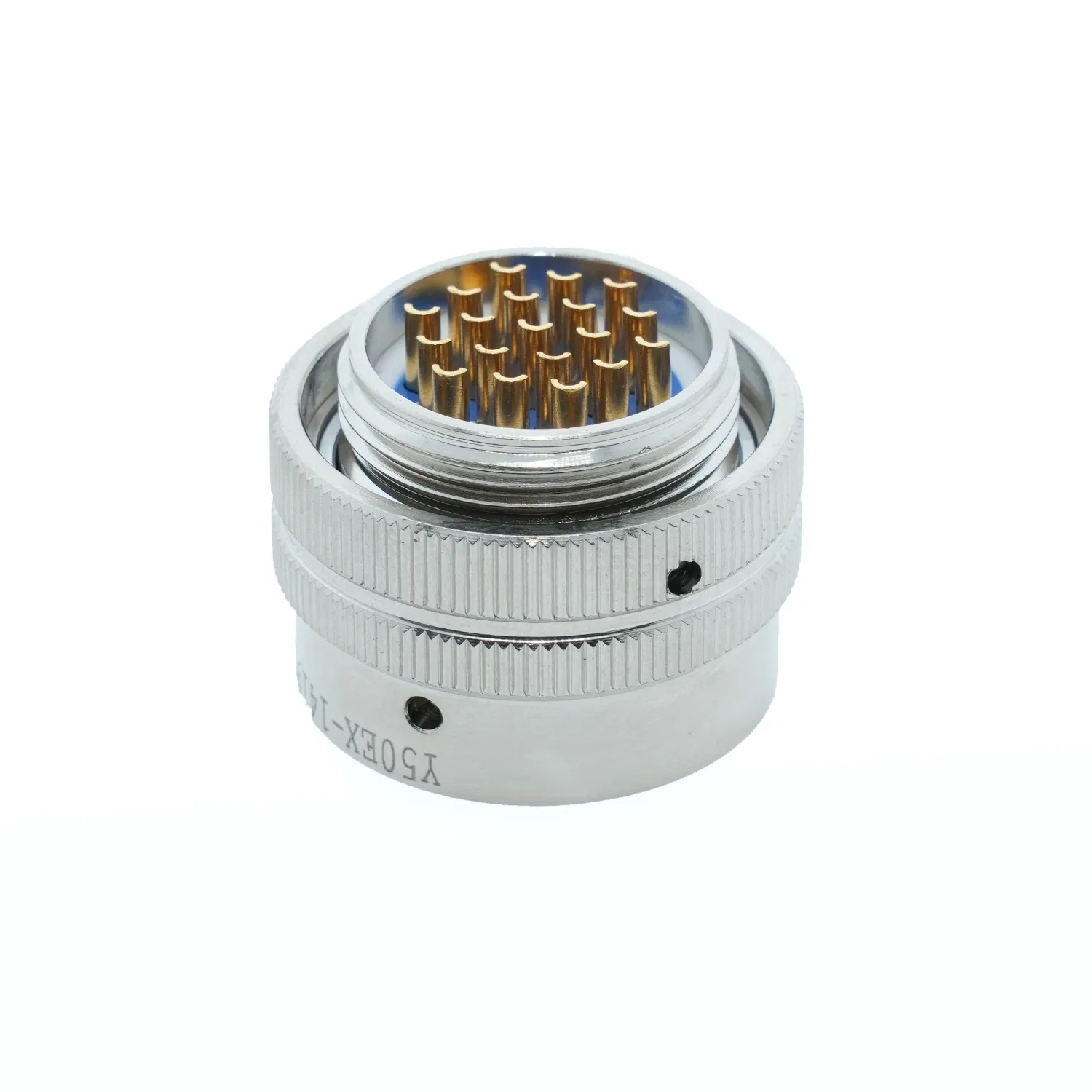

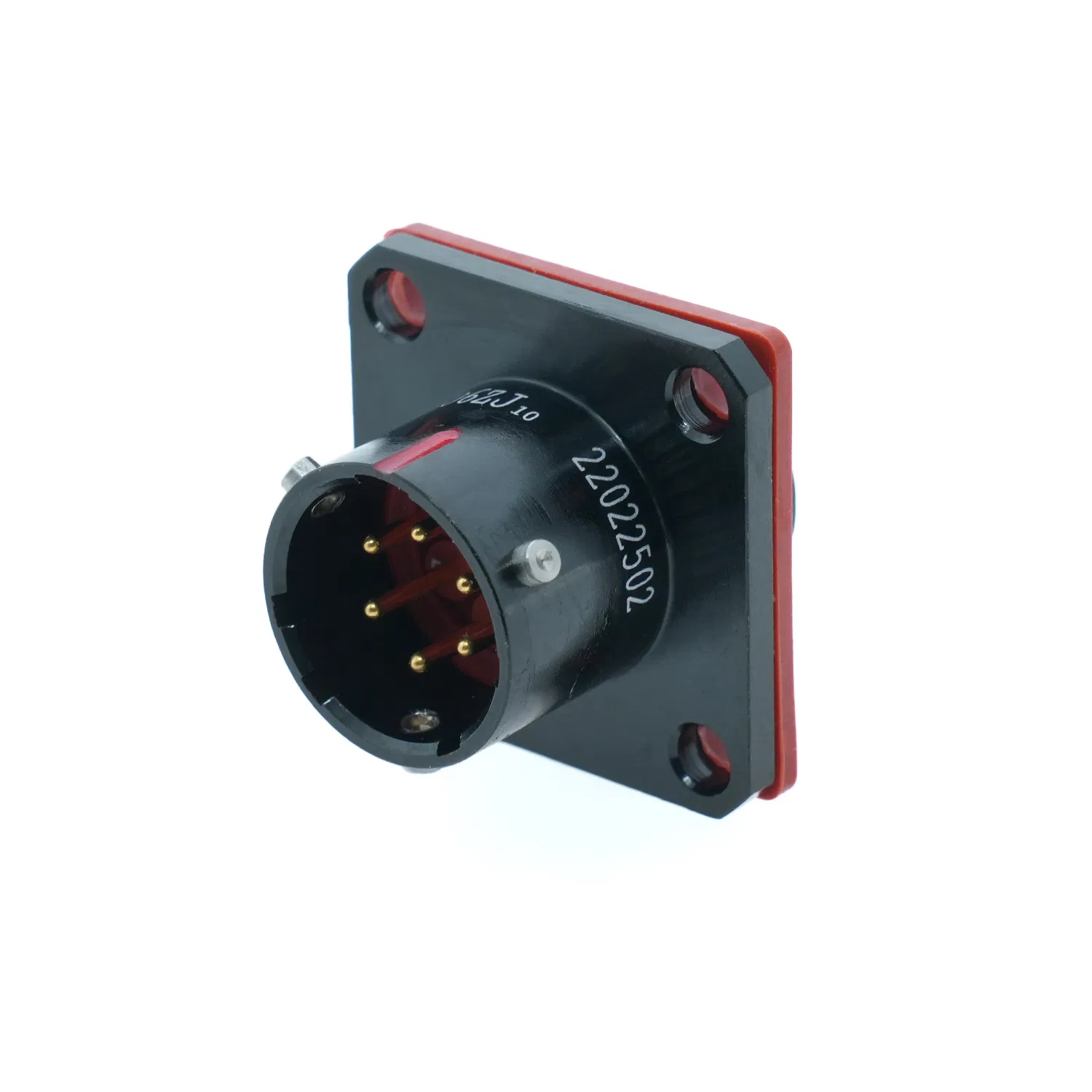

Y50DX metal seal waterproof series Y50DX-1203 TJ2 ZK10 aviation plug socket waterproof connector 3pin
Y50DX series circular power connectors are inner pin locked type for electric system, military or industry quality, featuring quick connection and separation, small volume, light weight, good sealing and anti-tensile performance. The type of terminations include soldered and crimped, shielded and nonshielded housing, straight and bent cable outlet ends, ordinary, high vacuum and high pressure sealing. It's specification meet the requirements of GJB101A, GJB598A, MIL-C-26482G standard.
Anti misplugging Introduction:
In the periphery of the insulating mounting board is provided with different angle keyway, according to the use of the need to transfer the assembly by the manufacturer, to ensure that the same specifications of the plug, the socket will not misplug.
| No. | Type Designation | Type Details | Design |
|---|---|---|---|
| 1 | Identification Code | Circular Connector | Y50 |
| 2 | Type | Eng | E |
| 3 | Structure Type | Welding Plastic Closure | X |
| 4 | Shell Size | 08, 10, 12, 14, 16, 18, 20, 22, 24 | Number |
| 5 | Plug/Receptacle | Plug (T) / Receptacle (Z) | Letter |
| Protection Degree | IP67 |
| Coupling | Plug-in |
| Withstand voltage | 1500V |
| Material | Gild, silver plate |
| Rate voltage | 500V |
| Relative temperature | -55 ° C ~ +125° C |
| Relative Humidity | At 40 ± 2 ° C, up to 90% ~ 95% |
| Sin Vibration | 101 ~ 2000HZ, acceleration 196m/s² |
| Insulation resistance | Normal conditions ≥ 3000M Ω; High temp ≥ 3M Ω; Humid ≥ 100M Ω |
| Airtightness | General socket ≤ 6 × 10⁻² Pal / s; Sintered glass ≤ 1 × 10⁻⁵ Pal / s |
