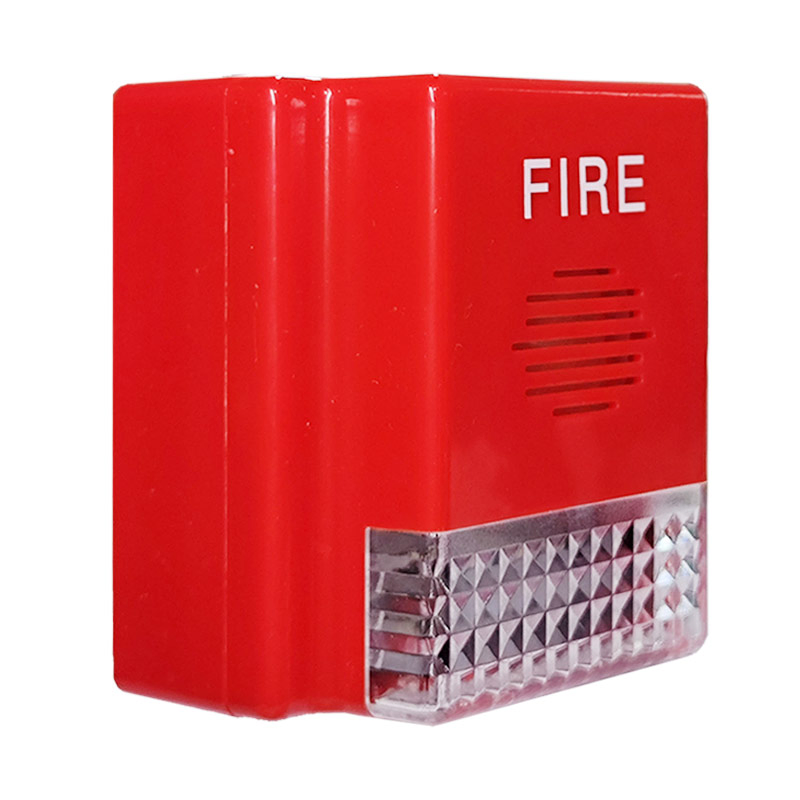

Ca2011 Addressable Sounder Strobe Audible and Visual Signal for Fire Alarm System
Ca2011 Addressable Sounder Strobe Audible and Visual Signal for Fire Alarm System
Ca2011 Addressable Sounder Strobe Audible and Visual Signal for Fire Alarm System
Ca2011 Addressable Sounder Strobe Audible and Visual Signal for Fire Alarm System
Ca2011 Addressable Sounder Strobe Audible and Visual Signal for Fire Alarm System
1 / 5
Ca2011 Addressable Sounder Strobe Audible and Visual Signal for Fire Alarm System
Ca2011 Addressable Sounder Strobe Audible and Visual Signal for Fire Alarm System
Ca2011 Addressable Sounder Strobe Audible and Visual Signal for Fire Alarm System
Ca2011 Addressable Sounder Strobe Audible and Visual Signal for Fire Alarm System
Ca2011 Addressable Sounder Strobe Audible and Visual Signal for Fire Alarm System

Ca2011 Addressable Sounder Strobe Audible and Visual Signal for Fire Alarm System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
CA2011
Certification
CE
Alarm Volume
≥80dB (within 1m)
Weight
102g (with Base)
Installation
Wall Mounted
Alarm Output
Relay Output
Type
Addressable Sounder Light
Dimensions
85*46 mm
Origin
China
HS Code
8531100000

Packaging & Delivery

Package Size
8.50cm * 8.50cm * 4.60cm
Gross Weight
0.120kg
Transport Package
Carton

Product Description

Addressable Fire Alarm System Audible And Visual Signaling For Emergency Notification

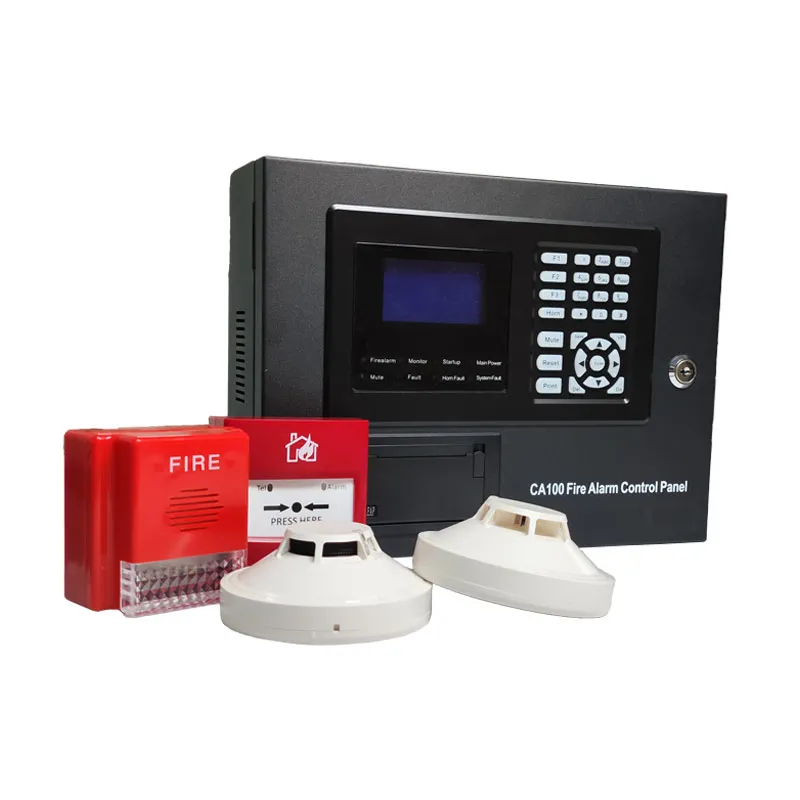

Addressable Sounder Strobe

Introduction

A sounder strobe is a fire alarm notification appliance that combines audible and visual alarm signaling capabilities into a single, addressable device to provide effective emergency notification in buildings.

  • Audible Alarm: Generates tones or voice messages with configurable patterns and volumes.
  • Visual Alarm: High-intensity flashing strobe for hearing-impaired individuals or noisy areas.
  • Integrated Design: Combines both signals to simplify installation and reduce device count.
  • Addressability: Unique digital address for individual control and monitoring by the panel.
  • Synchronized Operation: Alarms activate simultaneously for coordinated notification.
  • Supervised Monitoring: Continuous fault detection for circuits and operation integrity.

Technical Parameters

Product Name Sounder Strobe Type Addressable
Loop Bus Wired 2-wire Non-polarized Monitor Current ≤300uA
Alarm Current ≤40mA Dimension Φ85*46 mm
Work Voltage DC17V ~ DC33V Environment -10°C~+50°C; Humidity ≤95%
Weight 102g (with base) Certification CE

System Connection

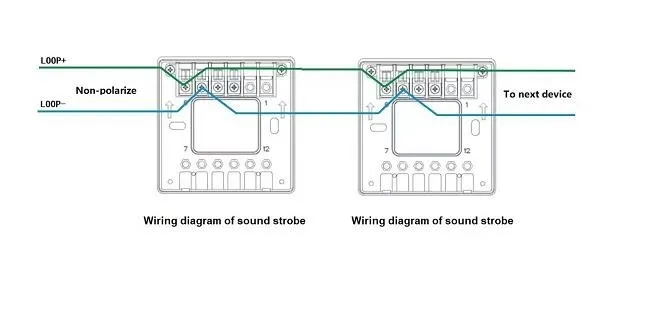

Connection between Sounder Strobe units:

Connection Diagram

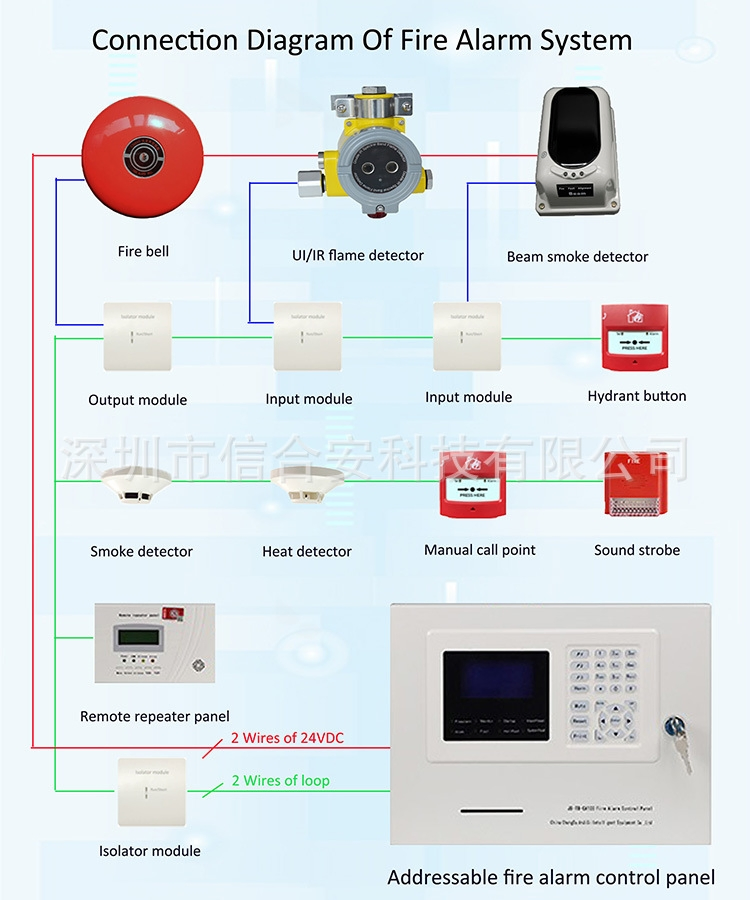

Connection Diagram of Fire Alarm System:

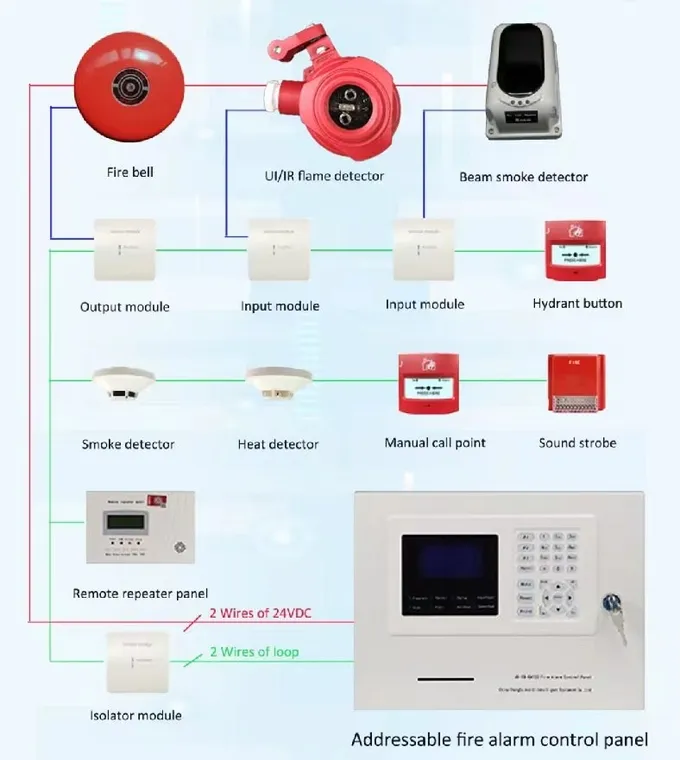

System Diagram

Our Services & Product Range

Support

OEM & ODM Service
Technical Support

Warranty

1 Year Warranty
Sample Orders Welcome

Delivery

Normally 15 Working Days Lead Time

Product Range:

  • Conventional & Addressable Fire Alarm Systems
  • Gas Extinguishing Control Systems
  • Beam Detectors & Flame Detectors
  • Smoke & Heat Detectors (2/4 Wire)
  • Standalone Smoke & Combustible Gas Detectors

Production Facility

Facility Photo 1
Facility Photo 2

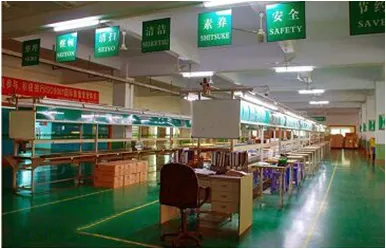

Assembly Line

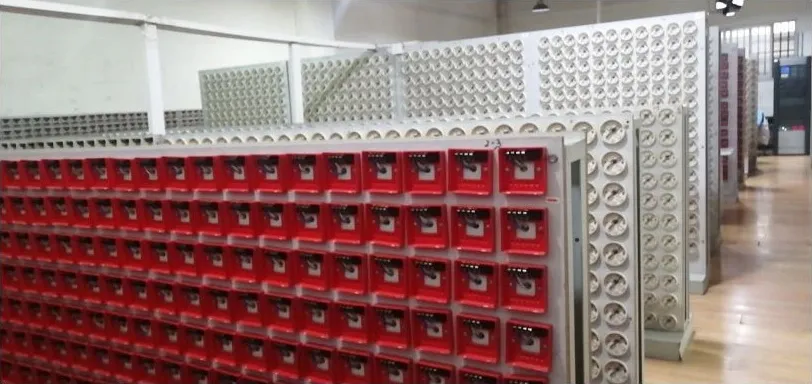

Burn-in Room
Quality Management

Frequently Asked Questions (FAQ)

What are the main functions of the CA2011 Sounder Strobe?
The CA2011 provides both audible alarm tones and visual flashing light signals to notify occupants during a fire emergency. It is an addressable device integrated into a fire alarm system.
Is the device compatible with standard loop wiring?
Yes, it uses a 2-wire non-polarized loop bus connection, making it easy to integrate into addressable fire alarm control systems.
What is the alarm volume of this sounder?
The sounder strobe produces an alarm volume of ≥80dB at a distance of 1 meter, ensuring clear notification throughout the building.
What certifications does the product carry?
The CA2011 addressable sounder strobe is CE certified, meeting European safety and quality standards for fire notification appliances.
Can I request a sample before placing a bulk order?
Yes, sample orders are welcome. We also provide OEM and ODM services to meet specific project requirements.
What is the warranty period for this device?
We provide a 1-year warranty on the sounder strobe, along with full technical support and after-sale service.
