📊 Basic Info.
Paint Mist Treatment
Dry-type
Specification
CE ISO9001: 2000
Production Capacity
500sets/Year
⚙️ Product Description
Main Product: Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft etc; Sanding/Power Coating/Painting line for all kind of Industry Product, Voc Environment equipments.
Process Description:

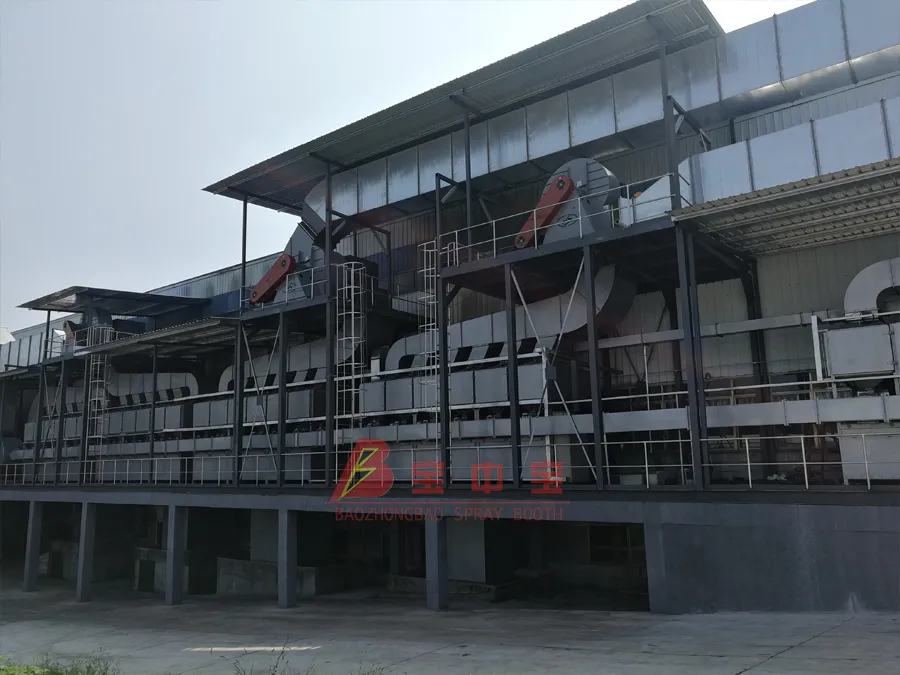

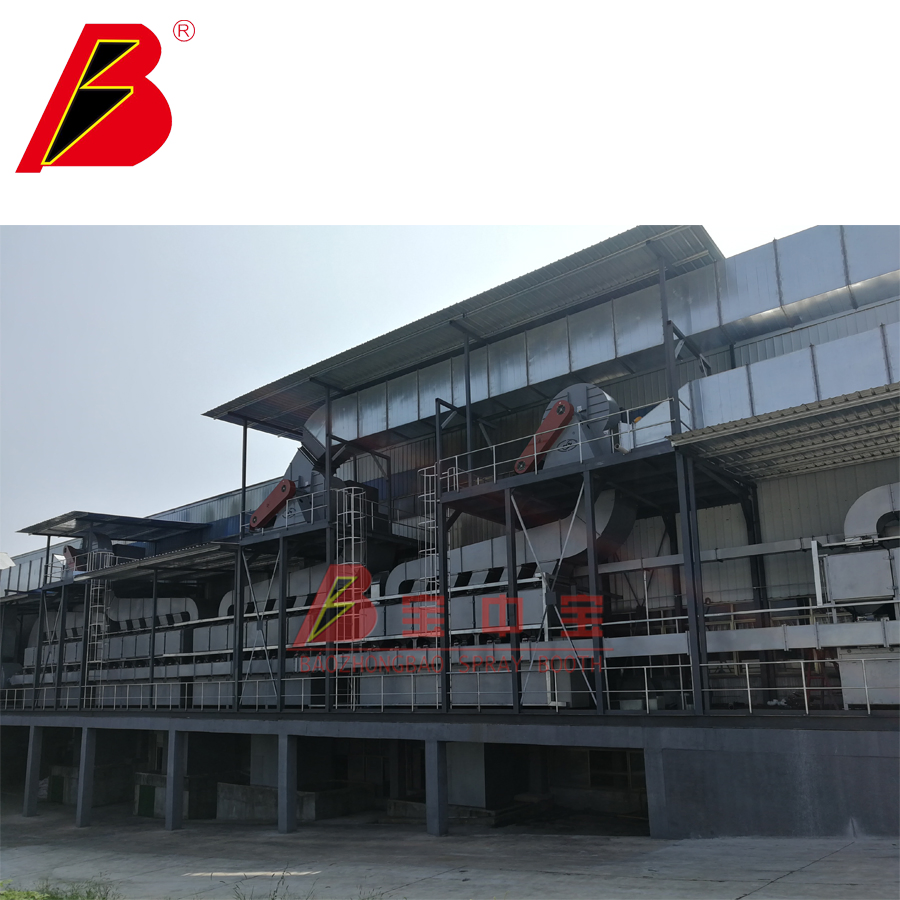

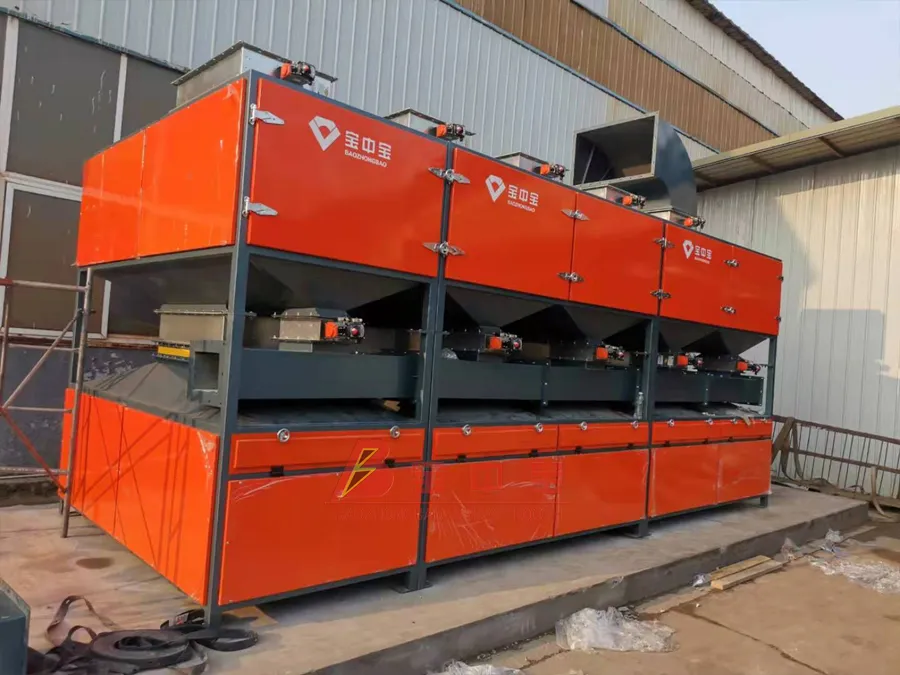

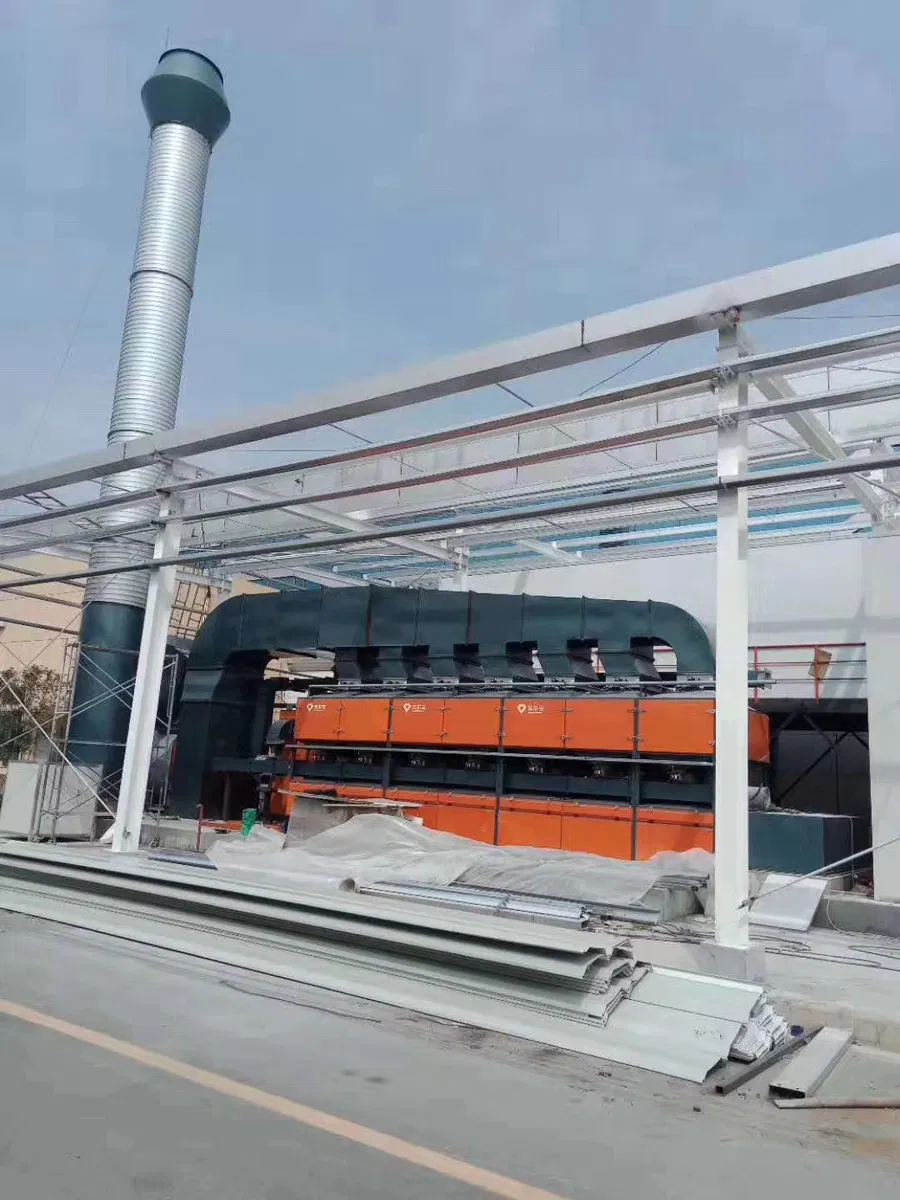

Baozhongbao series activated carbon adsorption-catalytic combustion integrated waste gas treatment device uses the thermal energy of catalytic combustion reaction to desorb VOCs adsorbed by activated carbon, completely solving the problem of wastewater pollution caused by steam desorption. This process is currently recognized as a mature process for treating large air volume, low and medium concentration organic waste gas.
🛠️ Working Principle & Characteristics

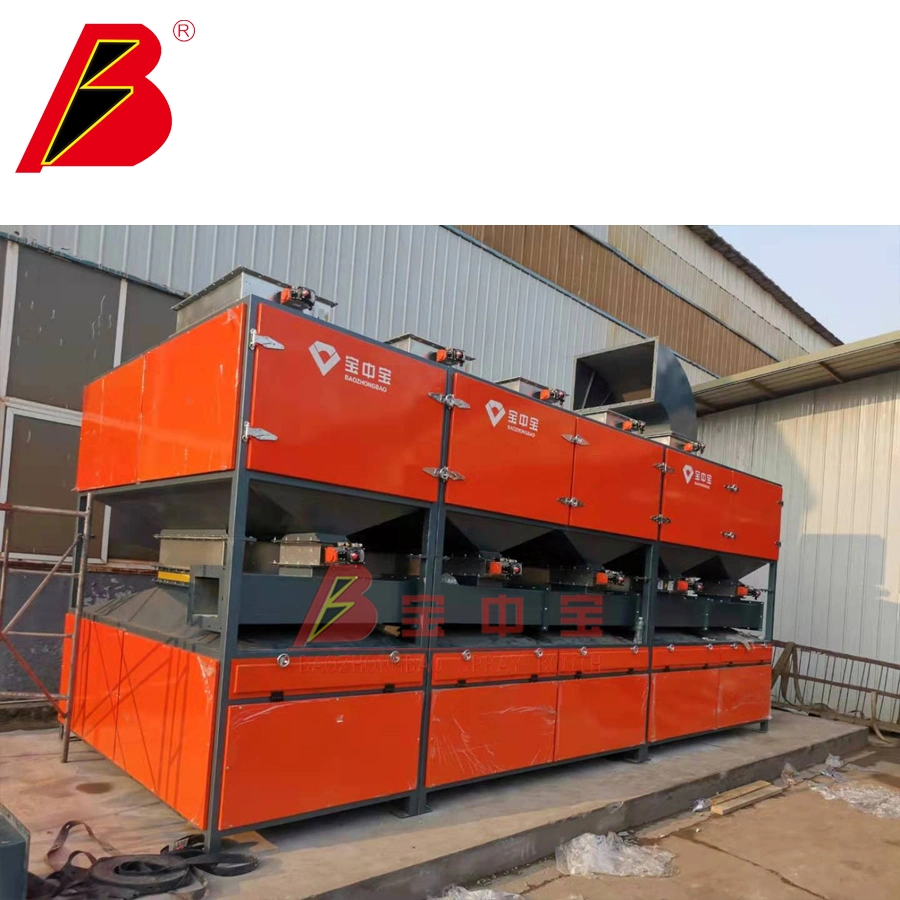

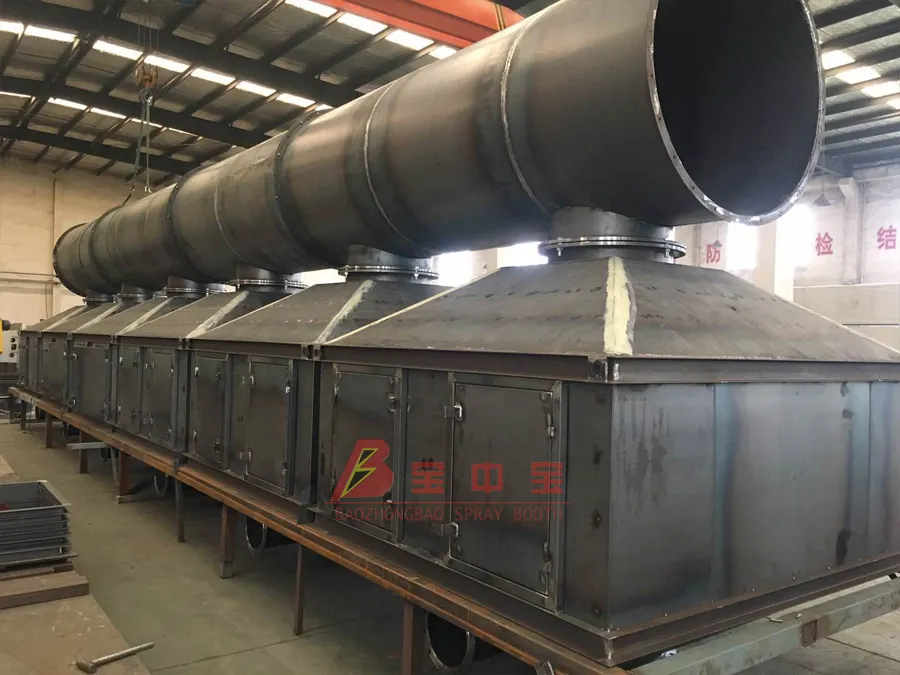

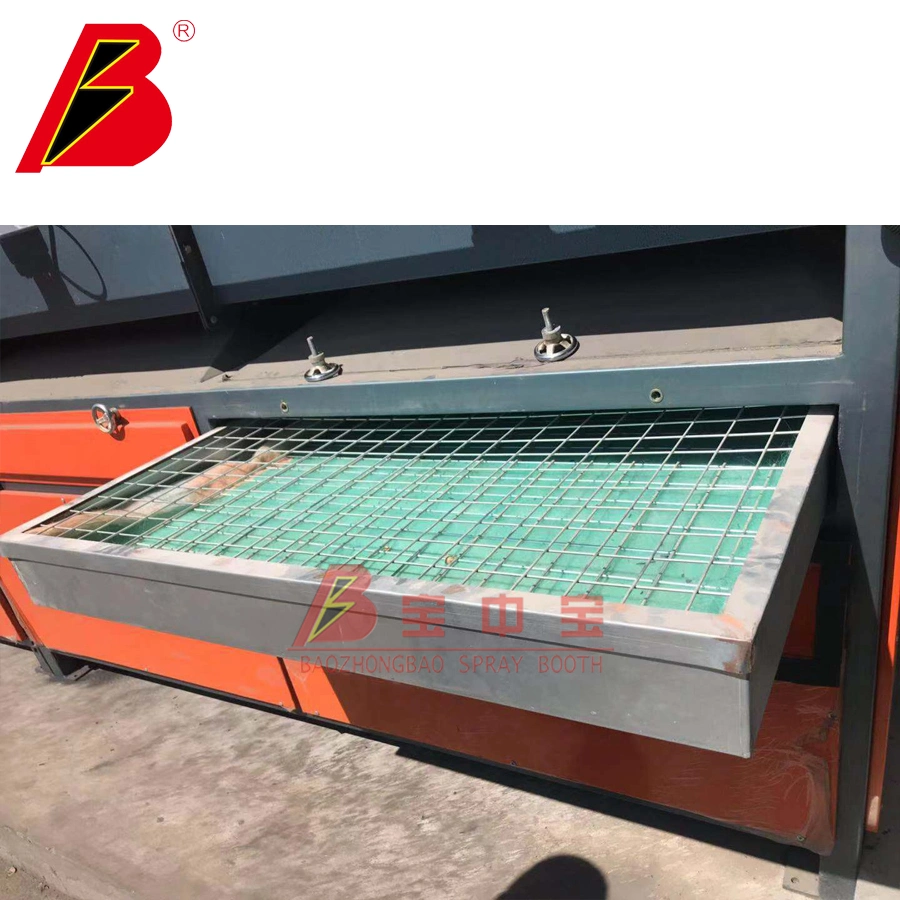

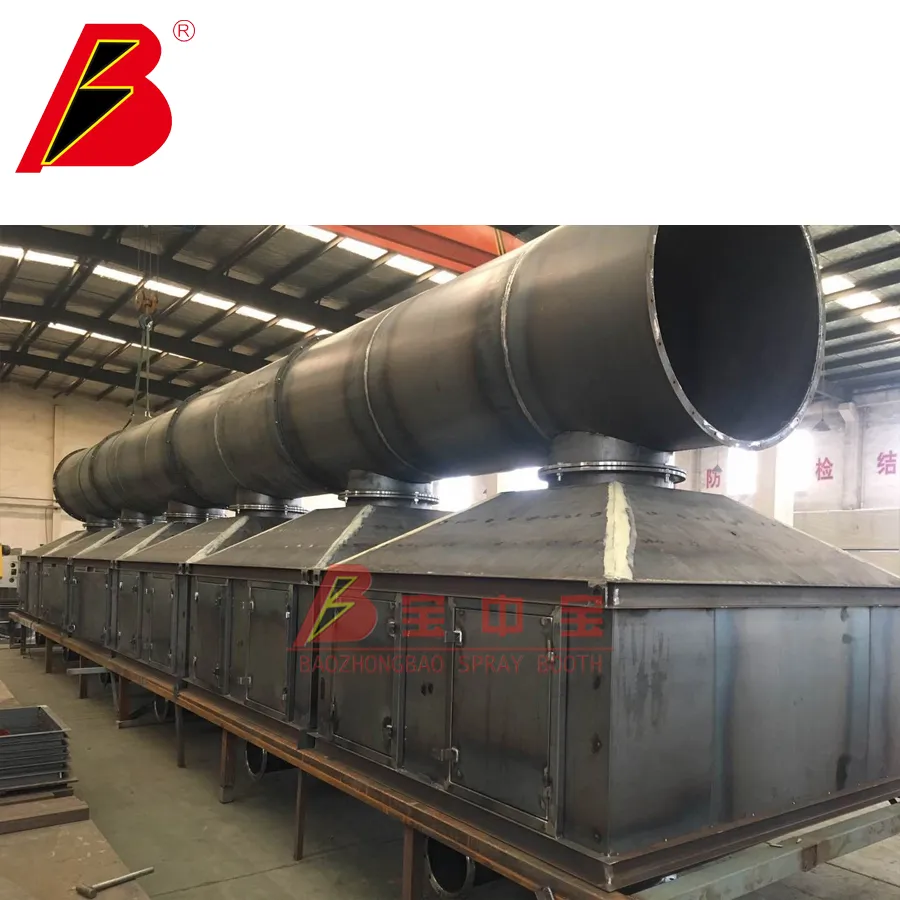

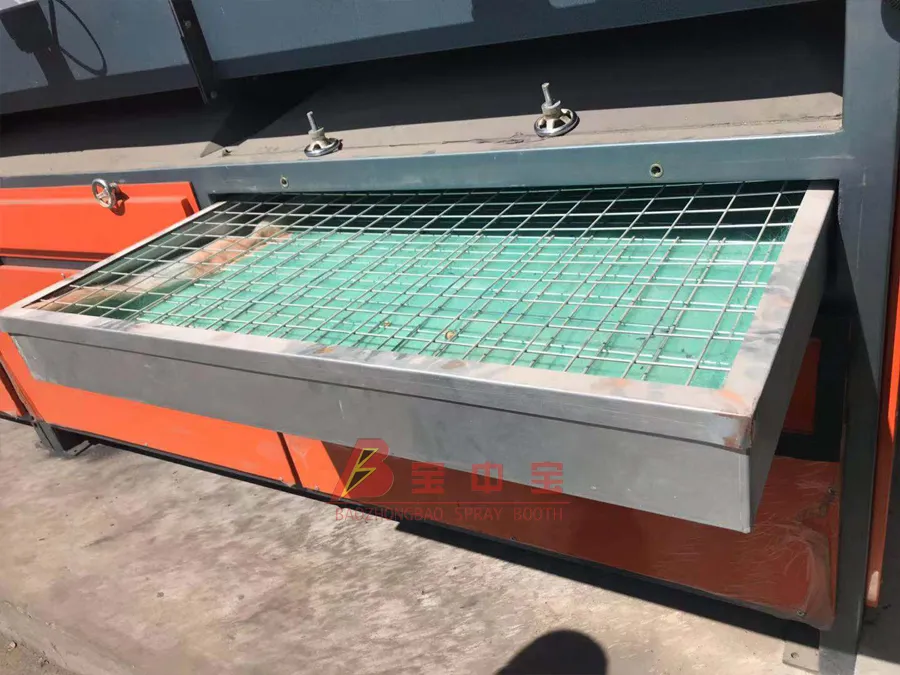

First, the organic waste gas is removed through a dry filter to remove some dust particles, and then the organic waste gas enters an adsorption box for adsorption, and the cleaned gas after adsorption and purification is discharged into the atmosphere by a main exhaust fan.
Automation: Entire system realized purification and desorption process automation, no secondary pollution.
Efficiency: Specifically shaped honeycomb activated carbon provides 8-10 times the adsorption capacity of standard materials.
Catalyst: High-quality precious metal palladium and platinum supported on honeycomb ceramic for low energy consumption.
Safety: PLC control system ensures the operation process is safe, stable and reliable.
🔍 Technical Introduction
Catalytic combustion is a gas-solid phase catalytic reaction involving deep oxidation. Flameless combustion occurs with the aid of a catalyst, oxidatively decomposing VOCs into CO2 and H2O while releasing thermal energy.
❓ Frequently Asked Questions
What is the main purpose of this treatment system?
It is designed to treat large air volumes and low-to-medium concentration organic waste gas (VOCs) through adsorption and catalytic combustion.
How does the catalytic combustion process benefit energy saving?
The system utilizes hot air generated from the catalytic reaction for desorption, meaning no additional energy is required once the process is active.
What type of activated carbon is used?
The device uses specially shaped honeycomb activated carbon which has an adsorption capacity significantly higher than standard strip-shaped fibers.
Is the operation of the equipment safe?
Yes, the system is equipped with a PLC control, temperature probes, flame arresters, and automatic cooling valves to prevent overheating and accidents.
What are the primary components of the purification device?

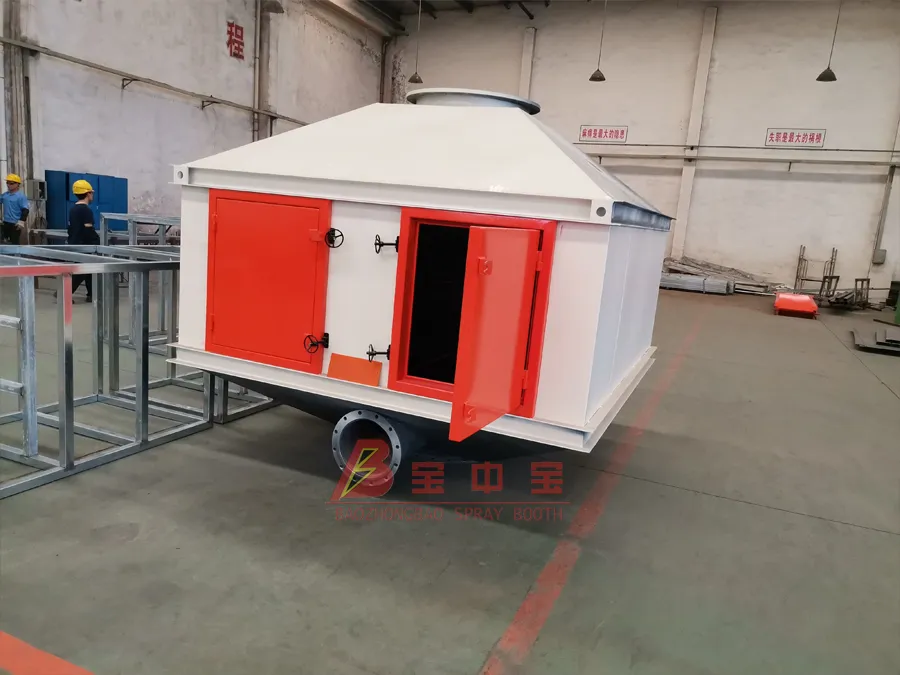

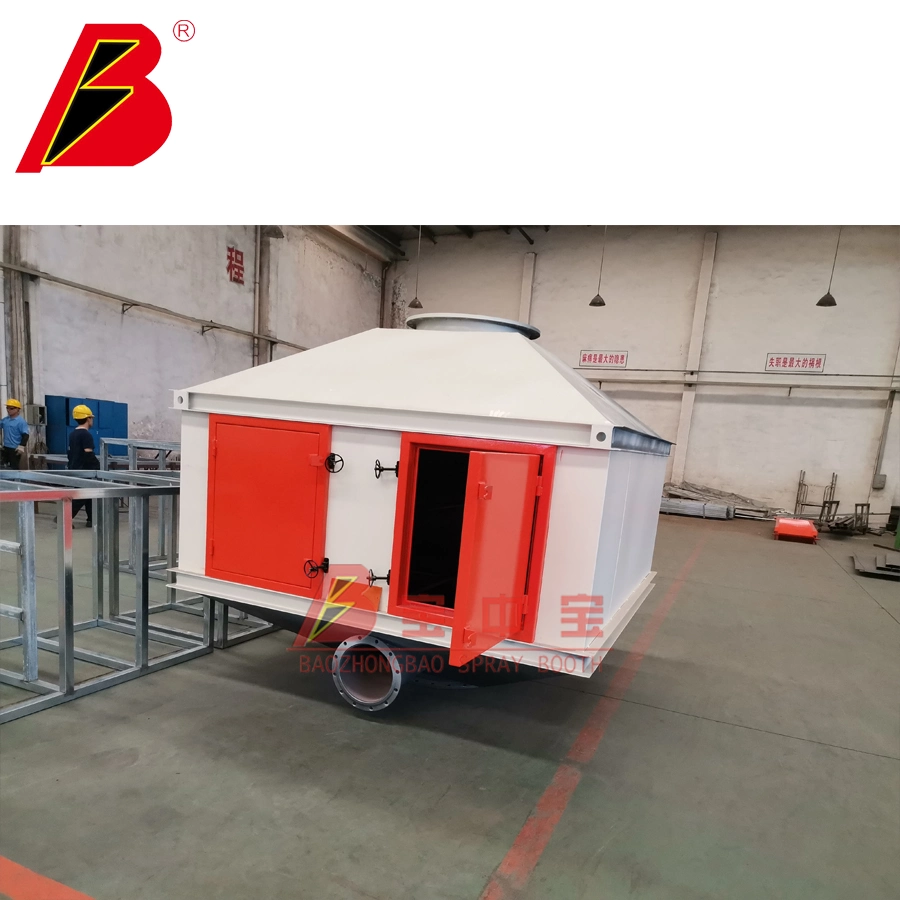

It includes a heat exchanger, preheating chamber, catalytic bed, flame arrester, explosion-proof device, and a PLC electrical control system.
Does this system cause secondary pollution?
No, the automation of the purification and desorption process ensures that no wastewater or secondary pollutants are created.
