| Specifications | Internal Gears | External Gears |
|---|---|---|
| Max O.D. | 15-300 mm | |
| Module | M0.8-6 | |
| DIN Class Level | Range 4-7 | |
| Tooth Finish | Ra 0.4-1.6 | |
| Heat Treatment | Quenching, Hardening, Tempering, Carburizing | |
| Surface Treatment | Blacking, Polishing, Anodization, Zinc/Nickel Plating | |

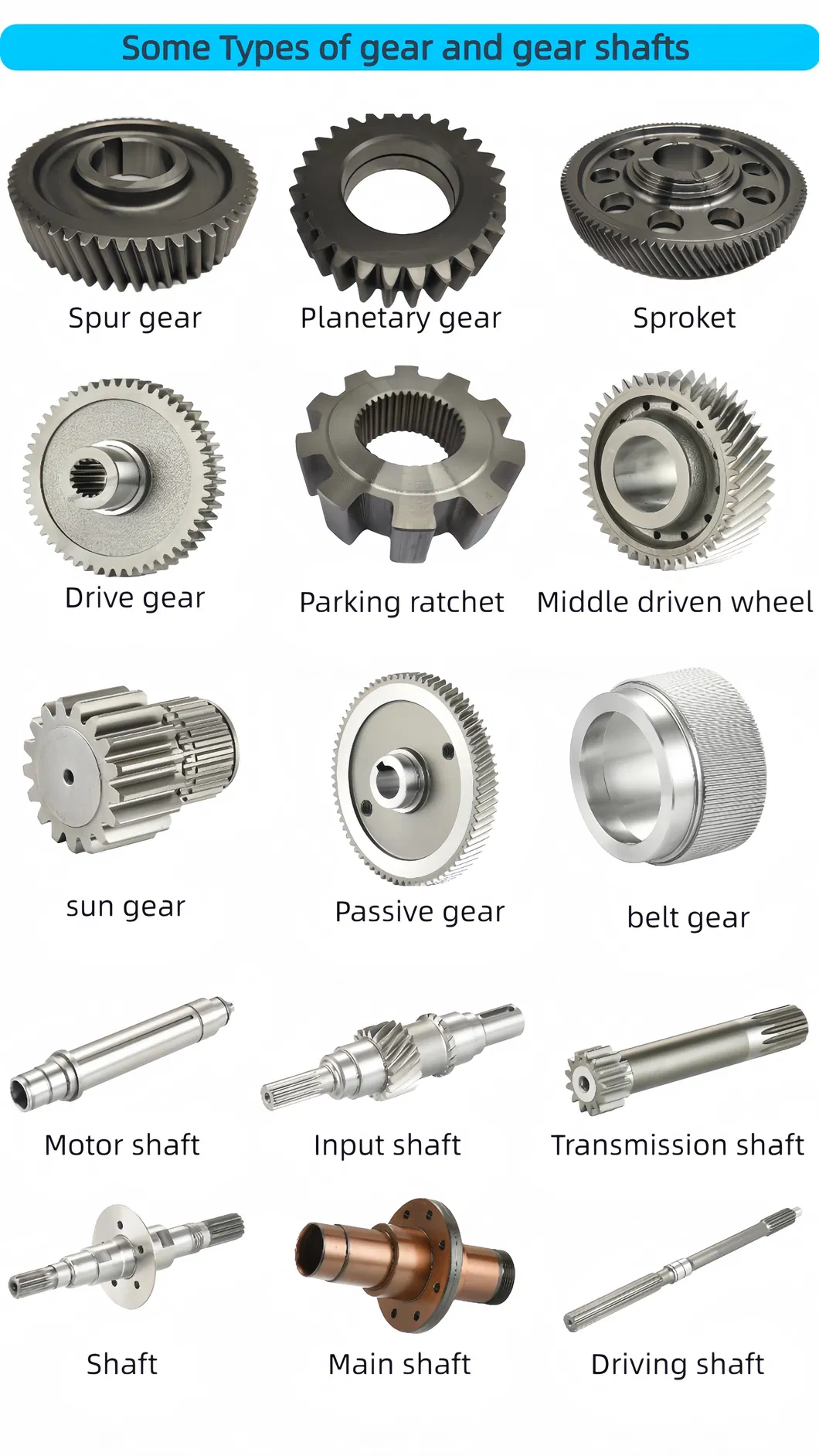

1. Spur Gear: Simplest type with teeth projecting radially on a cylinder.
2. Helical Gear: Teeth cut at an angle to the axis for smoother operation.
3. Worm Gear: Screw-shaped cut on shaft for right-angle power transmission.
4. Herringbone Gear: Double helical gears joined side to side without a center space.
5. Hypoid Gear: Operates at 90 degrees on non-intersecting shafts.
6. Internal Gear: Teeth cut into the inside of a cylinder (Ring gears).
7. Planetary Gear: Reduction assembly where one gear revolves around another.
