The XCE Series is a specialized line of miniature circular connectors developed for aerospace, defense, and high-end industrial sectors. Designed as an upgraded version of the standard XC series, it offers higher contact density and significant weight savings while maintaining compliance with GJB2889 standards.

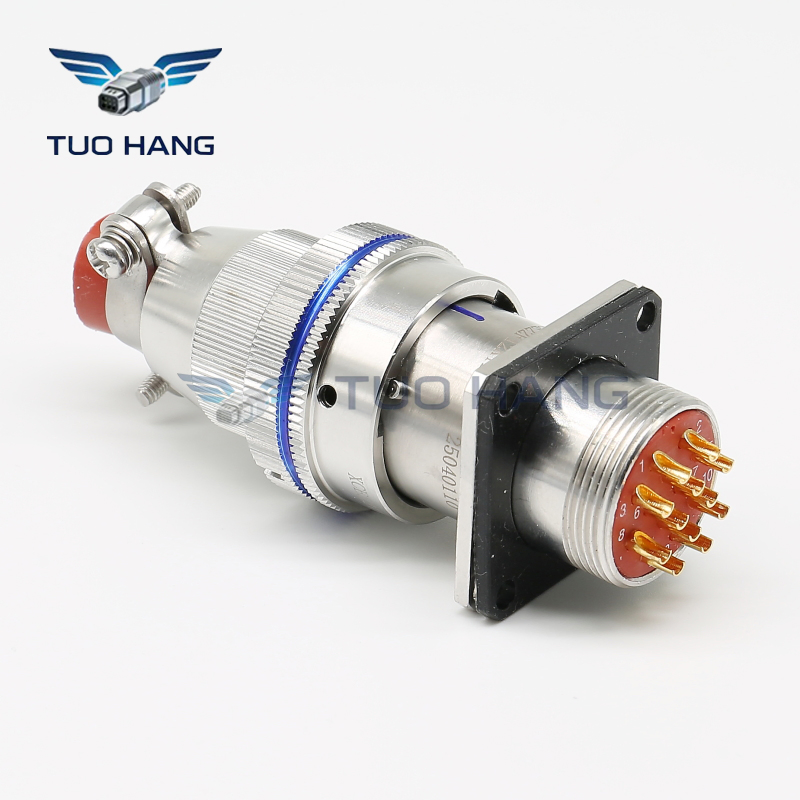

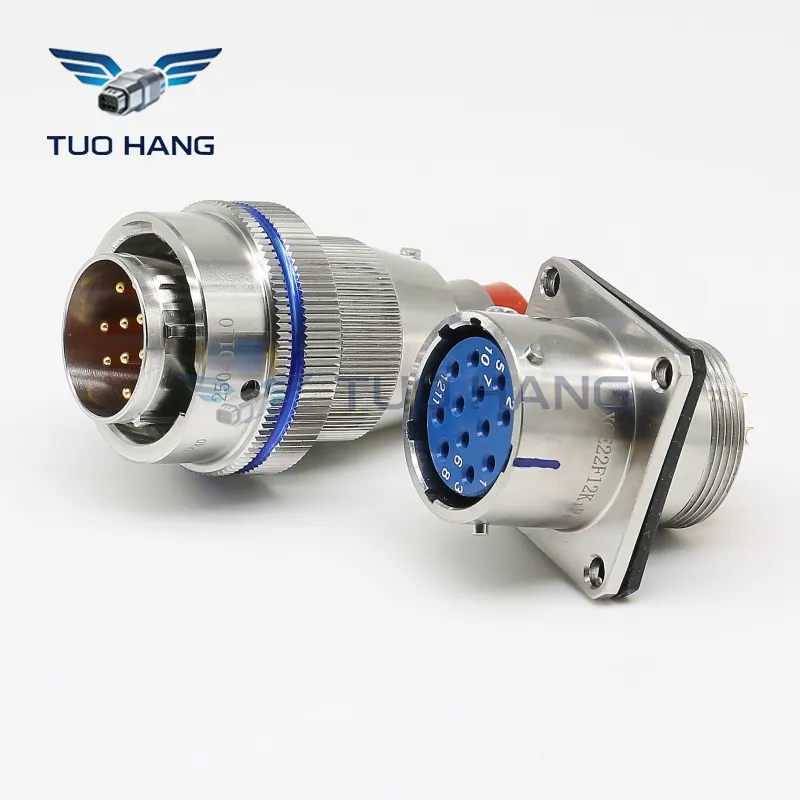

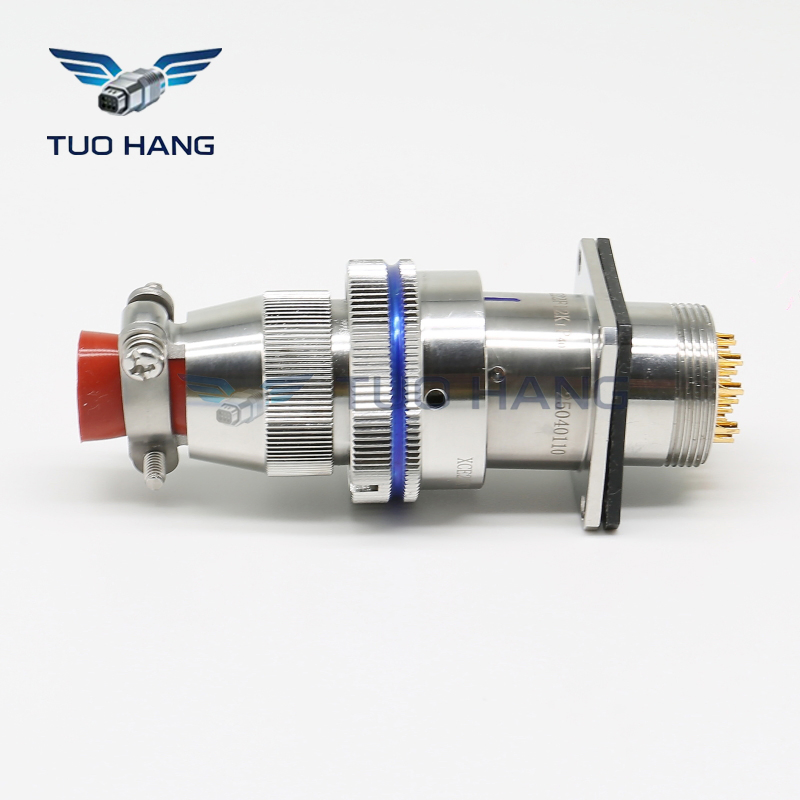

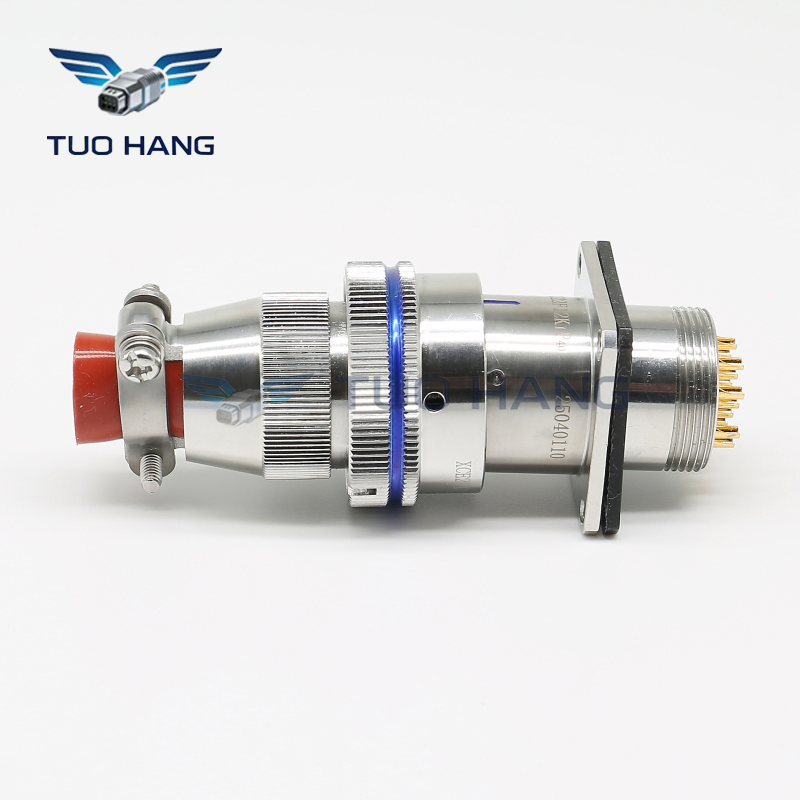

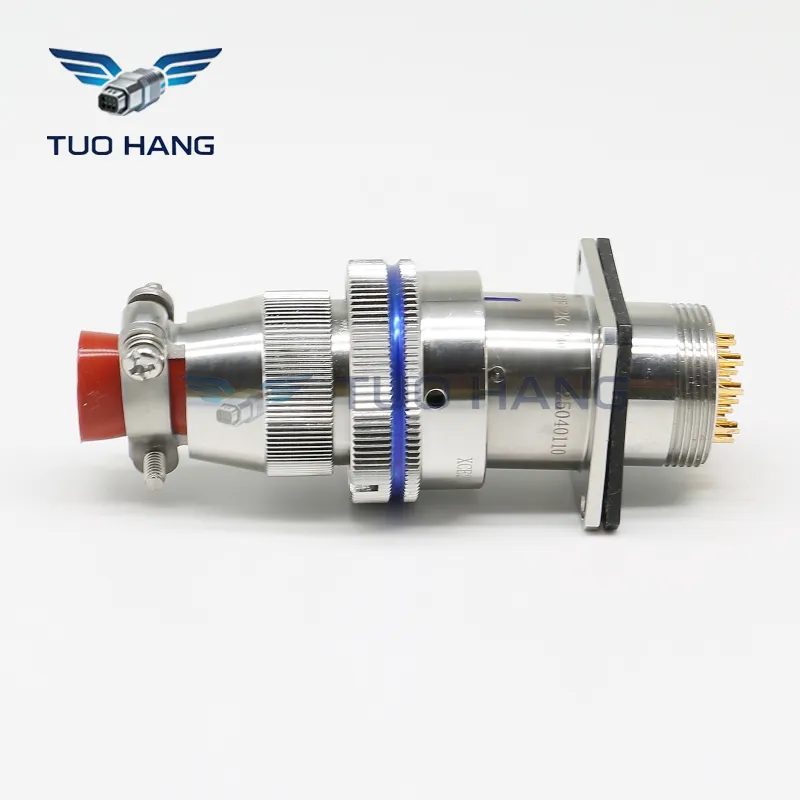

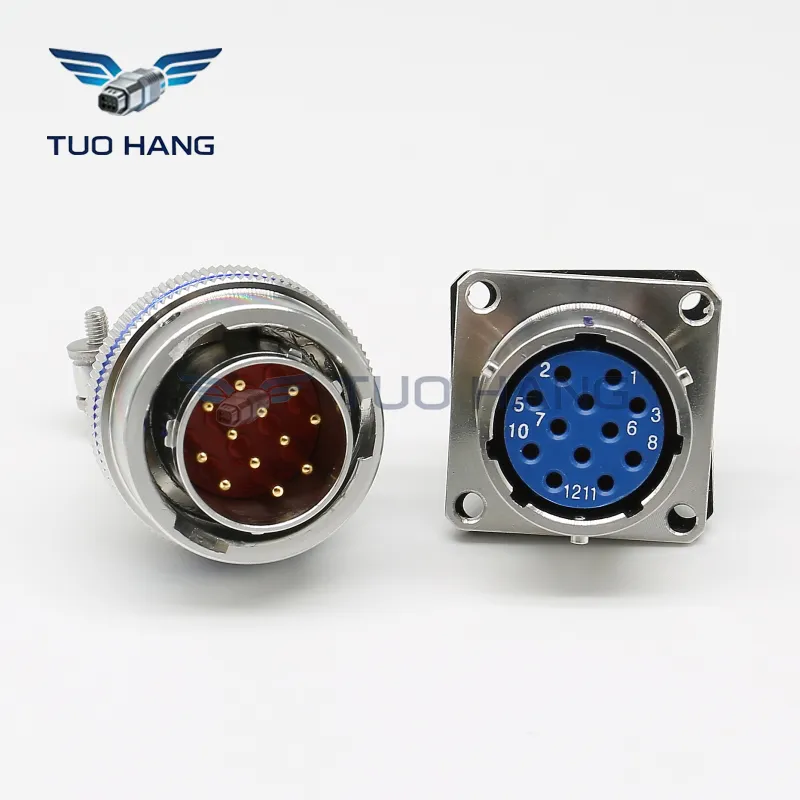

System Components: This set is a complete interconnect solution consisting of a panel-mounted receptacle and a cable-side plug:
| Code | Component | Description |
|---|---|---|
| XCE | Series | Miniature high-density circular connector |
| 22 | Shell Size | Size 22 housing (indicates the diameter of the mating interface) |
| F / T | Type | F: Square Flange Receptacle / T: Straight Plug |

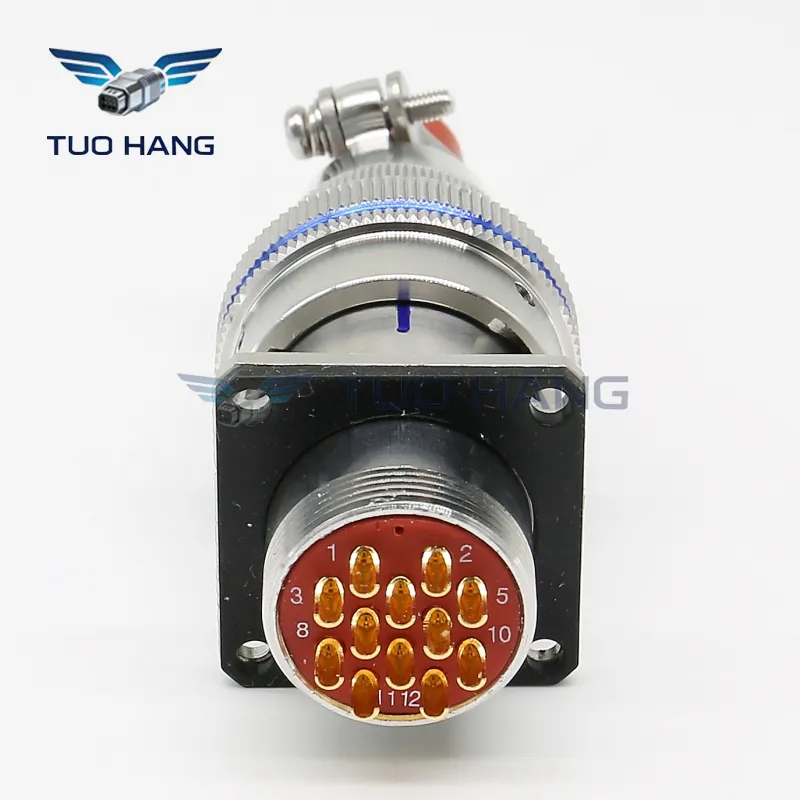

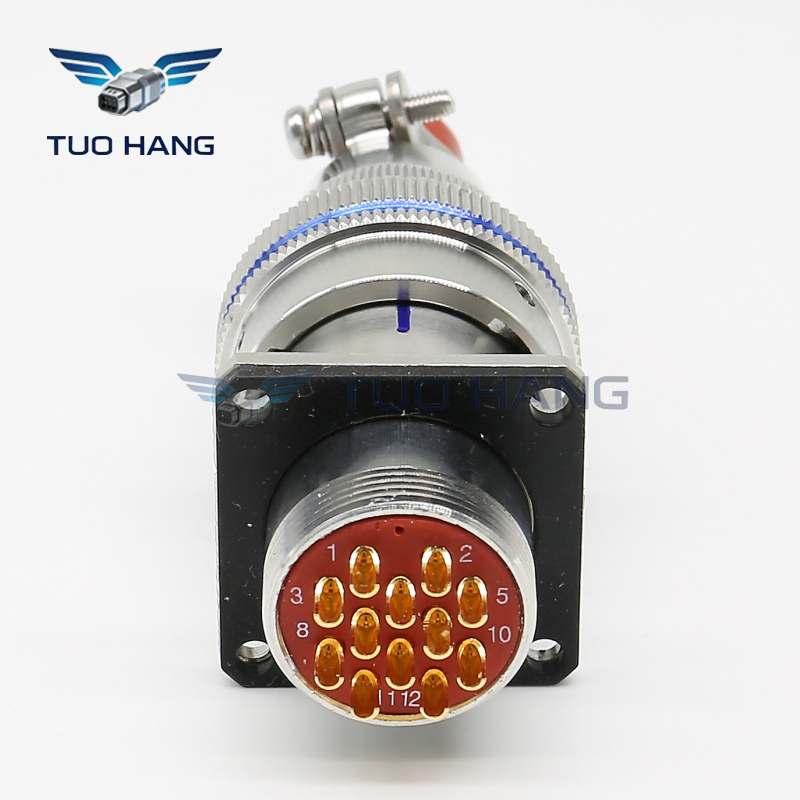

| 12 | Contacts | 12-pin configuration |
| K / Z | Gender | K: Socket (Female) / Z: Pin (Male) |
| 1 | Backshell | Type 1 (Standard straight shielding/clamping nut) |
| P40 | Finish | High-performance plating (often specialized Nickel or Olive Drab) |
Material Construction:

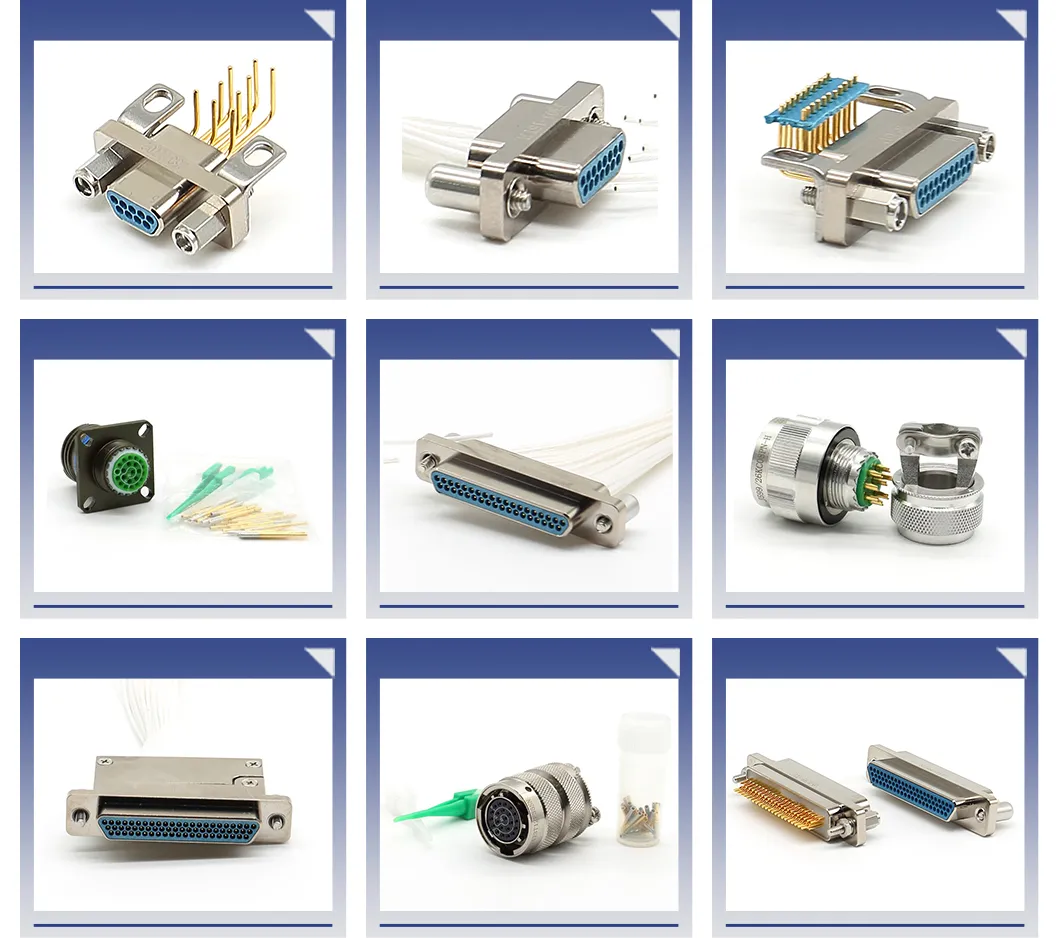

Our product range includes various circular and rectangular connectors meeting national standards such as GJB101, GJB598, GJB2889, and GJB2905, with over 1000 specifications available.
Products are widely used in aviation, aerospace, ships, weapons, communications, railways, medical devices, and oil exploration. Key features include high density, high reliability, and electromagnetic compatibility.
