| General Specifications | |
| Compatible Models | DJI Matrice 30, DJI Matrice 30T |
| Support Flight Altitude | 50m or 100m (55m/110m cable) |
| Protection Class | Air module IP54, Ground module IPx4 |
| Sizes & Weight | D350×W560×H300mm, Weight: 6.5kg |

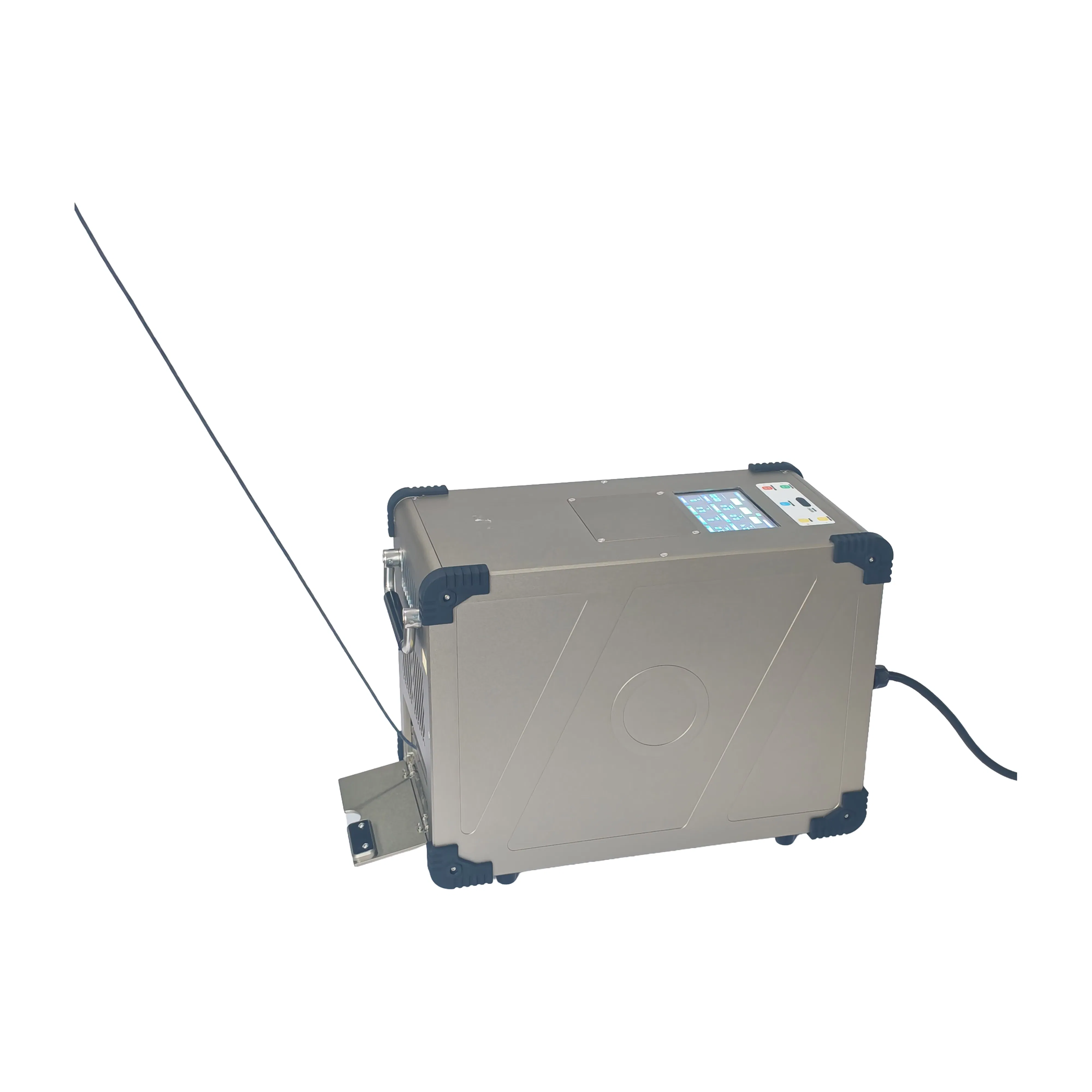

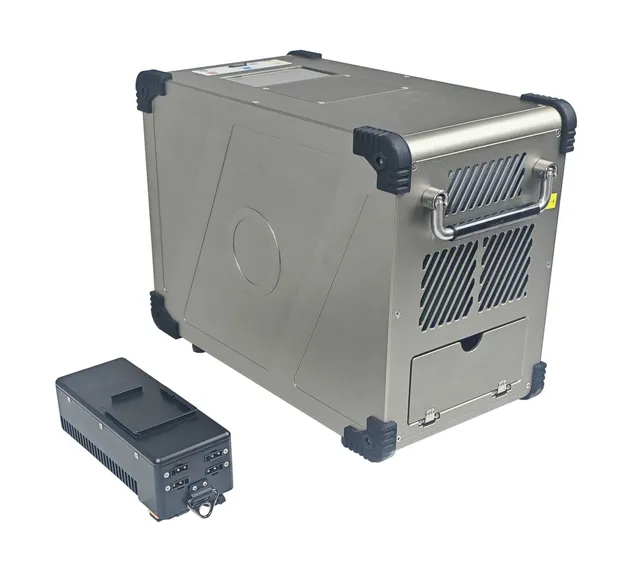

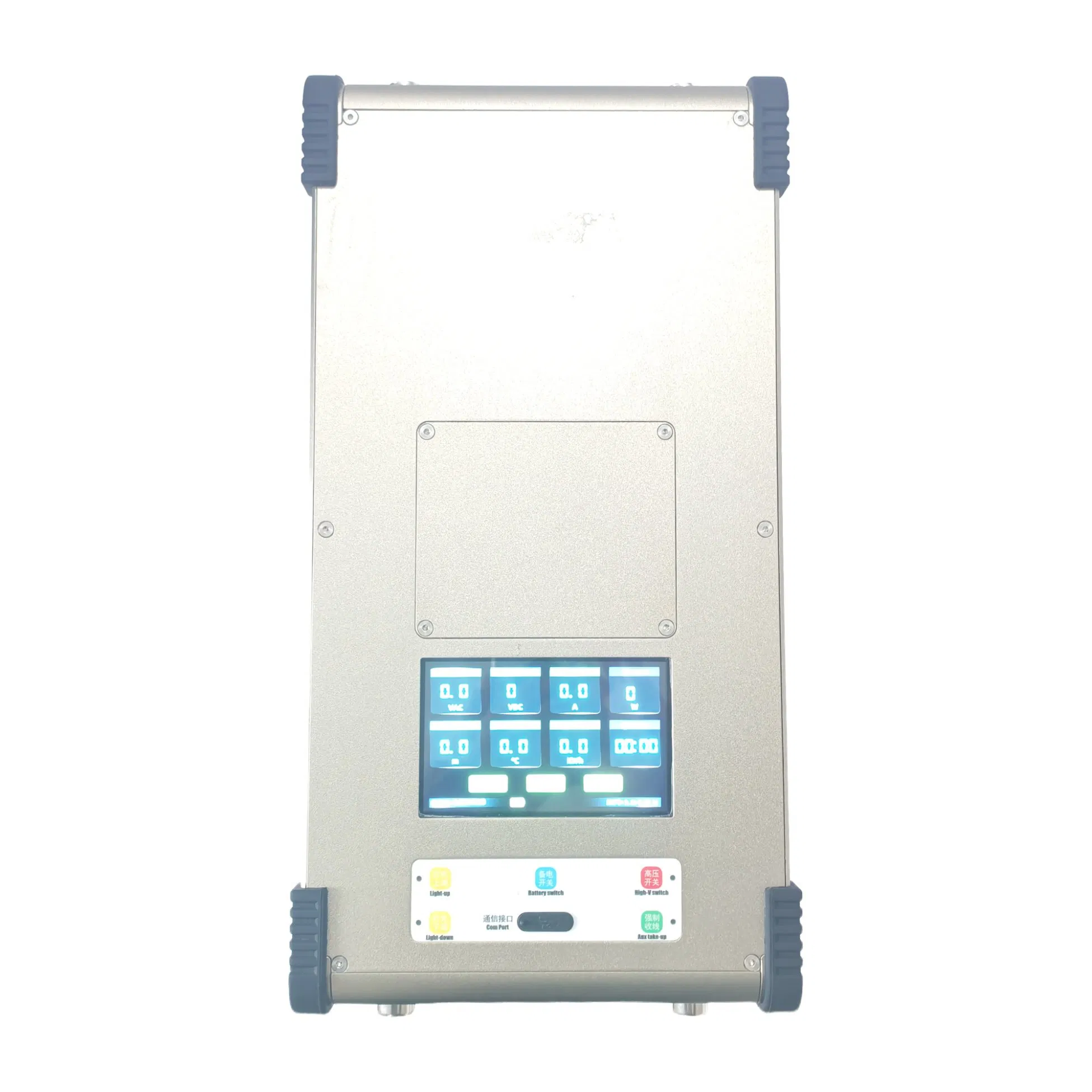

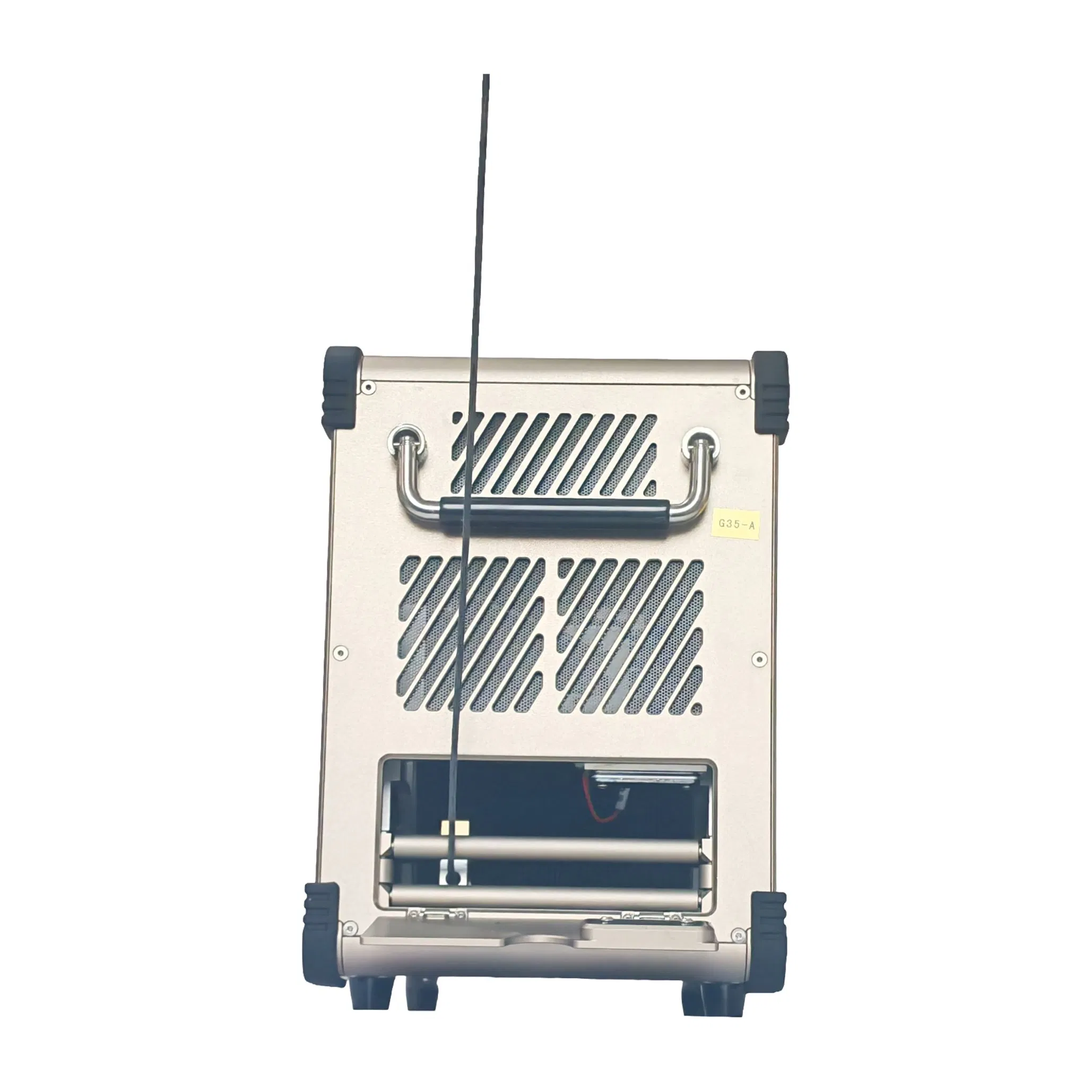

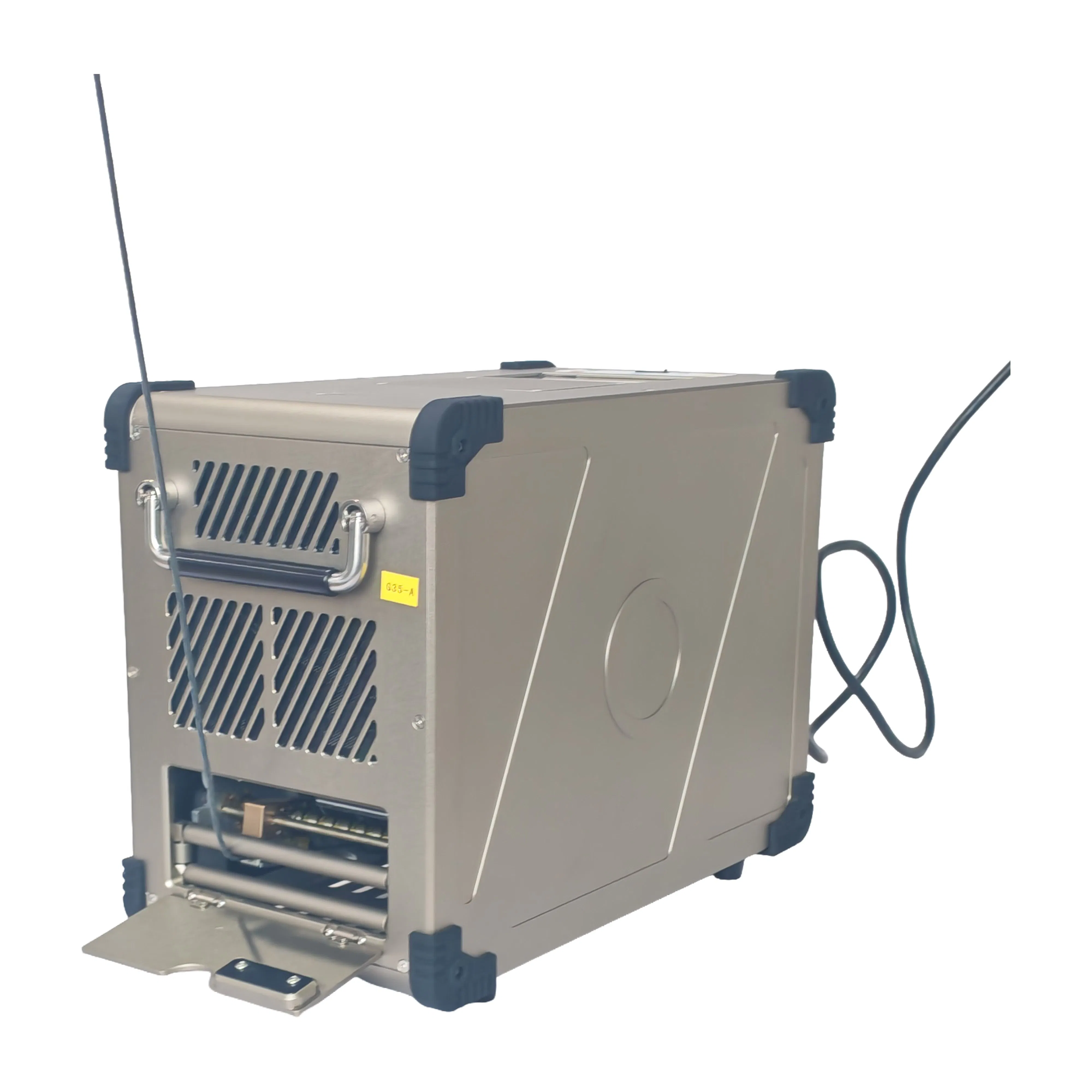

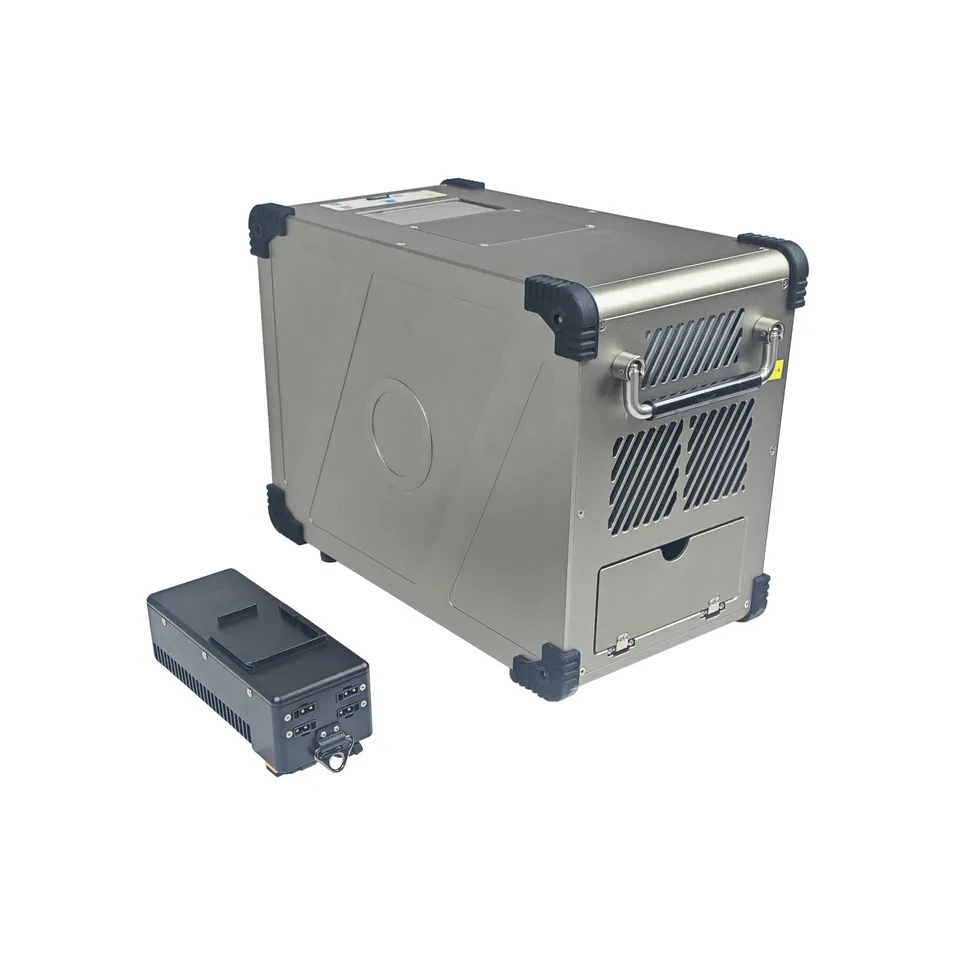

| Tethered Box (Ground Module) | |
| Input Voltage | 190~240VAC, Single-phase 220VAC@50/60Hz |
| Output Power | 3500W (Rated), 4000W (Peak) |
| Cable Reel Speed | 0~5m/s Intelligent adjustment |
| Weight | Box: 9.2kg, Cable: 5.5g/m or 8.5g/m |

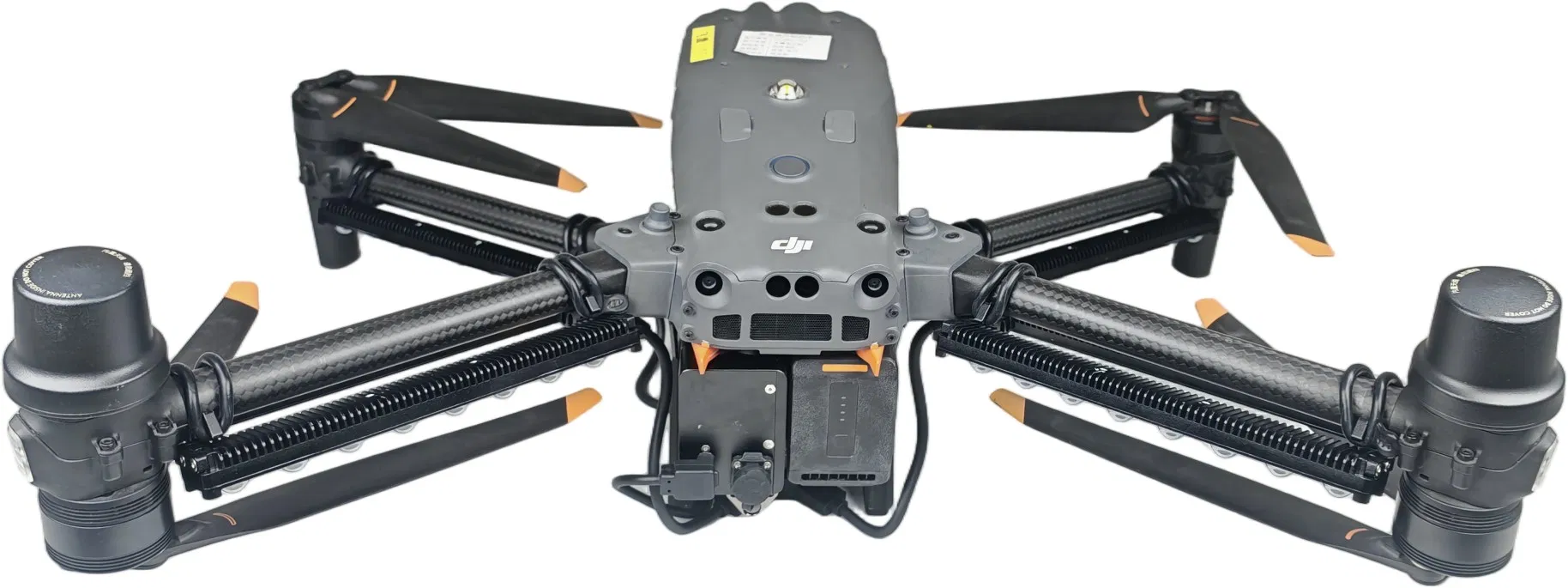

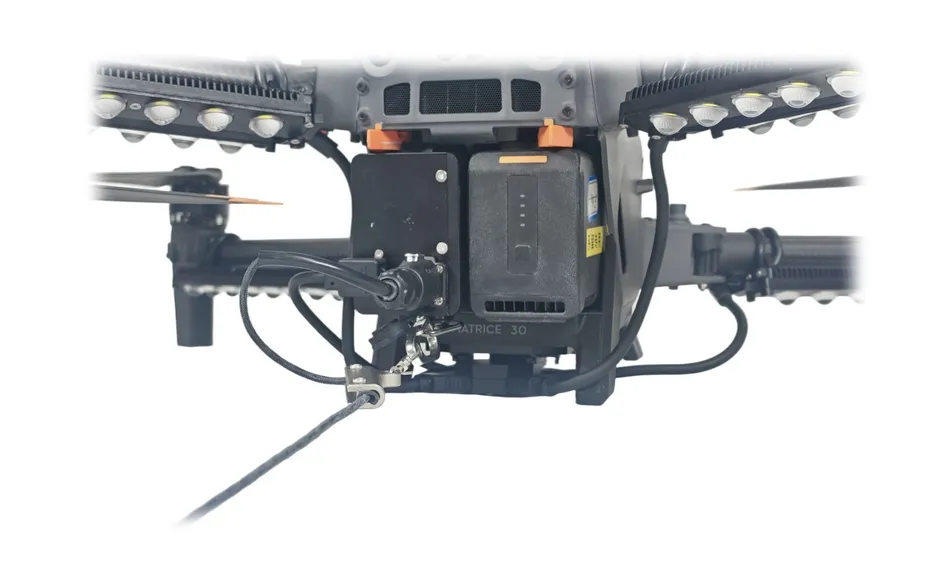

| Aircraft-Mounted Power (Air Module) | |
| Output Voltage | 25.5VDC, Stable voltage output |
| Output Power | 3000W (Rated), 3500W (Peak) |
| Installation | Replace drone battery, plug and lock |
| Air Module Weight | 560g |
Mainly engaged in the research and development, production and sales of AC/DC, DC/DC modular high-frequency switching power supply. Our core technology includes adaptive torque change schemes for automatic cable retractors and voltage regulator circuit schemes for air modules to ensure safe, long-time tethered flights without harming drone batteries.

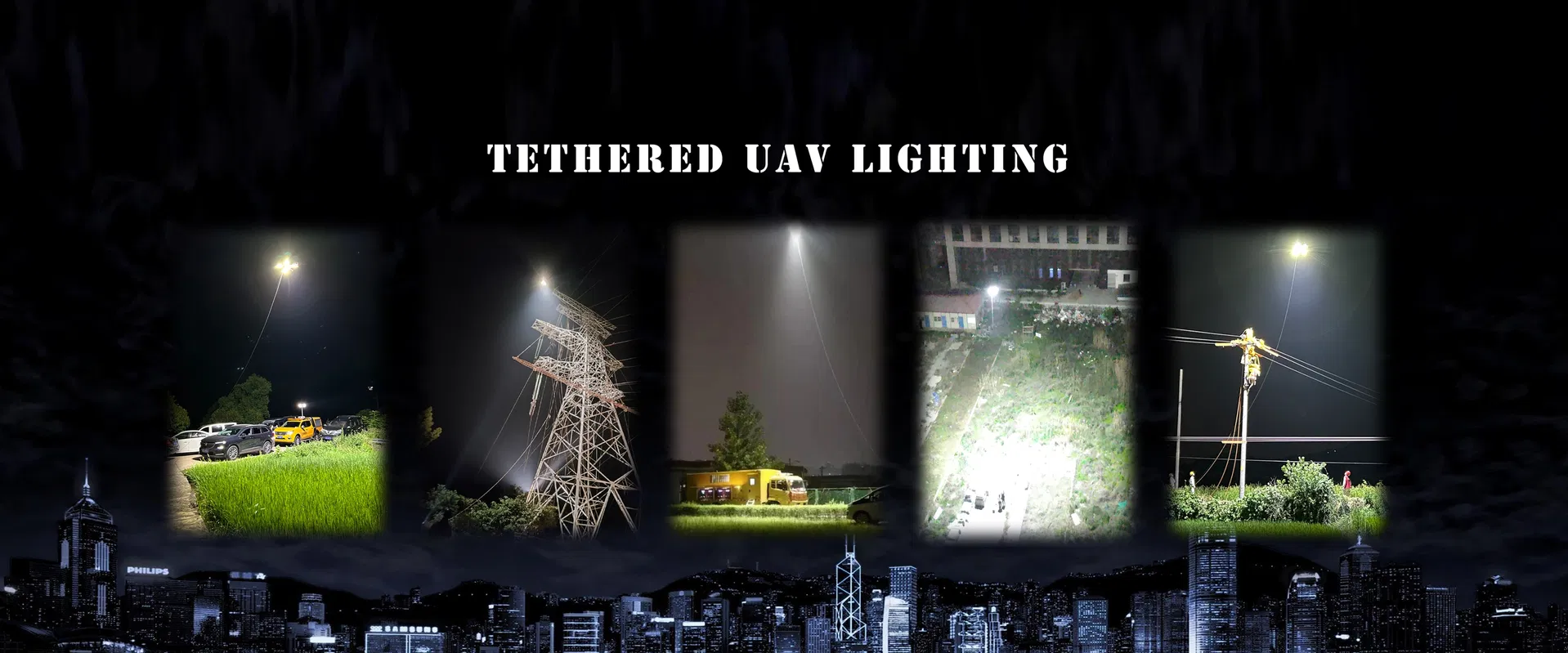

Our 640W lighting set utilizes a "Butterfly Light" design with four 160W lights. Benefits include:
