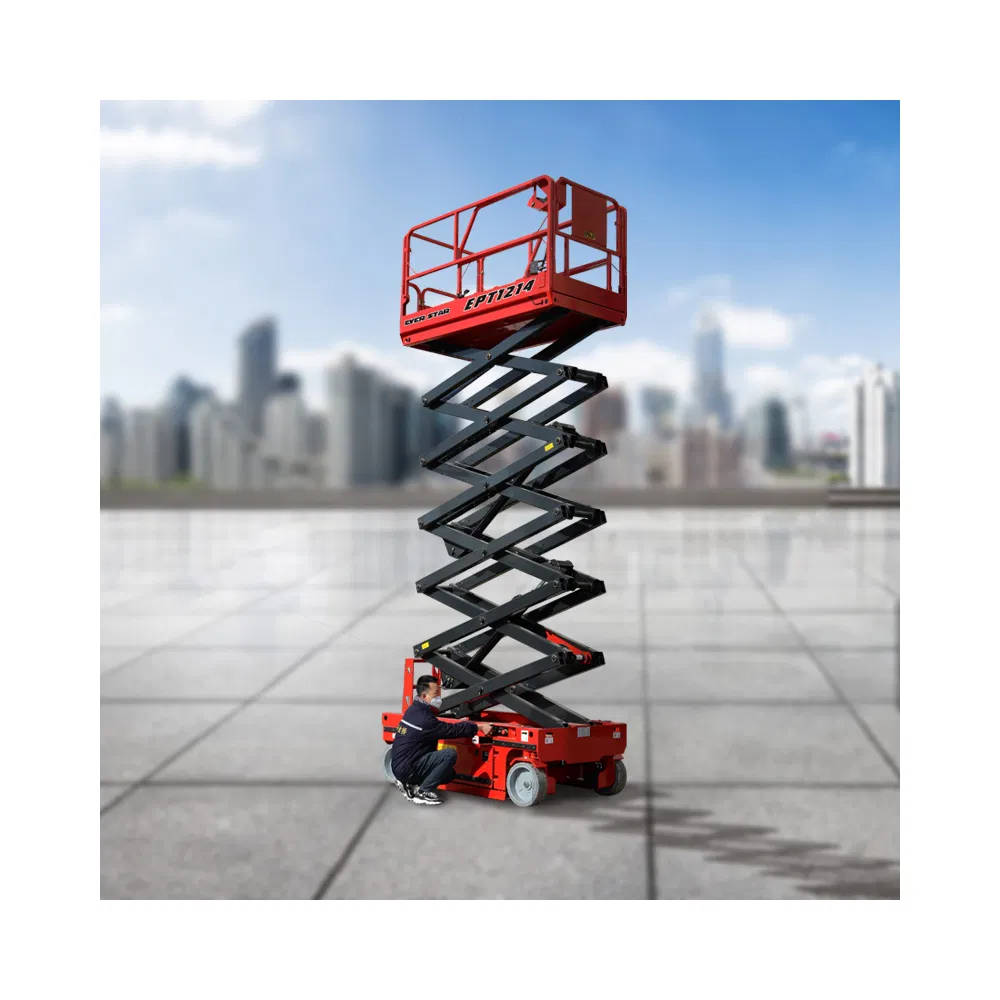

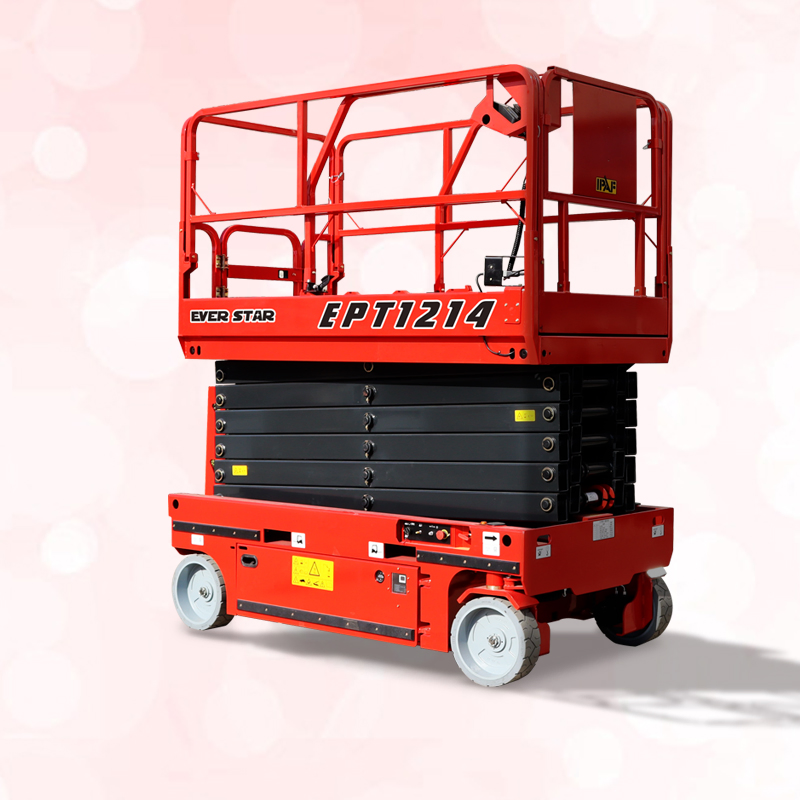

4-16m Dual Brake Aerospace Assembly Aircraft Maintenance Battery Electric Scissor Lift

1 / 5

4-16m Dual Brake Aerospace Assembly Aircraft Maintenance Battery Electric Scissor Lift

Customization:	Available
After-sales Service:	Air Freight Components
Warranty:	Entire Machine 1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

EPT0810

Lift Mechanism

Scissor Lift

Max Working Height

10.0m

S.W.L

450kg

Platform Size

2.27m*1.12m

Battery

4×6V/200ah

Driven Type

Hydraulic

Moves

Self-propelled

Certification

CE, ISO 9001

Overall Width

1.21m

★

Core Advantages

1. Heavy-Duty Performance

450kg load capacity (CE-certified)
Reinforced steel frame (-20°C to 60°C operational range)
800mm ultra-wide track base for ground pressure < 50 kPa

2. Smart Operation System

Lithium power: 8hr continuous runtime + 30min rapid battery swap
IP65-rated components & dust proof PLC controller
Dual joystick controls with fault self-diagnosis

3. Safety Architecture

360° obstacle detection (3m range)
Dual mechanical locks + hydraulic safety redundancy
Emergency descent via UPS backup

📋

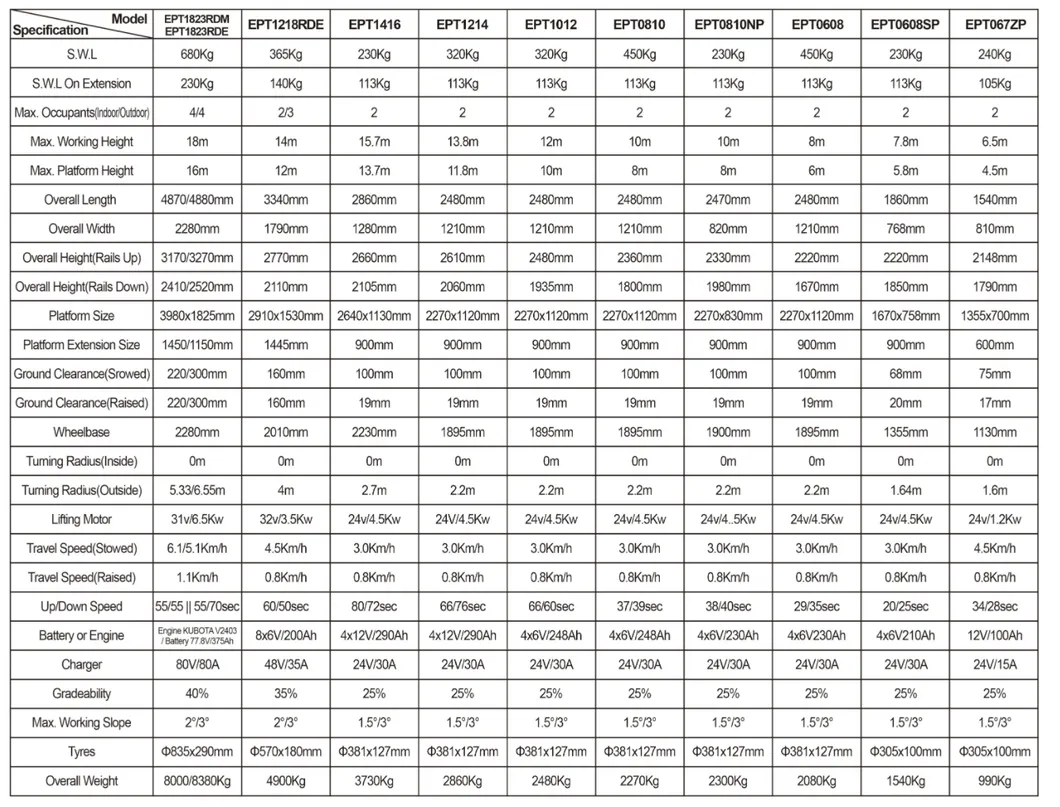

Product Parameters

Item	Performance Parameters
S.W.L	450kg
S.W.L on extension	113kg
Max occupies	4
Maximum working height (A)	10m
Maximum platform height (B)	8m
Overall length (C)	2.43m
Overall width (D)	1.21m
Overall height (folded) (E)	1.8m
Working platform size	2.27m×1.12m
Lifting motor/driving motor	24V/4.5kW
Travel speed (folded)	3.5km/h
Battery	4×6V/200Ah
Machine weight	2350kg

✔

Technical Excellence

Advantage	Features
Danfoss Motor	50% lower failure rate vs. domestic motors
HGW Hydraulic Hose	Pressure resistance up to 25 MPa
Aviation-grade Harness	Supports 300,000+ folding cycles
40Cr QPQ Treated Pins	Surface hardness: 500-550 HV
Carbon Fiber Sleeves	Zero maintenance; Friction coefficient: 0.112
Robotic Welding	100% weld penetration compliance

📷

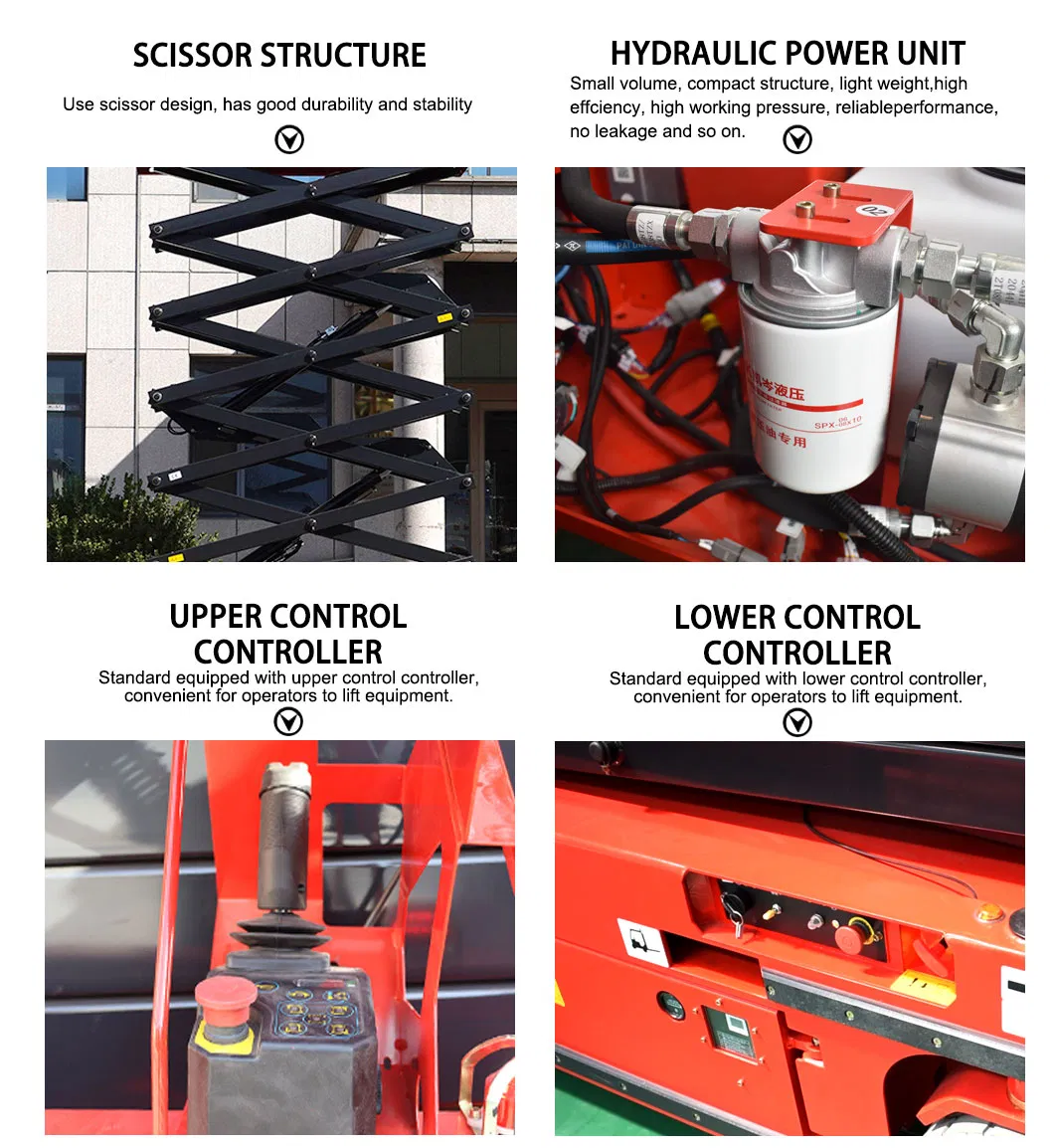

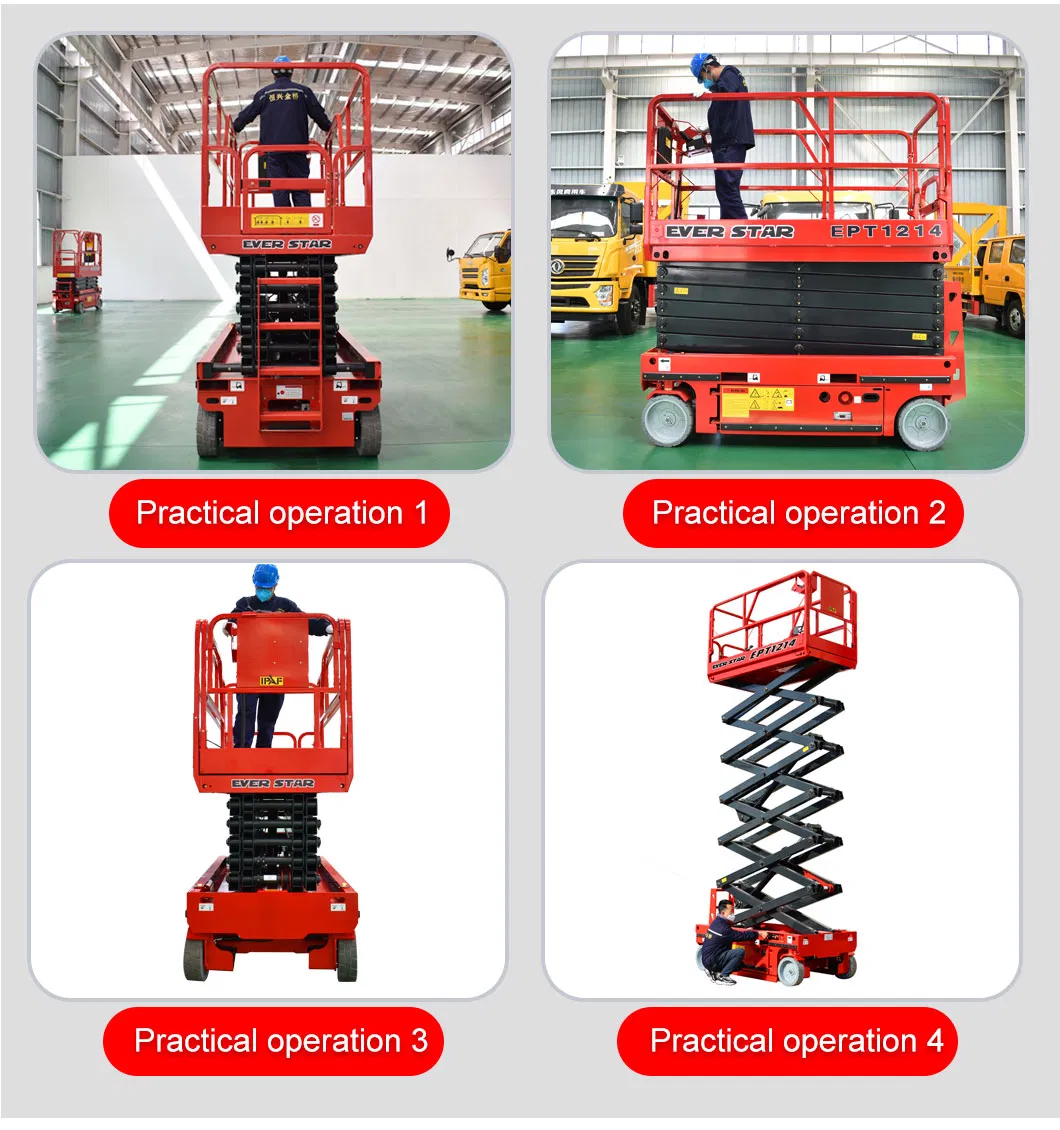

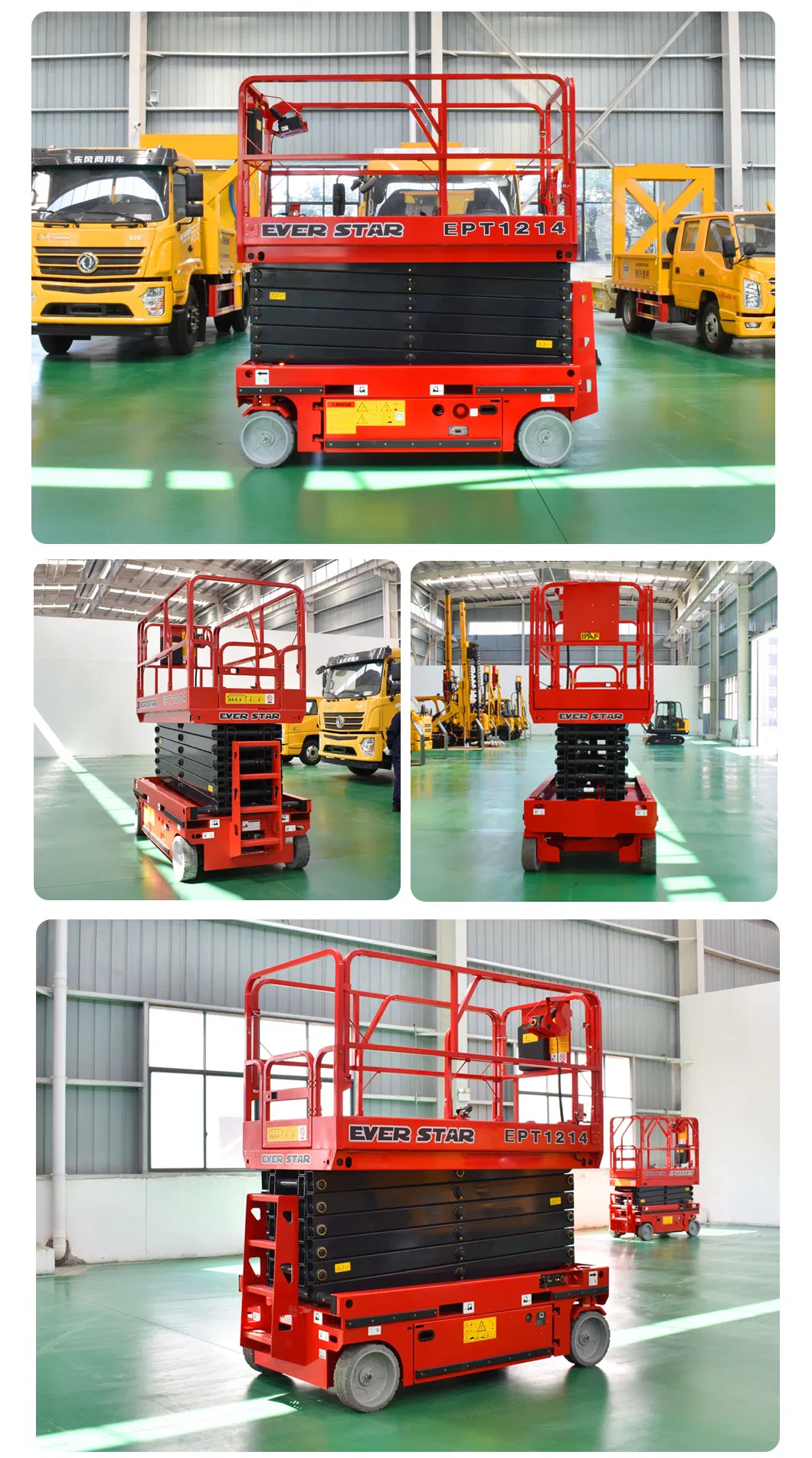

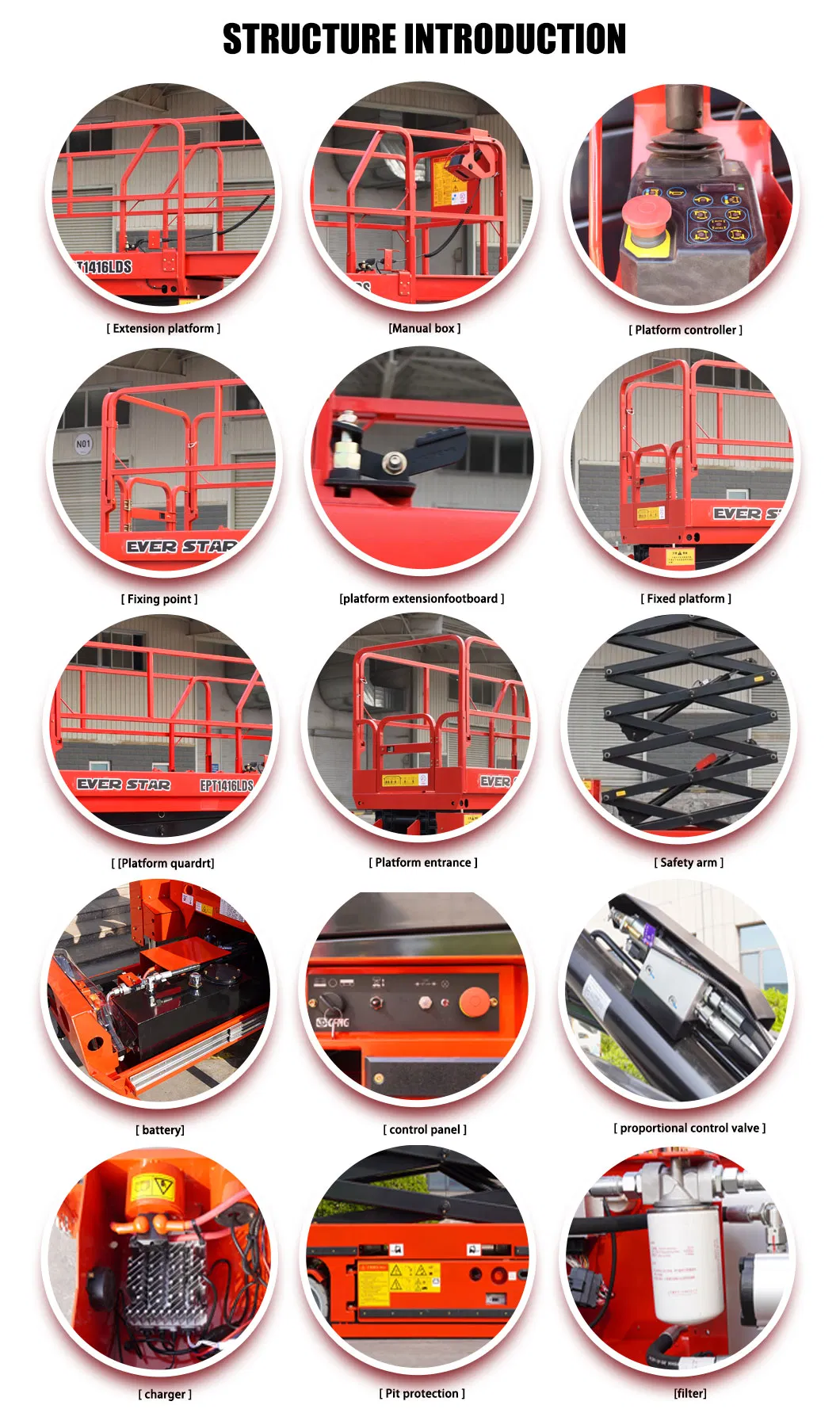

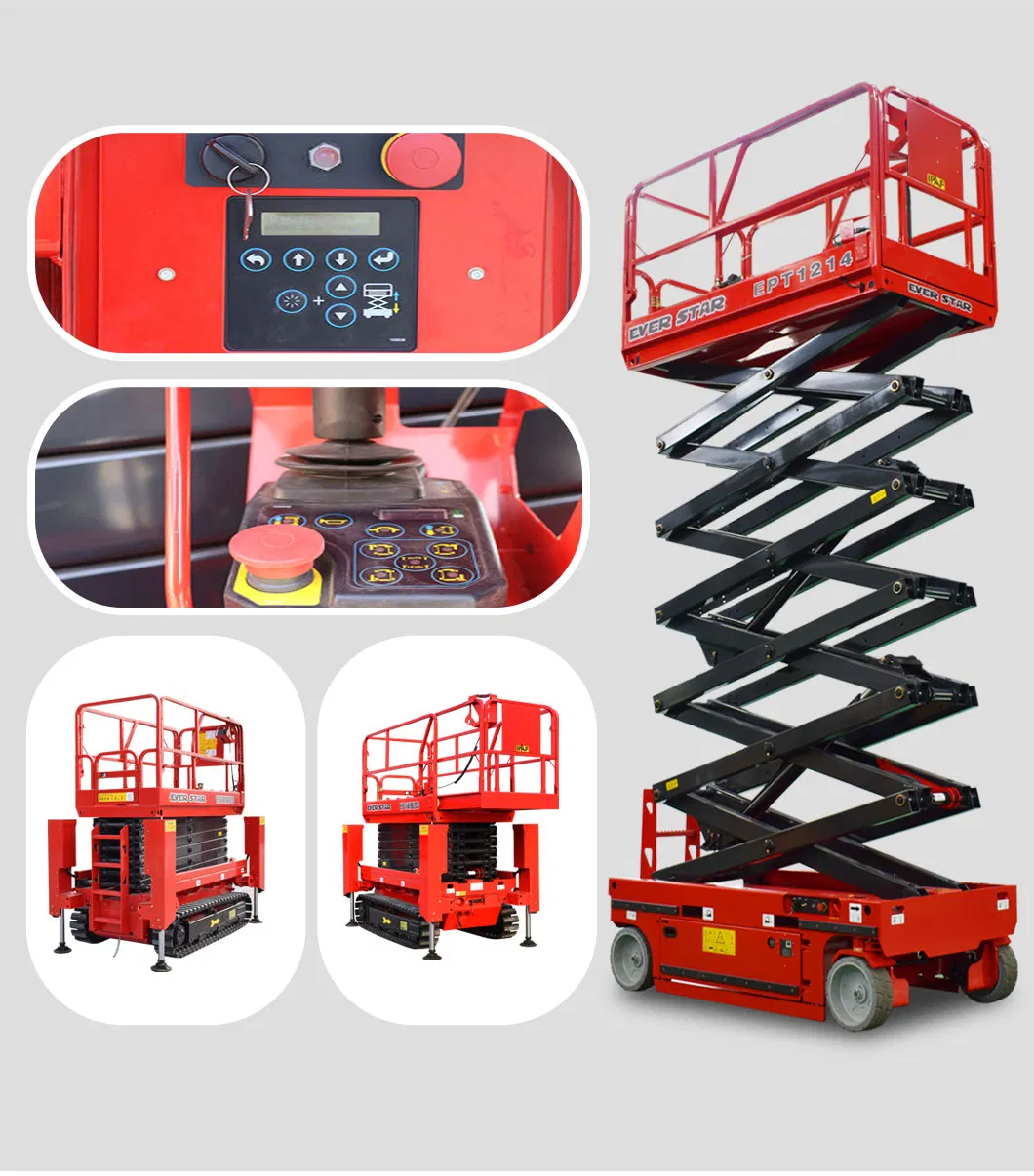

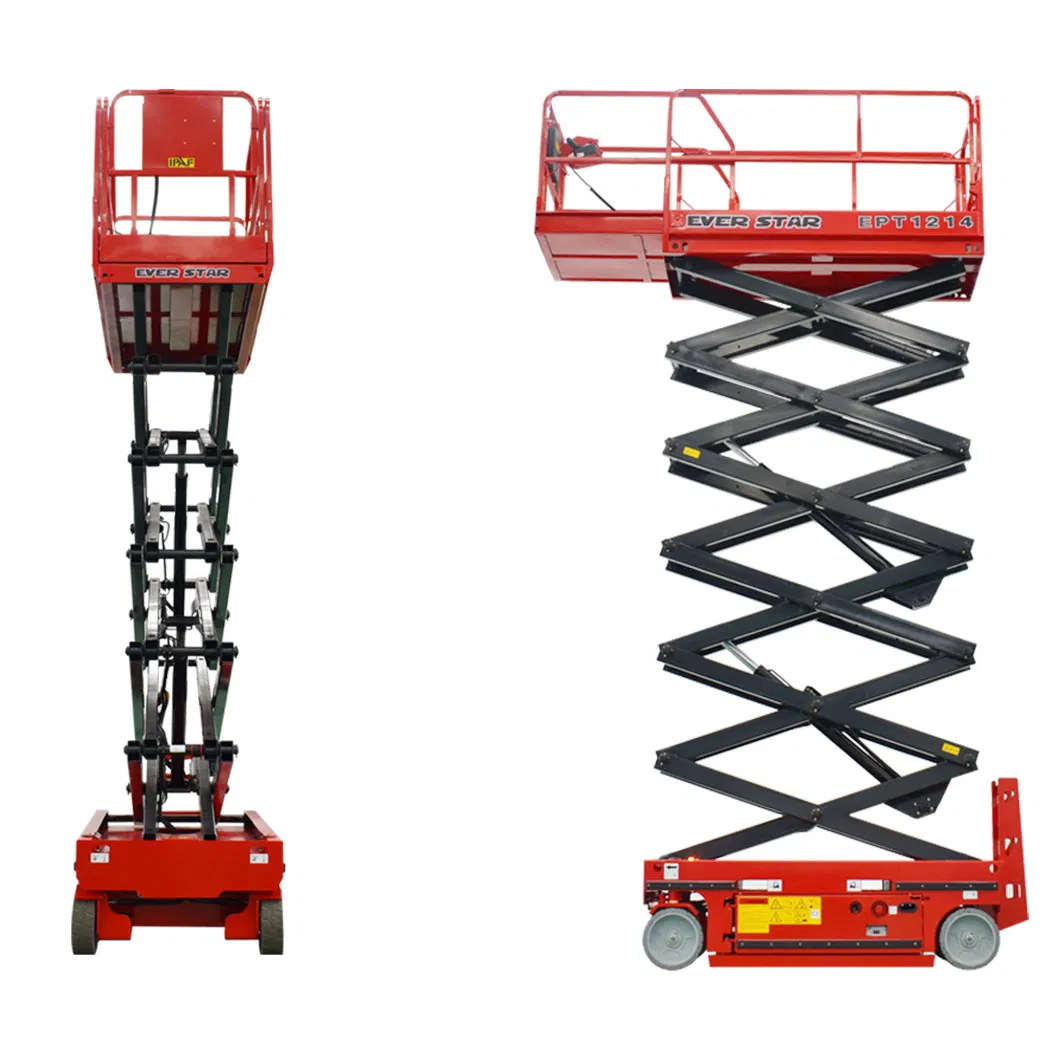

Detailed View

🛡

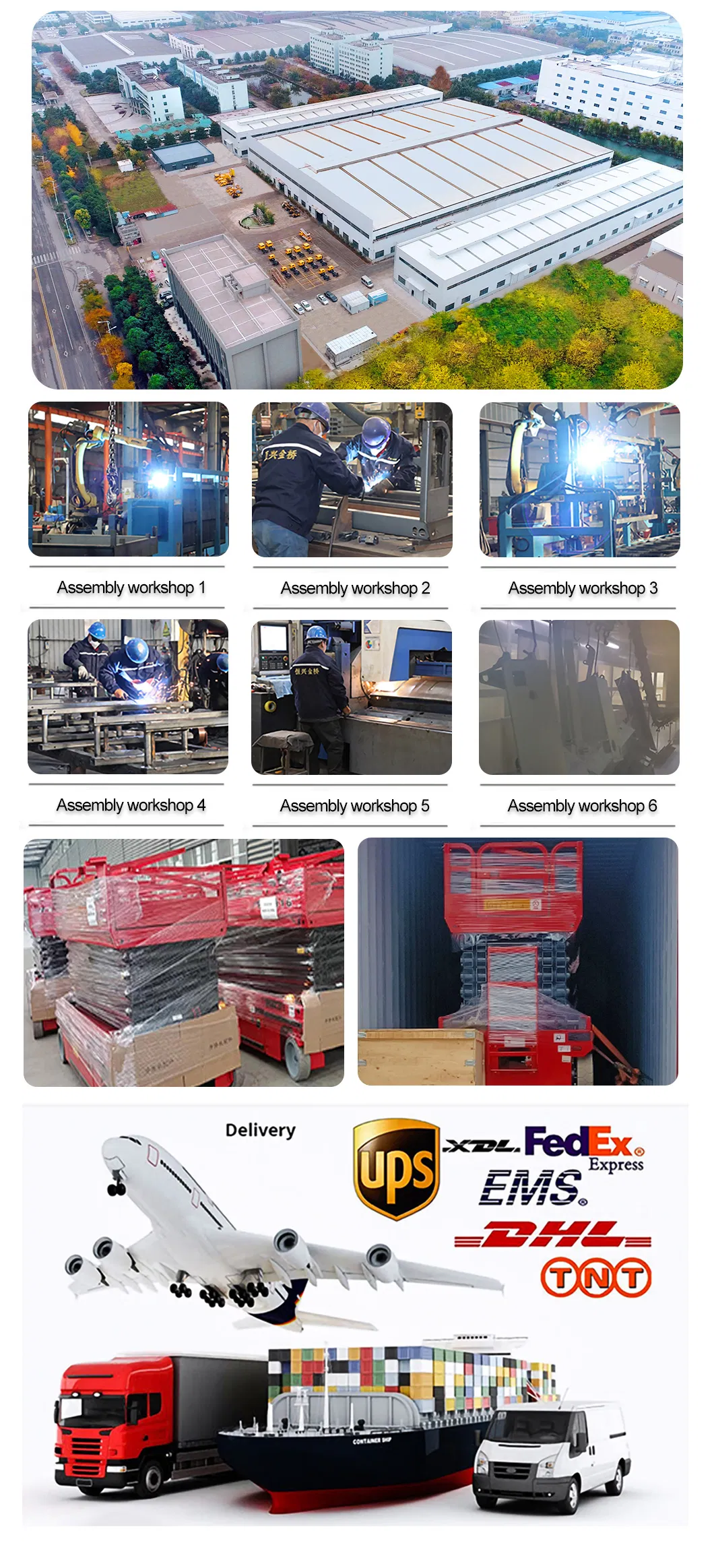

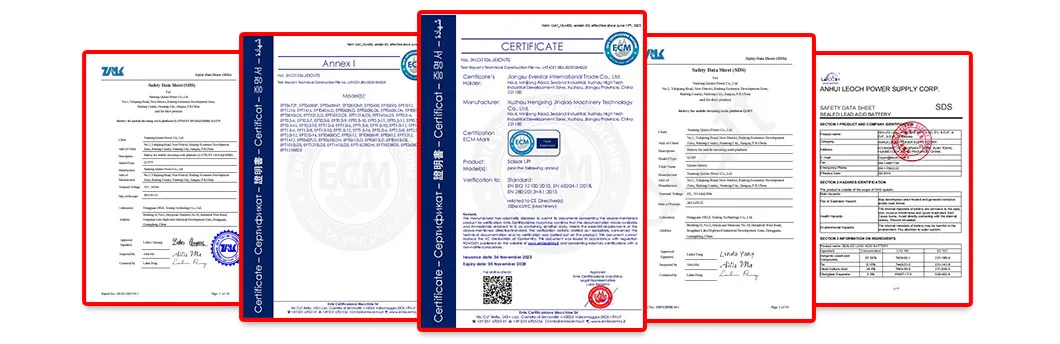

Certification & Logistics

Frequently Asked Questions

What is the maximum lifting capacity and working height?

The EPT0810 model features a 450kg Safe Working Load (S.W.L) and reaches a maximum working height of 10.0 meters.

How long does the battery last on a single charge?

The system provides 8 hours of continuous runtime. It also supports a rapid 30-minute battery swap for extended shifts.

Can this scissor lift be used in harsh environments?

Yes, it is designed with a reinforced steel frame operational from -20°C to 60°C and features IP65-rated electrical components.

What safety features are integrated into the machine?

It includes 360° obstacle detection (3m range), dual mechanical locks, hydraulic safety redundancy, and emergency descent via UPS backup.

Is the machine suitable for indoor surfaces?

Absolutely. It uses non-marking solid tires made of bonded polyester material, which are wear-resistant and designed for multi-surface use without leaving marks.

What kind of maintenance do the wear sleeves require?

The lift uses carbon fiber wear sleeves which are designed for zero maintenance, featuring high compressive strength and a low friction coefficient.
