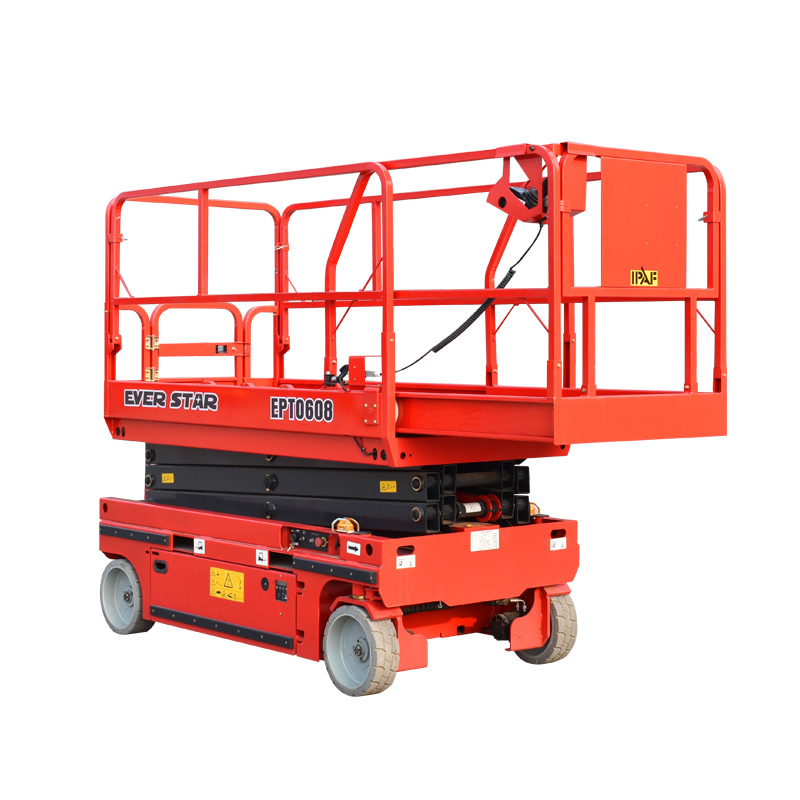

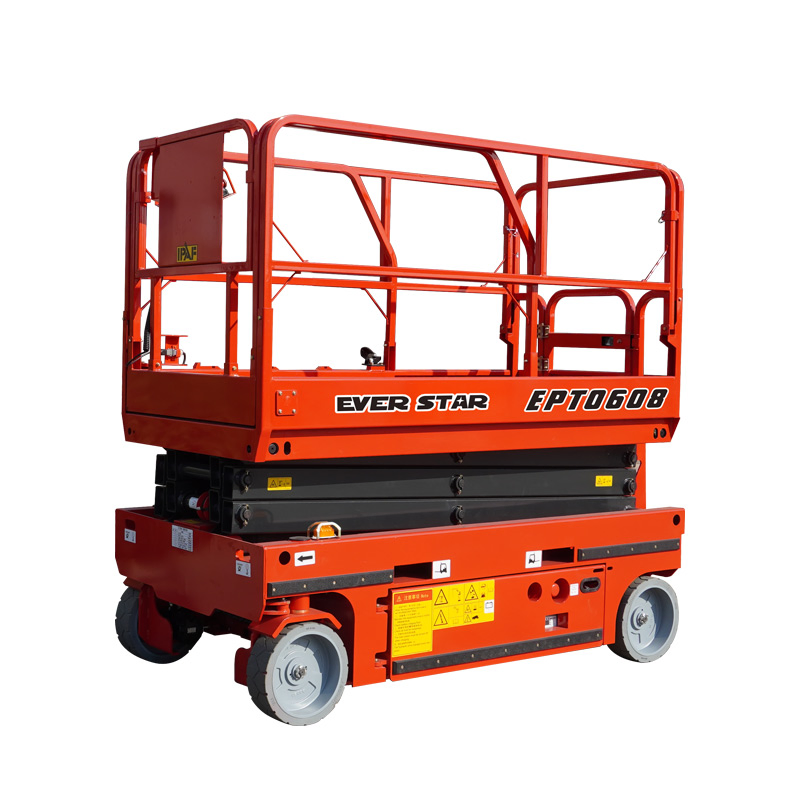

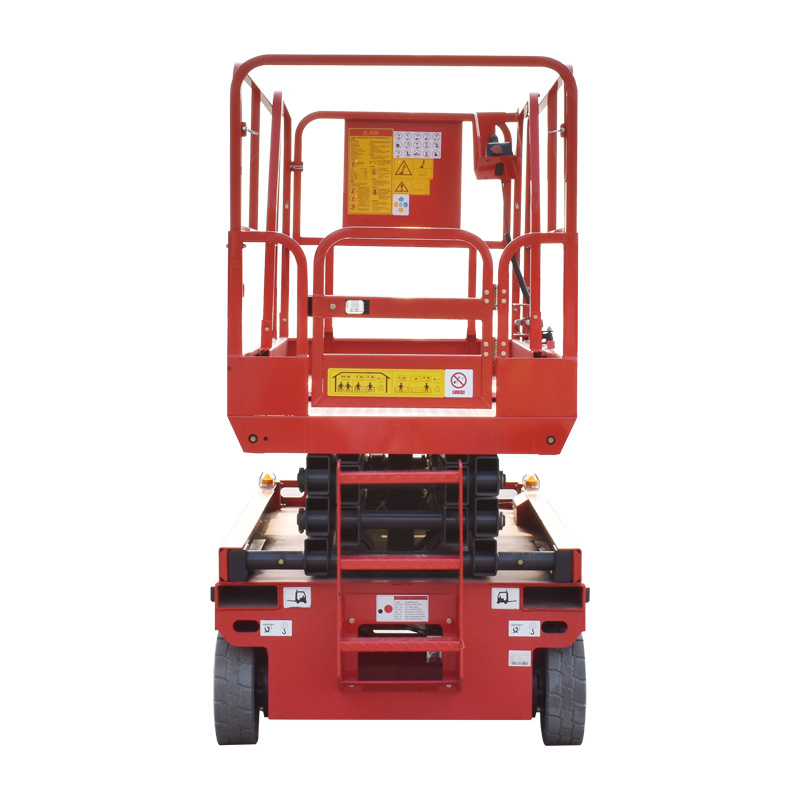

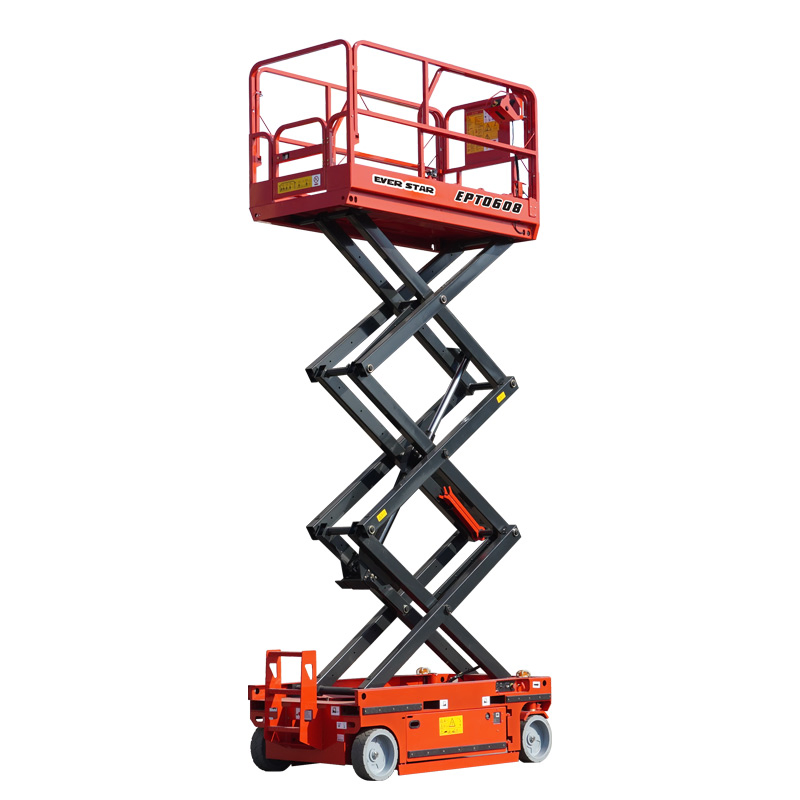

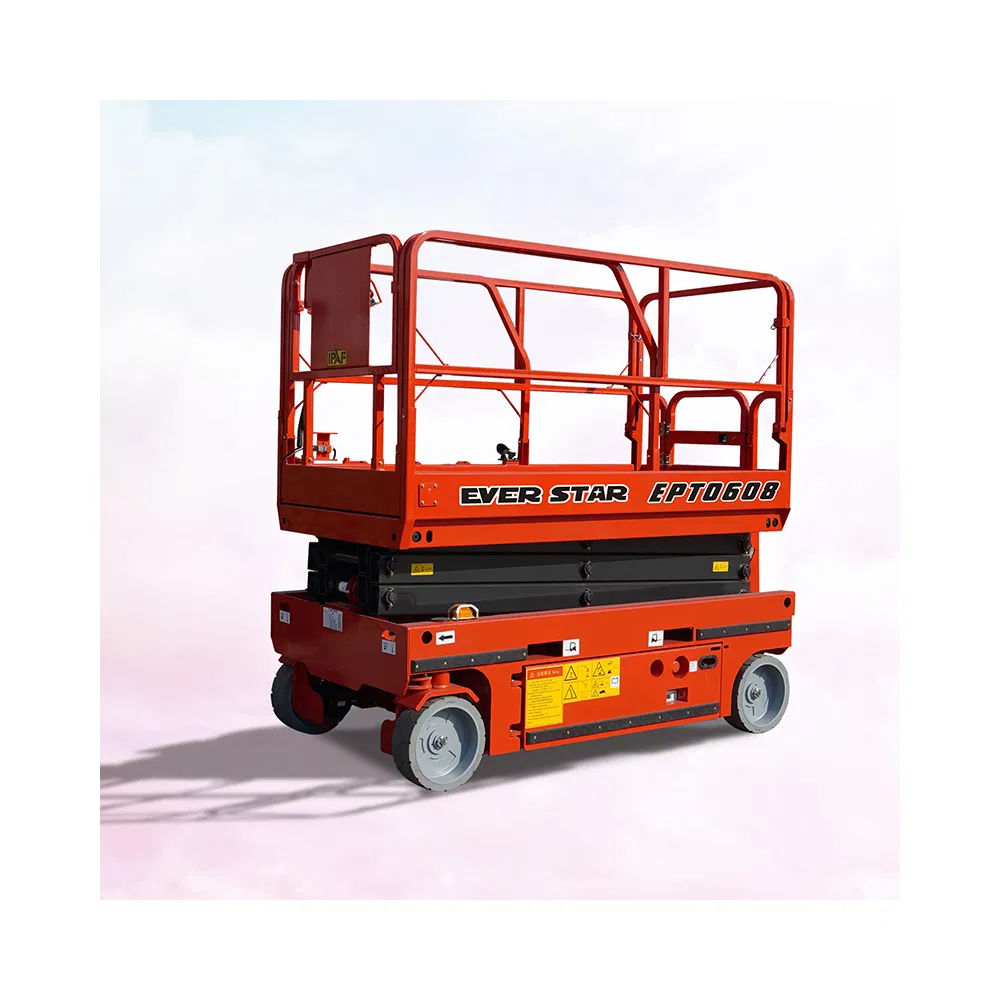

4-16m Dual Brake Aerospace Assembly Aircraft Maintenance Self-Propelled Scissor Lift
4-16m Dual Brake Aerospace Assembly Aircraft Maintenance Self-Propelled Scissor Lift
4-16m Dual Brake Aerospace Assembly Aircraft Maintenance Self-Propelled Scissor Lift
4-16m Dual Brake Aerospace Assembly Aircraft Maintenance Self-Propelled Scissor Lift
4-16m Dual Brake Aerospace Assembly Aircraft Maintenance Self-Propelled Scissor Lift
1 / 5
4-16m Dual Brake Aerospace Assembly Aircraft Maintenance Self-Propelled Scissor Lift
4-16m Dual Brake Aerospace Assembly Aircraft Maintenance Self-Propelled Scissor Lift
4-16m Dual Brake Aerospace Assembly Aircraft Maintenance Self-Propelled Scissor Lift
4-16m Dual Brake Aerospace Assembly Aircraft Maintenance Self-Propelled Scissor Lift
4-16m Dual Brake Aerospace Assembly Aircraft Maintenance Self-Propelled Scissor Lift

4-16m Dual Brake Aerospace Assembly Aircraft Maintenance Self-Propelled Scissor Lift

Customization: Available
After-sales Service: Air Freight Components
Warranty: Entire Machine 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
EPT0608
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Moves
Self-propelled
Driven Type
Hydraulic
Certification
CE, ISO 9001
S.W.L
450kg
Max Working Height
8.0m
Battery
4×6V/200ah
Gradeability
25%
Product Description

🚀 Core Advantages

  • Heavy-Duty Performance: 450kg load capacity (CE-certified) with reinforced steel frame operational from -20°C to 60°C.
  • Smart Operation: Lithium power providing 8hr continuous runtime + 30min rapid battery swap capability.
  • Safety Architecture: 360° obstacle detection (3m range) and dual mechanical locks with hydraulic redundancy.

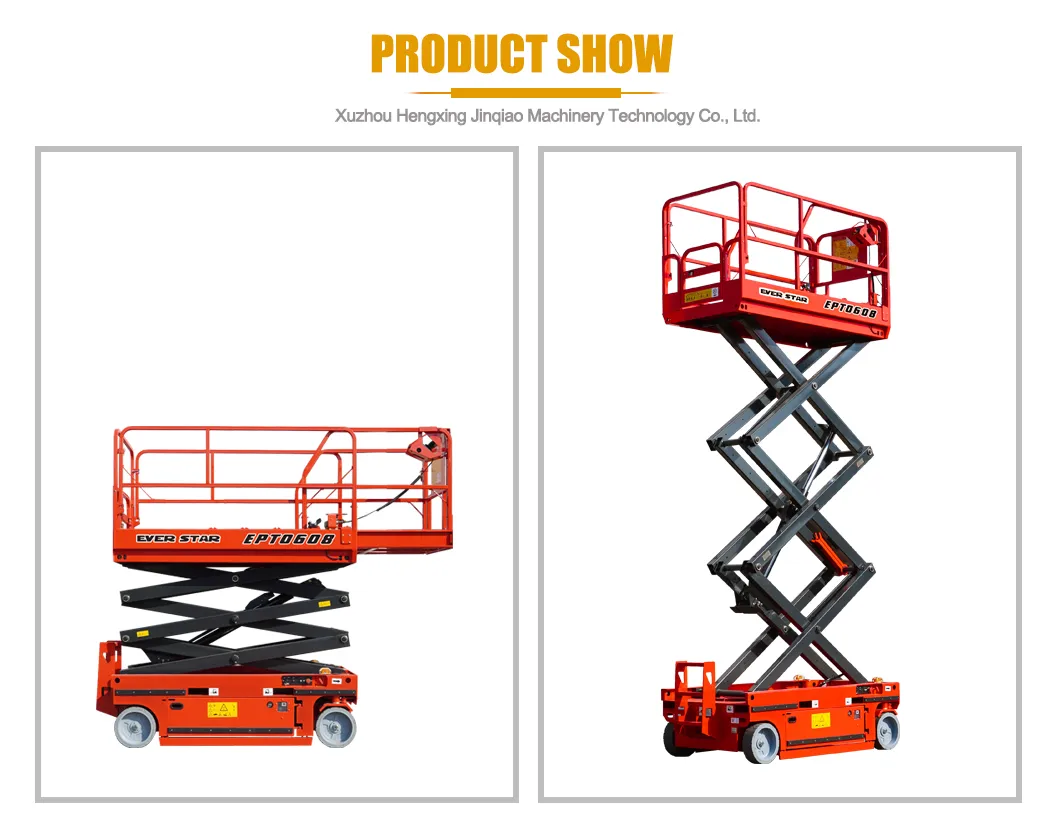

Scissor Lift Operation

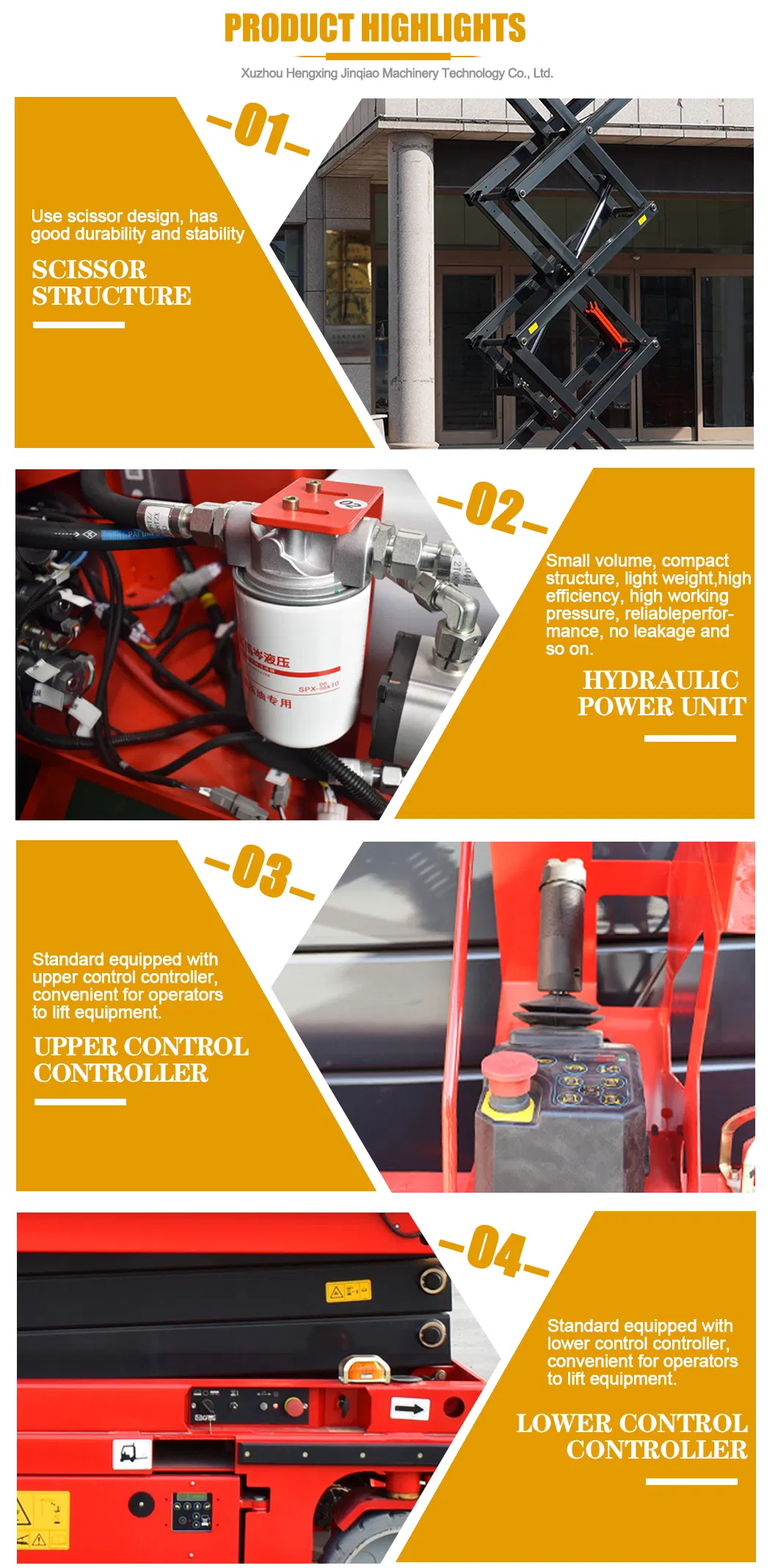

Scissor Lift Structure

Industry Applications

  • Aerospace hangar maintenance
  • Nuclear facility upgrades
  • Offshore energy platform servicing
  • Government infrastructure projects
Technical Specifications
Item Performance Parameters
S.W.L450kg
S.W.L on extension113kg
Max. occupants4
Maximum working height(A)8m
Maximum platform height(B)6m
Overall length(C)2.43m
Overall width(D)1.21m
Working platform size2.27m * 1.12m
Lifting motor/drive motor24v/4.5kw
Machine travel speed (folded)3.5km/h
Ascent/descent speed100/80 sec
Machine weight2250kg

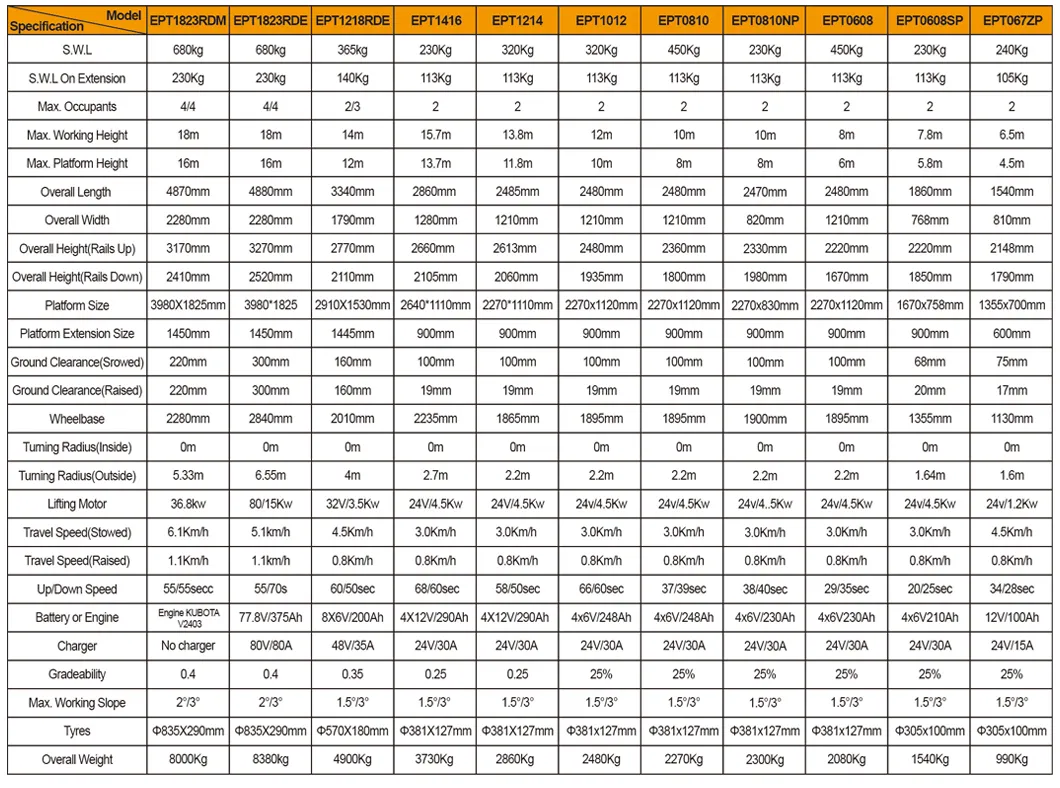

Technical Drawing 1

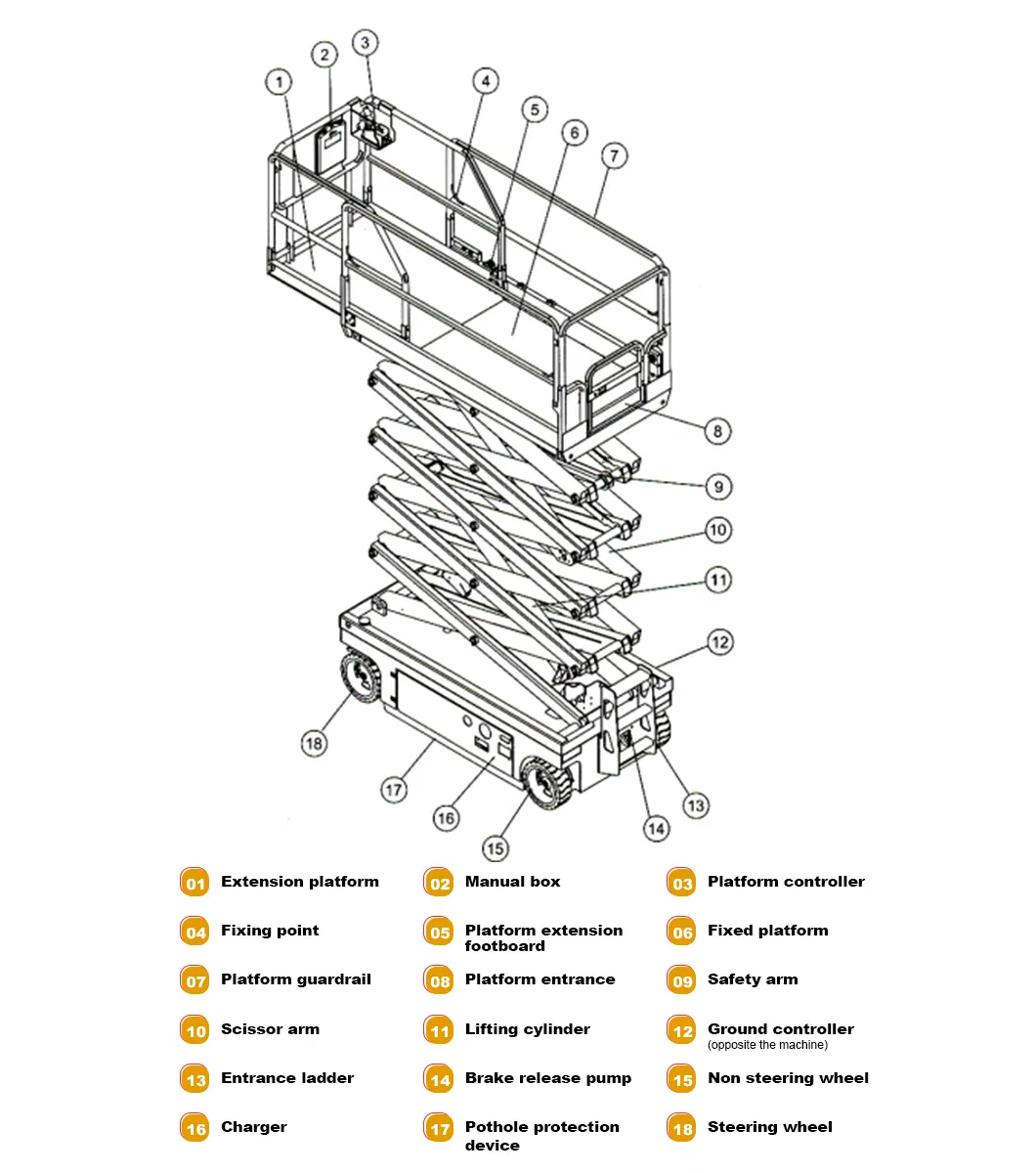

Technical Drawing 2
Detailed Photos

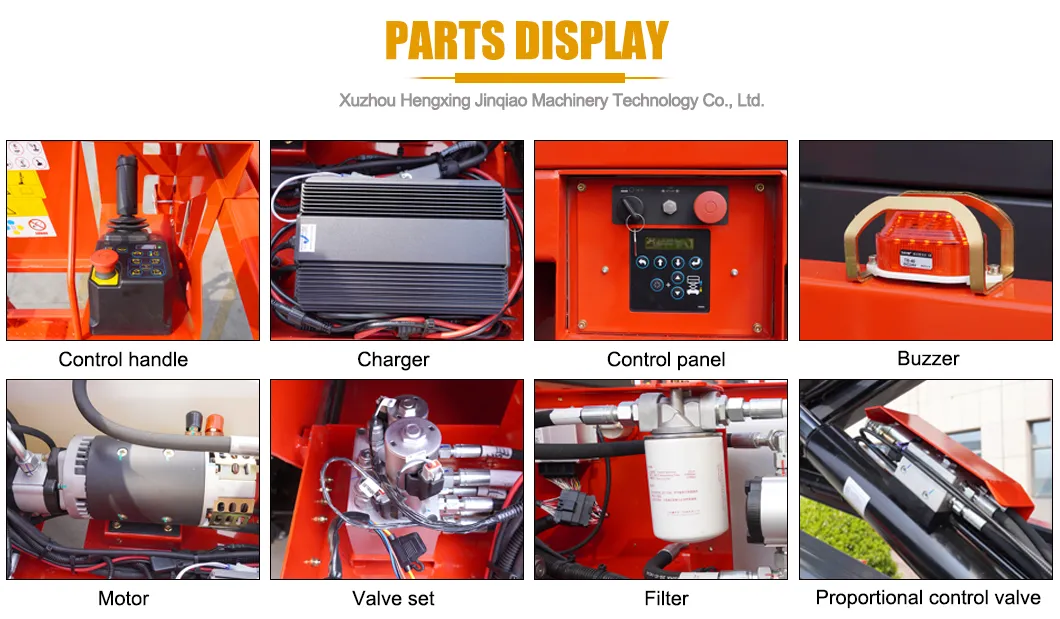

Detail 1

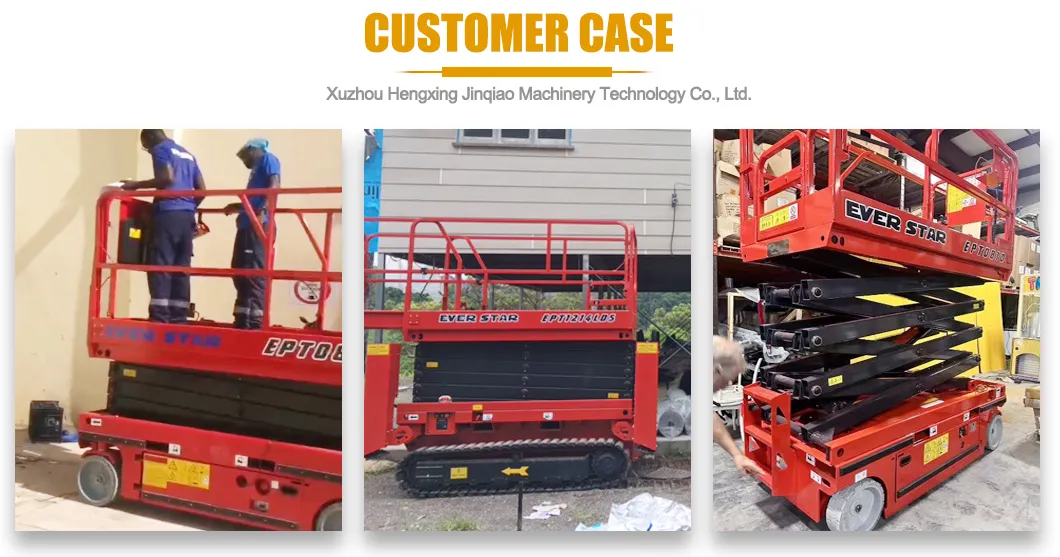

Detail 2
Detail 3

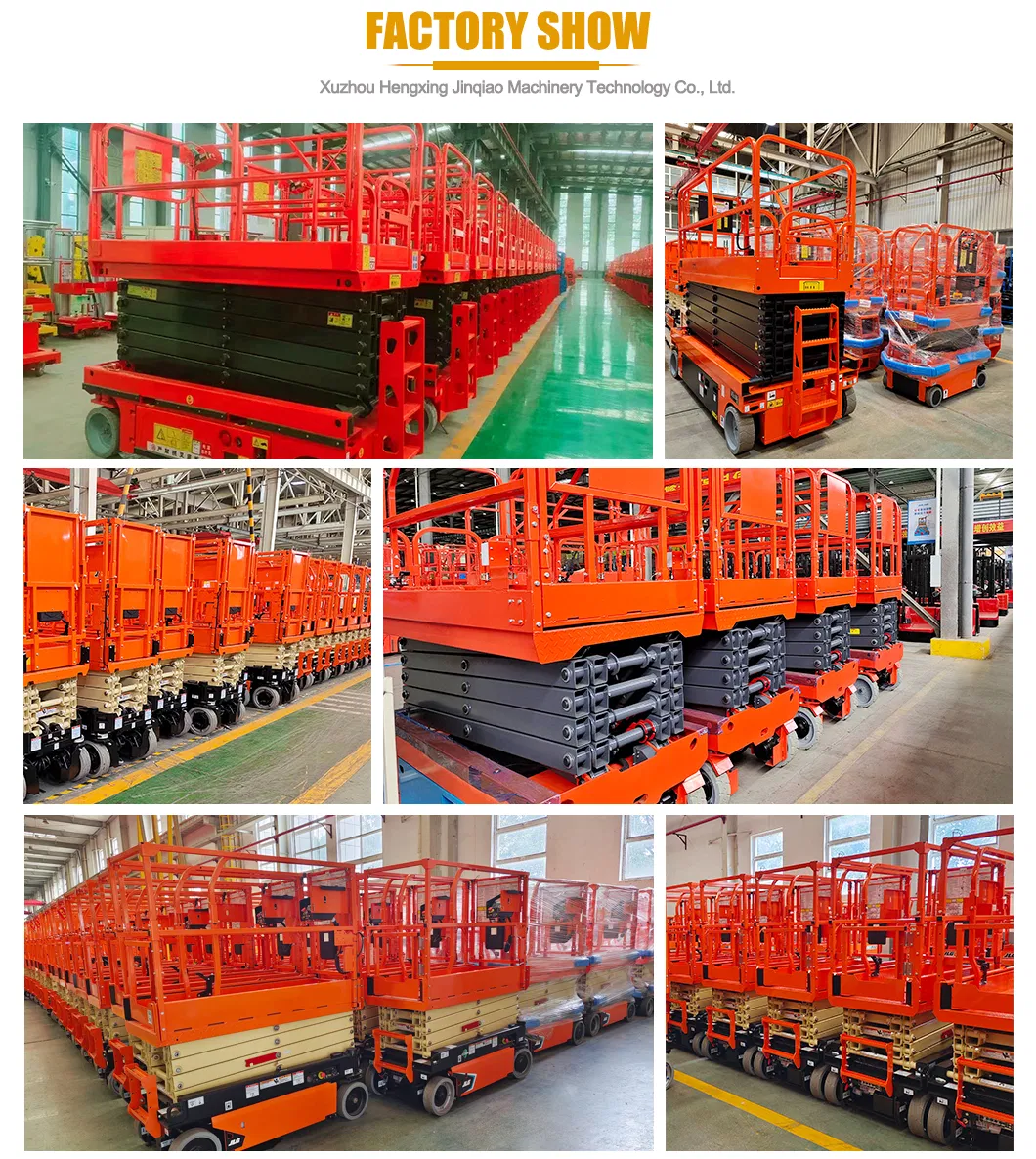

Detail 4
Certifications
Certificates
Packaging & Shipping
Shipping Logistics
Our Advantages
Factory Advantage
Service Advantage
Frequently Asked Questions
1. What is the maximum working height of the EPT0608?
The EPT0608 model offers a maximum working height of 8.0 meters, with a platform height of 6.0 meters.
2. How much weight can this scissor lift carry?
The safe working load (S.W.L) is 450kg on the main platform and 113kg on the extension platform.
3. What kind of power system does it use?
It is powered by a 24V system with 4×6V/200Ah batteries, providing up to 8 hours of continuous runtime.
4. Is the equipment suitable for sloped ground?
Yes, the machine has a gradeability of 25%, allowing it to handle moderate inclines effectively.
5. What safety certifications does the product have?
The product is fully compliant with CE and ISO 9001 international standards for quality and safety.
6. Can the platform be extended?
Yes, the platform features an extension size of 0.9m to provide additional reach for operators.
