Prevent turnout mismoving: Mechanically lock the turnout during maintenance or failure to prevent accidental position changes from vibration, wind, or error.
Interlock system support: Acts as a manual emergency locking measure during electrical centralized interlock faults.
Enhance driving safety: Prevents shifting due to icing or deformation in extreme weather conditions like heavy snow.
Usage Scenarios
Maintenance & Construction: Mandatory locking while personnel inspect and repair tracks to prevent accidental movement.
System Failures: Manual installation when switch machines fail or signals are interrupted.
Non-centralized Areas: Routine safety measure for manual turnouts or shunting operations.
Special Traffic Organization: Reinforcement for single-track railways or temporary reverse traffic routes.

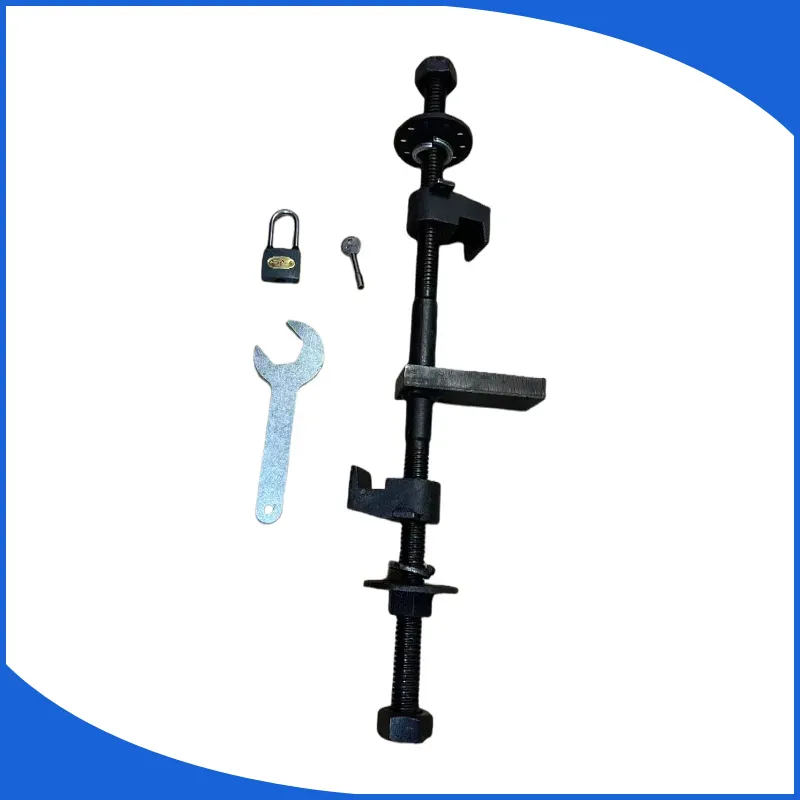

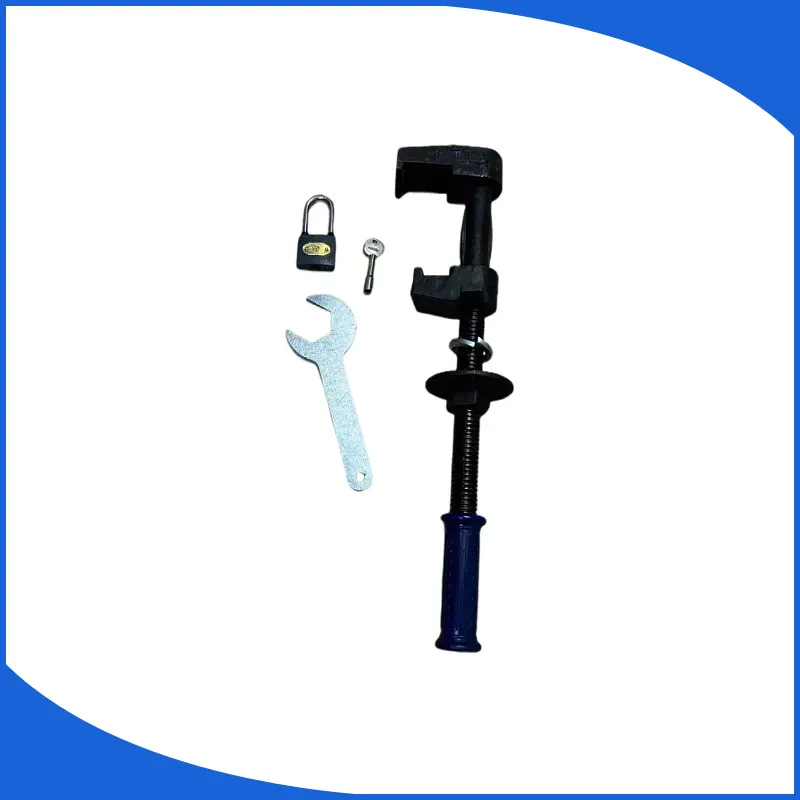

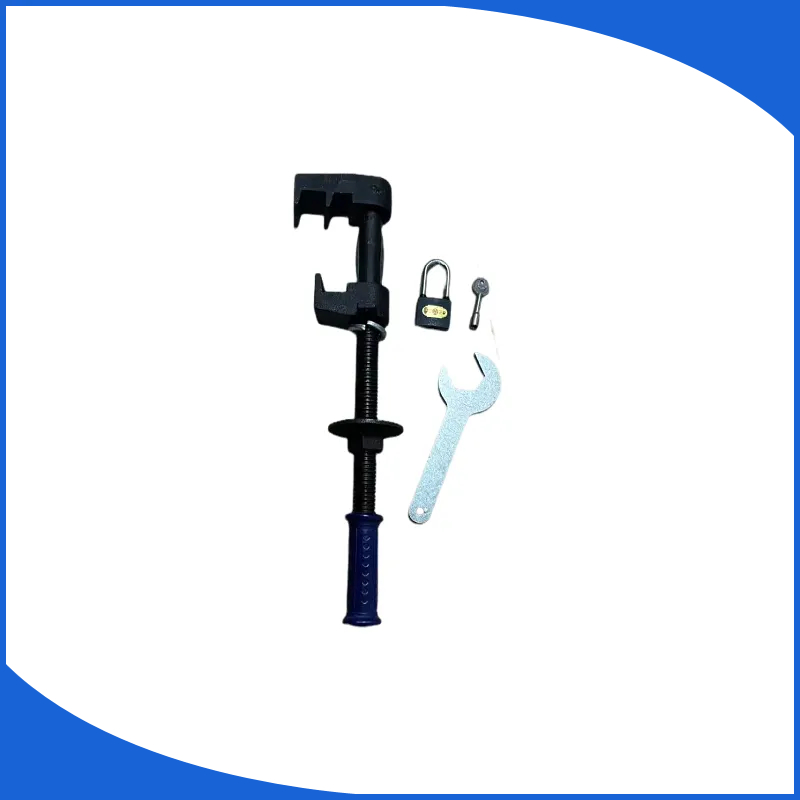

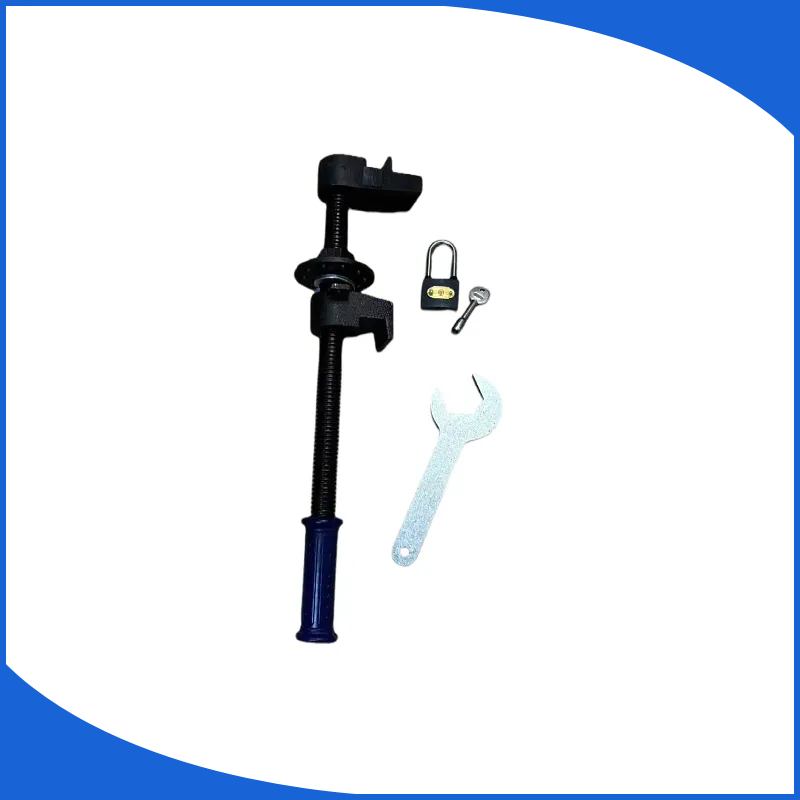

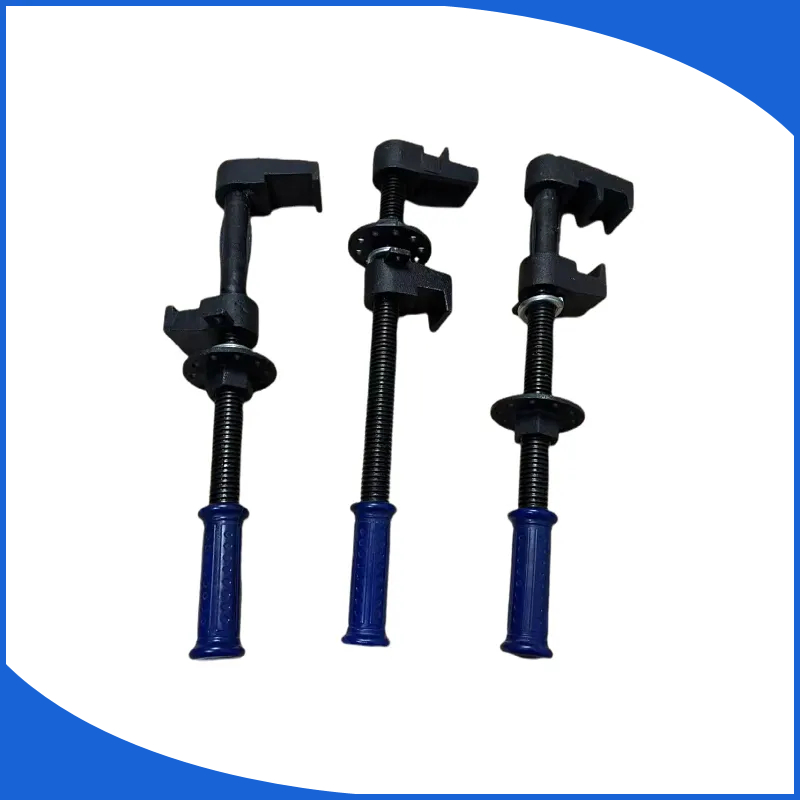

Basic Structure
Lock hook part: Grips the turnout tip rail or core rail securely.
Locking device: Mechanical lock or padlock to prevent unauthorized access.
Fixed bracket: Optional stabilization on rails or sleepers for enhanced grip.
Railway turnout hook and lock devices are critical safety components designed to maintain turnout positions. They are indispensable for emergency response, track maintenance, and managing non-centralized interlocking areas, serving as a core measure of railway safety management.
Frequently Asked Questions
Q1: What is the primary function of the P50 Turnout Hook Lock Device?The primary function is to mechanically lock the railway turnout in a fixed position, preventing accidental movement caused by equipment failure, human error, or external environmental forces.
Q2: Can this device be used if the electrical interlocking system fails?Yes, it is specifically designed as a manual emergency locking measure to ensure turnout security when computer or electrical centralized interlocking systems malfunction.
Q3: What are the key components of the device's structure?It consists of a lock hook part to hold the rail, a mechanical locking device (often compatible with padlocks), and a fixed bracket for increased stability on the rails.
Q4: Is the device suitable for extreme weather conditions?Absolutely. It helps prevent turnout shifts caused by icing, heavy snow, or rail deformation during severe weather, ensuring driving safety.
Q5: In which scenarios is manual installation required?It is required during track maintenance, in non-electrified sections, during shunting operations in station yards, and whenever the electric switch machine fails.
Q6: What is the production standard and packaging for export?The device is manufactured under ISO9001 certification and is shipped in standard export wooden boxes to ensure protection during transit.
