Emergency Elevator Spare Parts with Power Failure Device

1 / 5

Emergency Elevator Spare Parts with Power Failure Device

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.:ARD

Type:Control System

Suitable for:Elevator

Control Type:Relay Control

Safety:High

Peculiarity:One Phase, Three Phase

Transport Package:Wooden Case

Specification:2150*720*830mm

Origin:China

Production Capacity:500,000 Pieces/Year

📦

Packaging & Delivery

Package Size:2150.00cm * 720.00cm * 830.00cm

Gross Weight:15.000kg

🔍

Product Description

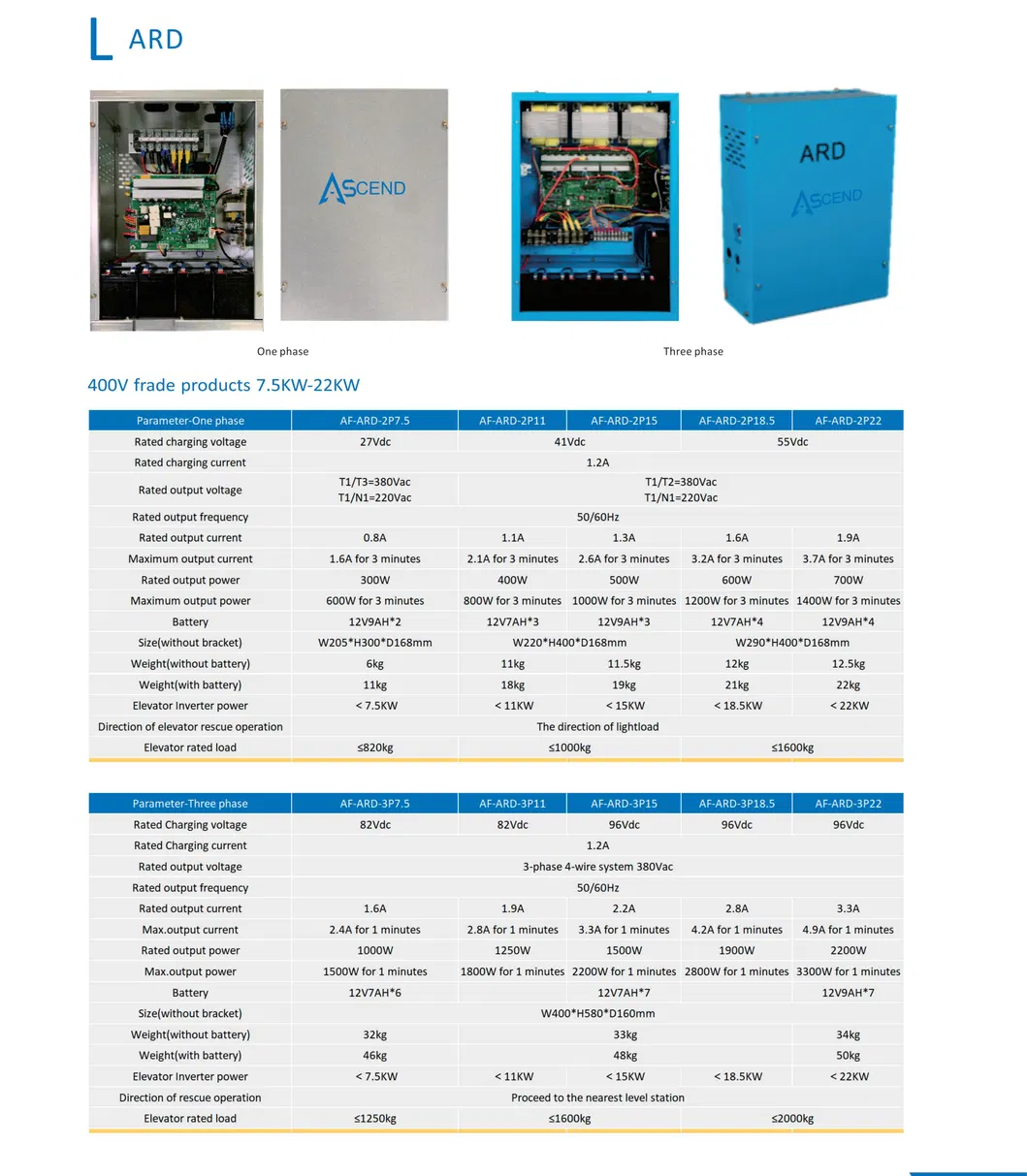

Automatic Rescue Device (ARD)

Experience peace of mind with our cutting-edge ARD system. Designed to ensure seamless operation, it vigilantly monitors the elevator's power supply, ready to act in the event of a grid or line fault. Upon detecting an interruption, the ARD springs into action, supplying power to the elevator drive and signaling the elevator controller. With precision, the controller releases the motor drive brake, gently guiding the elevator to the nearest floor where doors open, accompanied by an audio/video alert to assure passengers of their safety.

📋

Technical Specifications

Serial No.	Specification	Input	Output	Power (KW)	Equipment Size	Package Size (mm)	Battery Spec	Weight (KG)
1	2P-5.5E	Three-phase 380V	Two-phase 380V	5.5	392303110	450370185	12V/9AH*2	17
2	2P-7.5E	Three-phase 380V	Two-phase 380V	7.5	402305160	470370225	12V/7AH*3	22
3	2P-11E	Three-phase 380V	Two-phase 380V	11			12V/9AH*3	23
4	2P-15E	Three-phase 380V	Two-phase 380V	15			12V/7AH*4	24
5	2P-18.5E	Three-phase 380V	Two-phase 380V	18.5			12V/9AH*4	25
6	2P-22E	Three-phase 380V	Two-phase 380V	22			12V/9AH*4	26
7	2P-30E	Three-phase 380V	Two-phase 380V	30	468400160	525455225	12V/12AH*4	36
1	1P-5.5E	Single-phase 220V	Single-phase 220V	5.5	402305160	470370225	12V/9AH*2	22
2	1P-7.5E	Single-phase 220V	Single-phase 220V	7.5			12V/7AH*3	24
3	1P-11E	Single-phase 220V	Single-phase 220V	11			12V/9AH*3	25
4	1P-15E	Single-phase 220V	Single-phase 220V	15			12V/7AH*4	26
5	1P-18.5E	Single-phase 220V	Single-phase 220V	18.5			12V/9AH*4	27

🏗️

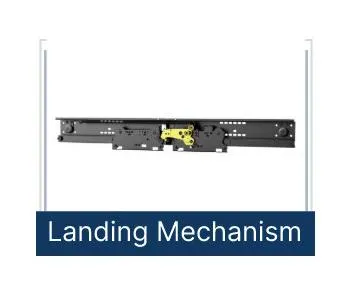

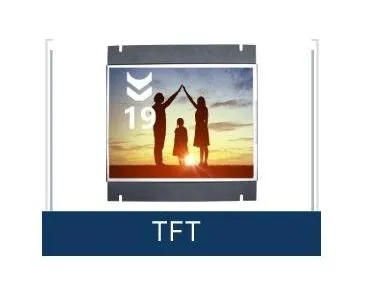

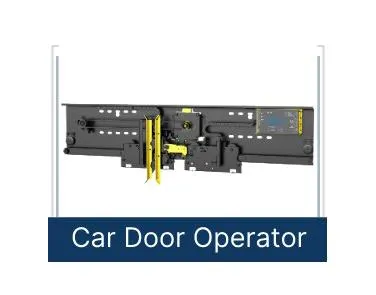

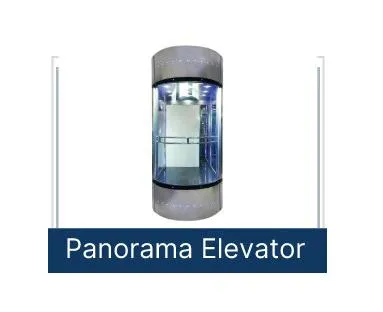

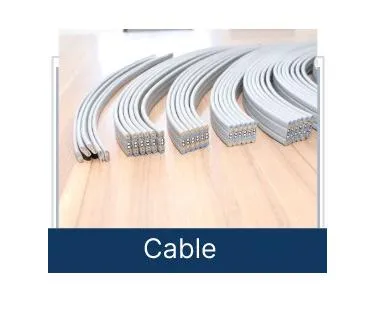

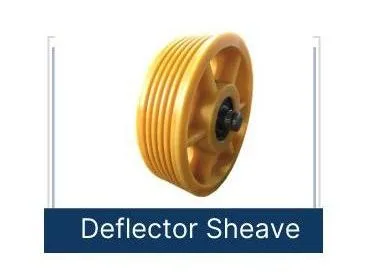

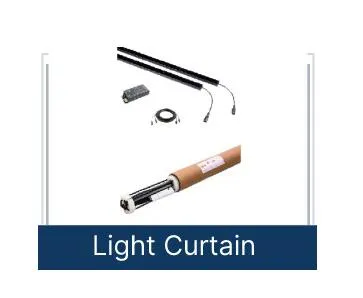

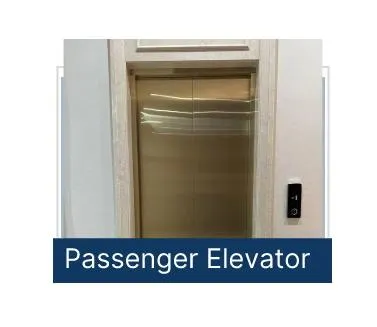

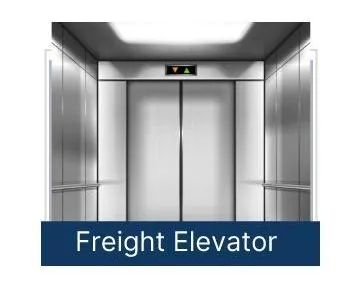

Main Products Showcase

🏭

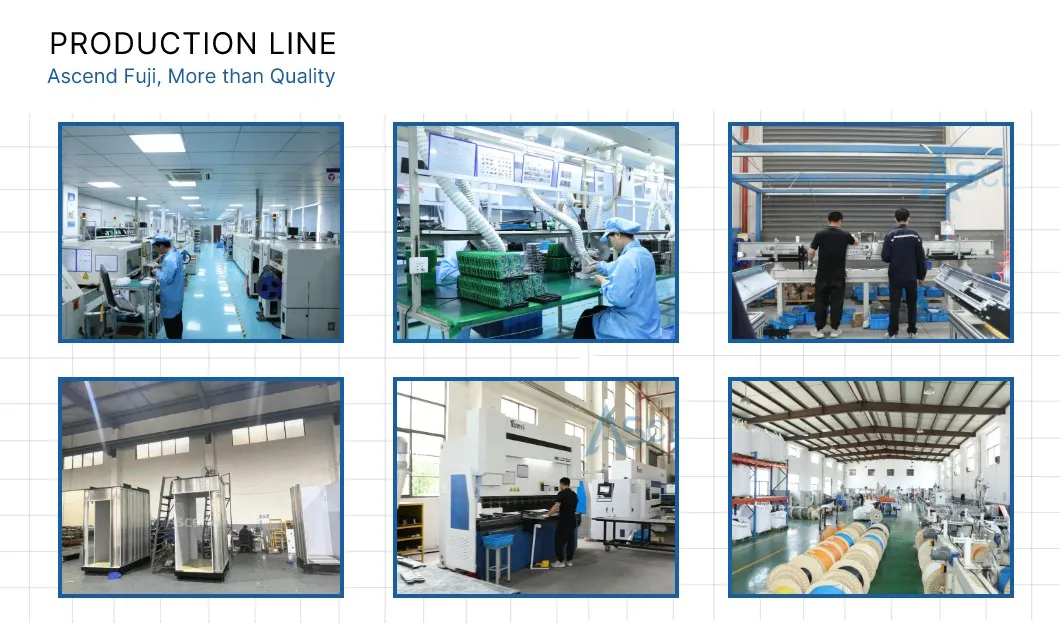

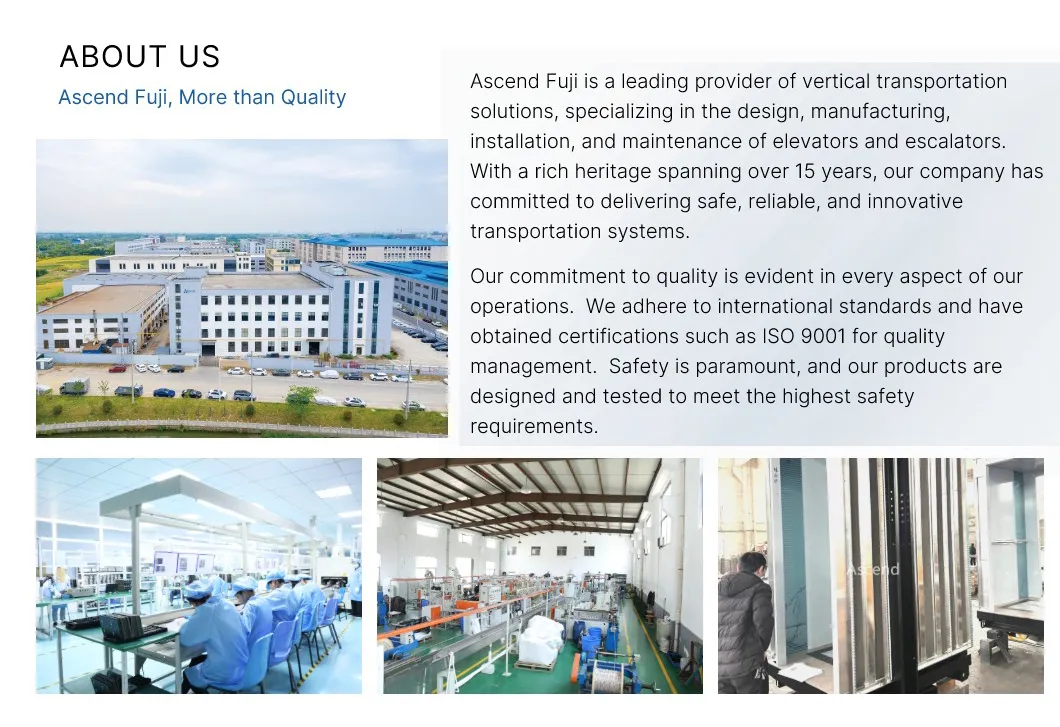

Manufacturing & Global Presence

🏆

Certifications & Logistics

❓

Frequently Asked Questions

1. Why choose our elevator solutions?

With 15 years of industry expertise, our technical team excels in crafting innovative solutions for challenging shaft spaces. Our technicians bring global experience from leading companies, ensuring both high-quality performance and stunning aesthetics.

2. How is door safety ensured?

We use dual protection: First, light curtain technology ensures immediate reopening when obstacles are detected. Second, the door inverter signals a reopen command if 150N of pressure is encountered, preventing any pinching risk.

3. How are falling or over-speeding prevented?

Our top-tier safety components are CE and EAC certified. If descent speed exceeds 1.15 times the rated speed, the speed governor engages the safety gear for precision braking. For upward over-speeding, the control cabinet triggers an immediate brake on the traction machine.

4. What is the production capacity for these devices?

Our manufacturing facility is equipped for high-scale production, with a capacity of approximately 500,000 pieces per year, ensuring timely delivery for large projects.

5. What certifications do your products carry?

All our safety components and elevator systems proudly bear international certifications, including CE and EAC, ensuring they meet the highest global standards for safety and reliability.

6. How is the product shipped?

To ensure safety during transit, products are professionally packed in sturdy wooden cases. We coordinate with reliable logistics partners to provide secure global shipping.
