Faa Part 150 Airport Barrier - Aircraft Noise 65dB Reduction

Basic Info.

Model NO.

SYR-1

Feature

Environmental, Fireproof, Light Weight

Certification

ISO9001, CE, SGS, ASTM, En Standards.

MOQ

100 Square Meters

OEM/ODM

Yes

Origin

Shandong, China

Capacity

1,000,000 pieces/Year

Product Description

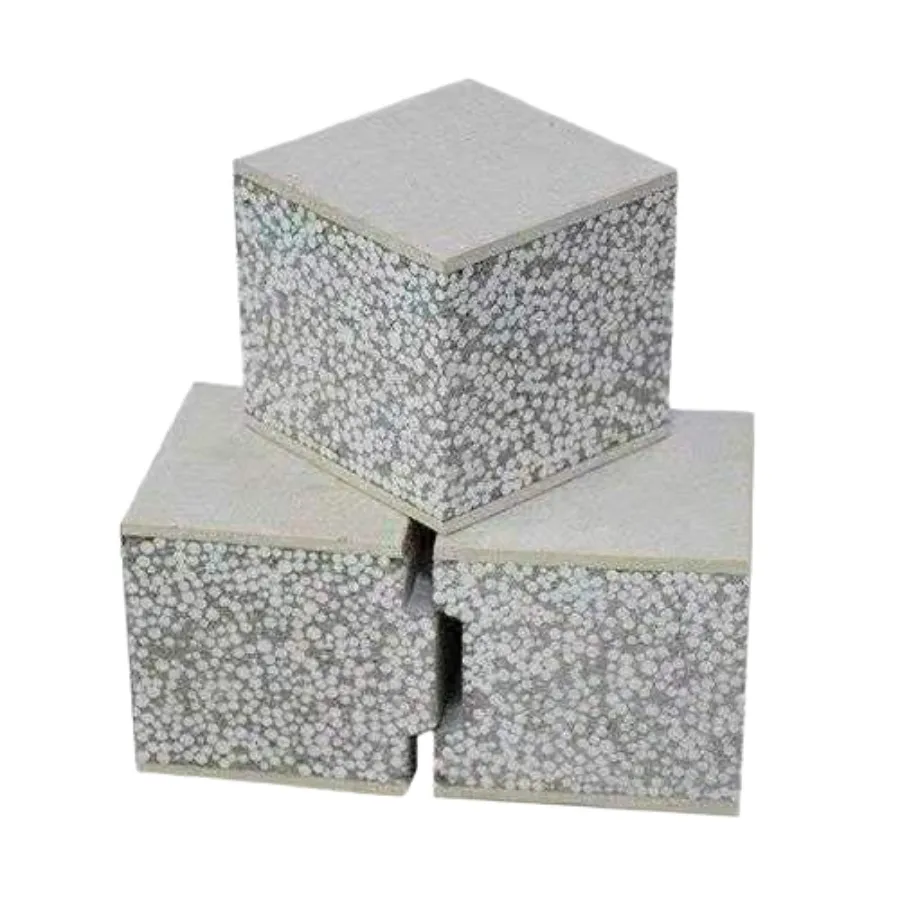

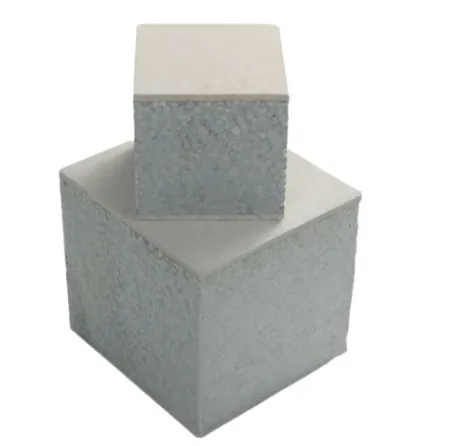

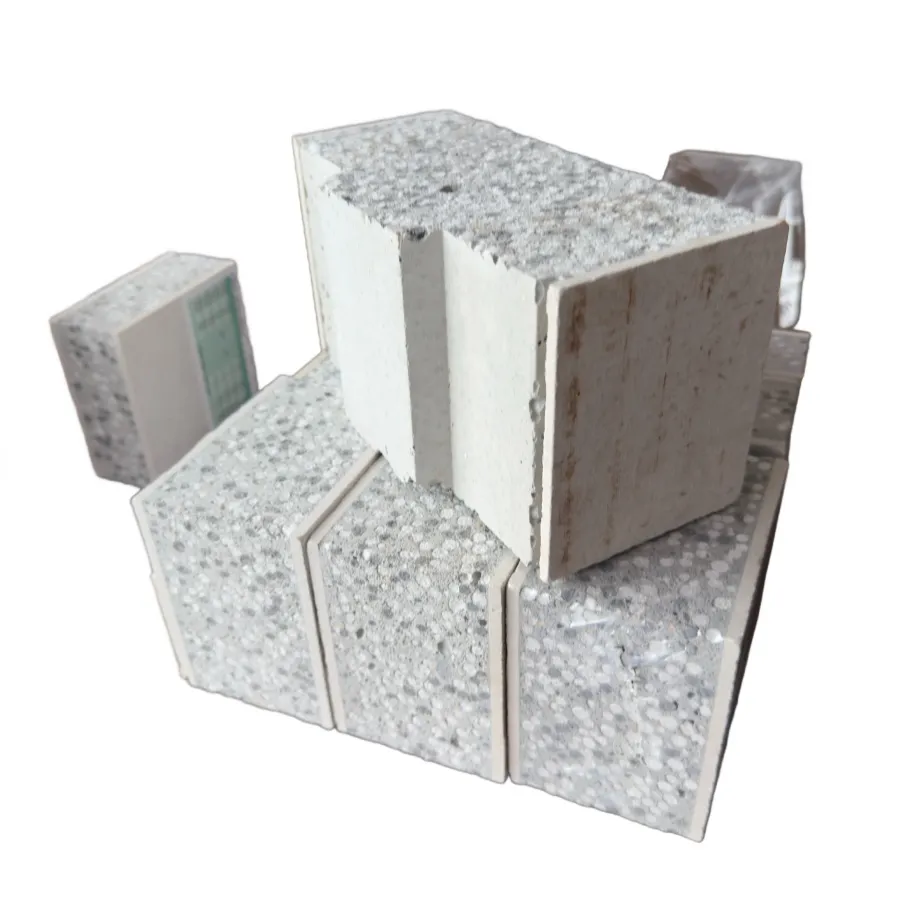

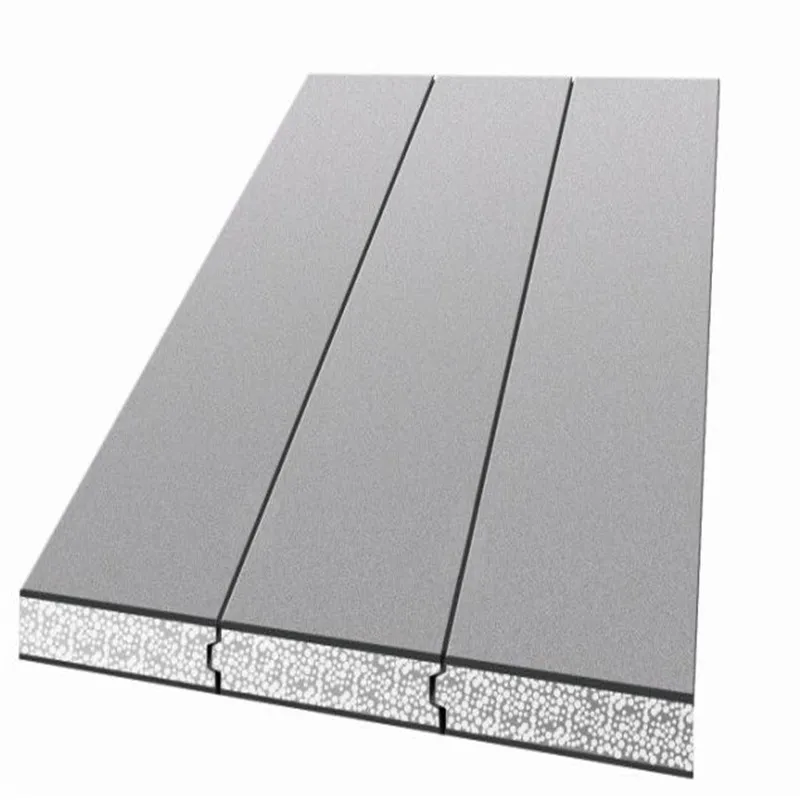

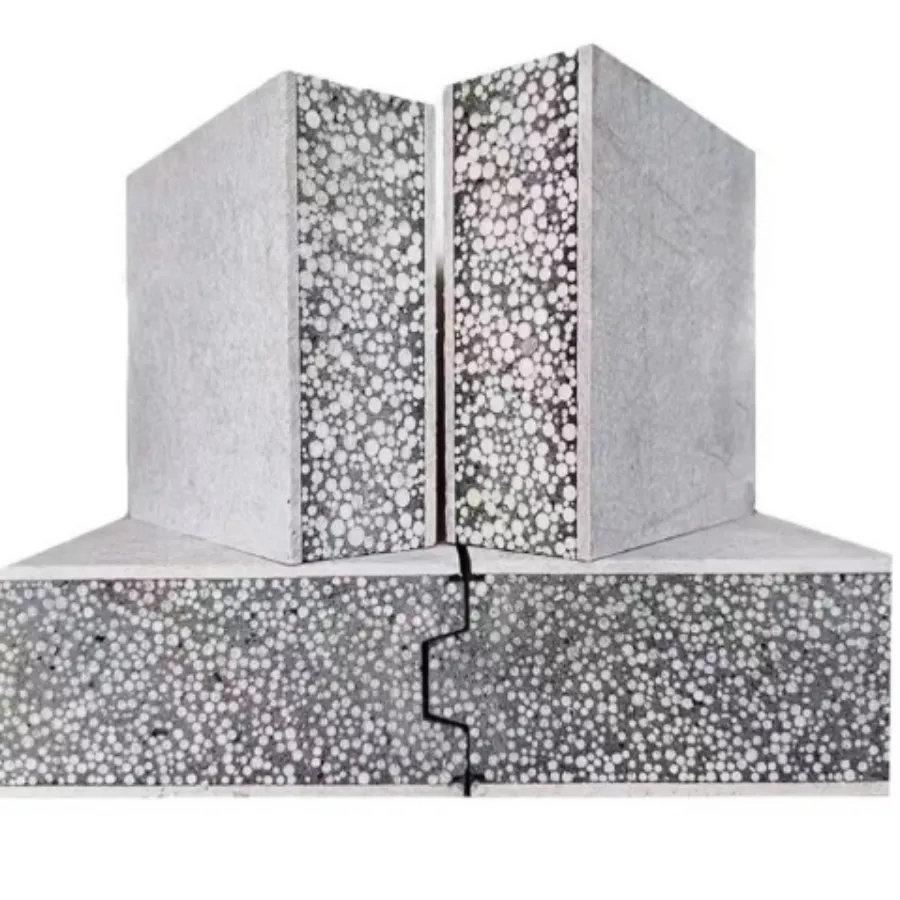

EPS Cement Sandwich Panel (also known as EPS Core Sandwich Panel or Lightweight Insulated Wall Panel) is a high-performance prefabricated building material composed of fiber-reinforced cement boards for structural strength, an Expanded Polystyrene (EPS) foam core for thermal insulation, and special polymer-modified cement mortar for bonding.

Technical Specifications

Parameter	Value / Description	Testing Standard
Panel Thickness	50mm - 200mm (customizable)	ASTM C1289
Density (EPS Core)	18-30 kg/m³	ASTM D1622
Thermal Conductivity	0.033-0.038 W/(m·K)	ASTM C518
Fire Rating	Class A (Non-combustible)	ASTM E84 / EN 13501-1
Sound Insulation	40-45 dB (100mm panel)	ISO 10140
Compressive Strength	≥0.15 MPa (EPS core)	ISO 844

Comparison vs. Traditional Materials

Feature	EPS Sandwich Panel	Brick Wall	Concrete Panel
Weight (kg/m²)	15-25	180-220	200-250
Thermal Insulation	Excellent	Poor	Moderate
Installation Time	1-2 days per house	2-4 weeks	3-6 weeks
Cost Efficiency	30% cheaper	High labor cost	High material cost

Key Advantages

✓
Lightweight & Strength: High strength-to-weight ratio.
✓
Thermal Efficiency: Superior insulation for energy savings.
✓
Fireproof Safety: Class A fire resistance rating.
✓

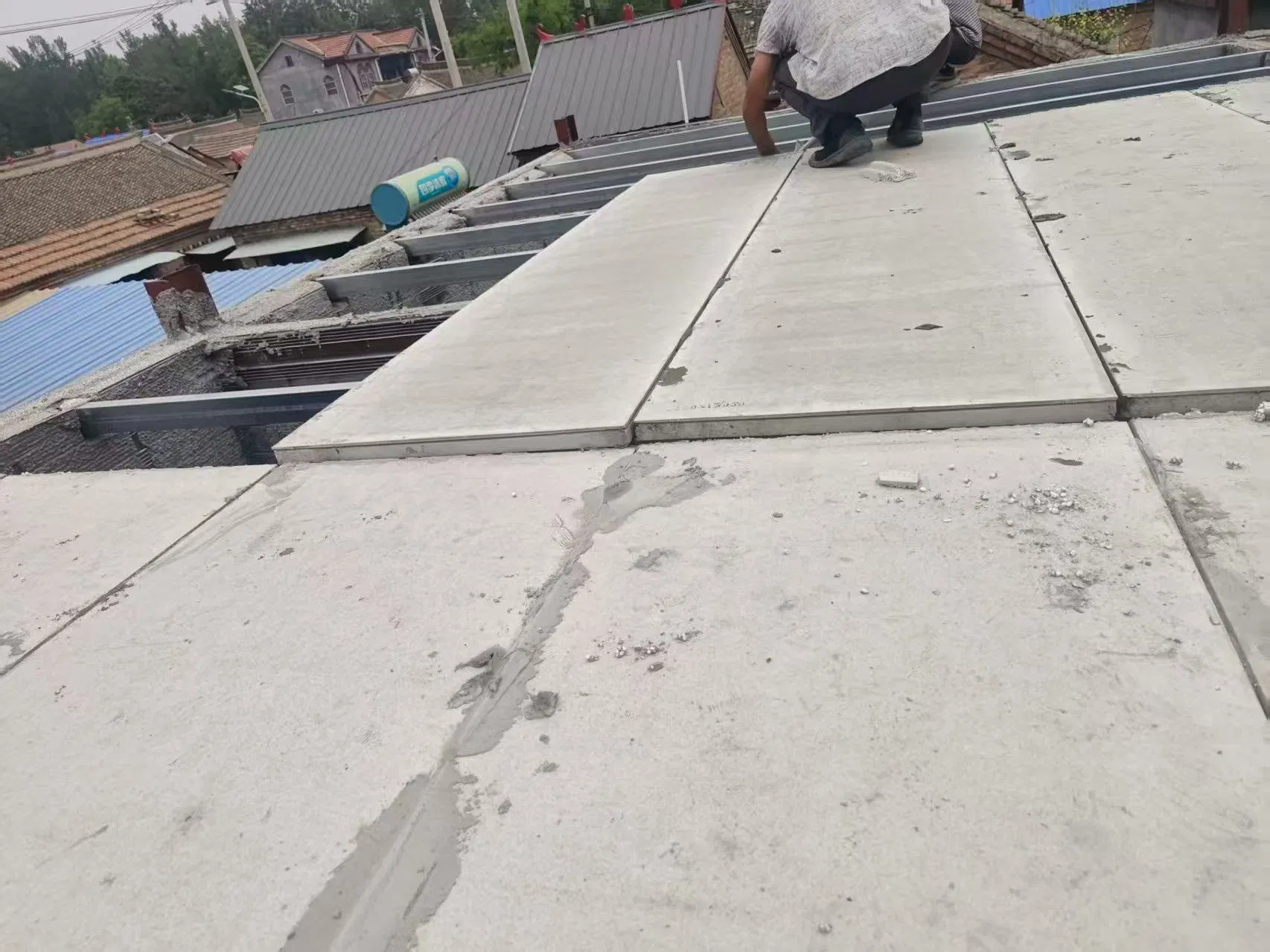

Rapid Installation: Modular construction system.
✓
Resistance: Moisture and mold resistant.
✓
Eco-Friendly: Sustainable building material.

Main Applications

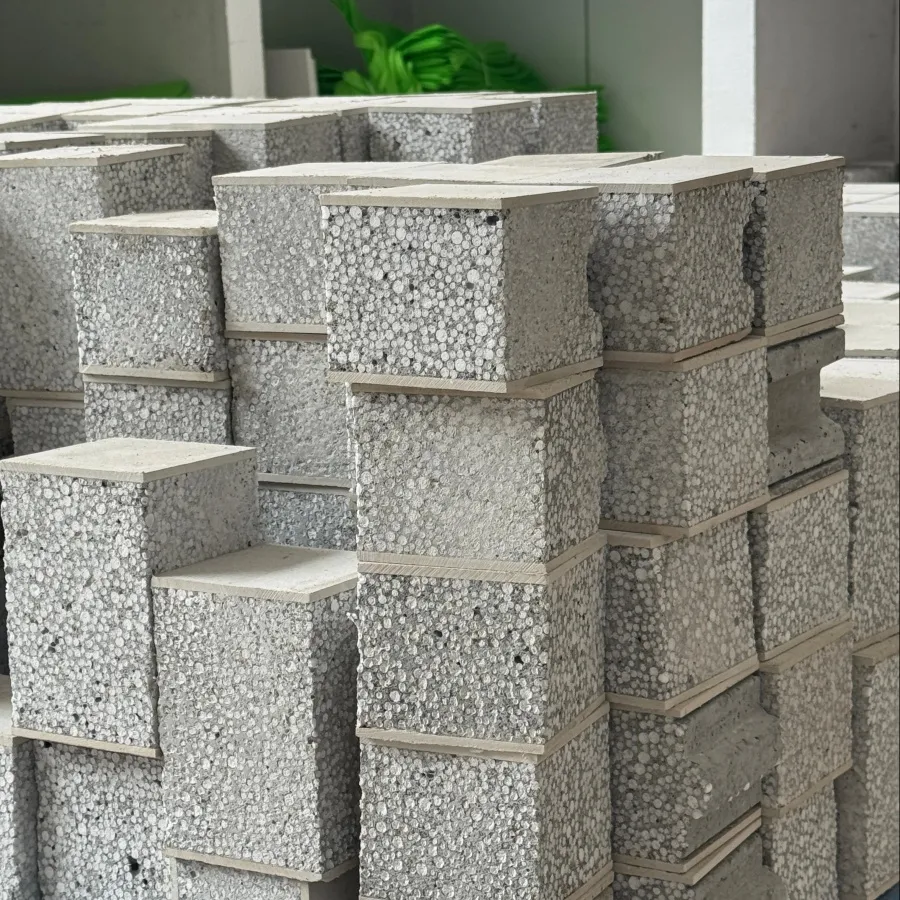

Residential: Exterior walls, partition walls, villas, and modular homes.

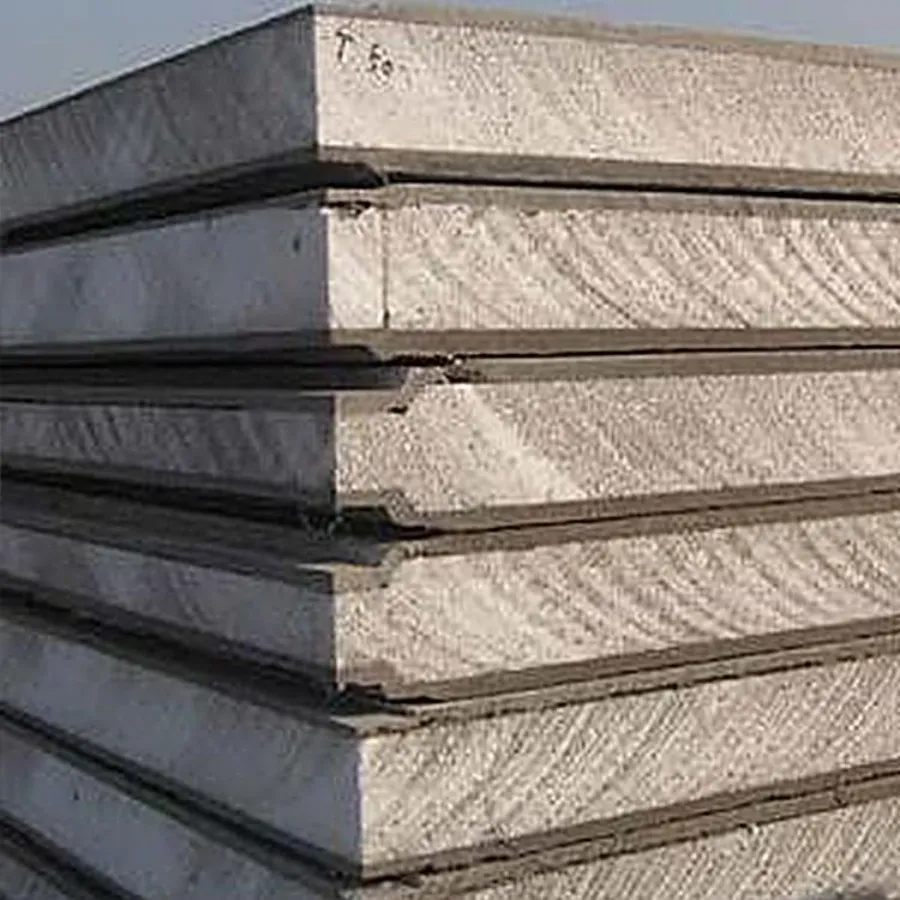

Industrial: Warehouses, factories, and cold storage facilities.

About Us

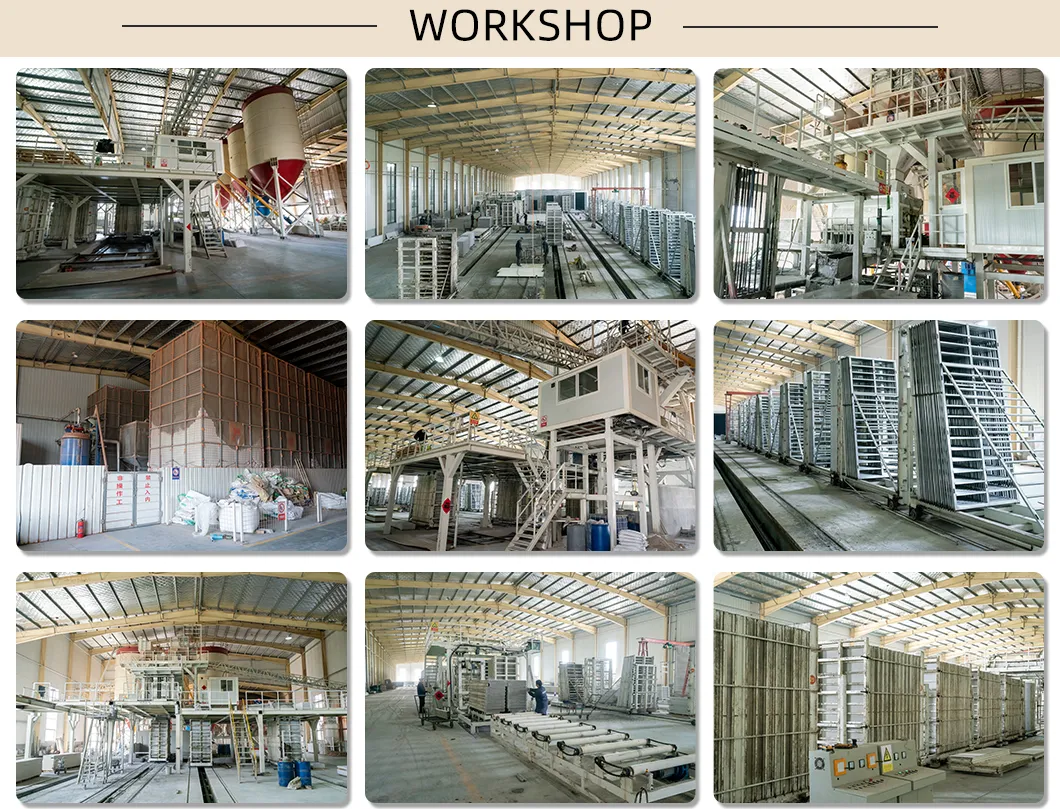

We are a distinguished high-tech enterprise specializing in the advanced research, production, and construction services of sustainable, environmentally friendly, and energy-efficient wall materials. Our expansive facility spans 20,000 square meters, featuring state-of-the-art production areas. With an annual output exceeding 1 million square meters, we provide unmatched thermal insulation, Class A fire resistance, and exceptional soundproofing solutions for residential, medical, and commercial projects globally.

Quality Standards & Partners

We adhere to the most esteemed global benchmarks including ISO 9001, CE, SGS, ASTM, and EN standards. Our commitment to sustainability is highlighted by Green Building Certifications such as LEED and BREEAM.

Frequently Asked Questions

1. What is an EPS cement sandwich panel?

It is a composite building panel consisting of two layers of fiber cement or calcium silicate boards sandwiching an expanded polystyrene (EPS) foam core. It is lightweight and provides excellent insulation.

2. Are these panels fire-resistant?

Yes. Combined with flame-retardant EPS and cement facings, these panels typically achieve a Class A fire rating, which is non-combustible and safe for various constructions.

3. How much weight can the panels support?

The panels have a high suspension capacity, exceeding 1500N (approximately 153kg), allowing for the secure hanging of fixtures and equipment.

4. Is the panel moisture-proof?

Yes, the cement surface layer offers good waterproofing, and the EPS core has a closed-cell structure with very low water absorption rates.

5. What is the typical service life?

Under normal conditions and with proper installation, EPS cement sandwich panels can last over 50 years with minimal maintenance.

6. Can dimensions and colors be customized?

Absolutely. Most manufacturers provide custom lengths and thicknesses (ranging from 50mm to 200mm), and various surface textures or colored coatings are available.
