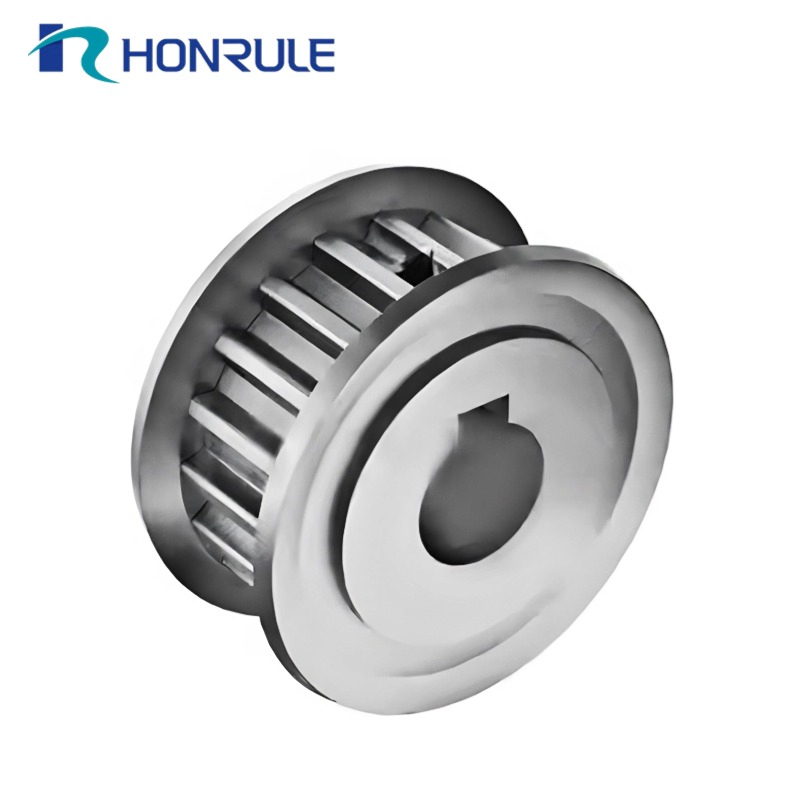

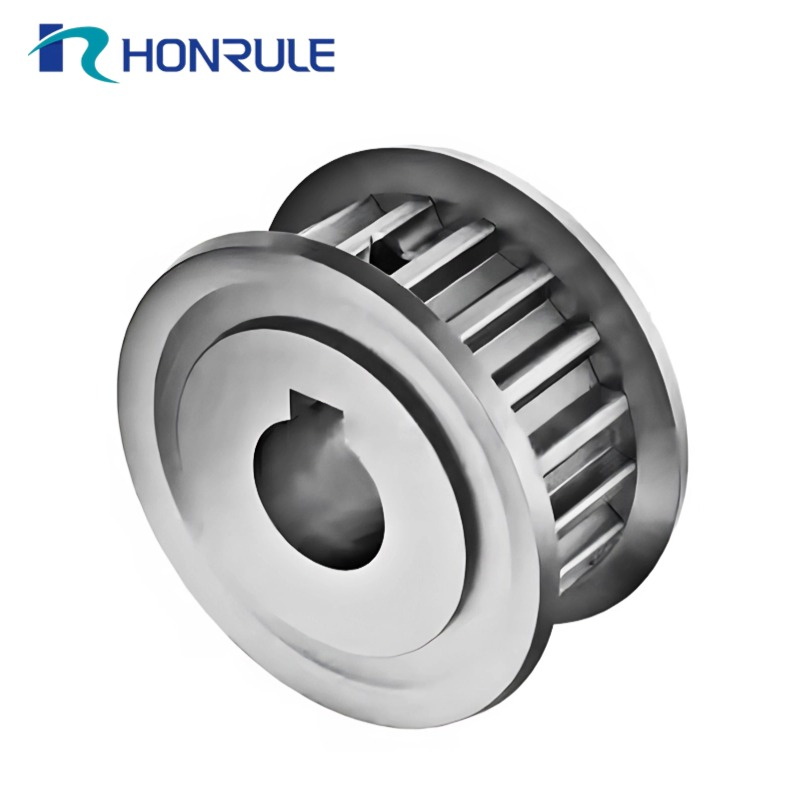

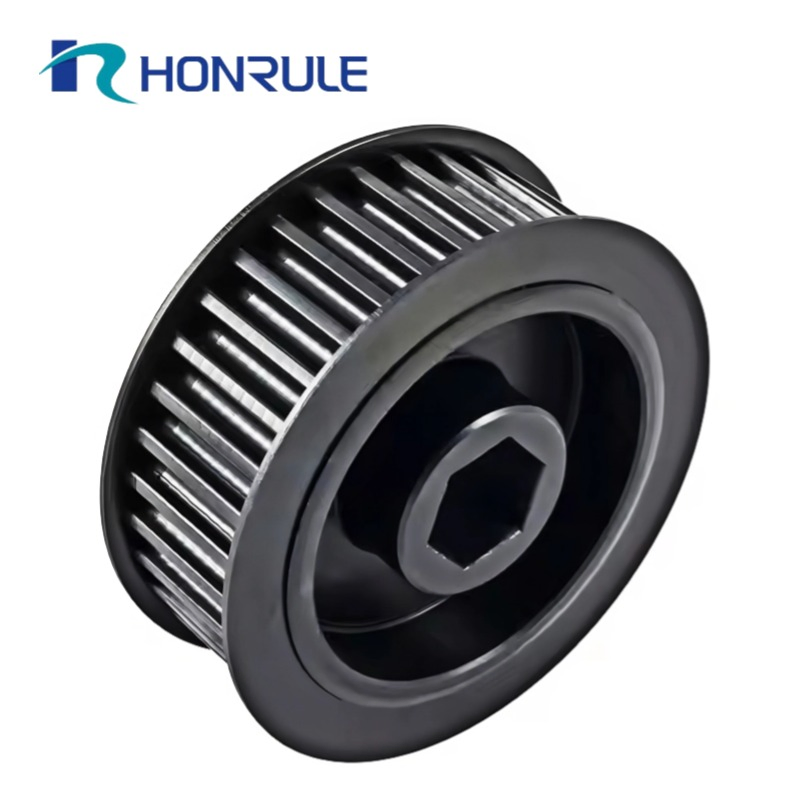

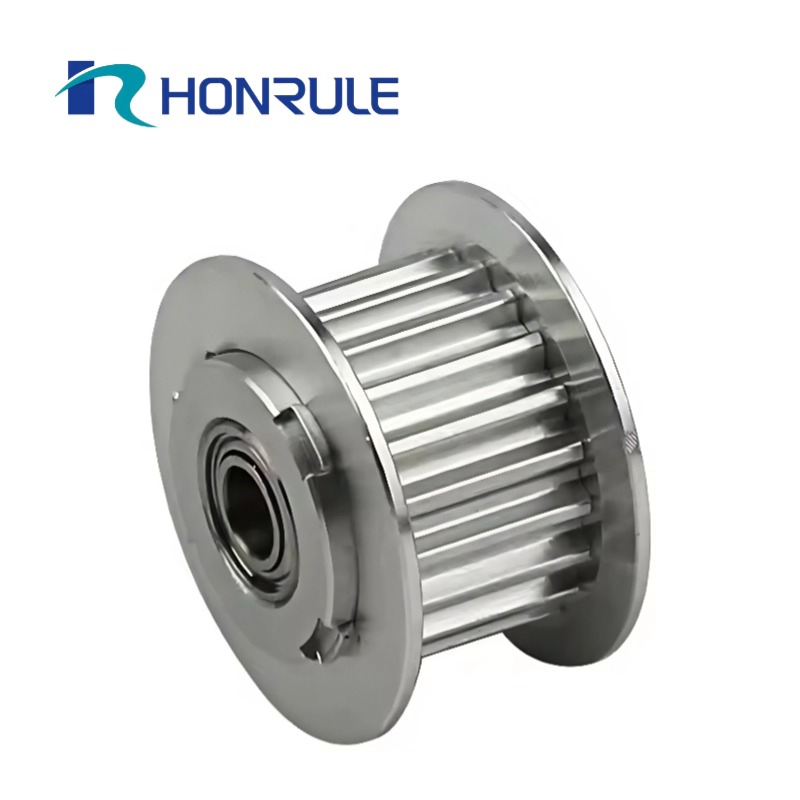

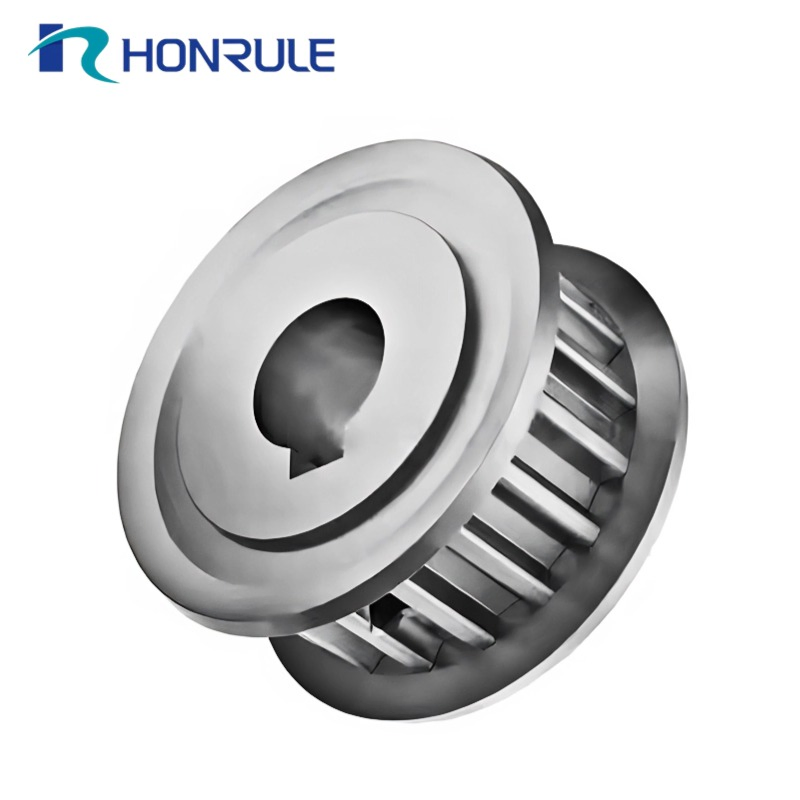

Factory Price Custom Pilot Hole Stainless Steel Synchronous Timing Pulley Synchronous Pulley Gear

Basic Information

Model NO.

HR2653

Manufacturing Process

Hobbing

Material

Aluminium, Steel, Cast Iron, Nylon

Surface Treatment

Anodize, Black Oxide, Phosphate, Galvanization

Application

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Teeth

10-150 Teeth or Customized

Inner Bore

2-200mm H7 Precision or Customized

Standard

DIN JIS ASTM GB

Certifications

CE, IATF16949, ISO9001, ISO14001, ISO45001

Processing

CNC Machining, Turning, Milling, Stamping, Grinding

Tolerance

CNC Machining: +/-0.001 to 0.005mm

Production Capacity

500,000 PCS/ Year

Product Description

High-Quality Material: Crafted from excellent durable iron, ensuring long-lasting performance in industrial applications including building shops and construction works.
Standard Production: Meets industry requirements with standard model numbers and hobbing processing for seamless machinery integration.
Comprehensive Warranty: Core components come with a warranty of more than 5 years for added peace of mind.

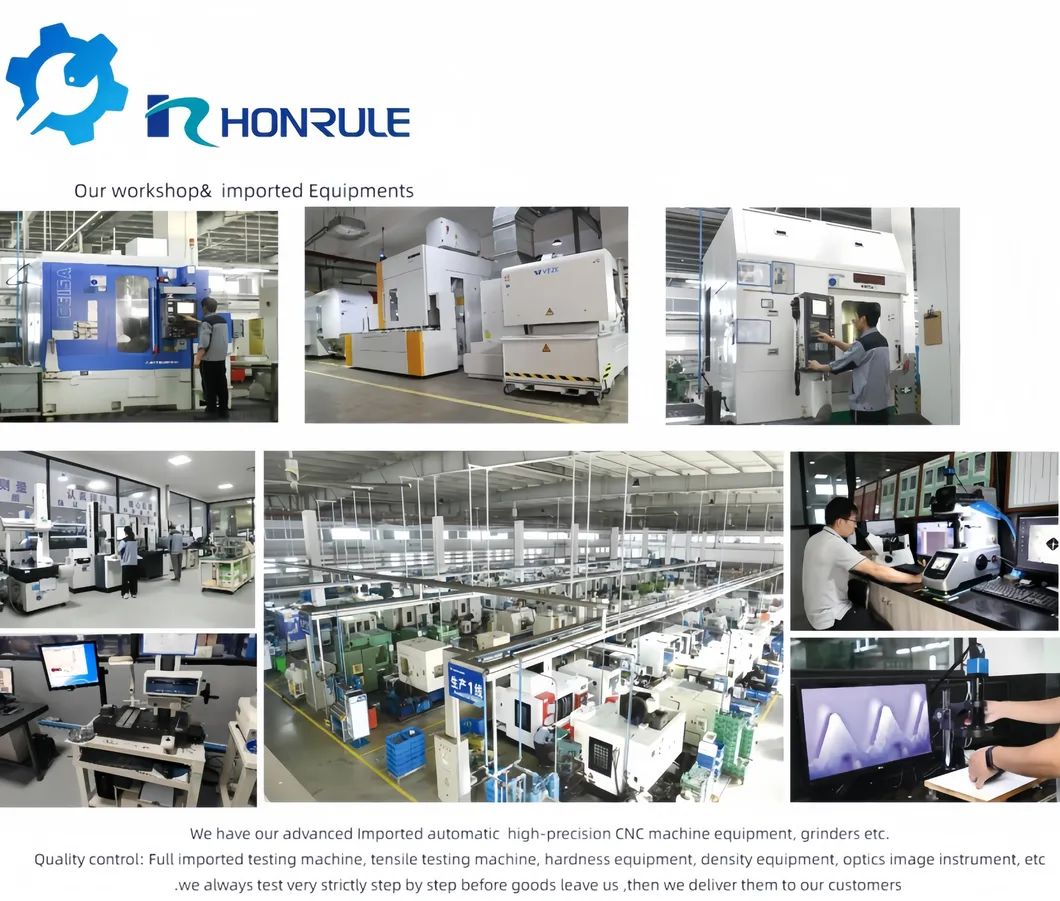

Quality Assurance: Professional test reports from imported testing machines and online video-inspection guarantee product performance.
Reasonable Pricing: Competitive pricing for high-quality helical/spur gears and gear shafts, offering a cost-effective solution for long-term business.

Technical Capabilities

Capabilities of Gears	Specification Range
Max O.D.	15-300 mm
Module	M0.8-6
DIN Class Level	DIN class level range 4-7
Tooth Finish	Ra 0.4-1.6
Max Helix Angle	0-45°
Heat Treatment	High Frequency Quenching, Hardening, Carburizing
Manufactured Method	Hobbing, Milling, Drilling, Shaving, Grinding

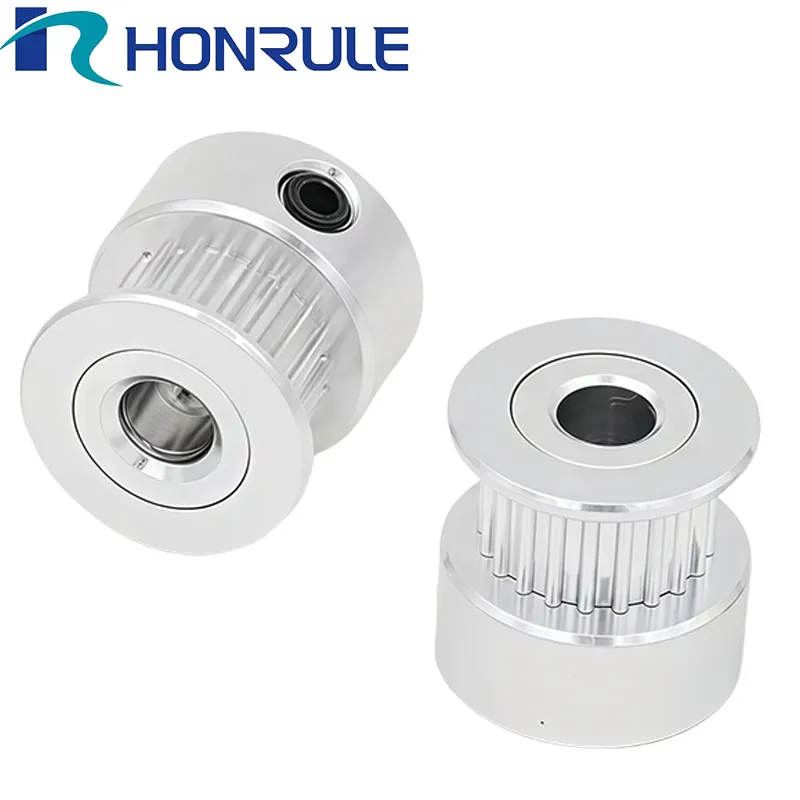

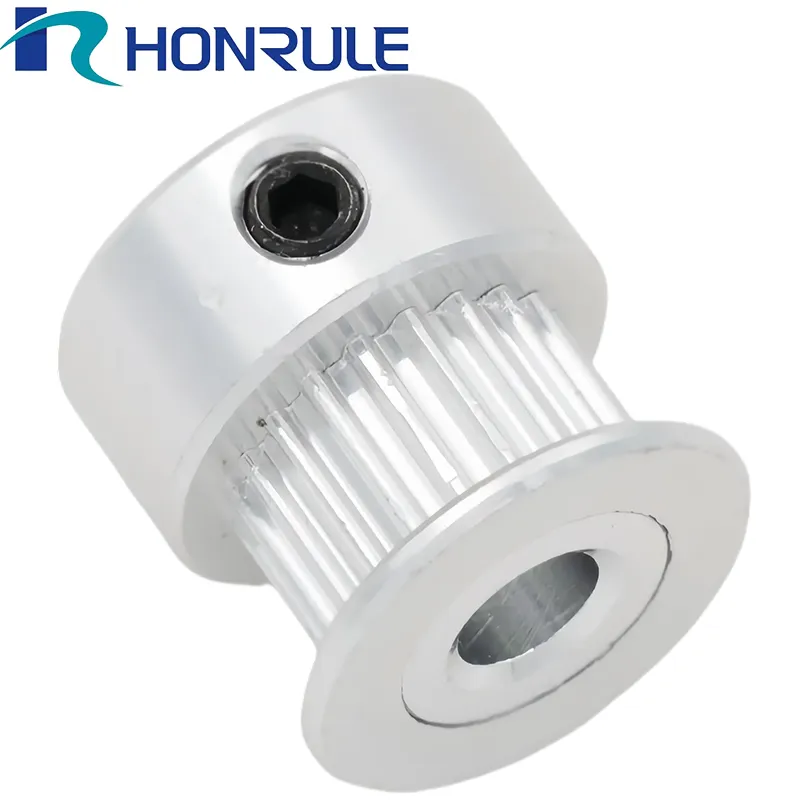

Detailed Photos

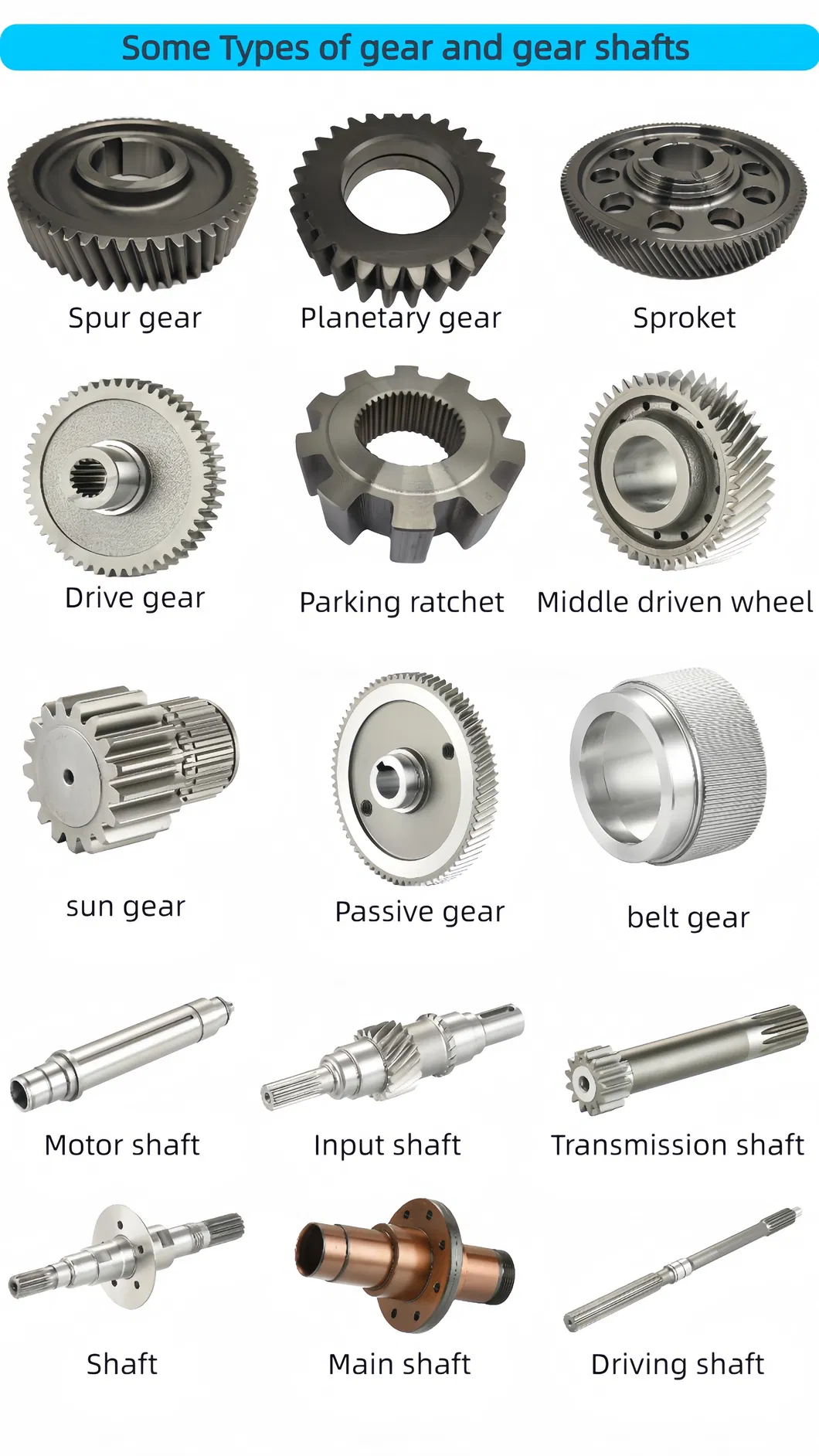

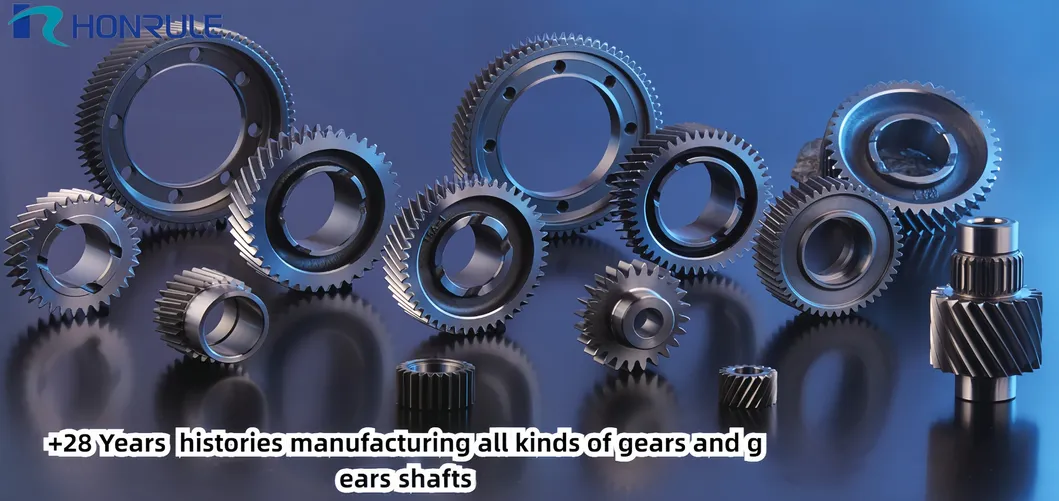

Available Gear Types

1. Spur Gear: Simplest type of gear with teeth projecting radially.

2. Helical Gear: Teeth cut at an angle to the axis for smoother operation.

3. Worm Gear: Transmits power between non-intersecting shafts at right angles.

4. Internal Gear: Teeth cut into the inside of a cylinder or cone.

5. Planetary Gear: Gear reduction assembly where one gear revolves around another.

Packaging & Delivery

Package Size

43.00cm * 40.00cm * 15.00cm

Gross Weight

20.000kg

Package Type

Plywood or Carton Box

Frequently Asked Questions

Q1: How can I get an accurate quote for my project? Please provide detailed drawings (PDF/STEP/IGS/DWG) including material specs, quantity, and surface treatment requirements.

Q2: Can I get a quotation if I don't have formal drawings? Yes, our engineering team can work with your samples, pictures, or detailed hand-sketched drafts to provide an accurate estimate.

Q3: Do you provide samples before moving to mass production? Absolutely. Sample production is a standard part of our process. Sample fees are typically refundable upon commencement of mass production.

Q4: What is the typical lead time for orders? Generally, samples take 1-2 weeks to complete, while batch production typically lasts between 3 to 4 weeks depending on complexity.

Q5: How do you ensure the quality of the gears? We perform material inspection, first-article inspection for mass production, random sampling, and a final 100% QC inspection before shipment.

Q6: What kind of after-sales support do you offer? If any issues arise within one month of receipt, our team will provide a solution within one week through video calls, email, or conferencing.
