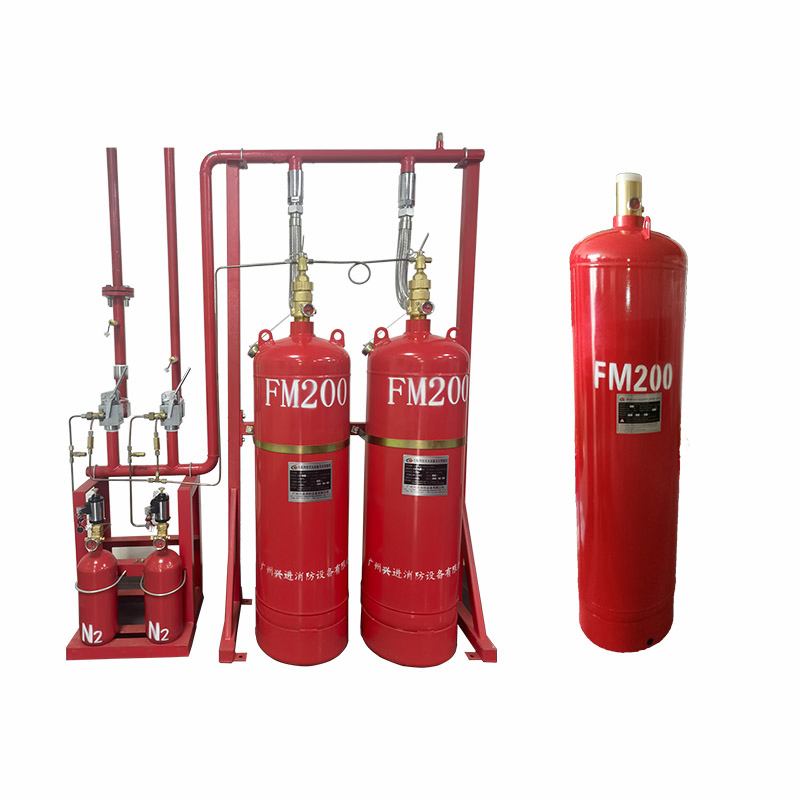

Advanced FM200 Fire Suppression System for Aircraft Hangars

1 / 5

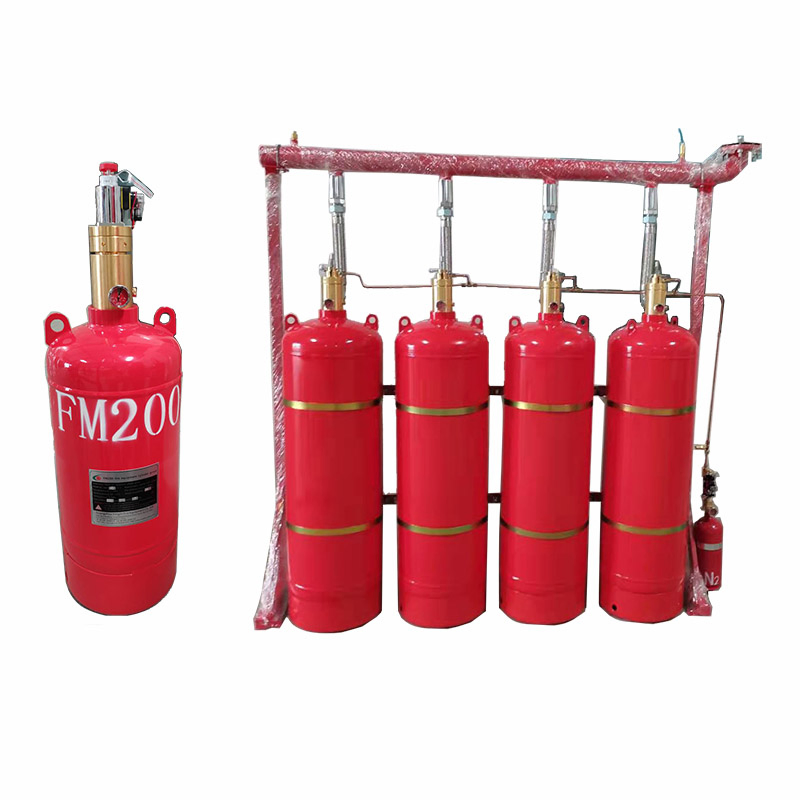

Advanced FM200 Fire Suppression System for Aircraft Hangars

Customization:	Available
Agent:	Gaseous Fire Extinguisher
Type:	Transportable Fire Extinguisher

Send Inquiry

Product Description

Basic Specifications

Model NO.:QMP40/4.2, QMP70/4.2, QMP100/4.2

Object:Class a, B, C Fires

Certification:CCCF, GB8013-2005, CCC, CE

Effective Range:9m

Discharge Time:≤10s

Retirement Life:12 Years

Filling Pressure:5.6MPa

Starting Mode:Automatic, Electrical Manual, Mechanical Emergency

Reliability:0.9999

Color:Red

Technical Parameters

Specification	Technical Parameter
Filling pressure	4.2MPa	5.6MPa
Scale of Protective region	Area: max single-zone 800m² \| Volume: max single-zone 3600m³
Spraying time	≤10s
Filling density	≤950kg/m3	≤1080kg/m3
Power	DC24V/1.6A
Max working pressure	5.3MPa	8.0MPa
Working Temperature	-10~50℃, relative humidity: ≤97%

Packaging & Logistics

📦

Polyfoam Encasement: Each component is wrapped with lightweight, durable polyfoam to act as a shock absorber during transit.

🪵

Wooden Case Insertion: Wrapped components are placed into robust wooden cases designed specifically for the FM200 system dimensions to minimize movement.

🏗️

Palletization & Reinforcement: For enhanced safety, cases are arranged on pallets and secured with robust strapping materials to prevent shifting.

📄

Documentation: Packages include detailed packing lists, installation manuals, and safety instructions for proper usage.

Frequently Asked Questions

Q1: Are you a manufacturer or a trading company?

A1: We are a professional manufacturer specializing in fire suppression systems.

Q2: Are OEM products available?

A2: Yes, we welcome custom designs and drawings to meet your specific requirements.

Q3: What is the typical spraying time for the system?

A3: The system is designed for rapid response with a spraying time of ≤10 seconds.

Q4: What is the warranty period for your products?

A4: We provide a two-year warranty period for our fire extinguishing systems.

Q5: What is the minimum order quantity (MOQ)?

A5: For fire extinguishing systems, the MOQ is 1 set. For smaller accessory products, the MOQ is 20 pieces.

Q6: What transportation methods are supported?

A6: We support sea freight, air freight, and self-pickup. Please contact us for any special transportation needs.
