Security Screening Handheld Body Scanner Airport Metal Detectors

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.
PD-140
Certification
CE, ISO
Application
Examination Room, Public Area, Factory
Alarm Form
Sound and Light Alarm
High Sensitivity
Support
Low Sensitivity
Support
Rechargeable
Support
Shaken Alarm
Yes
Packaging
Carton Box
Weight
0.4kg
HS Code
8543709100
Capacity
1000 sets/Month
Product Overview

Security screening is a critical aspect of maintaining safety in public spaces, particularly in airports where large volumes of people pass through. Handheld Body Scanner Airport Metal Detectors are essential tools for security personnel to quickly and effectively identify potential threats or prohibited items on individuals.

This state-of-the-art metal detecting tool is designed to enhance security measures in airport environments. Equipped with advanced features, it ensures the quick and accurate detection of metal objects on a person's body while remaining lightweight and easy to use.

Portability
Lightweight and easy to carry, allowing personnel to conduct screenings efficiently without discomfort.
Dual Alerts
Equipped with both audio and visual indicators (LED traffic lights) to notify personnel immediately.
Rechargeable
Built-in 1800mAh lithium battery with USB Type C interface for continuous operation.
Product Gallery

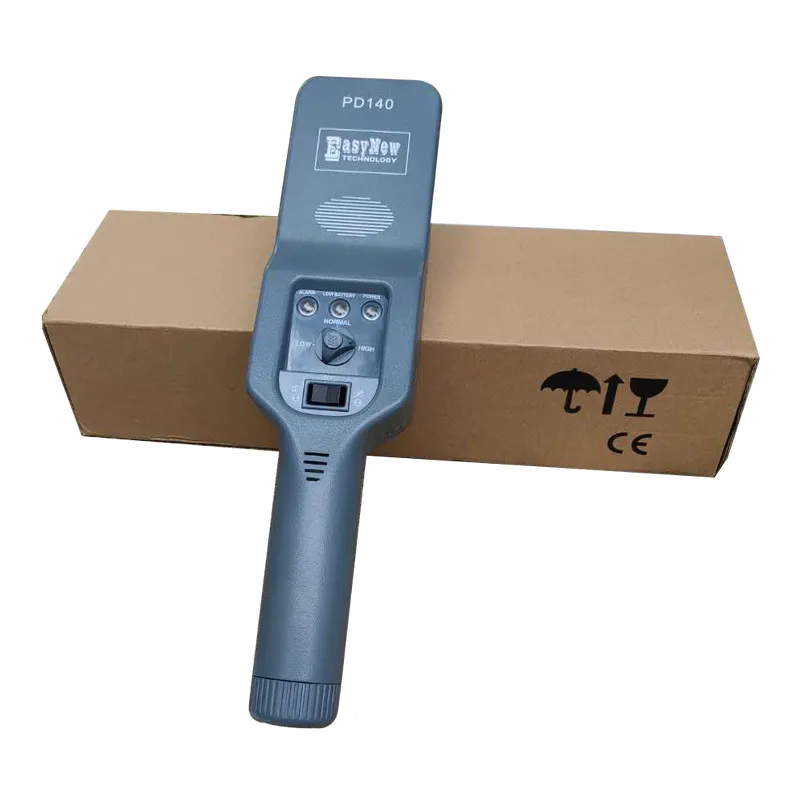

Handheld Metal Detector 1

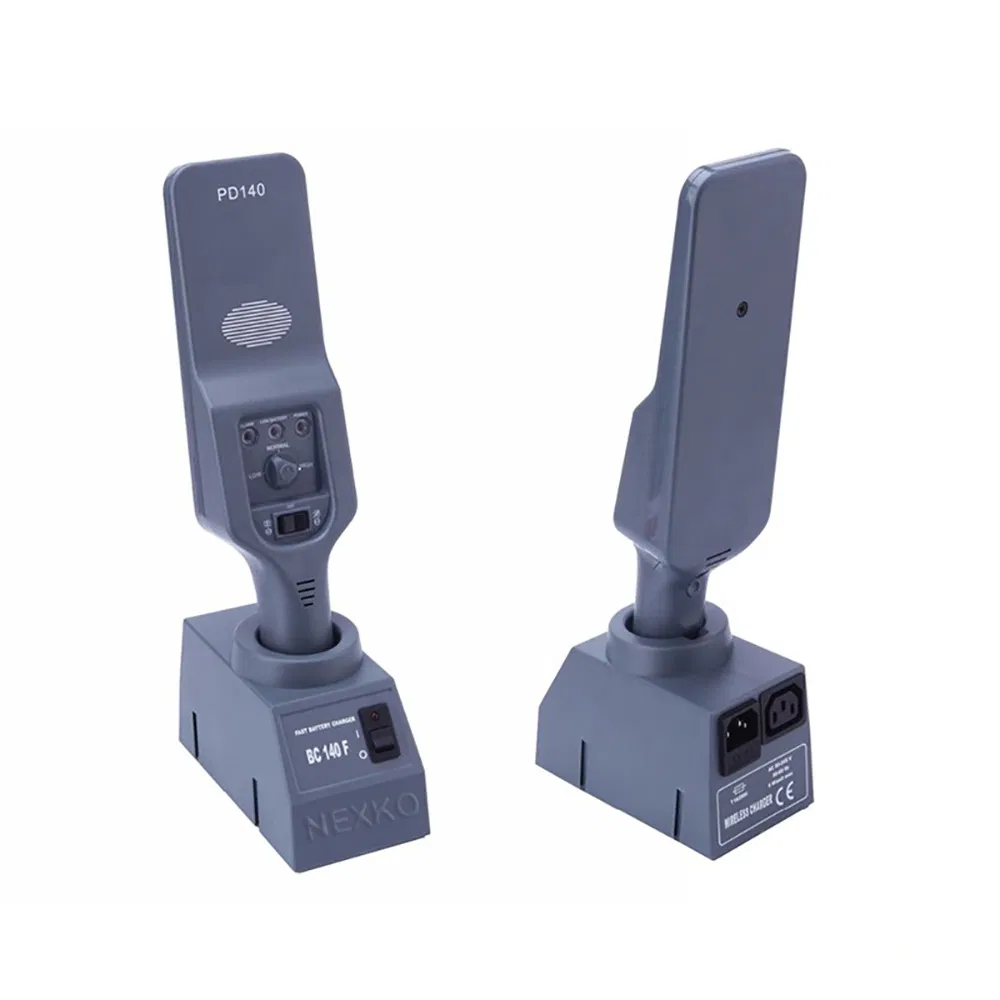

Handheld Metal Detector 2

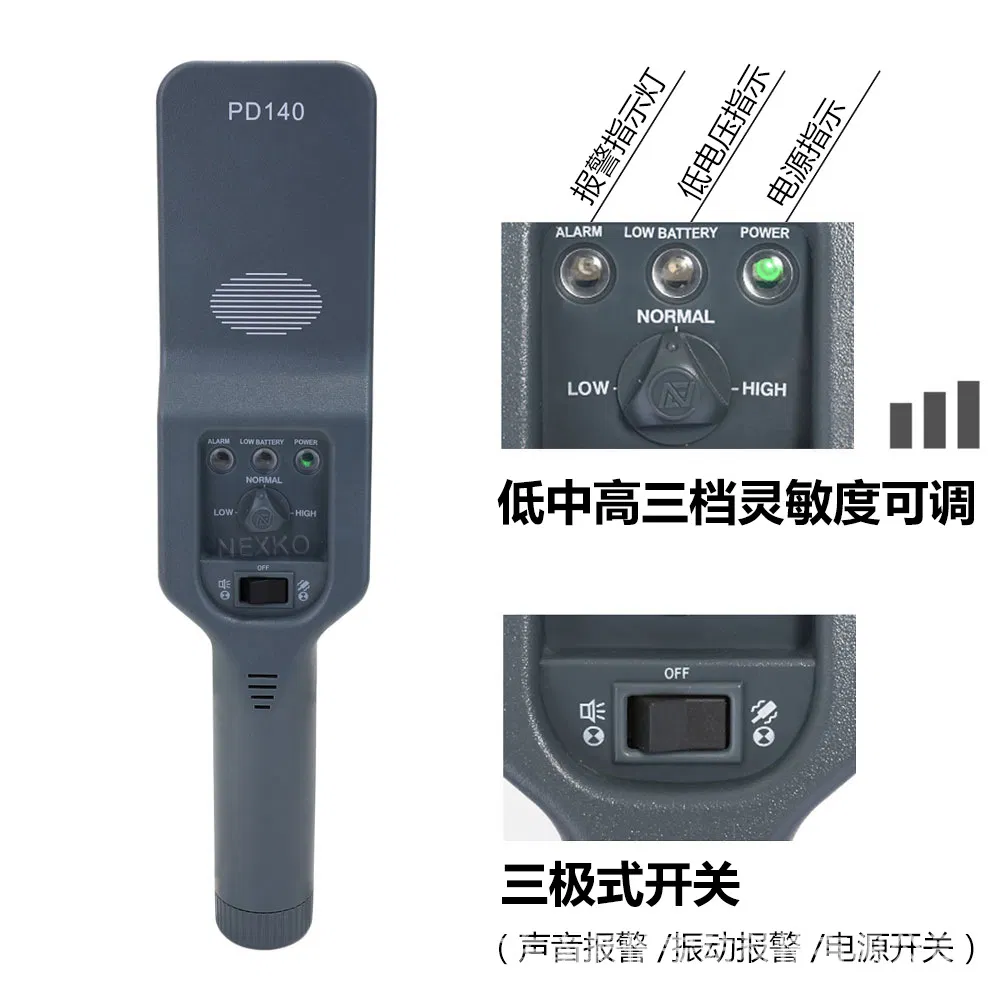

Handheld Metal Detector 3

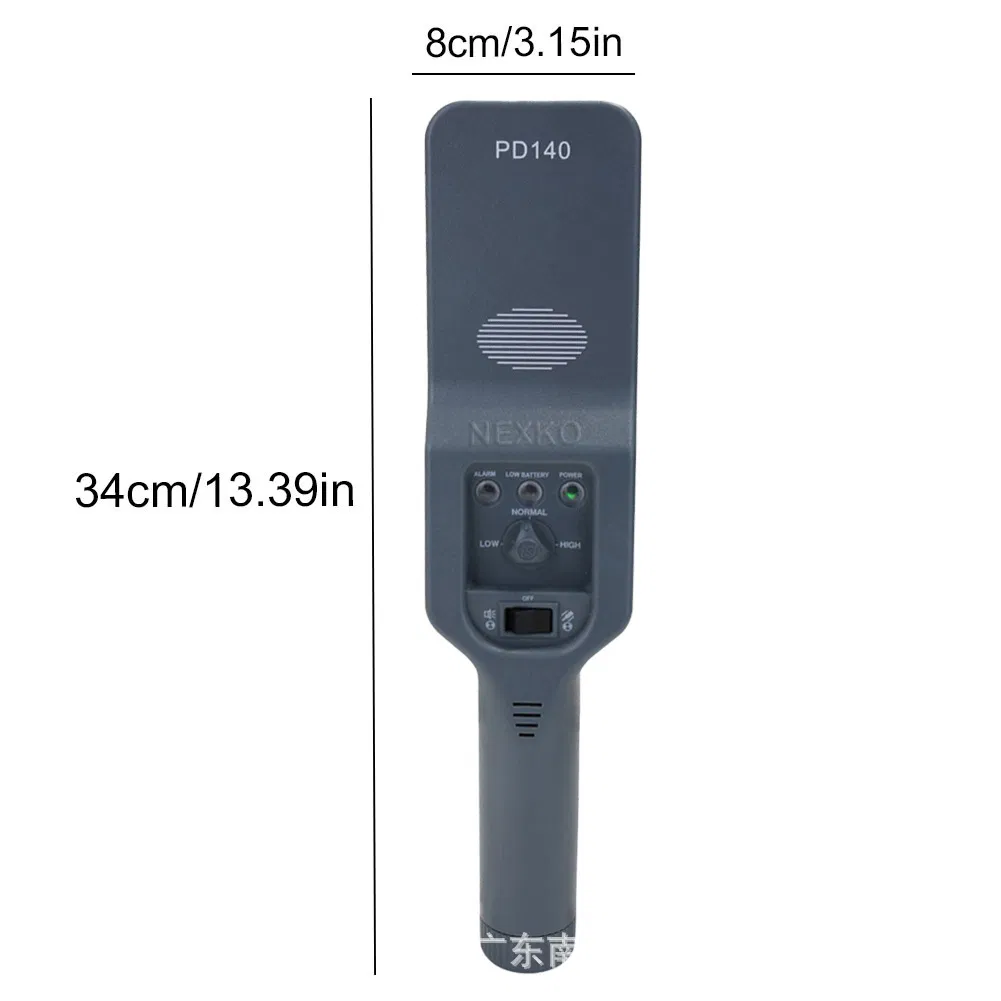

Handheld Metal Detector 4
Technical Parameters
Power control: Button switch (1s long press)
Alarm: 5-speed adjustment; vibration & buzzer
Tone identification: ATD feature for target size
Automatic frequency conversion: 25-95KHZ
Working temperature: -20ºC to 45ºC
Battery: Built-in 1800mah lithium
Charging: USB Type C 5V1A
Energy-saving: 15-min auto shutdown
Dimensions: 41cm * 8.2cm * 4.1cm
Net weight: 360 grams
Detection Performance

Standard Detection Distances:

  • Pin: 30-60mm
  • Six-inch dagger: 160-180mm
  • 20mm diameter steel ball: 120mm
  • One dollar coin: 75-100 mm

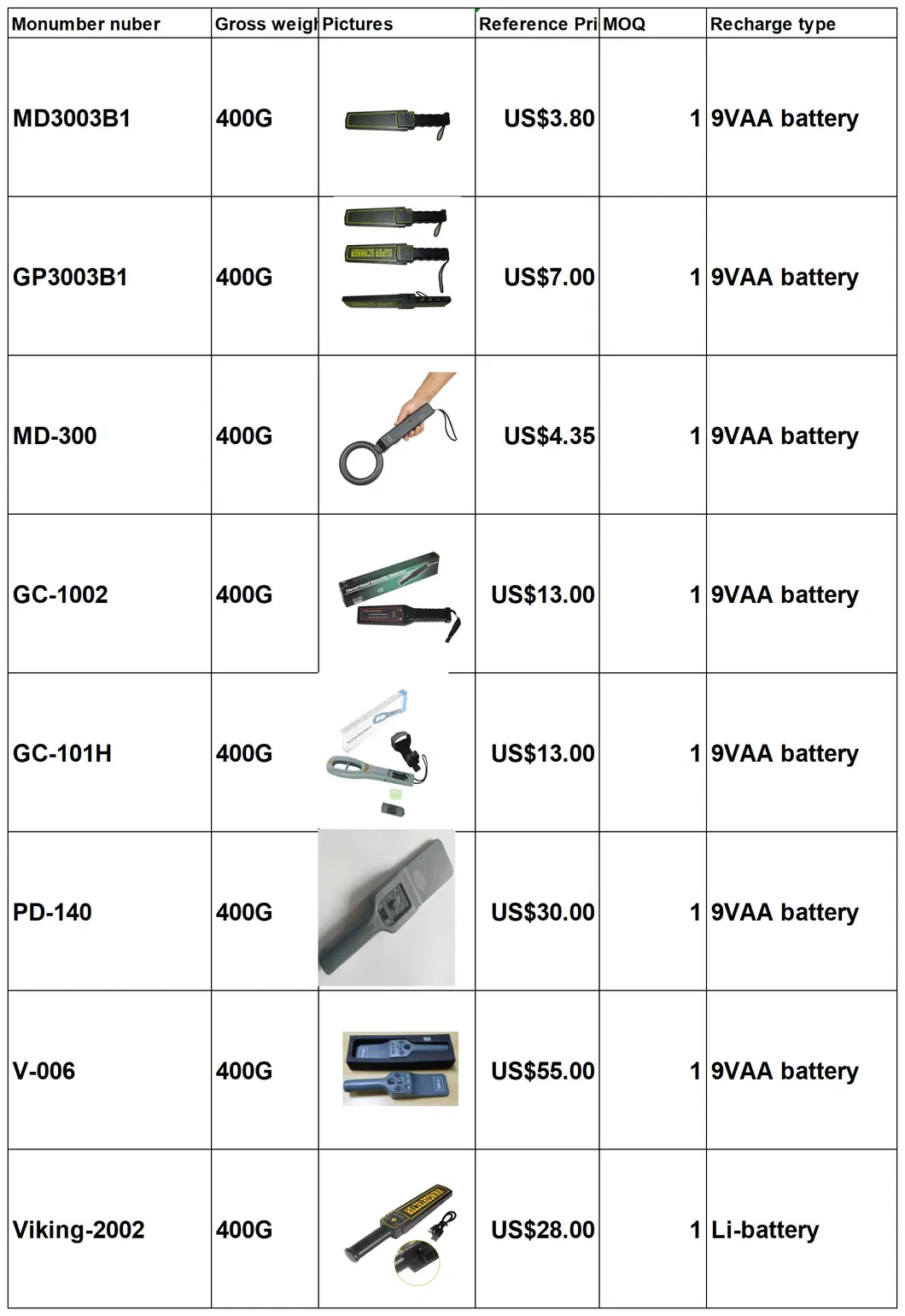

Detection Distance Chart
Frequently Asked Questions
How does the PD-140 alert the user to detected metal?
The device features a dual alarm system with sound and light indicators. It also includes a vibration mode and a 5-speed adjustment to suit noisy environments.
Is the sensitivity of the scanner adjustable?
Yes, it supports both high and low sensitivity settings to minimize false alarms and cater to different security requirements.
What type of battery does it use and how is it charged?
The scanner has a built-in 1800mAh lithium battery. It is charged via a standard USB Type C interface (5V1A).
Does the device have an automatic power-off feature?
Yes, it includes a built-in energy-saving module that automatically shuts down the device if it is not used for 15 minutes.
Can it distinguish between different sizes of metal objects?
Using the ATD (Automatic Tone Differentiation) feature, the audio volume and tone change based on whether a small or large metal target is detected.
What are the typical detection ranges for common items?
The scanner can detect a pin at 30-60mm, a dagger at up to 180mm, and a standard coin at 75-100mm.
