XCE22 Series High-Density Mating Pair:
The XCE Series is a specialized line of miniature circular connectors developed for aerospace, defense, and high-end industrial sectors. Designed as an upgraded version of the standard XC series, it offers higher contact density and significant weight savings while maintaining compliance with GJB2889 standards.

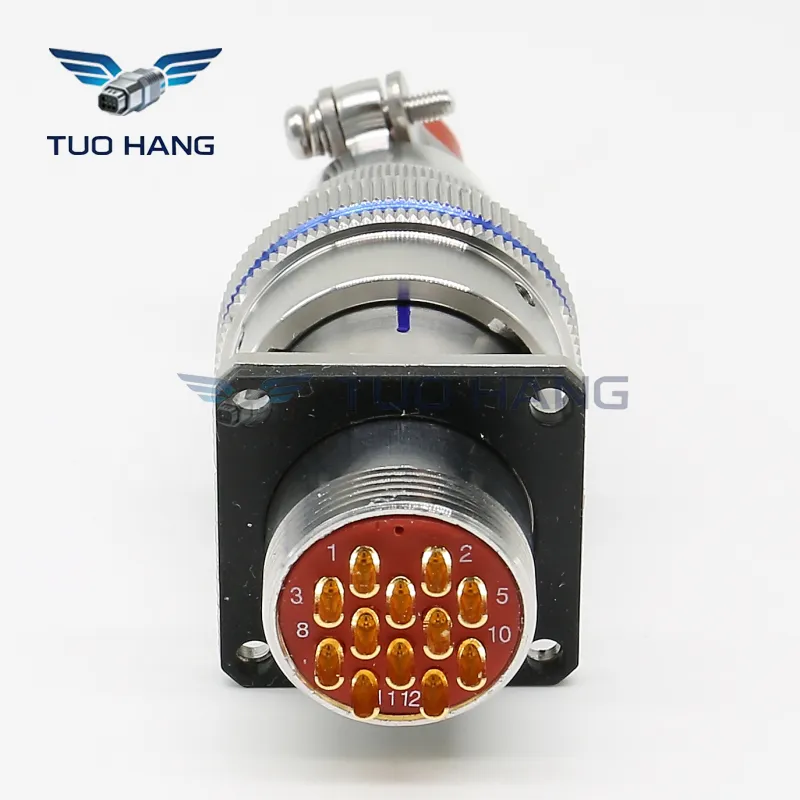

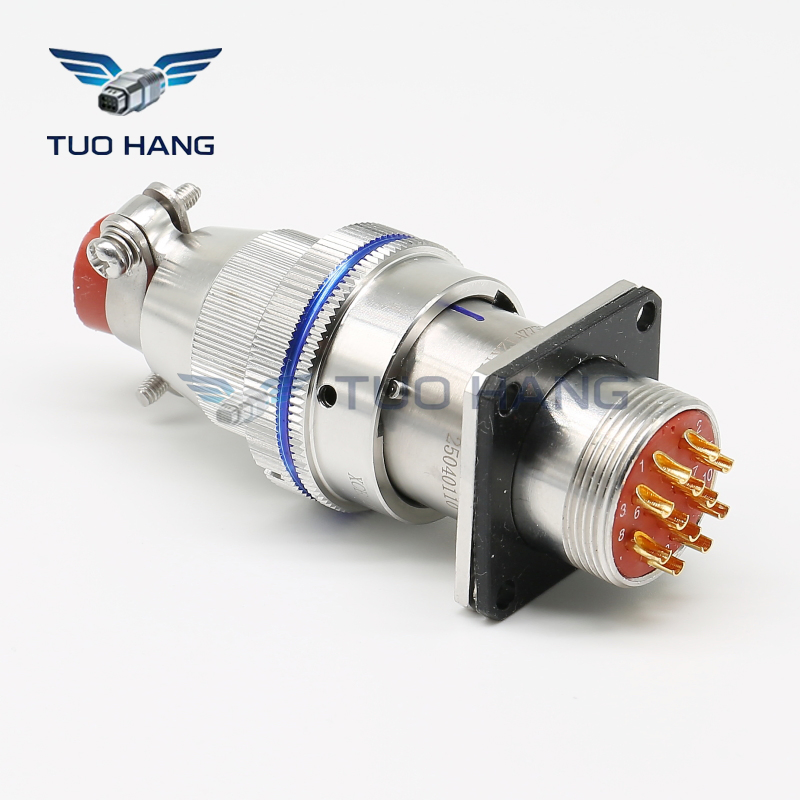

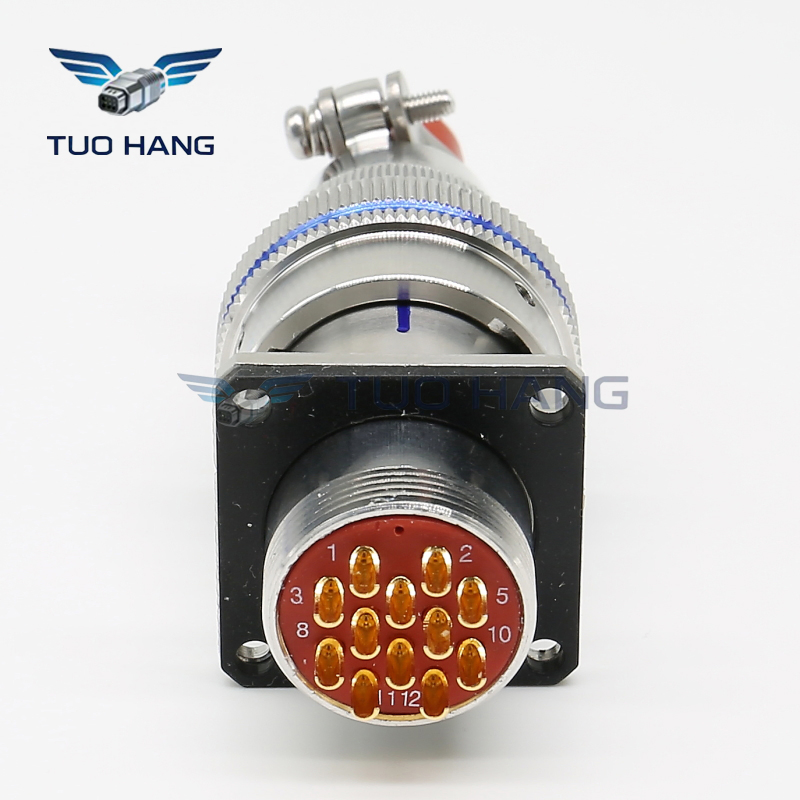

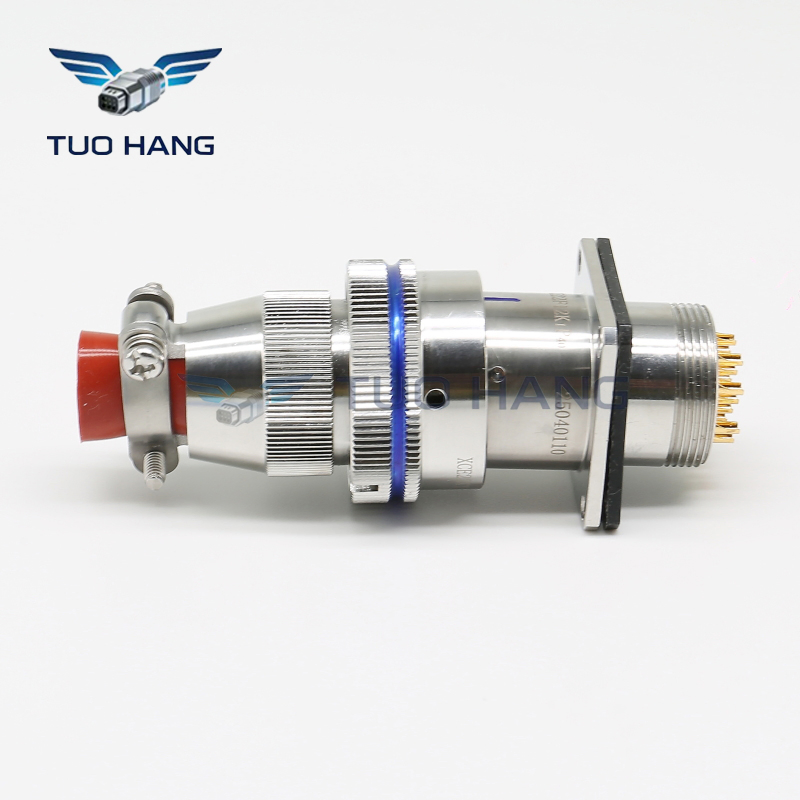

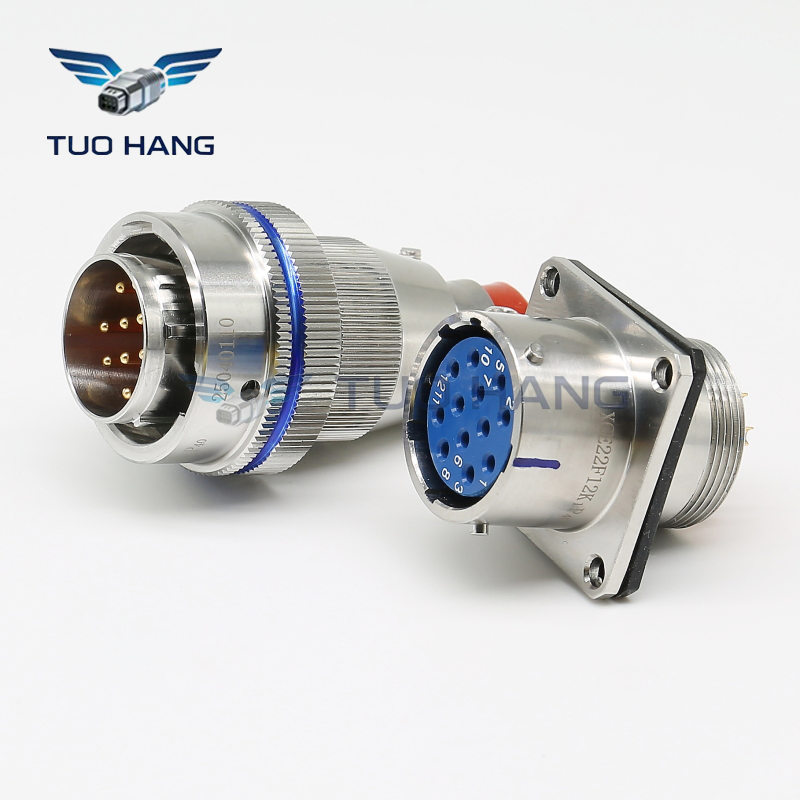

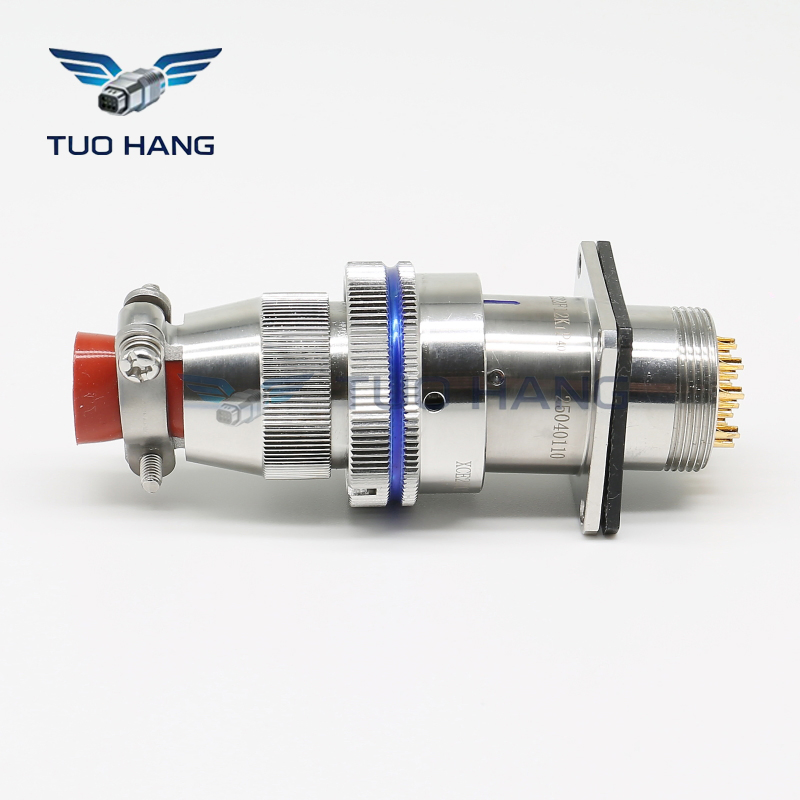

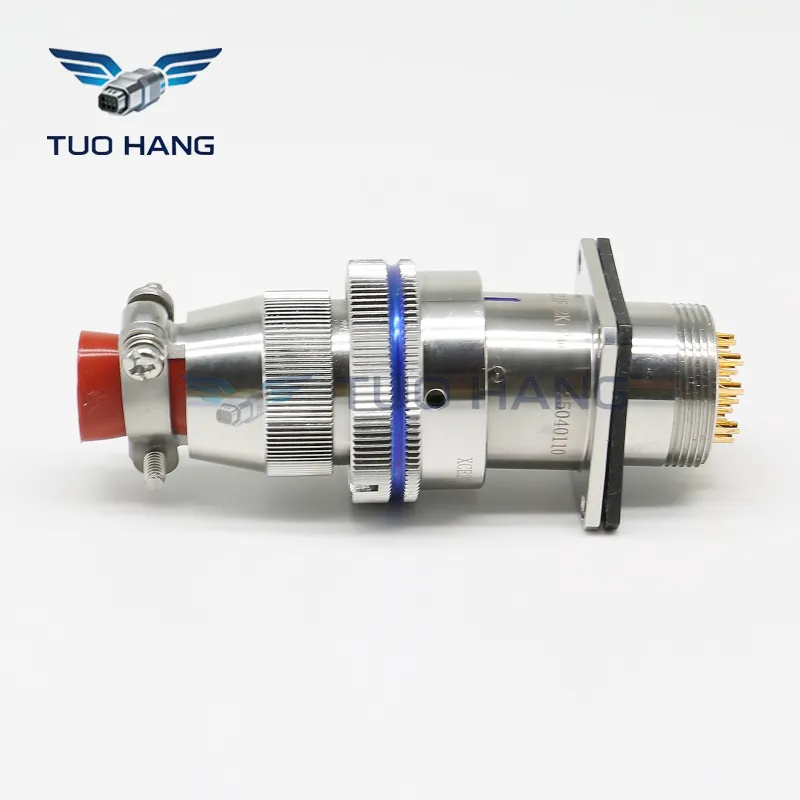

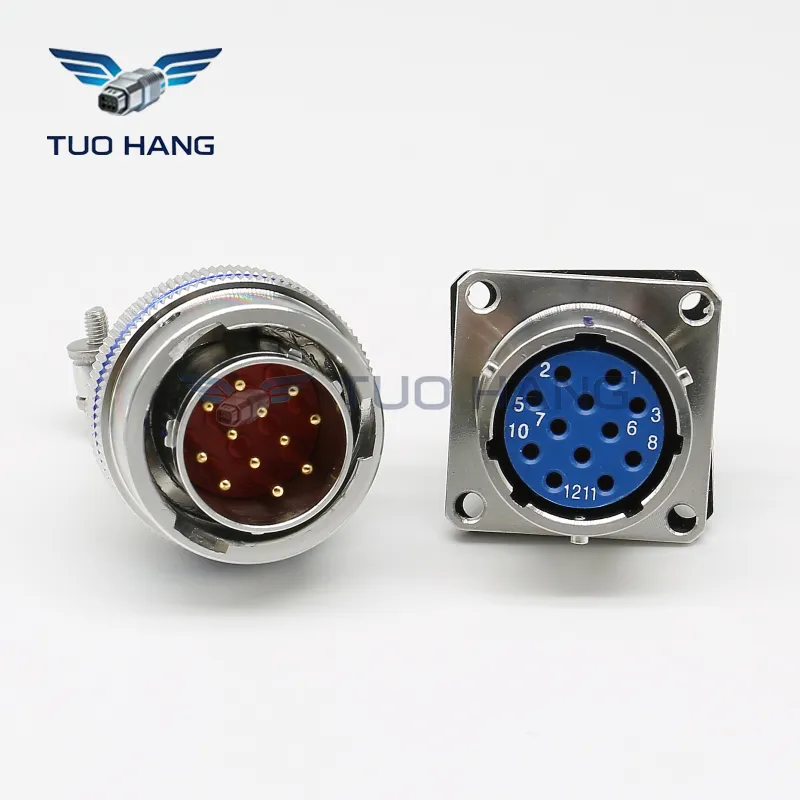

This set is a complete interconnect solution consisting of a panel-mounted receptacle and a cable-side plug:
| Code | Component | Description |
|---|---|---|
| XCE | Series | Miniature high-density circular connector |
| 22 | Shell Size | Size 22 housing (mating interface diameter) |
| F / T | Type | F: Square Flange Receptacle / T: Straight Plug |
| 12 | Contacts | 12-pin configuration |
| K / Z | Gender | K: Socket (Female) / Z: Pin (Male) |
| 1 | Backshell | Type 1 (Standard straight shielding/clamping nut) |
| P40 | Finish | High-performance plating |
Material Construction:
Shell Body: High-strength Aluminum Alloy (P40 finish).
Insulator: High-grade Thermosetting Plastic or PPS.
Contacts: Gold-plated Copper Alloy for stable conductivity.
Typical Applications:
Aerospace Avionics, Military Vehicles, Robotics & CNC, Testing Equipment.
