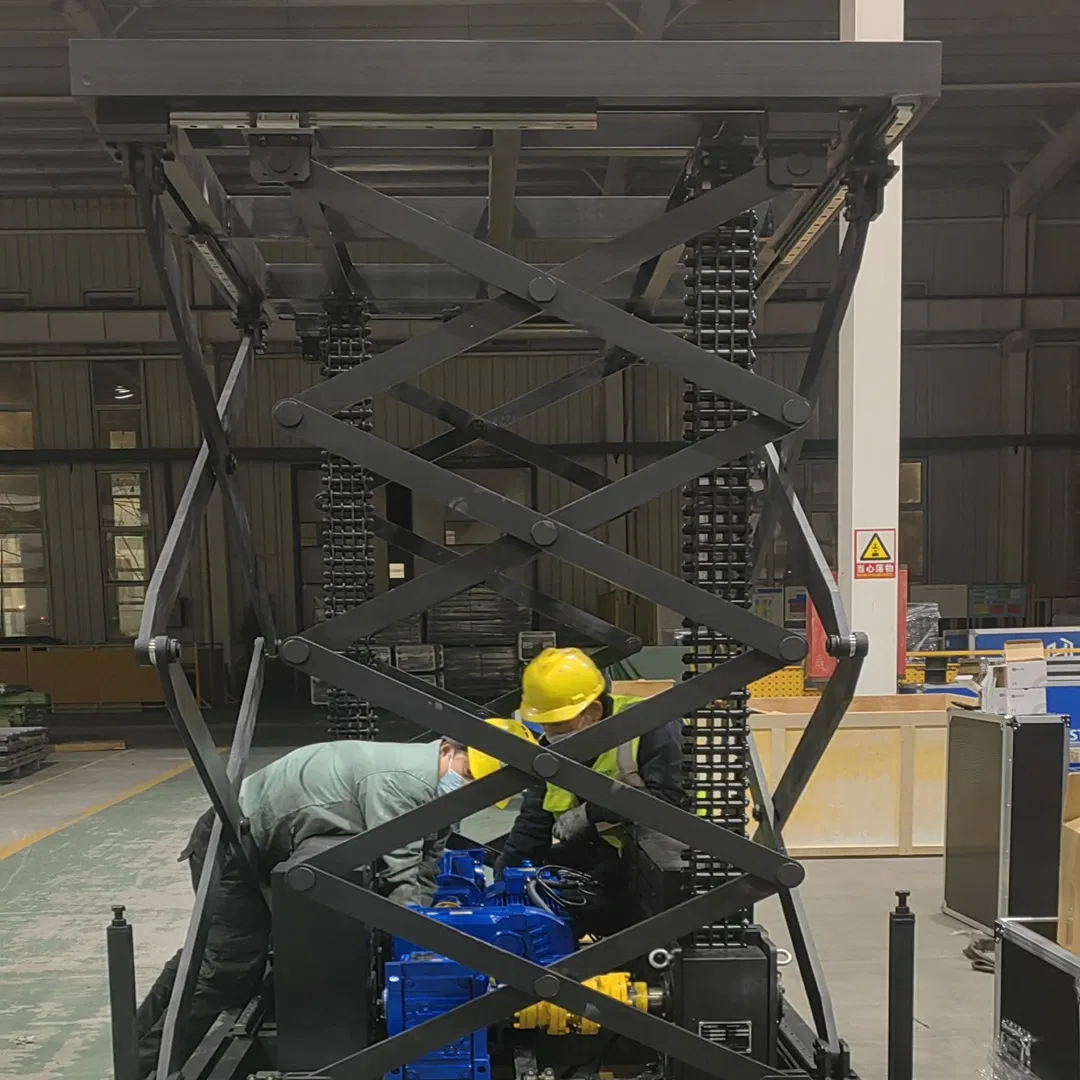

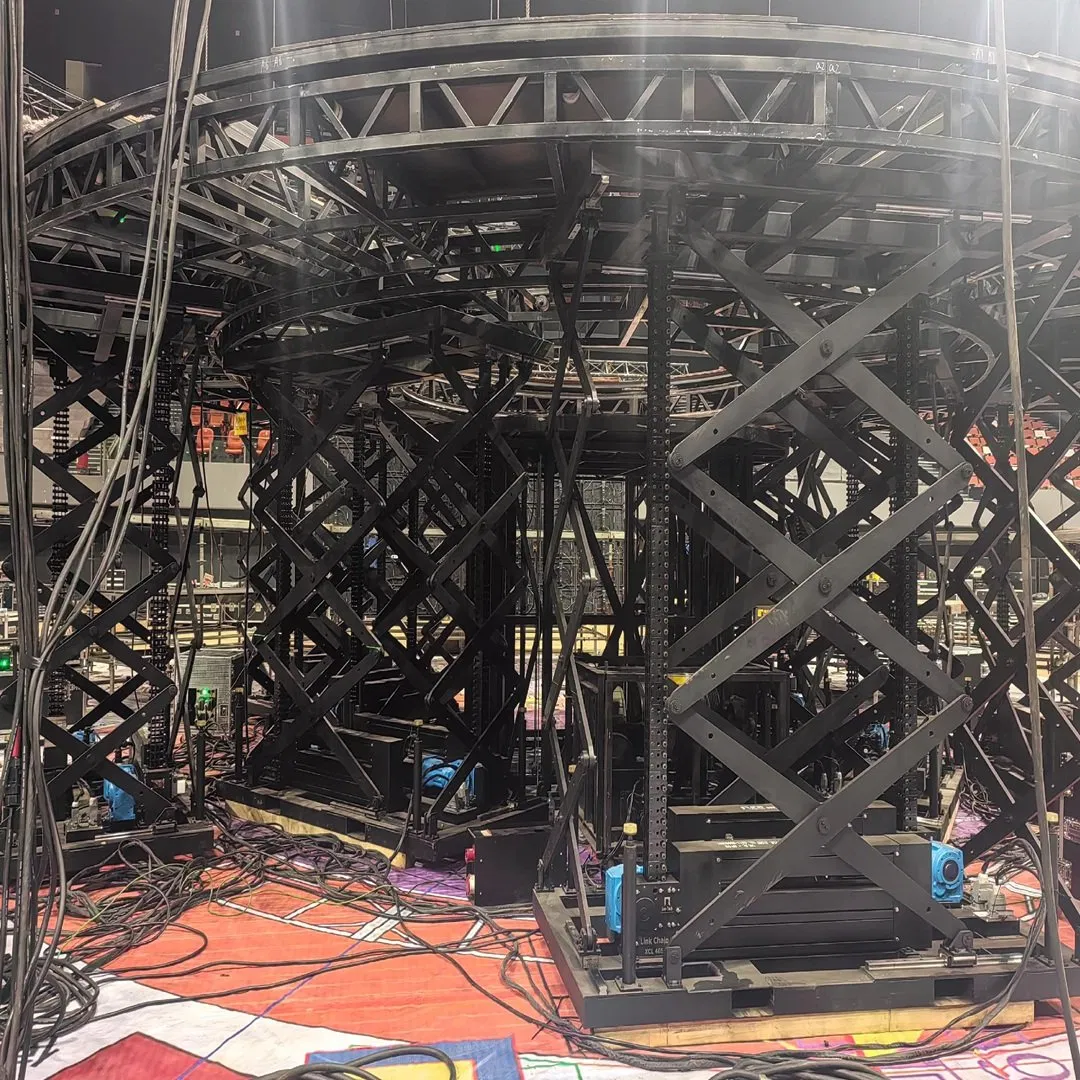

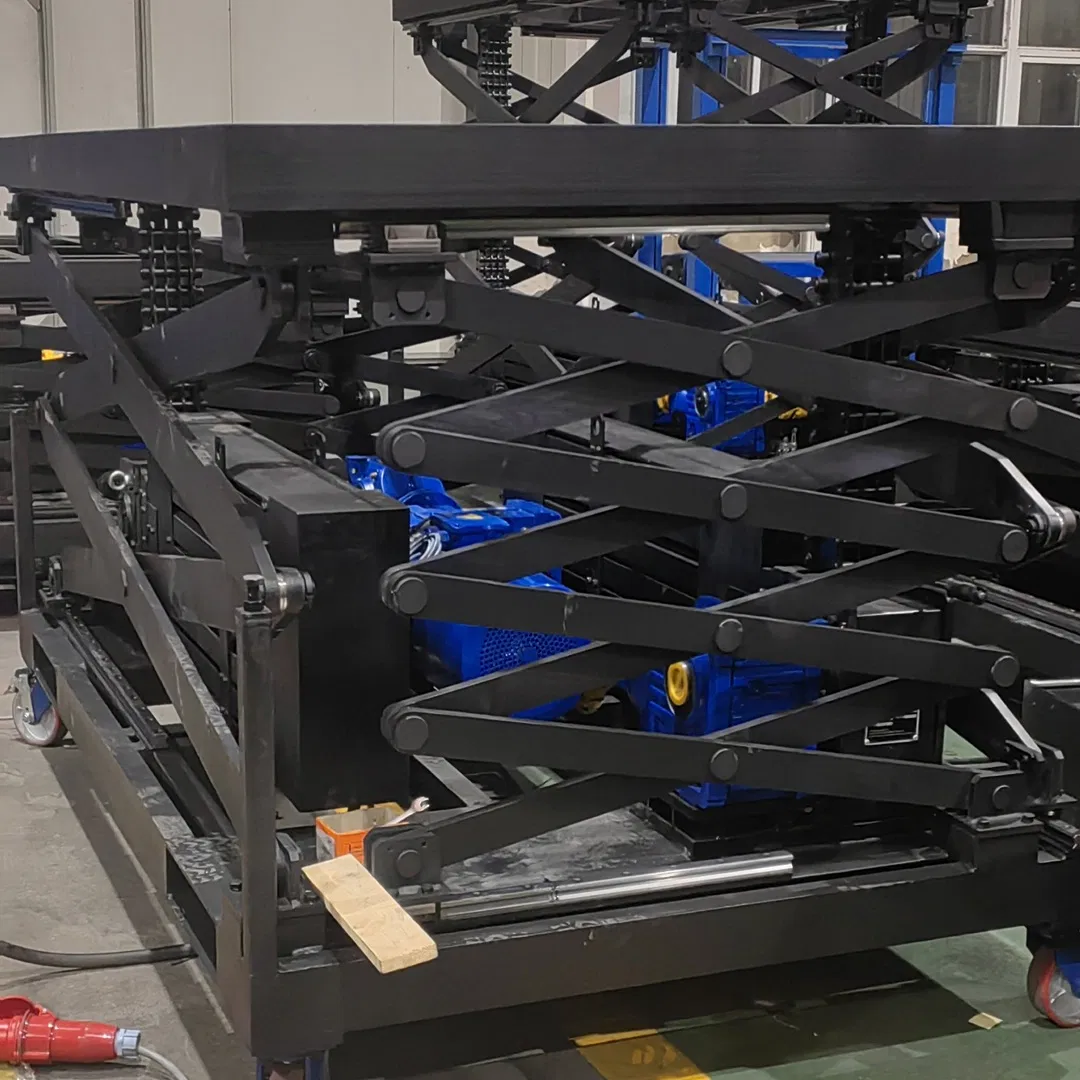

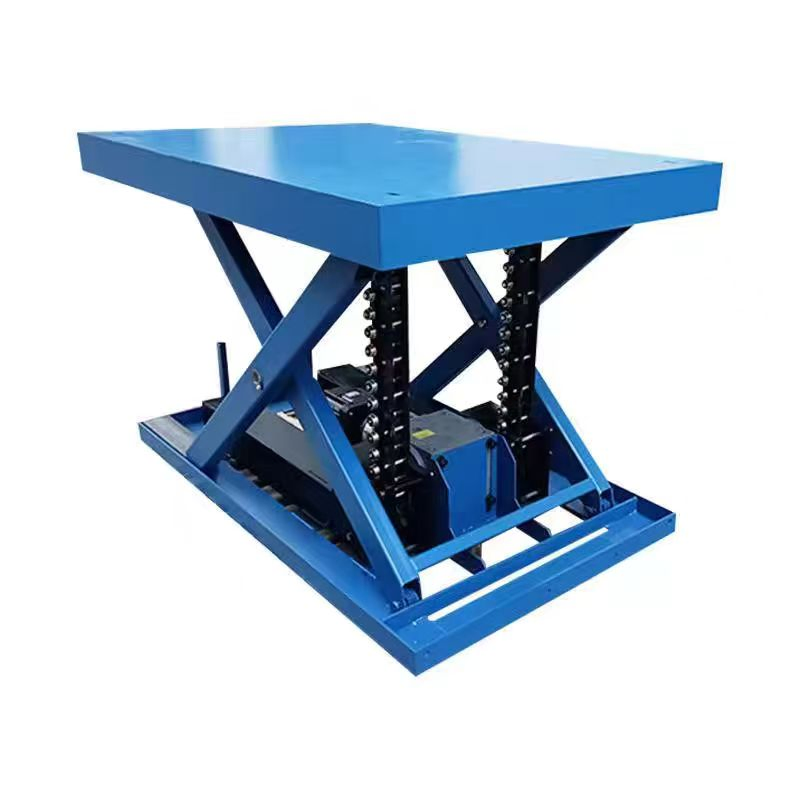

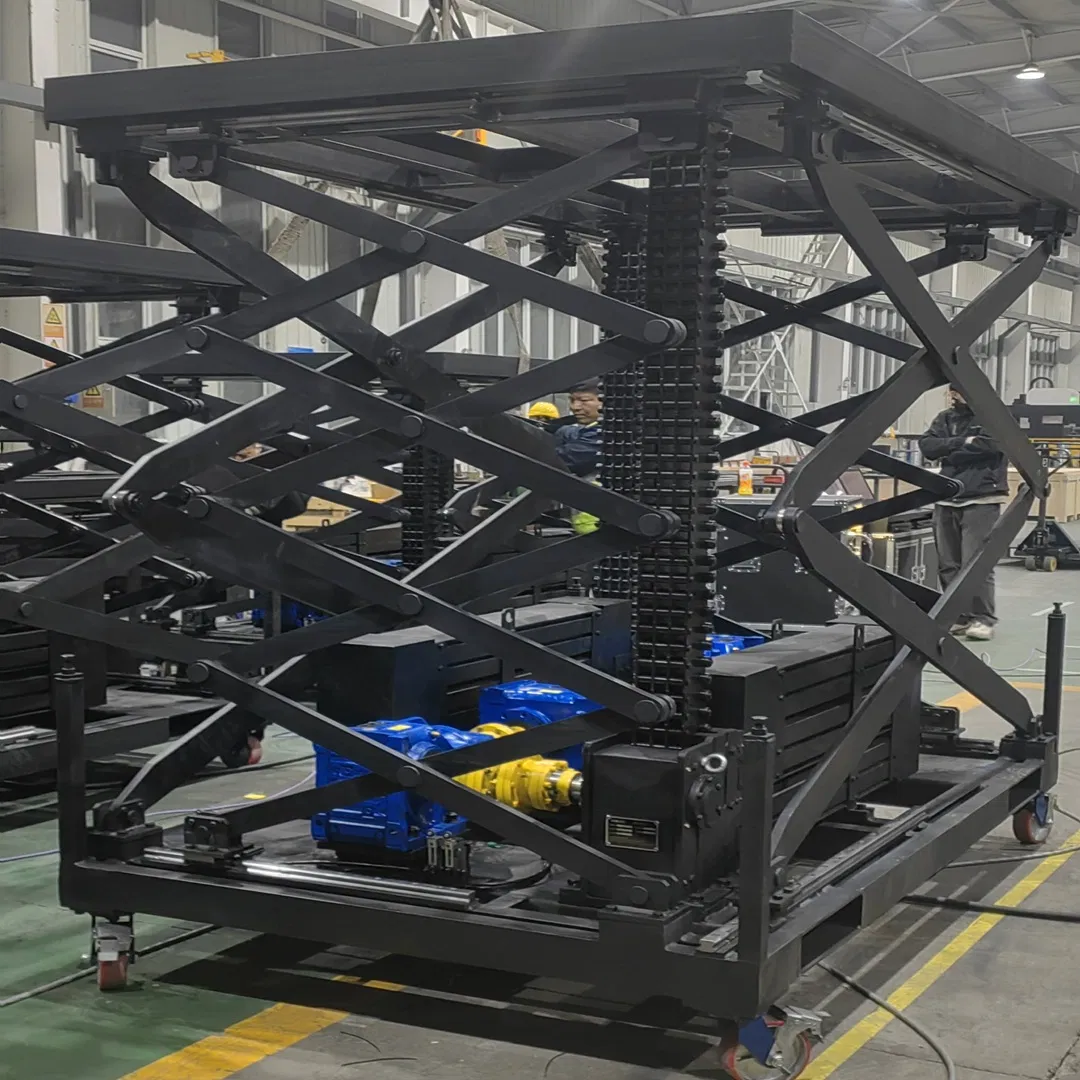

Heavy-Duty Chain-Driven Stage Machinery Elevating System for Events
Heavy-Duty Chain-Driven Stage Machinery Elevating System for Events
Heavy-Duty Chain-Driven Stage Machinery Elevating System for Events
Heavy-Duty Chain-Driven Stage Machinery Elevating System for Events
Heavy-Duty Chain-Driven Stage Machinery Elevating System for Events
1 / 5
Heavy-Duty Chain-Driven Stage Machinery Elevating System for Events
Heavy-Duty Chain-Driven Stage Machinery Elevating System for Events
Heavy-Duty Chain-Driven Stage Machinery Elevating System for Events
Heavy-Duty Chain-Driven Stage Machinery Elevating System for Events
Heavy-Duty Chain-Driven Stage Machinery Elevating System for Events

Heavy-Duty Chain-Driven Stage Machinery Elevating System for Events

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
GXL
Lift Mechanism
Lift Chain
Driven Type
Rack & Pinion
Accuracy
±0.1mm
Certification
CE, ISO 9001
Decibel
<60 dB
📦 Packaging & Delivery
Package Size
200.00cm * 200.00cm * 60.00cm
Gross Weight
1000.000kg
⚙️ Product Description Comparison
Type Rigid chain lifting platform Hydraulic lifting platform Scissor lift platform
Carrying capacity High (up to 50 tons) Medium to high (<20 tons) Medium (<5 tons)
Accuracy Very high (±0.1mm) Medium (±1-2mm) Low
Maintenance Low (No hydraulic system) High (Regular oil changes) Medium
Environmental Excellent (No oil stain) Poor (Oil Leakage Risk) Good
💡 Working Principle

The rigid chain lifting platform is a mechanical device that achieves vertical lifting through rigid chain transmission. The motor drives the chain to rotate and mesh to form a rigid support column, driving the platform to rise and fall smoothly. Similar to "screw transmission", its rigid characteristics make it stable and less likely to bend under high loads.

🛠️ Core Components & Features
  • Drive Unit: Servo/stepper motor with high-precision reducer.
  • Rigid Chain: High-strength alloy links with self-locking safety functions.
  • Control Module: PLC-based precise positioning for automated operations.
  • Performance: Low noise (<60 dB) and high repeated positioning accuracy (±0.1mm).
🖼️ Product Gallery

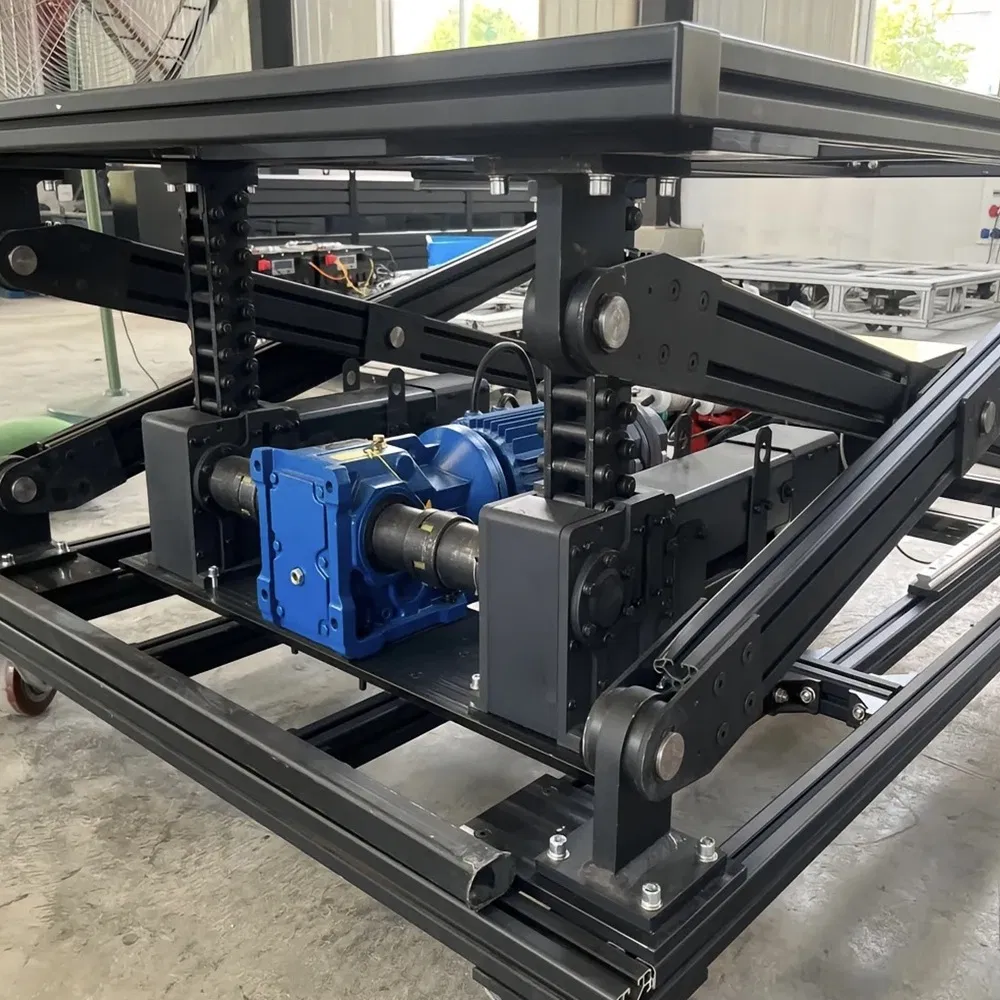

Rigid Chain System 1

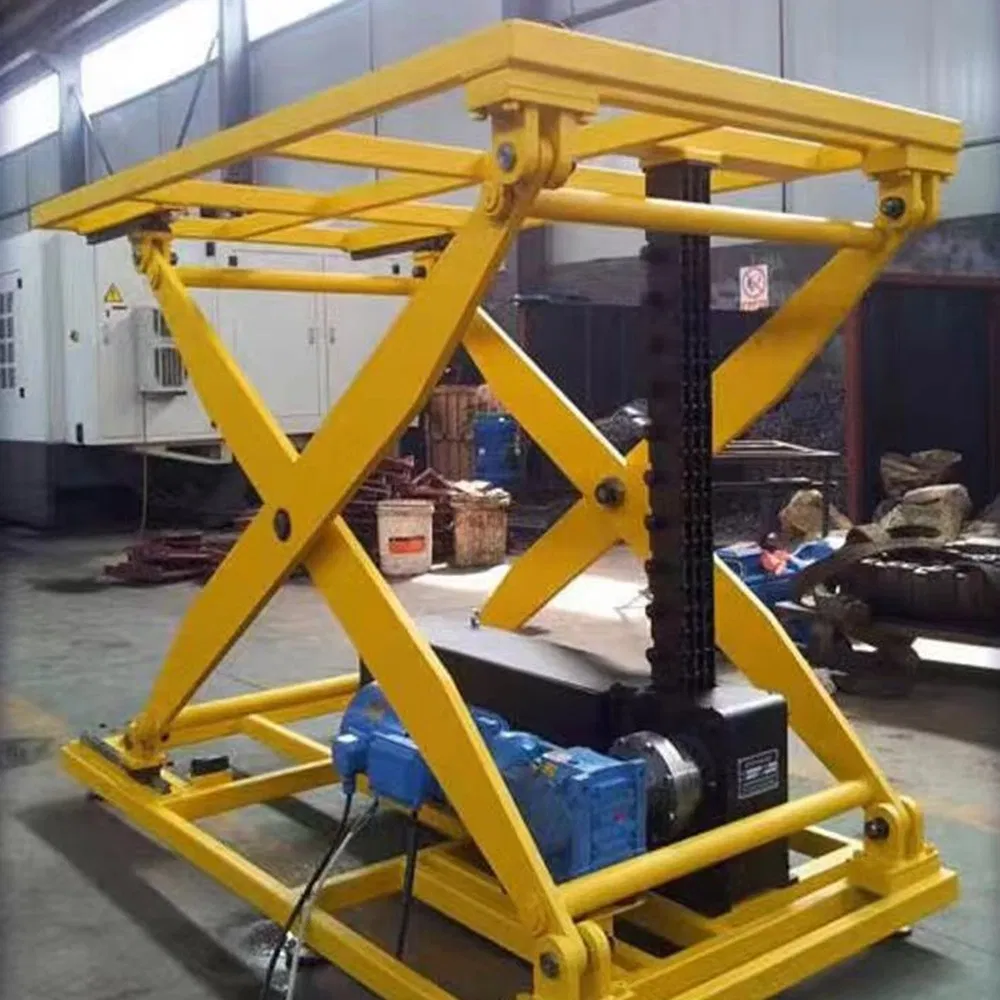

Rigid Chain System 2

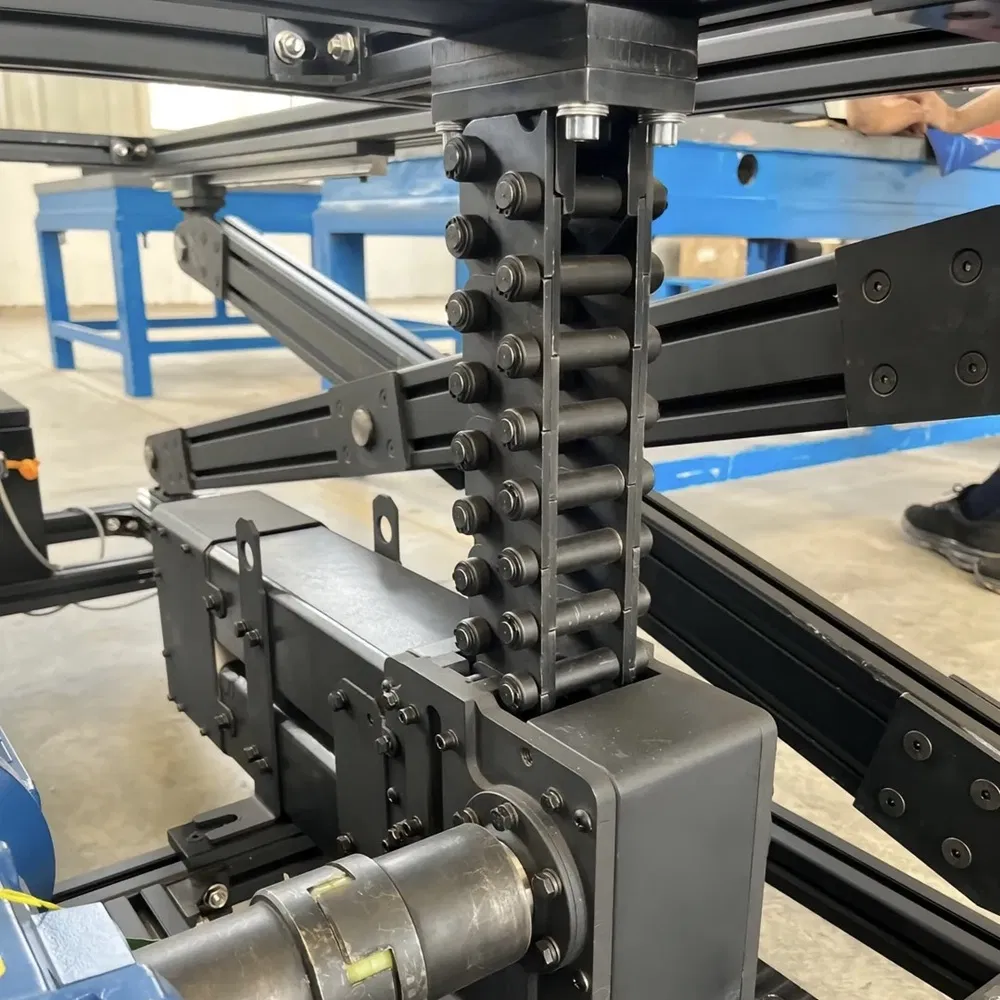

Detailed Component 1

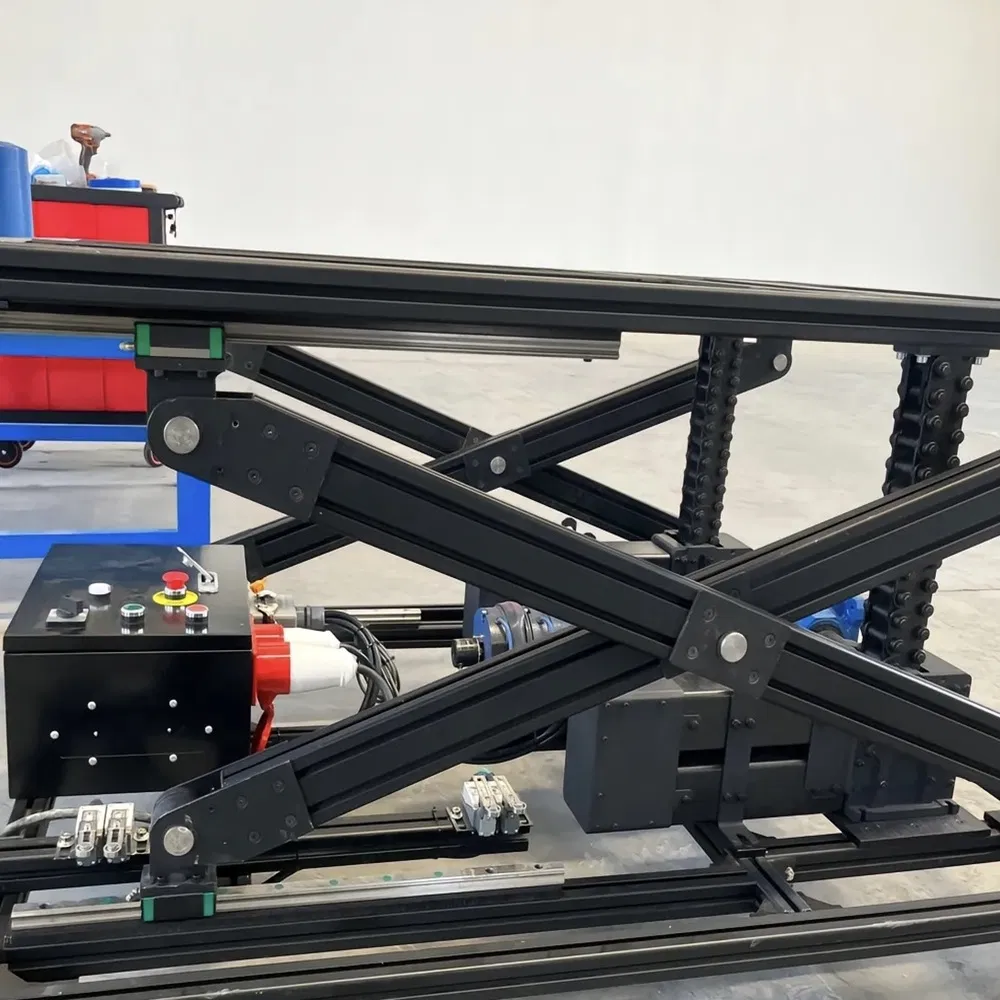

Detailed Component 2

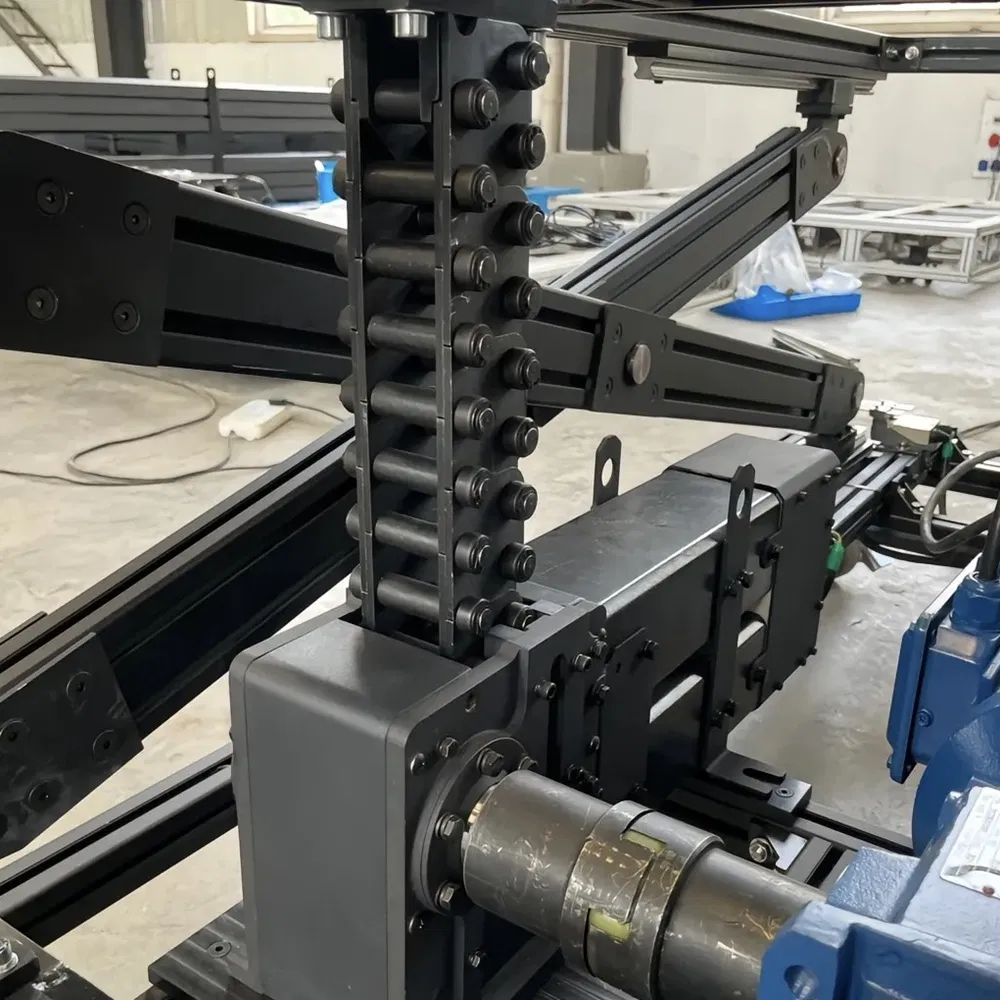

Detailed Component 3

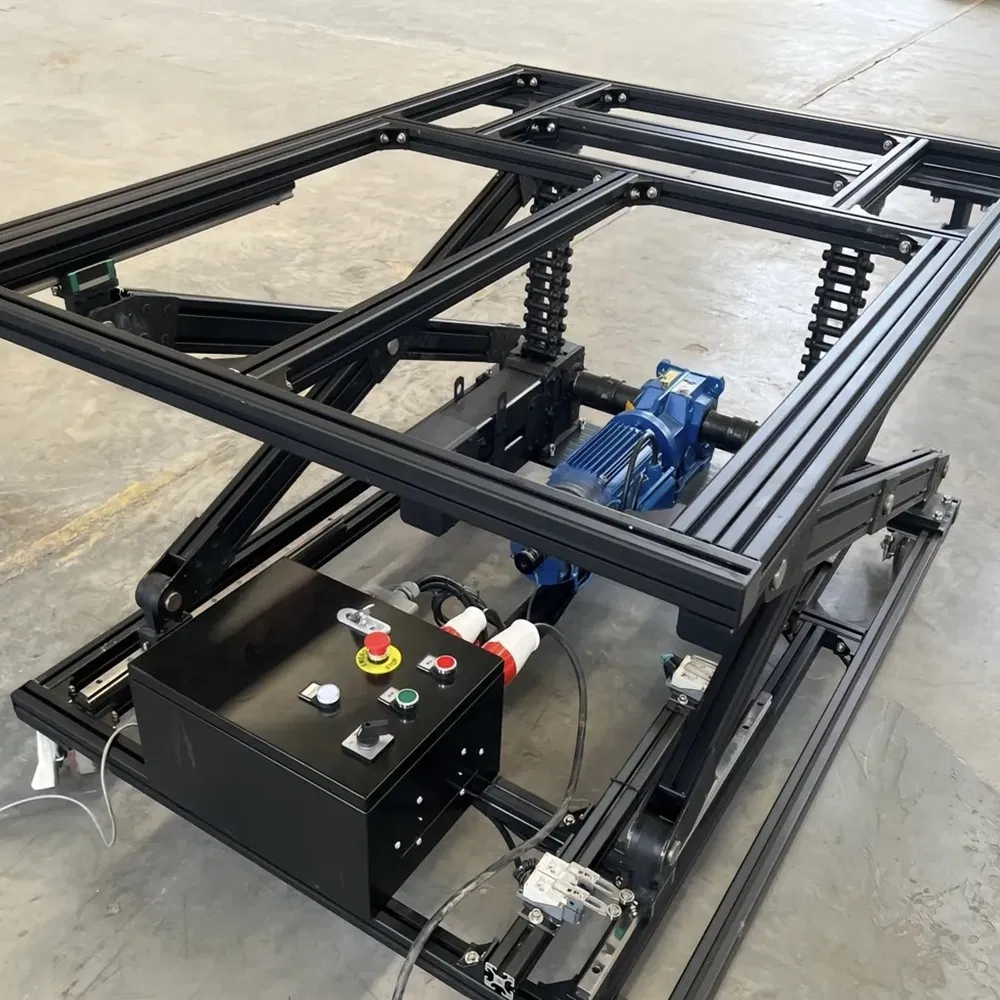

Detailed Component 4

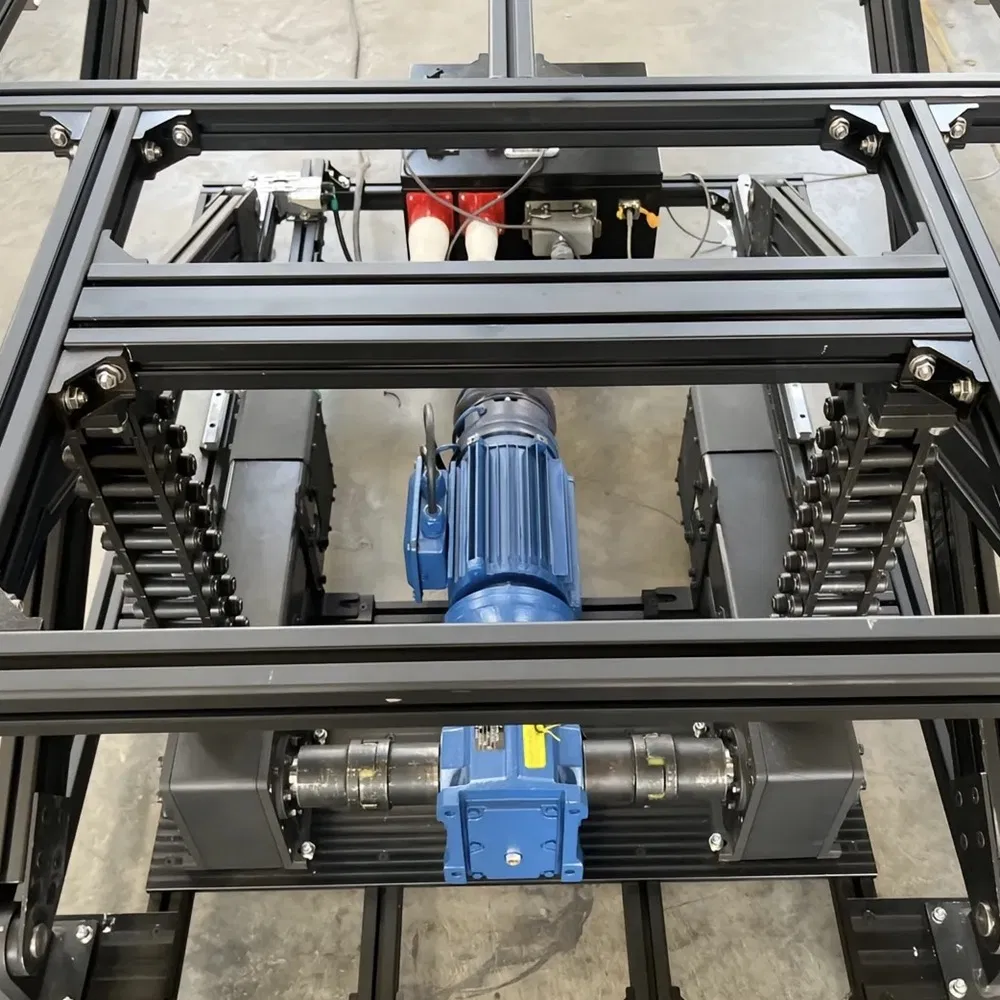

Detailed Component 5

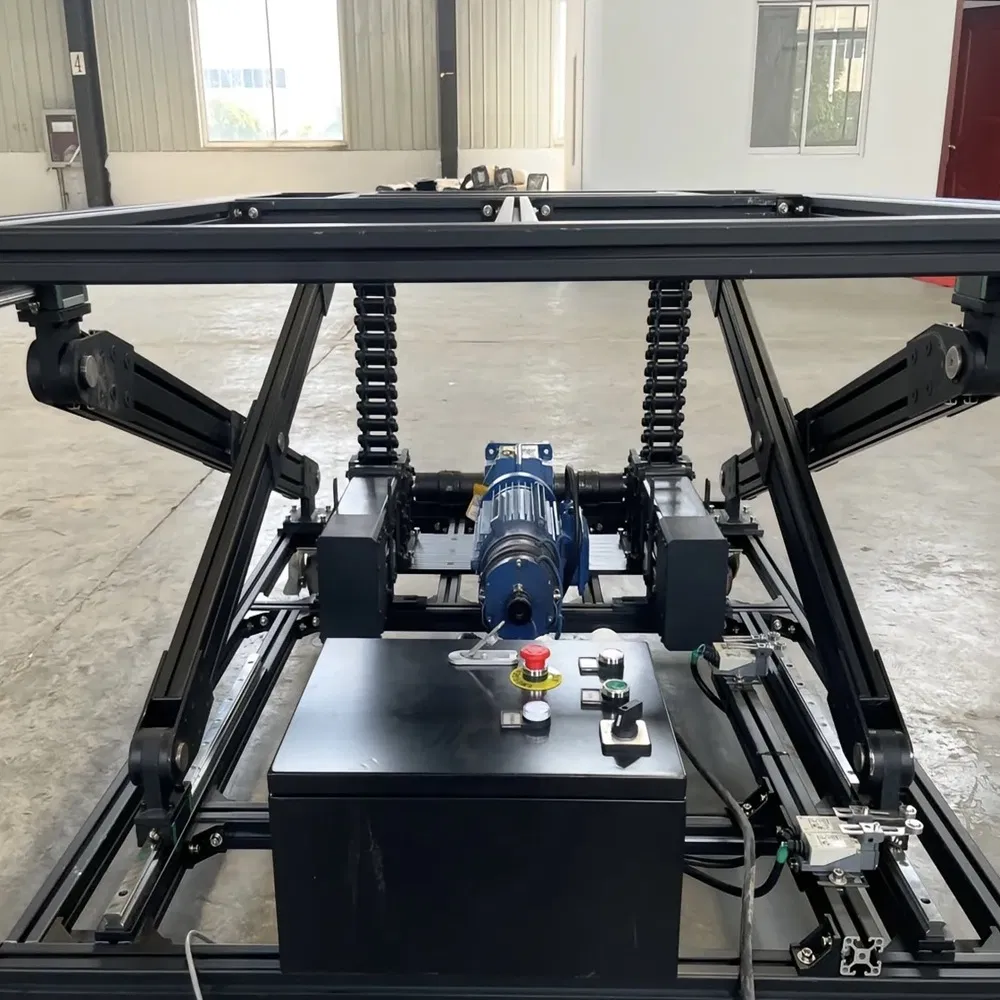

Detailed Component 6

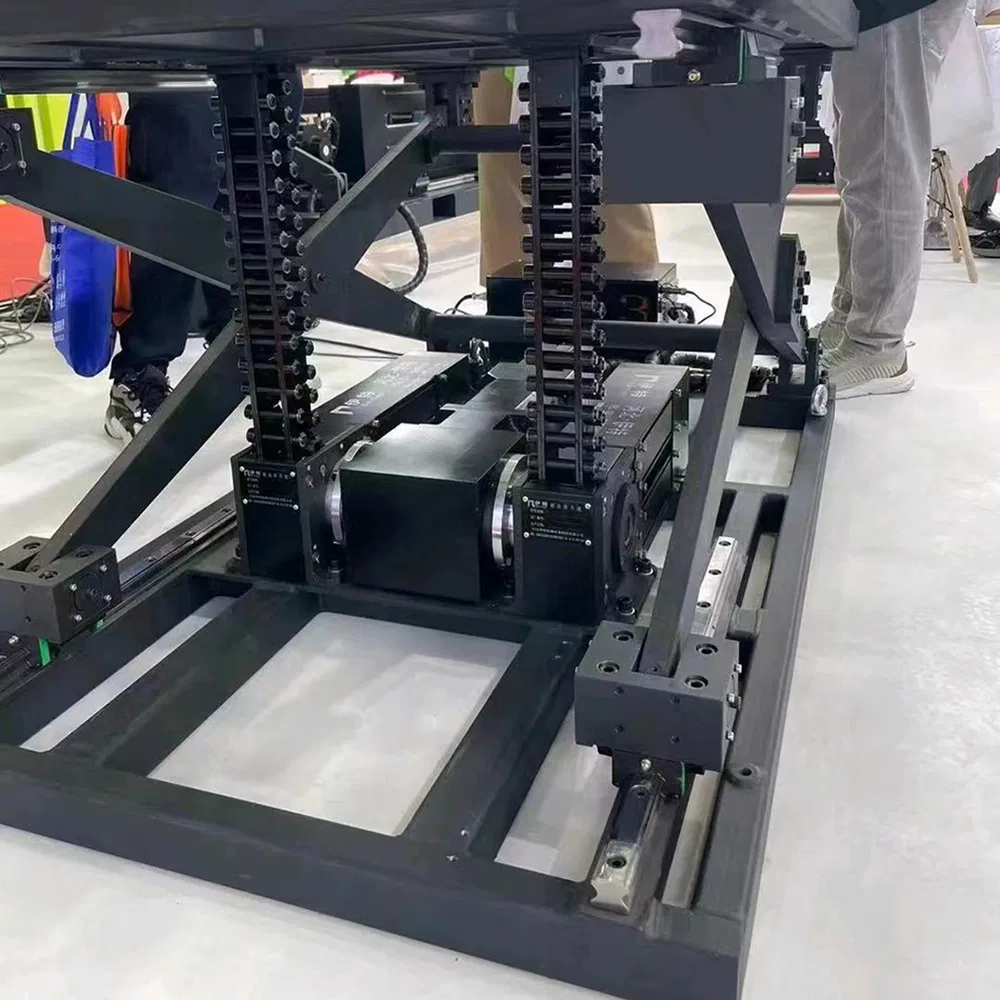

Detailed Component 7
❓ Frequently Asked Questions
What is the main advantage of a rigid chain over hydraulic systems?
Rigid chains offer higher precision (±0.1mm), zero risk of oil leakage, and significantly lower maintenance costs since they do not require regular oil changes.
What is the typical lifespan of the rigid chain?
The high-strength alloy chain is designed for durability, typically offering a service life of 5-10 years without needing replacement under normal operating conditions.
Can this system be used in noise-sensitive environments?
Yes, the system operates very quietly with noise levels usually below 60 dB, making it ideal for theaters, stages, and precision medical environments.
What safety features are included?
The platform is equipped with multiple safety mechanisms, including overload protection, emergency brakes, anti-fall locks, and a self-locking chain function.
Is the system compatible with automated production lines?
Absolutely. The PLC/microcontroller module allows for precise integration with industrial automation, AGVs, and IoT systems for remote monitoring and scheduling.
What industries benefit most from rigid chain lifting?
It is widely used in stage/theater machinery, automobile assembly lines (like battery pack lifting), semiconductor manufacturing, and intelligent vertical parking solutions.
