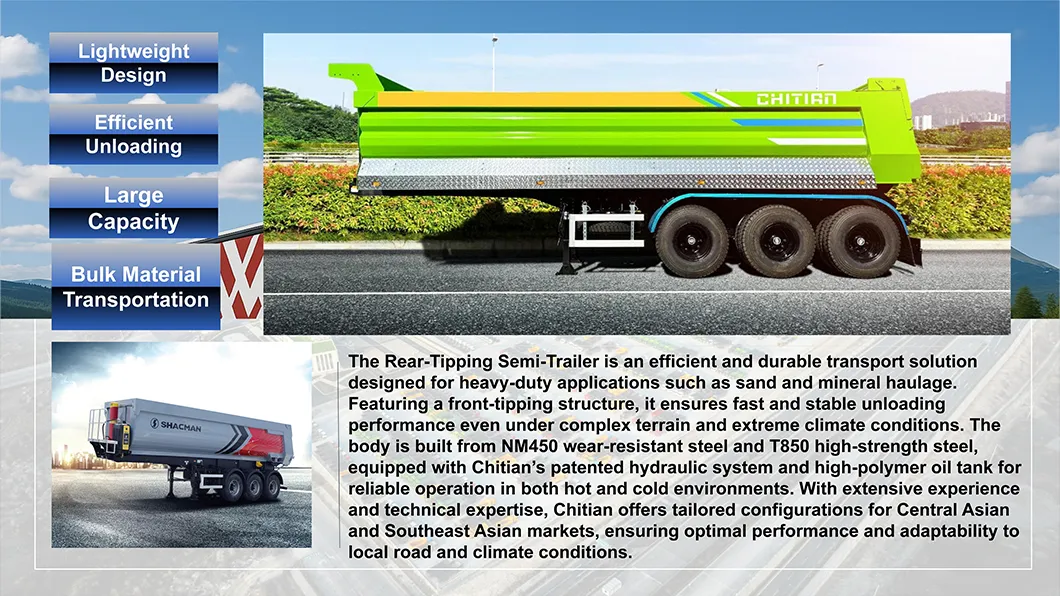

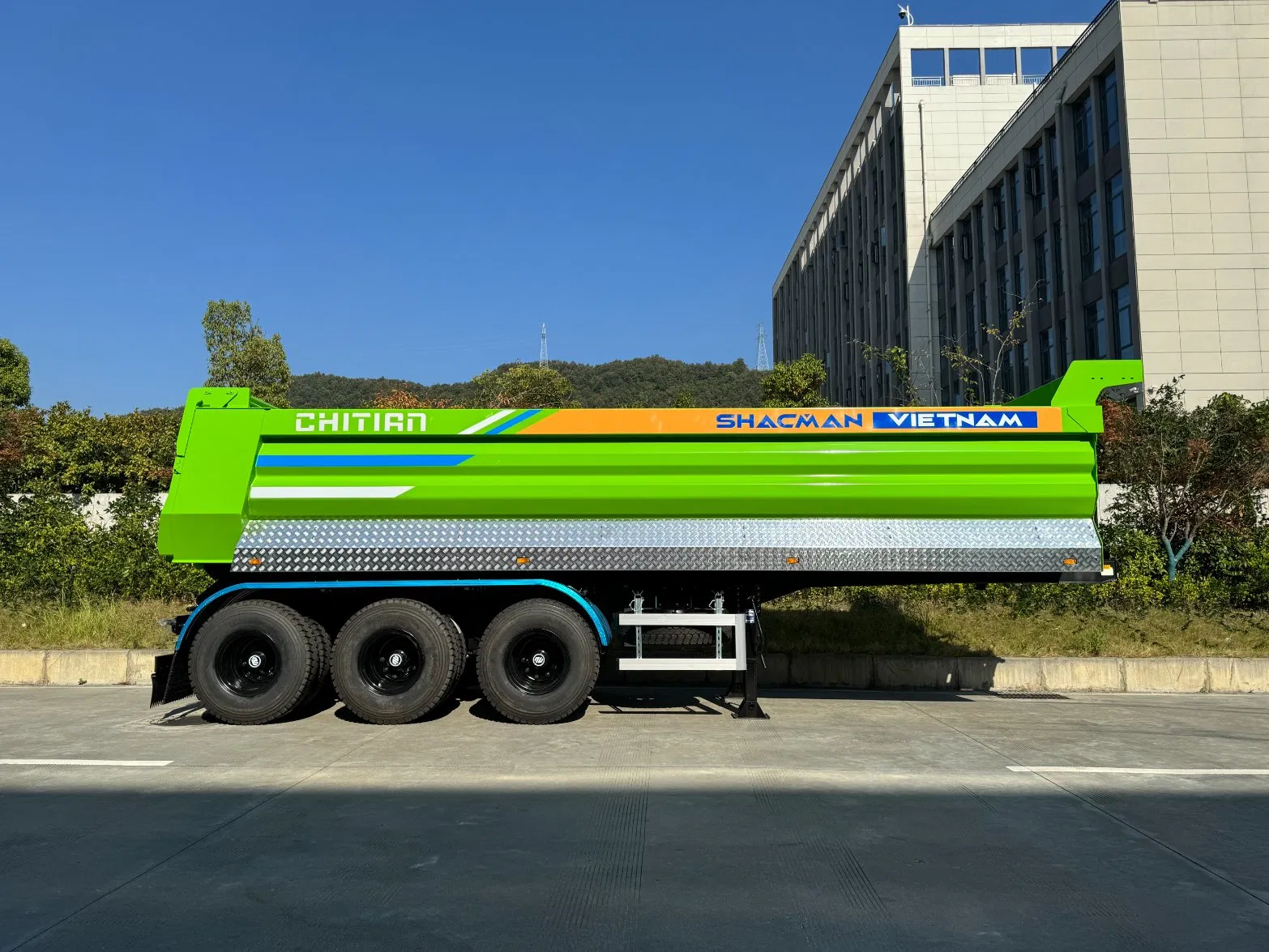

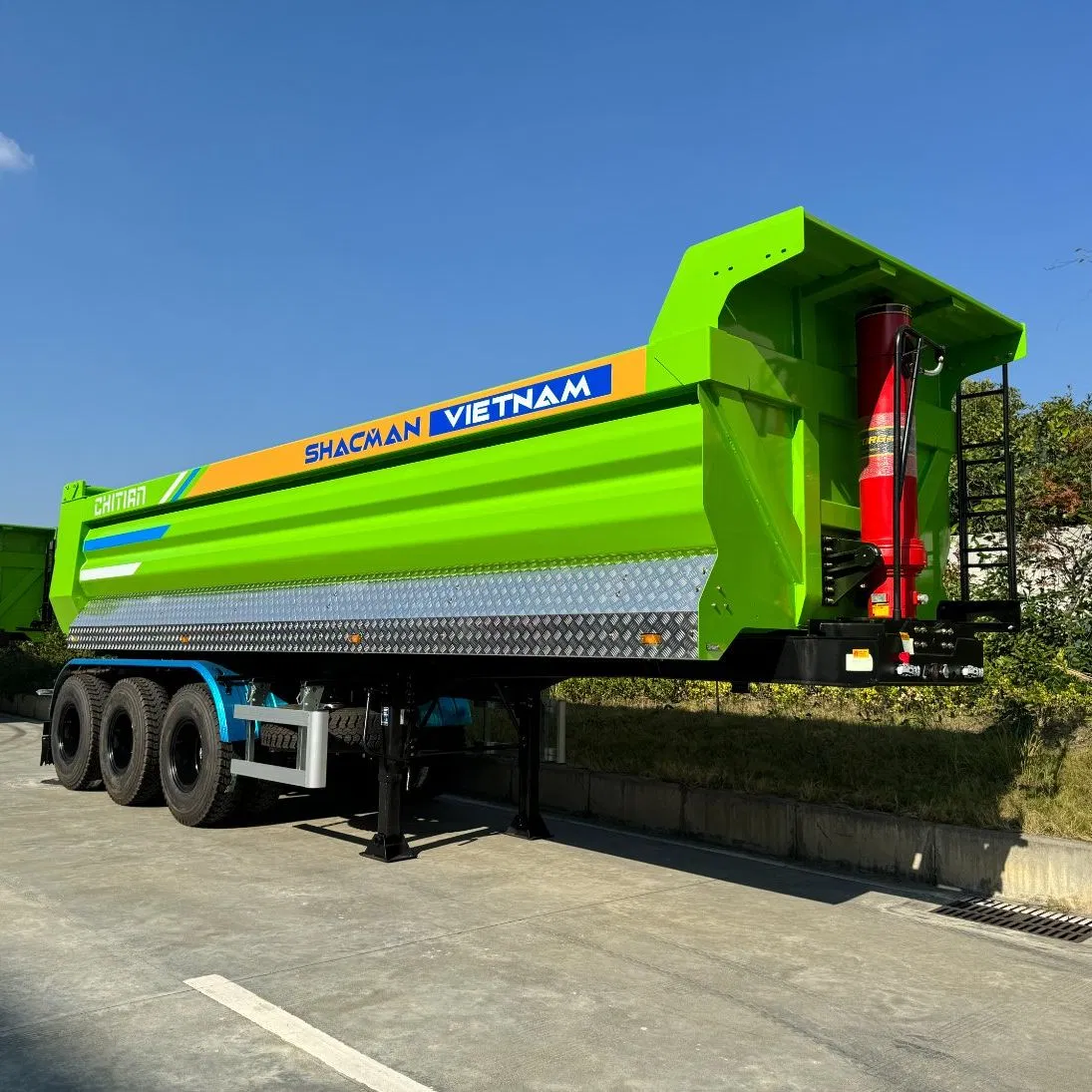

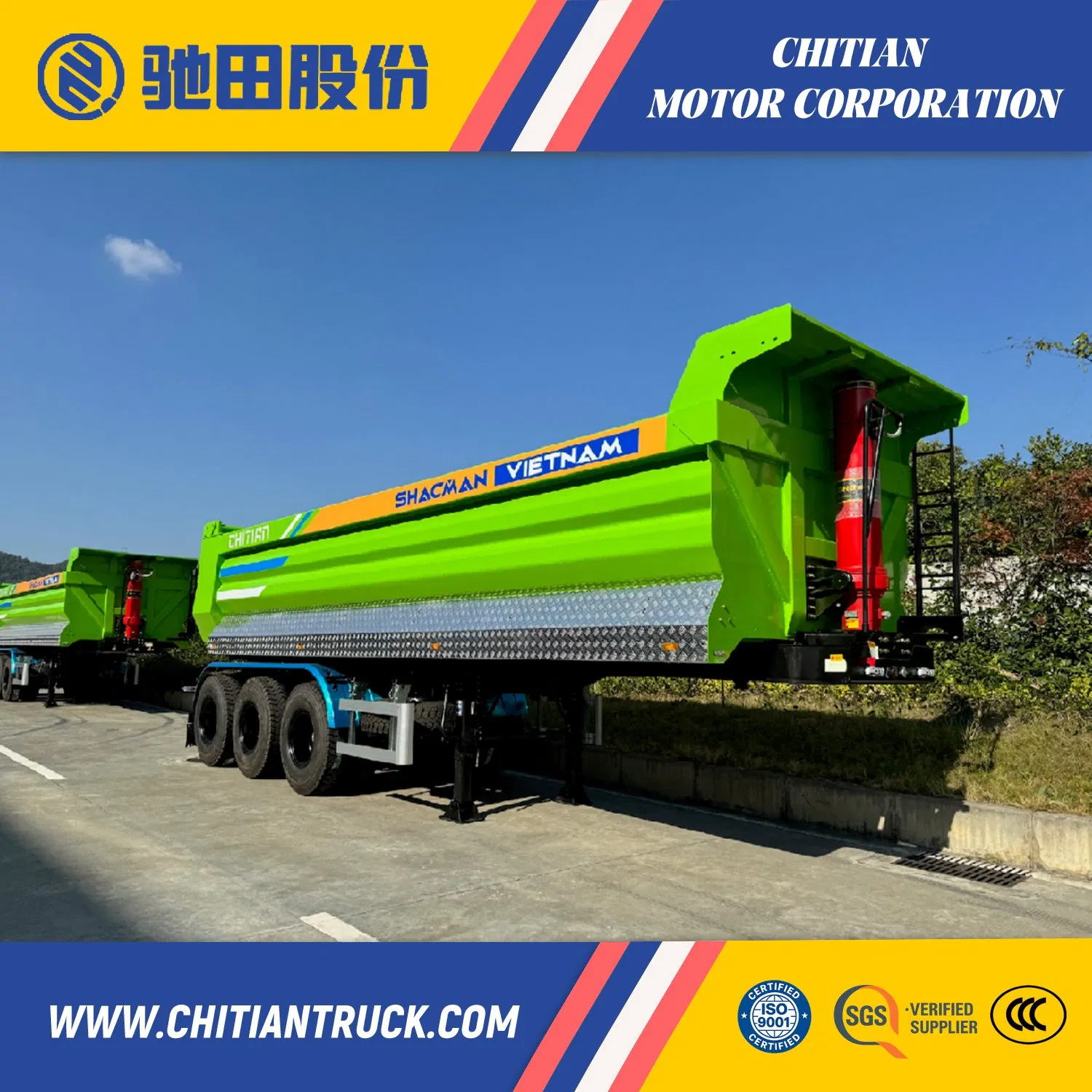

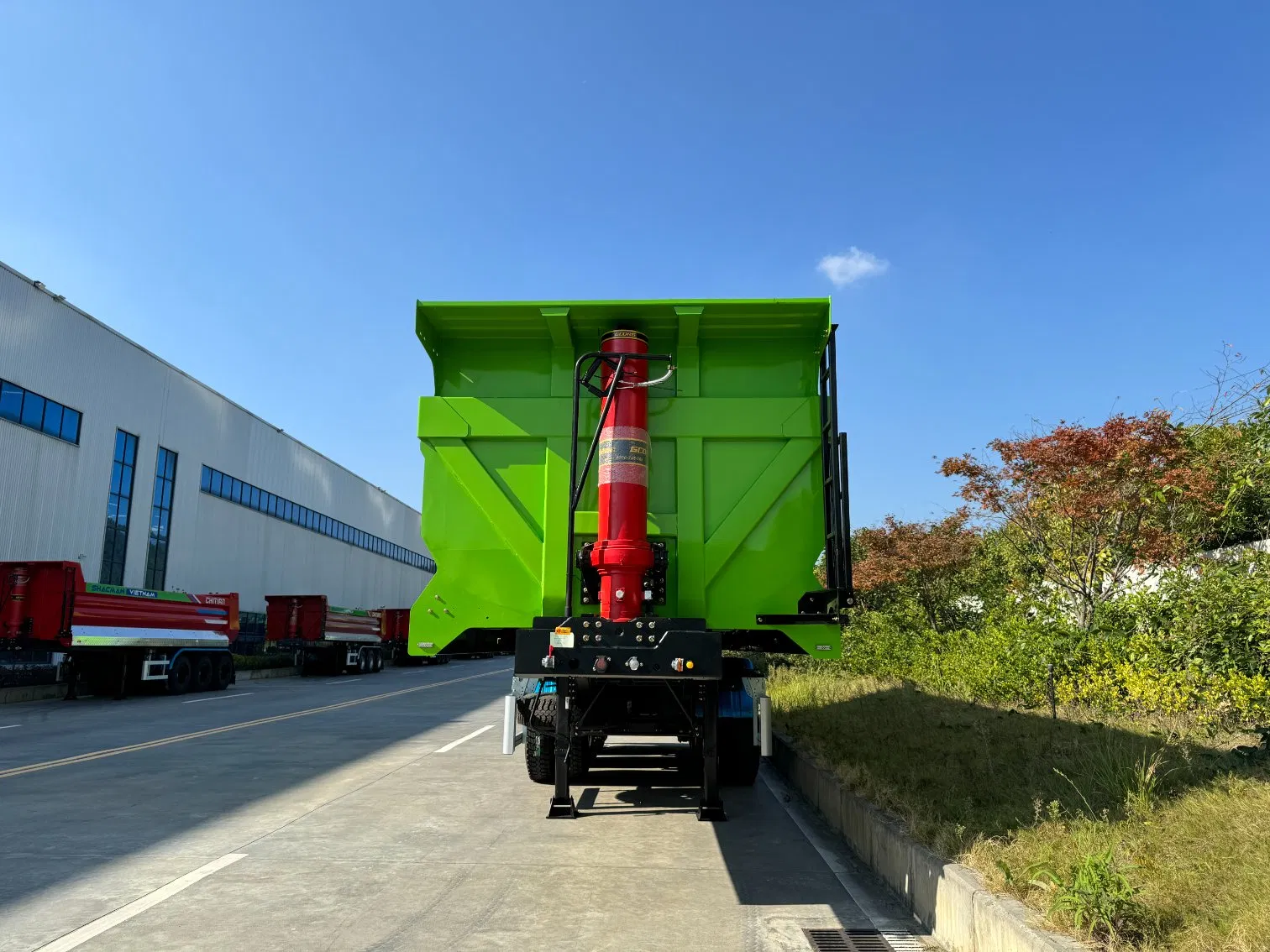

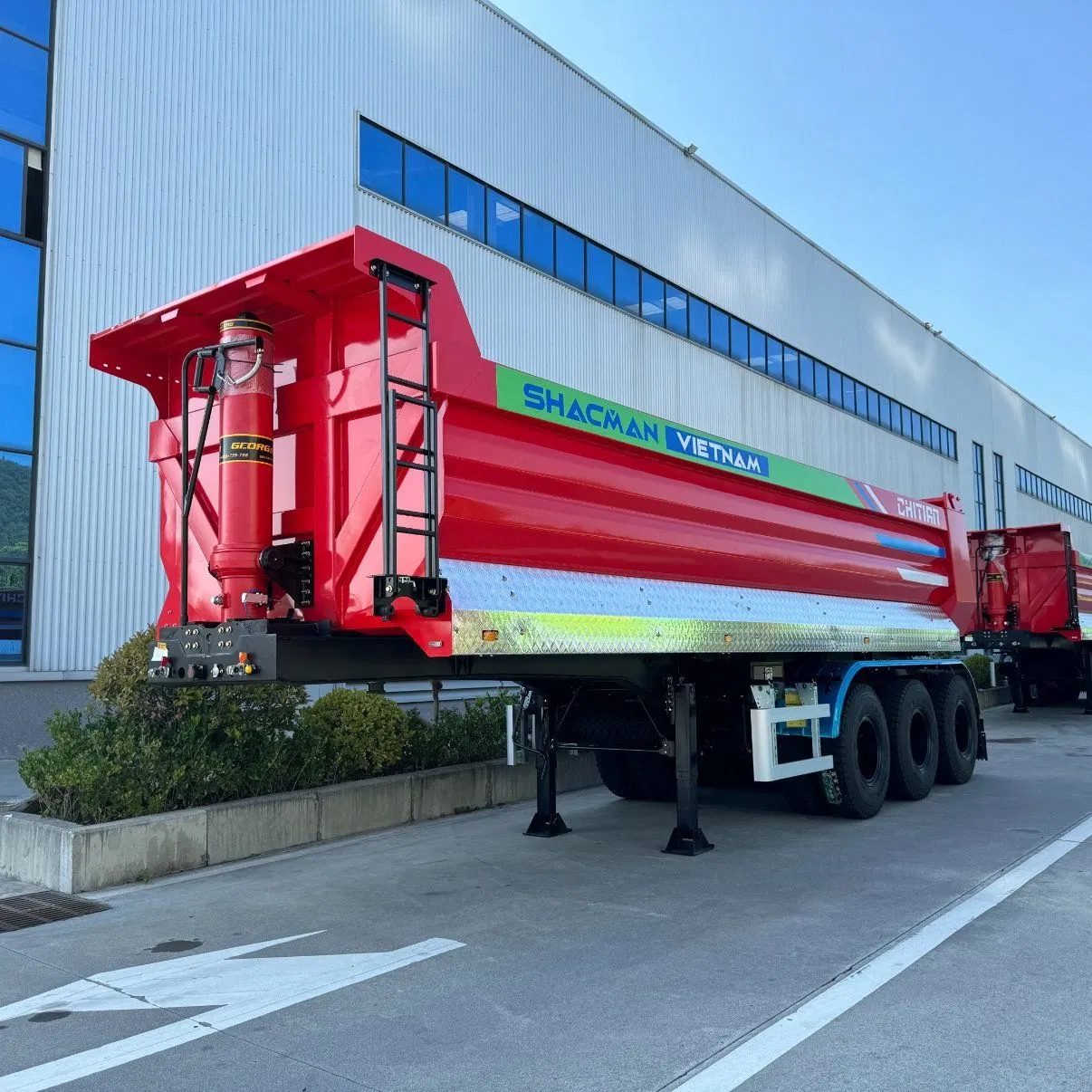

Engineered for maximum efficiency and durability, our Rear-Tipping Semi-Trailer is the ultimate solution for heavy-duty hauling of sand, minerals, and bulk materials. Featuring a powerful front-tipping hydraulic system and a robust body built from NM450 wear-resistant steel, it delivers fast, stable unloading and unmatched reliability, even in extreme climates.
Reinforced Heavy-Duty Chassis: Engineered for maximum load capacity, providing exceptional stability under demanding conditions.
Optimized Suspension: Balanced system to ensure a smooth, controlled ride on rough and uneven terrains.
Premium Safety: Equipped with advanced, quick-response braking systems for superior transport safety.
High-Efficiency Front-Tipping: Enables fast and complete unloading, significantly boosting operational efficiency.
All-Weather Performance: Specialized hydraulics with high-polymer tanks resist corrosion and perform in extreme temperatures (-40 °C to +90 °C).
Robotic Powder Coating: Multi-layer process providing exceptional corrosion resistance and a long-lasting finish.
Curved Body Design: Enhances strength and ensures cleaner discharge with no material residue.
Modular Design: Simplifies maintenance and allows for quick parts replacement, minimizing downtime.
Leak-Proof Protection: Patented multi-seal and stepped cylinder design for overpressure protection and stability.
| Item | Specification | Item | Specification |
|---|---|---|---|
| Vehicle Type | Front-mounted cylinder rear tipping | Oil Tank | Polymer hydraulic oil tank |
| Overall Dimensions | 10,350 × 2,710 × 4,180 mm | Temp Range | -40 °C to +90 °C |
| Tare Weight | Approx. 12-13 t | Axle Load | 13 t per axle |
| Rated Payload | 40-45 t | Axle Number | 3 axles |
| Body Volume | 25-35 m³ | Suspension | Mechanical / Air (Optional) |
| Body Material | Wear-resistant steel | Braking System | Dual-circuit pneumatic |
| Lifting Time | ≤ 25 s (full load) | Lowering Time | ≤ 20 s |
| Tyres | 385/65R22.5 | Electrical | 24 V LED system |
We supply off-highway mining dump trucks, road tipper trucks (6×4 / 8×4), dump semi-trailers (U-shaped / square type), road-trains, municipal trucks, and customized hydraulic systems.
Standard models generally take 15-25 working days, while customized models require 35-45 working days depending on the complexity of the configuration.
Yes. We provide full customization including body material thickness, suspension types (mechanical/air/reinforced), cylinder stroke, tire configurations, and chassis brand options.
We offer a 12-month warranty for the whole vehicle and up to 18-24 months for the hydraulic cylinders, along with lifetime technical support.
We arrange RO-RO shipping, bulk vessel shipments, or flat-rack containers. All units are professionally secured based on axle load standards to ensure safety during transit.
Each unit undergoes a full PDI inspection, hydraulic pressure testing, welding deformation checks, and suspension/braking simulations to ensure long-term reliability.
