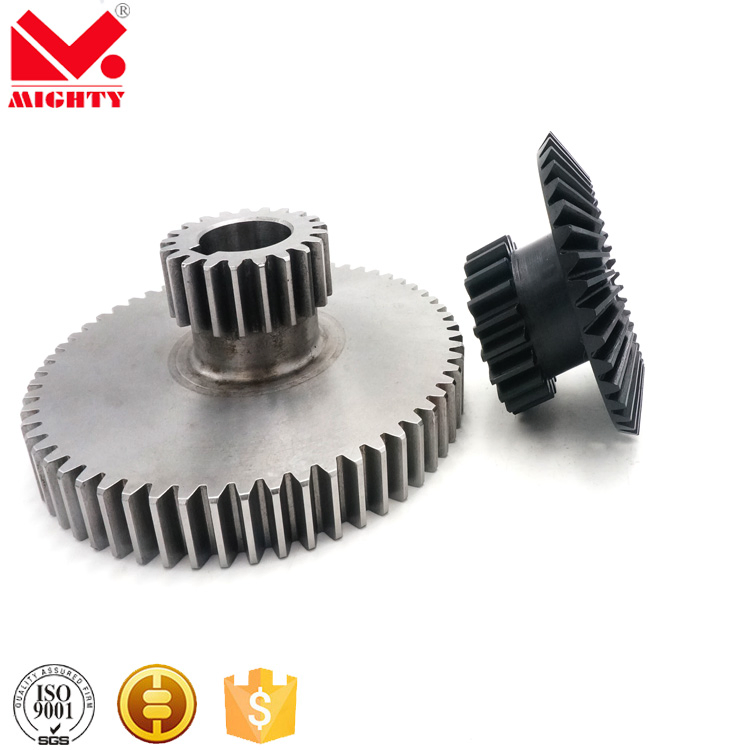

High Precision Spur Helical Bevel Worm Pinion Drive Gear M0.5 M1 M1.5 M2 M2.5 M3 M4 M5 M6

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.M0.5, M1, M1.5, M2, M2.5, M3, M4, M5, M6, M7, M8
Gear PositionExternal Gear
Manufacturing MethodCast Gear
Toothed Portion ShapeSpur Gear/Bevel Gear/Worm Gear
MaterialSteel, Aluminum, Brass, Nylon, Copper
Surface TreatmentZinc Plated, Anodizing, Black Oxide, Phosphated
Teeth Number12t-126t
Bore TypePilot Bore, Taper Bore, Finished Bore, Solid Bore
StandardEuropean or American Standard
ServiceStandard or Customized
Production Capacity100,000/Month
Product Description
Technical Specifications
Carbon Steel SAE1020, SAE1045, Cr12, 40Cr, Y15Pb, 1214L etc.
Alloy Steel 20CrMnTi, 16MnCr5, 20CrMnMo, 41CrMo, 17CrNiMo5 etc.
Brass/Bronze HPb59-1, H70, CuZn39Pb2, CuZn40Pb2, C38000, CuZn40 etc.
Machining Process Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding and Gear Lapping

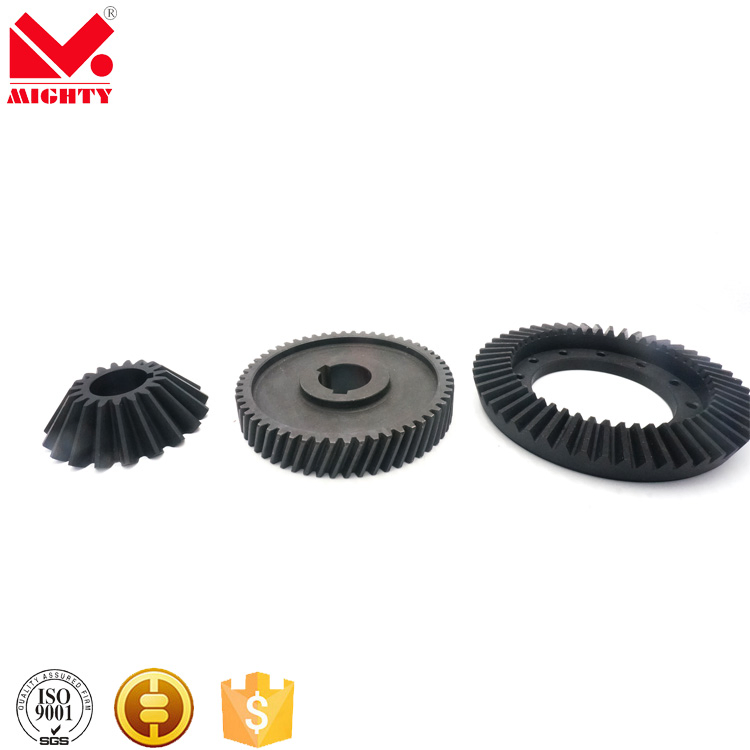

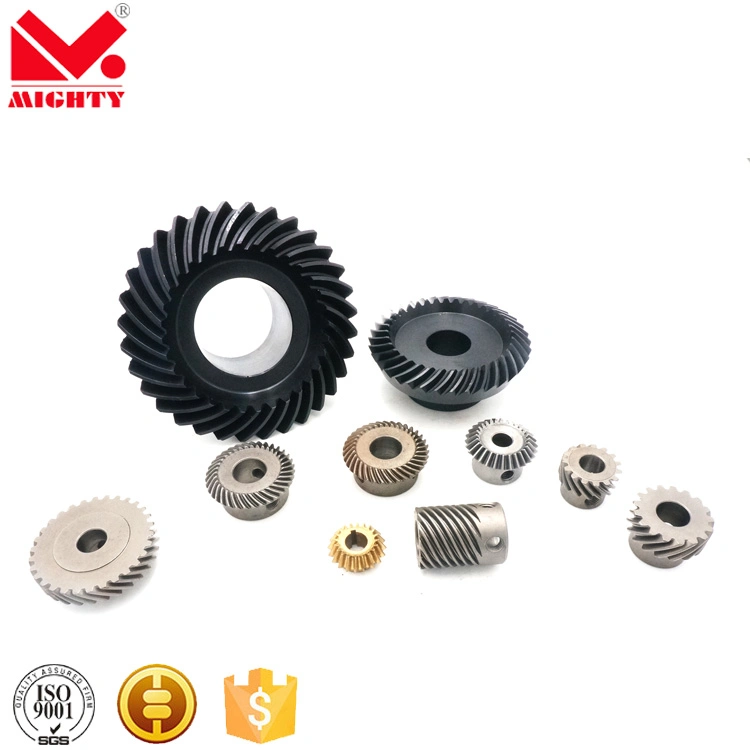

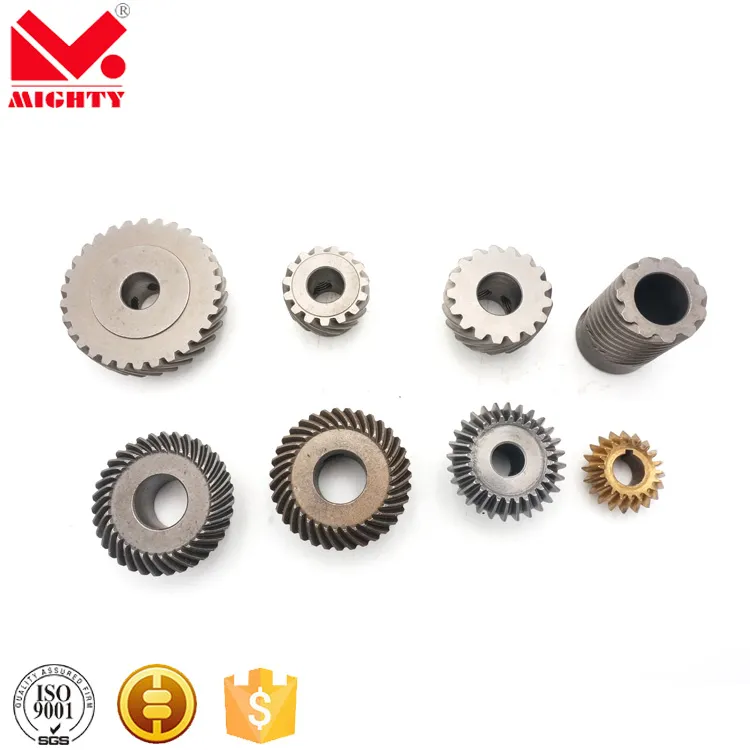

Drive Gear Display

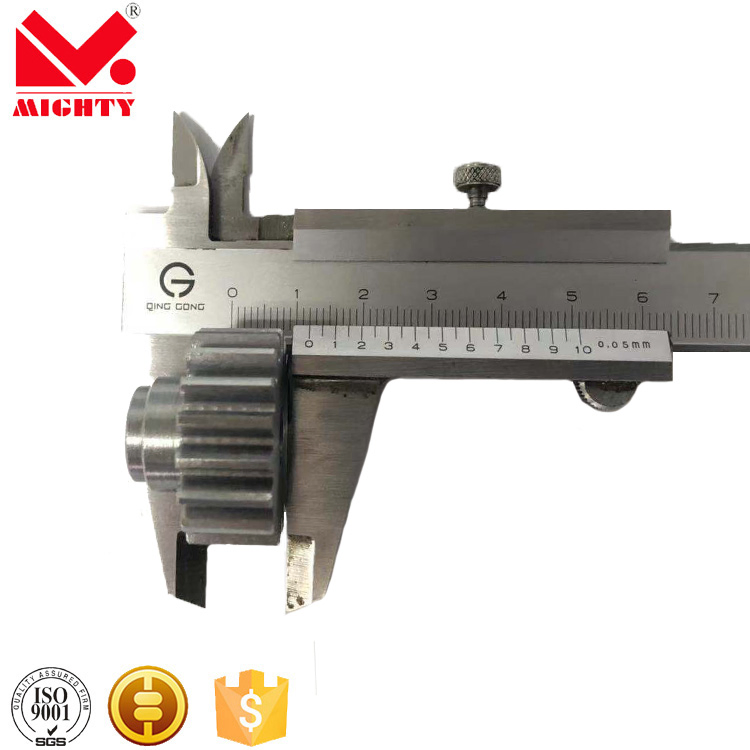

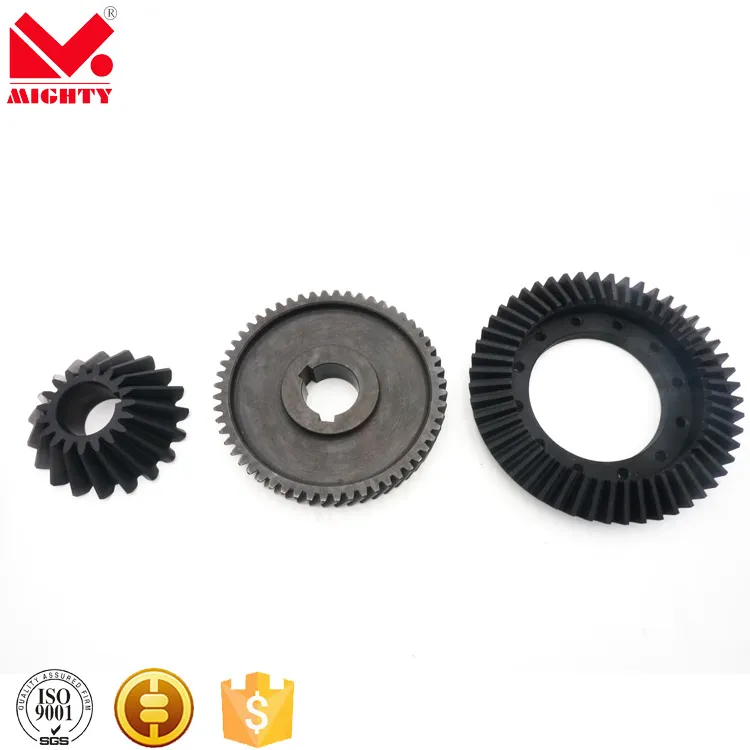

Precision Gear Detail

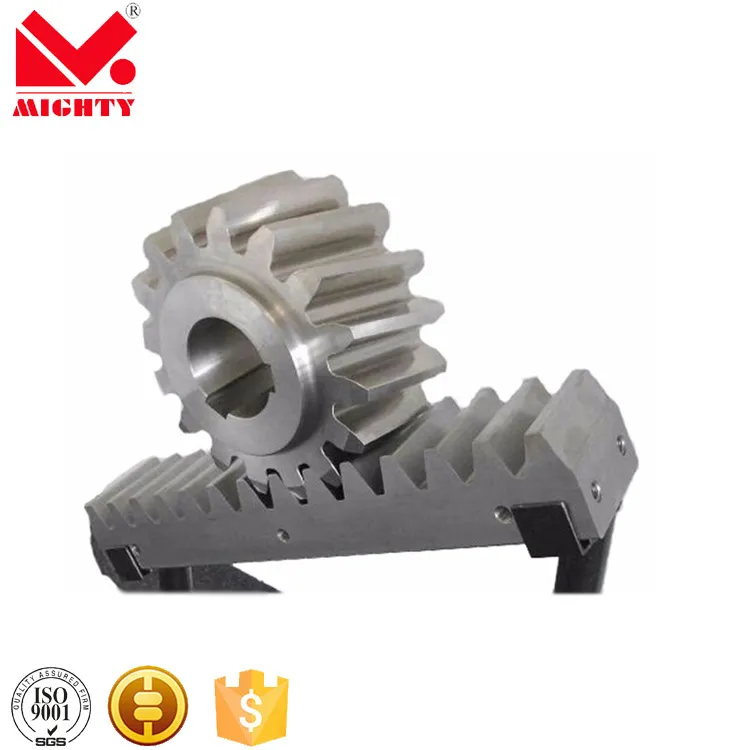

Worm Gear Showcase

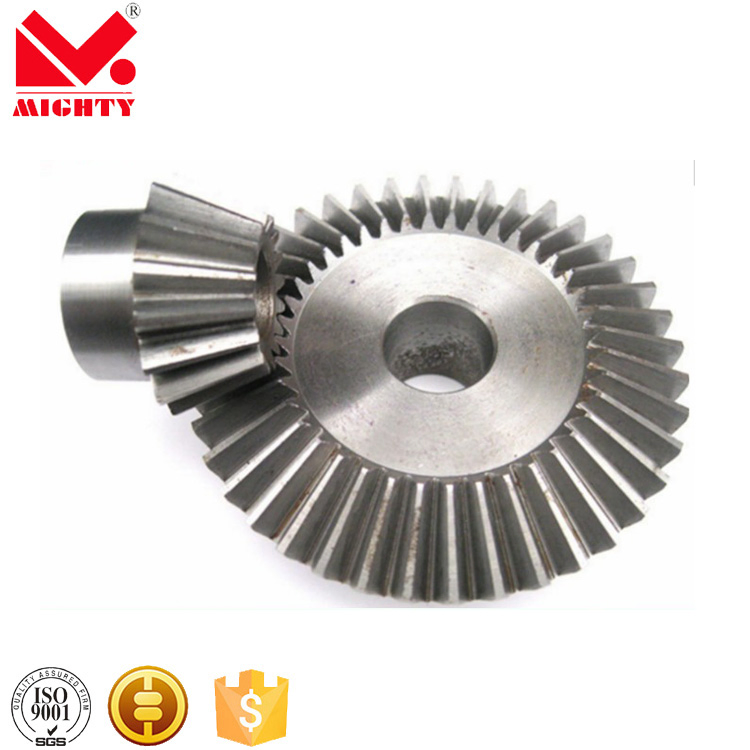

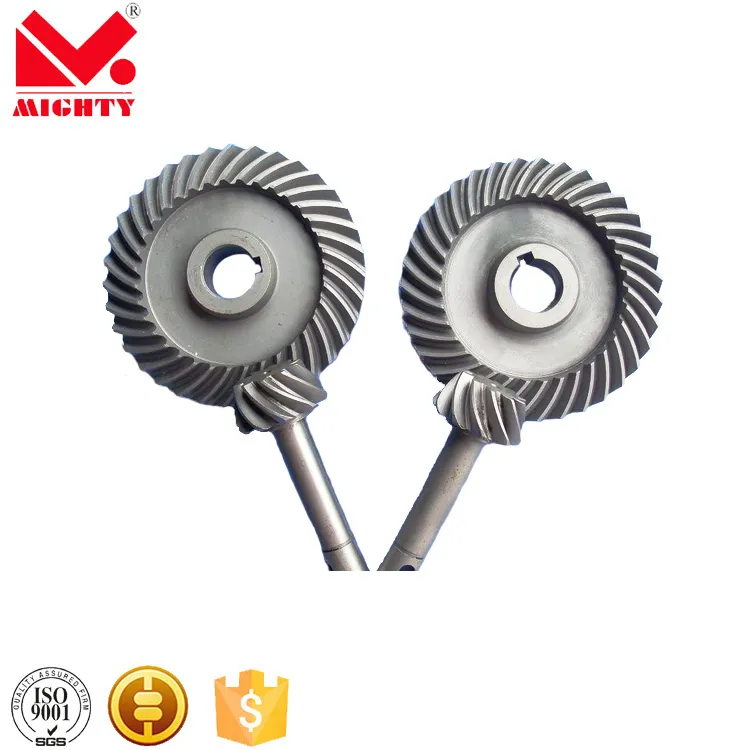

Bevel Gear Processing
Key Features
  • Premium Materials: Carbon steel (C45, 20CrMnTi), Stainless Steel, Copper, or Nylon options.
  • Advanced Heat Treatment: Hardening, Tempering, high frequency quenching, and carburizing quenching.
  • Versatile Standards: Full compliance with European and American industrial standards.
  • Customization: Specialized in non-standard items based on client drawings and specifications.
  • Precision Engineering: Professional drawing analysis, program auditing, and strict PC&QC.
  • Wide Range: Models from M0.5 to M20 with a standard 20° pressure angle.

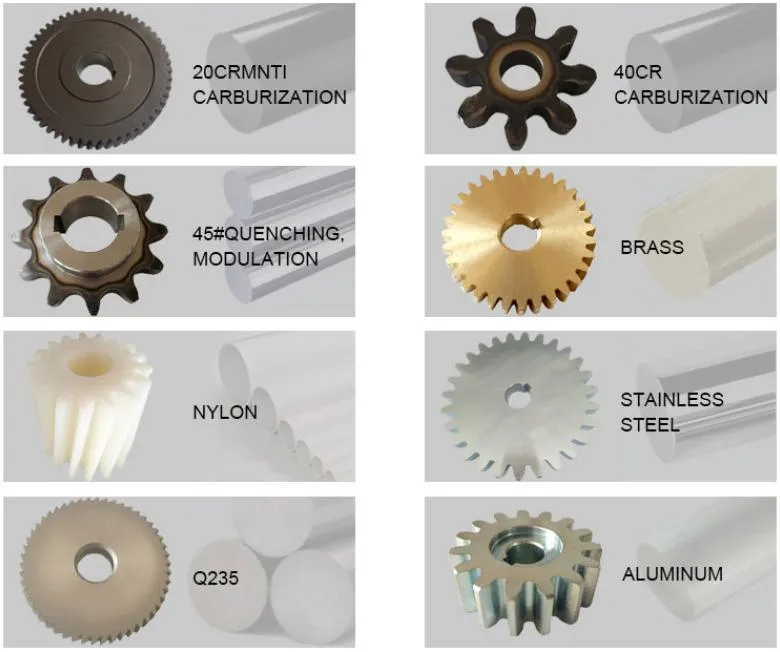

Technical Drawing
Our Advantages
  • High speed digital gear hobbing machines to guarantee teeth quality.
  • Pilot bore, finished bore, taper bore and special bore available.
  • Advanced surface treatment for corrosion resistance and bright finish.
  • Strict control on tolerance for easy installation and long life span.
  • Standard sea-worthy packaging for international shipping.

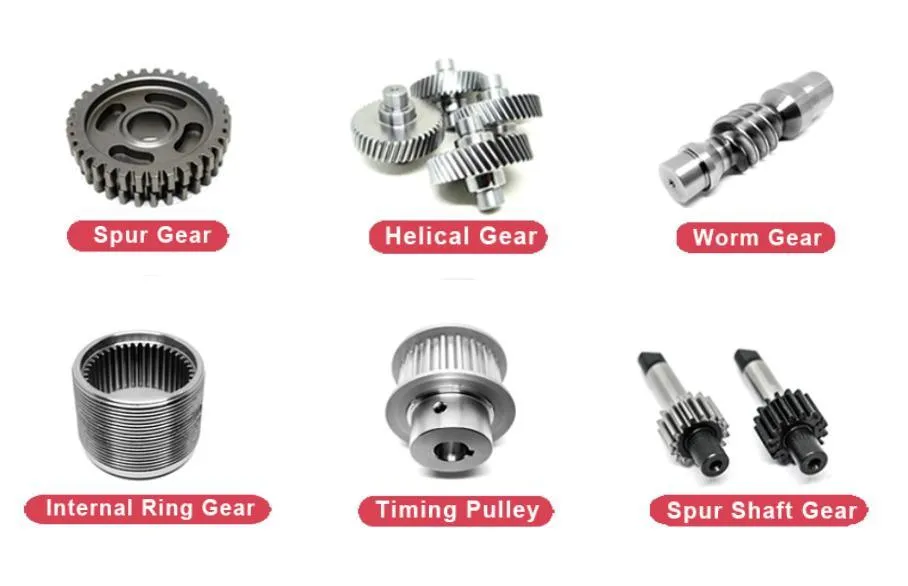

Manufacturing Plant

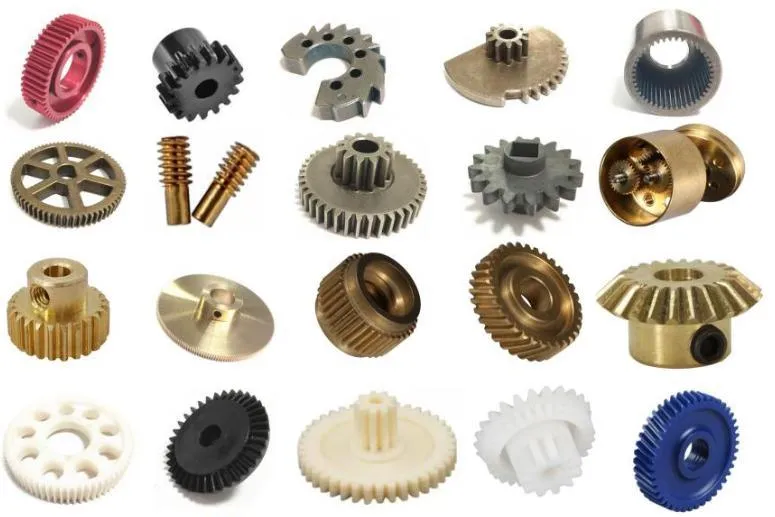

Warehouse Stock
Packing & Shipping
Packing Polybag inside, export carton outside. Pallets, blister, tape and reel packages available upon request.
Shipping 10-20 working days after payment receipt (based on actual quantity). Professional export shipping services.
Packaging Detail
Quality Inspection

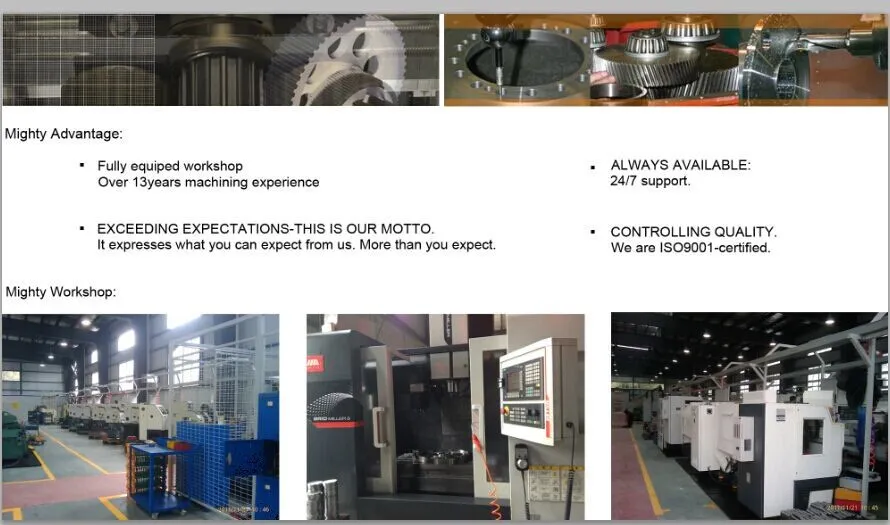

Production Line
Frequently Asked Questions
Q: Are you a trading company or a manufacturer?
A: We are a factory with 3 manufacturing facilities and over 14 years of machining experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. For non-stock items, it is 15-20 days depending on the quantity.
Q: Do you provide samples? Is it free?
A: Yes, we can offer samples for free; however, the customer is responsible for the freight costs.
Q: What are your terms of payment?
A: For payments under 1000 USD, 100% in advance. For payments over 1000 USD, 30% T/T in advance and balance before shipment.
Q: Can you manufacture custom gears based on drawings?
A: Yes, we specialize in non-standard items and can produce all kinds of gears according to client drawings and specifications.
Q: What markets do you mainly export to?
A: Our products are mainly exported to the Europe, America, and Middle East markets.
