Harmonic Structure Type:

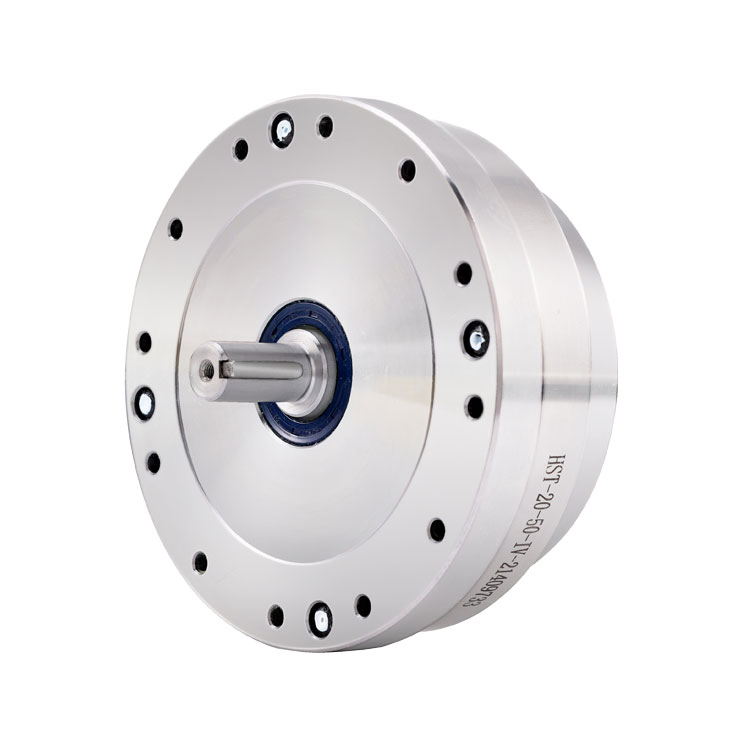

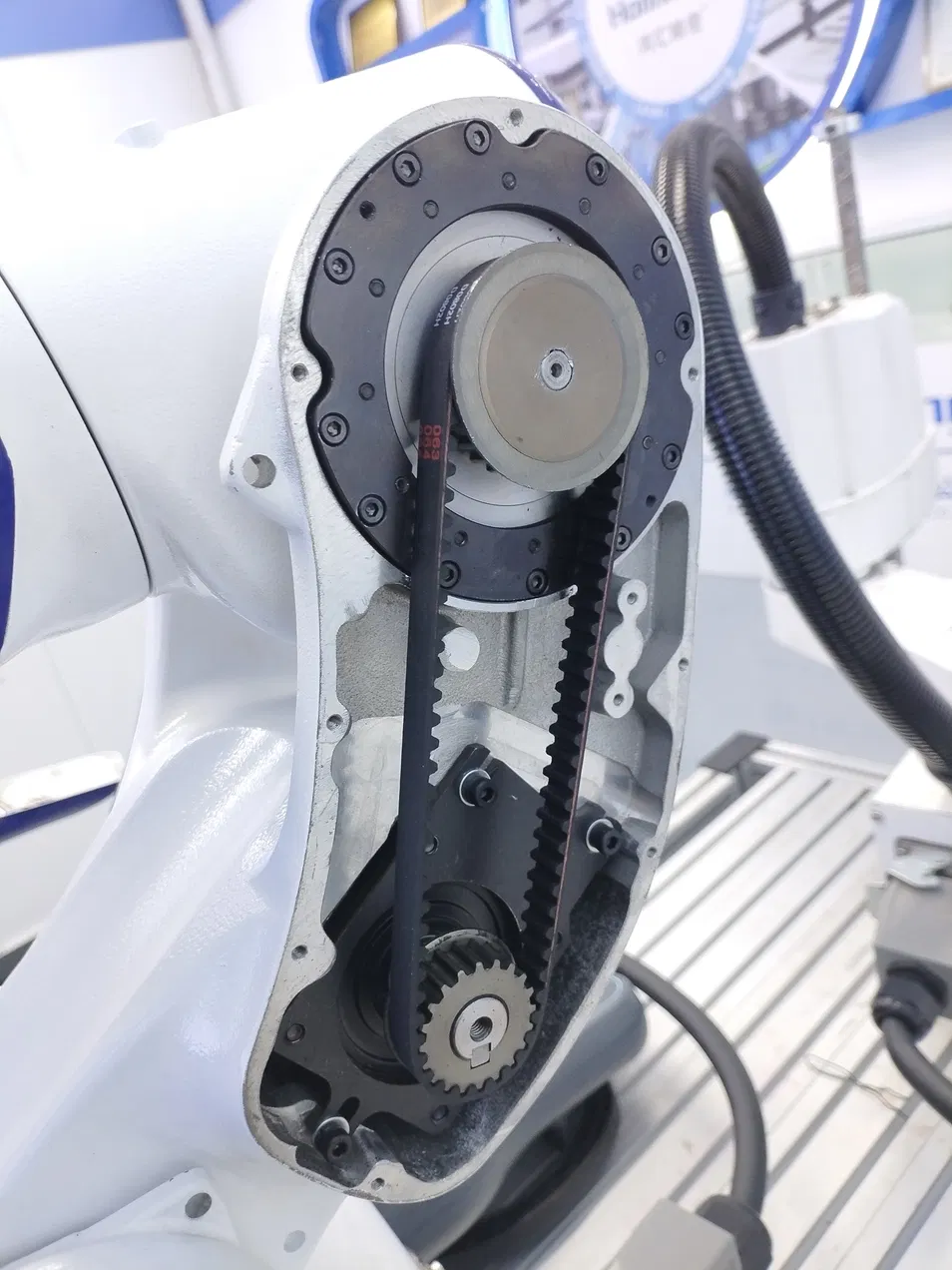

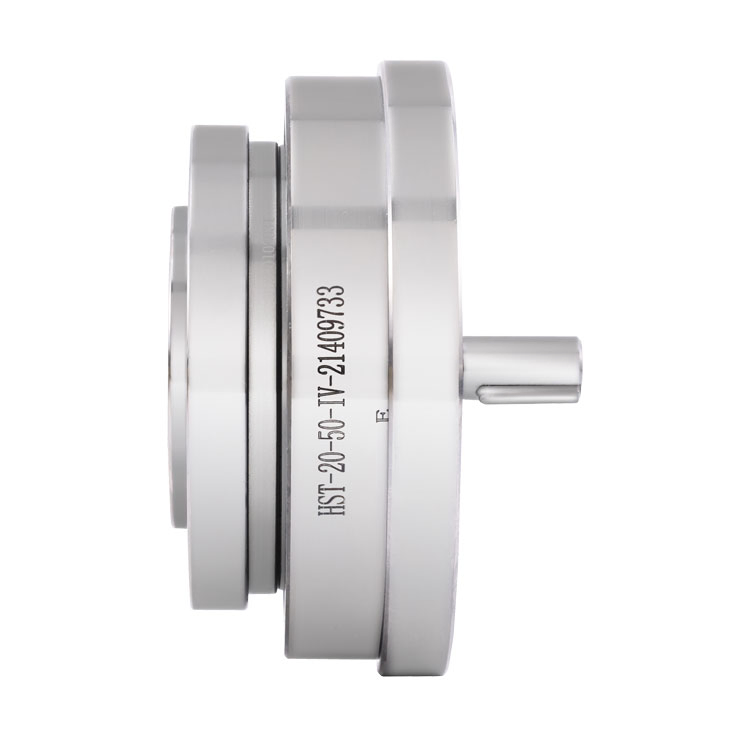

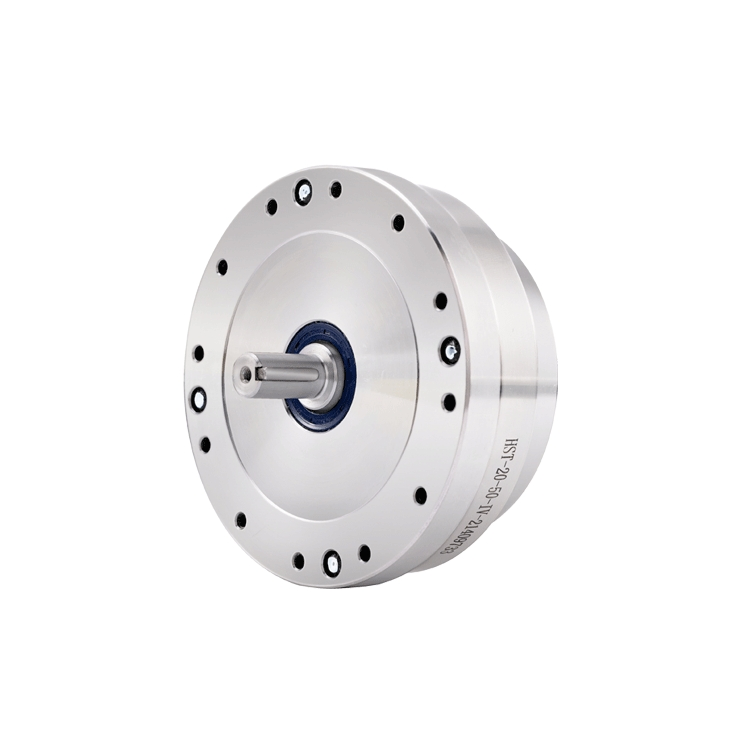

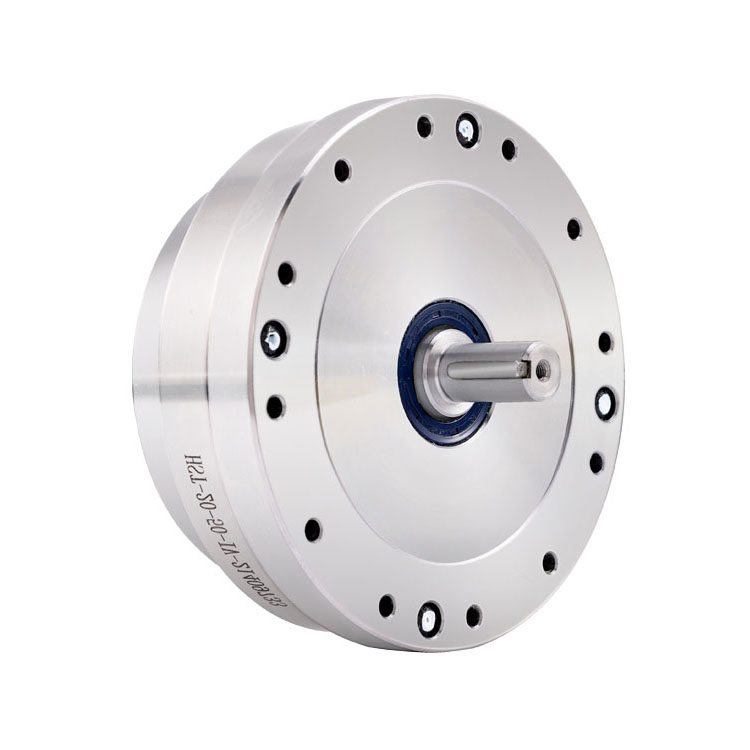

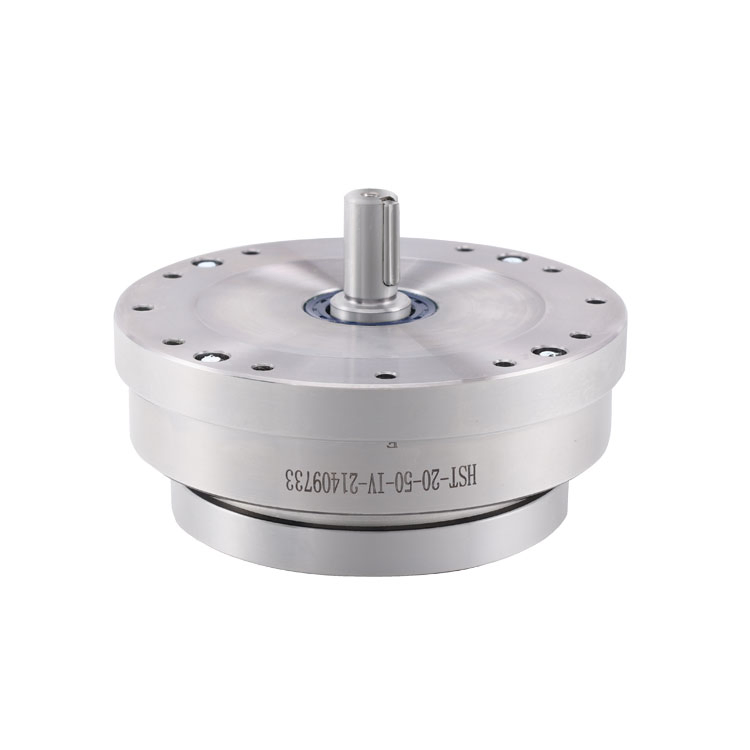

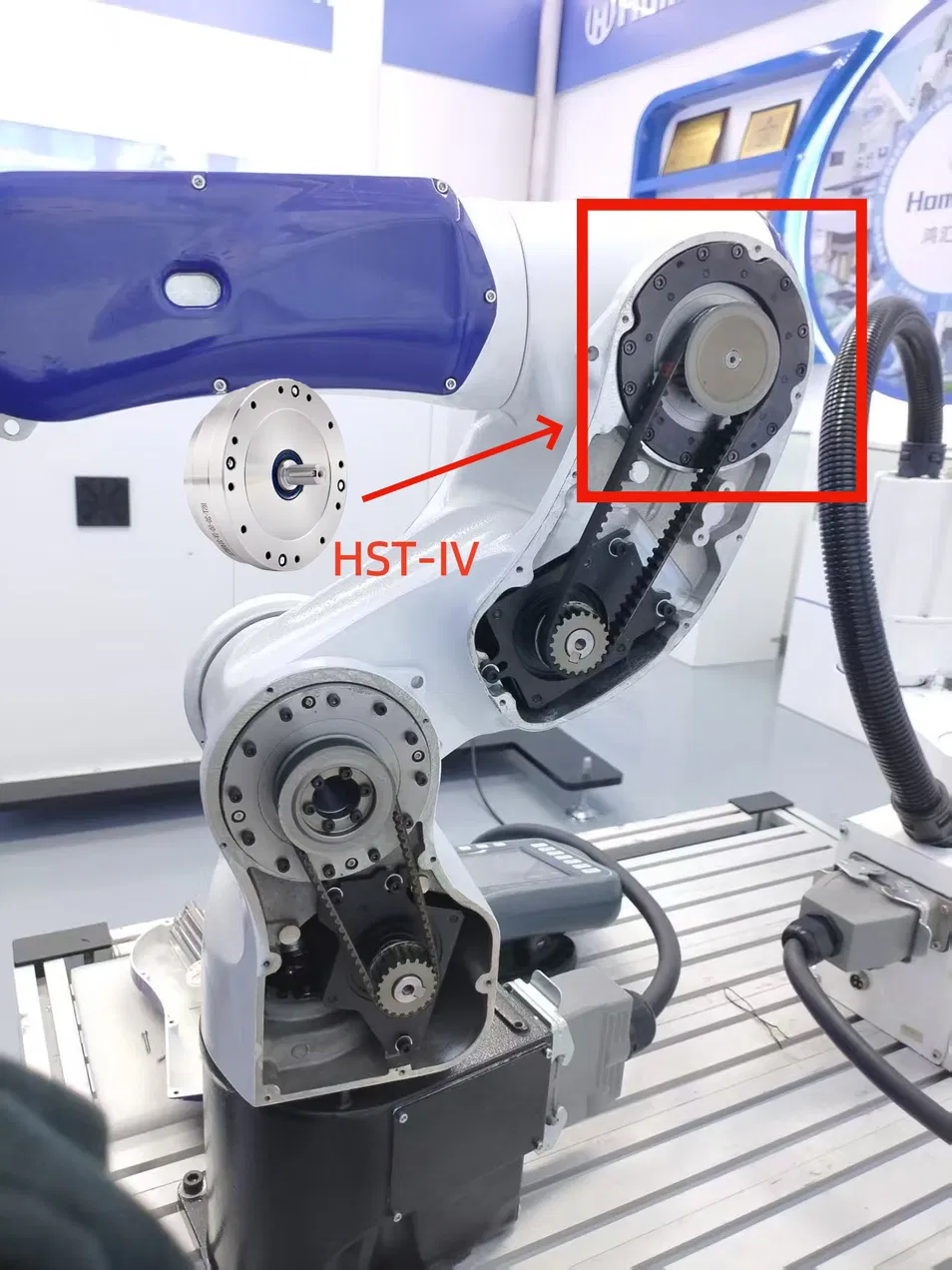

The HST-IV series features a hollow flanged flexspline with a standard cylindrical configuration. The wave generator cam is integrated with an input shaft, and the gearbox is equipped with internal support bearings. It adopts a fully sealed structure, allowing for easy installation. This design is well suited for applications where bevel gears or synchronous belt drives need to be mounted on the input side.
| Model | Size | Reduction Rate | Construction Code | Type |
|---|---|---|---|---|
| HST | 14 | 50, 80, 100 | U: Whole item C: Component |
I: Simple Standard Structure II: Cross slide-bloke III: Hollow shaft IV: Input axial type V: Customized |
| 17 | 50, 80, 100 | |||
| 20 | 50, 80, 100, 120 | |||
| 25 | 50, 80, 100, 120 | |||
| 32 | 50, 80, 100 | |||
| 40 | 100 |

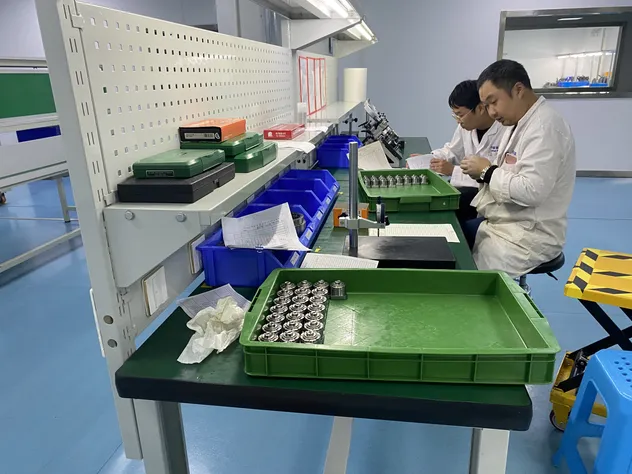

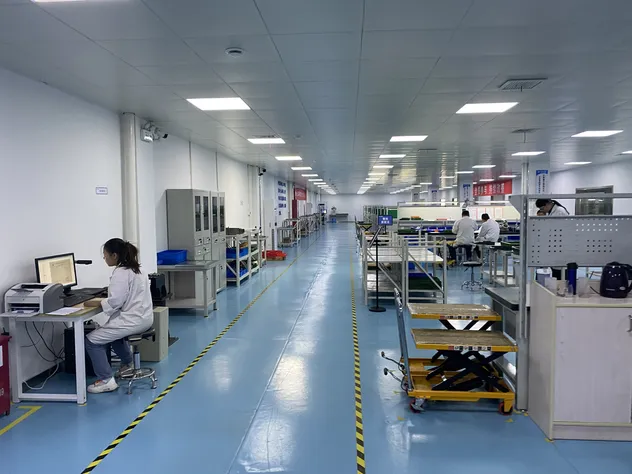

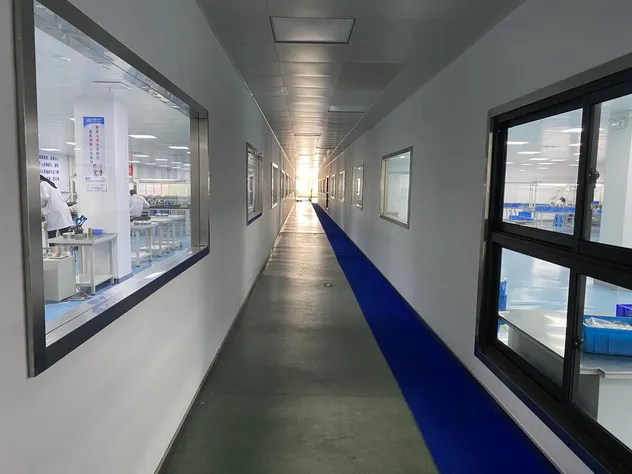

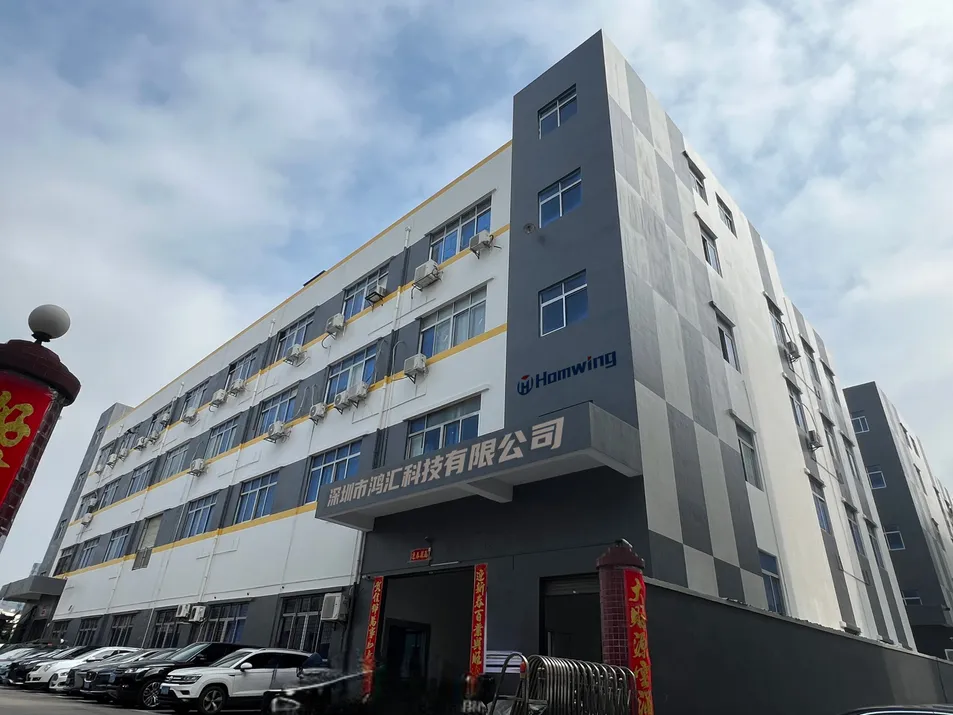

Established in 2014, the facility is committed to the R&D of high-precision transmission components. Currently, the annual production capacity reaches 100,000 sets of harmonic gearboxes. Quality is prioritized through strict supervision from raw materials to finished products. Around 20% of sales are reinvested annually into new technology research and development.
