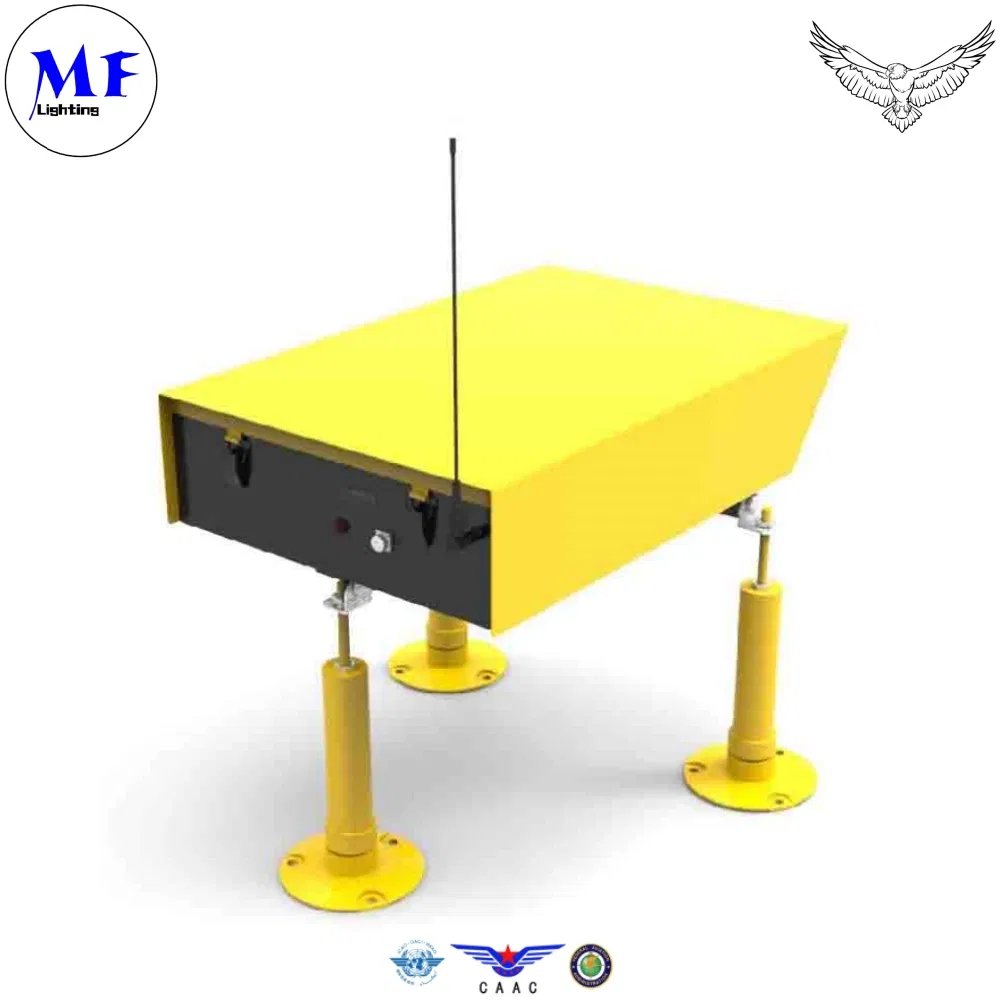

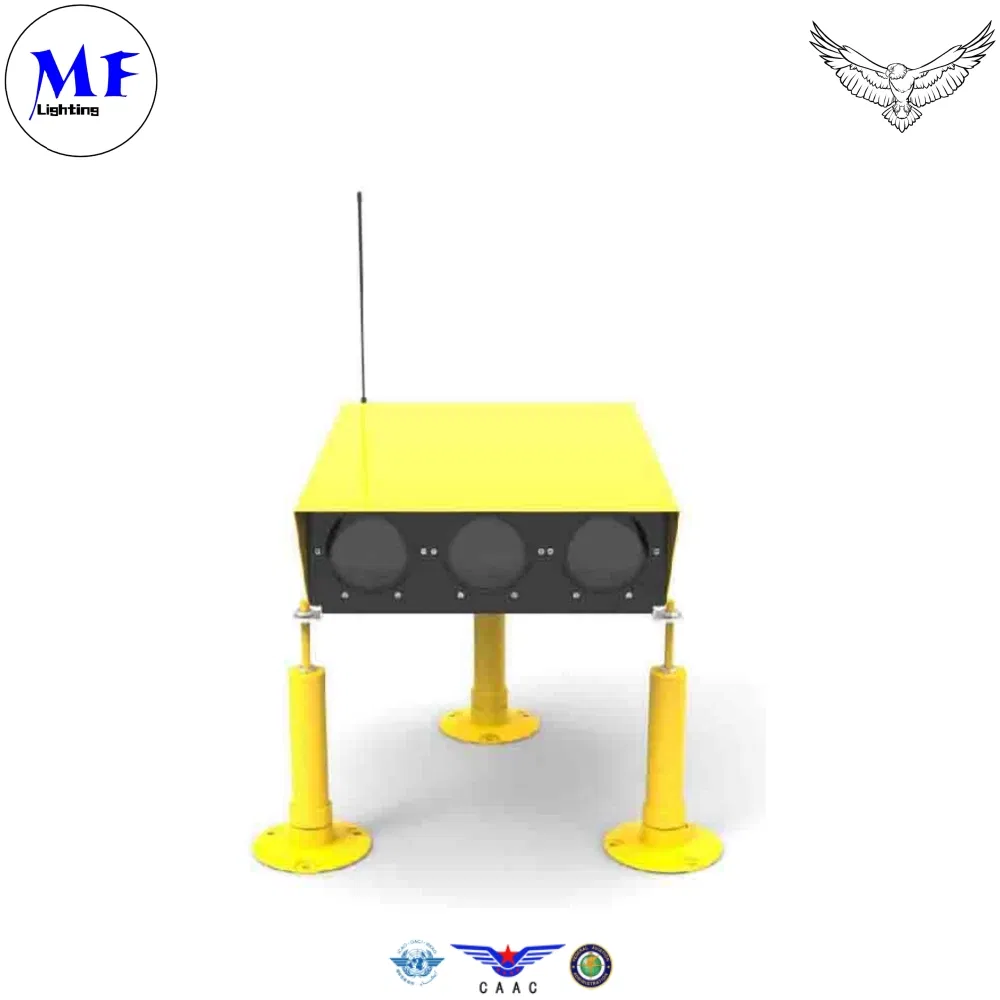

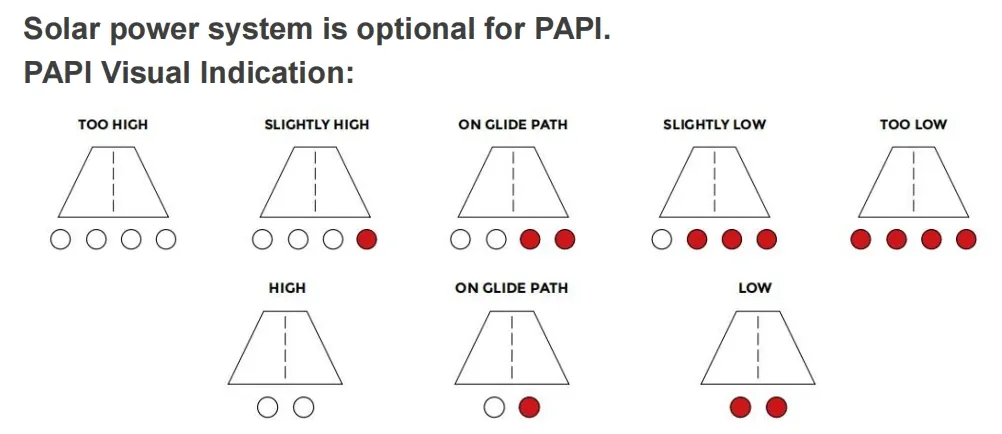

The LED Precision Approach Path Indicator (PAPI) is an advanced aviation lighting system used to guide aircraft to approach the runway at an appropriate altitude. Specifically engineered to accommodate steep angles of descent and deliberate speeds, it projects two-colored horizontal beams in a fan-shaped array into the incoming flight pattern.
| Basic Information | |
|---|---|
| IP Rating | IP65 |
| Certification | CCC, CE, EMC, RoHS, SAA, ISO |
| Azimuth Range | 8° |
| Working Mode | Steady Burning |
| Operation Mode | 24 Hours |
| LED Life Experience | >100,000 Hours |
| Operating Voltage | AC220V, DC24V, etc. |
| Power Consumption | 70W*3 |
| Body Material | Stainless Steel 304 |
| Leg Material | Die Casting Aluminum & Stainless Steel 304 |

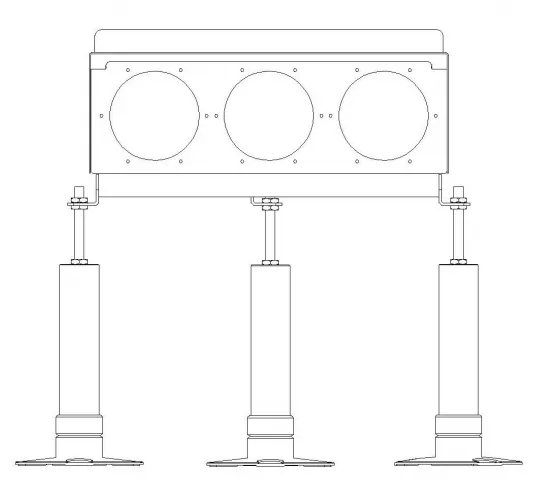

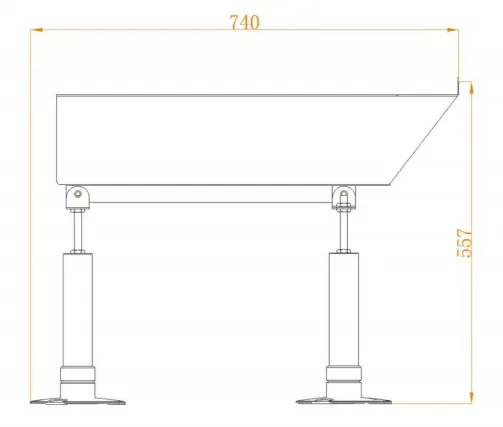

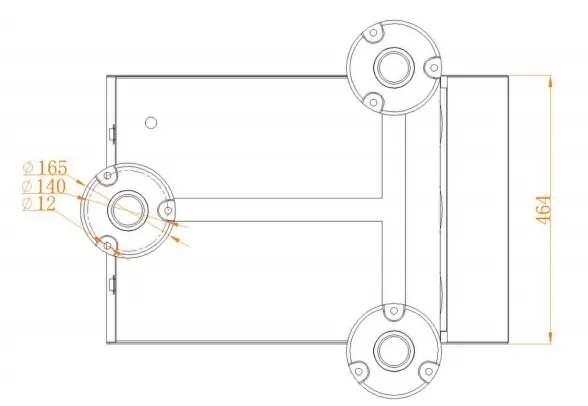

| Dimensions (mm) | 557 X 740 X 464 |
| Weight | 18 Kg |
| Environment Temp. | -35~80℃ |

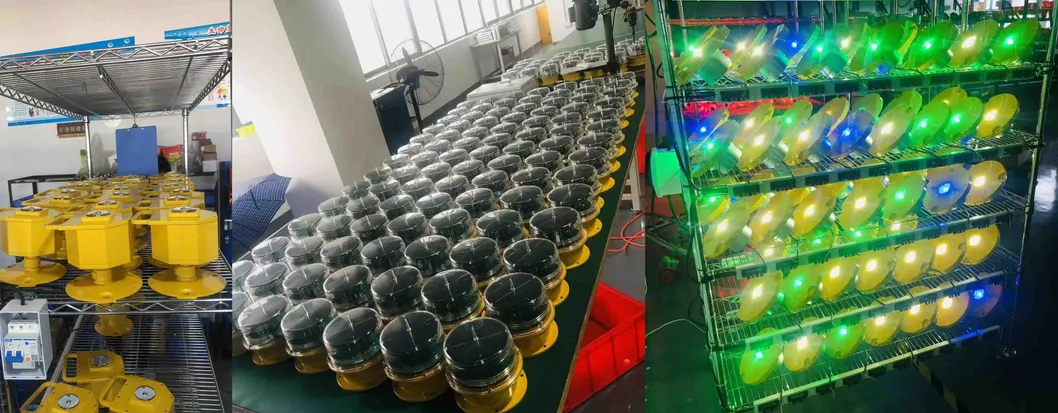

| Production Capacity | 10000 PCS Per Month |
| Detailed Characteristics | |
|---|---|
| Available Colors | Red / White |
| Mounting | 140x M10 |
| Wind Speed Resistance | 80m/s |
| Humidity Range | 10~90% |
| Options Available | Clinometer, Solar Power System, Wireless Remote Control |
The LED Precision Approach Path Indicator is vital for enhancing aviation safety in several scenarios:
