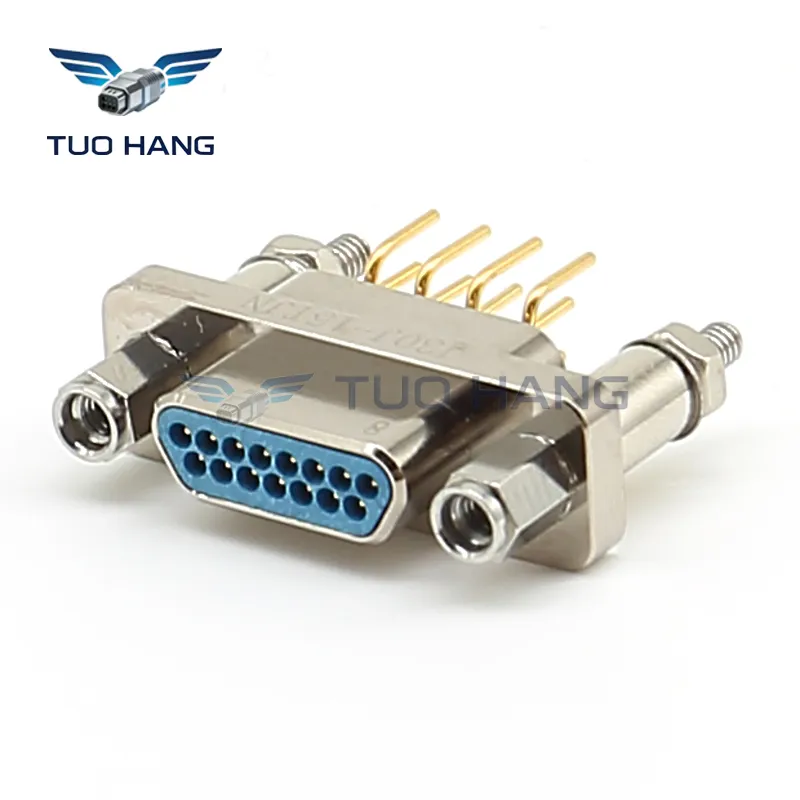

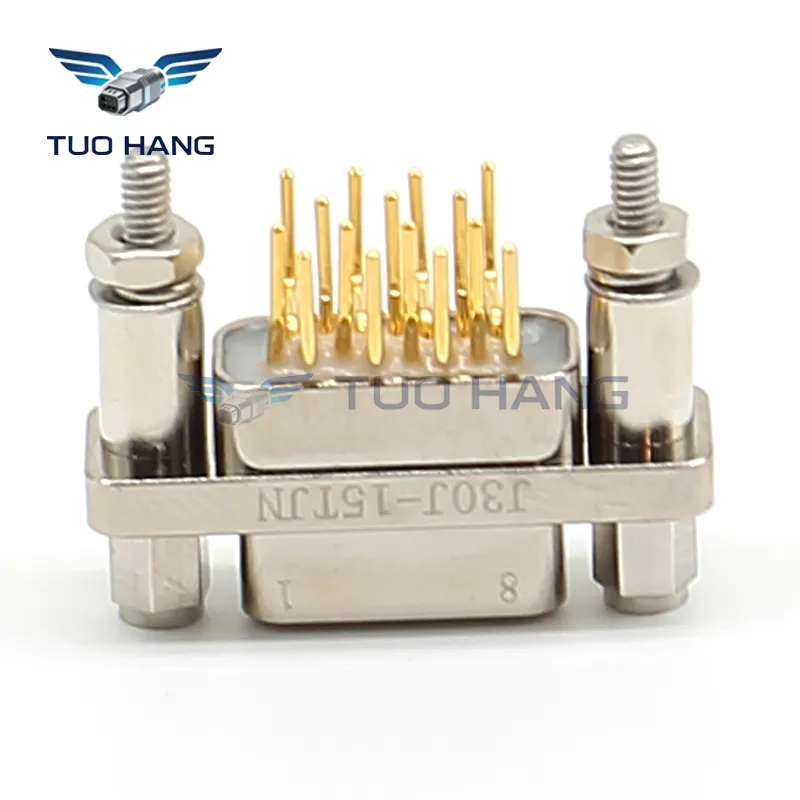

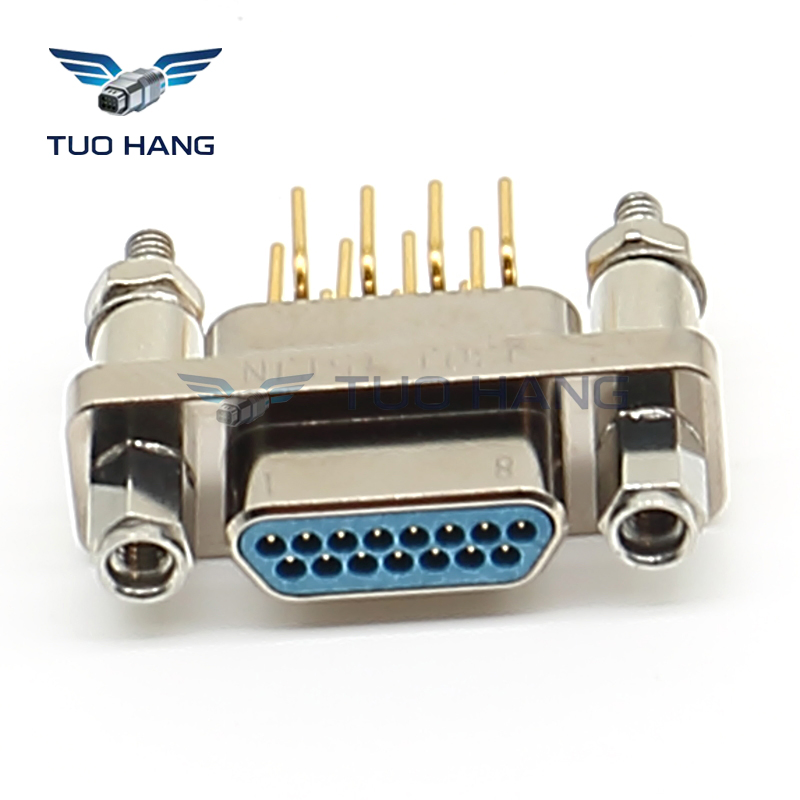

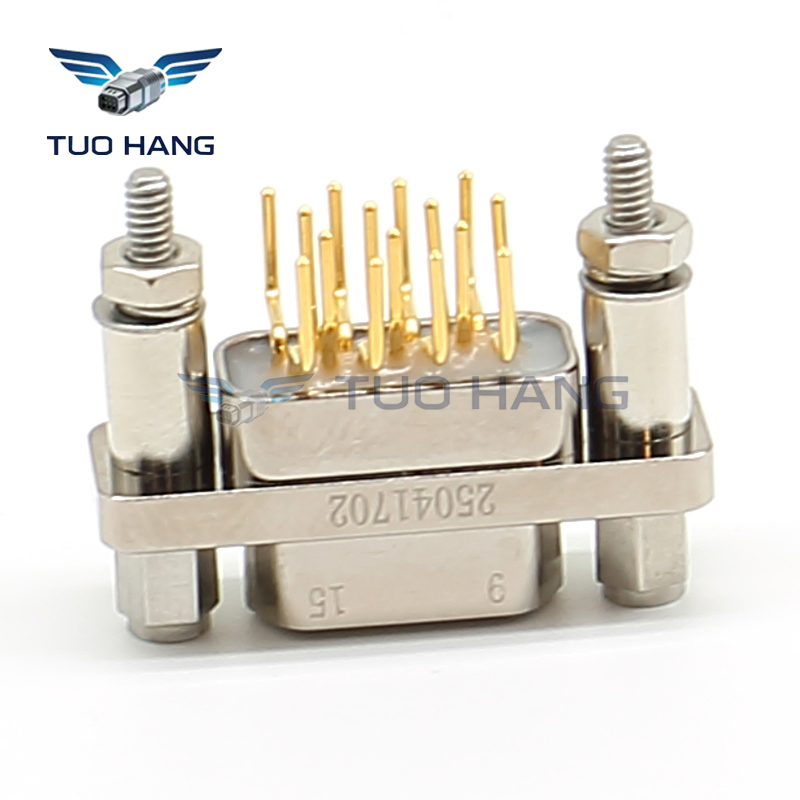

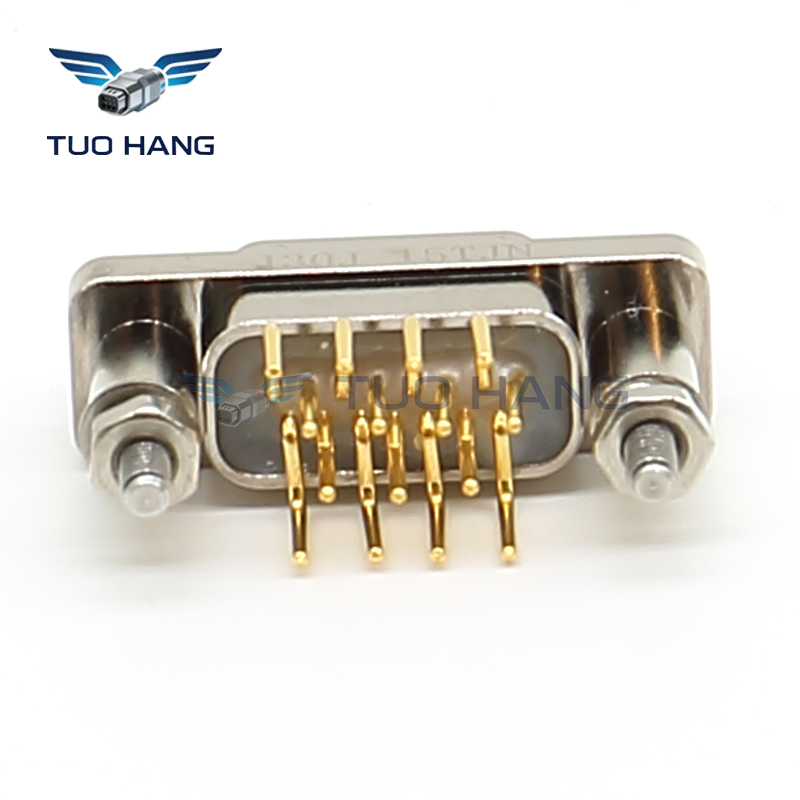

The J30J-15TJN is a high-density, micro-miniature rectangular connector designed for critical signal transmission in space-constrained environments. Fully compliant with the GJB2446A standard (equivalent to the U.S. MIL-DTL-83513 Micro-D series), it features a 1.27mm pitch and a robust 15-pin configuration.
The "TJN" designation indicates a Plug (T) with Straight PCB Termination (JN), making it ideal for direct board-level integration where reliability and compact size are paramount.
| Item | Specification |
| Series | J30J (Micro-D) |
| Contact Quantity | 15 Pins |
| Contact Type | T — Plug (Pin) |
| Termination Style | JN — Straight PCB Mount |
| Rated Current | 3.0 A |
| Contact Resistance | ≤ 10 mΩ |
| Insulation Resistance | ≥ 5000 MΩ (at 500V DC) |
| Durability | 500 Mating Cycles |
| Vibration | 10 Hz ~ 2000 Hz, 196 m/s² |
| Shock | 735 m/s², 11 ms |
