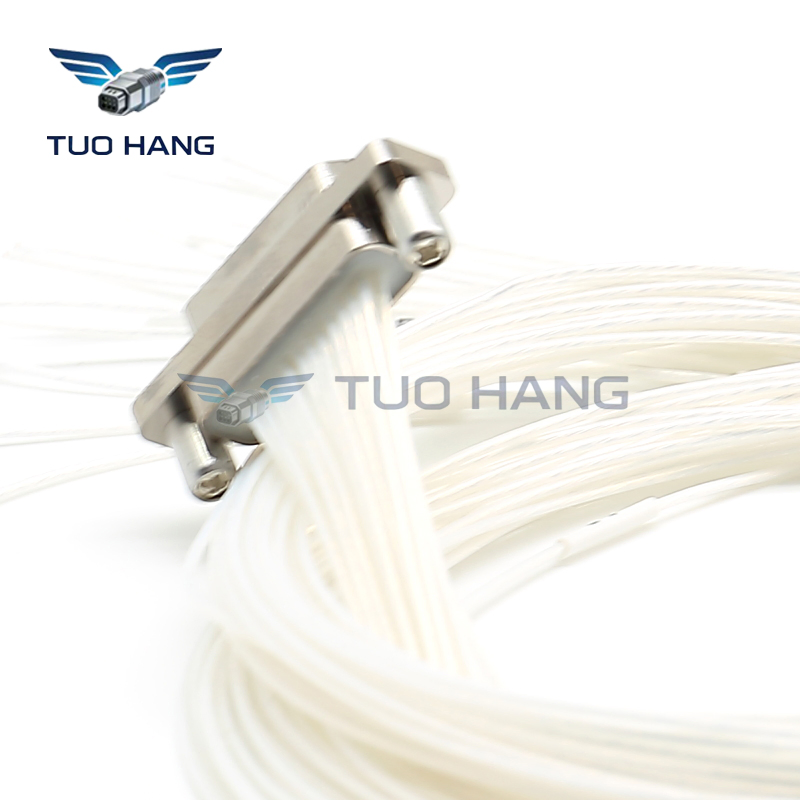

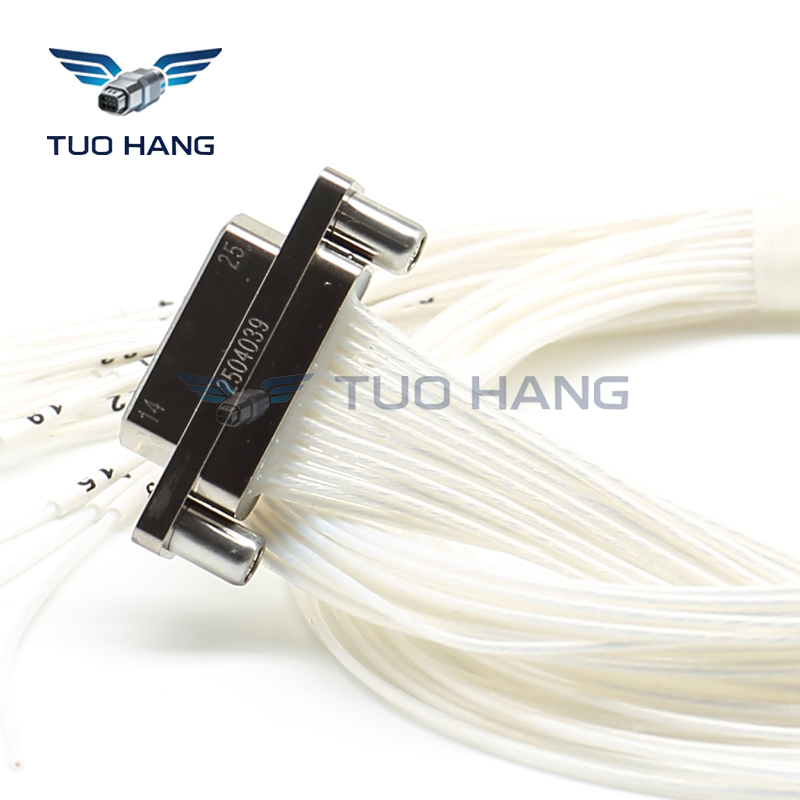

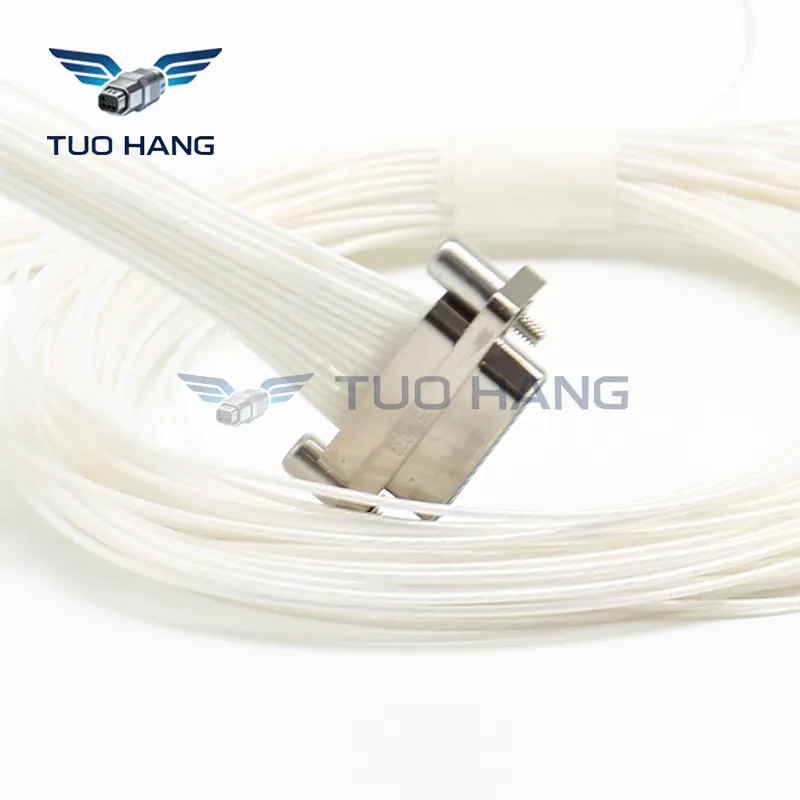

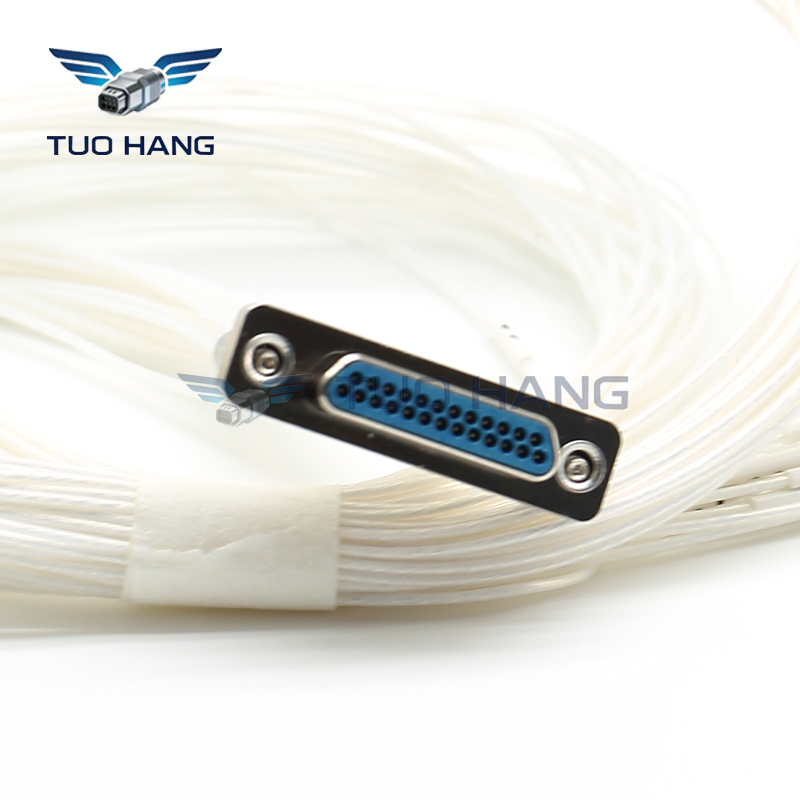

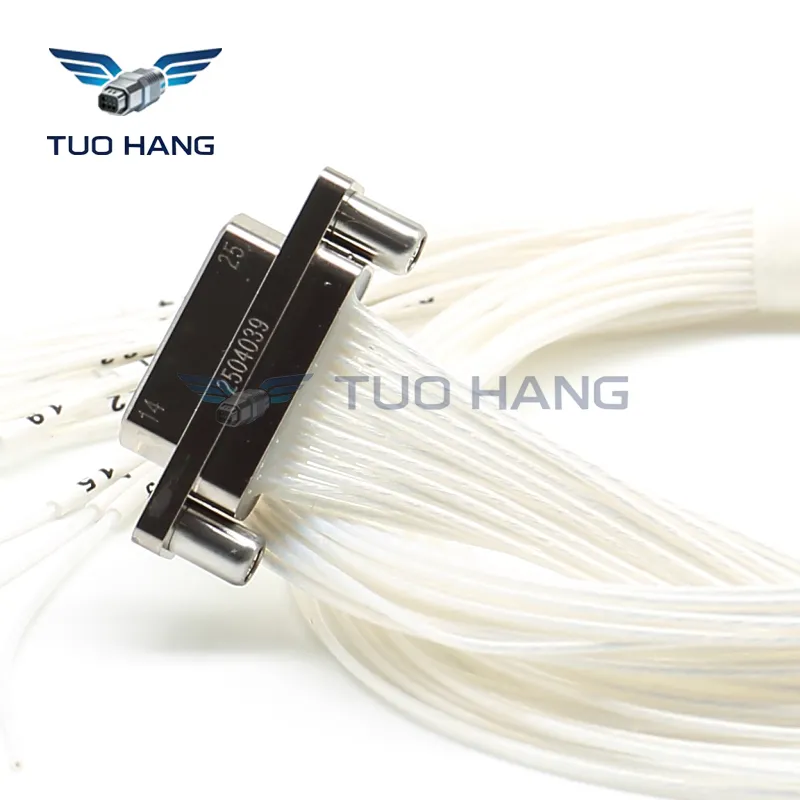

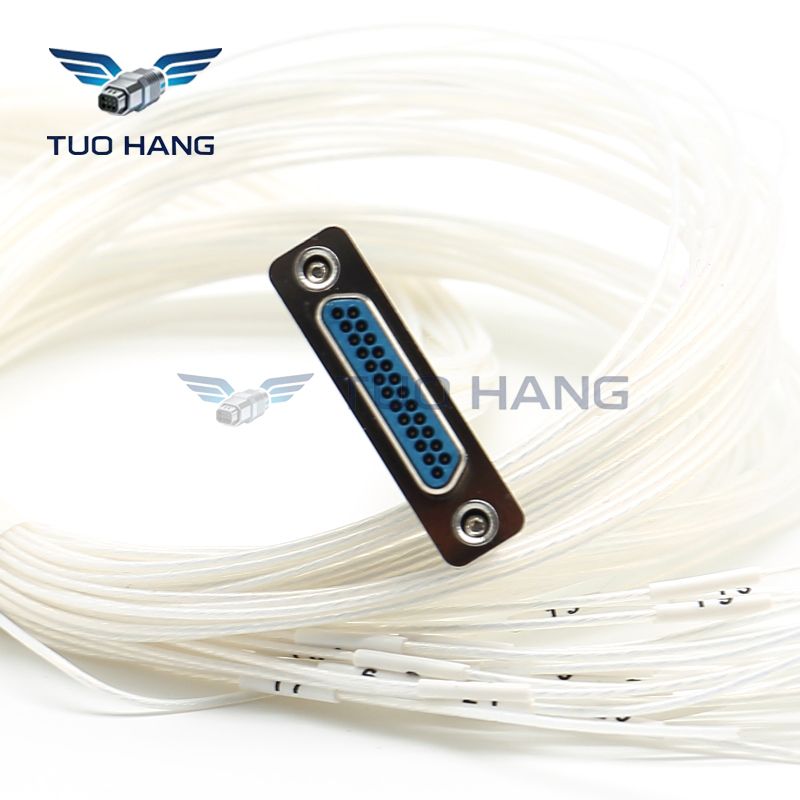

J30J-25TJL Micro-D Connector: The J30J-25TJL is a microminiature rectangular plug featuring 25 contacts in a dual-row arrangement. It utilizes the industry-standard Twist Pin contact system, which provides multiple points of electrical contact to ensure signal continuity even under extreme vibration and shock.
| Plug Type | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| J30J-9TJ | 19.6 | 14.3 | 7.6 |
| J30J-15TJ | 23.5 | 18.2 | 7.6 |
| J30J-25TJ | 29.8 | 24.5 | 7.6 |
| J30J-37TJ | 37.4 | 32.2 | 7.6 |
| J30J-51TJ | 36.4 | 30.86 | 8.7 |
| J30J-100TJ | 54.7 | 45.7 | 9.7 |

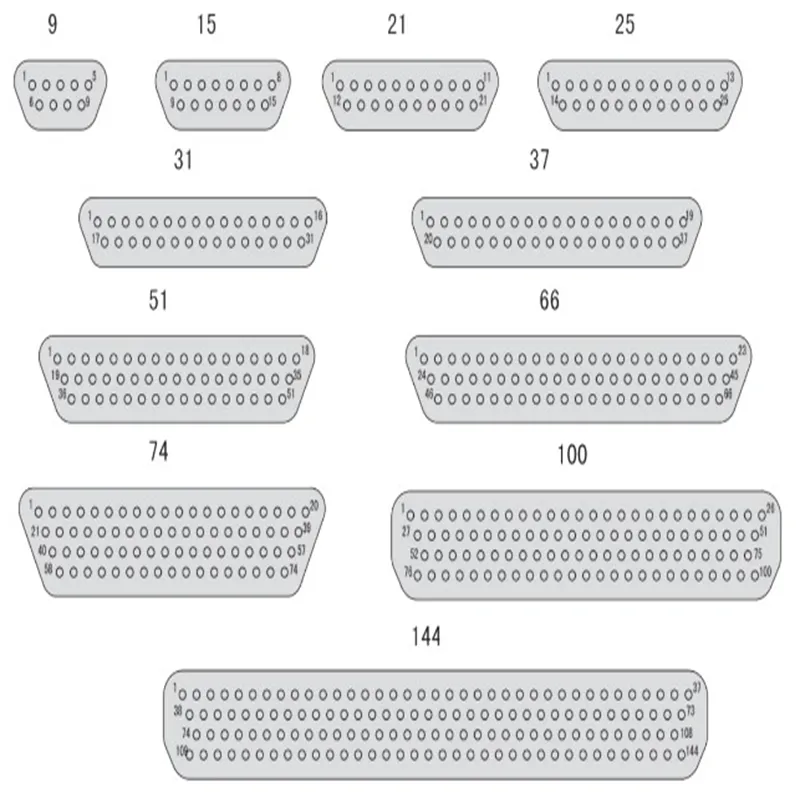

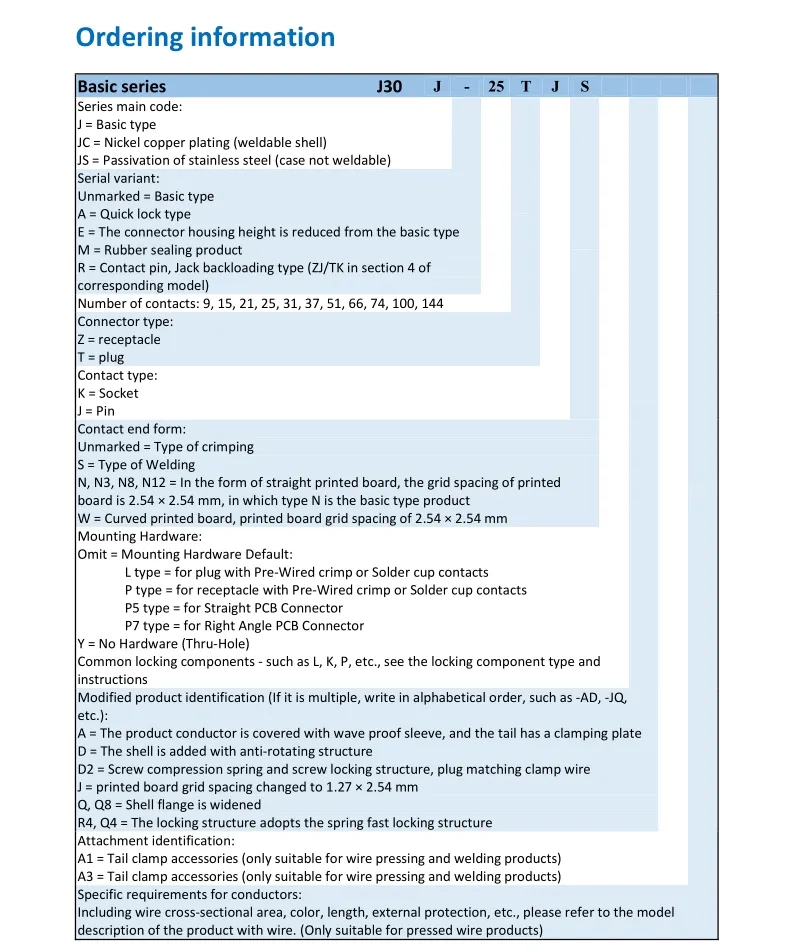

| Code | Segment | Description |
|---|---|---|
| J30J | Series | Microminiature Rectangular (MIL-DTL-83513 equivalent) |
| 25 | Contacts | 25-pin dual-row configuration |
| T | Type | Plug (Male housing) |
| J | Gender | Pin (Male "Twist Pin" contacts) |
| L | Termination | Solder Cup (Designed for wire attachment) |
Materials:
Common Applications:
Due to the ultra-fine 1.27mm pitch, high-precision soldering is required. Recommended wire: 26 AWG to 30 AWG with thin-wall insulation (PTFE/Teflon). Heat-shrink tubing on every terminal is essential to prevent electrical shorts.
