Product Description

Basic Information
Model NO.
J30J-9ZKWP7-J
Application
PCB, Power, Audio & Video, Automotive
Interface Type
AC/DC
Operating Frequency
Low Frequency
Gender
Male
Poles
9
Housings
Metal
Contact Finish
Gold
Temperature Rating
-55°C ~ +125°C
Contact Resistance
≤ 10 MΩ
Dielectric Voltage
800 V
Endurance
500 Cycle
Micro-D Connector Overview
Product Description

J30J-9ZKWP7-J Micro-D Connector | 9-Pin Mil Grade Receptacle

The J30J-9ZKWP7-J is an ultra-miniature, high-density rectangular connector designed for elite mil and aerospace applications. It is fully compliant with the GJB2446A standard (equivalent to the U.S. MIL-DTL-83513).

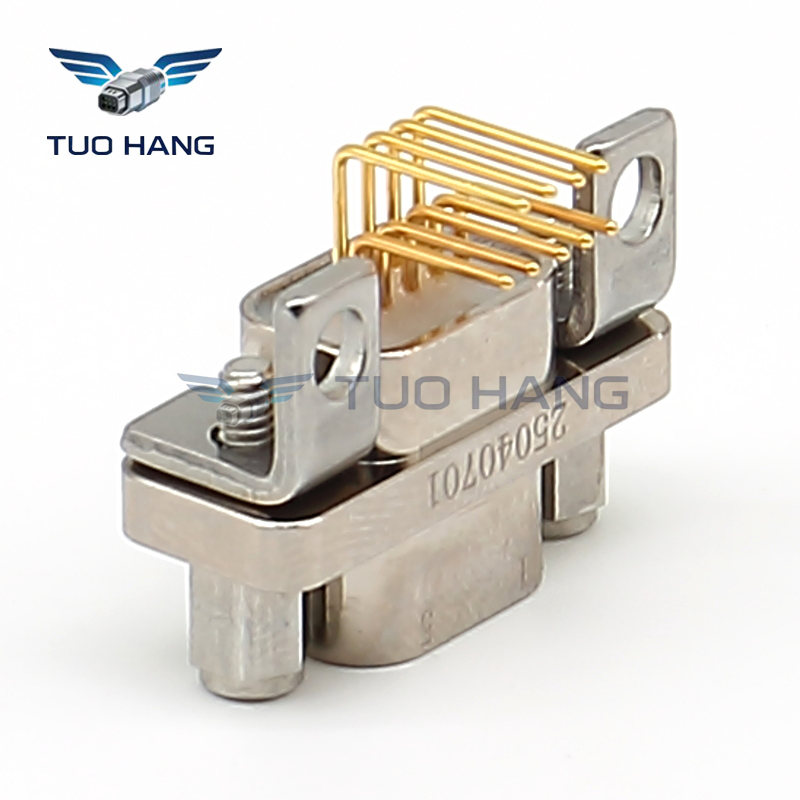

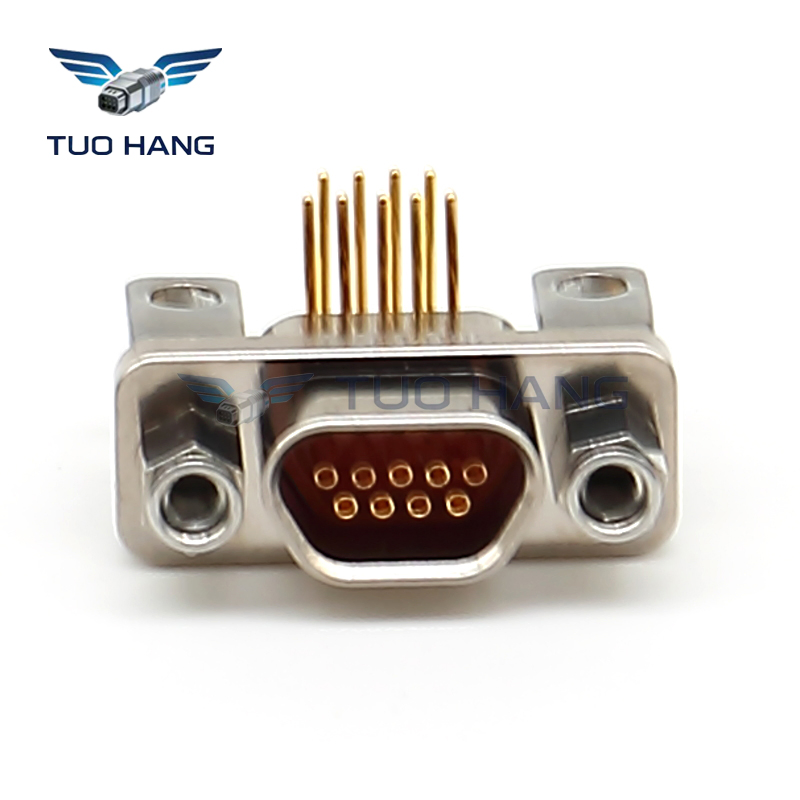

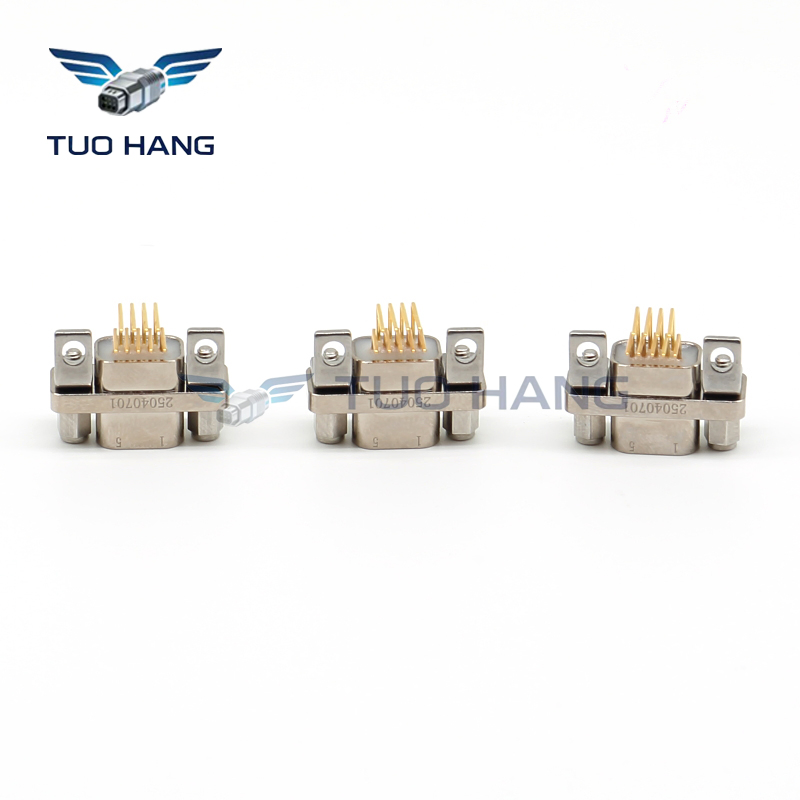

Product View 1

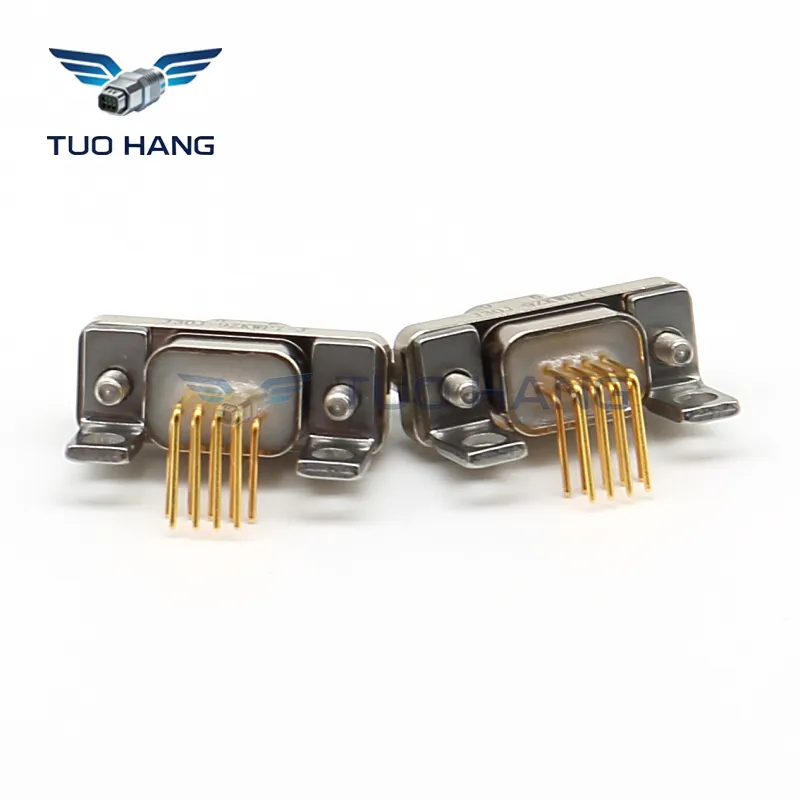

Product View 2

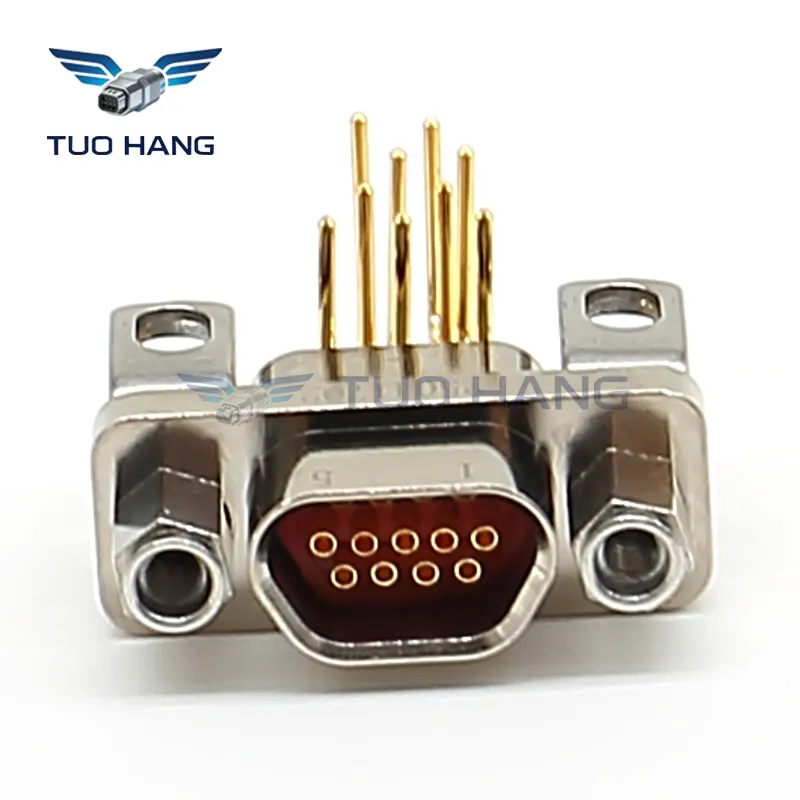

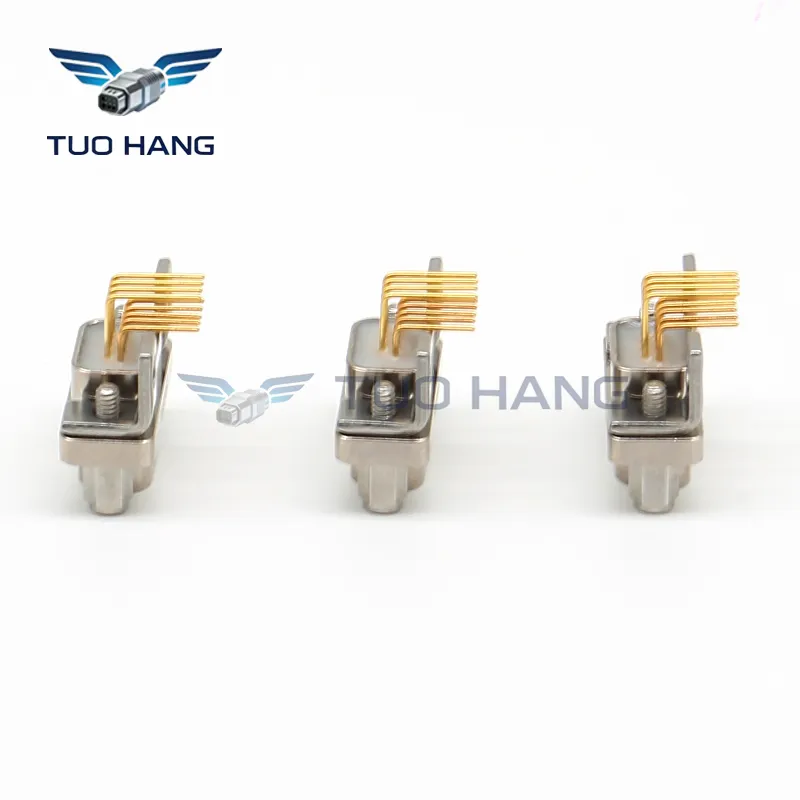

Product View 3
ItemSpecification
Product SeriesJ30J (Micro-D)
Contact Count9 Pins
TypeReceptacle (Socket)
TerminationKW (Wire Leads / Pigtail)
Rated Current3.0 A
Insulation Resistance≥ 5000 MΩ
Key Highlights
✓
Mil Quality Grade (J): Manufactured and screened to meet rigorous mil standards for long-term reliability and traceability.
✓
Precision Twist Pin System: Employs a high-reliability twist pin contact system that ensures 7 points of contact.
✓
Compact & Lightweight: Featuring a 1.27mm (0.050") pitch, offering significant weight and space savings.
✓
Advanced Material Science: Utilizing Beryllium Copper contacts and high-temperature insulators (LCP/PPS).
Technical Detail

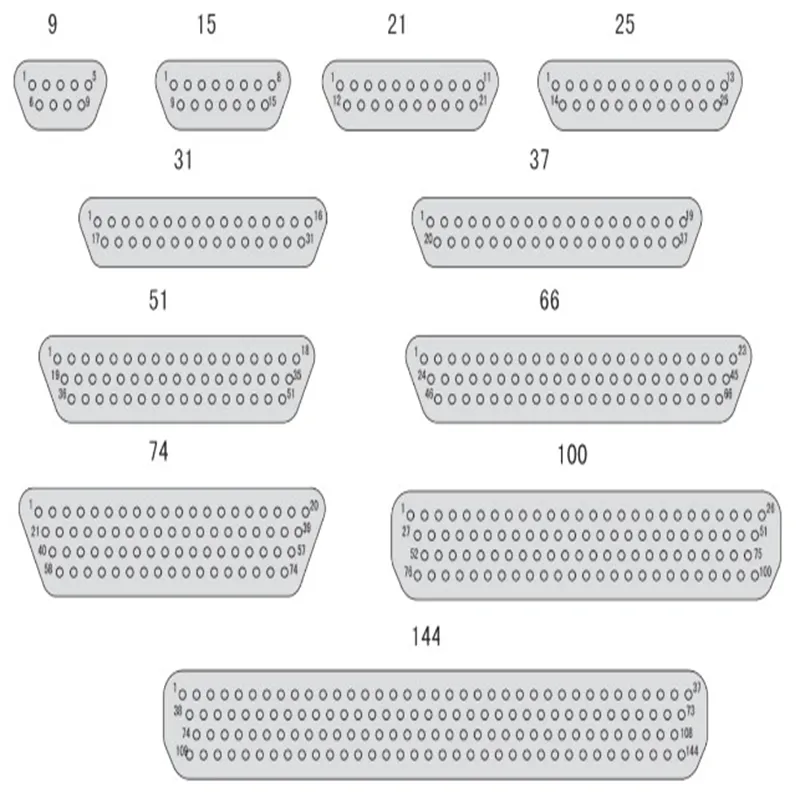

Internal Structure
Applications
1
Defense Systems: Missile guidance and tactical communication.
2
Aerospace: Satellite instrumentation and cockpit avionics.
3
UAV & Marine: Miniature flight controllers and sensors.
4
Industrial: Downhole drilling and medical robotics.
Capabilities & Production

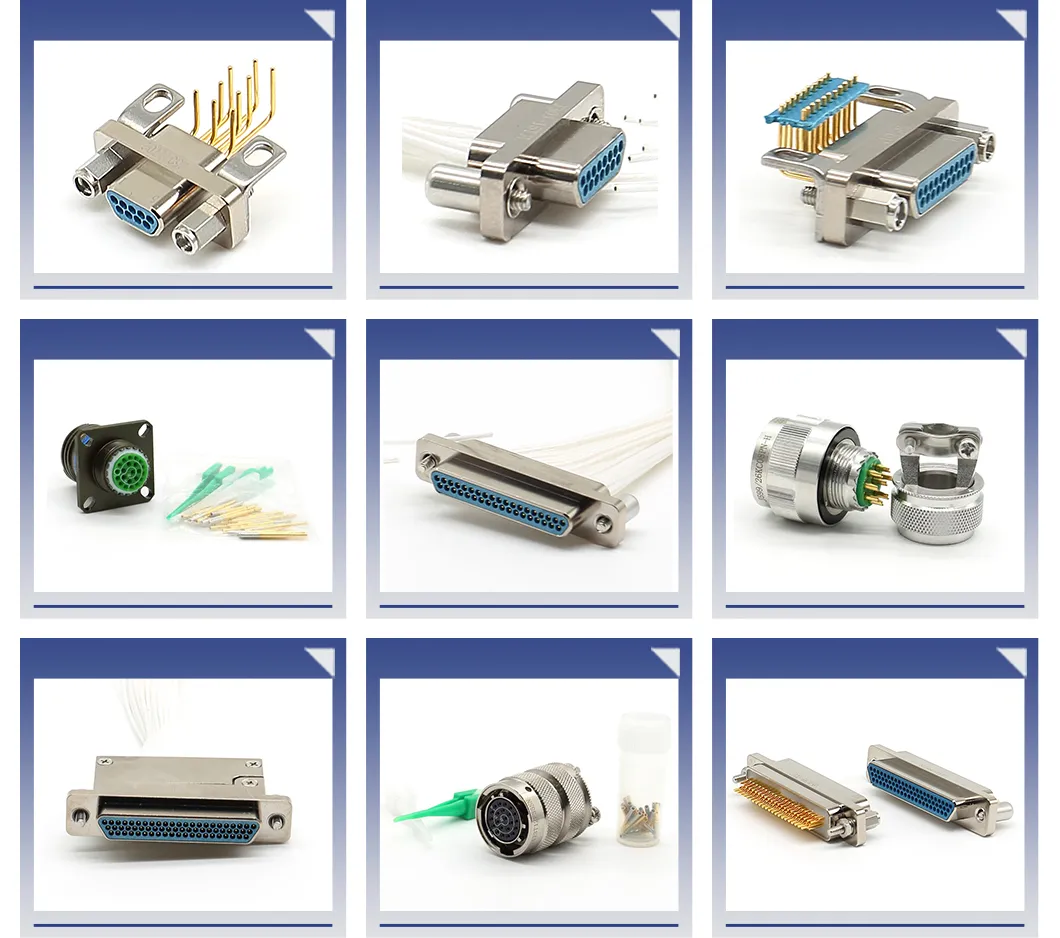

Main Products
Production Facility

Our production specialized in the research, development and production of electrical connectors. The main products include various series circular and rectangular connectors which meet the national mil standards GJB101, GJB598, GJB2889, GJB2905, with more than 1000 specifications.

Laboratory
Advantages
Certifications & Shipping
Certifications
Packaging
Frequently Asked Questions
Q: Are you a factory or trade company?
A: We are a manufacturer of connectors and cables with extensive industry experience.
Q: What products can I purchase from you?
A: We offer Rectangular connectors, PCB Connectors, Circular Connectors, and RF Connectors.
Q: What are your main advantages?
A: Superior Quality, Fast Delivery, Competitive Prices, and Standardized Warehouse Logistics.
Q: Do you provide free samples?
A: We can provide a small number of free samples, though the freight cost is covered by the customer.
Q: What is the standard leading time for orders?
A: In-stock items ship within 3-5 working days. For other orders, it depends on the specific quantity required.
Q: What payment methods are supported?
A: We accept T/T, PayPal, Western Union, and payments in CNY.
