Multi-function Industry Application Drone Platform

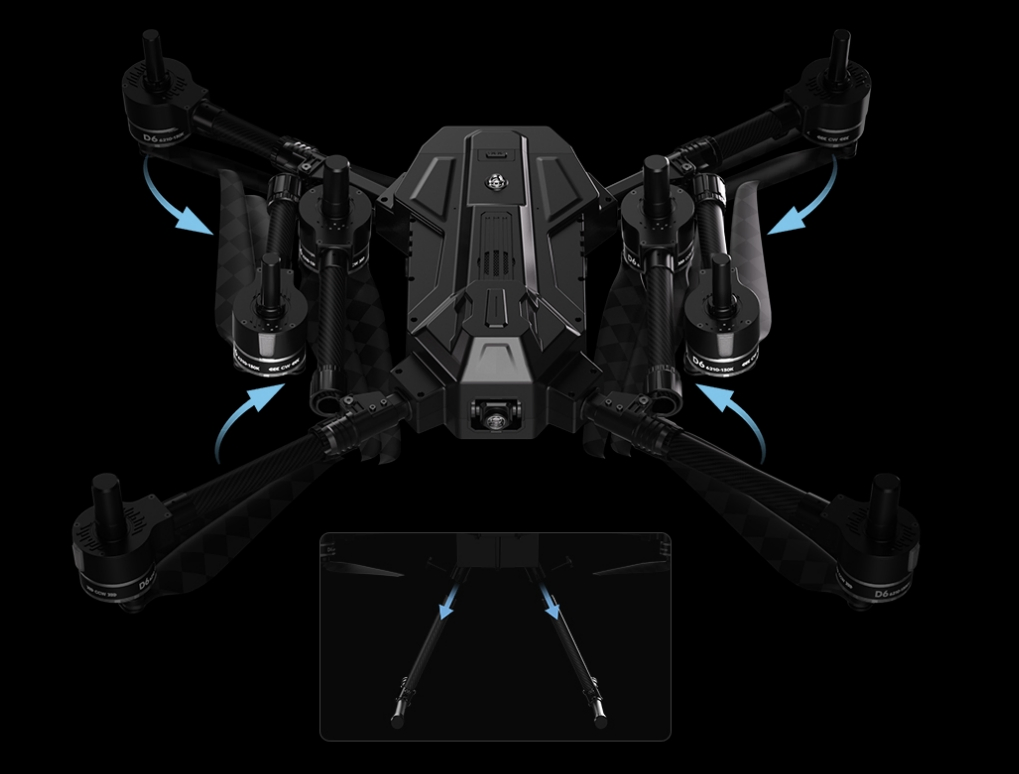

The HF101P-C UAV is a multifunctional industry application UAS designed for security, search and rescue, and inspection application scenarios. The whole fuselage is made of high-strength engineering plastics and aerospace aluminum, providing a functional modular flight platform with horizontally folding arms and a quick-detachable tripod.

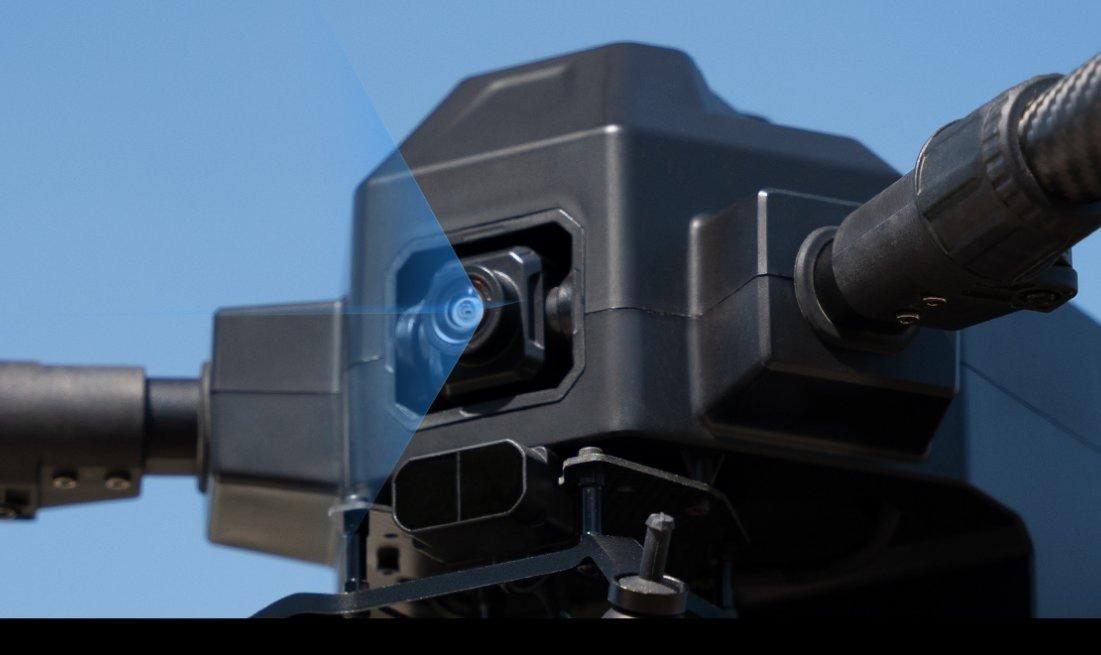

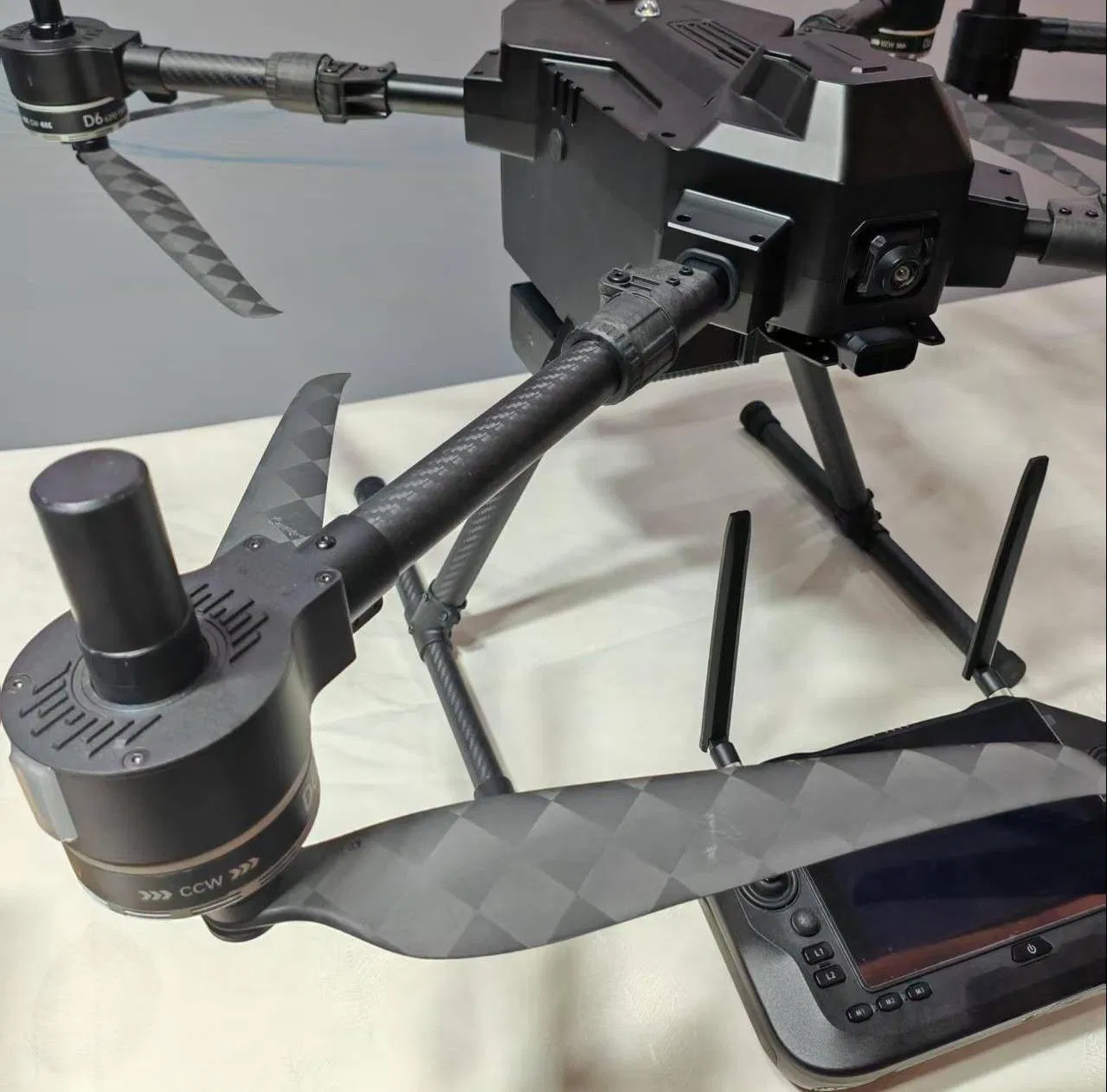

Features include dual IMU redundant flight control, forward LIDAR obstacle avoidance, and a 4K HD FPV flight camera. The handheld ground station features a 7-inch 1080P high-brightness touchscreen display, integrated 2.4G/5G dual-frequency, and a transmission range of up to 35KM.
Key Configurations
It uses high reliability dual IMU Redundancy design and multi-frequency link system. The fuselage is constructed from engineering plastics and carbon fiber materials. The system is IPX4 waterproof, ensuring efficiency in rainy conditions. A built-in RTK module enables centimeter-level positioning, while the Identification Module provides real-time detection of surrounding aircraft.
Advanced Capabilities
Intelligent Function:
Built-in AI algorithms allow the drone to track and follow target objects automatically (requires AI Module and compatible gimbal).
Multi-load Capacity:

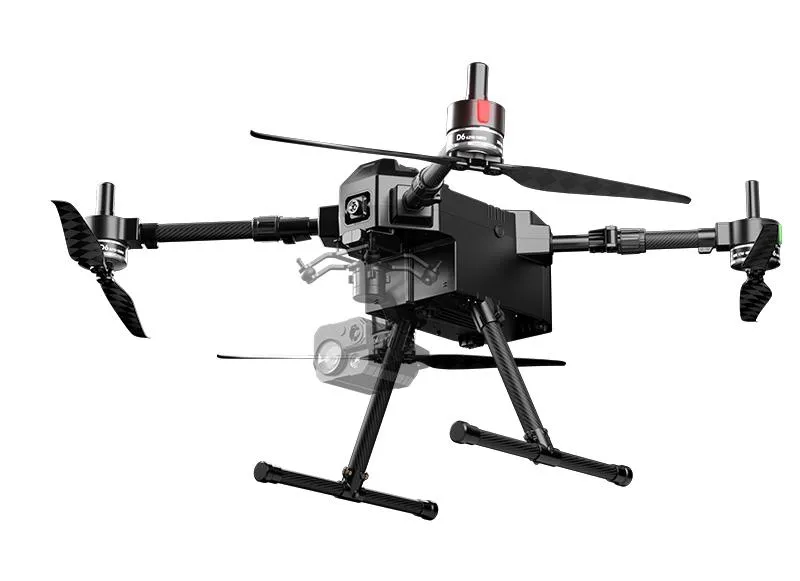

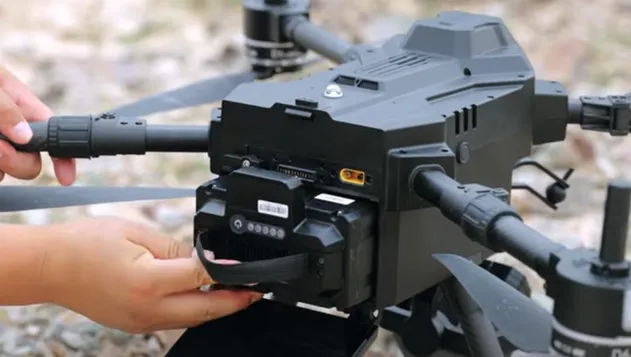

Supports combined use of front double gimbals and lower single gimbal. Equipped with multi-channel serial ports, CAN port, XT30, and XT60 power interfaces for expansion.
Technical Specifications
Body Material
Engineering plastics
Endurance
No load: 56 min; 2KG load: 43min
Wheelbase
900mm
Maximum Payload
2.1kg
Maximum Flight Speed
20m/s
Empty Weight
8.4kg (with battery)
Cruise Speed
14m/s
Max Take-off Weight
10.5KG
Frequently Asked Questions
Q1: What is the maximum flight time of the HF101P-C?
A: The drone can fly up to 60 minutes with zero payload and approximately 50 minutes with a 960g payload.
Q2: What is the effective control and transmission distance?
A: The system supports a remote control distance of 20-30km, with the ground station capable of up to 35km under optimal conditions.
Q3: Does the drone support obstacle avoidance?
A: Yes, it is equipped with forward-looking laser obstacle avoidance radar with a detection distance of up to 10 meters.
Q4: Is the HF101P-C suitable for use in bad weather?

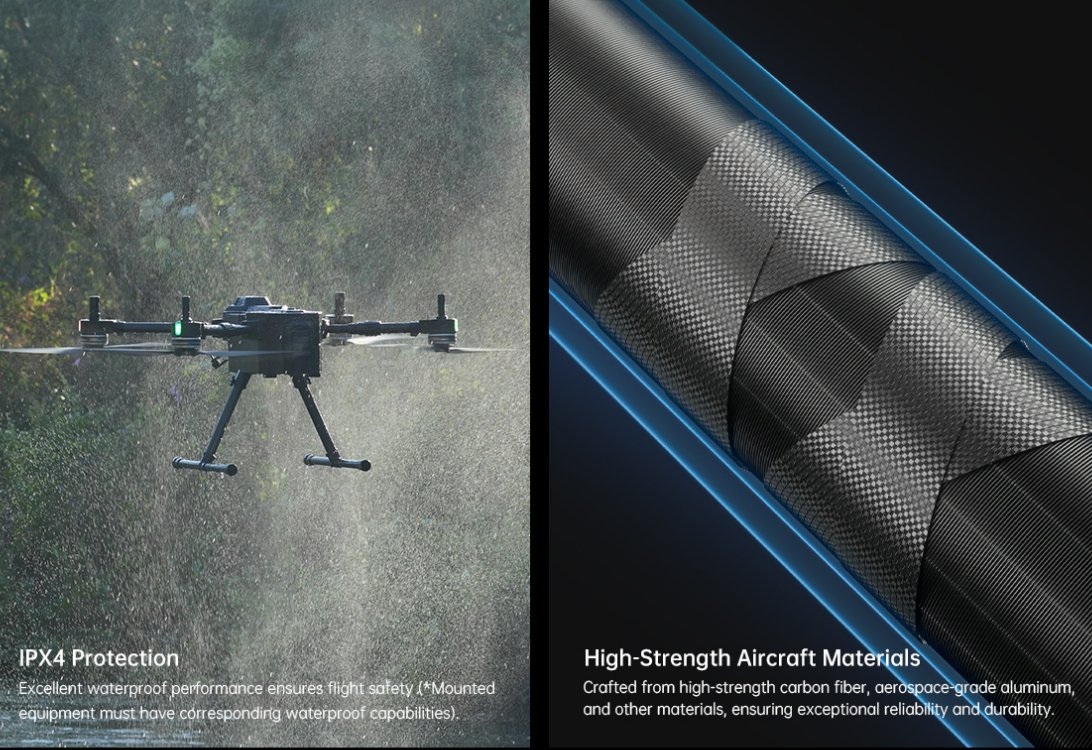

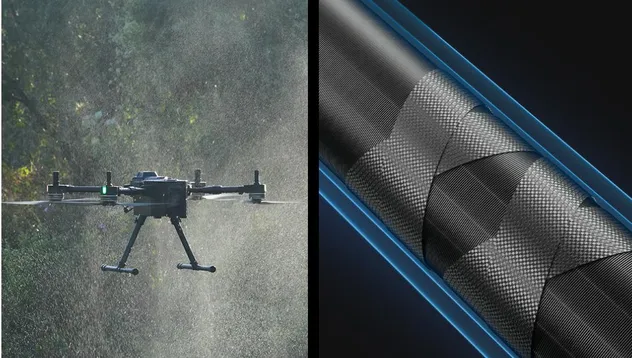

A: The fuselage reaches an IPX4 waterproof rating, allowing it to perform tasks efficiently even on rainy days.
Q5: Can this drone track moving targets?
A: Yes, with the built-in AI algorithm and the appropriate AI module/gimbal, it can track and follow target objects automatically.
Q6: What materials are used in the construction?
A: The fuselage is built using a combination of high-strength engineering plastics, carbon fiber, and aerospace-grade aluminum.
