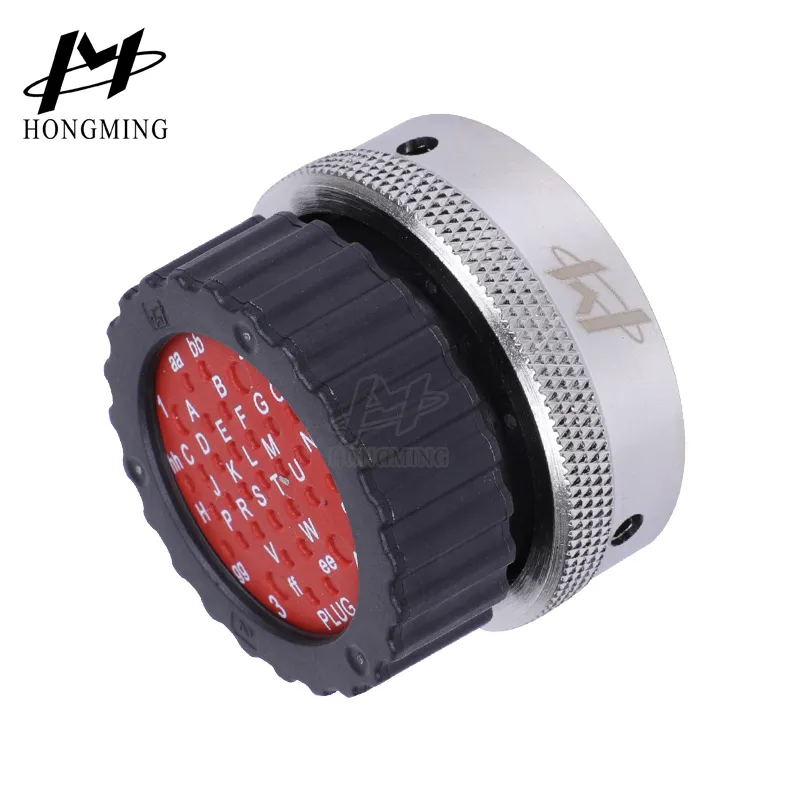

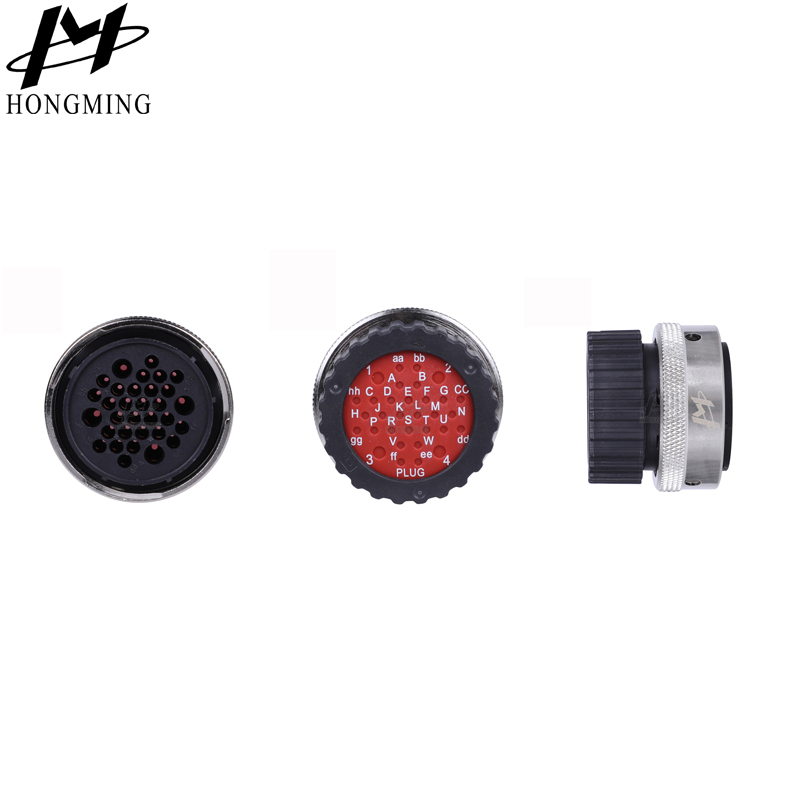

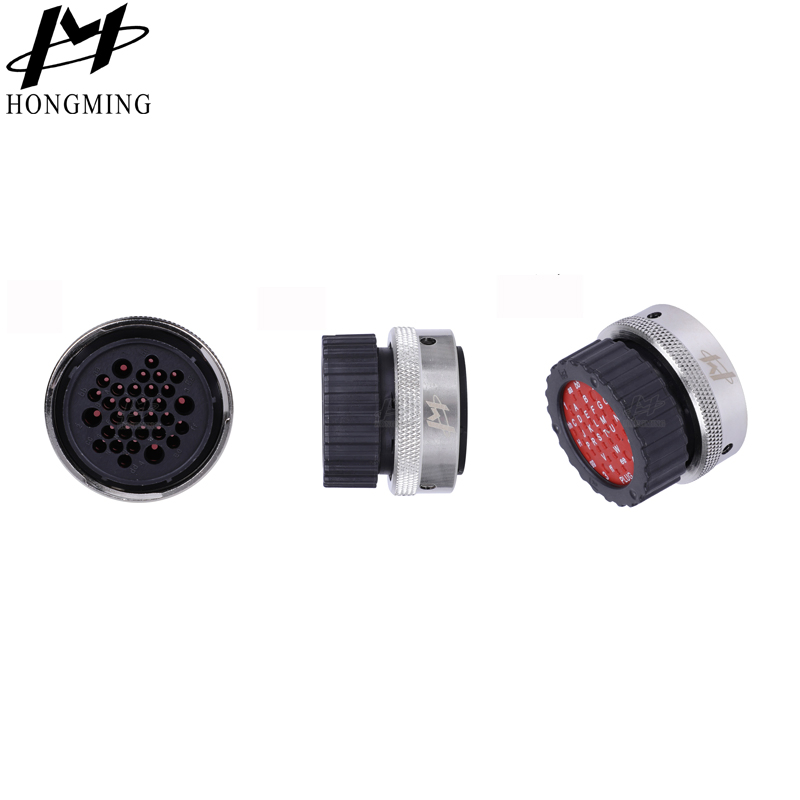

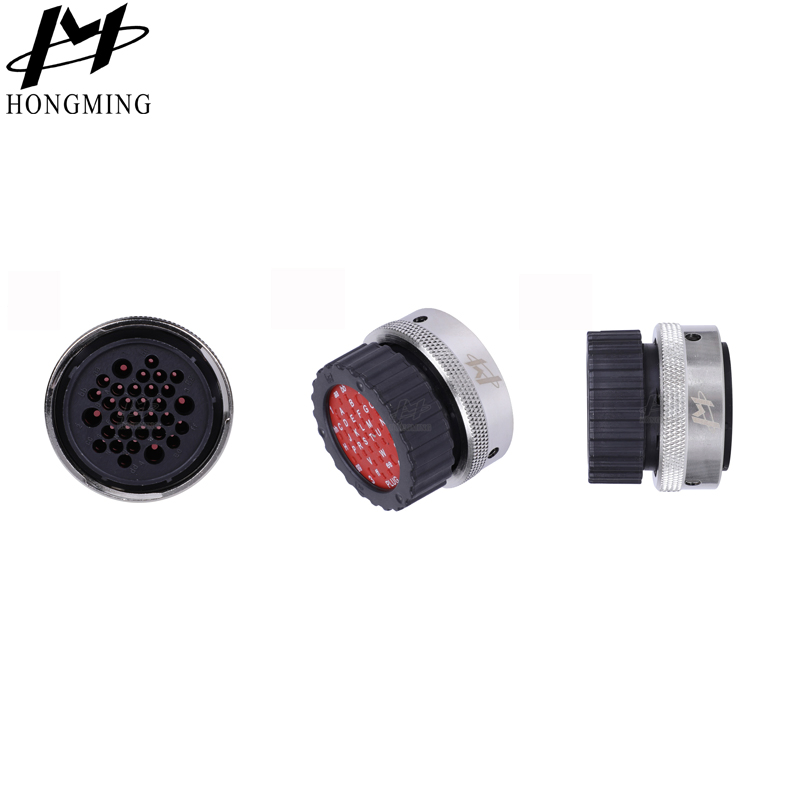

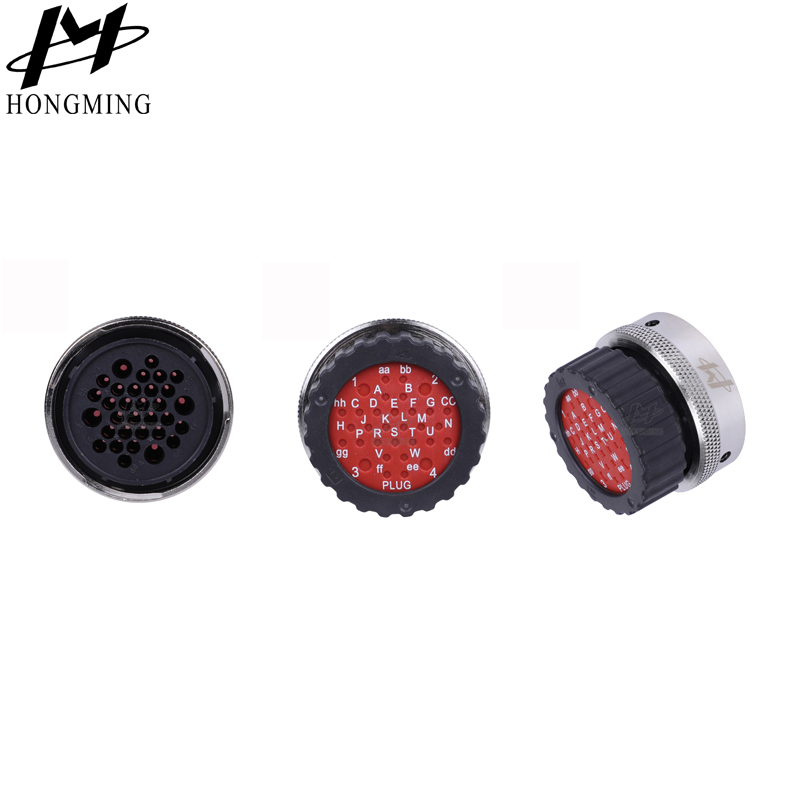

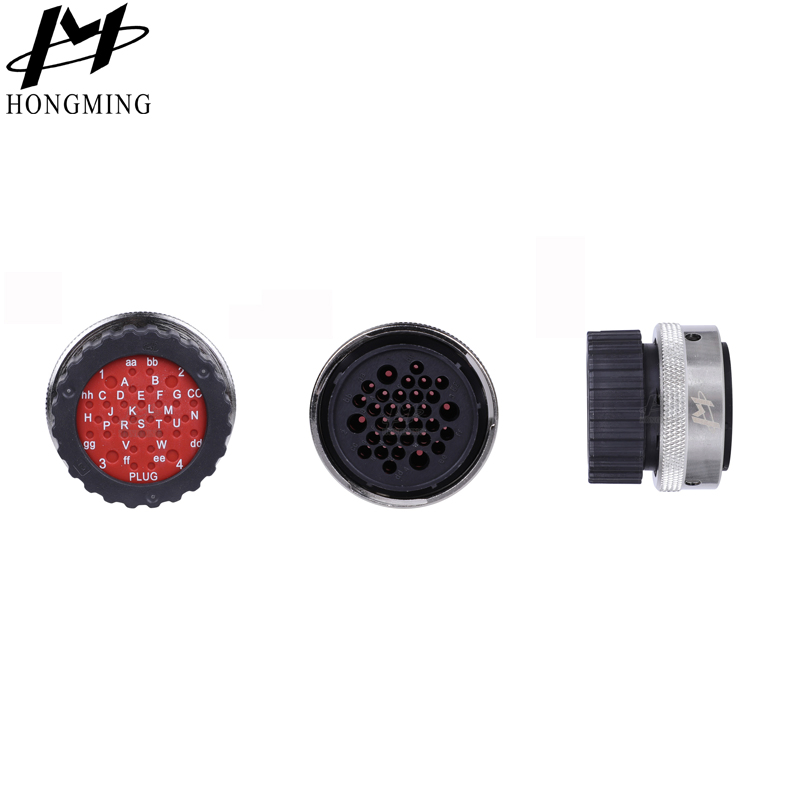

Multi-Core Thread Waterproof Bayonet Communication Power Line Data Transfer Aviation Connector

Basic Information

Model NO.

HM192900-0056

Gender

Male

Certification

CE, ISO9001

Application

Automobile

Contact Resistance

3.8mΩ

Surface Treatment

Nickel Plating

Waterproof

IP67

Durability

200 Mating Cycles

Pin Count

15pins

Flame Retardancy

UL94-V0

Product Description

The aviation connector is a high-performance, cost-effective cable to cable solution for use in harsh environment applications where reliable signal circuits are critical to operating performance.

Basic Product Information
Available Pins	4pins, 15pins, 16pins, 19pins, 31pins, 32pins, 35pins, 48pins
Housing Material	Nylon
OEM/ODM	Available
Applications	Aerospace, navigation, communications, medical, automobile, instruments, lighting, audio, feeding service motor

Technical Specifications

Operating Voltage	250V AC
Rated Current	Signal contact: 13A, 16A; Power contact: 30A
Temperature Range	-55°C to +105°C (-67°F to +221°F)
Insulation Resistance	5000mΩ @ 500V DC
Protection Degree	IP67

Key Features:

Mixed signal and 30A power contacts in one base
High reliability in harsh environments
Unleaded ROHS compliant
Corrosion resistance and easy assembly

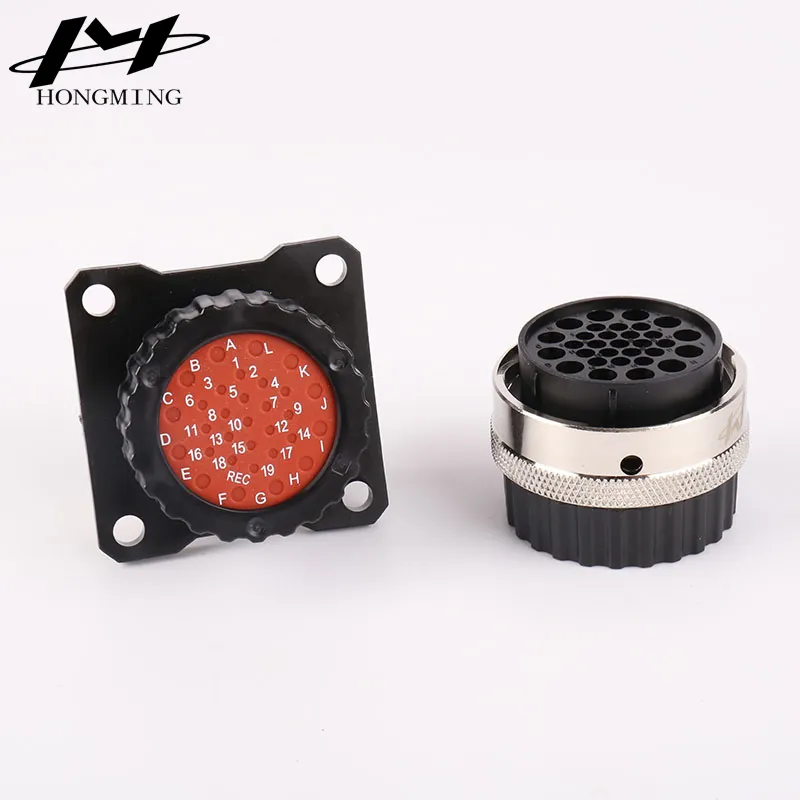

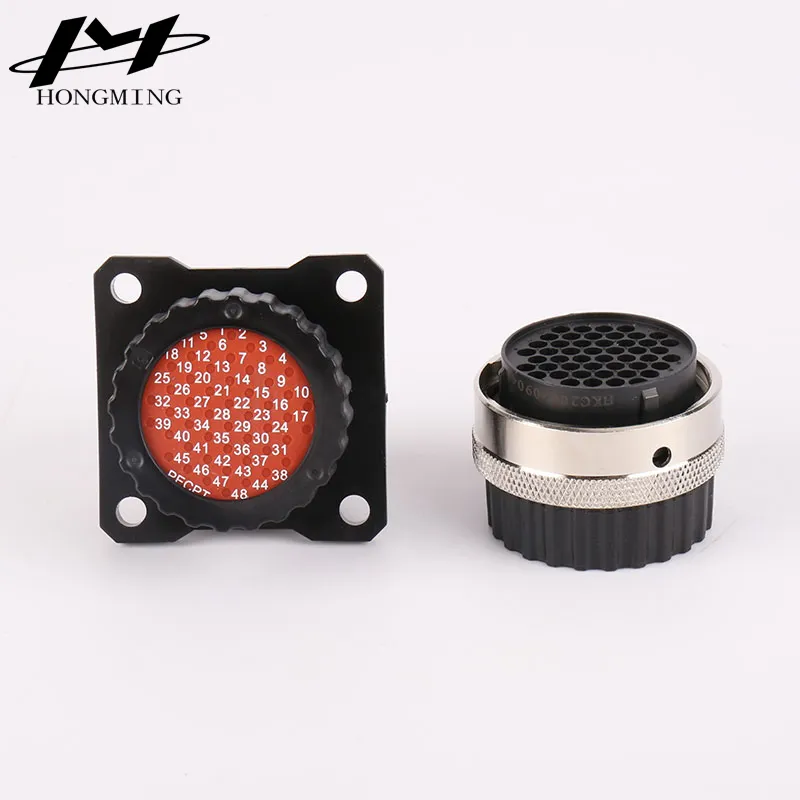

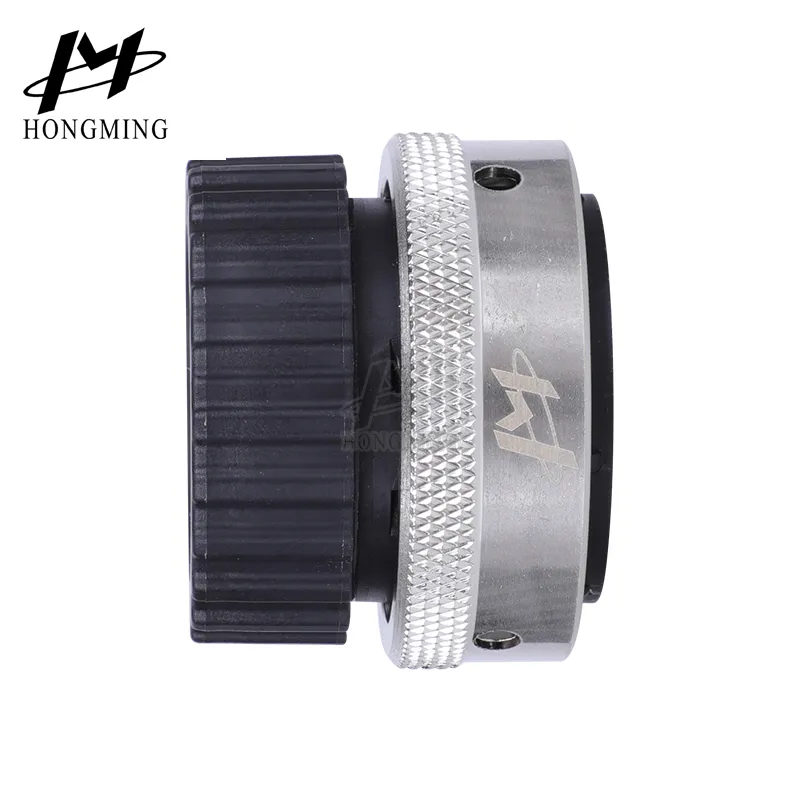

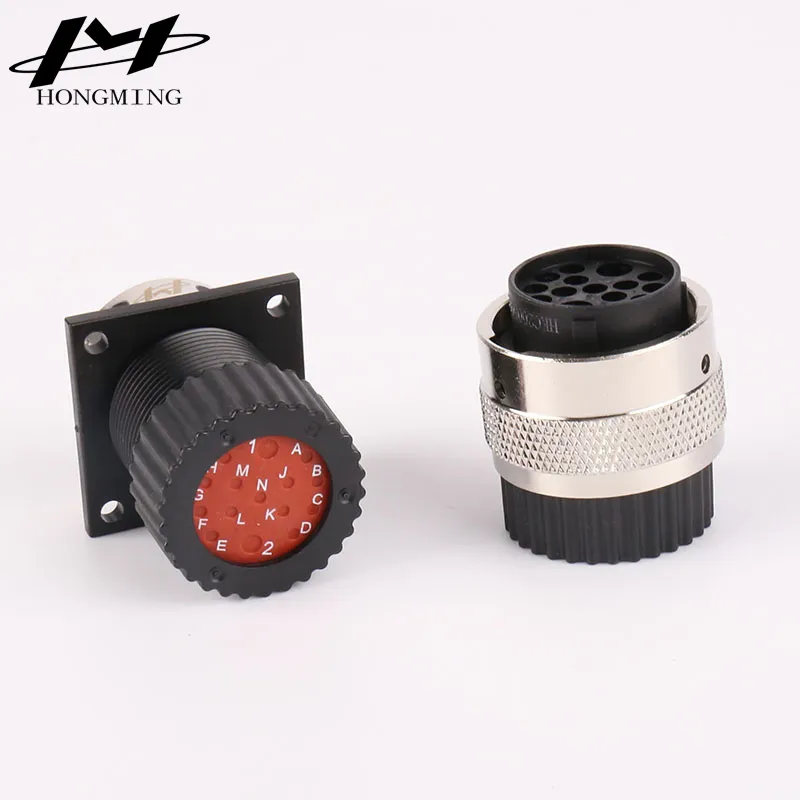

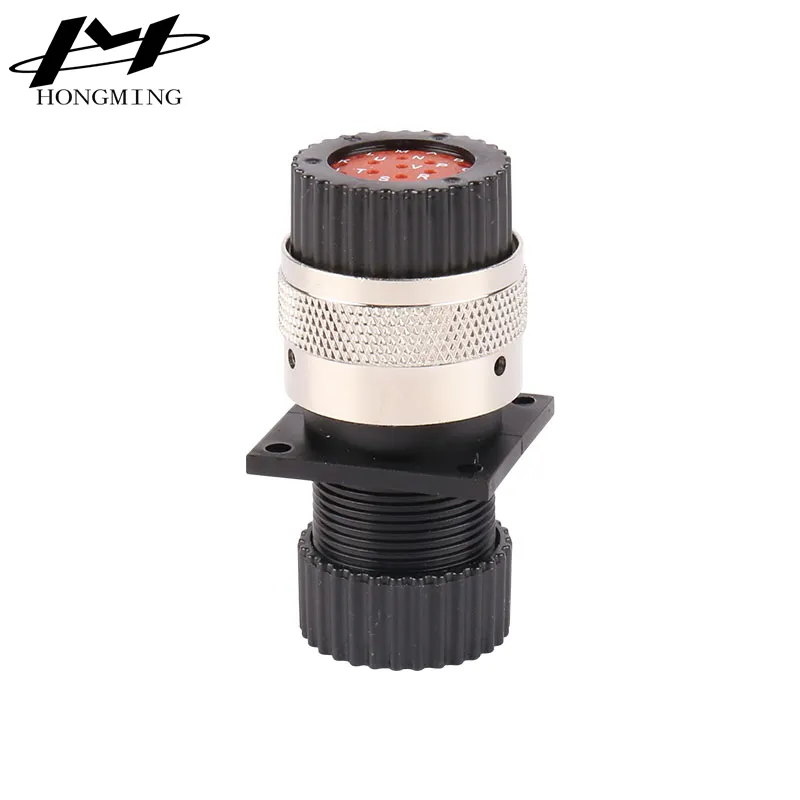

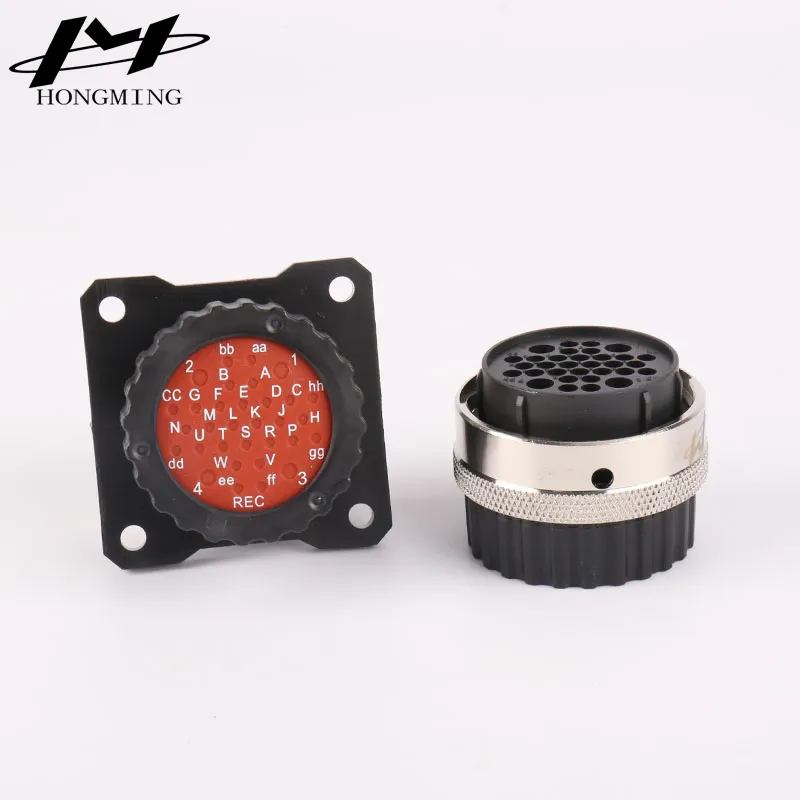

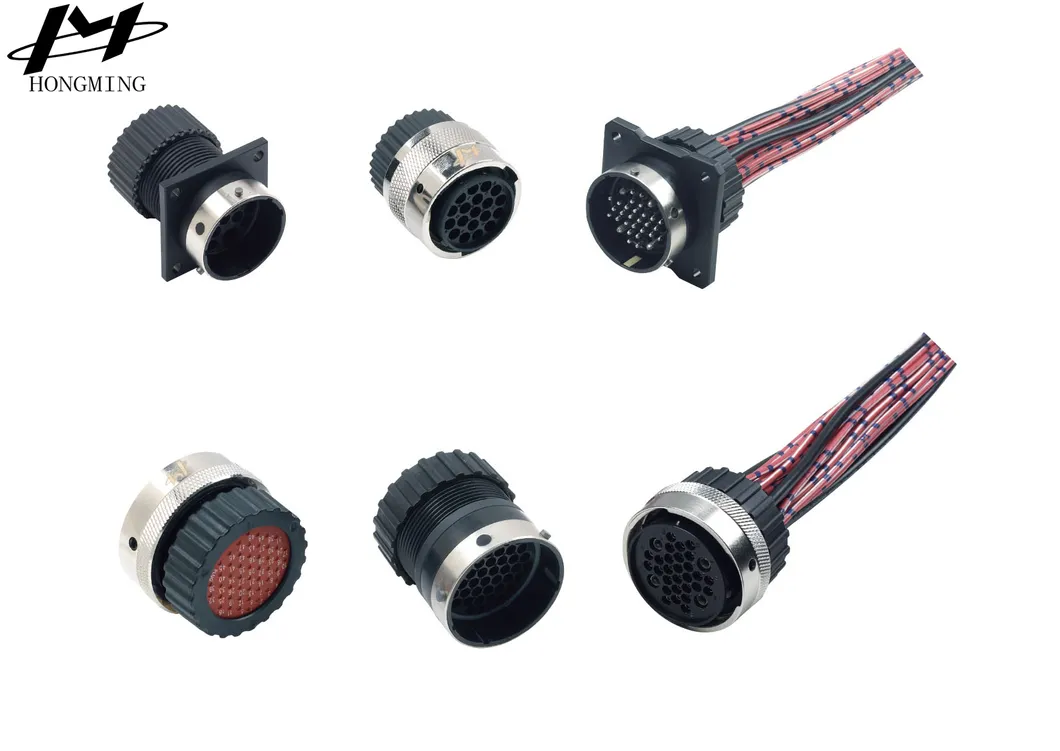

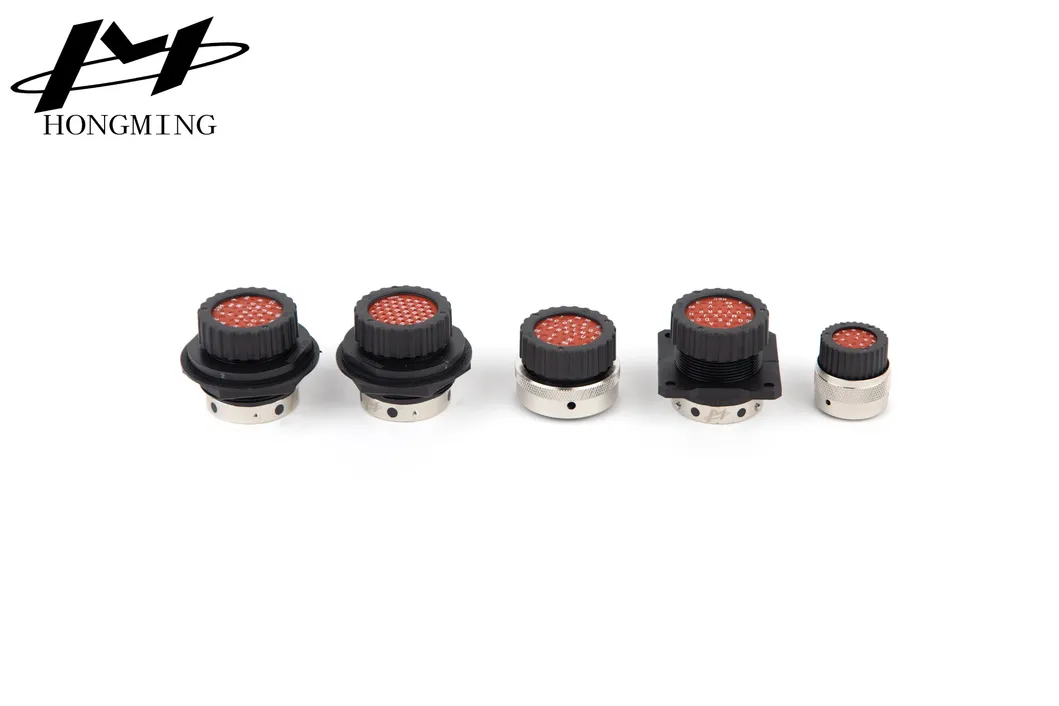

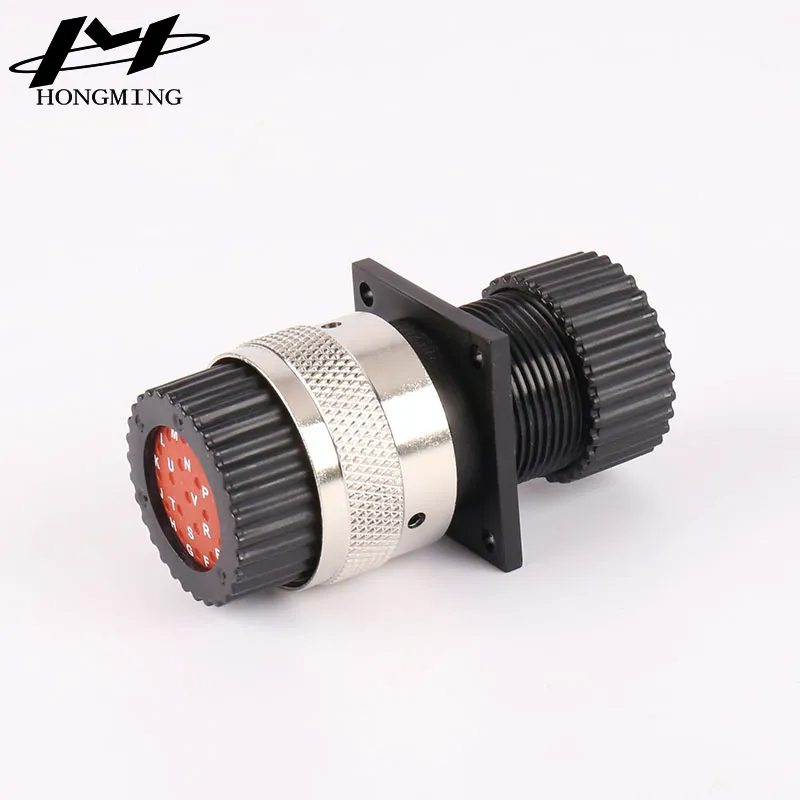

Detailed Gallery

Packaging & Logistics

Express delivery via FedEx, DHL, TNT, UPS, EMS, Aramex for samples (Door-to-Door).
Air or Sea freight for batch goods.
Customizable freight forwarder options.
Delivery Time: Within 7 days for samples; 10-15 days for batch orders.
International standard inner and master cartons, with custom design options.

Certifications

Our Advantages

Specializes in manufacturing connectors for more than 20 years.
Rich selection: Electronics, terminal, auto, aviation, and solenoid valve connectors.
ISO 9001:2008-certified factory with automated assembly lines.
Monthly production capacity up to 10,000 units.
Customization based on drawings or samples.
Dedicated R&D team releasing new items monthly.
100% inspection before shipment ensuring premium quality.

Frequently Asked Questions

Q: Can you provide samples?

A: Yes, we provide samples for testing. Most samples are free, but the customer is responsible for shipping costs.

Q: What is the delivery time?

A: It depends on the order. Usually, the lead time is within 15 days. Customized orders require negotiation.

Q: How do you handle shipping and safety?

A: Small packages are sent via Express (DHL, FedEx, UPS). Large orders are shipped by Air or Sea. We use standard export cartons and take responsibility for delivery damage.

Q: Can you produce customized products or packaging?

A: Yes. We have significant experience with customized products and can add your logo or information to the packaging as required.

Q: How is quality control managed?

A: Quality is our priority. Every step from material sourcing to delivery involves double-checks, supported by our ISO9001 certification.

Q: What kind of payments do you accept?

A: We accept T/T (Wire Transfer) and Western Union. Payments in RMB are also acceptable.
