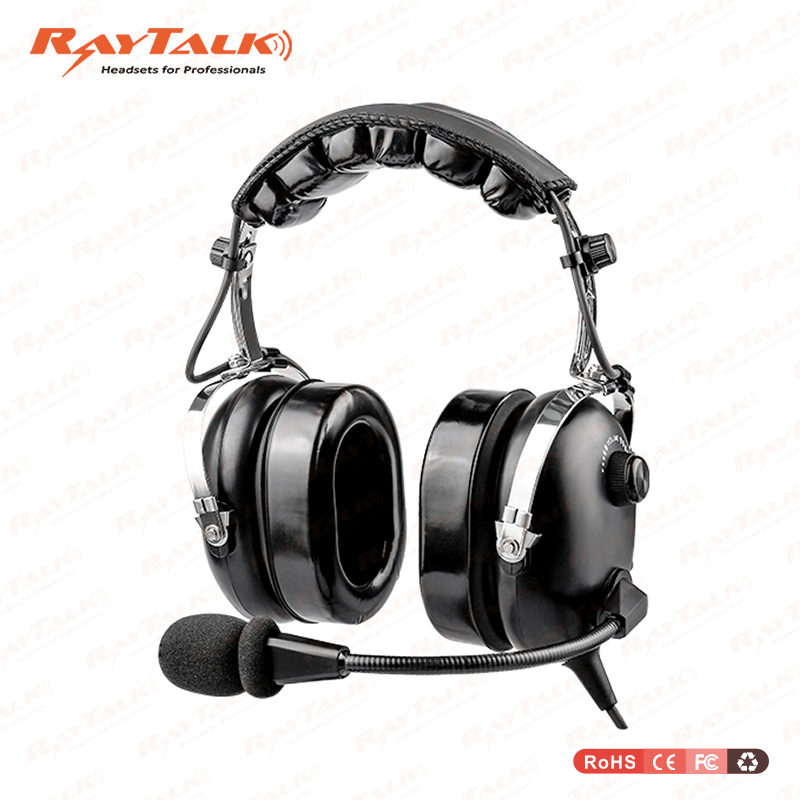

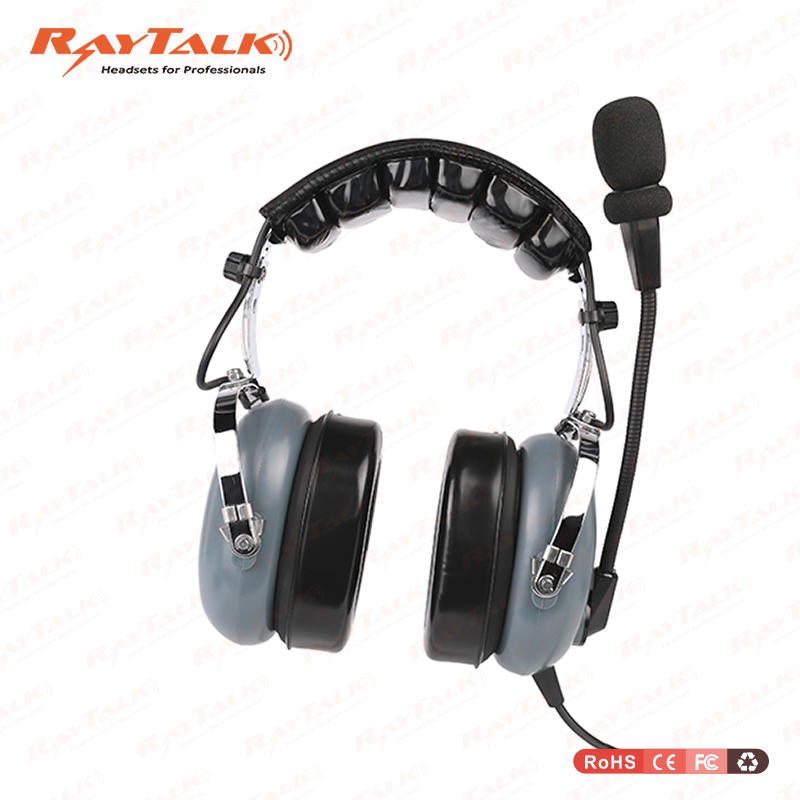

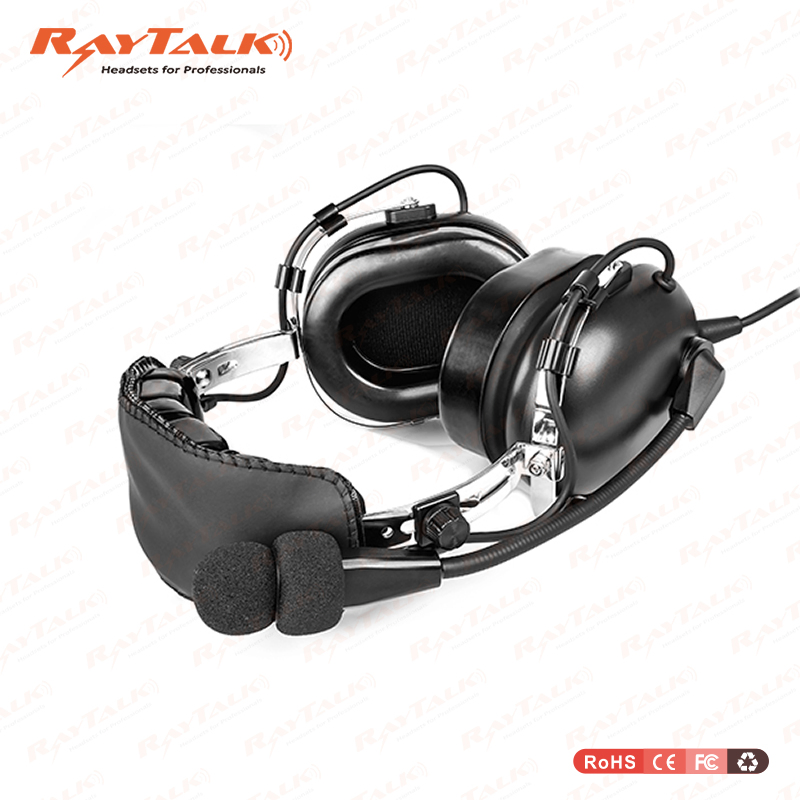

Noise Cancelling Headband Style Aviation Anr Headset with Electret Microphone

1 / 5

Noise Cancelling Headband Style Aviation Anr Headset with Electret Microphone

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📑 Basic Information

Model NO.

PH-100AC

Type

Dynamic Headphones

Usage

Aviation

Function

Microphone, Noise-Cancelling

Jack Type

6.3mm

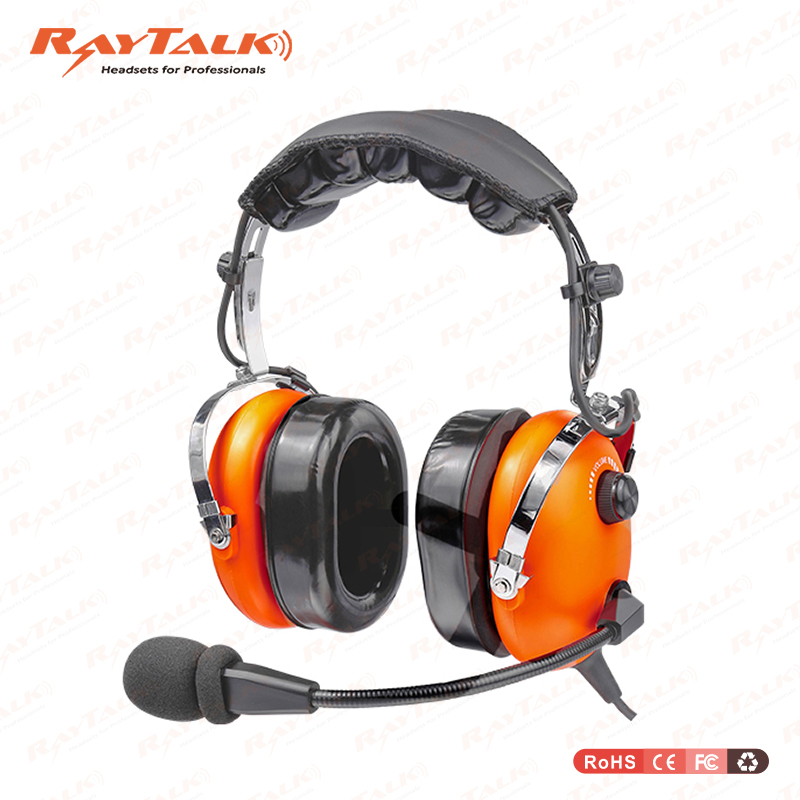

Available Colors

Red, Blue, Pink, Grey, Green, Black, Yellow

Connector

Two-Plug

Application

Airplane/Airline/Pilot/Aircraft

Warranty

12 Months

Microphone

Flexible Boom Microphone

Ear Seal

Foam / Gel Ear Seal

Noise Cancelling

Passive NRR: 24 dB Rating

OEM Produce

Available

Style

Headband

HS Code

85183010

Capacity

1000PCS/Week

🎧 Product Overview

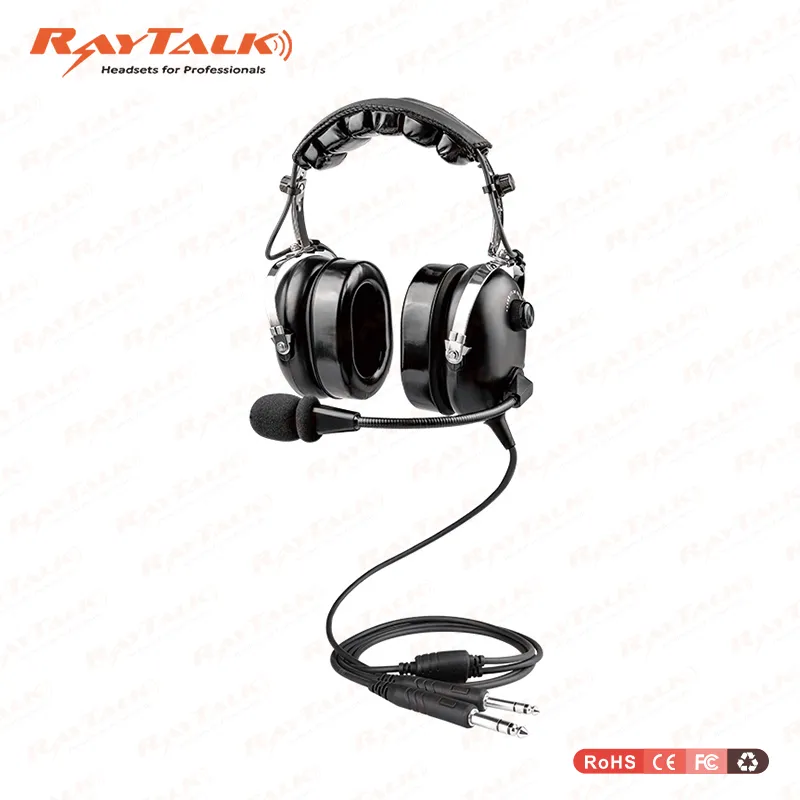

Excellent Performance Pilot ANR Aviation Headset

High-quality aviation headset featuring 6.3mm connectors in a two-pin plug configuration, designed for professional pilots and aircraft communication.

⚙️ Technical Specifications

Headphone	Type: Dynamic (F30) Frequency Response: 50 Hz to 20 kHz Sensitivity: 95+/-5 dB SPL Active Noise Attenuation: Dynamic 42 ohms Input Rate: 30mW (Max 100mW)
Microphone	Element Type: Noise-canceling electret Frequency Response: 100Hz to 5 kHz Operating Voltage: 8-32 Volts DC Matching Impedance: 150-1000 ohms Sensitivity: -33+/-4 dB
General	Operating Temperature: -20 to 70°C Cordage: Straight cord, 150CM Earphone Plug: PJ-055 (6.3mm) Microphone Plug: PJ-068 (5.2mm) Weight: 600g
Noise Reduction	NRR: 24dB Attenuation Frequency Band: 20Hz~20KHz Main Attenuation Band: 20Hz~600Hz Attenuation Capability: 18~21dB

📦 Packaging & Service

Package: One headset per carton box.

Lead Time: Within one week for samples.

Shipping: DHL, EMS, UPS support.

Warranty: 12 months quality guarantee.

Returns: 7-day exchange for original condition products.

Inspection: 100% QC inspection before shipment.

❓ Frequently Asked Questions

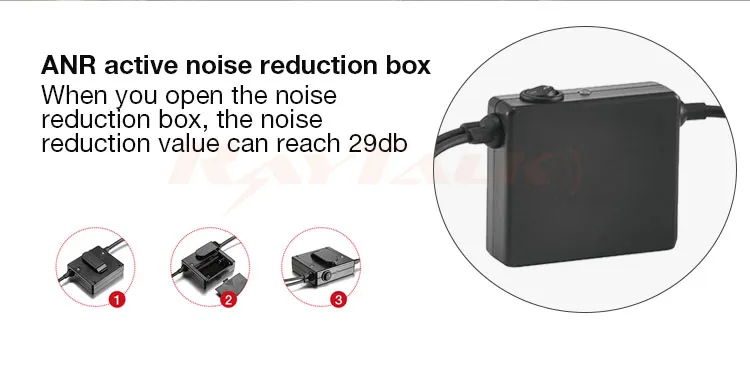

1. Does this aviation headset require batteries? Yes, the Active Noise Reduction (ANR) function is powered by a 9V battery.

2. What is the Noise Reduction Rating (NRR)? This headset provides a passive NRR of 24dB, with an additional active attenuation capability of 18~21dB.

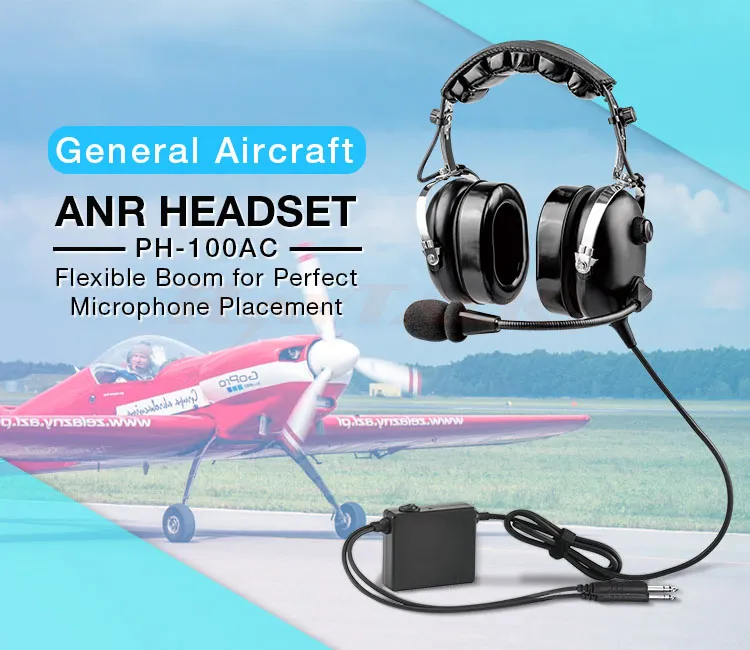

3. Is the microphone boom adjustable? Yes, it features a precision flexible boom for perfect microphone placement and a noise-canceling electret element.

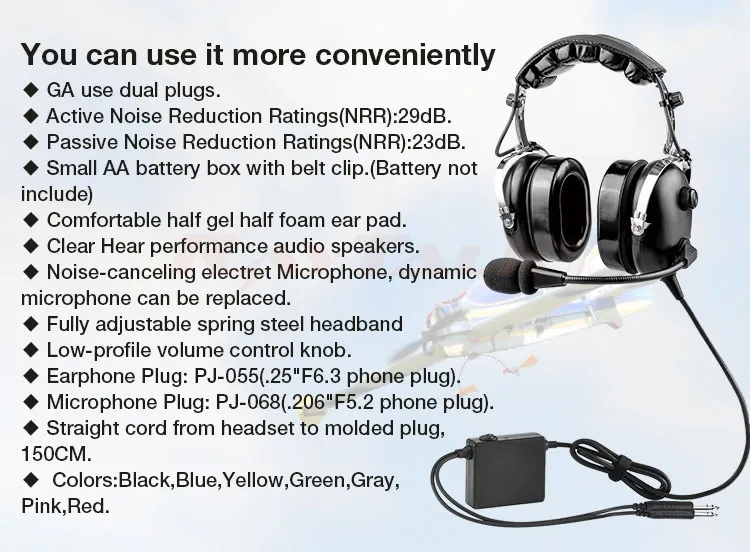

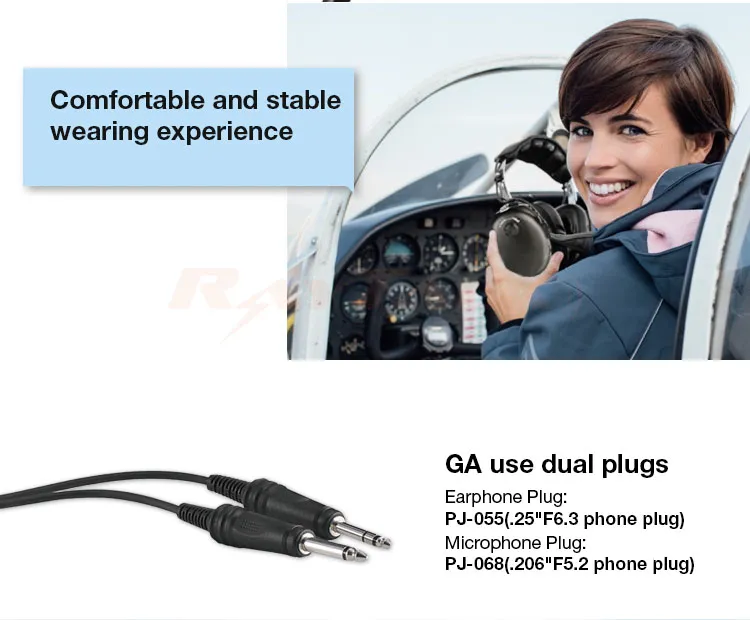

4. What type of plugs are used for connection? It uses GA Dual Plugs: a PJ-055 (0.25" / 6.3mm) earphone plug and a PJ-068 (0.206" / 5.2mm) microphone plug.

5. Are the ear seals comfortable for long flights? The headset is equipped with easy-to-wear super soft silicone gel ear seals and a double foam head pad for maximum comfort.

6. Is OEM service available for bulk orders? Yes, OEM service and custom branding are available upon request, with a standard lead time of approximately one week for samples.
