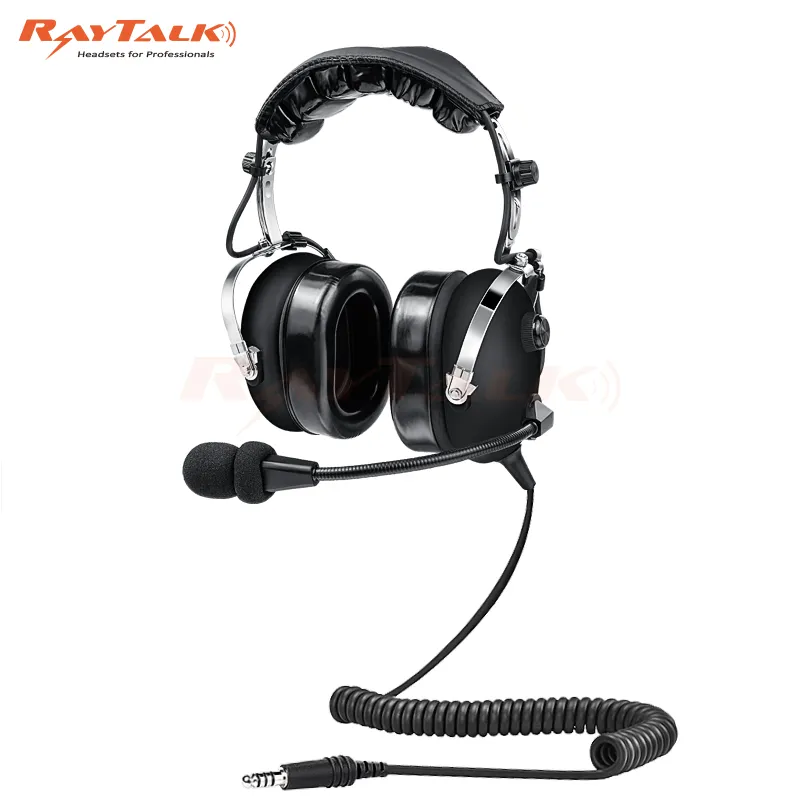

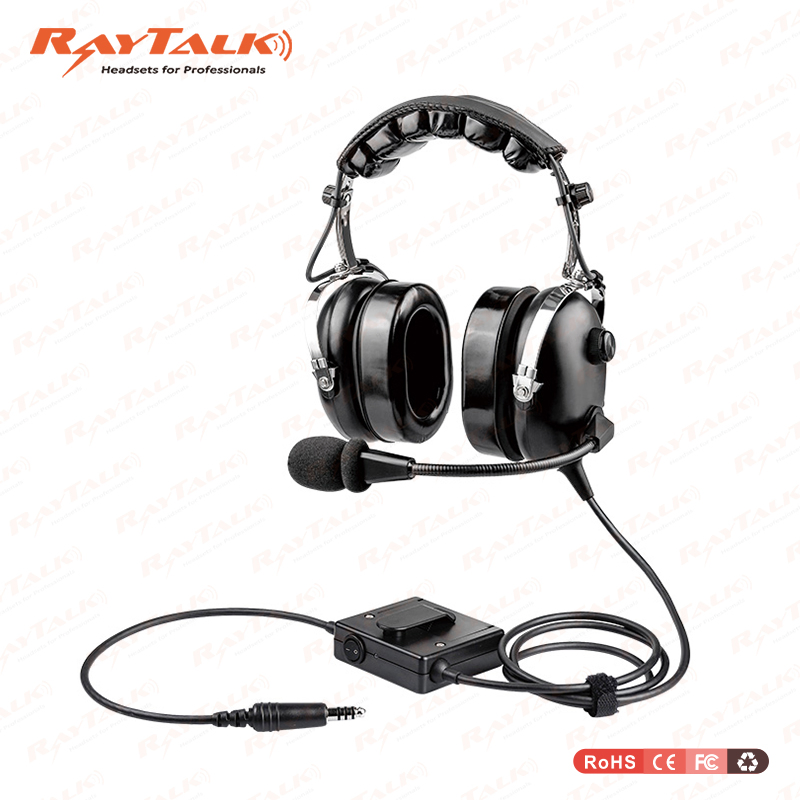

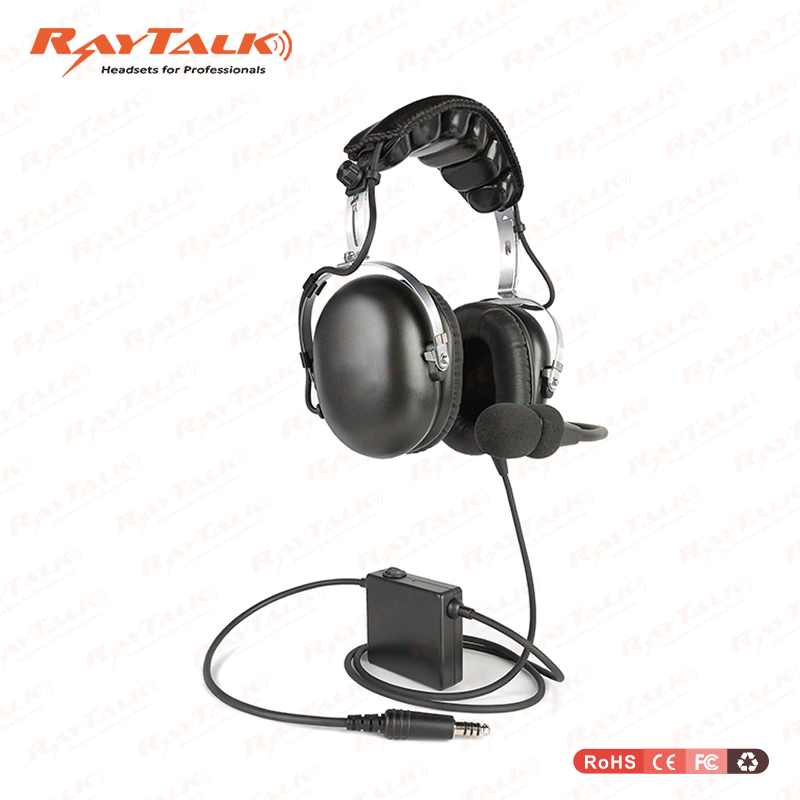

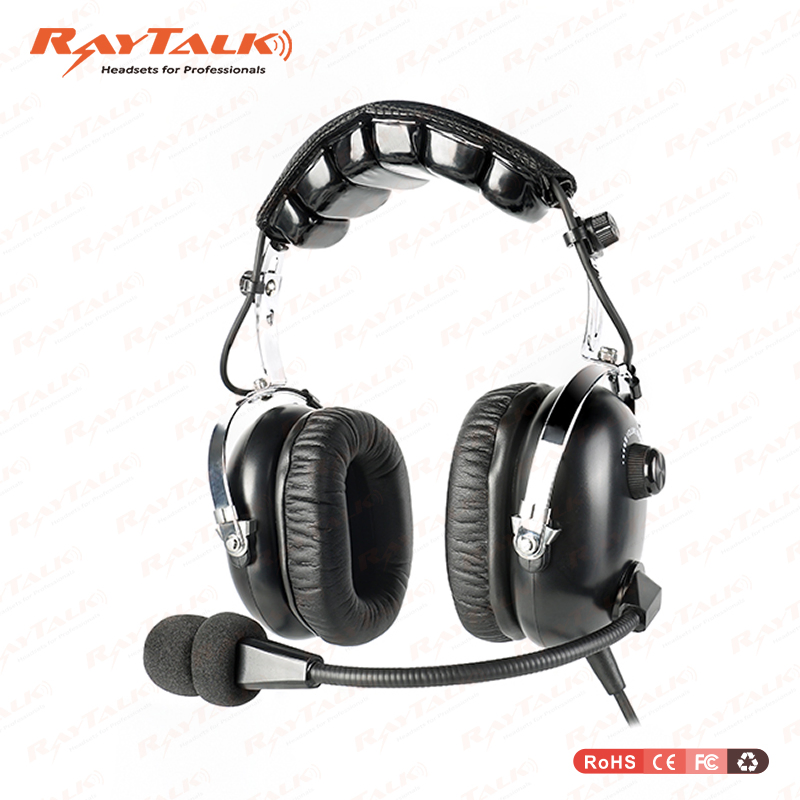

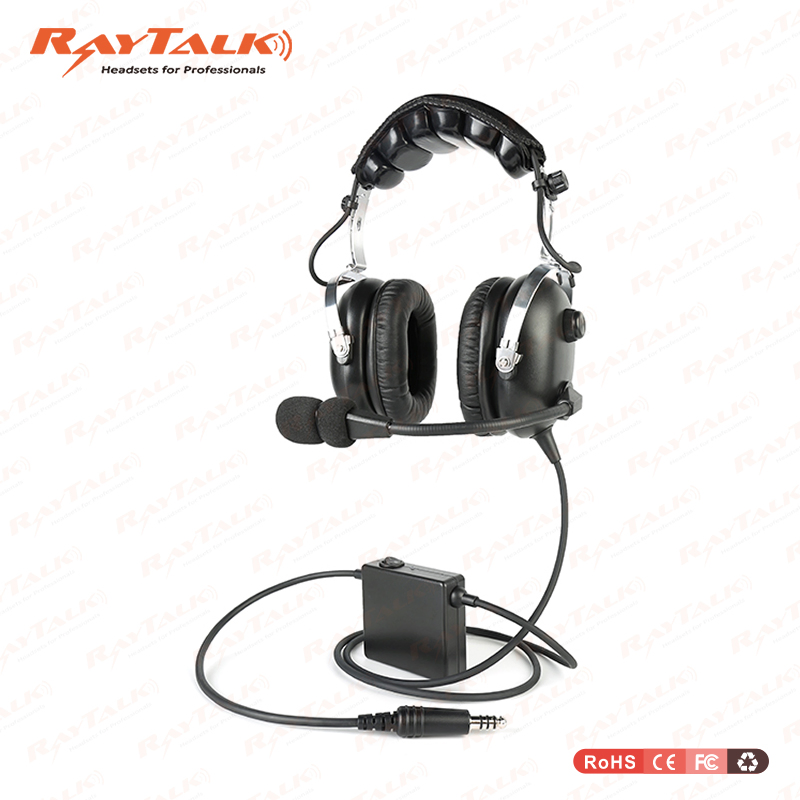

Noise Cancelling Helicopter Aviation Headset

1 / 5

Noise Cancelling Helicopter Aviation Headset

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

🔹 Basic Information

Model NO.

PH-100AH

Type

Electret Earphone

Communication

Wired

Usage

Aviation

Jack Diameter

6.3mm

Jack Type

Plug-in

Warranty

12 Months

Product Name

Noise Cancelling Helicopter Aviation Headset

Trademark

RTC

HS Code

85183010

📷 Product Showcase

📝 Key Features

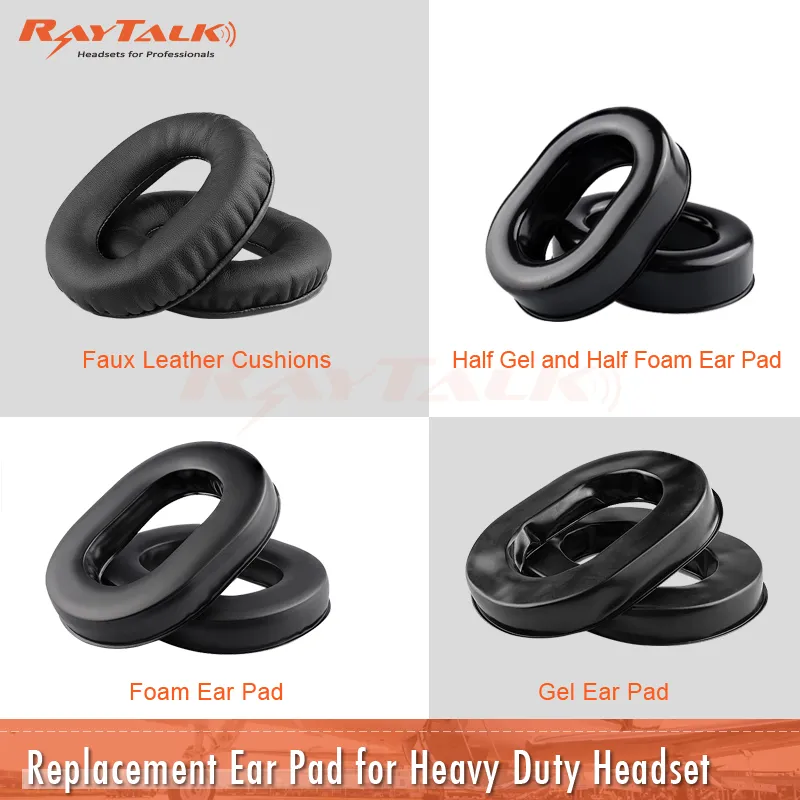

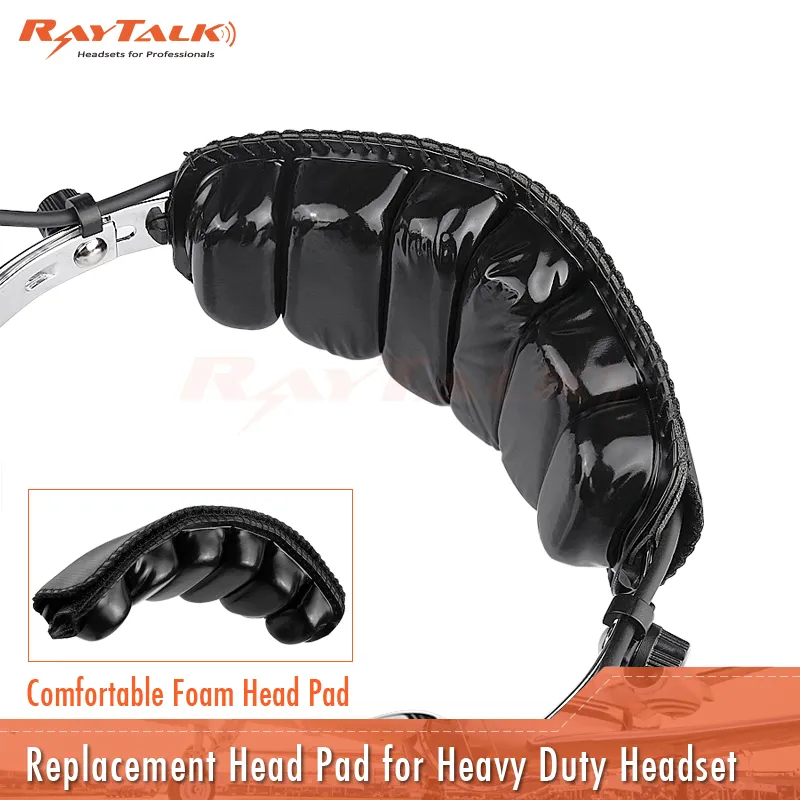

Super soft double foam head pads for maximum comfort.

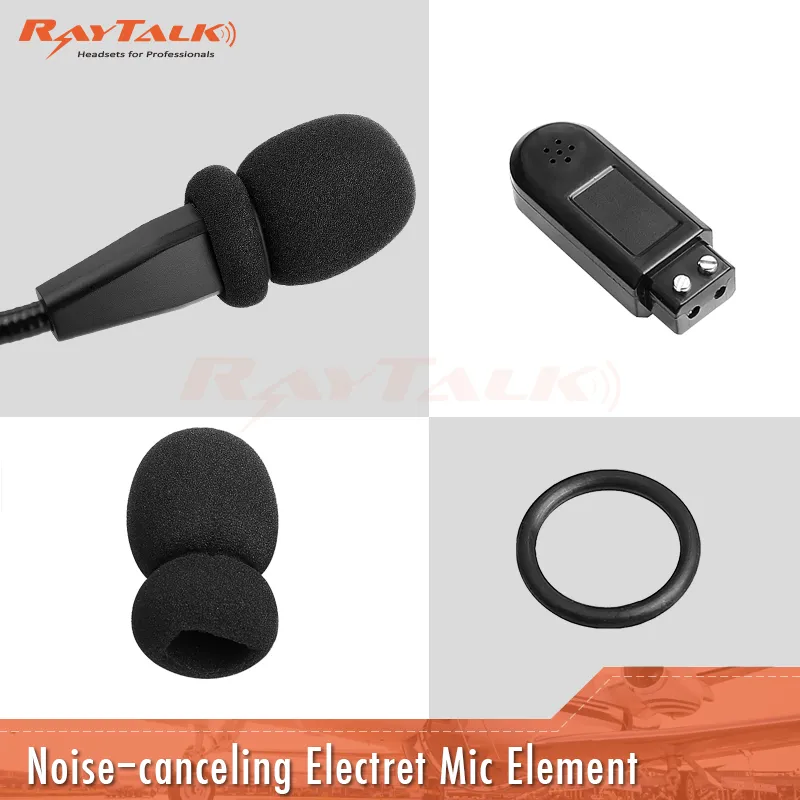

High-performance Noise-canceling electret Microphone.
Low-profile volume control knob with precision detent settings.

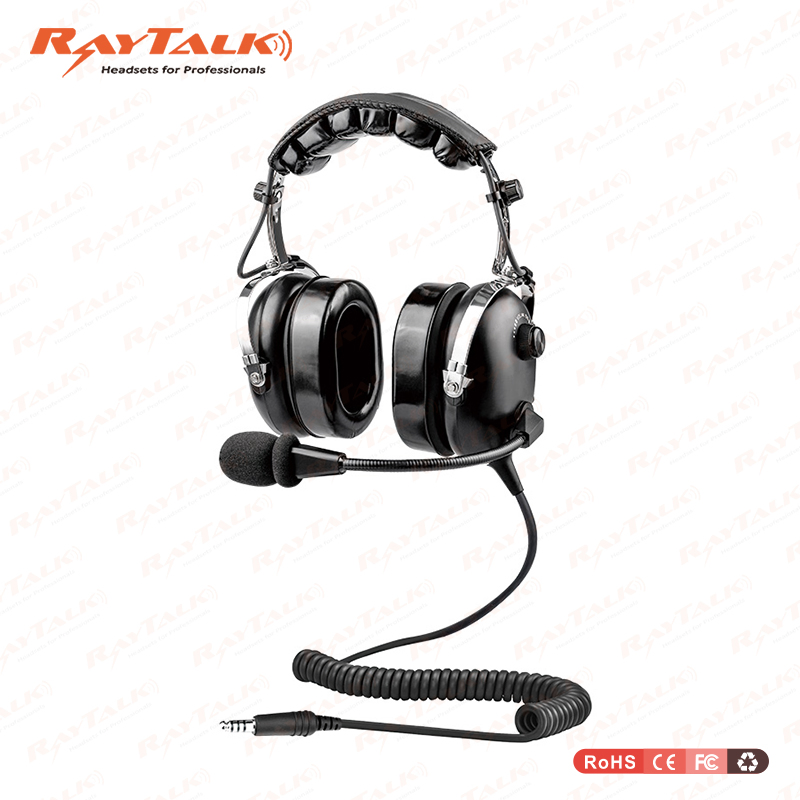

70 cm coiled cord extending from headset to molded plug.
Certified Noise Reduction Rating (NRR) of 24dB.
Strong Steel Boom for flexibility and steady microphone placement.

⚙️ Technical Specifications

Headphone Parameters
Type	Dynamic (F50)
Frequency Response	100Hz to 8 kHz
Sensitivity	95+/-5 dB SPL
Impedance	150 ohms (300 ohms each; wired in parallel)
Rate/Max Input	100mW / 250mW
Microphone & Amplifier
Element Type	Noise-canceling electret
Frequency Response	100Hz to 5 kHz
Operating Voltage	8-32 Volts DC
Matching Impedance	150-1000 ohms
Mechanical & Physical
Weight	530g
Cordage	Straight/Coiled cord options

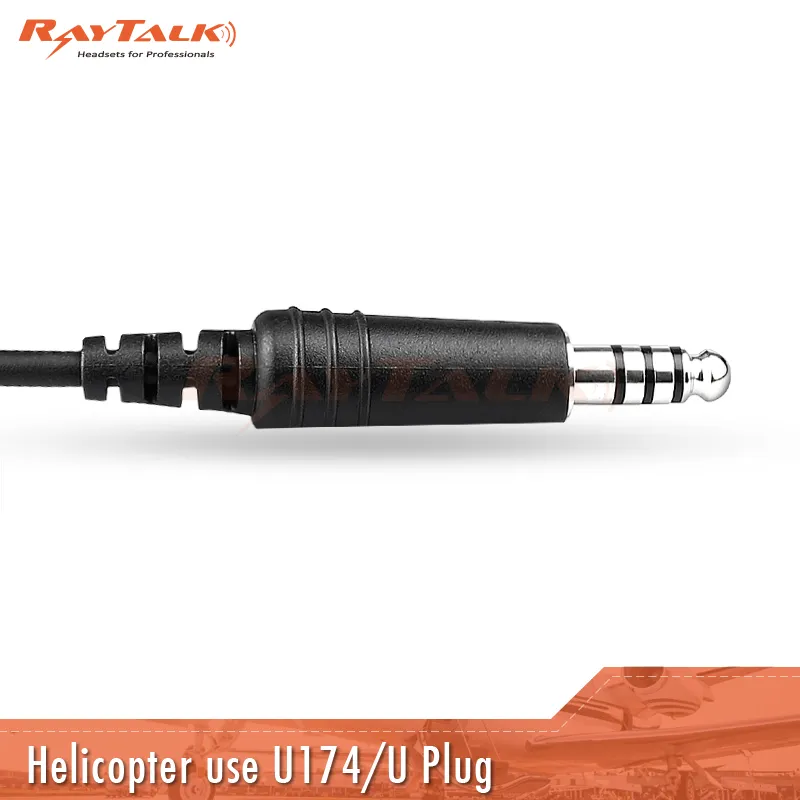

Plug Types	Earphone: PJ-055 (6.3mm) / Mic: PJ-068 (5.2mm)

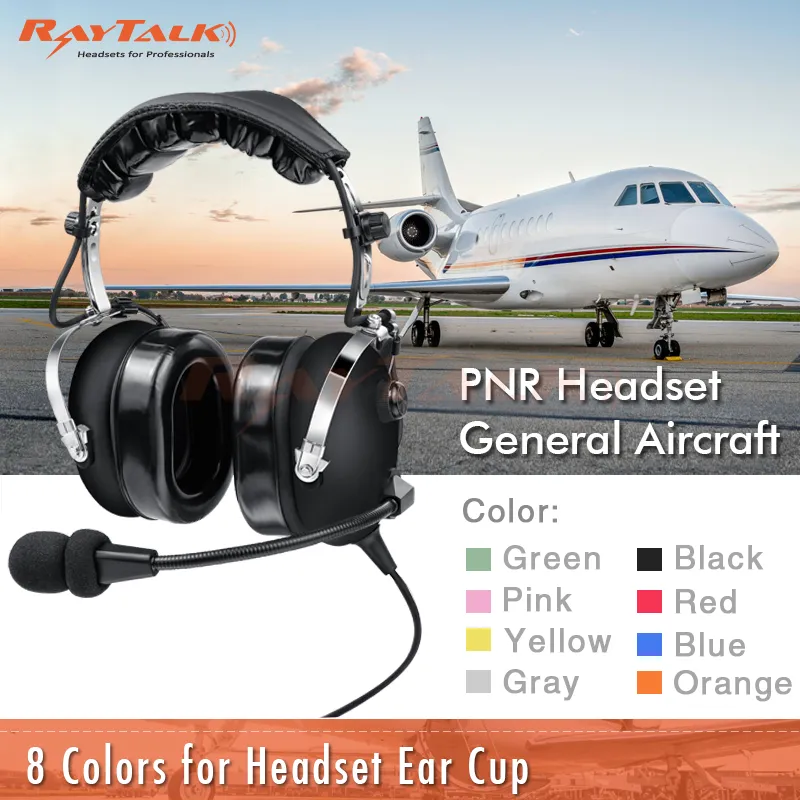

Available Colors	Green, Black, Pink, Red, Yellow, Blue, Grey

📦 Logistics & Service

Package

Natural carton or OEM service

Lead Time

Within one week for samples

Shipping

DHL, EMS, UPS, etc.

Warranty

1 Year warranty included

MOQ

Sample and trial orders welcome

❓ Frequently Asked Questions

What is the Noise Reduction Rating (NRR) of this aviation headset?

This headset features a Noise Reduction Rating (NRR) of 24dB, effectively protecting your hearing in loud cockpit environments.

Is this headset specifically designed for helicopter use?

Yes, it is specifically optimized for helicopter aviation, featuring appropriate noise-canceling capabilities and standard helicopter plug compatibility.

Can I adjust the volume directly on the headset?

Yes, the headset includes a low-profile volume control knob with detent settings for easy and precise adjustment during flight.

What colors are available for the PH-100AH model?

We offer a variety of colors including Green, Black, Pink, Red, Yellow, Blue, and Grey to suit your preference.

What kind of warranty is provided?

We provide a 12-month (1 year) warranty on all our aviation headsets, along with a 100% QC inspection before shipment.

Does the microphone feature noise cancellation?

Yes, it uses a high-quality noise-canceling electret microphone to ensure clear communication by filtering out background engine noise.
