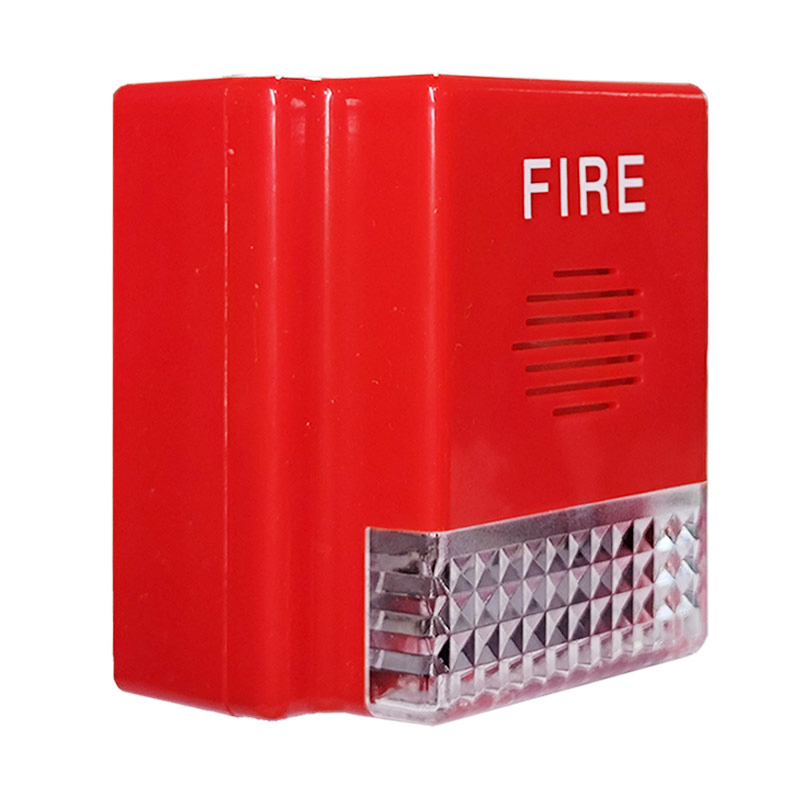

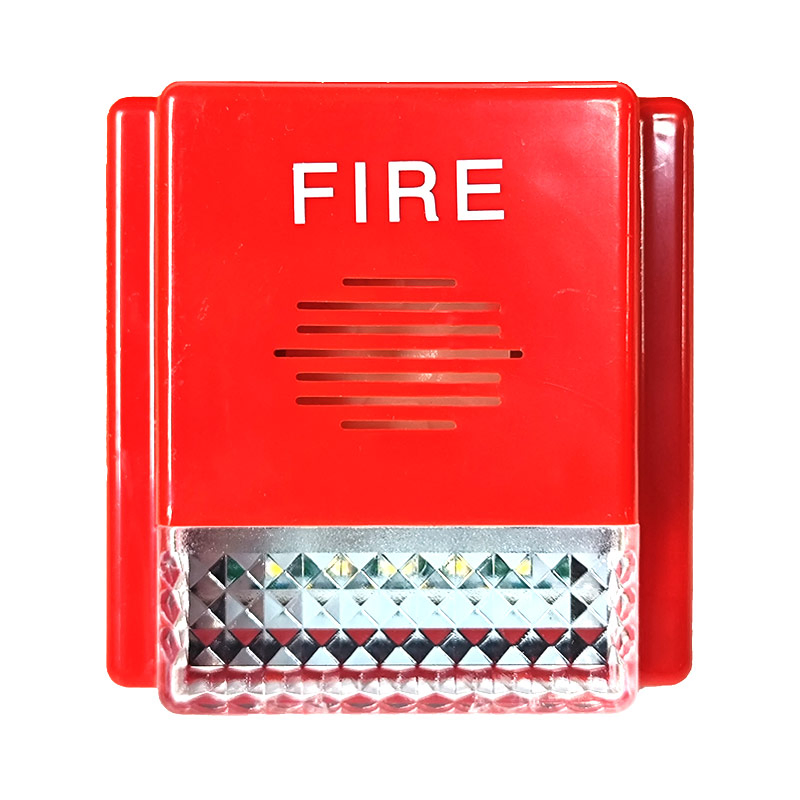

Addressable Fire Alarm System Audible And Visual Signaling
A high-performance notification appliance designed for emergency notification, combining powerful audible tones with high-visibility visual signaling into a single addressable device.
Technical Specifications
Alarm Volume
≥80dB (within 1m)
Package Size
8.50cm * 8.50cm * 4.60cm
Core Functionality
📢 Audible Alarm (Sounder)
Generates configurable alarm signals with various tones and volumes to convey specific emergency instructions to building occupants.
💡 Visual Alarm (Strobe)
High-intensity flashing light alerts individuals in noisy environments or those with hearing impairments.
🔗 Addressable Control
Each unit features a unique digital address for individual control and status monitoring via the fire alarm control panel.
⚙️ Integrated Design
Combines sounder and strobe into a single unit to simplify installation and reduce hardware footprint.
🔄 Synchronized Operation
Ensures all visual and audible alarms activate simultaneously across the system for coordinated notification.
🛡️ Supervised Monitoring
Continuous monitoring by the control panel for fault conditions like open or short circuits to ensure reliability.
Product Parameters
| Loop Bus wired |
2-wire Non-polarized |
Monitor Current |
≤300uA |
| Alarm Current |
≤40mA |
Work voltage |
DC17V~DC33V |
| Operating Temp |
-10°C~+50°C |
Humidity |
≤95% |
System Integration
Flexible connection options for seamless integration into addressable fire alarm networks.

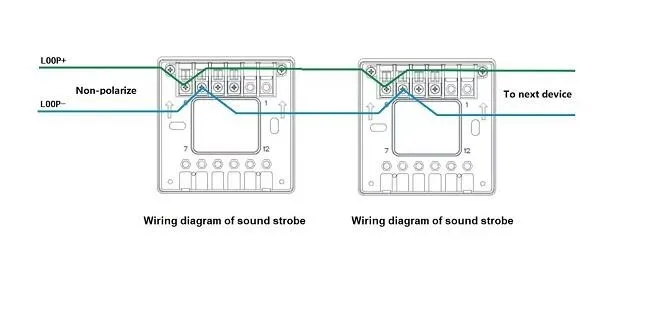

Device Interconnection

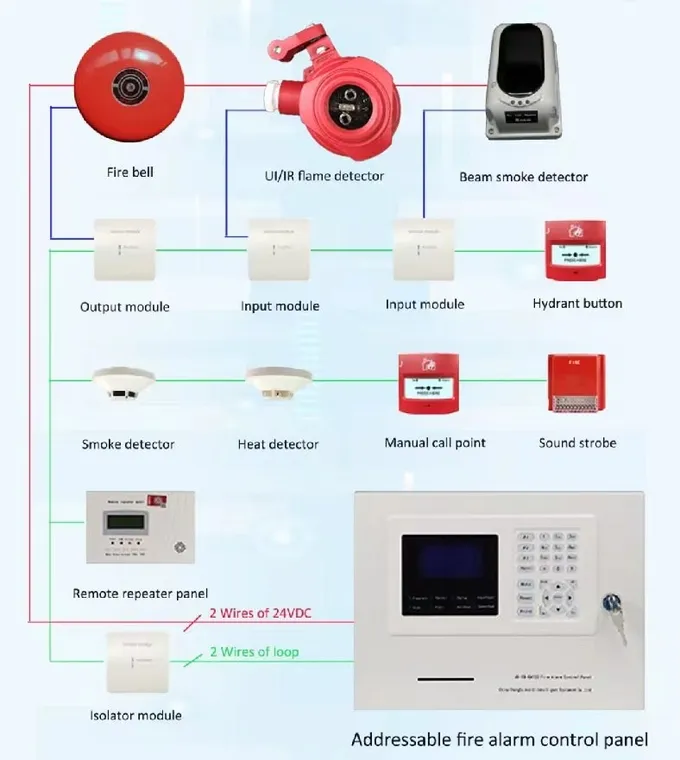

System Connection Diagram
Product Range
Addressable Fire Alarm Systems
Conventional Systems
Gas Extinguishing Control
Beam Detectors
Smoke & Heat Detectors
Explosion-proof Flame Detectors
Service Excellence
OEM/ODM
Full Customization Available
Warranty
1 Year Quality Guarantee
Support
Technical & After-sale Service
Lead Time
Approx. 15 Working Days
Manufacturing & Quality Control

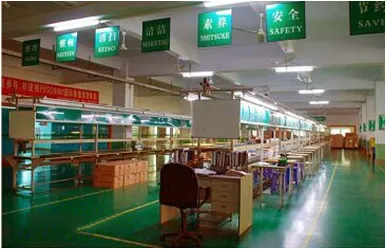

Assembly Line

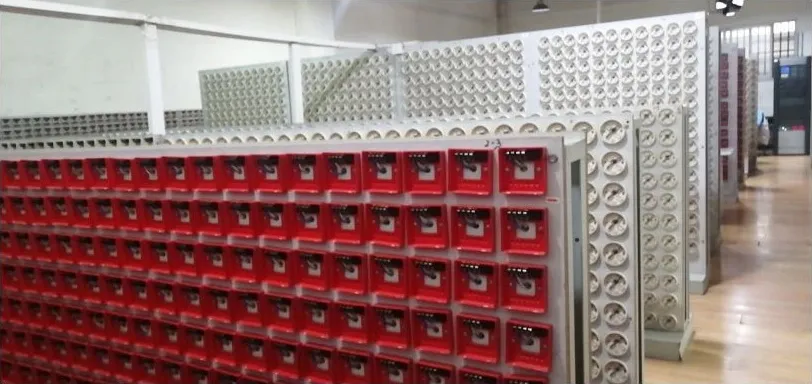

Burn-in Testing Room
Quality Management
Frequently Asked Questions (FAQ)
What is an addressable sounder strobe?
It is a notification device in a fire alarm system that has a unique digital address, allowing it to be individually controlled and monitored by the main panel while providing both sound and light alerts.
Can the sound and light be synchronized?
Yes, these devices are designed to support synchronized operation, ensuring that all visual and audible signals activate at the same time for maximum effectiveness.
What are the power requirements for the CA2011 model?
The device operates on a DC voltage range of 17V to 33V, with a very low monitor current of ≤300uA.
Is this device suitable for noisy environments?
Yes, with an alarm volume of ≥80dB and a high-intensity strobe light, it is designed to alert occupants even in noisy industrial or commercial settings.
How is the device monitored for faults?
The fire alarm control panel continuously supervises the device for proper operation and detects fault conditions such as open or short circuits.
What is the typical lead time for orders?
The standard lead time is approximately 15 working days, though sample orders are welcomed for initial testing.
