Ragine Premium Detection Gear with Advanced Signal Shielding

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.
Model NO.
R Warder 800A
Certification
DOT, E-MARK, CE, ISO, FCC, RoHS, MUTCD, ASTM, AS/NZS, CCC, GS, Intertek
Channel
>4CH
Receive Frequency
1.1GHz-6.3GHz
Transmission Rate
≥20Kbps
Transport Package
Carton
Specification
70*60*50
Trademark
Ragine
HS Code
8543709960
Production Capacity
300
Product Description

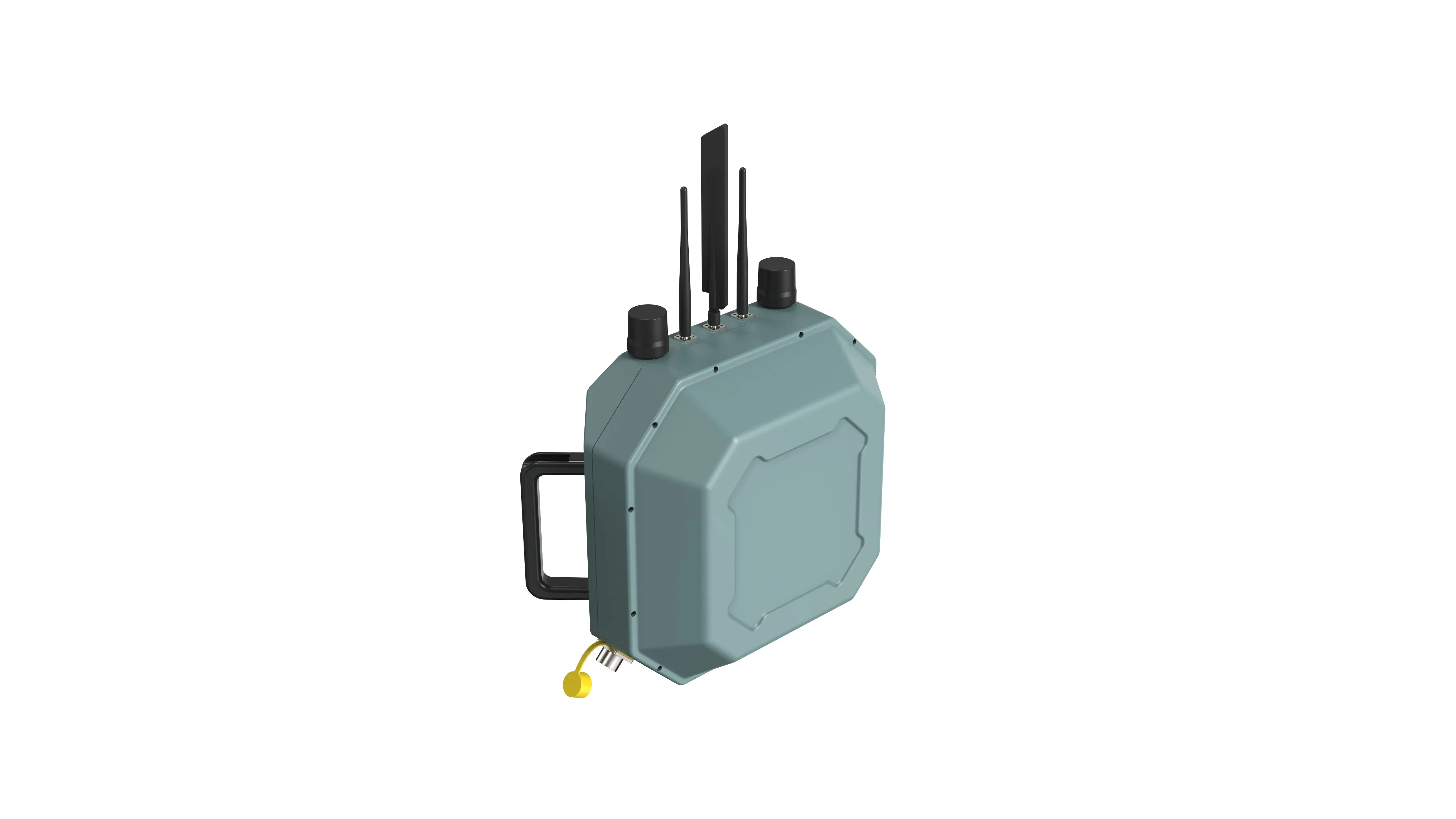

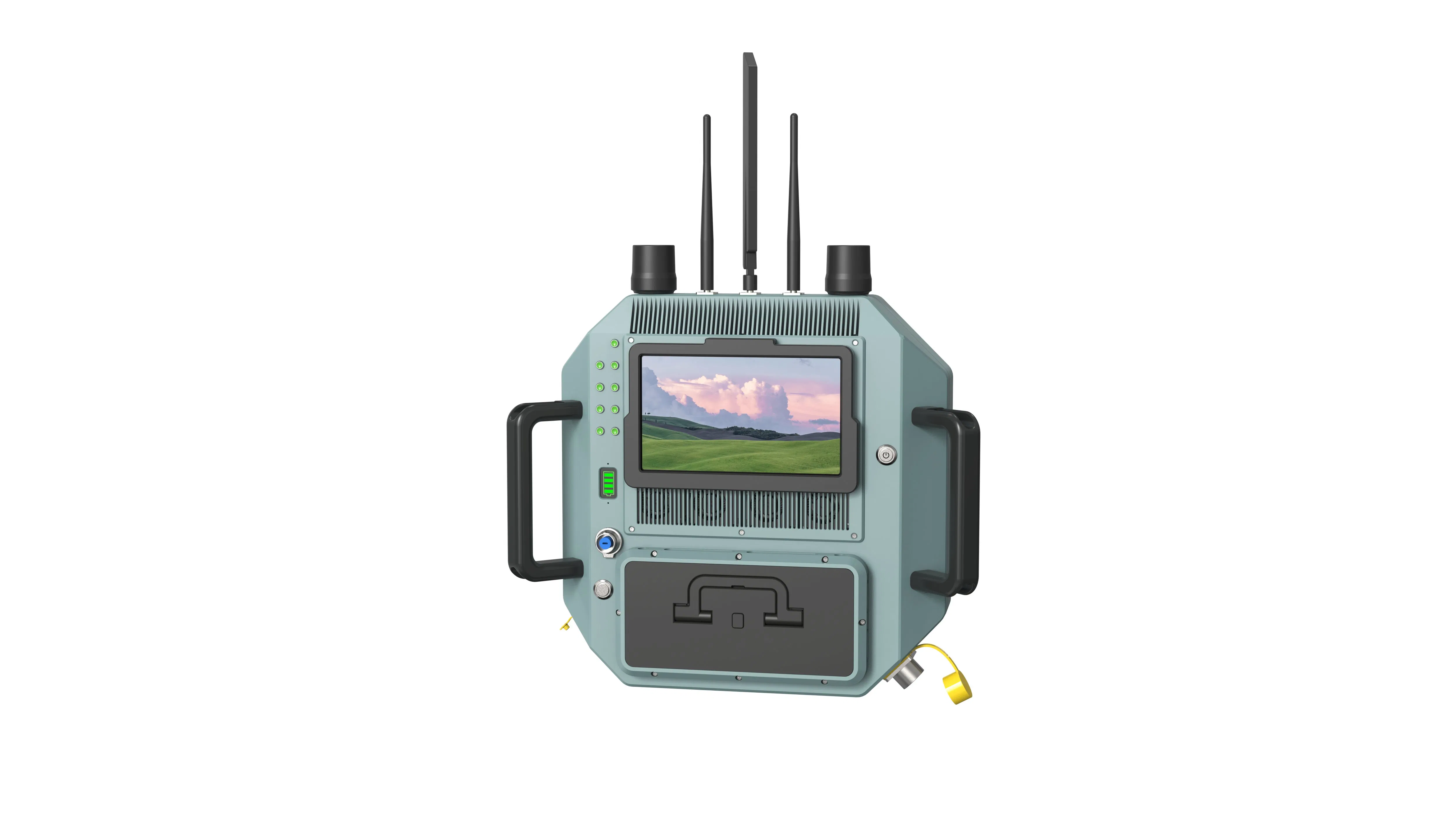

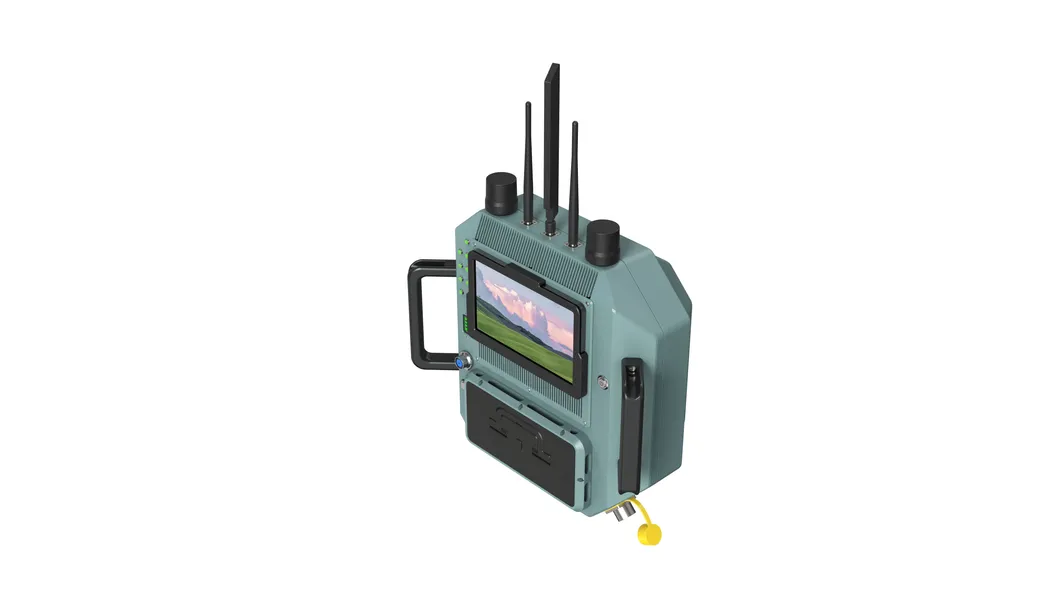

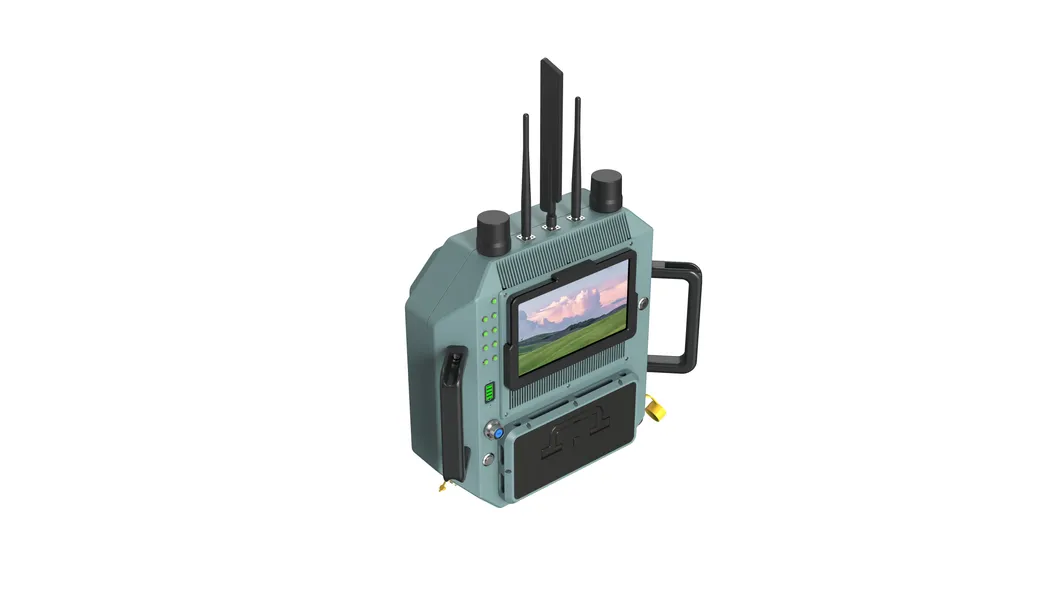

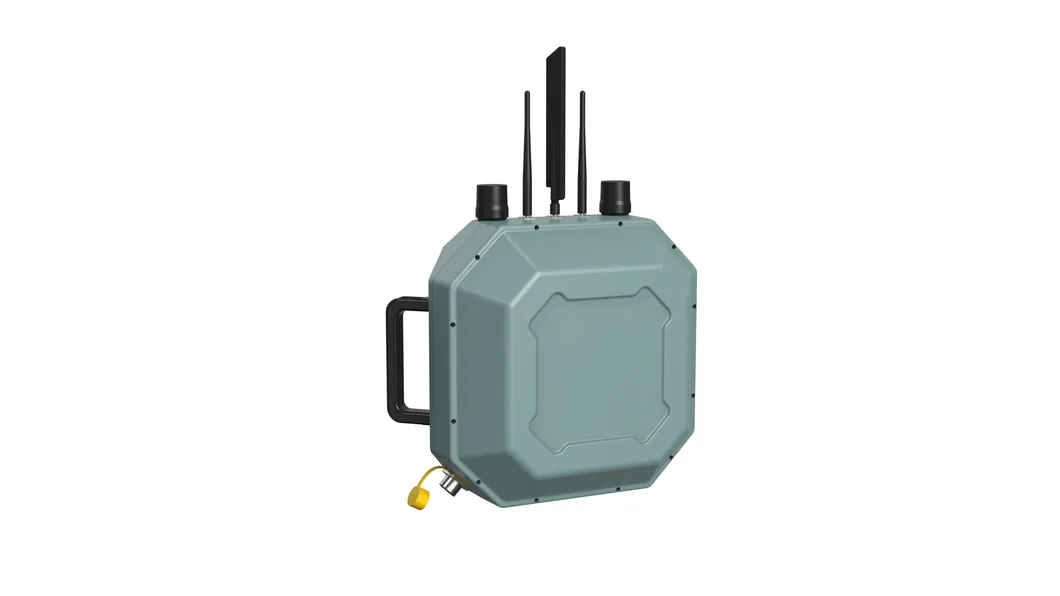

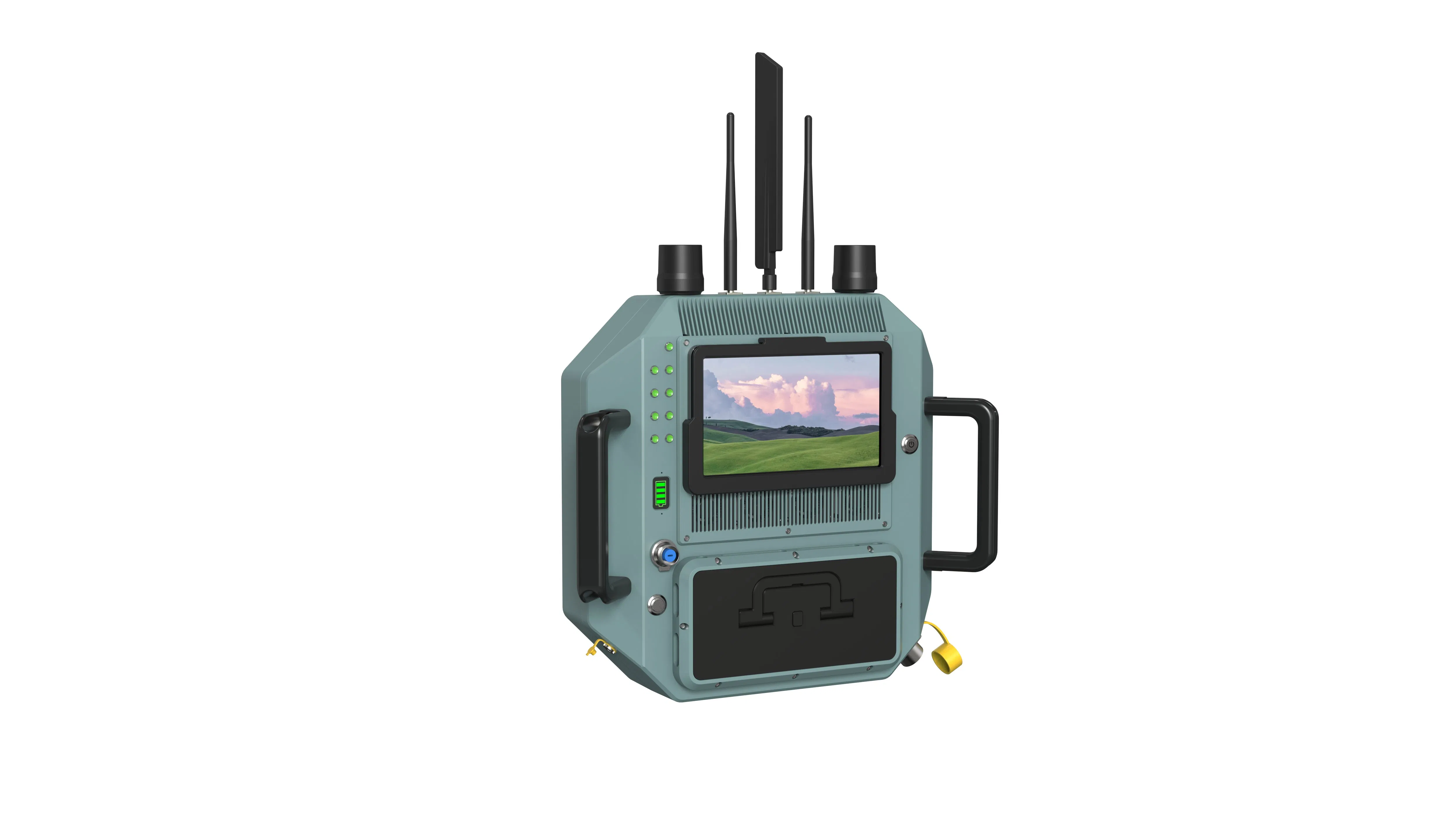

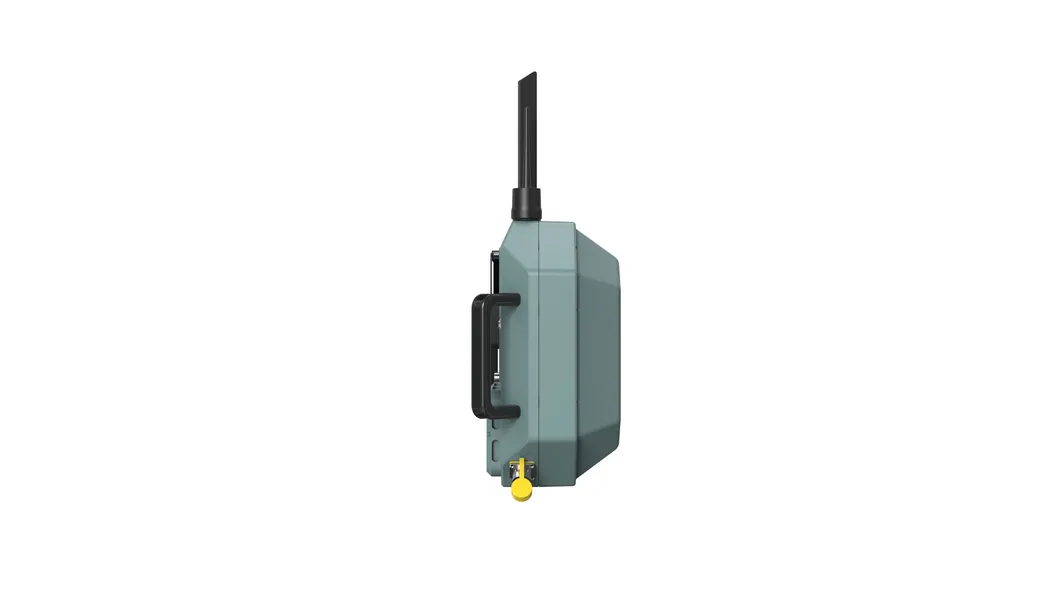

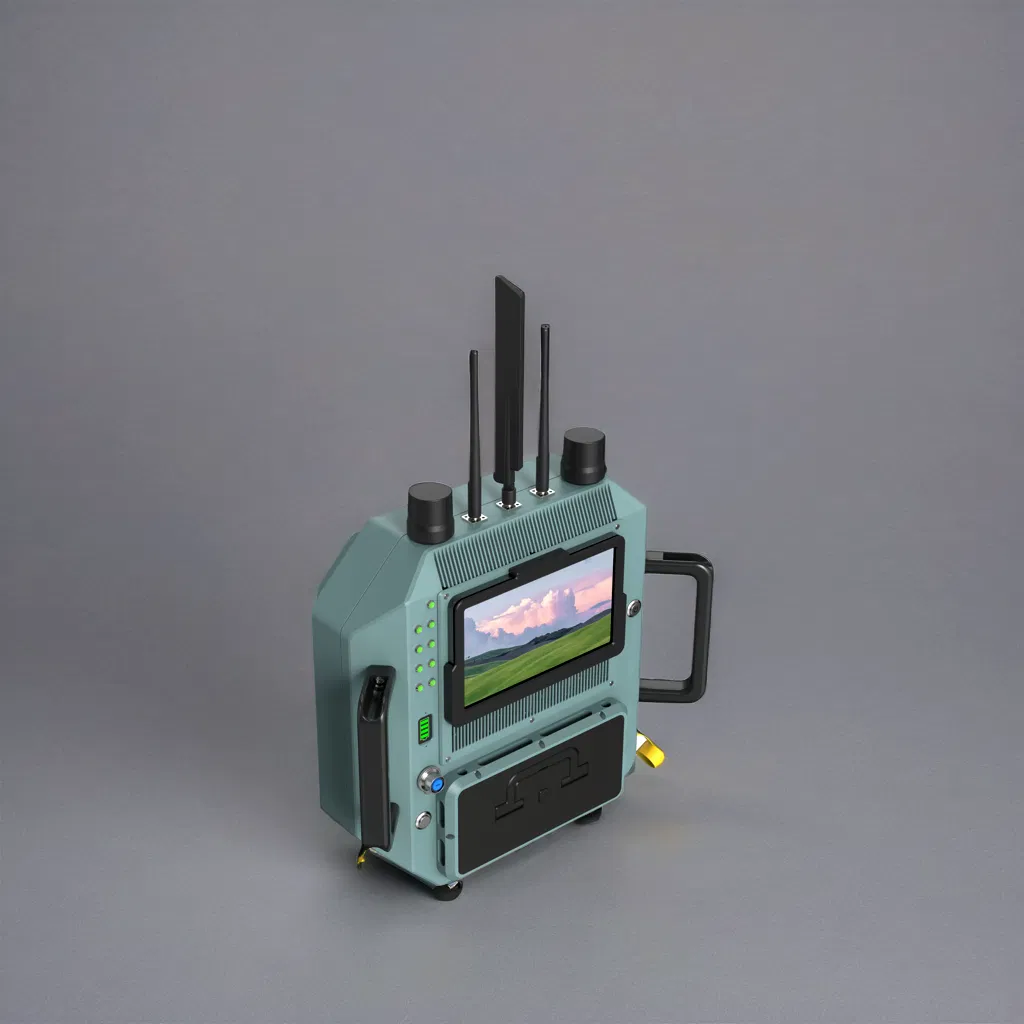

The R-warder-800A is a state-of-the-art device embracing a lightweight and portable handheld shield design, ingeniously equipped with a built-in ultra-wideband antenna. It is engineered to deliver outstandingly precise detection and formidable countermeasures against widely encountered FPV and consumer-grade drones.

  • Advanced Telemetry Analysis: Detects FPV image transmission across the 600MHz-6000MHz spectrum.
  • Multi-band Jamming: Integrated technologies for 1.5G, 2.4G, 5.2G, and 5.8G frequencies.
  • Satellite Spoofing: Unique ability to spoof drone satellite navigation signals for enhanced defense.
  • Operational Range: Detection range ≥2km and jamming range ≥1.5km.
Product Parameters
  • Detection Modes: Image transmission detection, detailed telemetry analysis, and comprehensive FPV detection.
  • Supported Drones: DJI O2, O3, O4 protocols; Autel models; FPV range 600MHz-6000MHz.
  • Jamming Bands: Fixed-frequency (1.5G, 2.4G, 5.2G, 5.8G), Frequency-write (300MHz-6000MHz), and GNSS Spoofing (GPS L1, GLONASS L1, BDS B1).
  • Battery & Build: Built-in lithium battery with ≥10 hours standby; Weight ≤10kg; Dimensions 430mm × 370mm × 200mm.
  • Operating Temp: Stable performance from -20°C to +55°C.
Key Features
  • Singular powerful device integrating detection, jamming, and spoofing.
  • Highly integrated modular design for seamless operation.
  • Simple one-click operation for real-time task demands.
  • Pinpoint accuracy for precise interception and environmental safeguarding.
Frequently Asked Questions
What is the maximum detection range of the R-warder-800A?
The device achieves a detection range of 2km or more for telemetry and FPV signals, and at least 1km for image transmission, depending on environmental conditions.
Which drone brands are supported by this system?
It supports major consumer brands including DJI (O2, O3, O4 protocols) and Autel, as well as a wide variety of FPV drones across the 600MHz to 6000MHz range.
Can the jamming frequencies be customized?
Yes, the device offers customizable options including fixed-frequency jamming and innovative frequency-write jamming covering a broad range from 300MHz to 6000MHz.
How long does the battery last in the field?
The built-in lithium battery provides a battery life of 10 hours or more when in standby detection mode and supports quick battery replacement for continuous use.
Is the device portable enough for single-operator use?
Yes, it features a handheld shield design and weighs no more than 10kg, making it highly portable and easy to handle for a single operator.
What types of navigation signals can it spoof?
The R-warder-800A supports sophisticated satellite navigation spoofing for GPS L1, GLONASS L1, and BDS B1 signals.
