Reliable Ard Elevator Emergency Rescue System for Safety

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.ARD

TypeControl System

Suitable forElevator

Control TypeRelay Control

SafetyHigh

PeculiarityOne Phase, Three Phase

HS Code8431310090

Production Capacity500,000 Pieces/Year

Product Description

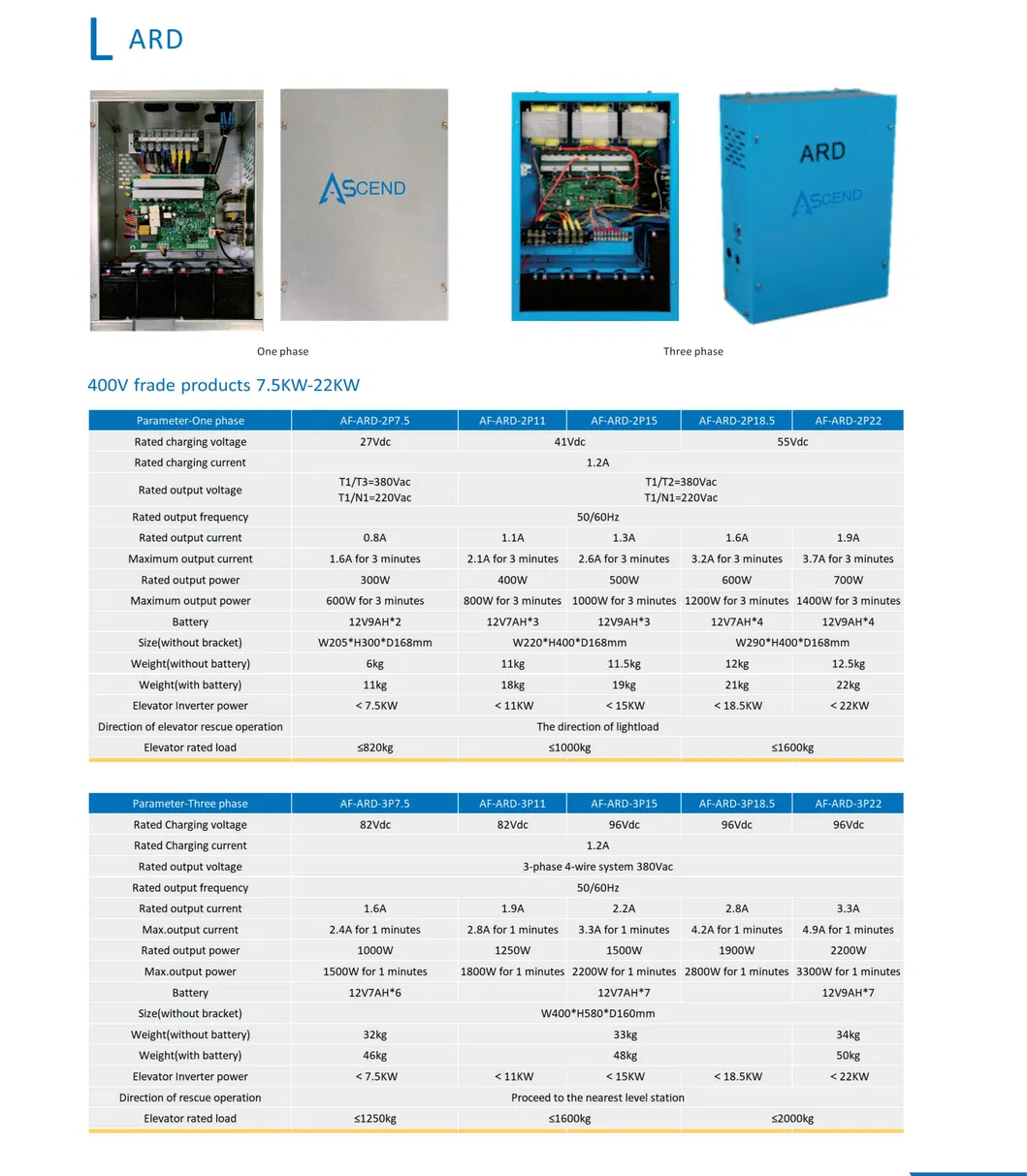

Automatic Rescue Device (ARD)

Introducing the cutting-edge ARD system, designed to ensure safety and reliability in elevator operations. This state-of-the-art device vigilantly monitors the elevator's power supply. Upon detecting any grid or line fault that disrupts the elevator drive's input phase, the ARD leaps into action, promptly providing power to the elevator drive while signaling the elevator controller of the issue. The controller deftly releases the motor drive brake, allowing the car to gracefully glide to the nearest floor. As the elevator reaches the closest floor, the doors open, accompanied by an intuitive audio/video indicator, signaling a safe exit for passengers.

Reliable Ard Elevator Emergency Rescue System

Serial No.	Specification	Input	Output	Power (KW)	Equipment Size	Battery Spec	Weight (KG)
1	2P-5.5E	Three-phase 380V	Two-phase 380V	5.5	392303110	12V/9AH*2	17
2	2P-7.5E	Three-phase 380V	Two-phase 380V	7.5	402305160	12V/7AH*3	22
3	2P-11E	Three-phase 380V	Two-phase 380V	11	402305160	12V/9AH*3	23
4	2P-15E	Three-phase 380V	Two-phase 380V	15	402305160	12V/7AH*4	24
5	3P-30E	Three-phase 380V	Three-phase 380V	30	468400160	12V/12AH*4	36
6	1P-5.5E	Single-phase 220V	Single-phase 220V	5.5	402305160	12V/9AH*2	22

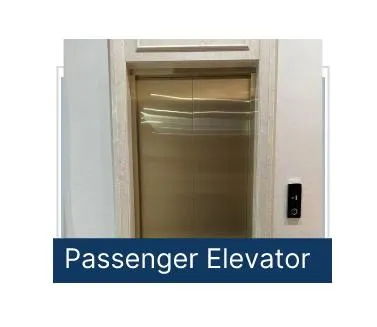

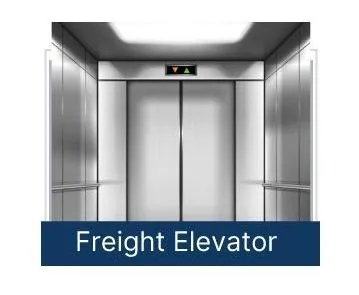

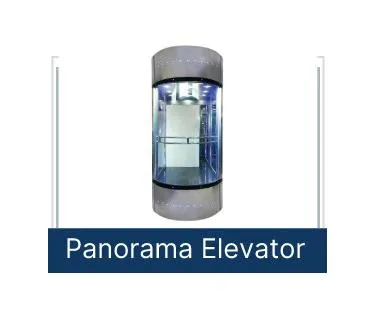

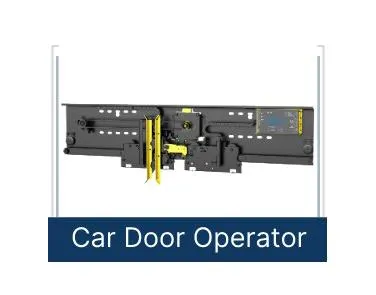

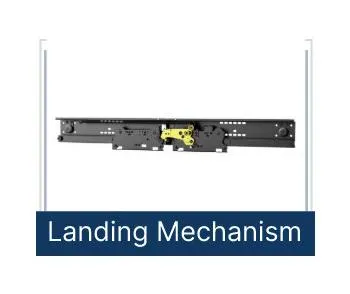

Main Products

Production & Quality

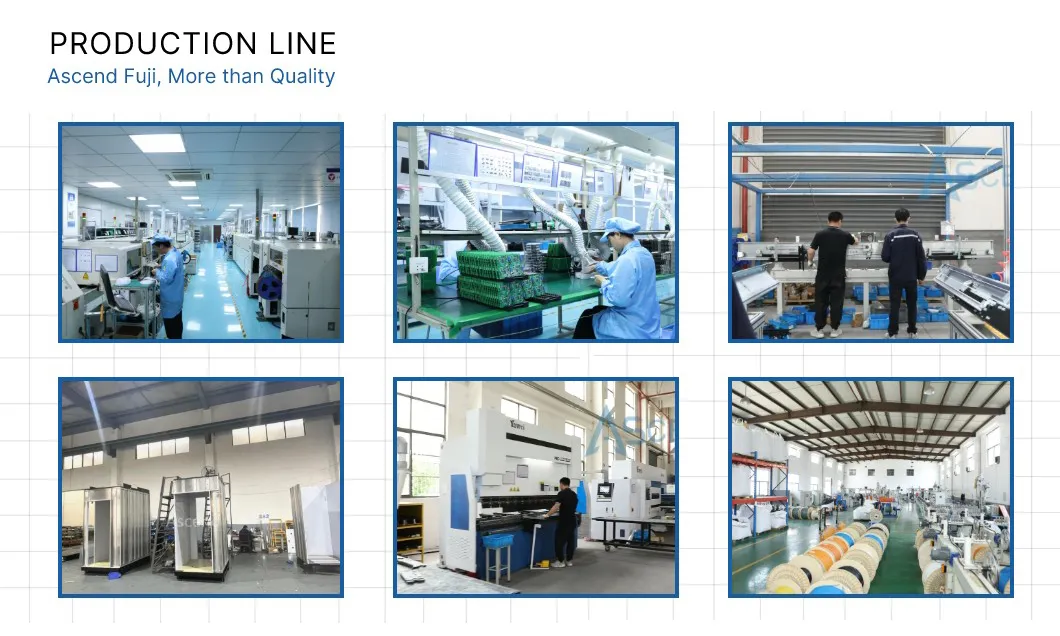

Company Profile & Production Line:

Certifications & Logistics

Frequently Asked Questions

Why choose our elevator solutions?

With 15 years of industry presence, we have a highly skilled technical team providing tailored solutions for complex shaft spaces and custom car designs, ensuring a blend of quality and aesthetics.

What safety features are included in the door systems?

We offer two-tier protection: an innovative light curtain that reopens doors upon obstacle detection, and a robust door inverter that triggers reopening if resistance exceeds 150N.

How does the system prevent falling or over-speeding?

All safety components are CE and EAC certified. If the speed exceeds 1.15 times the limit, a speed governor engages the safety gear to grip the rail, and the traction machine applies immediate braking.

What is the function of the Automatic Rescue Device (ARD)?

The ARD monitors power supply and, during a fault, provides emergency power to move the elevator car to the nearest floor and open the doors safely for passengers.

What are the production capabilities?

Our facility maintains a high production capacity of approximately 500,000 pieces per year, ensuring steady supply for global requirements.

Are the components certified for international standards?

Yes, our safety components carry internationally recognized certifications including CE and EAC, affirming their reliability and performance in various regions.
