Reliable Railway Turnout Hook and Lock System for Efficient Switching

i

Basic Specifications

Customized:

Turnout Hook Lock Device

Certification:

ISO9001

Type:

Turnout Hook Lock Device

Transport Package:

Export Wooden Box

Production Capacity:

10000

P

Product Overview

Main Uses and Functions:

Prevent Mismoving: Mechanically locks the turnout during maintenance or equipment failure to prevent shifts caused by vibration or external forces.
Interlock System Support: Serves as a manual emergency locking measure when electrical interlock systems (like computer interlock) fail.
Enhanced Safety: Provides security in non-centralized areas or during extreme weather like heavy snow/icing.

S

Usage Scenarios

Maintenance Periods: Essential for signaling personnel to lock turnouts during inspection.
Interlocking Failure: Manual installation when switch machines or control signals malfunction.
Non-centralized Areas: Routine safety for manual turnouts and non-electrified sections.
Traffic Organization: Reinforcement for single-track railways and temporary reverse traffic sections.

B

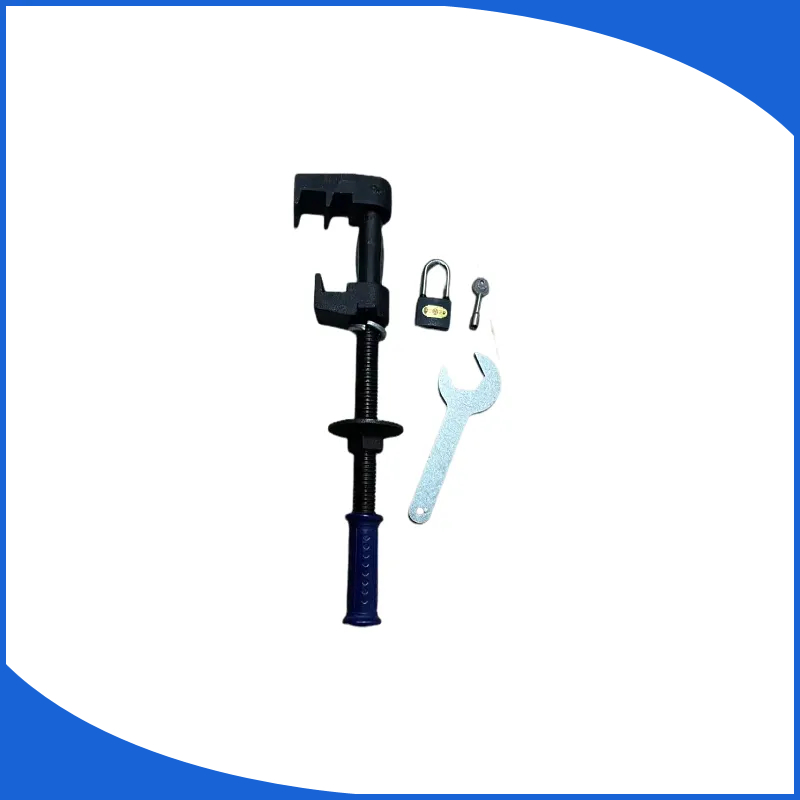

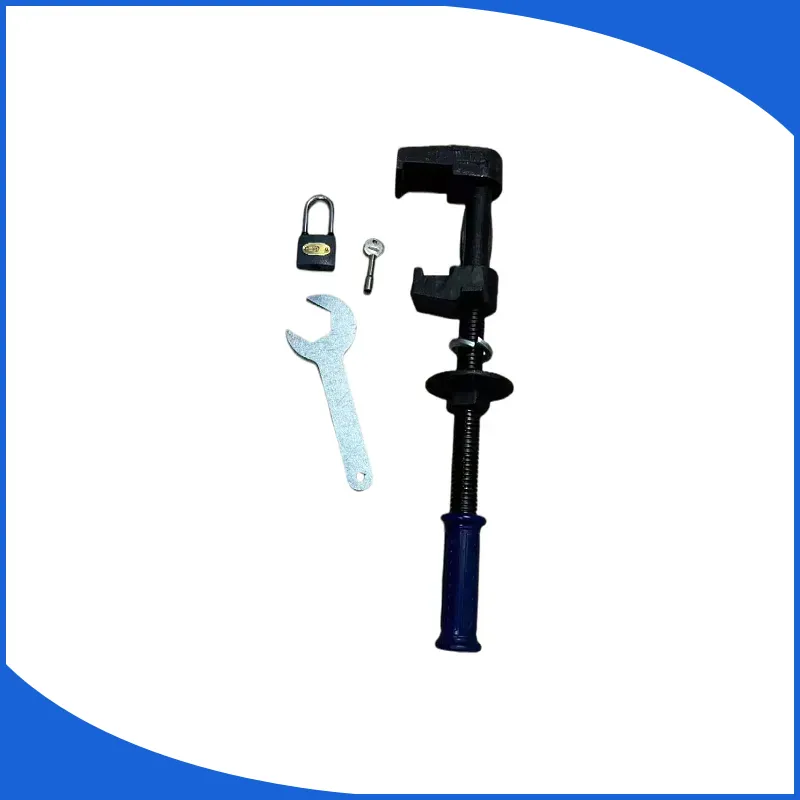

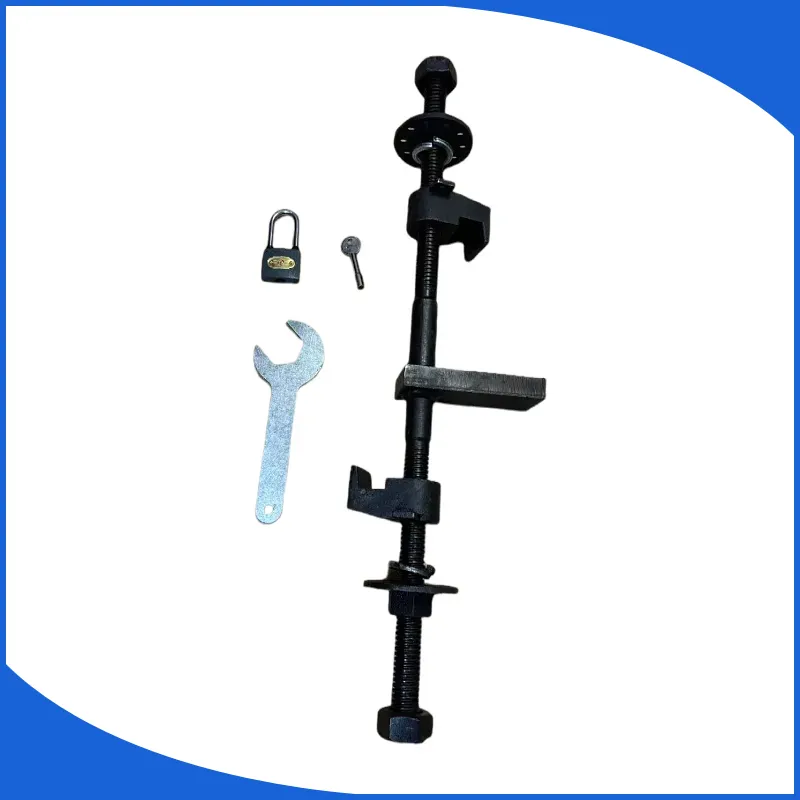

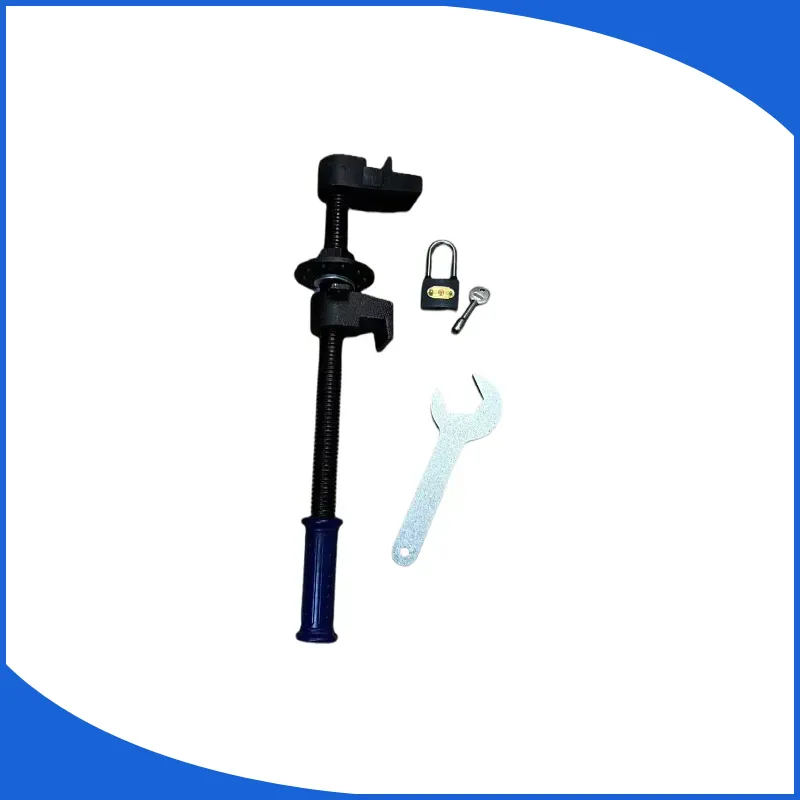

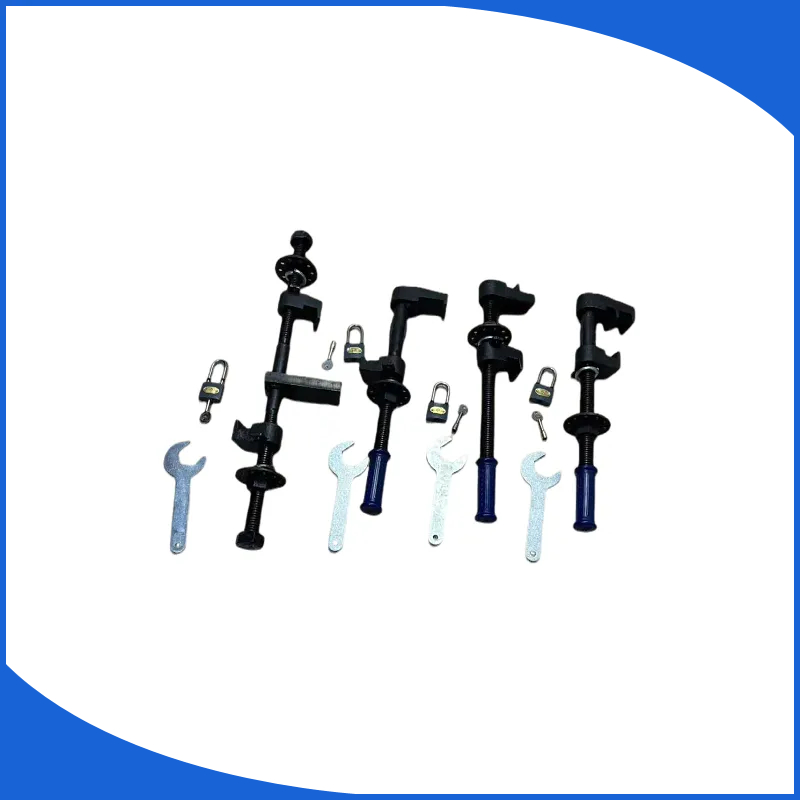

Basic Structure

Lock Hook: Holds the turnout tip rail or core rail securely.
Locking Device: Mechanical lock or padlock to prevent unauthorized access.
Fixed Bracket: Enhances stability on rails or sleepers.

Railway turnout hook and lock devices are critical safety equipment designed to maintain the fixed position of turnouts. They are indispensable for maintenance, emergency response, and ensuring the safety of railway traffic management.

?

Frequently Asked Questions

1. What is the primary purpose of a Turnout Hook Lock Device? It is used to mechanically lock railway turnouts in a fixed position to prevent accidental movement during maintenance, equipment failure, or human error.

2. Can this device be used when the electronic interlocking system fails? Yes, it serves as a vital manual emergency locking measure when the electric switch machine or the centralized interlocking system malfunctions.

3. What certifications does the product hold? The turnout hook lock device is manufactured under ISO9001 certification standards to ensure high quality and reliability.

4. Is the device suitable for extreme weather conditions? Yes, it is designed to prevent turnout shifts caused by icing, heavy snow, or rail deformation in harsh environments.

5. How is the product typically packaged for delivery? The products are packed in Export Wooden Boxes to ensure safety and prevent damage during international transit.

6. Does the structure include unauthorized access prevention? Yes, the basic structure includes a locking device (usually a mechanical lock or padlock) to prevent unauthorized personnel from unlocking the turnout.
