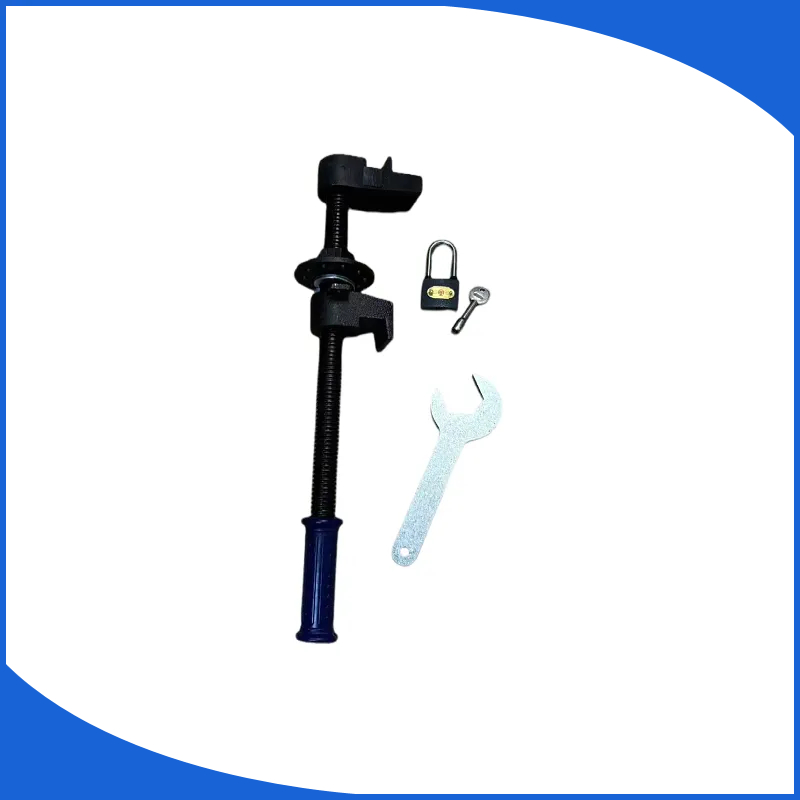

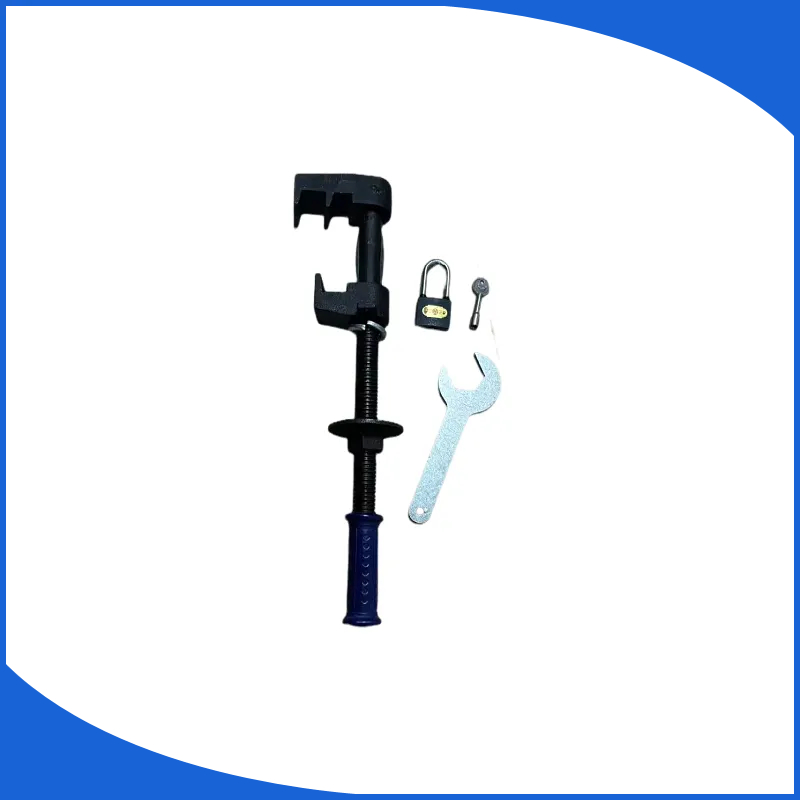

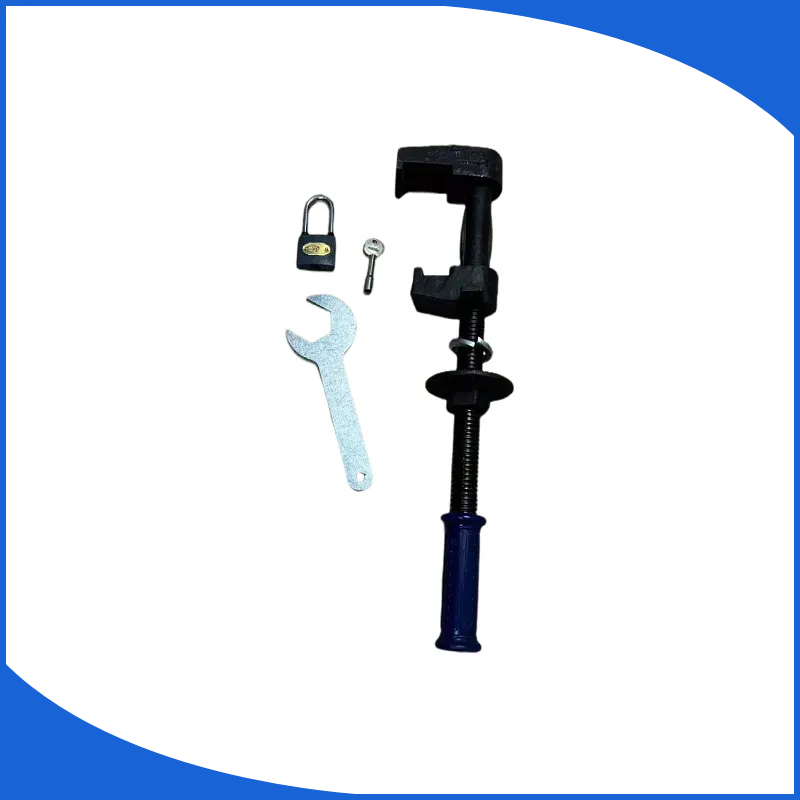

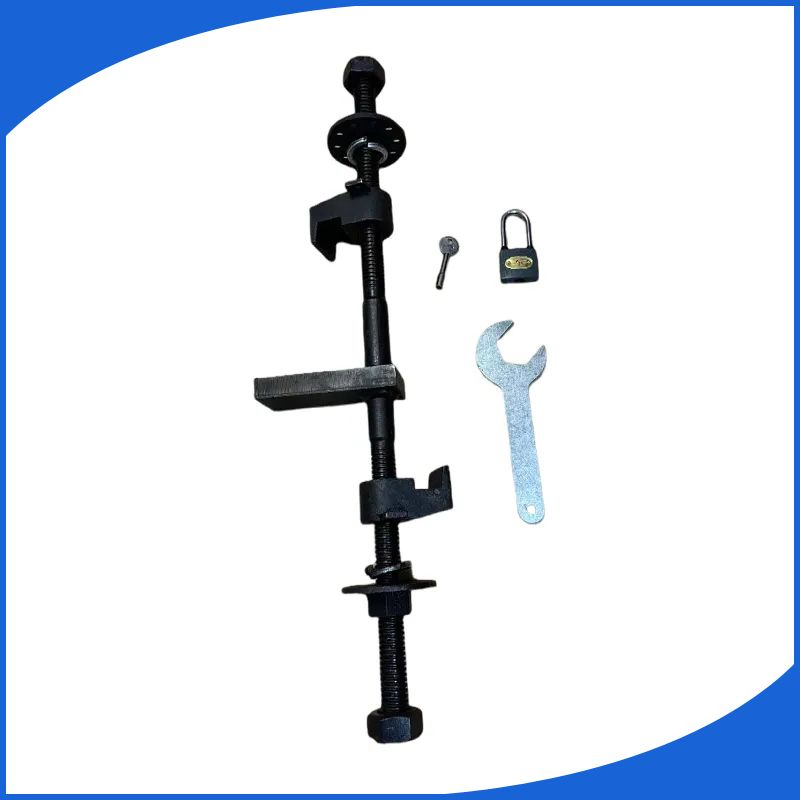

Reliable Turnout Hook-Lock Device for Enhanced Safety and Security

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Customized
Turnout Hook Lock Device
Certification
ISO9001
Type
Turnout Hook Lock Device
Transport Package
Export Wooden Box
Production Capacity
10,000 Units
Turnout Hook-Lock Device

Main Applications and Uses

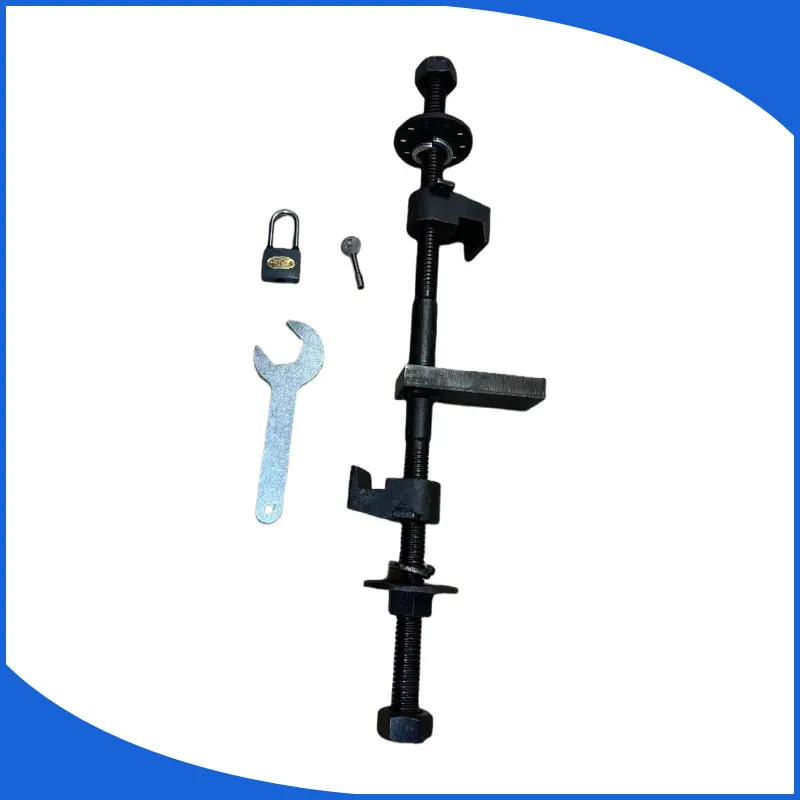

Hook Lock Application
  • Prevent Turnout Mismoving: Mechanically locks turnouts during maintenance or failures to prevent position changes from human error or external forces.
  • Interlock System Integration: Serves as a manual emergency locking measure when electrical centralized interlocks (computer or 6502 systems) fail.
  • Enhanced Safety: Prevents derailment or conflict accidents by ensuring trains enter correct tracks.
  • Weather Protection: Stabilizes turnout positions during heavy snow, rain, or icing conditions.

Usage Scenarios

Usage Scenarios
  • Maintenance Periods: Essential for signaling personnel to lock turnouts during inspection and repair.
  • System Failures: Required when electric switch machines fail or control signals are interrupted.
  • Non-Centralized Areas: Routine safety measure for manual turnouts and non-electrified sections.
  • Special Traffic Organization: Used in single-track railways and temporary reverse traffic sections.

Structure and Components

  • Lock Hook Part: Securely holds the turnout tip rail or core rail to prevent any movement.
  • Locking Device: Features a mechanical lock or padlock to prevent unauthorized access.
  • Fixed Bracket: Specialized models can be fixed on rails or sleepers to provide enhanced stability.

Railway turnout hook and lock devices are critical for ensuring fixed turnout positions during maintenance, emergencies, and in non-centralized areas.

Basic Structure

Product Gallery

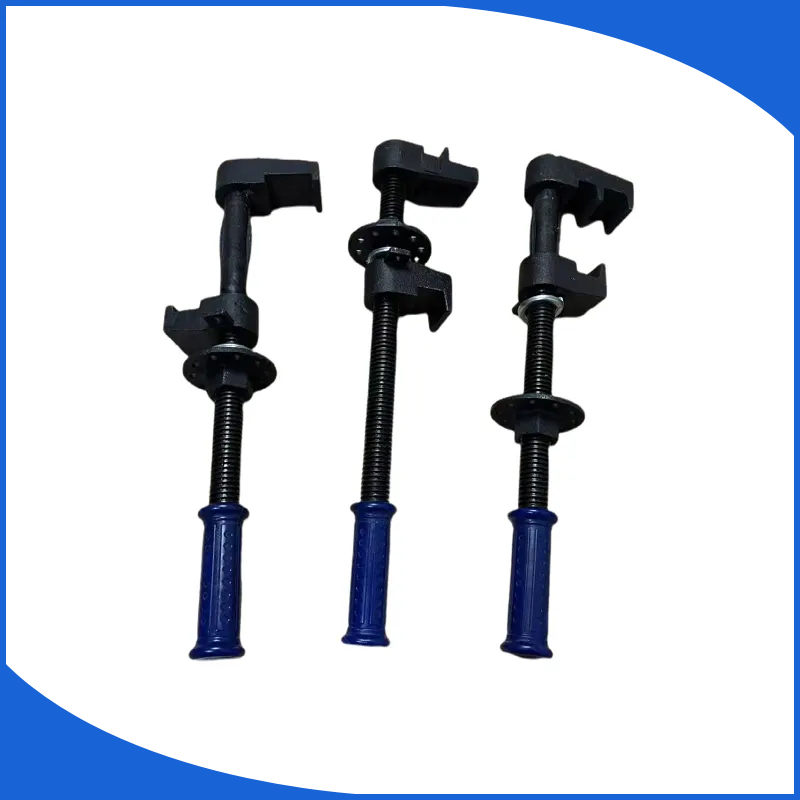

Reliable Turnout Hook-Lock Device
Railway Safety Device
Hook Lock Detail

Frequently Asked Questions

What is the primary function of a turnout hook lock device?
The primary function is to mechanically lock the railway turnout in a fixed position, preventing accidental movement caused by equipment failure, human error, or external forces like vibrations.
Is this device compatible with electrical interlock systems?
Yes, it is designed to work as a manual emergency backup. When electrical centralized interlocking systems fail, this device provides a physical safety guarantee.
What are the key components of the device's structure?
It typically consists of a lock hook part to grip the rail, a mechanical locking device or padlock for security, and a bracket for stable mounting on rails or sleepers.
When is it mandatory to use a hook lock device?
It is mandatory during track maintenance and signaling repairs, during interlocking system malfunctions, and in non-electrified or manual turnout sections.
Can this device withstand extreme weather conditions?
Yes, the device is built to ensure safety during heavy snow or rain, preventing the turnout from shifting due to icing or rail deformation.
How does the device prevent unauthorized operation?
The integrated locking device, usually a mechanical lock or padlock, ensures that only authorized personnel can unlock and move the turnout.
