Basic Specifications
Structural Style
Multi-Pole Scaffolding
Framework
Combined Scaffolding
Supporting Mode
Projecting Scaffolding
Lapping Form
Full Scaffolding
Erection Position
External Scaffolding
Move Method
Attached Lifting Scaffolding
Scaffolding Part Type
Scaffolding Planks
Construction Properties
Installation Scaffold
Materials
Q235/Q355 Strength Steel

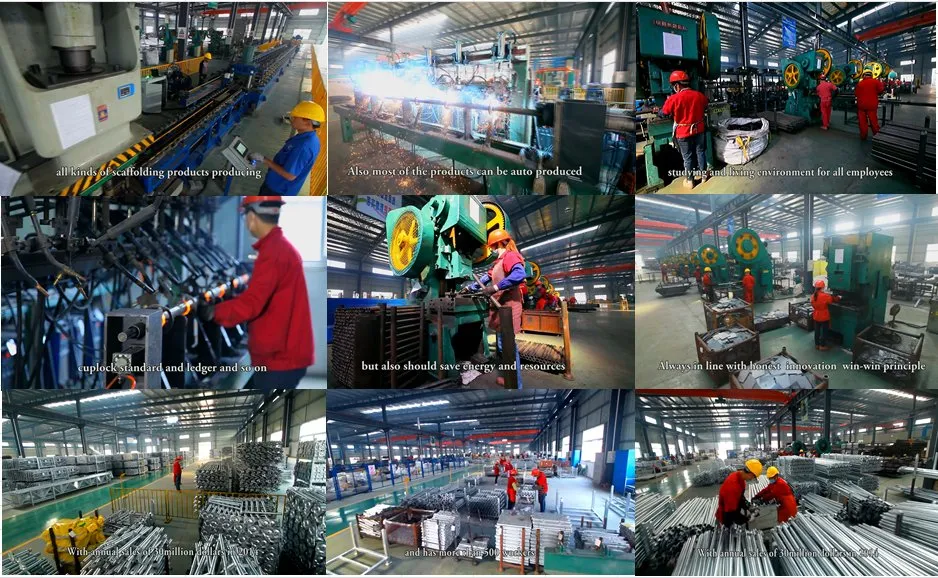

Production Capacity
100 Tons Per Day
Scaffolding One-stop Solution
Providing a comprehensive range of professional scaffolding systems including Ringlock, Cuplock, Octagonlock, Kwikstage, Frame, Haki, Aluminum tower, Shoring prop, and Couplers.

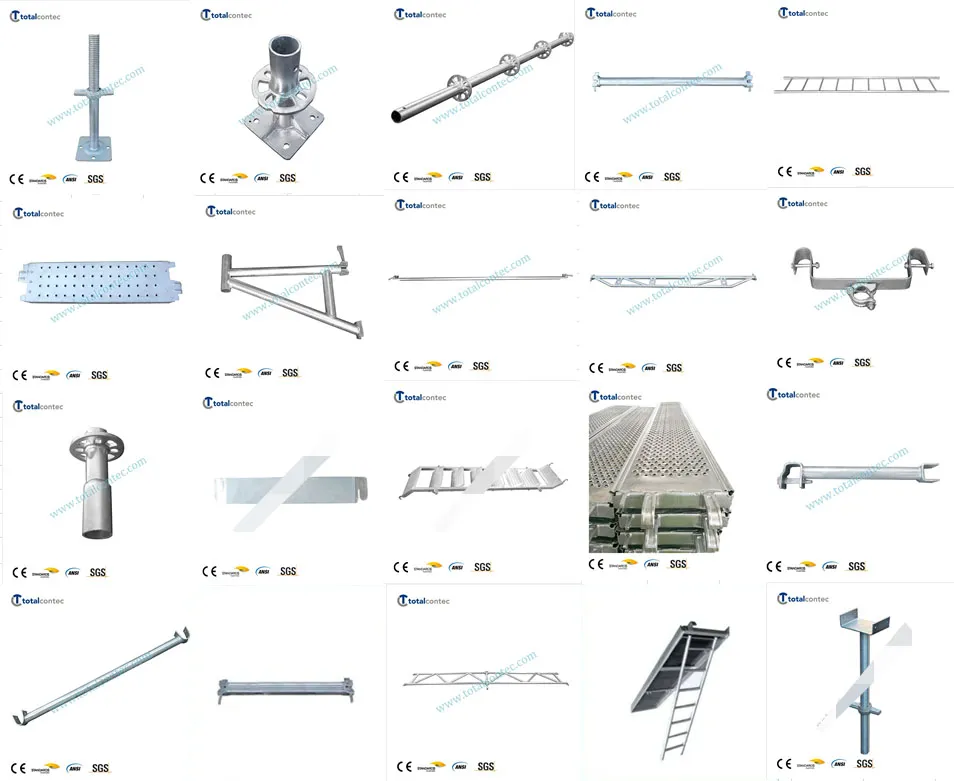

⭐ Ringlock System Features:
Ringlock scaffolding is a mature system mainly composed of standards, ledgers, braces, and planks. The revolutionary Ringlock node allows for faster and easier erection than other systems. It utilizes wedges, ledger ends, and rosettes to lock vertical and horizontal components tightly. The rosette features eight holes—four for fixing ledgers and four for braces—ensuring superior stability and independent quick-locking capabilities.
Technical Parameters
| Item Name |
Materials |
Weight |
Surface Treatment |
| Standard/verticals 050 | Q235, Q355
48.3*2.75mm-3.2mm | 2.96kg | Hot dip galvanized
Powder coated
Painted |
| Standard/verticals 150 | 7.69kg |
| Standard/verticals 250 | 11.86kg |
| Standard/verticals 300 | 14.78kg |
| Ledger/Horizontal 073 | Q235, Q355
48.3*2.75mm-3.2mm | 3.34kg | Hot dip galvanized
Powder coated
Painted |
| Ledger/Horizontal 2070 | 7.73kg |
| Ledger/Horizontal 3070 | 11.01kg |
| Diagonal/brace 073*200 | Q235
48.3*2.5mm | 5.34kg | Hot dip galvanized
Pre-galvanized |
| Diagonal/brace 307*200 | 9.22kg |
| Steel plank/deck 1090 | Q235
1.2mm-1.8mm | 8.58kg | Hot dip galvanized
Pre-galvanized |
| Steel plank/deck 3070 | 22.15kg |
Scaffolding Product Varieties

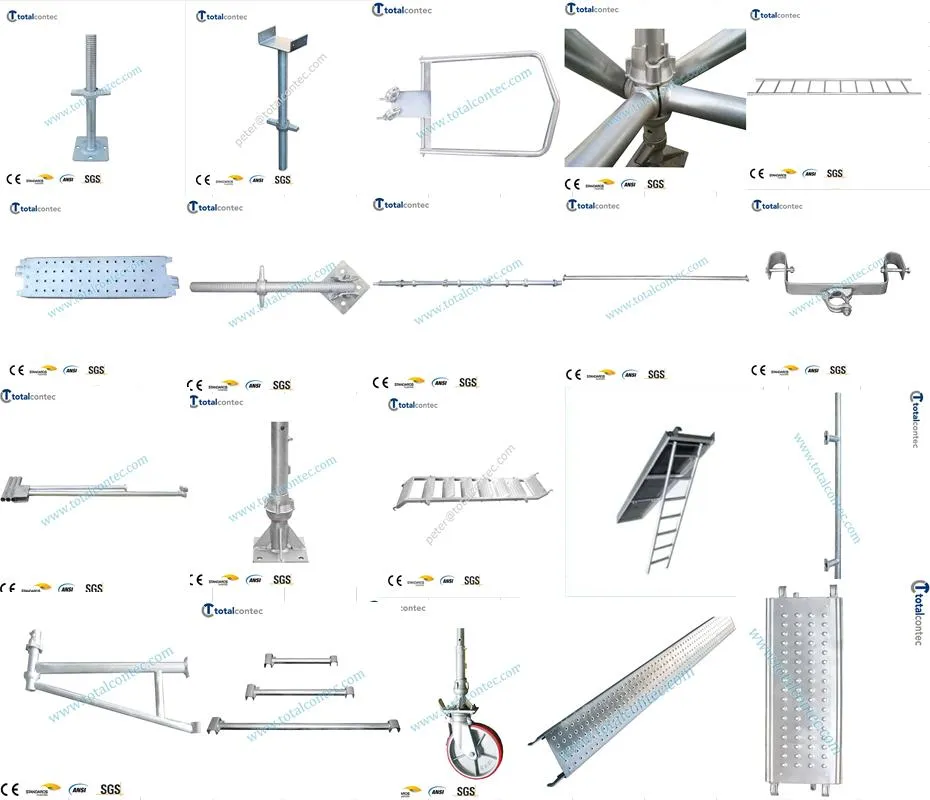

Cuplock Scaffolding

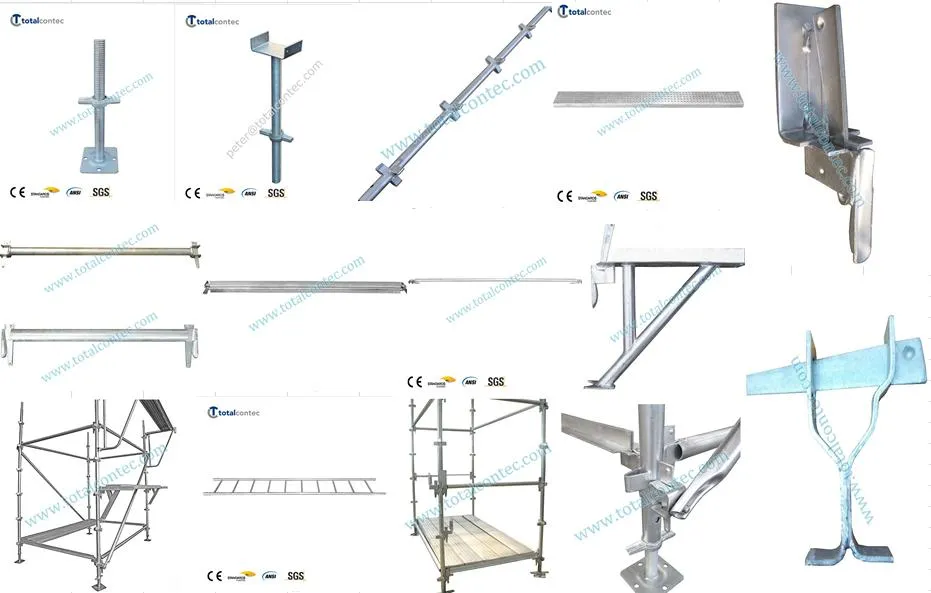

Kwikstage Scaffolding

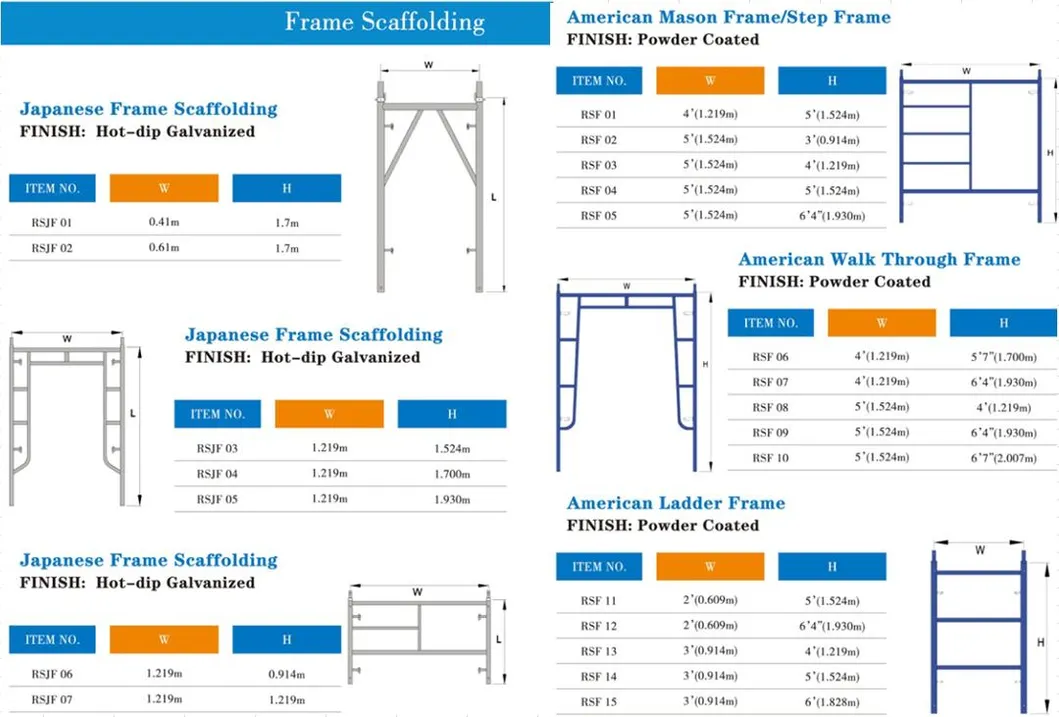

Frame Scaffolding

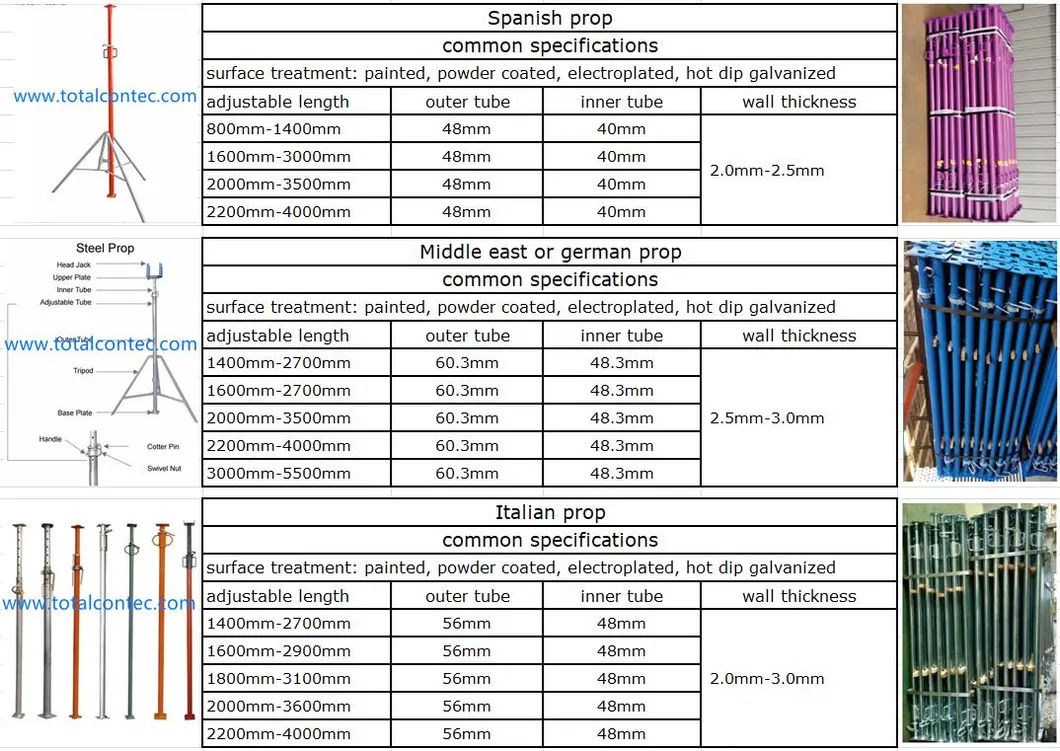

Shoring Prop

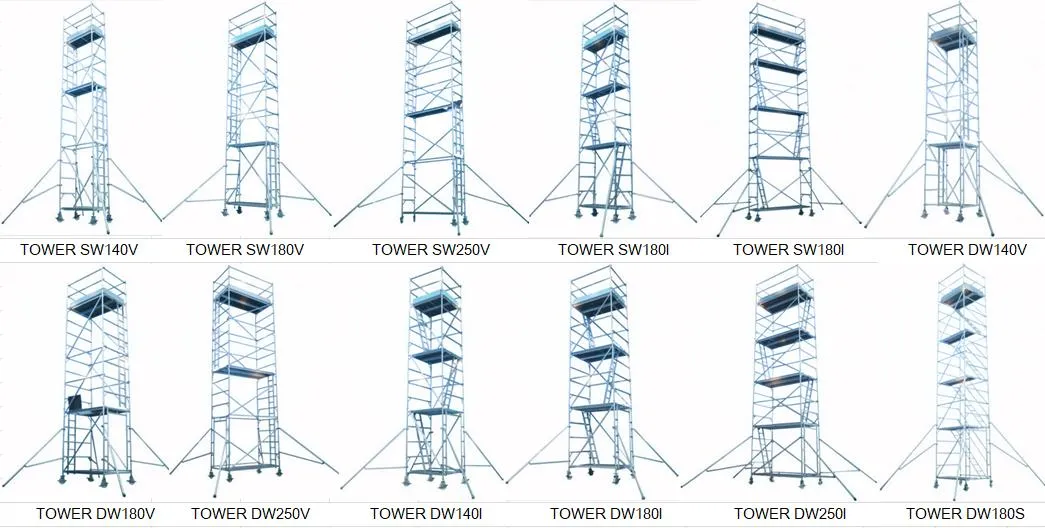

Aluminum Tower

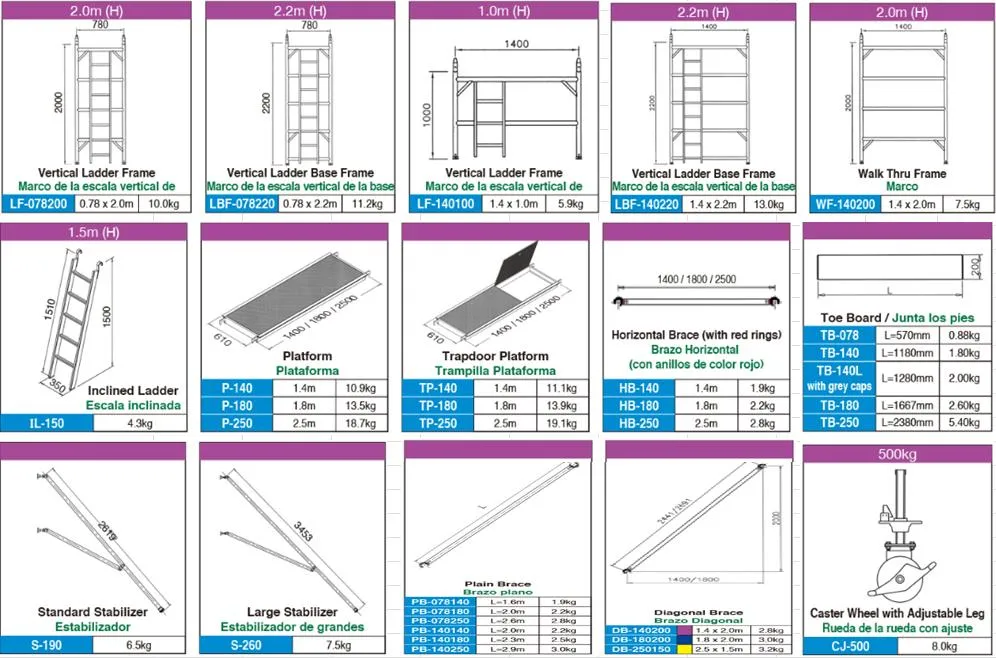

Tower Components

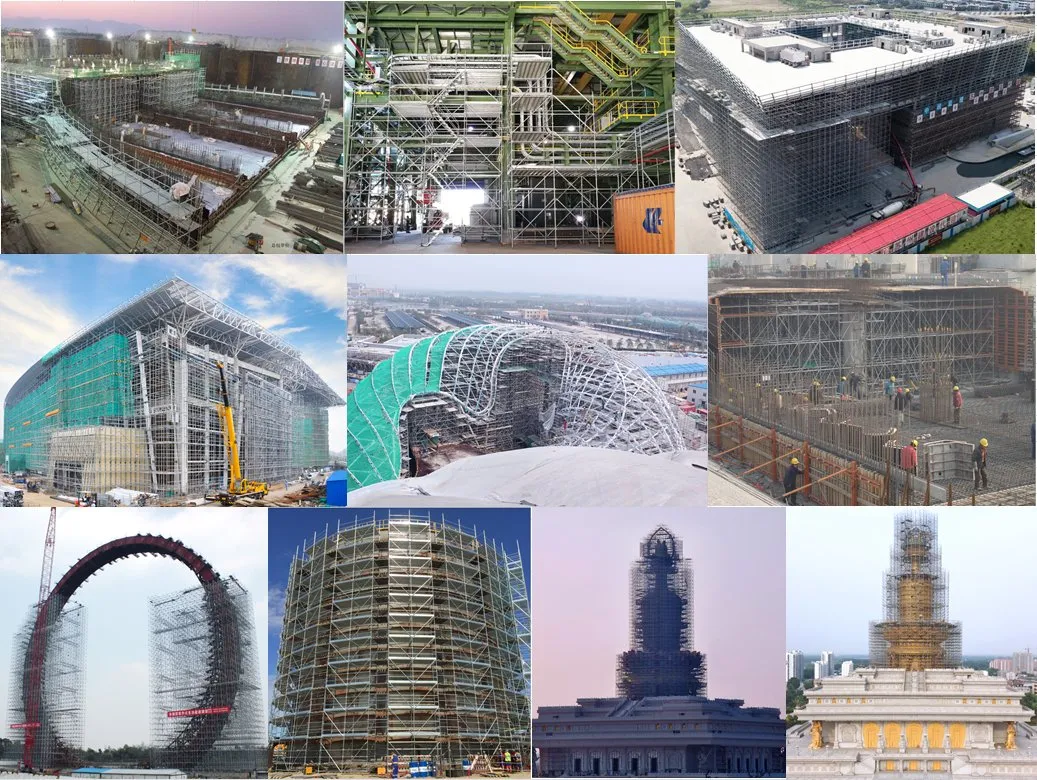

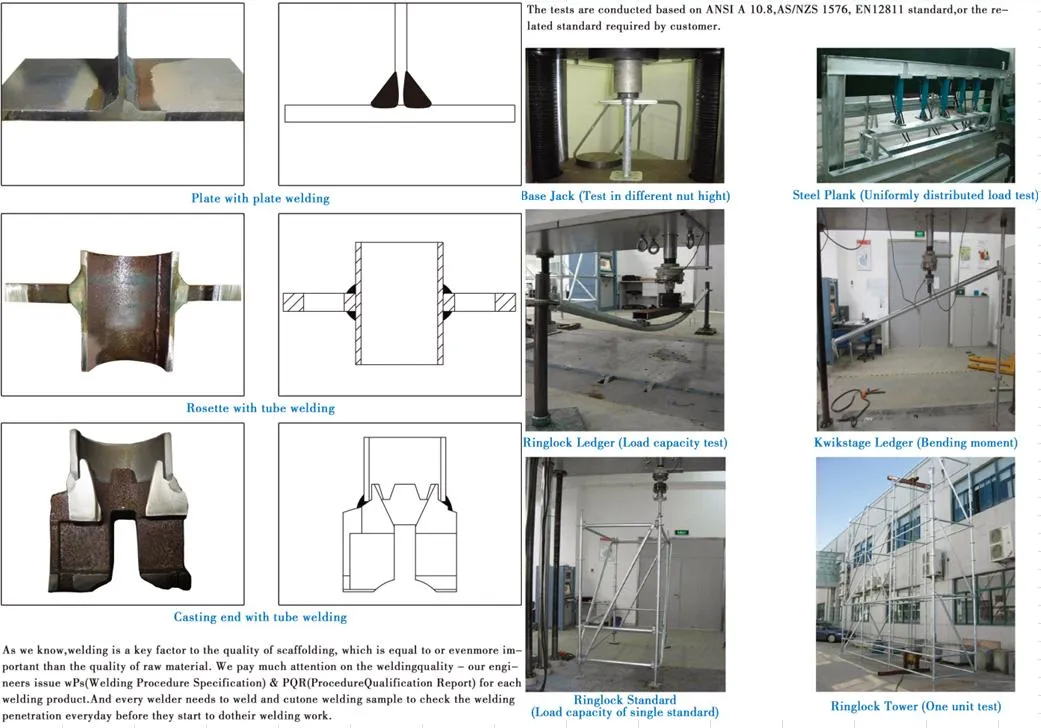

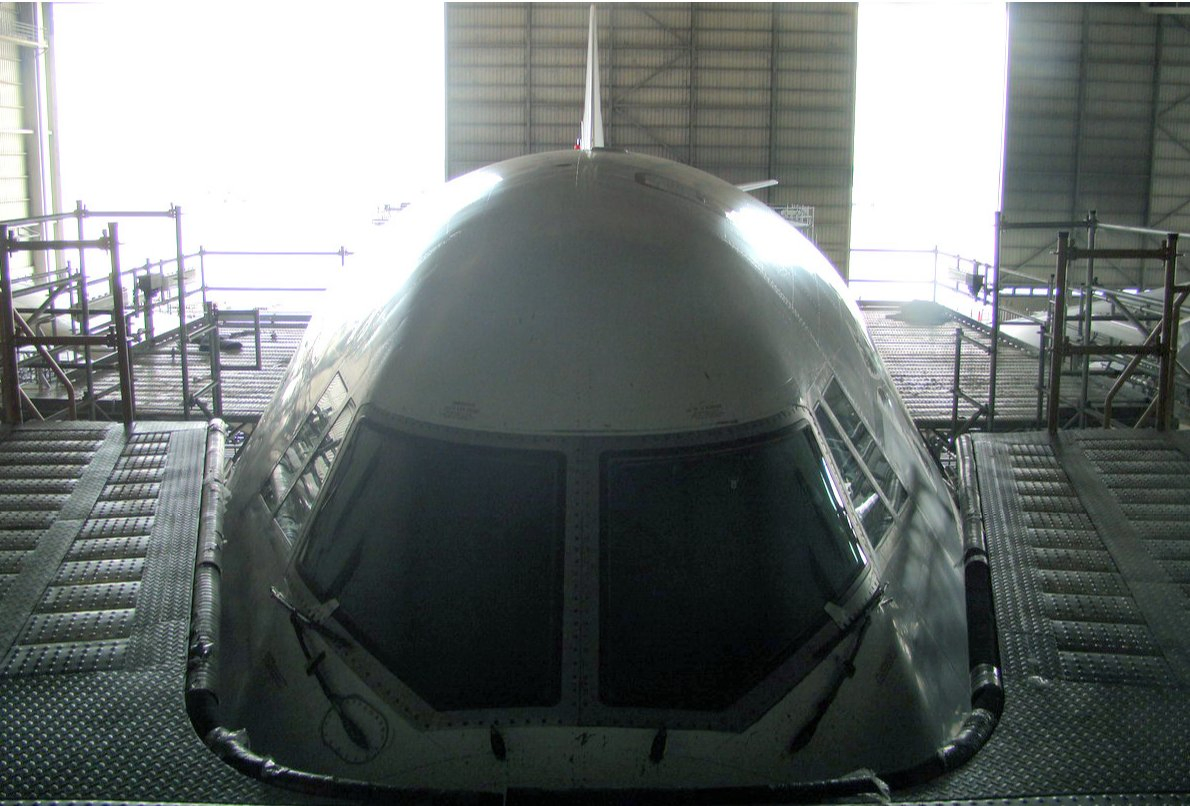

Project Case & Load Testing

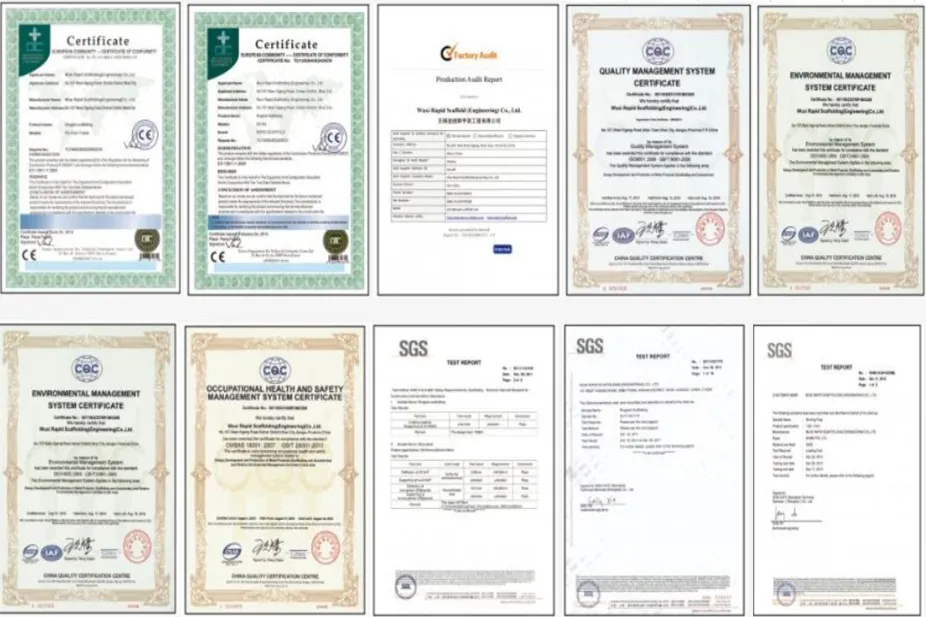

Quality Certificates
Frequently Asked Questions
What materials are used for your scaffolding products?
We primarily use high-strength Q235 and Q355 steel to ensure maximum durability and safety for construction projects.
What certifications do your scaffolding systems hold?
Our products are fully certified with ISO, CE, and SGS, meeting international safety and quality standards.
What is your daily production capacity?
We maintain a high production capacity of 100 tons per day, with the ability to ship approximately 30 containers per month.
What surface treatments are available?
We offer various options including Hot DIP Galvanized, Pre-galvanized, Powder Coated, and Painted finishes to suit different environmental requirements.
Why choose Ringlock scaffolding over other systems?
The Ringlock system's revolutionary rosette and wedge connection make it significantly faster and easier to erect, providing superior structural integrity and flexibility.
Do you provide different types of scaffolding structures?
Yes, we provide a wide variety including Ringlock, Cuplock, Kwikstage, Frame systems, Aluminum towers, and Shoring props.

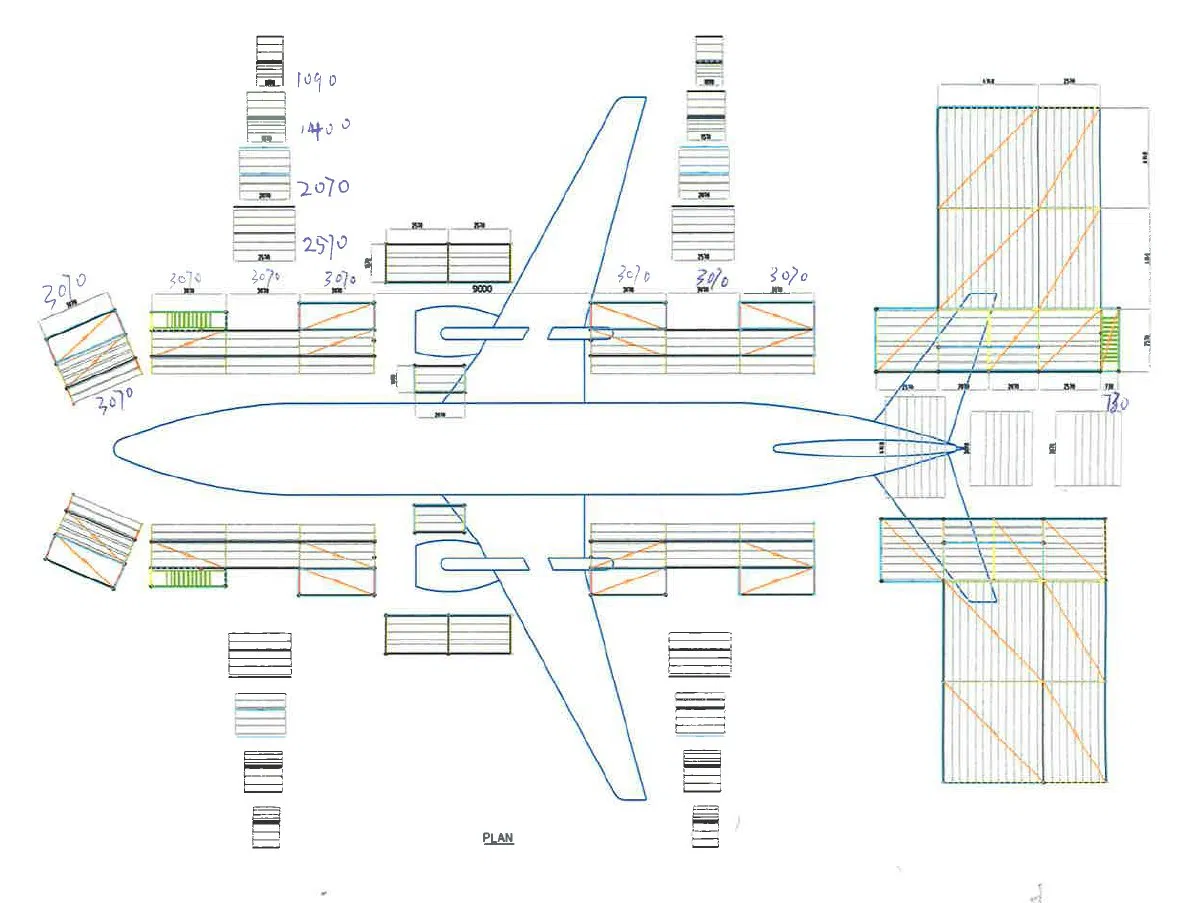

Aero Apex
