Semi Automatic Aviation Plug Soldering Machine for PCB Board USB Data Cable Signal Line
Semi Automatic Aviation Plug Soldering Machine for PCB Board USB Data Cable Signal Line
Semi Automatic Aviation Plug Soldering Machine for PCB Board USB Data Cable Signal Line
Semi Automatic Aviation Plug Soldering Machine for PCB Board USB Data Cable Signal Line
Semi Automatic Aviation Plug Soldering Machine for PCB Board USB Data Cable Signal Line
1 / 5
Semi Automatic Aviation Plug Soldering Machine for PCB Board USB Data Cable Signal Line
Semi Automatic Aviation Plug Soldering Machine for PCB Board USB Data Cable Signal Line
Semi Automatic Aviation Plug Soldering Machine for PCB Board USB Data Cable Signal Line
Semi Automatic Aviation Plug Soldering Machine for PCB Board USB Data Cable Signal Line
Semi Automatic Aviation Plug Soldering Machine for PCB Board USB Data Cable Signal Line

Semi Automatic Aviation Plug Soldering Machine for PCB Board USB Data Cable Signal Line

Customization: Available
Control: Semi-Automatic
Cooling Way: Air Cooling
Send Inquiry

Product Description

⚙️ Basic Information
Style
Hanging
Electrode Stroke
Vertical
Electric Current
DC Shock Wave
Transmission
Pedal
Welding Spots
1-5
Type
Universal
Name
Semi-Automatic Soldering Machine
Certificate
CE
Package
Wooden Box
Specification
40*40*50cm
📊 Technical Parameters
Name: Semi-Automatic Soldering Machine Input Air Pressure: 0.4-0.8Mpa
Industries: Manufacturing Plant, SMT, DIP Weight (KG): 20Kg
Voltage: 110-240V/50HZ Output 24V/2A Solder Wire: 0.6~1.5mm
Power: 160W Temperature Accuracy: ±3°
Solder Feeding Speed: 1~50mm/s Repeat Accuracy: ±0.02mm
Soldering Temp: 0 to 500ºC Core Components: PLC
💡 Product Description & Features

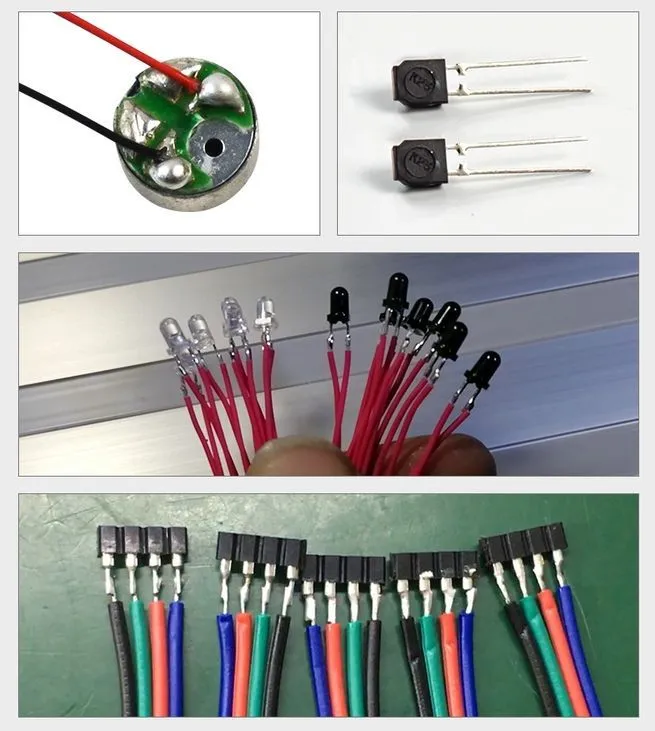

  • Widely used in wire harness welding, USB/Type-C data lines, motor wires, PCB boards, LED strips, and electronic components.

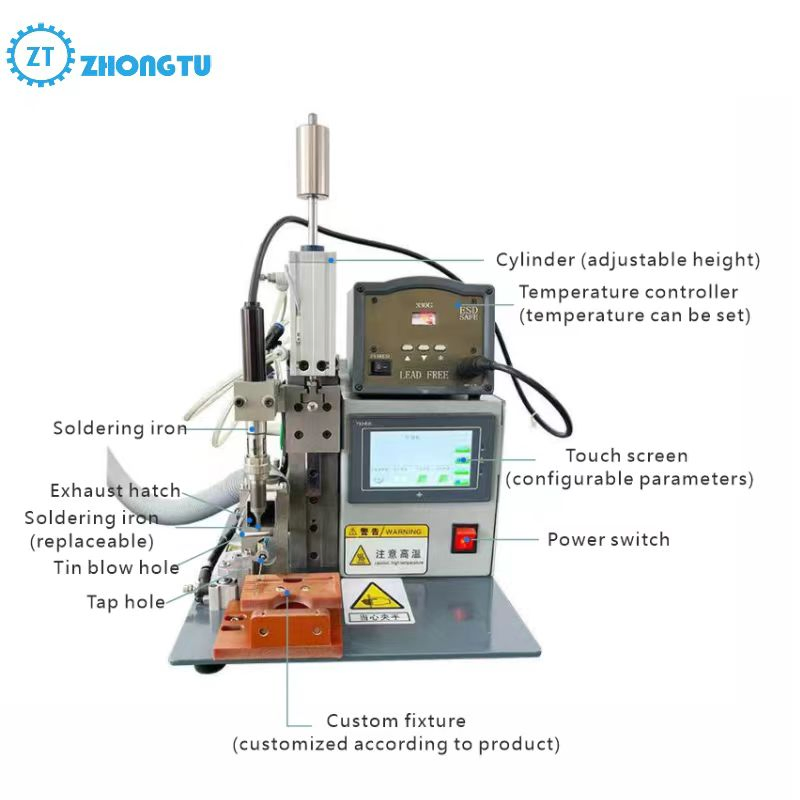

  • Equipped with a 4.3-inch PLC touch screen integrated machine for rapid, reliable response and high anti-interference capability.
  • Flexible system supporting both electric and pneumatic versions with free switching to meet diverse soldering needs.
  • User-friendly interface allowing factory setting restoration to prevent errors caused by improper operation.
📸 Detail Photos

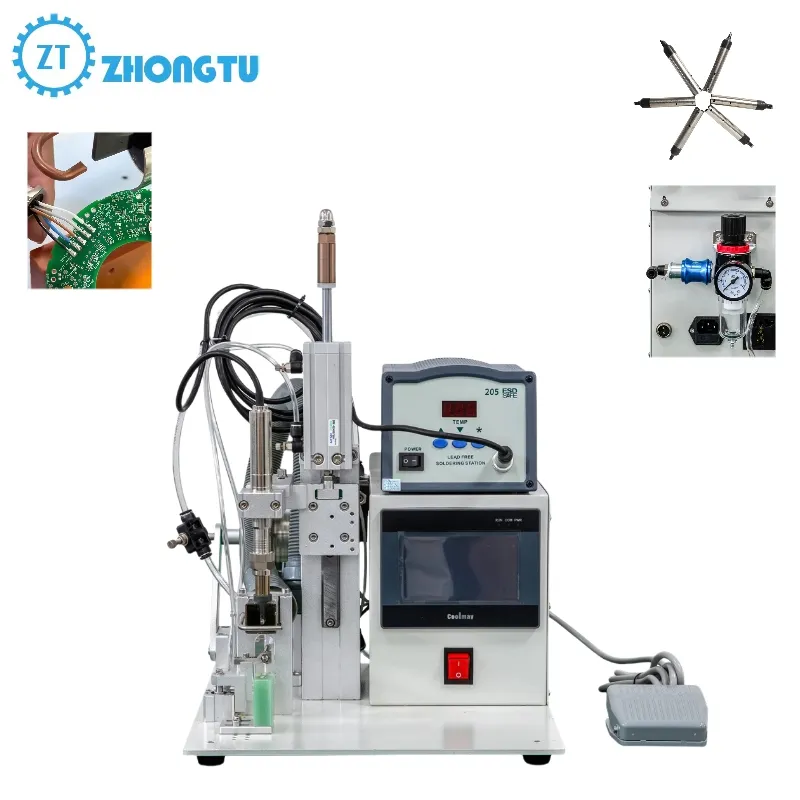

Soldering Machine Detail 1
Soldering Machine Detail 2
Soldering Machine Detail 3
Soldering Machine Detail 4
Application 1
Application 2
⭐ Our Advantages
Advantage Image
  • Direct factory manufacturing to ensure quality control.
  • Significant reduction in overall production costs.
  • Advanced system solutions for automation equipment.
  • Improved product yield and informatization levels.
🛠 Professional Services

Pre-sale

• Product Introduction
• Technical Communication
• Remote Consulting Service

In Sale

• Detailed Product Demonstration
• Operational Training
• Technical Problem Solving

After Sale

• Support Video Service
• 1-Year Machine Warranty
• 3-Year Motor/Control Part Warranty

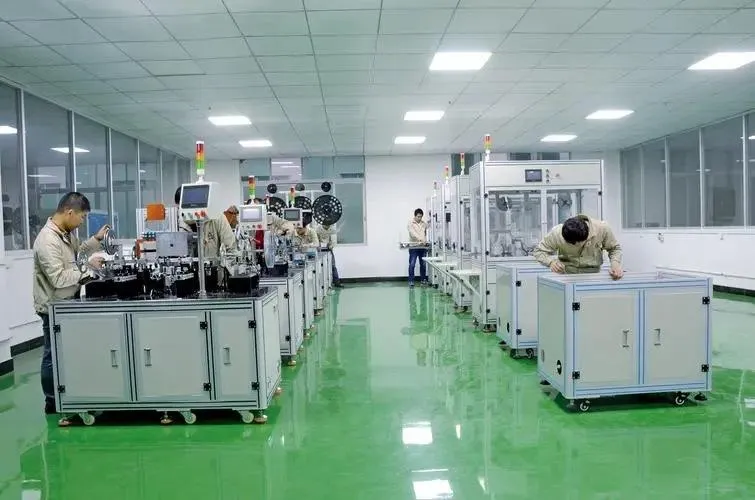

Workflow 1

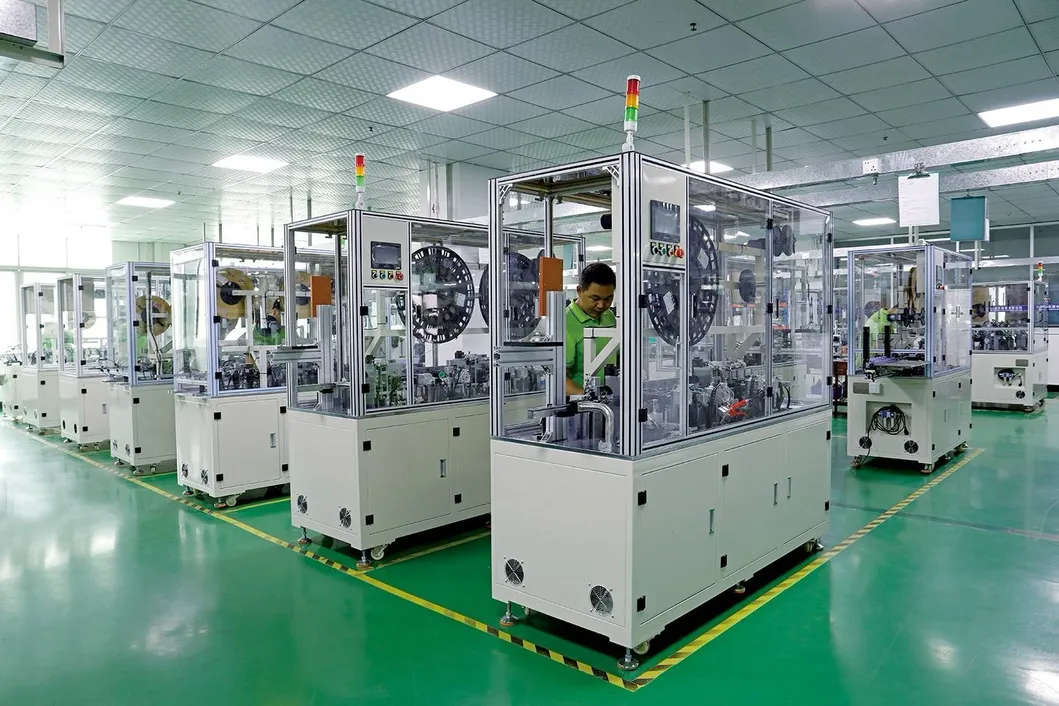

Workflow 2

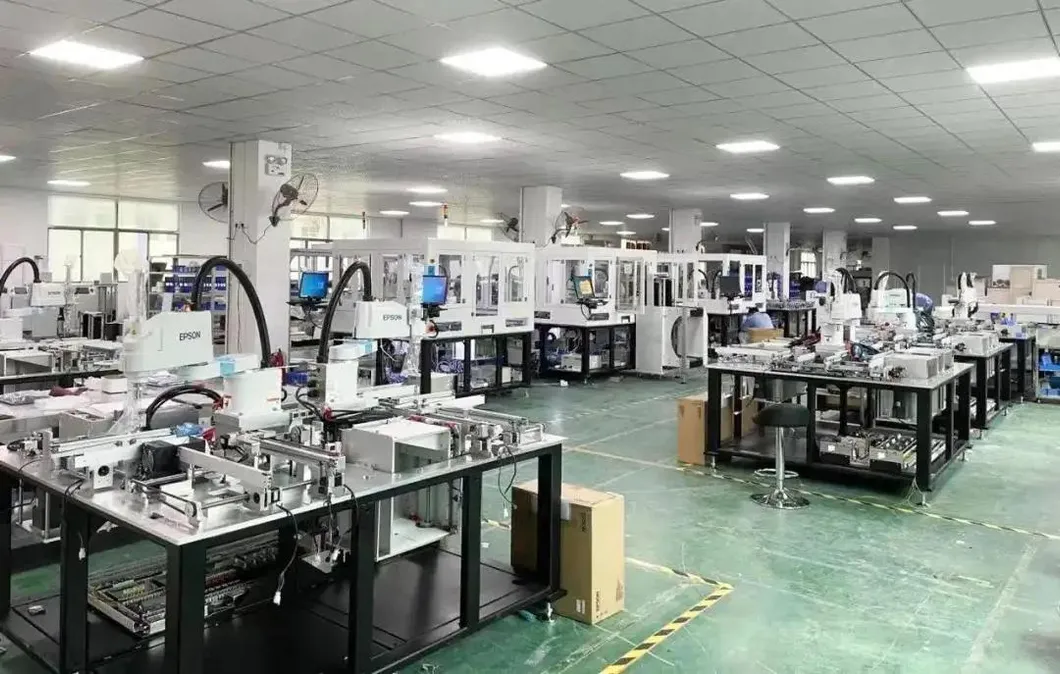

Workflow 3
📦 Packing & Shipping
Packing 1
Packing 2
❓ Frequently Asked Questions
Q1: What are the main applications for this soldering machine?
A: It is widely used for wire harness welding, USB/Type-C/HDMI plug connections, PCB boards, LED strips, and various electronic switches or sensors.
Q2: How do you guarantee the quality of the equipment?
A: We conduct a pre-production sample check and a strict final inspection before shipment to ensure high performance and reliability.
Q3: What control system does the machine use?
A: The machine features a 4.3-inch PLC touch screen integrated system that provides timely response and excellent anti-interference capabilities.
Q4: Does the machine support different welding modes?
A: Yes, it is divided into electric and pneumatic versions, and the system supports free switching between these modes based on your production needs.
Q5: What is the warranty policy?
A: We provide a 1-year warranty for the unit machine and a 3-year warranty for core components such as the motor, guide rails, and control parts.
Q6: Can I request a sample order to test the quality?
A: Yes, sample orders are welcome to test our machine's quality and our professional services before bulk purchasing.
