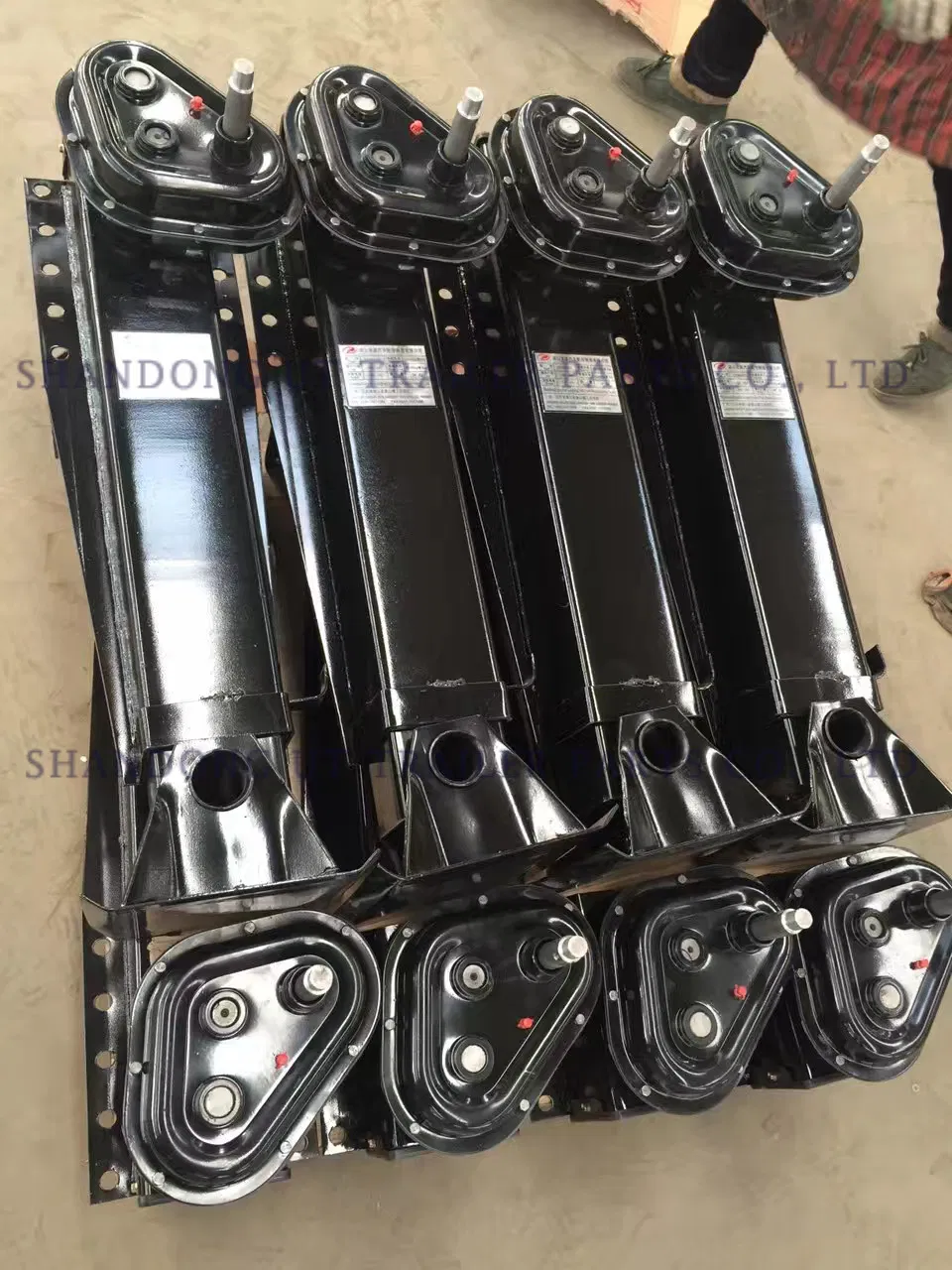

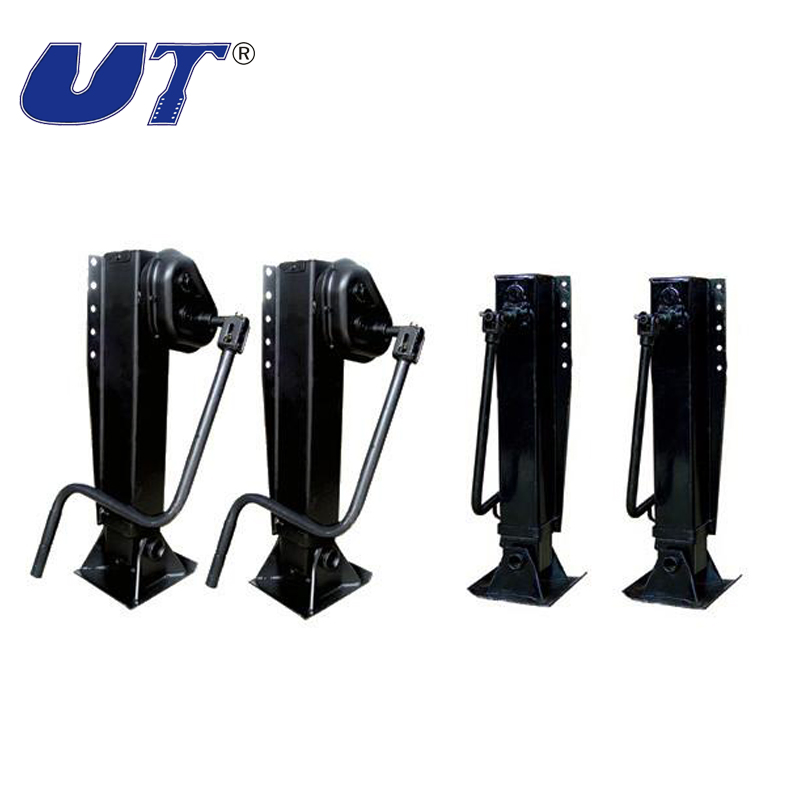

Trailer Landing Legs, Support Legs, Landing Gears for 28t, 60t, 80t

1 / 5

Trailer Landing Legs, Support Legs, Landing Gears for 28t, 60t, 80t

Customization:	Available
Colour:	Black
Loading Weight:	25/28/30 Tons

Send Inquiry

Product Description

Basic Specifications

Model NO.

UT28TA

Size

Medium

Type

Jack

Certification

ISO/Ts16949

ABS

Without ABS

Condition

New

Color

Black

Transport Package

in Pallet

Specification

28 tons

HS Code

87169000

Production Capacity

10000/Year

Product Overview

High-performance landing gear designed for semi-trailers, full trailers, and heavy-duty trucks.

✓ Operation: Available in both Single-Side and Double-Side Operation types.

✓ Gearbox: Options for both Internal and External gearbox configurations.

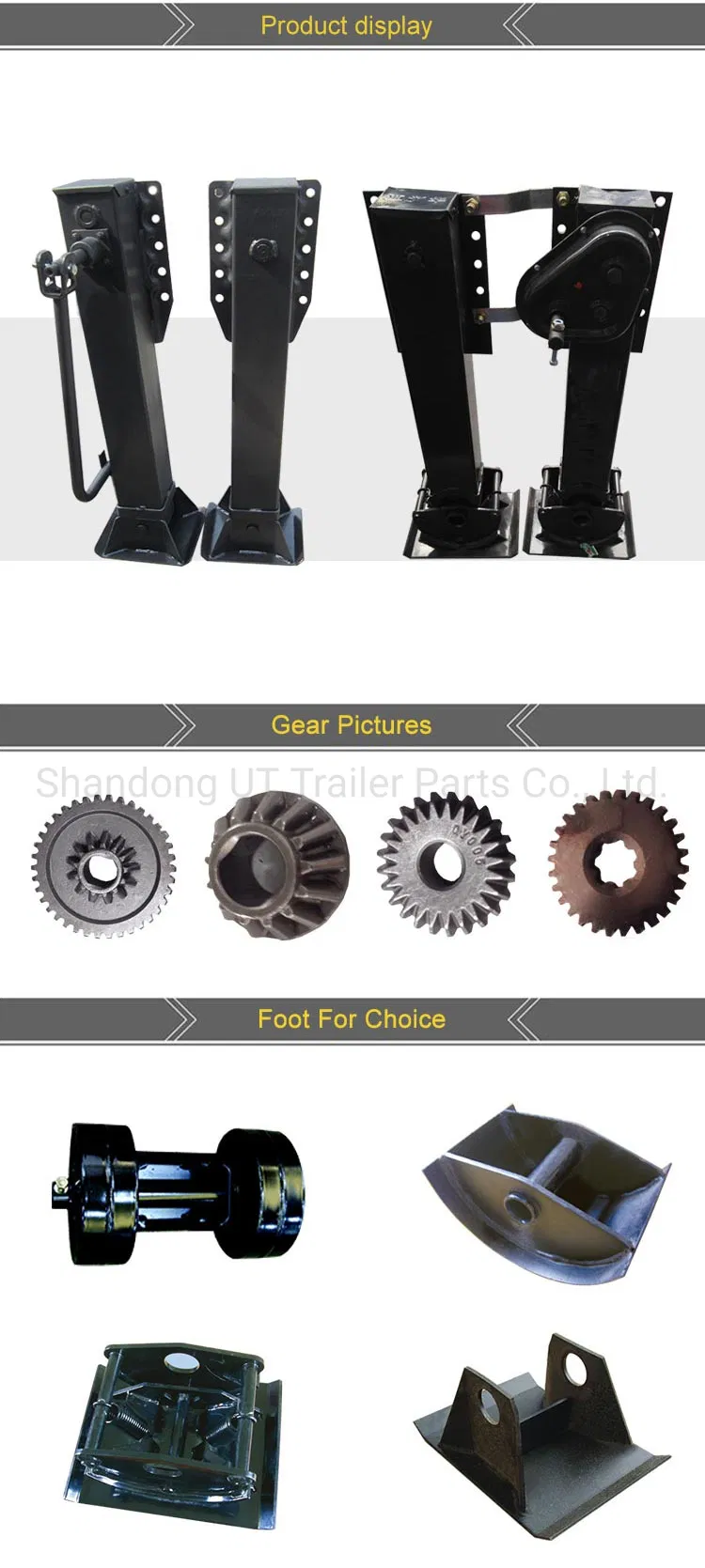

✓ Sand Shoe Varieties: T-Shoe, Casting T-Shoe, S-Shoe, R-Shoe, and A-Shoe.

✓ Capacity Range: Supports 5ton, 8ton, 15ton, 20ton, 25ton, 28ton, 30ton, and 35ton.

✓ Design Standards: Compatible with Common types similar to FUWA, JOST, HOLLAND, and YORK designs.

Technical Parameters

Model Number	UT25T	UT28T	UT30T
Static Load Capacity(T)	80	80	80
Lifting Capacity(T)	25	28	30
High Gear(mm)	6	7.5	7.5
Low Gear(mm)	0.67	0.83	0.71
Travel Max(mm)	14″ 17″ 19″	14″ 17″ 19″	14″ 17″ 19″
Assembly height(mm)	713 789 840	713 789 840	713 789 840
Standard Weight(kg)	98 104 108	100 106 110	106 112 116

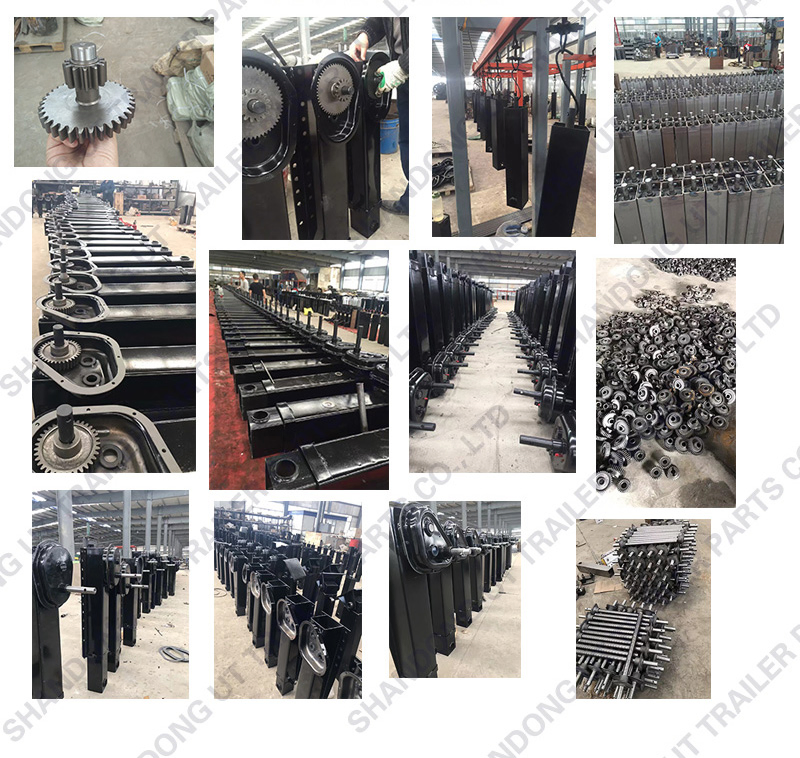

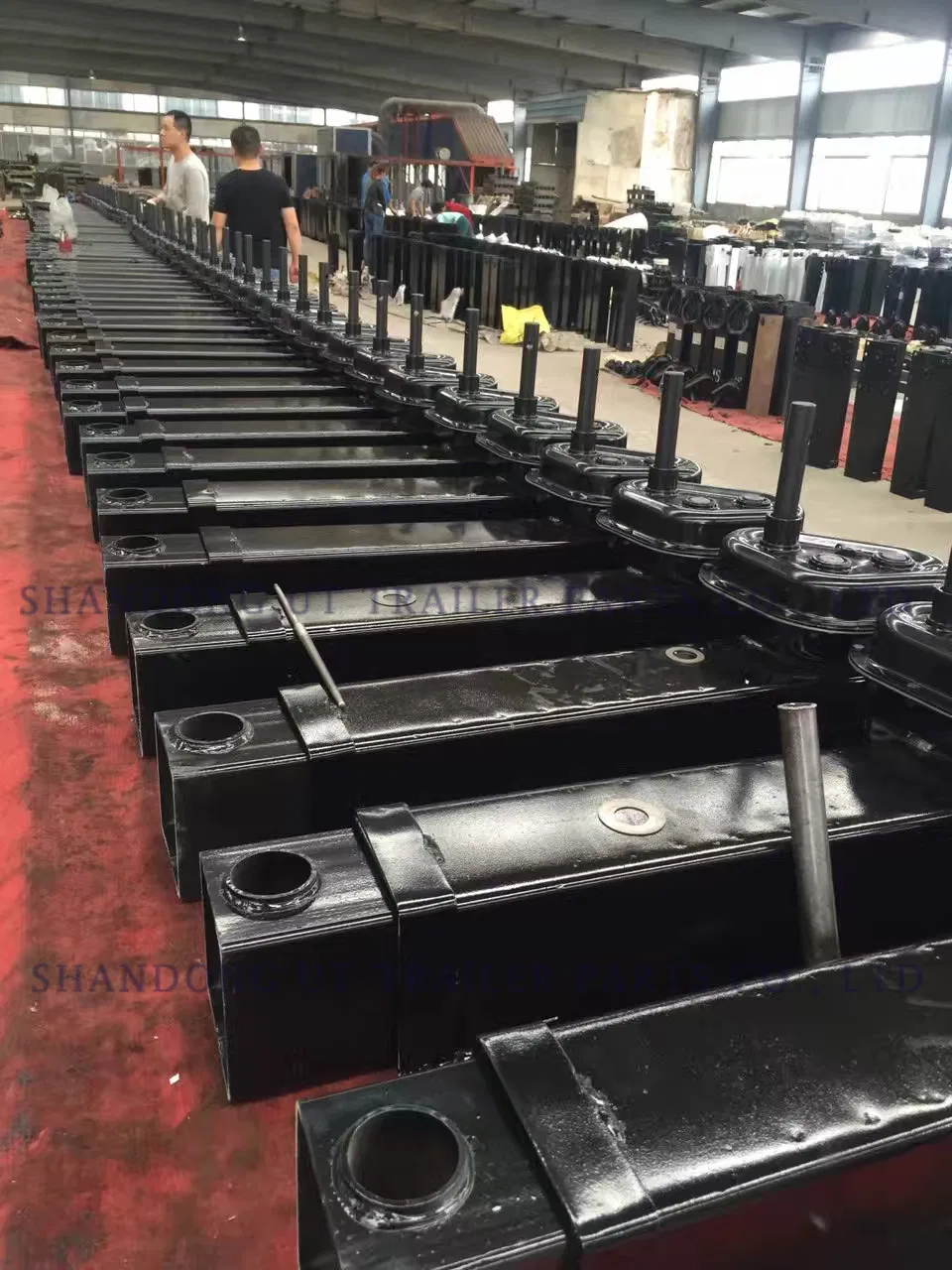

Product Gallery

Frequently Asked Questions

What is the maximum static load capacity of these support legs?

The landing gear models UT25T, UT28T, and UT30T all feature a robust static load capacity of up to 80 Tons.

Are there different gearbox options available?

Yes, we provide both gearbox inside and gearbox outside types to suit different installation and operational requirements.

Can I choose the type of sand shoe?

Absolutely. We offer various sand shoe designs including T-Shoe, Casting T-Shoe, S-Shoe, R-Shoe, and A-Shoe to match different ground conditions.

What lifting capacities are available for different trailer types?

We offer a wide range of lifting capacities including 5t, 8t, 15t, 20t, 25t, 28t, 30t, and 35t options.

Are these landing gears compatible with standard international brands?

Our designs are compatible and similar to major industry standards such as FUWA, JOST, HOLLAND, and YORK.

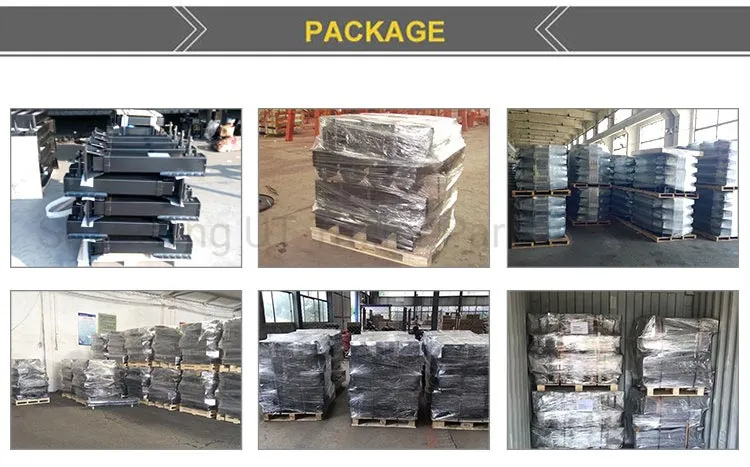

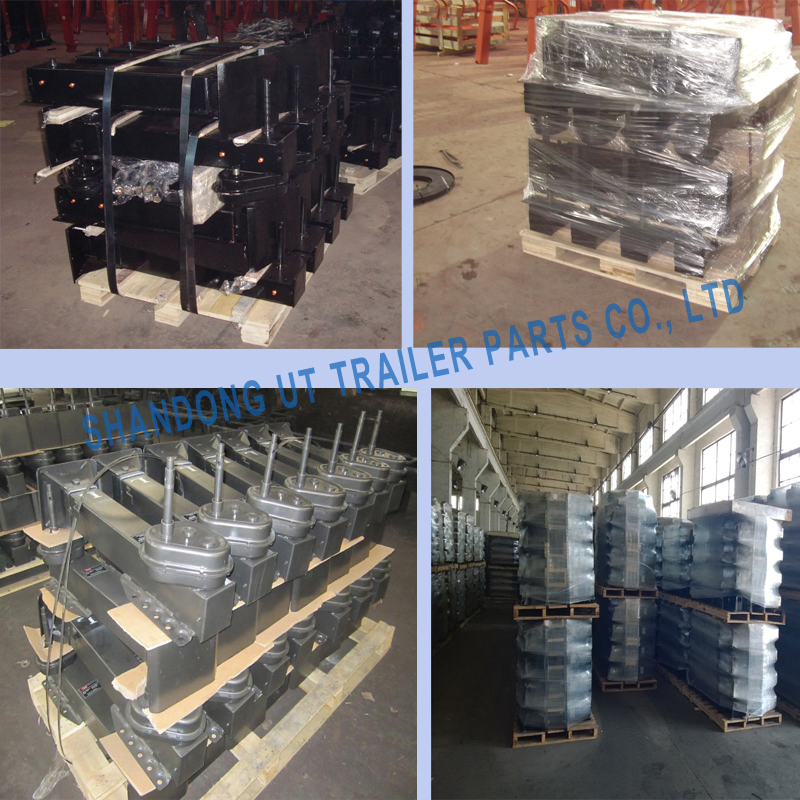

How are the products packaged for international shipping?

The landing gears are typically secured in pallets or wooden cases to ensure safety during transit, according to your specific requirements.
