| Model NO. | KM280001A |
| Landing Gear | Outside Linked/ Built-in |
| Usage | Industrial |
| Shape | Landing Gear |
| ABS | Without ABS |
| Axle Number | 1 |
| Production Capacity | 10000 Set/Sets Per Month |
| Package Size | 45.00cm * 45.00cm * 45.00cm |
| Gross Weight | 10.000kg |
| HS Code | 871690 |

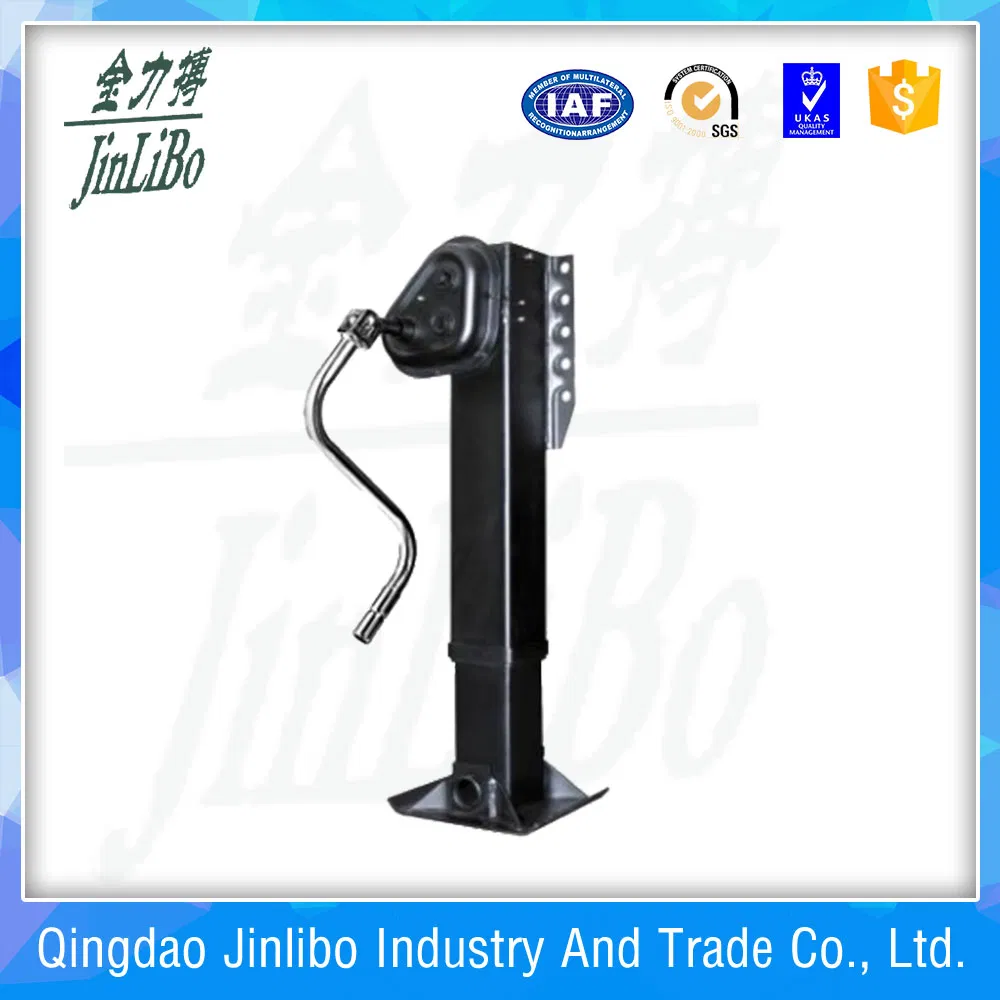

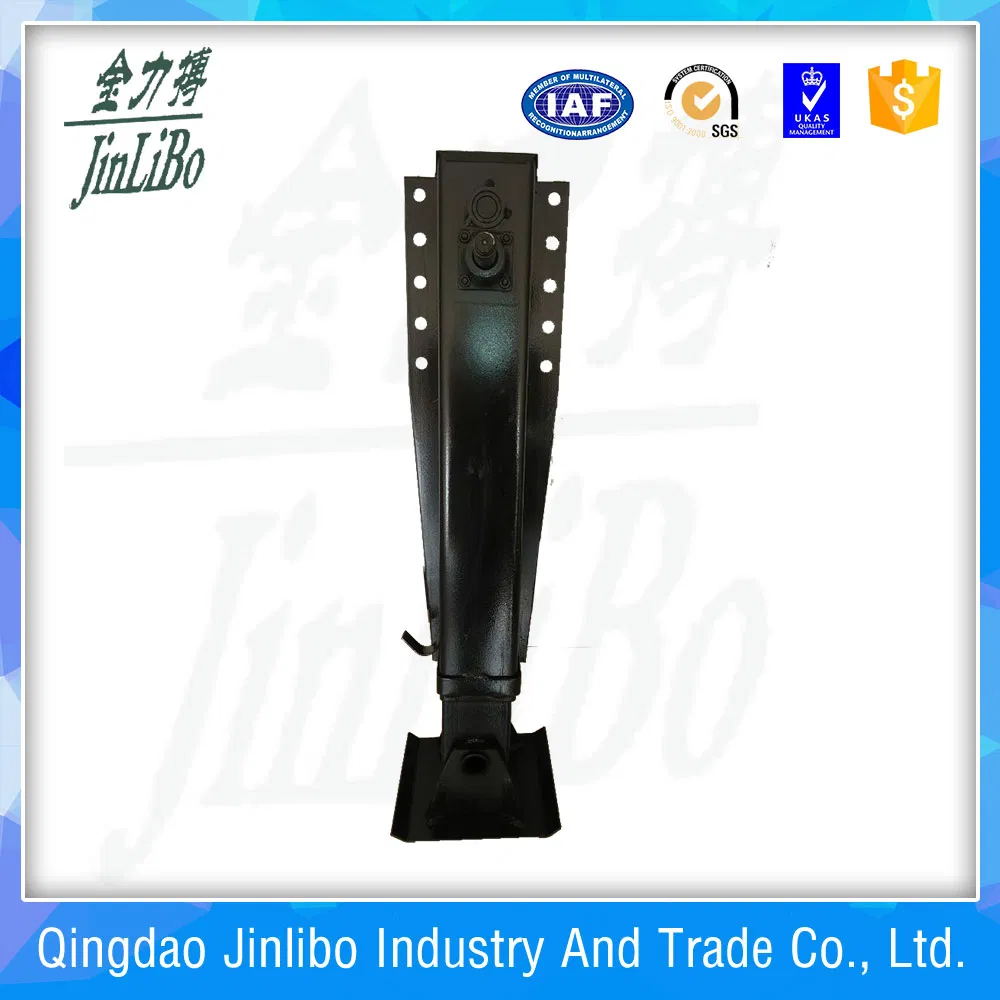

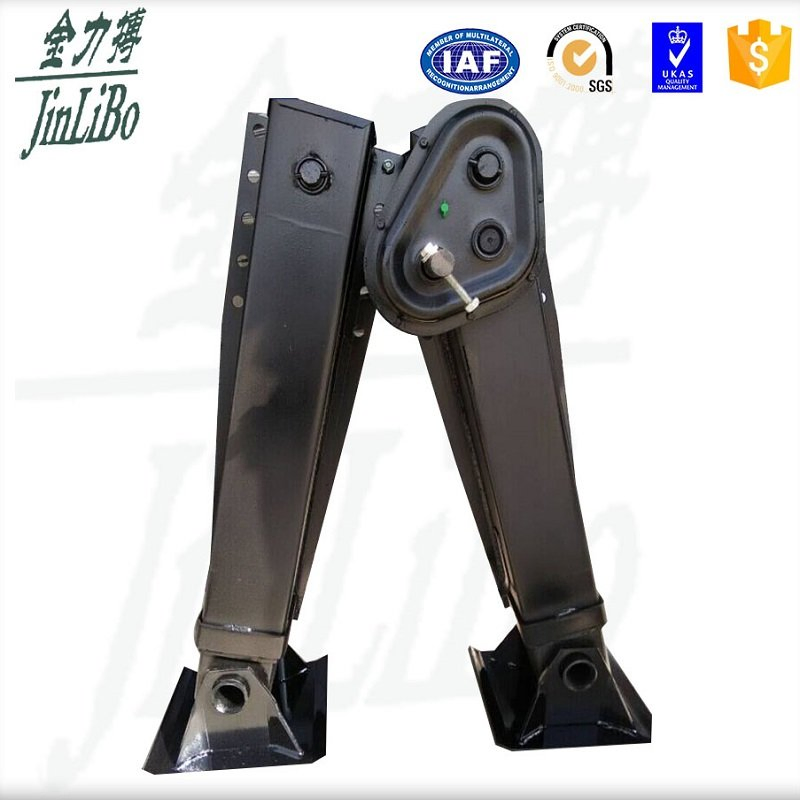

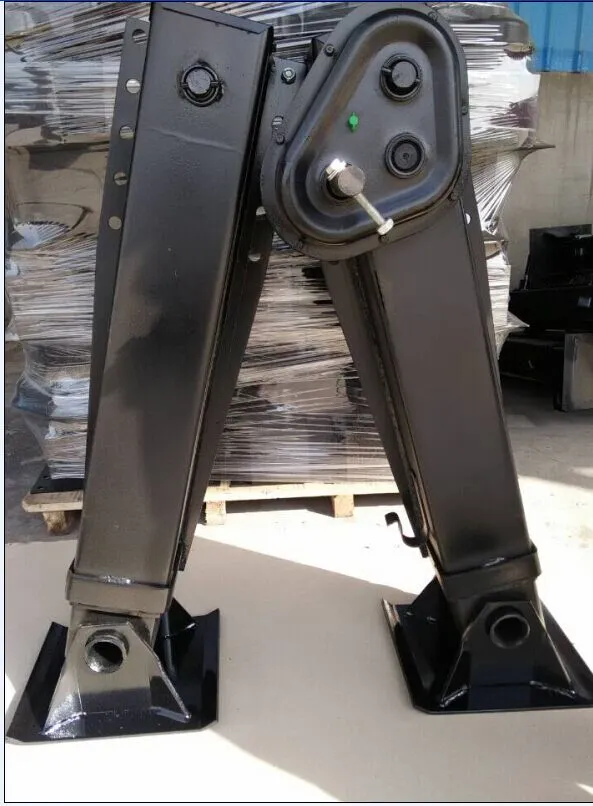

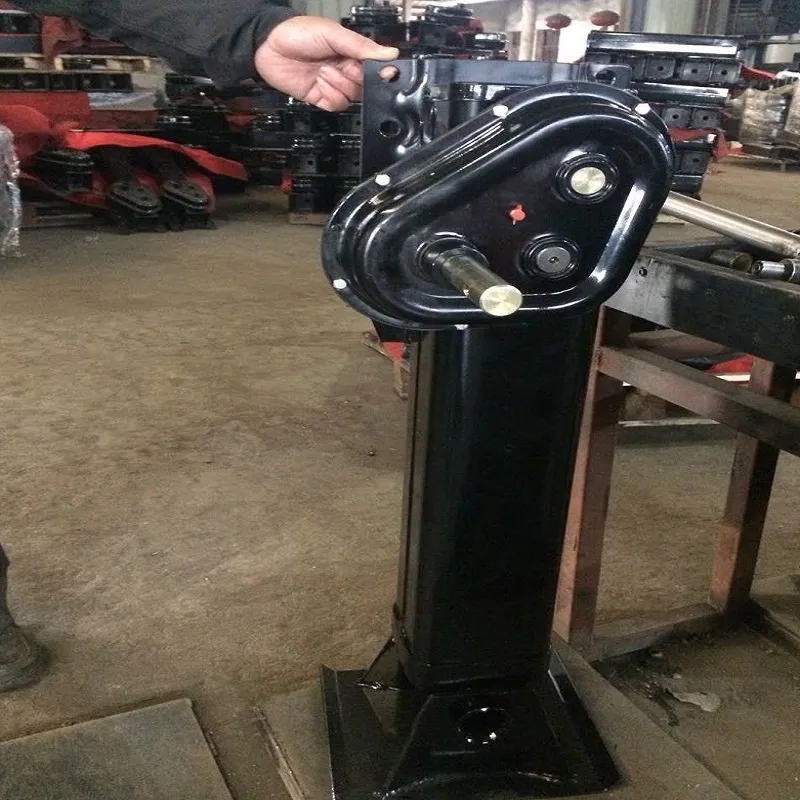

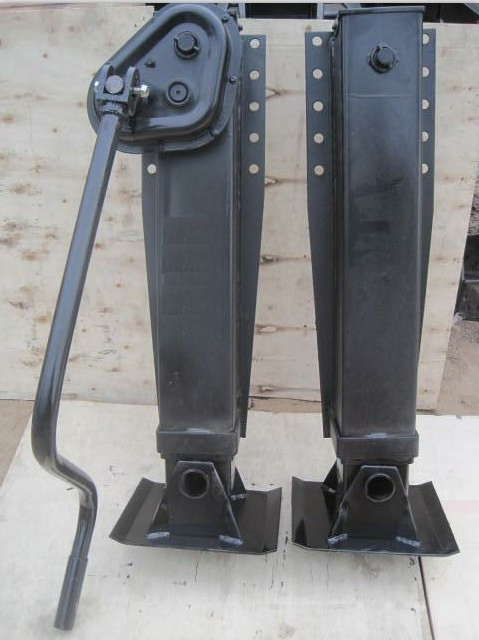

Trailer Landing Gear - 28T Capacity
We provide high-quality landing gear solutions including 16T, 28T, 30T, 40T, and 60T models, available in both built-in and outside configurations. Custom production is available to meet specific requirements.

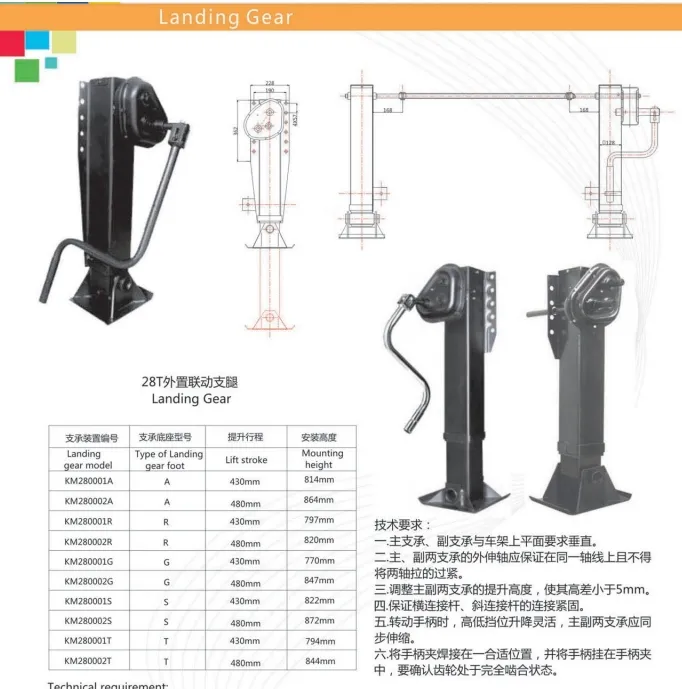

| Model | Foot Type | Lift Stroke | Mounting Height |
|---|---|---|---|
| KM280001A | A | 430mm | 814mm |
| KM280002A | A | 480mm | 864mm |
| KM280001R | R | 430mm | 797mm |
| KM280002R | R | 480mm | 820mm |
| KM280001G | G | 430mm | 770mm |
| KM280002G | G | 480mm | 847mm |
| KM280001S | S | 430mm | 822mm |
| KM280002S | S | 480mm | 872mm |
| KM280001T | T | 430mm | 794mm |
| KM280002T | T | 480mm | 844mm |
