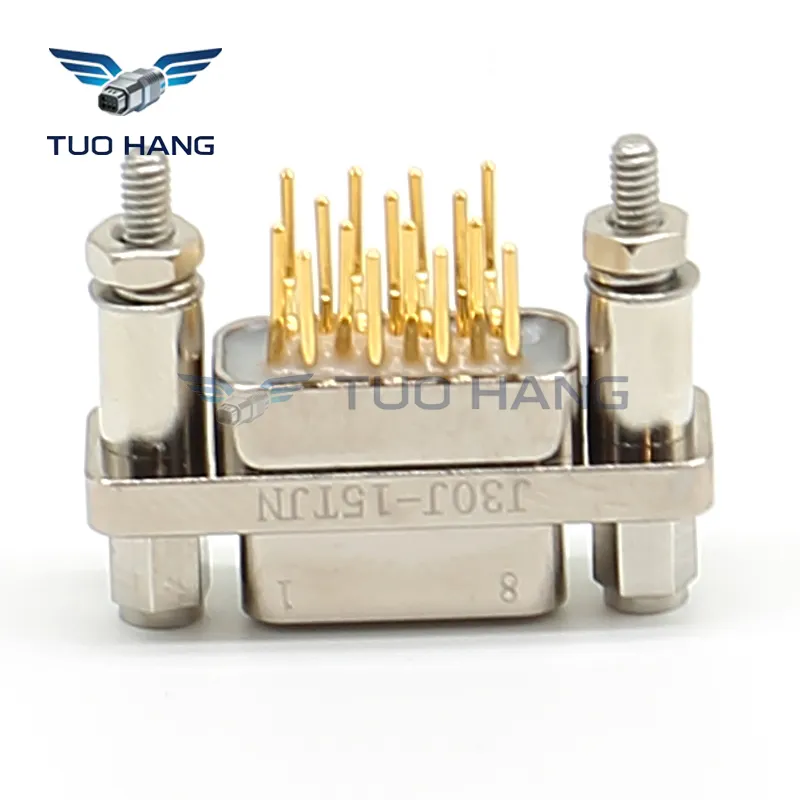

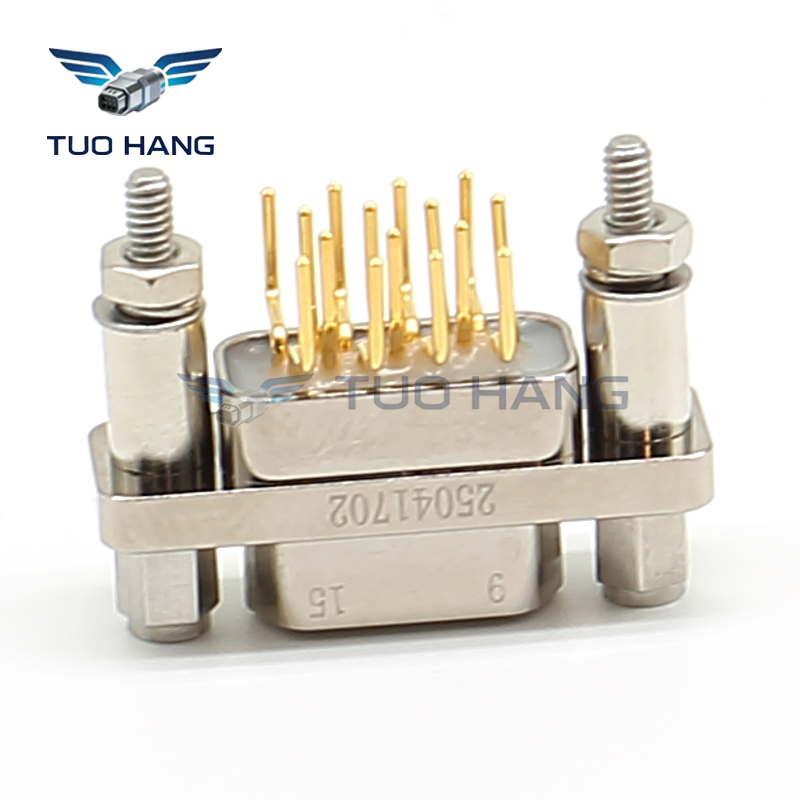

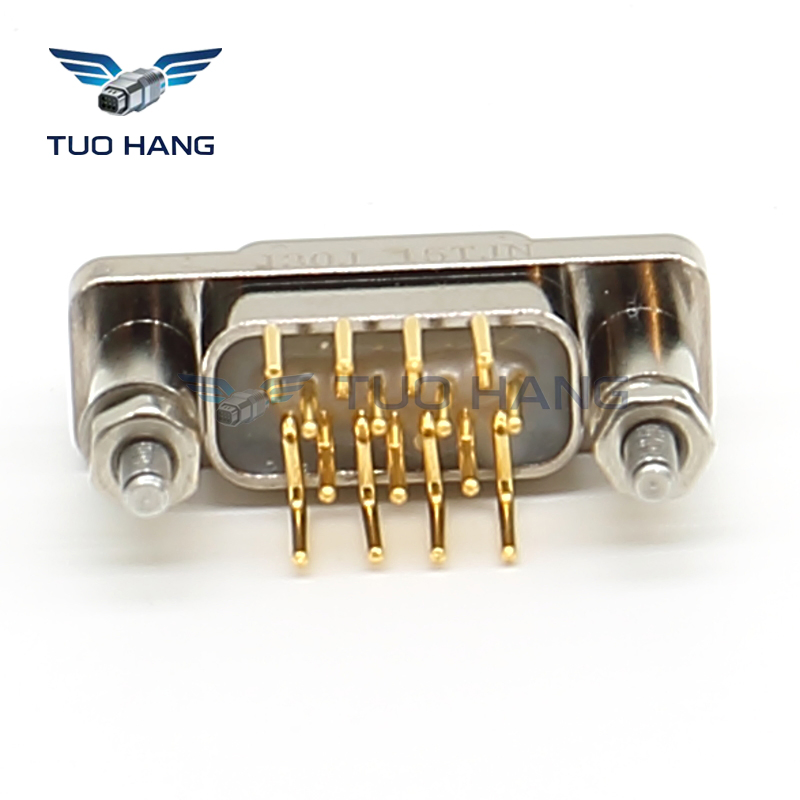

The J30J-15TJN is a high-density, micro-miniature rectangular connector designed for critical signal transmission in space-constrained environments. Fully compliant with the GJB2446A standard (equivalent to the U.S. MIL-DTL-83513 Micro-D series), it features a 1.27mm pitch and a robust 15-pin configuration.
The "TJN" designation indicates a Plug (T) with Straight PCB Termination (JN), making it ideal for direct board-level integration where reliability and compact size are paramount.
| Parameter Item | Technical Specification |
|---|---|
| Series | J30J (Micro-D) |
| Contact Quantity | 15 Pins |
| Contact Type | T — Plug (Pin) |
| Termination Style | JN — Straight PCB Mount |
| Durability | 500 Mating Cycles |
| Vibration Resistance | 10 Hz ~ 2000 Hz, 196 m/s² |
| Shock Resistance | 735 m/s², 11 ms |
| Rated Current | 3.0 A |
| Insulation Resistance | ≥ 5000 MΩ (at 500V DC) |
| Dielectric Strength | 600 V AC (at sea level) |

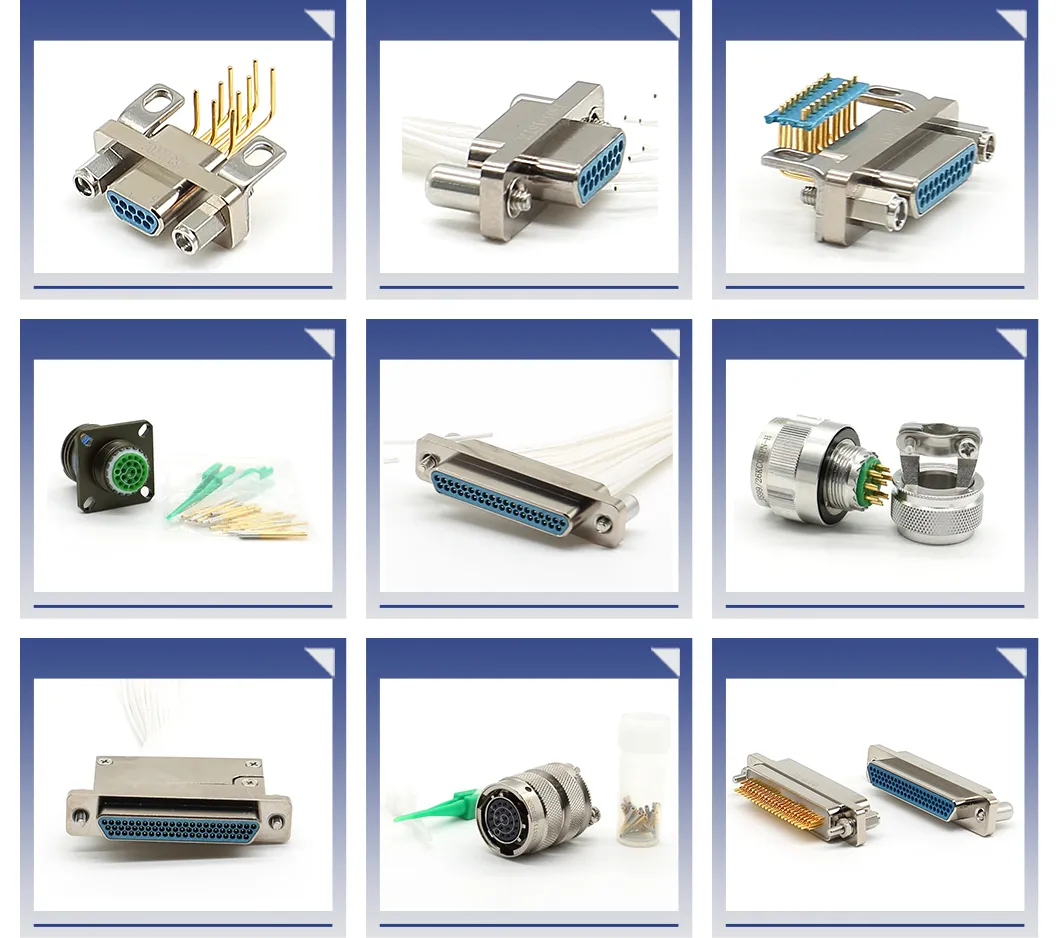

Our research and development focus on electrical connectors including Y50EX, Y3A, Y3, YB, Y2, YP, Y4, Y11, Y17, Y50, Y27, XC, JY, YM, YGD, XS12, D38999 circular series and J14, J30, J63 rectangular series. These products meet standards such as GJB101, GJB598, GJB2889, and GJB2905.
