| Model NO. | J30J-9ZKWP7-J | Application | PCB, Power, Audio & Video, Automotive |
|---|---|---|---|
| Interface Type | AC/DC | Operating Frequency | Low Frequency |
| Gender | Male | Poles | 9 |
| Housings | Metal | Contact Finish | Gold |
| Temperature Rating | -55°C ~ +125°C | Contact Resistance | ≤ 10 MΩ |
| Endurance | 500 Cycle | Salt Spray | 96 H |

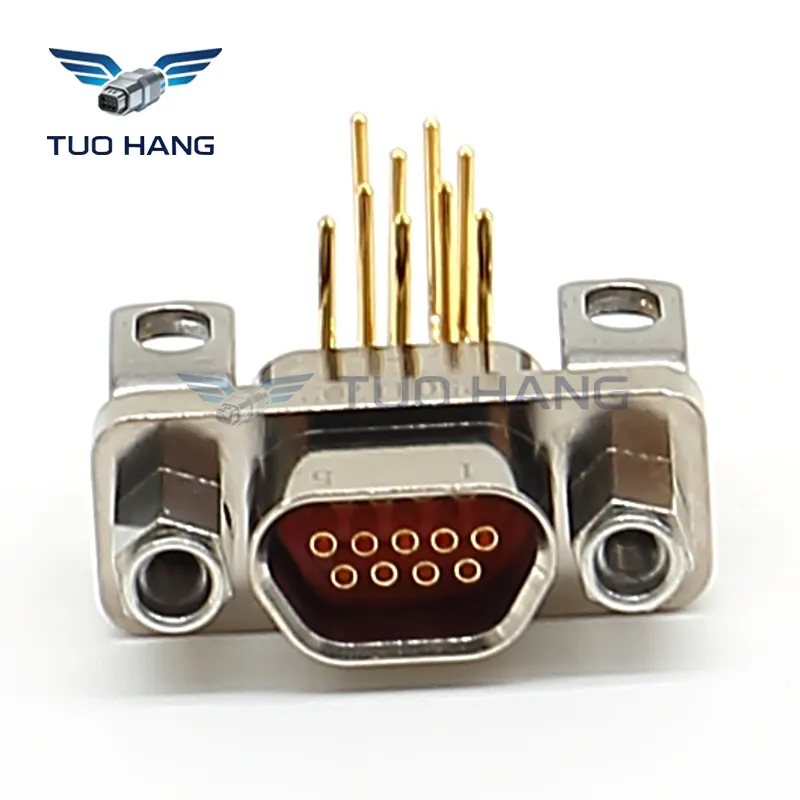

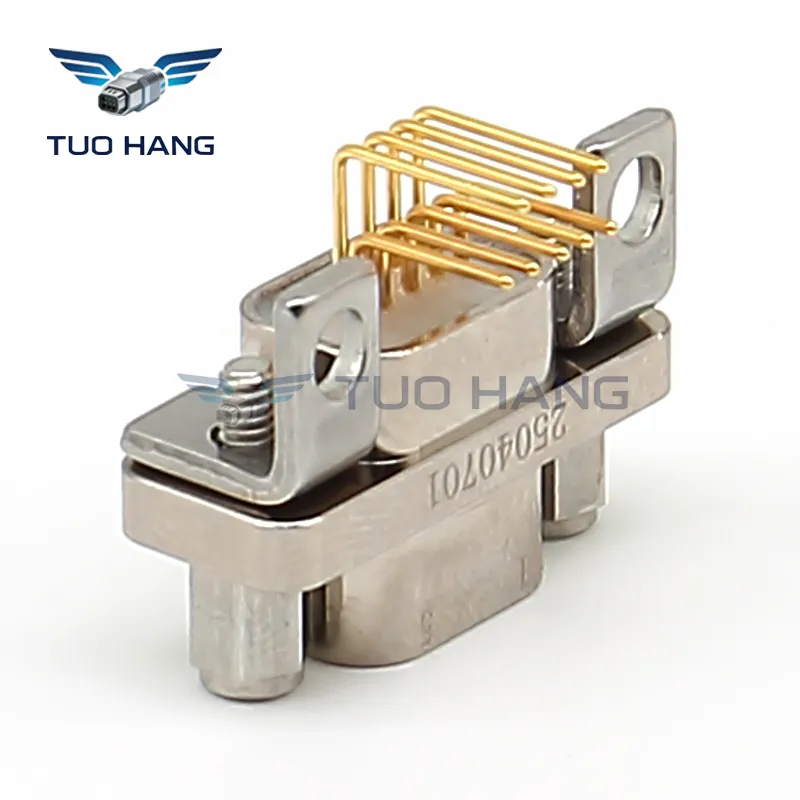

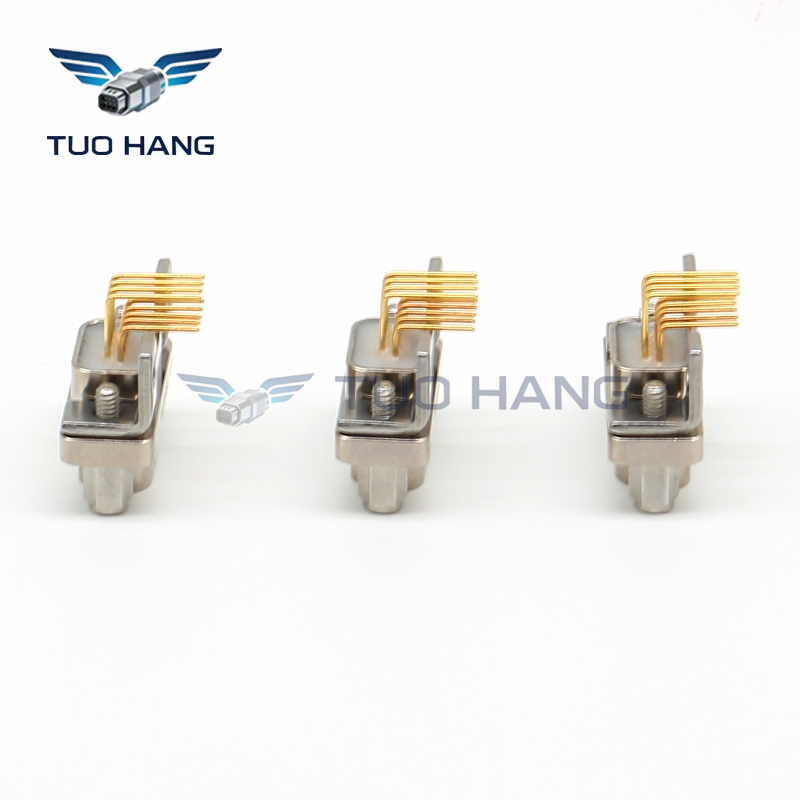

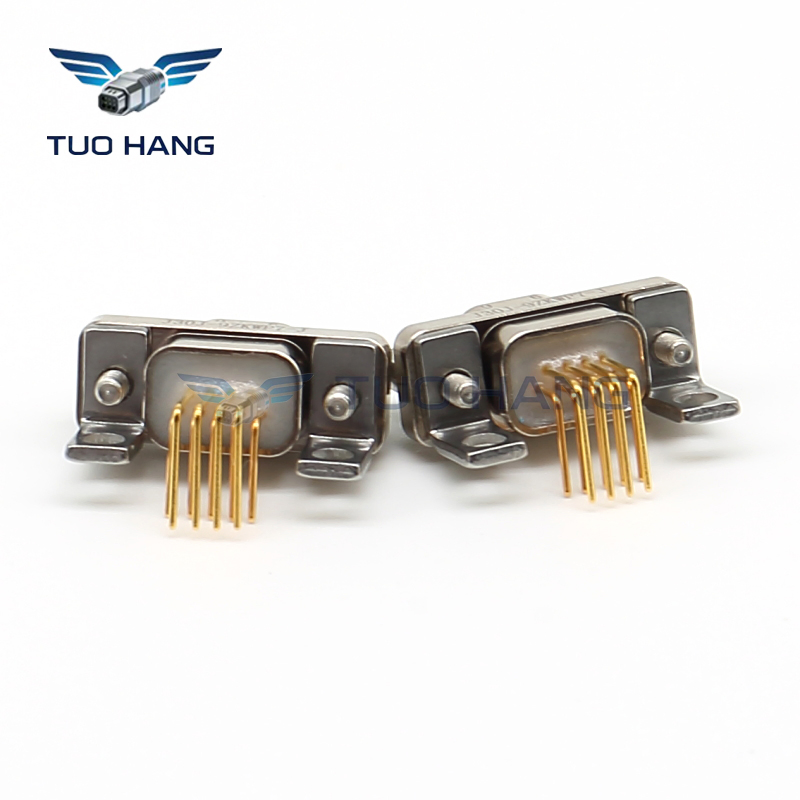

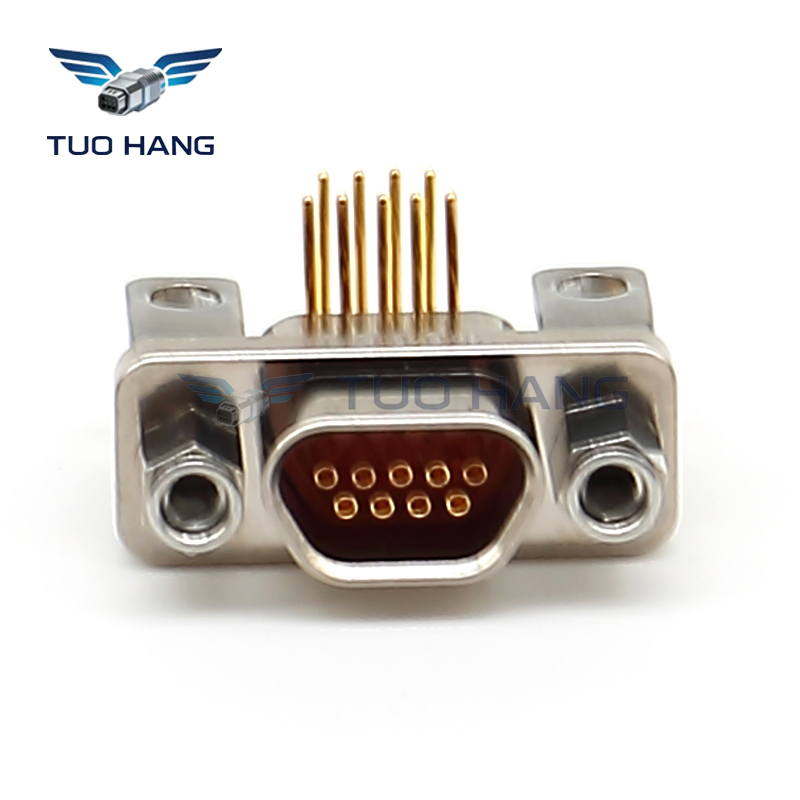

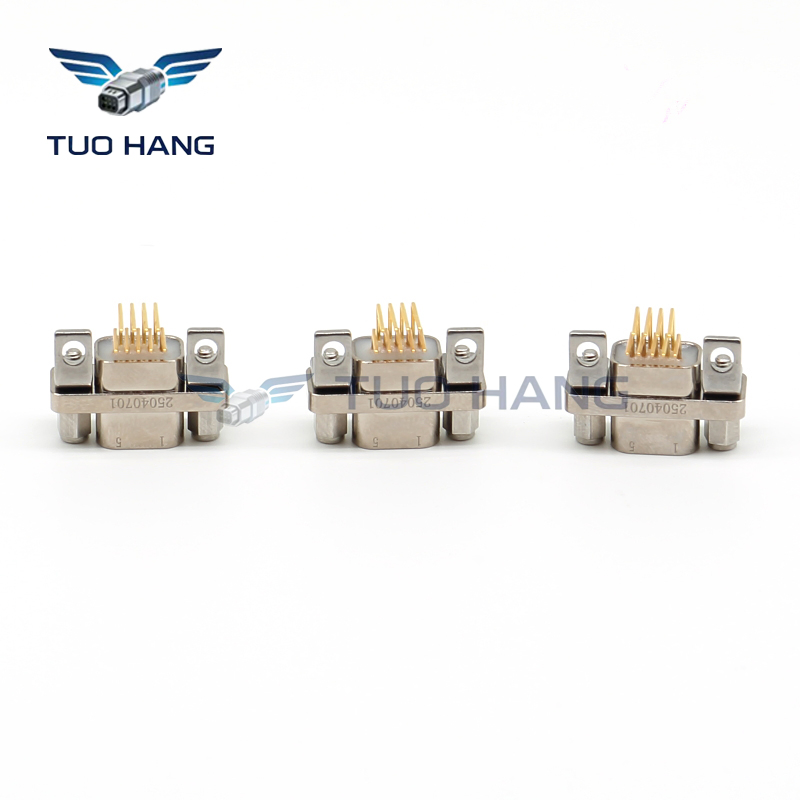

J30J-9ZKWP7-J Micro-D Connector | 9-Pin Mil Grade Receptacle with Wire Leads
The J30J-9ZKWP7-J is an ultra-miniature, high-density rectangular connector designed for elite mil and aerospace applications. It is fully compliant with the GJB2446A standard (equivalent to the U.S. MIL-DTL-83513).
This specific model features a 9-pin receptacle configuration with KW (Wire Lead) termination and P7 hardware. As a Grade J (Mil Grade) component, it undergoes stringent quality screening to ensure unfailing performance in the most mission-critical environments.
| Item | Technical Specification |
|---|---|
| Product Series | J30J (Micro-D) |
| Contact Count | 9 Pins |
| Type | Receptacle (Socket) |
| Termination | KW (Wire Leads / Pigtail) |
| Hardware | P7 Fixed Jackposts/Hardware |
| Quality Grade | J (Mil Grade) |
| Rated Current | 3.0 A |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Strength | 600 V AC (Sea Level) |

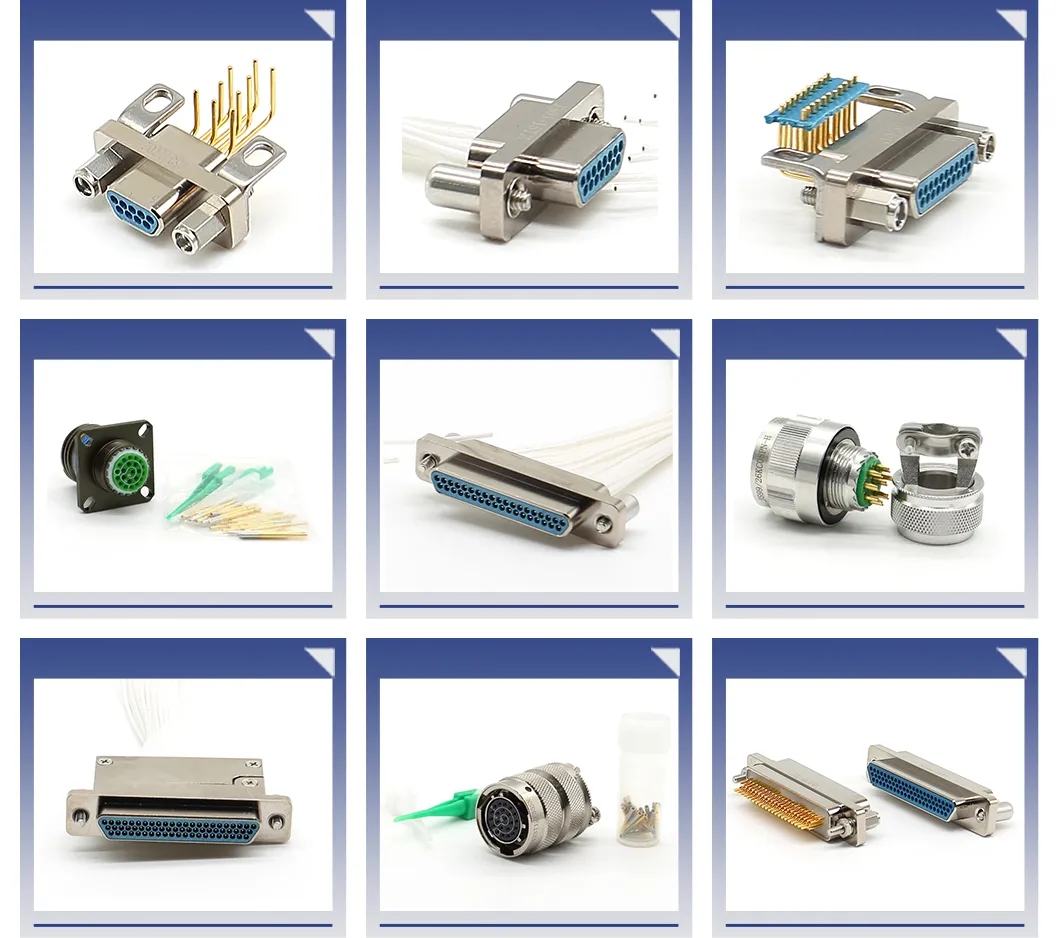

Established in July 2021 with a registered capital of 10 million yuan, the professional enterprise specializes in the research, development and production of electrical connectors. Main products include Y50EX, Y3A, Y3, YB, Y2, YP, Y4, Y11, Y17, Y50, Y27, XC, JY, YM, YGD, XS12, D38999 series circular connectors and J14, J30, J63 series rectangular connectors.
Products meet national mil standards GJB101, GJB598, GJB2889, GJB2905 with more than 1000 specifications. Widely used in aviation, aerospace, ships, weapons, communications, railways, and medical devices.
